Vega VEGAPULS 66 User manual

Operating Instructions
VEGAPULS 66
Profibus PA
Document ID:
36521
Radar

Contents
1About this document
1.1Function.................................. 4
1.2Target group .............................. 4
1.3Symbolism used............................ 4
2For your safety
2.1Authorised personnel ........................ 5
2.2Appropriate use ............................ 5
2.3Warning about misuse ....................... 5
2.4General safety instructions . . . . . . . . . . . . . . . . . . . . 5
2.5CE conformity ............................. 6
2.6NAMUR recommendations . . . . . . . . . . . . . . . . . . . . 6
2.7Radio license for Europe. . . . . . . . . . . . . . . . . . . . . . 6
2.8Radio license for USA/Canada . . . . . . . . . . . . . . . . . 6
2.9Environmental instructions..................... 7
3Product description
3.1Structure ................................. 8
3.2Principle of operation ........................ 9
3.3Packaging,transport and storage ............... 10
3.4Accessories and replacement parts . . . . . . . . . . . . . . 10
4Mounting
4.1General instructions ......................... 12
4.2Instructions for installation ..................... 12
5Connecting to the bus system
5.1Preparing the connection ..................... 23
5.2Connect.................................. 24
5.3Wiring plan,single chamber housing . . . . . . . . . . . . . 25
5.4Wiring plan,double chamber housing . . . . . . . . . . . . 26
5.5Wiring plan with double chamber housing Ex d . . . . . 27
5.6Wiring plan -version IP 66/IP 68,1bar . . . . . . . . . . . 29
5.7Set instrument address ....................... 29
5.8Switch-on phase............................ 30
6Set up with the indicating and adjustment module
6.1Insert indicating and adjustment module. . . . . . . . . . . 31
6.2Adjustment system .......................... 33
6.3Parameter adjustment........................ 34
6.4Saving the parameter adjustment data . . . . . . . . . . . . 47
7Setup with PACTware
7.1Connect the PC ............................ 48
7.2Parameter adjustment with PACTware . . . . . . . . . . . . 48
7.3Saving the parameter adjustment data . . . . . . . . . . . . 49
2VEGAPULS 66 •Profibus
Contents
36521-EN-120301

8Set up with other systems
8.1DD adjustment programs ..................... 50
9Diagnosis,Asset Management and service
9.1Maintaining ............................... 51
9.2Measured value and event memory . . . . . . . . . . . . . . 51
9.3Asset Management function ................... 52
9.4Remove interferences ........................ 56
9.5Exchanging the electronics module . . . . . . . . . . . . . . 60
9.6Software update ............................ 60
9.7How to proceed in case of repair................ 61
10 Dismounting
10.1Dismounting steps .......................... 62
10.2Disposal ................................. 62
11 Supplement
11.1Technical data ............................. 63
11.2Communication Profibus PA ................... 72
11.3Dimensions ............................... 78
Safety instructions for Ex areas
Please note the Ex-specific safety information for installation and
operation in Ex areas.These safety instructions are part of the
operating instructions manual and come with the Ex-approved
instruments.
Editing status:2012-02-08
VEGAPULS 66 •Profibus 3
Contents
36521-EN-120301

1About this document
1.1Function
This operating instructions manual provides all the information you
need for mounting,connection and setup as well as important
instructions for maintenance and fault rectification.Please read this
information before putting the instrument into operation and keep this
manual accessible in the immediate vicinity of the device.
1.2Target group
This operating instructions manual is directed to trained qualified
personnel.The contents of this manual should be made available to
these personnel and put into practice by them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or malfunctions can
result.
Warning:If this warning is ignored,injury to persons and/or serious
damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
4VEGAPULS 66 •Profibus
1About this document
36521-EN-120301

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual must be
carried out only by trained specialist personnel authorised by the plant
operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2Appropriate use
VEGAPULS 66 is a sensor for continuous level measurement.
You can find detailed information on the application range in chapter
"Product description".
Operational reliability is ensured only if the instrument is properly used
according to the specifications in the operating instructions manual as
well as possible supplementary instructions.
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to system
components through incorrect mounting or adjustment.
2.4General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and guidelines.The instrument must only be operated in a
technically flawless and reliable condition.The operator is responsible
for the trouble-free operation of the instrument.
During the entire duration of use,the user is obliged to determine the
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new
regulations.
The safety instructions in this operating instructions manual,the
national installation standards as well as the valid safety regulations
and accident prevention rules must be observed by the user.
For safety and warranty reasons,any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer.Arbitrary
conversions or modifications are explicitly forbidden.
The safety approval markings and safety tips on the device must also
be observed.
VEGAPULS 66 •Profibus 5
2For your safety
36521-EN-120301

Depending on the instrument version,the emitting frequencies are in
the Cor Kband range.The low emitting frequencies are far below the
internationally approved limit values.When used correctly,there is no
danger to health.
2.5CE conformity
The device fulfills the legal requirements of the applicable EC
guidelines.With the CE mark,we provide confirmation of successful
testing.
You can find the conformity certificate in the download section of our
homepage.
2.6NAMUR recommendations
NAMUR is a user association for automation technology in the process
industries in Germany.The published NAMUR recommendations are
accepted as the standard in field instrumentation.
The device fulfills the requirements of the following NAMUR
recommendations:
lNE 21 –Electromagnetic compatibility of equipment
lNE 43 –Standardization of the signal level for malfunction
information from digital transmitters
lNE 53 –Compatibility of field devices and indicating/adjustment
components
lNE 107 -Self-monitoring and diagnosis of field devices
For further information see www.namur.de.
2.7Radio license for Europe
The instrument is approved according to EN 302372-1/2(2006-04)for
use in closed vessels.
2.8Radio license for USA/Canada
The instrument is in conformity with part 15 of the FCC regulations.
Take note of the following two regulations:
lThe device must not generate interfering emissions,and
lThe device must be non-sensitive to interfering immissions,
including those that may cause undesirable operating conditions.
Modifications not expressly approved by the manufacturer will lead to
expiry of the operating licence according to FCC/IC.
The instrument is in conformity with RSS-210 of the IC regulations.
The instrument may only be operated in closed vessels made of metal,
concrete,or fibre-reinforced plastic.
6VEGAPULS 66 •Profibus
2For your safety
36521-EN-120301

2.9Environmental instructions
Protection of the environment is one of our most important duties.That
is why we have introduced an environment management system with
the goal of continuously improving company environmental protection.
The environment management system is certified according to DIN
EN ISO 14001.
Please help us fulfil this obligation by observing the environmental
instructions in this manual:
lChapter "Packaging,transport and storage"
lChapter "Disposal"
VEGAPULS 66 •Profibus 7
2For your safety
36521-EN-120301

3Product description
3.1Structure
The type label contains the most important data for identification and
use of the instrument:
2
1
13
14
15
16
12
11
5
3
6
4
7
8
9
10

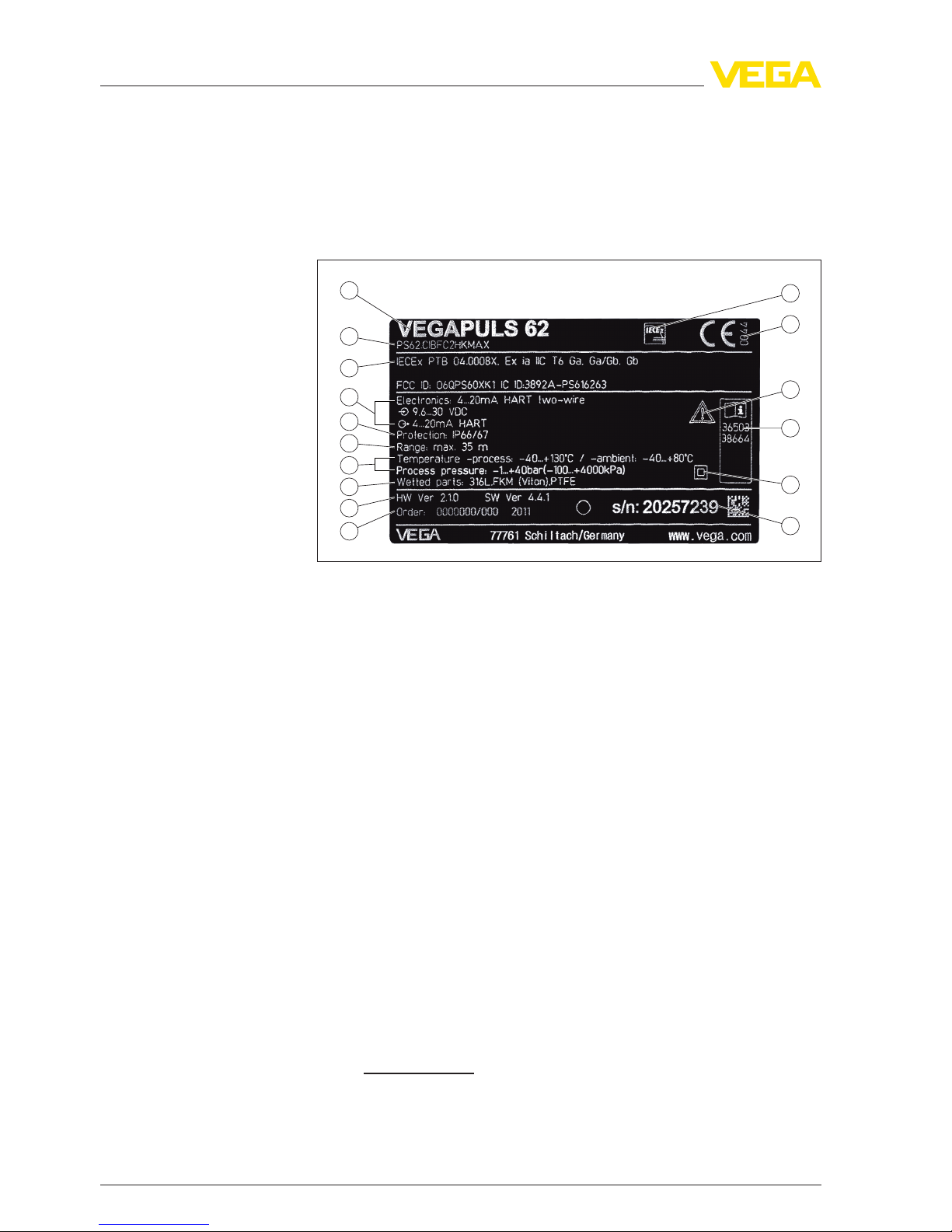

Fig.1:Structure of the type label (example)
1Instrument type
2Product code
3Approvals
4Power supply and signal output,electronics
5Protection rating
6Measuring range
7Process and ambient temperature,process pressure
8Material,wetted parts
9Hardware and software version
10 Order number
11 Serial number of the instrument
12 Symbol of the device protection class
13 ID numbers,instrument documentation
14 Note to observe the instrument documentation
15 Notified authority for CE marking
16 Approval directive
With the serial number of the instrument on the type label you have
access to the following data on our homepage:
lArticle number of the instrument (HTML)
lDelivery date (HTML)
lOrder-specific instrument features (HTML)
lOperating instructions at the time of shipment (PDF)
lOrder-specific sensor data for an electronics exchange (XML)
lTest certificate "Measuring Accuracy"(PDF)
Go to www.vega.com,"Service" "VEGA Tools"and "serial number
search".
Type label
Serial number
8VEGAPULS 66 •Profibus
3Product description
36521-EN-120301

This operating instructions manual applies to the following instrument
versions:
lHardware from 2.1.1
lSoftware from 4.4.0
The scope of delivery encompasses:
lRadar sensor
lDocumentation
-this operating instructions manual
-Test certificate measuring accuracy,depending on the
instrument VEGAPULS 66 (optional)
-Operating instructions manual "Indicating and adjustment
module PLICSCOM"(optional)
-Supplementary instructions "GSM/GPRS radio module"(op-
tional)
-Supplementary instructions manual "Heating for indicating and
adjustment module"(optional)
-Supplementary instructions manual "Plug connector for con-
tinuously measuring sensors"(optional)
-Ex-specific"Safety instructions"(with Ex versions)
-if necessary,further certificates
3.2Principle of operation
The VEGAPULS 66 is a radar sensor for continuous level measure-
ment of liquids under difficult process conditions.It is suitable for
applications in storage tanks,process vessels or standpipes.The
instrument can be used universally thanks to the different antenna
versions.
The version with horn antenna is particularly suitable for the
measurement of liquids and bulk solids under extremely difficult
process conditions such as buildup,condensation and foam gener-
ation as well as strong product movement.
In the version without antenna,the antenna system is formed in
conjunction with a measuring tube (surge or bypass tube). This version
is particularly suitable for measurement of solvents and liquid gases.
The instrument can be used with products with an ε
r
value ≥1.8.The
actually achievable value depends on the measuring conditions,the
antenna system,the standpipe or bypass.
The antenna of the radar sensor emits short radar pulses with a
duration of approx.1ns.These pulses are reflected by the product
and received by the antenna as echoes.The running time of the radar
pulses from emission to reception is proportional to the distance and
hence to the level.The determined level is converted into an
appropriate output signal and outputted as measured value.
Scope of the operating
instructions manual
Scope of delivery
Application area
Functional principle
VEGAPULS 66 •Profibus 9
3Product description
36521-EN-120301

3.3Packaging,transport and storage
Your instrument was protected by packaging during transport.Its
capacity to handle normal loads during transport is assured by a test
according to DIN EN 24180.
The packaging of standard instruments consists of environment-
friendly,recyclable cardboard.For special versions,PE foam or PE foil
is also used.Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out under consideration of the notes on the
transport packaging.Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt.Ascertained transit damage or
concealed defects must be appropriately dealt with.
Up to the time of installation,the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated,the packages must be stored only under
the following conditions:
lNot in the open
lDry and dust free
lNot exposed to corrosive media
lProtected against solar radiation
lAvoiding mechanical shock and vibration
lStorage and transport temperature see chapter "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
3.4Accessories and replacement parts
The indicating and adjustment module PLICSCOM is used for
measured value indication,adjustment and diagnosis.It can be
inserted into the sensor and removed at any time.
You can find further information in the operating instructions "Indicating
and adjustment module PLICSCOM"(Document-ID 27835).
The interface adapter VEGACONNECT enables the connection of
communication-capable instruments to the USB interface of a PC.For
parameter adjustment of these instruments,an adjustment software
such as PACTware with VEGA-DTM is required.
You can find further information in the operating instructions "Interface
adapter VEGACONNECT"(Document-ID 32628).
Packaging
Transport
Transport inspection
Storage
Storage and transport
temperature
Indicating and adjust-
ment module
Interface adapter
10 VEGAPULS 66 •Profibus
3Product description
36521-EN-120301

VEGADIS 61 is an external indicating and adjustment unit for sensors
with single chamber housing and Ex-d double chamber housing.
It is suitable for measured value indication and adjustment of plics
®
sensors and is connected to the sensor with a four-wire,screened
standard cable up to 50 m long.
You can find further information in the operating instructions
"VEGADIS 61"(Document-ID 27720).
The PLICSMOBILE T61 is an external GSM/GPRS radio unit for
transmission of measured values and for remote parameter adjust-
ment of plics
®
sensors.The adjustment is carried out via PACTware/
DTM by using the integrated USB connection.
You can find further information in the supplementary instructions
"PLICSMOBILE T61"(Document-ID 36849).
Flanges are available in different versions according to the following
standards:DIN 2501,EN 1092-1,ANSI B 16.5,JIS B 2210-1984,
GOST 12821-80.
You can find additional information in the supplementary instructions
manual "Flanges according to DIN-EN-ASME-JIS"(Document-ID
31088).
The protective cover protects the sensor housing against soiling and
intense heat from solar radiation.
You will find additional information in the supplementary instructions
manual "Protective cover"(Document-ID 34296).
The electronics module VEGAPULS series 60 is a replacement part
for radar sensors of VEGAPULS series 60.An own version is available
for each type of signal output.
You can find further information in the operating instructions
"Electronics module VEGAPULS series 60"(Document-ID 36801).
External indicating and
adjustment unit
External radio unit
Flanges
Protective cap
Electronics module
VEGAPULS 66 •Profibus 11
3Product description
36521-EN-120301

4Mounting
4.1General instructions
With instruments with threaded process fitting,suitable tools must be
applied for tightening the hexagon.
Warning:
The housing must not be used to screw the instrument in!Applying
tightening force can damage internal parts of the housing.
Use the recommended cables (see chapter "Connecting to power
supply")and tighten the cable gland.
You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry.Rain and condensation water can thus drain off.This
applies mainly to outdoor mounting as well as installation in areas
where high humidity is expected (e.g.through cleaning processes)or
on cooled or heated vessels.
Make sure that all parts of the instrument exposed to the process,in
particular the active measuring component,process seal and process
fitting,are suitable for the existing process conditions.These include
above all the process pressure,process temperature as well as the
chemical properties of the medium.
You can find the specifications in chapter "Technical data"and on the
type label.
4.2Instructions for installation
The emitted radar impulses of the radar sensor are electromagnetic
waves.The polarisation plane is the direction of the electrical wave
component.By turning the instrument in the connection flange or
mounting boss,the polarisation can be used to reduce the effects of
false echoes.
Screwing in
Moisture
Suitability for the pro-
cess conditions
Polarisation plane
12 VEGAPULS 66 •Profibus
4Mounting
36521-EN-120301

The position of the polarisation plane is marked on the process fitting
of the instrument.
1

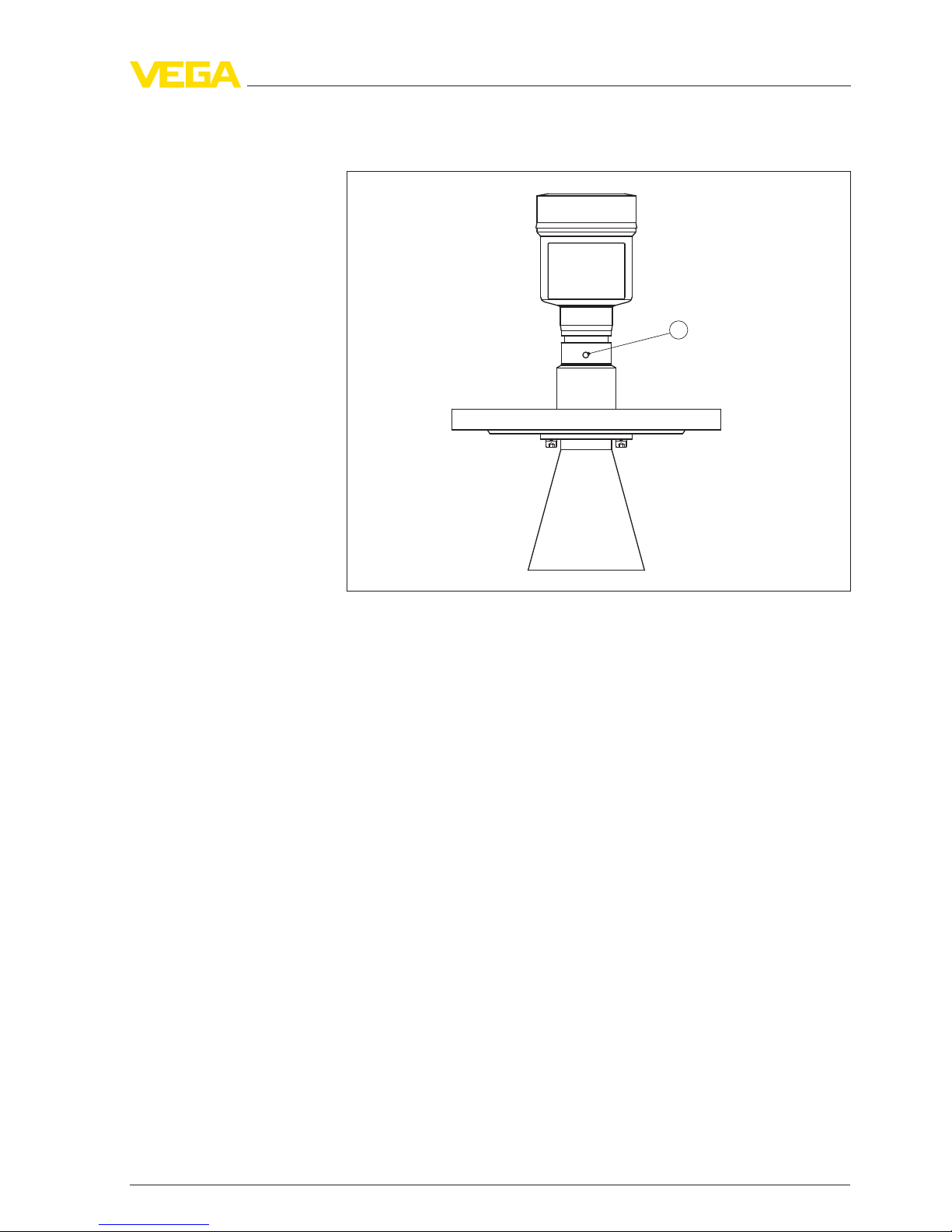

Fig.2:Position of the polarisation plane of VEGAPULS 66
1Marking hole
When mounting the VEGAPULS 66,keep a distance of at least
500 mm (19.69 in)to the vessel wall.If the sensor is installed in the
center of dished or round vessel tops,multiple echoes can arise.
These can,however,be suppressed by an appropriate adjustment
(see chapter "Setup").
If you cannot keep this distance you should carry out a false echo
storage before setup.This applies mainly if buildup on the vessel wall
is expected.In this case,we recommend repeating a false echo
storage later with existing buildup.
Mounting position
VEGAPULS 66 •Profibus 13
4Mounting
36521-EN-120301

> 500 mm
(19.69
")

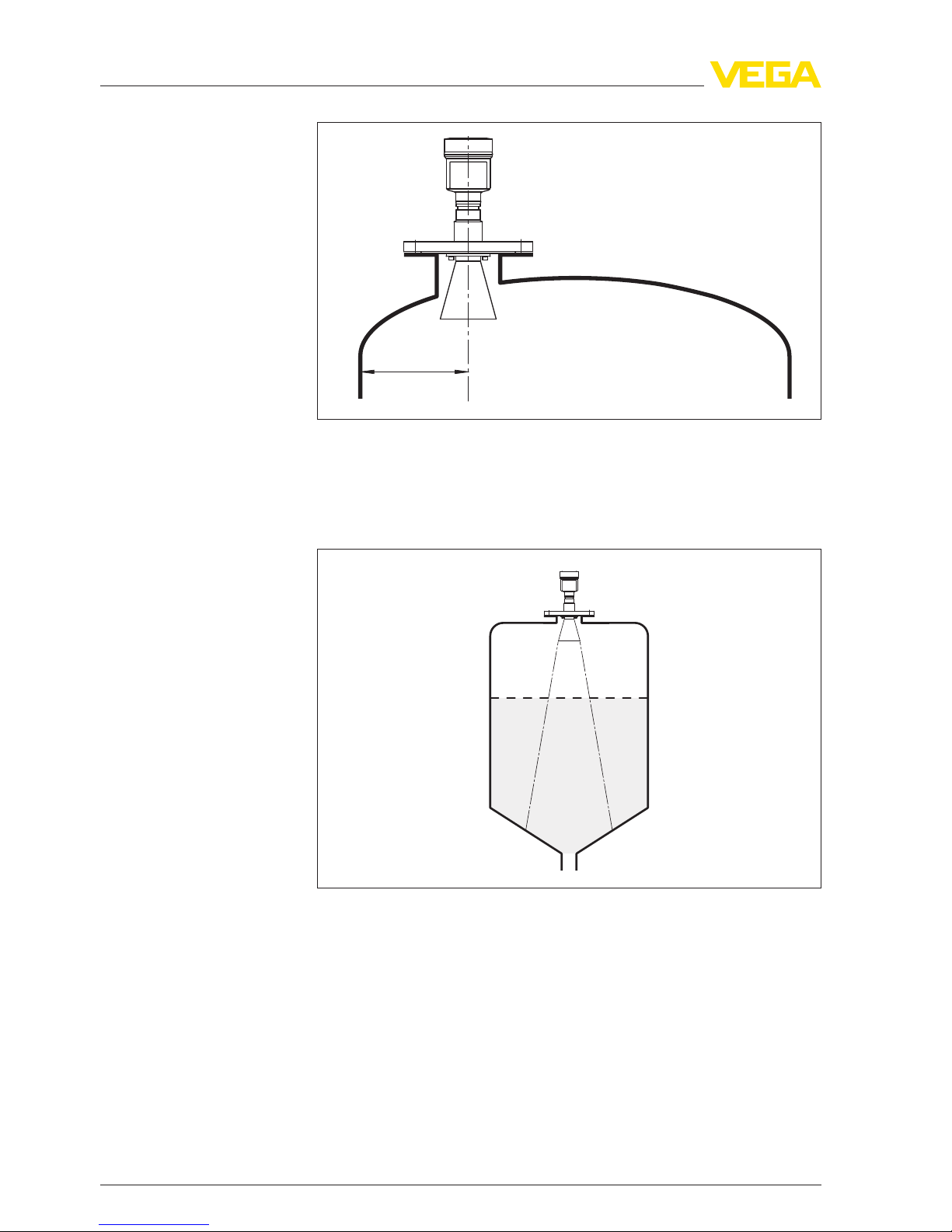

Fig.3:Mounting on round vessel tops
In vessels with conical bottom it can be advantageous to mount the
sensor in the center of the vessel,as measurement is then possible
down to the lowest point of the vessel bottom.
Fig.4:Vessel with conical bottom
Do not mount the instruments in or above the filling stream.Make sure
that you detect the product surface,not the inflowing product.
Inflowing medium
14 VEGAPULS 66 •Profibus
4Mounting
36521-EN-120301

Fig.5:Mounting of the radar sensor with inflowing medium
The socket piece should be dimensioned in such a way that the
antenna end protrudes at least 10 mm (0.4in)out of the socket.
ca. 10 mm
Fig.6:Recommended socket mounting
If the socket height cannot be maintained,an antenna extension will be
necessary.This prevents from false reflections of the socket piece.
Socket
VEGAPULS 66 •Profibus 15
4Mounting
36521-EN-120301

ca. 10 mm
Fig.7:Tube extension
Tip:
VEGAPULS 66 is optionally also available with antenna extension.The
antenna length can thus be selected such that the antenna end
protrudes 10 mm (0.4in)out of the socket.
Align the sensor in liquids as vertical as possible to the product surface
to achieve optimum measurement.
Fig.8:Alignment in liquids
The mounting location of the radar sensor should be a place where no
other equipment or fixtures cross the path of the microwave signals.
Vessel installations,such as e.g.ladders,limit switches,heating
spirals,struts,etc., can cause false echoes and impair the useful echo.
Make sure when planning your measuring site that the radar sensor
has a "clear view"to the measured product.
In case of existing vessel installations,a false echo storage should be
carried out during setup.
Sensor orientation
Vessel installations
16 VEGAPULS 66 •Profibus
4Mounting
36521-EN-120301

If large vessel installations such as struts or supports cause false
echoes,these can be attenuated through supplementary measures.
Small,inclined sheet metal baffles above the installations scatter the
radar signals and prevent direct interfering reflections.
Fig.9:Cover smooth profiles with deflectors
If there are agitators in the vessel,a false signal memory should be
carried out with the agitators in motion.This ensures that the interfering
reflections from the agitators are saved with the blades in different
positions.
Fig.10:Agitators
Through the action of filling,stirring and other processes in the vessel,
dense foams which considerably damp the emitted signals may form
on the product surface.
If foams are causing measurement errors,the biggest possible radar
antenna should be used.
As an alternative,sensors with guided microwave can be used.These
are unaffected by foam generation and are best suited for such
applications.
Agitators
Foam generation
VEGAPULS 66 •Profibus 17
4Mounting
36521-EN-120301

When using a surge pipe in a vessel,influences from vessel
installations and turbulences can be excluded.Under these prereq-
uisites,the measurement of products with low dielectric values (ε
r
value ≥1.6)is possible.In very adhesive products,measurement in a
surge pipe is not recommended.
0%
100%
4
55
6
7
8
10
1
2
3
8
Fig.11:Configuration surge pipe
1Radar sensor
2Marking of the polarisation direction
3Thread or flange on the instrument
4Vent hole
5Holes
6Weld joint
7Welding neck flange
8Ball valve with complete opening
9Fastening of the surge pipe
Instructions for orientation:
lNote marking of the polarisation plane on the sensor
Measurement in a surge
pipe
18 VEGAPULS 66 •Profibus
4Mounting
36521-EN-120301

lWith threaded fitting,the marking is on the hexagon,with flange
connection between the two flange holes
lAll holes in the surge pipe must be in one plane with this marking
Instructions for the measurement:
lThe 100 %point must be below the upper vent hole and the
antenna edge
lThe 0%point is the end of the surge pipe
lThe tube diameter must be at least DN 40 or 1½" with antenna
size 40 mm (1½")
lFor the parameter adjustment,select "Application standpipe"and
enter the tube diameter to compensate errors due to running time
shift
lAfalse signal suppression with integrated sensor is recommended
but not mandatory
lThe measurement through a ball valve with complete run is
possible
Constructional requirements on the surge pipe:
lMaterial metal,smoother inner tube
lPreferably pultruded or straight beaded stainless steel tube
lWelded joint should be straight and lie in one axis with the holes
lFlanges are welded to the tube according to the orientation of the
polarisation level
lIn case of a extension with a welding neck flange or pipe collar as
well as when a ball valve is used,the inner surfaces should be
aligned and accurately joined together
lGap size with junctions ≤0.1mm
lDo not weld through the pipe wall.The surge pipe must remain
smooth inside.Roughness and beads on the inside caused by
unintentional penetration should be removed since they cause
strong false echoes and encourage buildup
lSurge pipes must extend all the way down to the requested min.
level,as measurement is only possible within the tube
lDiameter of holes ≤5mm,any number OK,on one side or
completely through
lThe antenna diameter of the sensor should correspond to the
inner diameter of the tube
lDiameter should be constant over the complete length
An alternative to measurement in a surge pipe is measurement in a
bypass tube outside of the vessel.
Measurement in the by-
pass
VEGAPULS 66 •Profibus 19
4Mounting
36521-EN-120301

0 %
100 %
1
2
5
4
3
6
Fig.12:Configuration bypass
1Radar sensor
2Marking of the polarisation direction
3Instrument flange
4Distance sensor reference plane to upper tube connection
5Distance of the tube connections
6Ball valve with complete opening
Instructions for orientation:
lNote marking of the polarisation plane on the sensor
lWith threaded fitting,the marking is on the hexagon,with flange
connection between the two flange holes
lThe pipe connections to the vessel must be in one plane with this
marking
Instructions for the measurement:
lThe 100 %point must not be above the upper tube connection to
the vessel
lThe 0%point must not be below the lower tube connection to the
vessel
lMin.distance sensor reference plane to the upper edge upper
tube connection >300 mm
20 VEGAPULS 66 •Profibus
4Mounting
36521-EN-120301
