Generac Power Systems MAGNUM MLT4060MVD User manual
ii Owner’s Manual for MLT4060MVD Light Tower
Use this page to record important information about your Light Tower
Record the information found on your unit data label on
this page. See unit serial number location (Unit Serial
Number Locations). The label plate is affixed to the
inside partition, to the left of the control panel console.
Engine and generator serial numbers are located on
separate data plates affixed to the engine and generator
respectively.
When contacting a Generac Mobile Products Authorized
Service Dealer (ASD) about parts and service, always
supply the complete model number and serial number of
the unit.
Operation and Maintenance: Proper maintenance and
care of the Light Tower ensures a minimum number of
problems and keeps operating expenses at a minimum. It
is the operator’s responsibility to perform all safety
checks, to verify that all maintenance for safe operation is
performed promptly, and to have the equipment checked
periodically by an ASD. Normal maintenance, service
and replacement of parts are the responsibility of the
owner/operator and, as such, are not considered defects
in materials or workmanship within the terms of the
warranty. Individual operating habits and usage may
contribute to the need for additional maintenance or
service.
Unit Model Number
Unit Serial Number
Engine Model
Number
Engine Serial
Number
Generator Model
Number
Generator Serial
Number
(000394)
WARNING
Breathing diesel engine exhaust exposes you
to chemicals known to the State of California
to cause cancer and birth defects or other
reproductive harm.
• Always start and operate the engine in a
well-ventilated area.
• If in an enclosed area, vent the exhaust to
the outside.
• Do not modify or tamper with the exhaust
system.
• Do not idle the engine except as necessary.
For more information go to
www.P65Warnings.ca.gov/diesel.
(000393a)
WARNING
CANCER AND REPRODUCTIVE HARM
www.P65Warnings.ca.gov.
Table of Contents
Owner’s Manual for MLT4060MVD Light Tower iii
Section 1: Introduction and Safety
Introduction ..........................................................1
Read This Manual Thoroughly ....................................1
How to Obtain Service .................................................1
Safety Rules .........................................................1
Safety Symbols and Meanings ...........................2
General Hazards ..................................................2
Explosion and Fire Hazards ................................3
Trailer Hazards .....................................................3
Electrical Hazards ................................................3
Battery Hazards ...................................................4
Fuel Hazards ........................................................4
Engine Safety .......................................................4
Operating Safety ..................................................5
Lifting the Unit .............................................................5
Positioning the Unit .....................................................5
Starting the Unit ...........................................................5
Towing Safety ......................................................5
Hitch and Coupling ......................................................5
Running Lights ............................................................5
Wheels and Tires ........................................................5
Safe Towing Techniques .............................................5
Tandem Towing Safety ...............................................5
Reporting Trailer Safety Defects ........................6
Safety and Operating Decals ..............................6
Section 2: General Information
Specifications ....................................................11

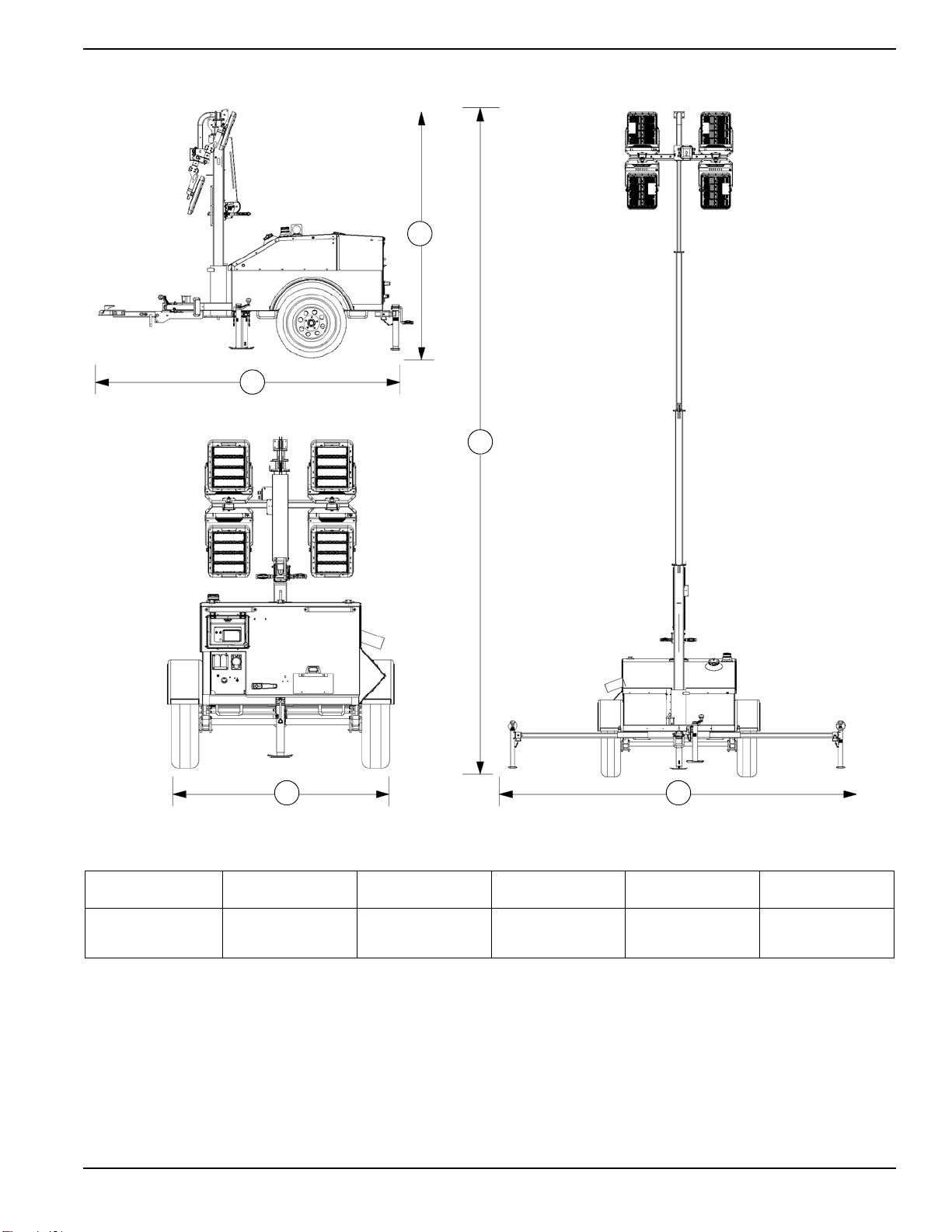

Unit Dimensions ................................................13
Unit Serial Number Locations ..........................14
Component Locations .......................................15

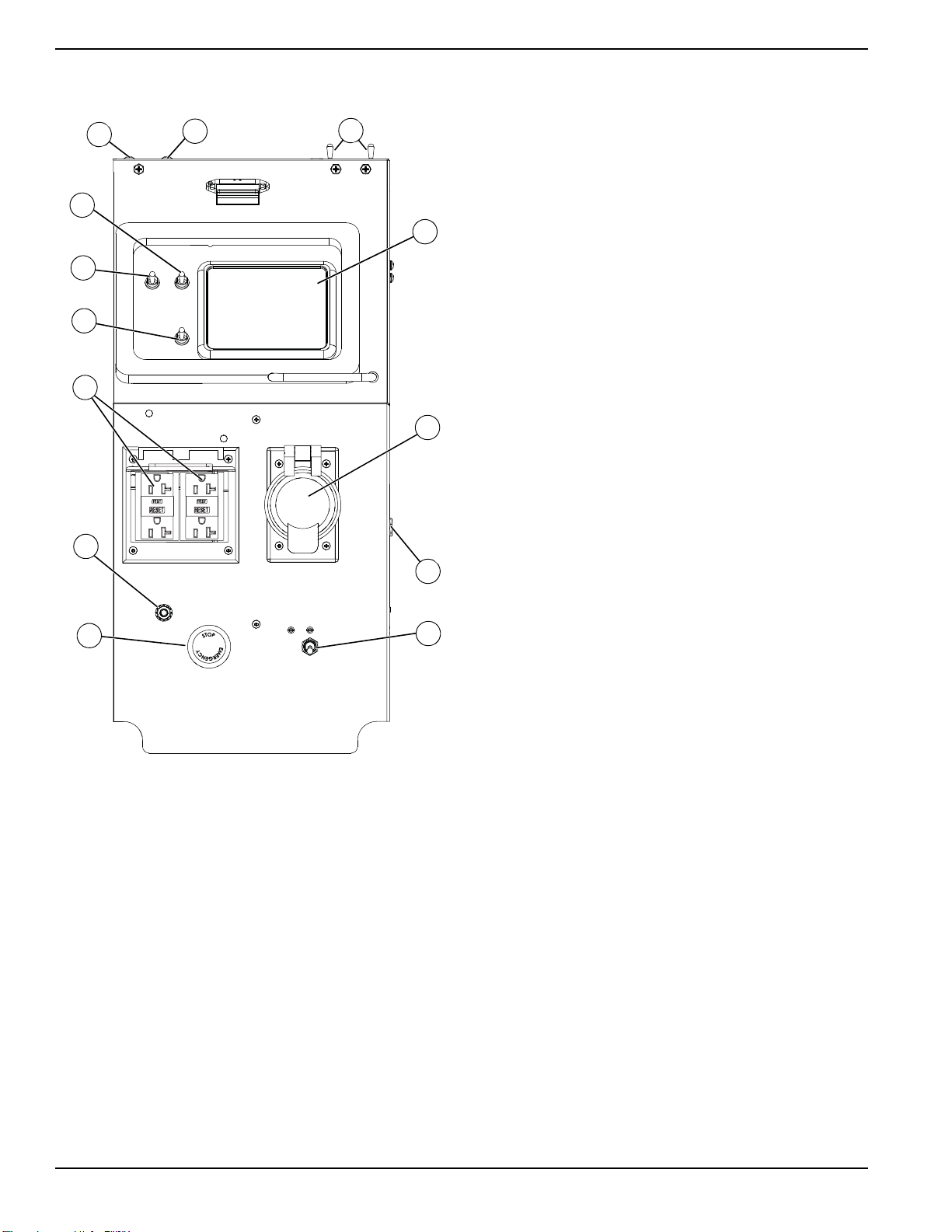

Control Panel .....................................................16
Control Panel Features and Functions ......................16
ECOSpeed™ Engine ..........................................17
Positive Air Shutdown (PAS) (if equipped) .....17
Test the PAS .............................................................17
Reset the PAS ...........................................................17
Lower Radiator Hose Heater (if equipped) ......17
Use and Maintenance ...............................................17
Diesel Fired Block Heater ................................. 17
Heater Lockout Reset Procedure ..............................18
Heated Fuel Filter (if equipped) ........................ 18
Battery Disconnect (if equipped) ..................... 18
Telemetry (if equipped) ..................................... 18
Spark Arrester (if equipped) ............................. 19
Controller Features and Functions ............................19
Operator Screens ......................................................19
Power Zone–DLA ............................................... 19
Section 3: Operation
Light Tower Setup ............................................. 25
Fuel Recommendations .................................... 26
Engine Oil Recommendations ......................... 26
Coolant Recommendations .............................. 26
Standard Units ...........................................................26
Cold Climate / Arctic Package Units ..........................26
Prestart Checklist .............................................. 26
Raising Mast—Manual Winch .......................... 27
Raising Mast—Electric Winch (if equipped) ... 28
Preparing for Start-Up ....................................... 29
Select AUTO Mode or MANUAL Mode .....................29
Start Sequences ................................................30
Standard Units ..........................................................30
Units with Diesel Fired Block Heaters .......................31
Standard Units with Keep Run Switch .......................32
Manually Starting Unit in Low Speed .............. 33
Manually Starting Unit in High Speed ............. 33
Light Operation .................................................. 33
Engine Derating ................................................. 33
Wet Stacking ...................................................... 34
Dusk to Dawn Sensor ....................................... 34
Fuel Level Warning Beacon ............................. 34
Customer Convenience Outlets ....................... 34
Shutting Down the Unit ..................................... 34
Automatic Shutdown ........................................ 35
Emergency Stop ................................................ 35
Lowering Mast—Manual Winch ....................... 35
iv Owner’s Manual for MLT4060MVD Light Tower
Lowering Mast—Electric Winch (if equipped) .35
Electrically Lowering Mast ........................................ 35
Manually Lowering Mast ........................................... 36
Towing the Unit ..................................................36
Tandem Tow .......................................................36
Tying the Unit Down ..........................................37
Lifting the Unit ...................................................37
Section 4: Maintenance
Emissions Information ......................................39
Daily Walk-Around Inspection ..........................39
General Maintenance .........................................39
Preparing for Service ................................................ 39
Cleaning the Unit ...................................................... 39
Inspecting the Unit .................................................... 39
Resetting Maintenance Alarms ........................41
Winch Use, Operation and Maintenance—
Manual ................................................................41
Prior to Use ............................................................... 41
Operation .................................................................. 41
Maintenance ............................................................. 41
Winch Use, Operation and Maintenance—
Electric ................................................................42
Winch Mechanical Brake .......................................... 42
Jack Maintenance ..............................................43
Trailer Wheel Bearings ......................................43
Section 5: General Troubleshooting
Section 6: Electrical Drawings
Wiring Diagrams ................................................47
Legend / Components Located on Engine .............. 47
Components Located on Engine (p. 2) ..................... 48
Components Located on Engine (p. 3) ..................... 49
Components Located on Engine (p. 4) ..................... 50
Accessories .............................................................. 51
Optional Accessories ............................................... 52
AC Components in Control Panel and Alternator
Box ............................................................................ 55
Schematic Diagrams ......................................... 57
Components Located in Mast Box ............................ 57
Components Located in LED Box ............................. 58
Engine Control Module Function Table .................... 59
Engine Control Module Connections ........................ 60
AC Schematic ........................................................... 61
Relays (p. 1) ............................................................. 62
Relays (p. 2) ............................................................. 63
DC Connections (p. 1) .............................................. 64
DC Connections (p. 2) .............................................. 65
Owner’s Manual for MLT4060MVD Light Tower 1
Section 1: Introduction and Safety
Introduction
Thank you for purchasing a Generac Mobile Products LLC
product. This unit has been designed to provide high
performance, efficient operation, and years of use when
maintained properly.
The information in this manual is accurate based on
products produced at the time of publication. The
manufacturer reserves the right to make technical updates,
corrections, and product revisions at any time without
notice.
Read This Manual Thoroughly
If any section of the manual is not understood, contact your
nearest Generac Mobile Products Authorized Service Dealer
(GMPASD), or contact Generac Mobile Products Technical
Service at 1-800-926-9768 or
www.generacmobileproducts.com
with any questions or
concerns
.
The owner is responsible for proper maintenance and safe
use of the equipment. Comply with regulations the
Occupational Safety and Health Administration (OSHA)
has established, or with equivalent standards. Also, verify
that the unit is applied, used, and maintained in accordance
with the manufacturer's instructions and recommendations.
Do nothing that might alter safe application/usage and
render the unit in noncompliance with the aforementioned
codes, standards, laws, and regulations
.
Save these instructions for future reference. This manual
contains important instructions for the unit that should be
followed during setup, operation and maintenance of the
unit and battery. ALWAYS supply this manual to any
individual that will use this machine.
How to Obtain Service
When the unit requires servicing or repairs, contact a
Generac Mobile Products Authorized Service Dealer
(GMPASD) for assistance. Service technicians are factory-
trained and are capable of handling all service needs.
F o r a s s is ta nc e l o c a ti ng a G MPA S D , g o t o:
www.generacmobileproducts.com/parts-service/find-
service
When contacting a GMPASD about parts and service,
always supply the complete model number and serial
number of the unit as given on the data label located on
the unit. Record the model number and serial numbers in
the spaces provided on the inside front cover of this
manual.
See
Unit Serial Number Locations
in Section 2.
Safety Rules
The manufacturer cannot anticipate every possible
circumstance that might involve a hazard. The warnings in
this manual, and on tags and decals affixed to the unit are,
therefore, not all inclusive. If using a procedure, work
method or operating technique that the manufacturer does
not specifically recommend, verify that it is safe for others.
Also make sure the procedure, work method or operating
technique utilized does not render the equipment unsafe.
(000100a)
WARNING
Consult Manual. Read and understand manual
completely before using product. Failure to
completely understand manual and product
could result in death or serious injury.
Introduction and Safety
2Owner’s Manual for MLT4060MVD Light Tower
Safety Symbols and Meanings
Throughout this publication, and on tags and decals affixed
to the unit, DANGER, WARNING, CAUTION and NOTE
blocks are used to alert personnel to special instructions
about a particular operation that may be hazardous if
performed incorrectly or carelessly. Observe them
carefully. Their definitions are as follows:
NOTE: Notes contain additional information important to
a procedure and will be found within the regular text of
this manual.
These safety alerts cannot eliminate the hazards that they
indicate. Common sense and strict compliance with the
special instructions while performing the action or service
are essential to preventing accidents.
General Hazards
(000001)
DANGER
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
(000002)
WARNING
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
(000003)
CAUTION
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Asphyxiation. Running engines produce
carbon monoxide, a colorless, odorless,
poisonous gas. Carbon monoxide, if not
avoided, will result in death or serious injury.
(000103)
DANGER
(000107)
WARNING
Hearing Loss. Hearing protection is
recommended when using this machine.
Failure to wear hearing protection could
result in permanant hearing loss.
(000111)
WARNING
Moving Parts. Keep clothing, hair, and
appendages away from moving parts. Failure
to do so could result in death or serious injury.
(000108)
WARNING
Hot Surfaces. When operating machine, do not
touch hot surfaces. Keep machine away from
combustibles during use. Hot surfaces could
result in severe burns or fire.
(000182a)
WARNING
Equipment damage. Only qualified service personnel may
install, operate, and maintain this equipment. Failure to follow
proper installation requirements could result in death, serious
injury, and equipment or property damage.
WARNING
Risk of injury. Do not operate or service this machine
if not fully alert. Fatigue can impair the ability to service
this equipment and could result in death or serious
injury. (000215)
(000139)
WARNING
Risk of burns. Allow engine to cool before
draining oil or coolant. Failure to do so could
result in death or serious injury.
Introduction and Safety
Owner’s Manual for MLT4060MVD Light Tower 3
Explosion and Fire Hazards
Trailer Hazards
Electrical Hazards
(000105)
DANGER
Explosion and Fire. Fuel and vapors are
extremely flammable and explosive. Add fuel
in a well ventilated area. Keep fire and spark
away. Failure to do so will result in death
or serious injury.
(000147)
WARNING
Risk of Fire. Unit must be positioned in a
manner that prevents combustible material
accumulation underneath. Failure to do so
could result in death or serious injury.
(000110)
WARNING
Risk of Fire. Hot surfaces could ignite
combustibles, resulting in fire. Fire could
result in death or serious injury.
WARNING
Personal injury. Trailer must be securely coupled to
the hitch with the chains correctly attached. Uncoupled
or unchained towing could result in death or serious
injury. (000233a)
Personal injury. Do not operate unit during transport.
Doing so could result in death, serious injury, or
property damage.
(000231a)
WARNING
(000234a)
WARNING
Crushing hazard. Verify unit is properly secured and
on level ground. An unsecured unit can suddenly roll
or move, causing death or serious injury.
WARNING
Property or Equipment Damage. Tighten wheel lug
nuts after first 50 miles to factory specifications.
Failure to do so could result in death, serious injury,
property or equipment damage. (000235)
(000145)
DANGER
Electrocution. In the event of electrical accident,
immediately shut power OFF. Use non-conductive
implements to free victim from live conductor. Apply
first aid and get medical help. Failure to do so will
result in death or serious injury.
(000104)
DANGER
Electrocution. Water contact with a power
source, if not avoided, will result in death
or serious injury.
(000144)
DANGER
Electrocution. Contact with bare wires,
terminals, and connections while generator
is running will result in death or serious injury.
(000152)
DANGER
Electrocution. Verify electrical system is
properly grounded before applying power.
Failure to do so will result in death or serious
injury.
(000188)
DANGER
Electrocution. Do not wear jewelry while
working on this equipment. Doing so will
result in death or serious injury.
DANGER
Electrocution. DO NOT use the unit if
electrical cord is cut or worn through. Doing
so will result in death or serious injury.
(000263a)
Introduction and Safety
4Owner’s Manual for MLT4060MVD Light Tower
Battery Hazards
Always recycle batteries in accordance with local laws and
regulations. Contact your local solid waste collection site
or recycling facility to obtain information on local recycling
processes. For more information on battery recycling, visit
the Battery Council International website at: http://
batterycouncil.org
Fuel Hazards
•DO NOT fill fuel tank near an open flame, while
smoking, or while engine is running. DO NOT fill
tank in an enclosed area with poor ventilation.
•DO NOT operate with the fuel tank cap loose or
missing.
Engine Safety
Internal combustion engines present special hazards
during operation and fueling. Failure to follow the safety
guidelines described below could result in severe injury or
death. Read and follow all safety alerts described in the
engine operator's manual. A copy of this manual was
supplied with the unit when it was shipped from the factory.
•DO NOT run engine indoors or in an area with poor
ventilation. Make sure engine exhaust cannot seep
into closed rooms or ventilation equipment.
•DO NOT clean air filter with fuel or other types of
low flash point solvents.
•DO NOT operate the unit without a functional
exhaust system.
•Shut the engine down if any of the following
conditions exist during operation:
• Abnormal change in engine speed.
• Loss of electrical output.
• Equipment connected to the unit overheats.
• Sparking occurs.
• Engine misfires or there is excessive engine/
generator vibration.
• Protective covers are loose or missing.
• Ambient air temperature is above 120°F (49°C).
(000188)
DANGER
Electrocution. Do not wear jewelry while
working on this equipment. Doing so will
result in death or serious injury.
(000137a)
WARNING
Explosion. Batteries emit explosive gases while charging.
Keep fire and spark away. Wear protective gear when
working with batteries. Failure to do so could result in
death or serious injury.
(000162)
WARNING
Explosion. Do not dispose of batteries in a fire. Batteries
are explosive. Electrolyte solution can cause burns and
blindness. If electrolyte contacts skin or eyes, flush with water
and seek immediate medical attention.
(000163a)
WARNING
Risk of burn. Do not open or mutilate batteries.
Batteries contain electrolyte solution which can
cause burns and blindness. If electrolyte contacts
skin or eyes, flush with water and seek immediate
medical attention.
WARNING
Environmental Hazard. Always recycle batteries at an
official recycling center in accordance with all local
laws and regulations. Failure to do so could result in
environmental damage, death or serious injury.
(000228)
(000192)
DANGER
Explosion and fire. Fuel and vapors are extremely
flammable and explosive. No leakage of fuel is
permitted. Keep fire and spark away. Failure to do
so will result in death or serious injury.
(000174)
DANGER
Risk of fire. Allow fuel spills to completely dry
before starting engine. Failure to do so will
result in death or serious injury.
Introduction and Safety
Owner’s Manual for MLT4060MVD Light Tower 5
Operating Safety
Lifting the Unit
Positioning the Unit
•The area immediately surrounding the unit should
be dry, clean, and free of debris.
•Position and operate the unit on a firm, level
surface.
•If the unit is equipped with a frame grounding stud,
follow any local, state, and National Electrical Code
(NEC) guidelines when connecting.
Starting the Unit
•DO NOT start a unit in need of repair.
Towing Safety
Towing a trailer requires care. Both the trailer and vehicle
must be in good condition and securely fastened to each
other to reduce the possibility of an accident. Some states
require that large trailers be registered and licensed.
Contact your local Department of Transportation office to
check on license requirements for your particular unit.
Hitch and Coupling
•Verify the hitch and coupling on the towing vehicle
are rated equal to, or greater than, the trailer's
Gross Vehicle Weight Rating (GVWR).
•Verify the trailer hitch and the coupling are
compatible. Make sure the coupling is securely
fastened to the vehicle.
•DO NOT tow trailer using defective parts. Inspect
the hitch and coupling for wear or damage.
•Connect safety chains in a crossing pattern under
the tongue.
•Before towing the trailer, verify the weight of the
trailer is equal across all tires. On trailers with
adjustable height hitches, adjust the angle of the
trailer tongue to keep the trailer as level as
possible.
Running Lights
Verify directional and brake lights on the trailer are
connected and working properly.
Wheels and Tires
•Check trailer tires for wear and proper inflation.
•Verify wheel lug nuts are present and tightened to
the specified torque.
Safe Towing Techniques
•Practice turning, stopping and backing up in an
area away from heavy traffic prior to transporting
the unit.
•Maximum recommended speed for highway towing
is 45 mph (72 km/h). Recommended off-road
towing speed is 10 mph (16 km/h) or less,
depending on terrain.
•When towing, maintain extra space between
vehicles and avoid soft shoulders, curbs and
sudden lane changes.
Tandem Towing Safety
This unit is equipped with a tandem tow hitch. This
feature allows the operator to tow a second
MLT4060MVD Light Tower behind the unit.
•Do not use the tandem tow hitch to tow any other
equipment other than a second MLT4060MVD
•Local regulations may limit or prohibit tandem
towing. There may be restrictions on towing speed,
overall vehicle length, the types of roads on which
the units can be towed, and which road lanes are
permissible for towing vehicles. Check with the
local authority having jurisdiction (for example, the
state Department of Transportation) before using
the tandem tow hitch.
•Connect the second MLT4060MVD using the same
procedures and preventative safety measures as
required for a single unit.
WARNING
Personal Injury. Do not use lifting hook if there are
signs of damage or corrosion. Doing so could result
in death, serious injury, or property damage.
(000349)
WARNING
Personal Injury. Do not use lifting hook other than as
directed. Failure to do so could result in death, serious
injury, or property damage.
(000350)
(000260a)
High Voltage. Verify area above unit is clear
of overhead wires and obstructions. Contact
with high-voltage power lines will result in
death or serious injury.
DANGER
DANGER
Electrocution. DO NOT use the unit if
electrical cord is cut or worn through. Doing
so will result in death or serious injury.
(000263a)
Introduction and Safety
6Owner’s Manual for MLT4060MVD Light Tower
Reporting Trailer Safety Defects
If you believe your trailer has a defect which could cause
a crash or could cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying Generac
Mobile Products LLC.
If NHTSA receives similar complaints, it may open an
investigation; and if it finds that a safety defect exists in a
group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved in
an individual problem between you, your ASD, or Generac
Mobile Products LLC.
To contact NHTSA, you may either call the Auto Safety
Hotline toll-free at 1-888-327-4236 (TTY:1-800-424-9153),
go to http://www.safercar.gov; or write to:
Administrator
NHTSA
1200 New Jersey Avenue S.E.
Washington, DC 20590
You can also obtain other information about motor vehicle
safety from http://www.safercar.gov.
Safety and Operating Decals
See Figure 1-1 and Figure 1-2. This unit features
numerous safety and operating decals. These decals
provide important operating instructions and warn of
dangers and hazards. The following diagrams illustrate
decal locations and descriptions.
Replace any missing or hard-to-read decals and use care
when washing or cleaning the unit. Decal part numbers
can be found in the parts manual at
www.generacmobileproducts.com.
ID Description
A Dangers: General Transport and Operating Safety
B Electric Shock Hazard
C Engine Safety
D Ultra Low Sulfur Diesel
E Forklift and Tie-Down Location
F Towing Instructions
G Cable Winding Instruction
H Lifting Point
J Hot Surface
K Tie-Down Location
L Owner’s Manual Storage Location
M Light Tower Setup Instructions
N Rear Jack Storage
P Position of Stowed Mast
Q Outrigger Retraction Warning
RNot A Step
S Pressurized Coolant Hazard
T Entanglement Hazard
U Cutting Hazard
V Hot Surface Warning: Do Not Remove Grille
W Neutral Bonded To Frame
X Electrical Ground
Y Read Manual Before Operating
Z Disconnect Battery Before Servicing
Introduction and Safety
Owner’s Manual for MLT4060MVD Light Tower 7
Figure 1-1. External Decals
Introduction and Safety
8Owner’s Manual for MLT4060MVD Light Tower
ID Description
A Dangers: General Transport and Operating Safety
B Electric Shock Hazard
C Engine Safety
D Ultra Low Sulfur Diesel
E Forklift and Tie-Down Location
F Towing Instructions
G Cable Winding Instruction
H Lifting Point
J Hot Surface
K Tie-Down Location
L Owner’s Manual Storage Location
M Light Tower Setup Instructions
N Rear Jack Storage
P Position of Stowed Mast
Q Outrigger Retraction Warning
RNot A Step
S Hood Lifting Instructions
T Hood Lift Location
U Pressurized Coolant Hazard
V Entanglement Hazard
W Cutting Hazard
X Hot Surface Warning: Do Not Remove Grille
Y Neutral Bonded To Frame
Z Electrical Ground
AA Read Manual Before Operating
BB Disconnect Battery Before Servicing
Introduction and Safety
Owner’s Manual for MLT4060MVD Light Tower 9
Figure 1-2. Internal Decals
U
V
W
X
J
Y
Z
B
AA
BB
Introduction and Safety
10 Owner’s Manual for MLT4060MVD Light Tower
This page intentionally left blank.
Owner’s Manual for MLT4060MVD Light Tower 11
Section 2: General Information
Specifications
DESCRIPTION UNIT OF MEASURE MLT4060MVD
Engine
Make — Mitsubishi®
Model — L3E-W464MLD
EPA Tier — Tier 4 Final
Horsepower—Prime hp (kW) 10.5 (7.8)
Horsepower—Standby hp (kW) 12.2 (9.1)
Operating Speed rpm 1,350/1,800
Displacement in3 (L) 57.97 (0.95)
Cylinders quantity 3
Fuel Consumption—Full Load gph (Lph) 0.549 (2.078)
Fuel Consumption—Low Speed (Lights Only) gph (Lph) 0.19 (0.738)
Battery Type—Group Number — 24
Battery Voltage quantity per unit 12 (1)
Battery Rating cold-cranking amps (CCA) 440
Generator
Make — Marathon®
Model — 331CSA3018
Type, Insulation — Brushless, F
Generator Set (Engine/Generator)
Output - Standby kW (kVA) 6.0 (6.0)
Output Voltage volts 120/240, single phase
Output Amperes 120V (240V) amperes 50 (25)
Frequency Hz Hertz 60
Power Factor percentage 1 (1Ø)
CSA Listed — Yes
Weights
Dry Weight lb (kg) 1,694 (768)
Operating Weight lb (kg) 2,770 (1,256)
Capacities
Fuel Tank Volume gal (L) 110 (416.4)
Usable Fuel Volume gal (L) 104 (393.7)
Coolant (including engine) qt (L) 4.5 (4.3)
Oil (including filter) qt (L) 5.5 (5.2)
Maximum Run Time
Operating with LED Lights Only hr 533
Operating with LED Lights and Export Power hr 189
General Information
12 Owner’s Manual for MLT4060MVD Light Tower
DESCRIPTION UNIT OF MEASURE MLT4060MVD
Lighting
Lighting Type — Light-Emitting Diode (LED)
Driver (4) — Mean Well HLG-320H-30A
Lumens lm 172,200
AC Distribution
Circuit Breaker Size amperes 30
Voltage Selection — N/A
Voltage Regulation — AVR ± 1%
Voltages Available 1Ø volts 120, 240
Voltages Available 3Ø volts N/A
Trailer
Number of Axles quantity 1
Capacity—Axle Rating lbs (kg) 3,000 (998)
Tire Size in (cm) 13 (33)
Hitch—Standard — 2 in ball
Maximum Tire Pressure psi (kPA) 50 (345)
Specifications are subject to change without notice.
General Information
Owner’s Manual for MLT4060MVD Light Tower 13
Unit Dimensions
Figure 2-1. Unit Dimensions
Specifications are subject to change without notice.
ABCDE
MLT4060MVD 124.5 in
(316.23 cm)
101.2 in
(257.05 cm)
23 ft
(7 m)
68.2 in
(173.23 cm)
144.8 in
(367.80 cm)
A
B
C
D E
008451
General Information
14 Owner’s Manual for MLT4060MVD Light Tower
Unit Serial Number Locations
Refer to the illustration to locate the unit ID tag and Vehicle Identification Number (VIN) tag on the unit. Important
information, such as the unit serial number, model number, VIN and tire loading information are found on these tags.
Record the information from these tags so it is available if the tags are lost or damaged. When ordering parts or
requesting assistance, you may be asked to provide this information.
Figure 2-2. Serial Number Locations
TIRE AND LOADING INFORMATION
RENSEIGNEMENTS SUR LES
PNEUS ET LE CHARGEMENT
SEE OWNER’S
MANUAL FOR
ADDITIONAL
INFORMATION
VOIR LE
MANUEL DE
L’USAGER
POUR
PLUS DE
RENSEIGNEMENTS
MANUFACTURED BY/FABRIQUE PAR: Generac Mobile Products, LLC DATE: 00/0000
GVWR/PNBV: 000KG (0000LBS) COLD INF. PRESS./
PRESS. DE
V.I.N./N.I.V.:
00000000000000000
TYPE:
TRAILER
MODEL:
XXX000
GAWR / PNBE TIRE / PNEU RIM / JANTE GONF A FROID - KPA(PSI/LPC) SGL / DUAL
EACH
AXLE
THIS VEHICLE CONFORMS TO ALLAPPLICABLE STANDARDS PRESCRIBED UNDER THE U.S. FEDERAL MOTOR VEHICLE SAFETY STANDARDS(FMVSS)AND CANADIAN
MOTOR VEHICLE SAFETY REGULATIONSIN EFFECT ON THE DATE OF MANUFACTURE.
CE VEHICULE EST CONFORMEA TOUTES LES NORMES QUI LUI SONT APPLICABLES EN VERTU DU REGLEMENT SUR LA SECURITE DES VEHICULESAUTOMOBILES DU CANADA EN VIGUEUR A LA DATESA
FABRICATION.
The weight of cargo should never exceed 0000KG (0000LBS)
Le poids du chargement ne doit jamais depasser 0000KG (0000LBS)
Vin Tag Unit ID Tag
Located on control box
Serial Number
V
A
Model
KVA
Manufacturing Code
1 ph. 1.0PF 3 ph. .8PF 3 ph. 1.0PF
KW
Country of Origin
Weight (lbs/kg) RPM/Frequency
Rating
Ins. Class
FOR ELECTRICAL EQUIPMENT
ONLY.POUR MATERIAL
ELECTRIQUE SEULEMENT.
209649
Form: SFC626B
Manufactured by GENERAC MOBILE PRODUCTS, LLC
(920) 361-4442 (800) 926-9768
008347
General Information
Owner’s Manual for MLT4060MVD Light Tower 15
Component Locations
Figure 2-3. Component Locations
A Fuel fill I Junction box
B Forklift pocket and tie-down point J Lights (4)
C Outrigger jack (2) K Central lift point
D Outrigger (2) L Snow hood
E Tongue jack M Rear jack / Tandem tow hitch receiver
F Tie-down point N Control box
G Rear jack storage O Engine access
H Mast rotation knob P Fuel level warning beacon
QWinch
A
I
C
D
H
G
FE
D
C
B
B
B
N
O
P
Q
M
K
J
L
General Information
16 Owner’s Manual for MLT4060MVD Light Tower
Control Panel
Figure 2-4. Control Panel
Control Panel Features and Functions
(A) DC Circuit Breaker
Resets the DC electrical circuit that powers the control
panel and engine components.
(B) Driver Return Line Breaker (DRLB)
Protects all four drivers.
(C)
Mast Light Circuit Breakers (2)
Circuit breakers for the LED light fixtures.
(D)
PowerZone®–DLA
This controller serves as the main control unit for the
Light Tower. See the following pages for details.
(E) 240V/30A Twist-Lock Receptacle (or 240V/30A RV
Receptacle, if equipped)
Customer convenience outlet for connecting auxiliary
equipment such as fans, pumps and drills.
(F) 120V Breakers (2)
Provides circuit protection for the 120V/20A GFCI outlet.
(G) 240V Breaker
Main disconnect and circuit protection for the 240V/30A
twist-lock and 120V GFCI receptacles.
(H) Emergency Stop Button
Stops the engine immediately in an emergency. For more
information, see Emergency Stop.
(I) Ground Stud
An electrical grounding stud for connecting an earth
ground to the unit if required. Follow local, state, or
National Electric Code (NEC) guidelines.
(J) 120V/20A GFCI Receptacle
Customer convenience receptacle for use in connecting
auxiliary equipment such as fans, pumps, drills. Includes
a GFCI test and reset button.
(K) Mast Switch (electric winch units only)
Raises and lowers the mast on units equipped with an
electric winch.
(L) Automatic Load Sense Switch
Automatic Load Sense works in tandem with the
ECOSpeed engine to adjust engine operating speed
according to lighting and export power requirements. The
240VAC receptacle breaker (F) must be ON to enable
Automatic Load Sense.
•Turning Automatic Load Sense switch ON
enables Automatic Load Sense—the default
setting for normal export power operation.
•Turning Automatic Load Sense switch OFF
disables Automatic Load Sense and allows the
engine to run at high speed when the 240VAC
outlet breaker (H) is ON. Use this setting when
connecting equipment that requires a higher
starting amperage, such as air conditioners, air
compressors, or submersible pumps.
(M) Control Power Switch
Enables power supply to the Power Zone–DLA.
A
M
K
J
I
HG
F
E
D
C
L
B
