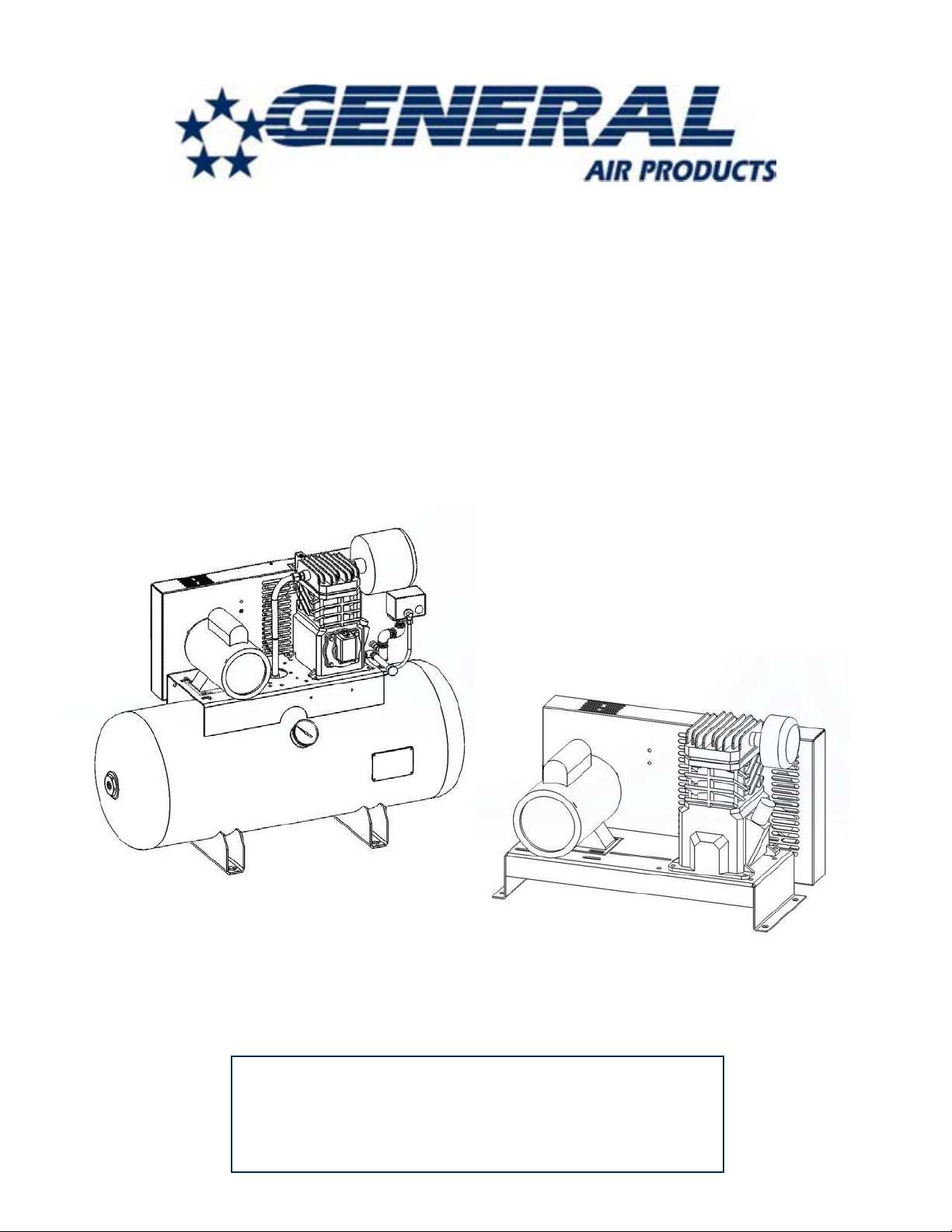

General Air Products LT Series User manual

L & LT Series
Base and Tank Mounted Lubricated Air Compressors
Installation, Operation and
Maintenance Manual
Version 1.6
3-2020
Call 1-800-345-8207
or visit our web site for our complete product listing
www.GeneralAirProducts.com

1-800-345-8207

Table of Contents
Section 1 - Safety & Warnings
1.1 Safety Guidelines
1.2 General Safety Information
1.3 Safety Notes
Section 2 - Receiving
Section 3 - Installation Location
Section 4 - Mounting
Section 5 - Lubrication
Section 6 - Piping
6.1 - Piping Instructions
6.2 - L Series Base Mounted Lubricated Compressor Installation Drawing
6.3 - LT Series Tank Mounted Lubricated Compressor Installation Drawing
Section 7 - Wiring
7.1 - Wiring Instructions
7.2 - Lubricated Compressor Single & 3 Phase Wiring Drawing (IEC Version)
7.3 - Lubricated Compressor Single & 3 Phase Wiring Drawing (NEMA Version)
Section 8 - Maintenance Instructions
Section 9 - Troubleshooting Guide
Section 10 - Warranty Policy
If there are any questions regarding installation, operation, or maintenance of this compressor, please
call 800-345-8207
1-800-345-8207
IMPORTANT: ALL INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE.
Consult factory for the most up to date version of this manual - 1-800-345-8207.

Section 1 - Safety & Warnings
1.1 Safety Guidelines
This manual contains information that is very important to know and understand. This information is provided for SAFETY
and to PREVENT EQUIPMENT PROBLEMS. To help recognize this information, observe the following symbols.
Danger indicates an imminently hazardous situation which, if not avoided, WILL
result in death or serious injury.
Warning indicates a potentially hazardous situation which, if not avoided COULD
result in death or serious injury.
Caution indicates a potentially hazardous situation which, if not avoided, MAY result
in minor or moderate injury.
Notice indicates important information, that if not followed may cause damage to
equipment.
1.2 General Safety Information
1. Read all manuals included with this product carefully. Be thoroughly familiar with the controls and the
proper use of the equipment
2. Follow all local electrical and safety codes as well as National Electrical Codes (NEC), Occupational
Safety and Health Act (OSHA), and National Fire Protection Association (NFPA)
3. Only persons familiar with these rules of safe operation should be allowed to use the equipment.
4. Keep visitors away and NEVER allow children in the work area.
5. Wear safety glasses and use hearing protection when operating the unit.
6. Do not stand on or use the unit as a handhold.
7. Periodic inspection and test of this equipment is required. Consult your installer and local codes to
meet all requirements.
8. Check all fasteners at frequent intervals for proper tightness.
1.3 Safety Notes
- This compressor is not equipped and should NOT be used “as is” to supply breathing
quality air.
- Motors, electrical equipment and controls can cause electrical arcs that will ignite
flammable gas or vapor. Never operate or repair in or near flammable gas or vapor.
Never store flammable liquids or gasses near the compressor.
- These compressors are suitable for pumping only atmospheric air. As defined in
Compressed Gas Association Pamphlet G-7, page 3, atmospheric air is a mixture of
elements and compounds where nitrogen and oxygen comprise more than 99% with all
other trace gasses comprising less than 1%. Do not use this compressor in
contaminated environments or for pumping mixtures other than atmospheric air.
- Compressed air contains liquid water and is saturated with water vapor, which can
freeze when surrounding temperatures are lower than 32oF (0oC). Component selection
to minimize the effects of water vapor must be considered.
1-800-345-8207

Section 2 - Receiving
Your compressor is inspected at the factory and packaged to protect against shipping damage. When the compressor is
unpacked, inspect for damage or missing parts. All claims should be settled directly with the freight company.
- Do not operate this compressor if damaged during shipment, handling or use. Any
damage may result in failure and cause injury or property damage.
Section 3 - Installation Location
Locate the compressor in a clean, well ventilated area where air is relatively cool, clean and dry. A 110oF (35oC) maximum
and 40oF (4.5oC) minimum temperature for surrounding and inlet air are recommended. Provide at least 12 to 18 inches of
clearance from any wall or other obstruction that will interfere with airflow through the flywheel. The flywheel is located inside
the belt guard. Blocking airflow through the flywheel may cause the compressor to over heat. Do not place the compressor
in an area of excessive heat, such as near a boiler.
- DO NOT connect compressor intake to freezer room. Call 800-345-8207 for more
information.
Section 4 - Mounting
The compressor must be mounted to a firm level base. Permanent installations should be bolted to the base using the bolt
holes provided. Always shim the unit level before bolting it to the floor. Vibration isolators (Part #: KVP4X4) are included
with each compressor. When using vibration isolator pads, do not draw bolts tight. Allow the pads to absorb vibrations. It is
recommended that the supplied flexible hose (Part #: P3002MP) be installed between the compressor and service piping
to reduce vibration and the likelihood of damage to the compressor.
Section 5 - Lubrication
All tank models and all base models L620 and larger are shipped filled with specially formulated compressor oil (part #:
APC01Q). Spare oil is shipped in a marked container. This oil should be used to replace any oil lost in shipping and for
maintenance oil changes. Do not overfill the oil reservoir. Over-filling the reservoir will result in oil leaking from the reservoir
breather during operation.
Base models L200 to L425 are not filled with oil for shipment. Use the oil
shipped with these compressors to fill until sight glass is 1/2 to 2/3 full. Run
compressor briefly, recheck oil level and adjust if needed.
- Some compressors are shipped with oil.
Check oil level before operation.
- All lubricated compressors have an oil
site glass. Oil should be filled until the
sight glass is 1/2 to 2/3 full.
1-800-345-8207
Model Number Oil Volume
L(T)20033 8 ounces
L(T)29050 8 ounces
L(T)36575 12 ounces
L(T)425100 12 ounces
L(T)620100 17 ounces
L(T)900150 17 ounces
L(T)1220200 8.5 ounces
L(T)1300300 8.5 ounces
L(T)1600300 1 1/2 quarts
L(T)2000500 1 1/2 quarts
L(T)2500500 1 1/2 quarts

Section 6 - Piping
6.1 Piping Instructions
- Compressed air contains liquid water and is saturated with water vapor, which can
freeze when surrounding temperatures are lower than 32oF (0oC). Component
selection to minimize the effects of water vapor must be considered.
6.1.1 - All Lubricated Compressors:
Piping between the compressor, accessory items and the sprinkler system should be at least 1/2” internal diameter to
minimize pressure drop from the compressor to the system. Larger pipe size may be required by code and may be
substituted with no adverse effects. Smaller pipe size must not be used. Smaller pipe size will restrict the compressor flow,
lowering capacity and cause the compressor / motor to work harder which shortens the compressor / motor life. All piping
connected to the compressor must be fully supported and not transfer any loads to the compressor.
The compressor outlet piping should contain an accessible drain. As a minimum a manual drain may be used, but an
automatic drain (Part #: CDF2000) is recommended to remove excess water.
6.1.2 - On Base Mounted Units (L Series):
If an AMD-2 (General Air Products model air maintenance device) is used to operate the compressor motor, allow sufficient
distance between the compressor and AMD-2 to ensure that the maximum temperature at the AMD-2 is 200oF or less. The
relief valve shipped with each unit must be installed between the compressor and AMD-2.
General Air Products recommends that all compressors 2 HP and larger are tank mounted. Failure to either tank mount
these compressors or to install according to the installation drawing (Section 6.2 of this manual), will cause overpressure of
the compressor and cause overheating of the motor.
- Failure to install a relief valve between the compressor and AMD can cause over
pressure of the compressor and blown head gaskets.
6.1.3 - On Tank Mounted Units (LT Series):
A relief valve is mounted on the compressor’s tank. This valve will open at a preset value above the pressure switch setting
to prevent excess tank pressure in the event of switch failure.
If an AMD-1 (General Air Products model air maintenance device) is used, allow sufficient distance between the compressor
and AMD-1 to ensure that the maximum at the AMD-1 is 200oF or less.
A manual tank drain is provided on the bottom of each tank mounted compressor. Moisture accumulated in the tank must
be drained weekly. An automatic drain (Part #: CDF2000) is recommended in areas of high humidity.
- Do not attempt to change the safety relief valve setting.
- Accumulation of condensed water in the system can cause corrosion of components
and reduction of system capacity.
- Warranty is void if a separate check valve is not installed to prevent water backflow to
compressor.
1-800-345-8207

Section 6 - Piping
6.2 L Series Base Mounted Lubricated Compressor Installation Drawing
ALL PIPING AND WIRING
TO BE IN ACCORDANCE WITH
APPLICABLE STATE, LOCAL
AND NATIONAL CODES &
SHOULD BE APPROVED BY AHJ
BASE MOUNTED LUBRICATED COMPRESSORS
INSTALLATION INSTRUCTIONS
PRESSURE SWITCH IS FACTORY SET
AT 30# CUT, IN 40# CUT OUT. HIGHER
PRESSURE SETTINGS MAY REQUIRE A
LARGER MOTOR. CONSULT FACTORY
FOR DETAILS.
PRESSURE SWITCH MUST BE WIRED IN
CIRCUIT TO CONTROL COMPRESSOR.
FIELD PIPING - SUFFICIENT LENGTH
OF PIPING MUST BE USED TO ENSURE
MAXIMUM TEMPERATURE OF 200 DEG. F
AT THE AIR MAINTENANCE DEVICE OR
FAILURES WILL OCCUR.
BELTGUARD AFTERCOOLER RECOMMENDED
IF SHORT PIPE RUNS ARE USED.
CONNECT TO REQUIRED
SYSTEM TRIM
200 F MAX.
T
P/N AMD-2
AIR MAINTENANCE DEVICE
WITH BUILT IN PRESSURE
SWITCH.
1/2" MINIMUM
(LARGER IF REQUIRED
BY CODE)
MOST MOTORS ARE MULTIPLE
VOLTAGE. CHECK NAMEPLATE
AND VERIFY CORRECT INTERNAL
CONNECTIONS FOR VOLTAGE
BEING SUPPLIED TO UNIT.
MAGNETIC STARTER
RECOMMENDED
(CONSULT APPLICABLE
CODES)
MULTIPLE CHECK
VALVES IN FEED
LINES CAN RESULT
IN LOWER SYSTEM
PRESSURES DUE TO
PRESSURE DROPS
30" FLEX HOSE
SUPPLIED WITH
COMPRESSOR
IF SYSTEM IS FEEDING FREEZER
ROOM CONSULT FACTORY FOR
DRY AIR PAC INFORMATION.
ACCELERATOR
TANK MOUNTED UNITS ARE
RECOMMENDED FOR USE
WITH ACCELERATORS
INSTALL ALLOWING EASY
ACCESS TO BELTGUARD
FOR MAINTENANCE CHECKS.
12" CLEARANCE INFRONT AND
BEHIND BELTGAUARD REQUIRED
MANUAL DRAIN
RECOMMENDED AS
MINIMUM.
OR
AUTOMATIC DRAIN (P/N FD-1)
RECOMMENDED ON DRIP LEG
TO REMOVE EXCESS WATER
ACCUMULATION.
USA
General Air Products
NOTE: L20033 TO L425100
ARE SHIPPED WITHOUT OIL
INSTALLED. ADD OIL (P/N
APC01Q) BEFORE
OPERATING
ALL COMPRESSORS, 2 HP AND
LARGER, SHOULD BE TANK
MOUNTED OR PIPED IN ACCORDANCE
WITH THESE INSTALLATION INSTRUCTIONS.
VIBRATION ISOLATORS
SUPPLIED WITH COMPRESSOR
PART NUMBERS LISTED ARE FOR ACCESSORY ITEMS RECOMMENDED FOR COMPLETE INSTALLATION - CONSULT YOUR LOCAL DISTRIBUTOR FOR AVAILABILITY
1-800-345-8207

Section 6 - Piping

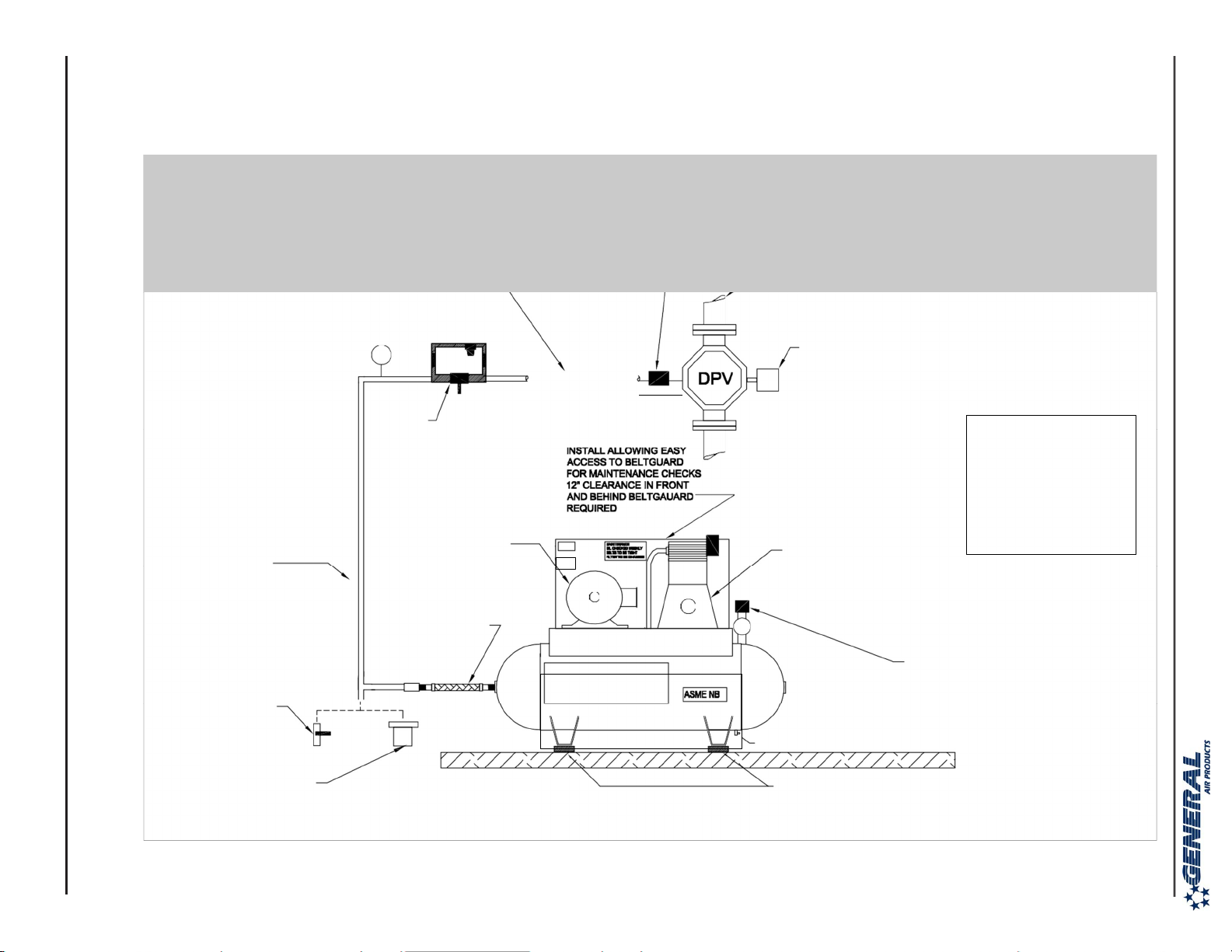

6.3 LT Series Tank Mounted Lubricated Compressor Installation Drawing
ALL PIPING AND WIRING TO BE
IN ACCORDANCE WITH
APPLICABLE STATE, LOCAL
AND NATIONAL CODES &
SHOULD BE APPROVED BY AHJ
TANK MOUNTED LUBRICATED COMPRESSORS
INSTALLATION INSTRUCTIONS
MULTIPLE CHECK
VALVES IN FEED
LINES CAN RESULT
IN LOWER SYSTEM
PRESSURES DUE TO
PRESSURE DROPS
IF SYSTEM IS FEEDING FREEZER
ROOM , CONSULT FACTORY FOR
DRY AIR PAC INFORMATION.
CONNECT TO REQUIRED
SYSTEM TRIM
1/2" MINIMUM,
LARGER IF REQUIRED
BY CODE
MANUAL DRAIN
RECOMMENDED AS
MINIMUM.
AUTOMATIC DRAIN (P/N FD-1)
RECOMMENDED ON DRIP LEG
TO REMOVE EXCESS WATER.
200 F MAX.
T
P/N AMD - 1
AIR MAINTENANCE DEVICE
MOST MOTORS ARE MULTIPLE
VOLTAGE. CHECK NAMEPLATE
AND VERIFY INTERNAL
CONNECTIONS FOR VOLTAGE
BEING SUPPLIED TO UNIT.
MAGNETIC STARTER
RECOMMENDED
(CONSULT
APPLICABLE CODES)
30" FLEX HOSE SUPPLIED
WITH COMPRESSOR
OR
ACCELERATOR
TANK MOUNTED UNITS ARE
RECOMMENDED FOR USE
WITH ACCELERATORS
NOTE: UNITS ARE SHIPPED
WITH OIL INSTALLED
CHECK OIL (P/N APC01Q)
LEVEL BEFORE OPERATING
PRESSURE SWITCH MUST BE WIRED IN
CIRCUIT TO CONTROL COMPRESSOR.
PRESSURE SWITCH IS FACTORY SET AT
45# CUT IN 60# CUT OUT; HIGHER PRESSURE
SETTINGS MAY REQUIRE A LARGER
MOTOR ON THE COMPRESSOR, CONSULT
FACTORY FOR DETAILS.
MANUAL DRAIN STANDARD;
AUTOMATIC DRAIN (P/N DVA-2T)
RECOMMENDED FOR HUMID AREAS.
VIBRATION ISOLATORS
SUPPLIED WI COMPRESSOR
PART NUMBERS LISTED ARE FOR ACCESSORY ITEMS RECOMMENDED FOR COMPLETE INSTALLATION - CONSULT YOUR LOCAL DISTRIBUTOR FOR AVAILABILITY
TNKIS (03/16/18)
WARNING!
DO NOT INSTALL IN
AREAS EXPOSED TO
TEMPERATURES
BELOW 40 DEGREES F.
OR AREAS EXPOSED
TO WEATHER. CONSULT
FACTORY FOR
WEATHERPROOF OPTIONS.
General Air Products
USA
1-800-345-8207

Section 7 - Wiring
7.1 Wiring Instructions
- Wiring should be in accordance with the national electrical code and any local codes
or regulations. Have a competent electrician ensure that the voltage supplied matches
the compressor voltage.
- Inadequate wiring size can cause insufficient voltage at the compressor during start-
up. Overheating and damage can result to the motor and controls.
- Failure to use the pressure switch may result in overpressure of the compressor or
other components in the system. Overpressure of the compressor can result in blown
head gaskets or other damage.
The supply wire must be of adequate size and no other equipment should be connected to the same line. The table
below lists the recommended wire size for each model based on a 100’ run. Consult factory for longer runs.
Minimum Recommended Wire Size
Model # 1 Phase 3 Phase
L(T)20033 10 12
L(T)29050 8 12
L(T)36575 8 12
L(T)425100 6 12
L(T)620100 6 10
L(T)900150 6 10
L(T)1220200 4 10
L(T)1300300 4 8
L(T)1600300 2 8
L(T)2000500 2 6
L(T)2500500 2 6
The motor must be wired to a pressure switch which controls starting (cut in pressure) and stopping (cut out pressure) of
the motor. All single phase units 2 hp and larger and all three phase units require a motor starter with overload protection
using the pressure switch to operate the starter to meet the NEC, NFPA70, Article 430 motor protection requirements.
The motors supplied are multiple voltage motors. Verify the internal motor leads are connected for the voltage being supplied
to the unit. To verify or change internal voltage connections remove the cover plate located on the rear side of the motor
and reconnect the wire leads as shown on the motor’s wiring diagram.
An arrow on the belt guard indicates the direction of the rotation of the compressor. If the compressor rotates in the opposite
direction, reverse the rotation of the motor. Direction of rotation of single phase motors is controlled by internal re-connection
of the motor leads as shown on the motors nameplate. Interchanging any two incoming supply wires reverses rotation of
three phase motors.
7.1.1 On Tank Mounted Units (LT Series):
The standard pressure switch is factory set at 45 psig cut in and 60 psig cut out. Higher settings may require a larger motor
on the compressor. Consult General Air Products by calling 800-345-8207 before adjusting the pressure switch.
1-800-345-8207

Section 7 - Wiring
Instructions to change single phase Lubricated Tank Compressors (LT)
pre-wired for 115 Volts to 208-230 Volts
Pressure Switch will come with wiring intended for use in a single phase 115V circuit (Fig. 1)
Instructions:
1. Remove Jumpers (Fig. 2)
2. Rewire motor connections for high voltage in motor junction box. Follow motor’s wiring label
3. Rewire pressure switch for high voltage (Fig. 3)
4. Connect black and white wires to motor connections on pressure switch as shown (Fig. 3)
5. Connect L1 & L2 from customers supply as shown (Fig. 3)

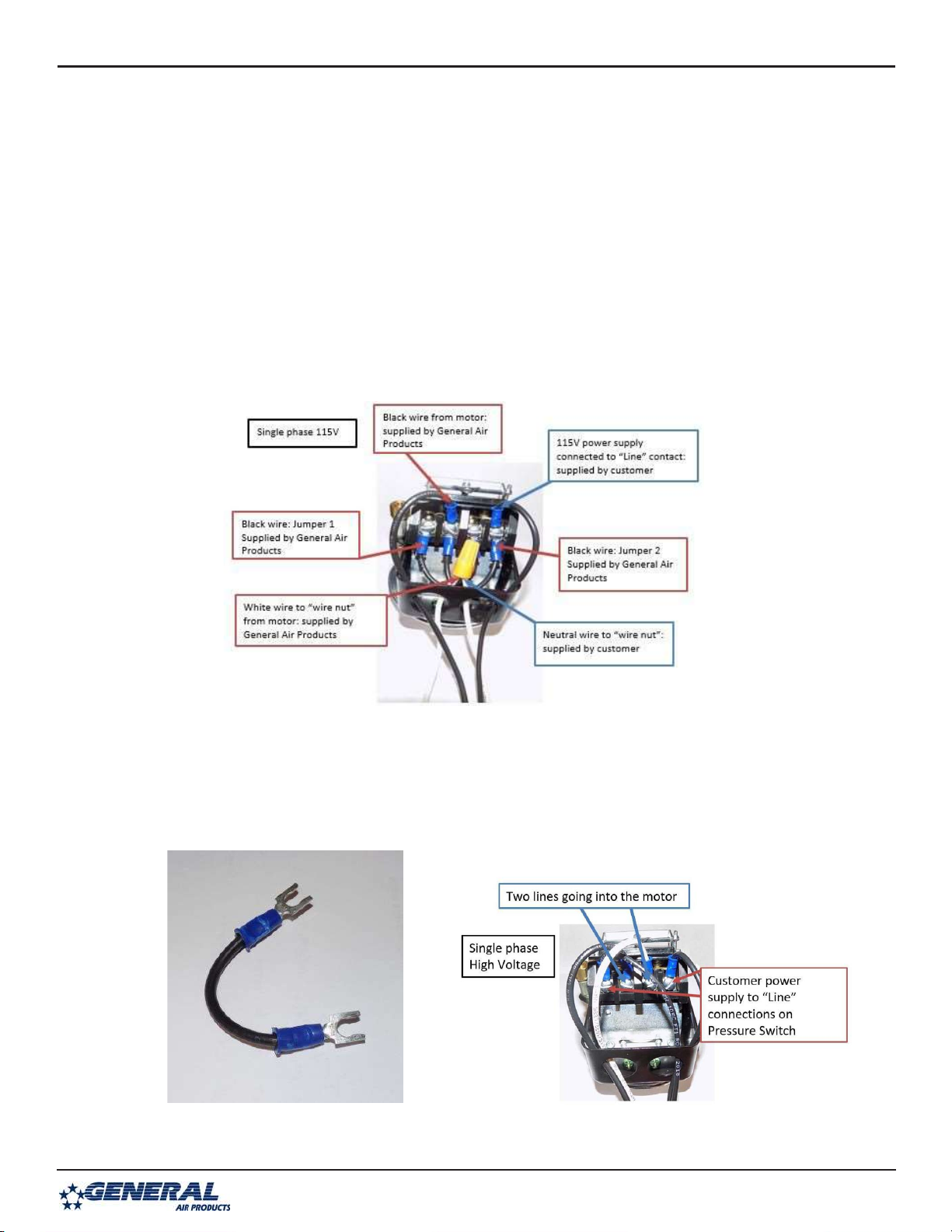

Fig. 1: Pressure switch with jumper wires connected
Remove jumper wires and place “General Air” supplied white wire on the 2nd pole of the
pressure switch (shown on “Fig 3”)
Fig. 2: 3” long jumper wire Fig. 3: Pressure switch with line labels
1-800-345-8207

Section 7 - Wiring
7.2 Lubricated Compressor Single & 3 Phase Wiring Drawing (IEC Version)
1-800-345-8207

Section 7 - Wiring
7.3 Lubricated Compressor Single & 3 Phase Wiring Drawing (NEMA Version)
L1 NEUTRAL L1 L2
NOTES:
WERE NORMALLY OPEN
1)
MOST MOTORS ARE MULTIPLE VOLTAGE. VERIFY MOTOR
INTERNAL CONNECTIONS ARE CORRECT FOR SUPPLY VOLTAGE.
2)
FEEDER WIRE SIZE MUST BE CAPABLE OF CARRYING STAR-UP
CURRENT LOAD AND CURRENT LOAD AT MAXIMUM PRESSURE.
3)
PRESSURE SWITCH TO CONTROL COIL CIRCUIT.
4)
OTHER WIRING VARIATIONS ARE POSSIBLE. ALWAYS CONSULT
LOCAL AND / OR BUILDING CODES FOR REQUIREMENTS.
5)
DASHED LINES INDICATE FIELD CONNECTIONS.
COMPRESSORS\ELECTRICAL\E-205126 REV 6 WIRING INSTRUCTIONS SINGLE AND THREE PHASE NEMA VERSION.DWG
EJR
10-03-05
DPH
10-03-05
NTS
1 OF 1
C
TITL E
WIRING INSTRUCTIONS
SINGLE AND THREE PHASE
NEMA VERSION
E-205126 6
1-800-345-8207
1 REDRAWN TO AUTOCAD 10-03-05
2
ADDED TERMINALS 1L1& 3
11-02-05
3
PRESSURE SWITCH CONTACTS
05-26-10
4
REVISED CIRCUITRY
06
-
16
-
10
5
REVISED CIRCUITRY
09
-
17
-
10
0258
6
ADDED PRESSURE SWITCH ONLY 02-26-18 CO

Section 8 - Maintenance Instructions
Disconnect, tag and lock out power source then release all pressure from the system
before attempting to install, service, relocate or perform any service.
Maintenance instructions for General Air Products lubricated air compressors:
The following instructions are based on normal operation. If the compressor is in an excessively dusty area, increase
frequency of maintenance checks.
Quarterly and as needed:
- Check oil level and inspect oil for contamination
(APC01Q) Fill or change as needed
- Drain condensate from air receiver and traps and/or
test automatic drains for functionality
- Check for unusual noise or vibration
- Clean air filters (only with non-petroleum products)
- Clean all external parts of the compressor and motor,
inspect for physical damage
- Electrical power wiring to the compressor is intact
and free of physical damage
- Piping from compressor to the fire protection system
is secure, tight and free of physical damage
- Isolate compressor from system and inspect for leaks
- Manually test safety relief valve
- Check pulley set screws for tightness
- Check belt tension and wear
- Tighten all fittings, nuts and screws as needed
Annually and as needed:
All quarterly checks plus the following:
- Change compressor oil (APC01Q) and make sure oil sight
glass is clean
- Change air filter
The maintenance instructions below are per NFPA 25 Code Requirements:
13.10.2 - Inspection
Air Compressors dedicated to water-based fire protection systems shall be inspected monthly to verify the following:
1. Air Compressor is free of physical damage.
2. Power wiring to the air compressor is intact and free of physical damage.
3. Piping from the air compressor to the fire protection system is intact and free of physical damage.
4. The means of anchoring the air compressor to the structure or to the system piping is secure, tight, and
free of physical damage.
5. Air compressors requiring oil have the required amount of oil in the oil reservoir.
13.10.3 - Testing
Air Compressors dedicated to water-based fire protection systems shall be tested annually to verify the following:
1. Air compressor operates as intended on the proper drop of air pressure in the fire protection system.
2. Air compressor restores normal air pressure in the fire protection system in the required time frame.
3. Air compressor does not overheat while running.
13.10.4 – Maintenance
Air Compressors dedicated to water-based fire protection systems shall be maintained in accordance with the
manufacturer’s instructions (see above instructions).
1. Compressors requiring oil shall have the oil replaced on an annual basis unless the manufacturer’s
instructions require more frequent replacement.
If there are any questions regarding installation, operation,
or maintenance of this compressor, please call 800-345-8207

Section 9 - Troubleshooting Guide
Symptom Possible Cause(s) Corrective Action
Motor hums and runs
slowly or not at all.
1. Low or no voltage
2. Shortened or open motor winding
3. Defective check or unloader valve
4. Defective pressure switch - contacts
will not close
1. Check voltage during start. Voltage must be within +/-
10% of nominal voltage to start motor. Increase wire
size if necessary to lower voltage drop.
2. Replace motor
3. Replace check valve or unloader valve
4. Repair or replace pressure switch
Reset mechanism cuts
out or fuses blow
repeatedly
1. Insufficient voltage to motor
2. Pressure switch set too high
3. Wrong fuse size
4. Piping too restrictive
5. Defective motor
1. Check voltage during start. Voltage must be within +/-
10% of nominal voltage to start motor. Increase wire
size if necessary to lower voltage drop.
2. Consult factory, adjust or replace
3. Be sure fuses, heaters and/or overloads are properly
rated or set
4. Add receiver vessel or increase pipe volume after
compressor
5. Replace motor
Unit short cycles
repeatedly
1. Piping too restrictive
2. Air leaks
1. Add receiver vessel or increase pipe volume after
compressor
2. Repair leaks
Compressor
overheating
1. Dirty intake filter
2. Wrong motor rotation
3. Air flow to fan on flywheel blocked
1. Clean intake filter
2. Correct rotation
3. Clean air flow to fan or relocate unit
Excessive noise in
operation
1. Loose pulley, flywheel, belt guard
2. Lack of oil in crankcase
3. Compressor mounting loose
1. Tighten
2. Check for damage to bearings, replenish oil
3. Shim and tighten
Milky oil in reservoir
1. Water flow from system into
compressor
2. Water condensing in crankcase due
to high humidity
1. Inspect system check valve. repair or replace as
necessary.
2. Pipe air intake to less humid area. Run pump
continuously for one hour and recheck
System pressure builds
slowly
1. Compressor sized incorrectly
2. Leaks or restrictions in piping
3. Dirty intake filter
4. Blown head gasket
1. Check system size and compressor sizing
2. Correct leaks and remove restrictions
3. Clean intake filter
4. Replace head gasket
1-800-345-8207

Section 10 - Warranty Policy
GENERAL PROVISIONS & LIMITATIONS
General Air Products, Inc. (the "Company") warrants to each origi-
nal purchaser ("Purchaser") of its new products from the Company
or its Authorized Distributor that such products are, at the time of
delivery to the Purchaser, made with good materials and workman-
ship. No warranty is made with respect to:
1. Any product, which has been repaired or altered in such
a way, in the Companies judgment, as to affect the
product adversely.
2. Any product, which has, in the Companies judgment been
subjected to negligence, accident, improper storage,
improper installation or application.
3. Any product, which has not been operated or maintained
in accordance with the recommendations of the
Company.
4. Components or accessories manufactured, warranted
and serviced by others.
5. Any reconditioned or prior owned product.
Claims for items described in 4. above should be submitted direct-
ly to the manufacturer.
WARRANTY PERIOD
The Company's obligation under this Warranty is limited to repair
or, at its option, replacing during normal business hours at the
designated facility of the Company, any part that in its judgment
proved not to be as warranted within the applicable Warranty
Period as follows.
COMPONENTS
All non-consumable components are warranted for 12 months from
the date of purchase. Consumables are not covered under
warranty. The unit must have been installed by either a factory
authorized distributor or agent in accordance with the factory
recommendations taking into account all other local site conditions
not originally noted to the factory. The unit must be operated and
maintained in accordance with the Factory recommendations and
original design conditions. Failure to provide such proof of the
above may void warranty.
LABOR TRANSPORTATION & INSPECTION
The Company will repair or replace any product or part thereof
which in the Companies judgment is proved to be not as warrant-
ed. Labor costs are not covered under warranty.
All costs of transportation of product, labor or parts claimed not to
be as warranted and, of repaired or replaced parts to or from factory
shall be borne by purchaser. The Company may require the return
of any part claimed not to be as warranted to one of its facilities as
designated by the Company, transportation prepaid by Purchaser,
to establish a claim under this warranty.
Replacement parts provided under the terms of the warranty are
warranted for the remainder of the Warranty Period of the product
upon which installed to the same extent as if such parts were
original components.
DISCLAIMER
THE FOREGOING WARRANTY IS EXCLUSIVE AND IT IS
EXPRESSLY AGREED THAT, EXCEPT AS TO TITLE, THE
COMPANY MAKES NO OTHER WARRANTIES, EXPRESSED
OR IMPLIED OR STATUTORY, INCLUDING ANY IMPLIED
WARRANTY OR MERCHANTABILITY.
THE REMEDY PROVIDED UNDER THIS WARRANTY SHALL BE
THE SOLE, EXCLUSIVE AND ONLY REMEDY AVAILABLE TO
THE PURCHASER AND IN NO CASE SHALL THE COMPANY BE
SUBJECT TO ANY OTHER OBLIGATIONS OR LIABILITIES.
UNDER NO CIRCUMSTANCES SHALL THE COMPANY BE
LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, EXPENSES, LOSSES OR
DELAYS HOWSOEVER CAUSED.
No statement, representation, agreement, or understanding, oral or
written, made by any agent, distributor, representative or employee
of the Company which is not contained in this Warranty will be
binding upon the company unless made in writing and executed by
an officer of the Company.
This warranty shall not be effective as to any claim which is not
presented within 30 days after the date upon which the product is
claimed not to have been as warranted. Any action for breach of
this warranty must be commenced within one year after the date
upon which the cause of action occurred.
Any adjustment made pursuant to this warranty shall not be
construed as an admission by the Company that any product was
not as warranted.
PROMPT DISPOSITION & RETURNS POLICY
The Company will make a good faith effort for prompt correction or
other adjustment with respect to any product, which proves to be
defective within the warranty period. Before returning any product,
write or call the distributor, agent or authorized company from which
the product was purchased, describing defect and giving date and
number of original invoice, a well as proof of Factory supplied
consumables and proof of scheduled maintenance. No products
will be accepted for return without the Company issuing a “Returned
Goods Authorization” (RGA) to the Purchaser and unless
accompanied by a properly authorized RGA request form initiated
by the Purchaser. Return freight must be prepaid and each returned
product must have the RGA number clearly marked on the product.
Title and risk of loss pass to buyer upon delivery to the common
carrier.
PRODUCT SUITABILITY
Many States, Localities and Countries have codes and regulations
governing sales, construction, installation, and/or use of products
for certain purposes, which may vary from those in neighboring
areas. While General Air Products, Inc. attempts to assure that its
products comply with such codes, it cannot guarantee compliance,
and cannot be responsible for how the product is installed or used?
Before purchase and use of a product, please review the product
application, and national and local codes and regulations, and be
sure that the product, installation, and use will comply with them.
REV:4/22/11
General Air Products, Inc.
118 Summit Drive
Exton, PA 19341
P: 610-524-8950
F: 610-524-8965
