Whale 2200A User Manual
TABLE OF CONTENTS
PREFACE ......................................................................................2
1. PRODUCT INFORMATION....................................................3
1.1 Ordering Information ..................................................3
1.2 Areas of Application ....................................................3
1.3 Technical Specifications...............................................4
1.4 Safety Precautions.......................................................5
2. INSTALLATION .....................................................................6
2.1 Cooktop Placement ...........................................................7
2.2 Kit contents........................................................................8
2.3 Exhaust and Intake Air Line Installation............................9
2.4 Fuel Line Installation (Diesel Models) .............................10
2.5 Room Temperature Sensor Installation ..........................11
3. ELECTRICAL DIAGRAM.......................................................12
4. HEATER FAULT CODES.......................................................13

[e-mail]
[phone]
PREFACE
Thank you for purchasing Whale series cooktop with
integrated air heater. This service manual describes installation and
operation procedures, maintenance recommendations and
troubleshooting tips. Please read carefully before using the product to
enjoy your comfort in a safe and efficient manner.
This product is subject to two-year factory limited warranty.
For terms and conditions of the warranty please contact your local
dealer.

3
Whale 2200A User Manual
1. PRODUCT INFORMATION
1.1 Ordering Information
SKU #
DESCRIPTION
GC6003
12VDC diesel cooktop with integrated air heater
1.2 Areas of Application
Whale series 2200A cooktop with integrated air heater
is designed for use in boats, motor homes and recreational
vehicles (RV).

[e-mail]
[phone]
1.3 Technical Specifications
Diesel
Rated DC Voltage
DC12V
12V/24V
Operating Voltage Range
DC10.5V～16V
Short-term Maximum Power
Consumption
8-10A
Average Operating Current Draw
0.55-0.85A
Fuel Heat Power (W)
900-2200
4000
5000
Fuel Consumption (ml/h)
110-264
440
550
Propane Max Pressure
-
Quiescent current
1mA
Supply Air Volume m3/h
287max
Operating Temperature
-25℃～+40℃
Operating Altitude
≤5000m
Weight (Kg)
11.8Kg
Dimensions (mm)
492x359x200

5
Whale 2200A User Manual
1.4 Safety Precautions

Do not place heat-sensitive objects in close proximity to
the heater, as the heater warms up during operation;
Do not run the unit if the vehicle is parked indoors;
Stop using the device immediately if you smell gas, fuel
or see smoke. Do not attempt repairs yourself. Always
seek professional help.
Combustion exhaust fumes may be toxic. Do not
install exhaust outlet near doors or windows. Do not
operate the heater if exhaust/intake lines are
damaged. Do not repair damaged lines - replace with
new ones;

[e-mail]
[phone]
2. INSTALLATION
Typical installation of the heater is shown in Figure 1:
Figure 1: Typical installation of the heater.

7
Whale 2200A User Manual
2.1 Cooktop Placement

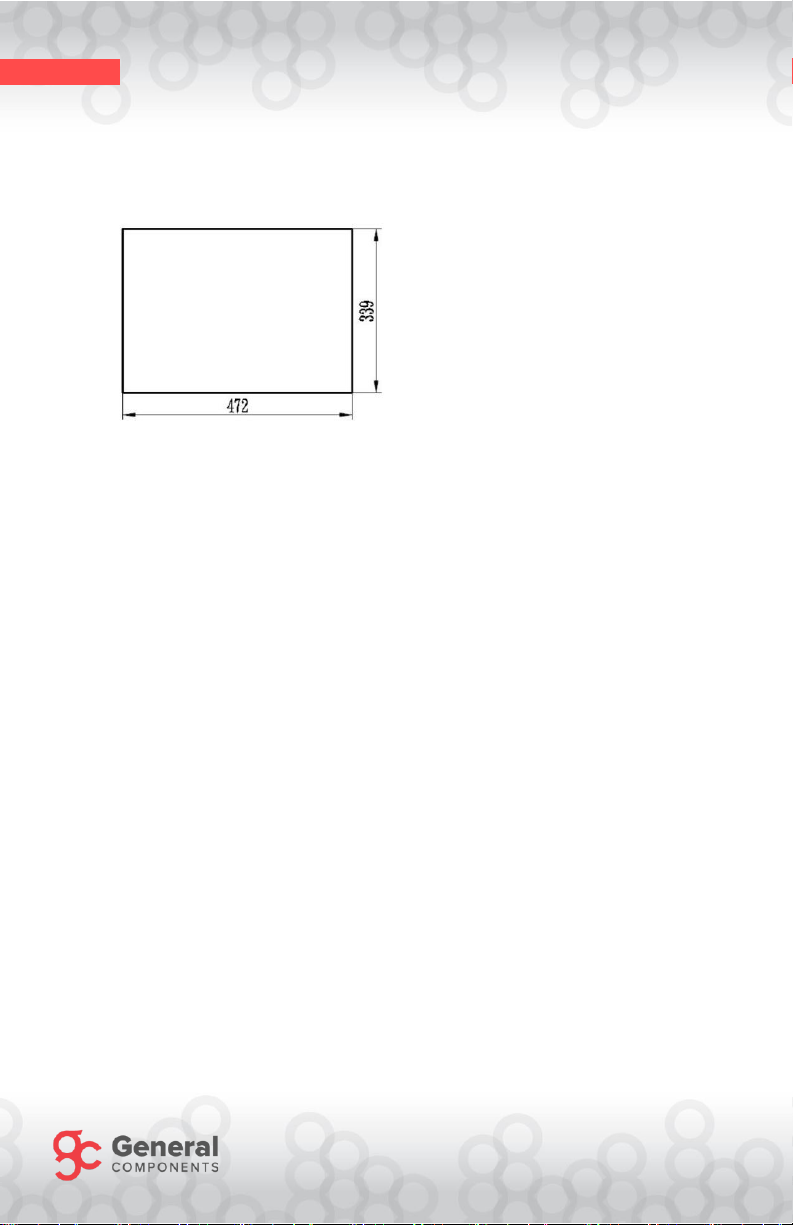

Counter cutout dimensions are
472mm * 339mm.
Allow at least 2”of space all
around the unit, and at least
7”of open unobstructed
space beneath the counter.
Figure 2: Heater Placement
Figure 2: Cutout.

[e-mail]
[phone]
2.2 Kit contents
Figure 3: Kit contents
1) Cooktop;2) Fuel damper; 3) Fuel pump; 4)-Nylon fuel line; 5) Fuel filter; 6)
Fuel pickup; 7) Nylon tubing (transparent, main engine to fuel pump); 8)
Check valve (gas model only); 9) Air intake line 26mm; 10) Intake silencer;
11) Fuse holder; 12) Exhaust pipe; 13) Flame arrester; 14) Controller; 15) Fuel
pump cable; 16) Power line; 17) Fiberglass sleeve;
Please note: kit contents may differ between
models and suppliers.

9
Whale 2200A User Manual
2.3 Exhaust and Intake Air Line Installation
Intake and exhaust air lines should be installed without sharp
bends, kinks or goose necks. Installer to make sure the line goes
down gradually and no water can be trapped inside.
Figure 4: Exhaust and intake line routing
✓
X

[e-mail]
[phone]
2.4 Fuel Line Installation (Diesel Models)
Diesel-fired heaters could be connected to the fuel tank of the
vehicle, or to the auxiliary 10L fuel tank.
Do not tap into pressurized fuel lines of the vehicle when
connecting to the main fuel tank.
Only parts provided with
the hater should be used
in installation. Do not
extend fuel lines or use
different fuel pump.
Maximum length of fuel
line between the tank
and the pump should
not exceed 1.2 meters (4
feet).
Maximum length of fuel
line between the pump and the heater should not exceed 6
meters (18 feet).
Observe elevation
requirements
displayed on Fig.6.
Fuel pump should be
installed at an angle to
the ground. It is not
recommended to
secure the pump
parallel to the ground.
Figure 5: Fuel System Setup
Figure 6: Fuel Pump Placement

11
Whale 2200A User Manual
2.5 Room Temperature Sensor Installation
Room temperature sensor
is installed on the wall,
away from sources of heat
and direct sunlight, at a
height of about 4-5 feet
from the floor. This will
ensure the best
temperature reading.
Avoid installing the sensor
on perimeter walls of the
vehicle.
Drill a 10mm (3/8”) hole to install the sensor.
Figure7: Room Sensor
Figure8: Unit controller
1) Control knob; 2) Cooking mode button;
3) Cooking indicator (red);
4) Air heater indicator (yellow);
5) Air heating mode button;
6) Ventilation mode;
7) Ventilation indicator (green)
When in air heater mode, the
dial controls the temperature
setpoint in range of +5C~35C.

[e-mail]
[phone]
3. ELECTRICAL DIAGRAM

13
Whale 2200A User Manual
4. HEATER FAULT CODES
Flashes
##
Fault
code
Description
Troubleshooting
1
31
Start failure
Check the fuel supply
Check combustion lines for obstructions
Check the electrical connections and flame
sensor
2
32
Burner failure
3
10
Over voltage fault
Check power supply
11
Low voltage fault
4
33
Flame sensor failure
Check the flame sensor
5
51
Communication failure
Check the connection
6
25
Room sensor open circuit
Check sensor
26
Room sensor short circuit
Check sensor
7
61
Fuel pump broken circuit
Check fuel pump wiring, fuel pump continuity.
Replace fuel pump
62
Fuel pump short circuit
Check fuel pump wiring, replace fuel pump
8
81
Combustion fan open
Check combustion fan
82
Combustion fan locked
83
Combustion fan speed too low
9
63
Glow pin open
Replace glow pin
65
Glow pin driver fault
Replace ECU
10
84
Convection fan open
Check fan and wiring, replace ECU
85
Convection fan locked
86
Convection fan speed too low
11
Heater cover overheat
Check sensor
12
Heater cover sensor short
Heater cover sensor open
13
Heater cover overheat
Change control mode
14
Barometer failure
Replace controller
