General 50-025 Parts list manual

2 HEAVY DUTY 3” WHEELS.
2 HEAVY DUTY 2-1/2” CASTERS.
CAPACITY
500 lbs (227kg)
MINIMUM SQUARE SIZES:
11" X 11" (279 X 279 mm)
MAXIMUM SQUARE SIZES:
35 1/4" X 35 1/4" (894 X 894 mm)
MINIMUM RECTANGULAR SIZES:
17” X 11” (434 X 279 mm)
MAXIMUM RECTANGULAR SIZES:
51" X 19" (1295 X 483 mm)
Revision 1 June 19,2006
manshe500250606

THANK YOU for choosing this General ®International model 50-025 Mobile Base.
This mobile base has been carefully tested and inspected before shipment and if properly
used and maintained, will provide you with years of reliable service. To ensure optimum per-
formance and trouble-free operation, and to get the most from your investment, please take
the time to read this manual before assembling, installing and operating the unit.
The manual’s purpose is to familiarize you with the safe operation, basic function, and features
of this mobile base as well as the set-up, maintenance and identification of its parts and com-
ponents. This manual is not intended as a substitute for formal woodworking instruction, nor to
offer the user instruction in the craft of woodworking. If you are not sure about the safety of
performing a certain operation or procedure, do not proceed until you can confirm, from
knowledgeable and qualified sources, that it is safe to do so.
Once you’ve read through these instructions, keep this manual handy for future reference.
All component parts of General® International machinery are carefully tested and inspected during all stages of
production, and each unit is thoroughly inspected upon completion of assembly. Because of our commitment to
quality and customer satisfaction, General® International agrees to repair or replace, within a period of 24 months
from date of purchase, any genuine part or parts which, upon examination, prove to be defective in workmanship
or material. In order to obtain this warranty, all defective parts must be returned freight pre-paid to General®
International Mfg. Co., Ltd. Repairs attempted without our written authorization will void this warranty.
GENERAL ® INTERNATIONAL WARRANTY
Disclaimer: The information and specifications in this manual pertain to
the unit as it was supplied from the factory at the time of printing.
Because we are committed to making constant improvements,
General ®International reserves the right to make changes to compo-
nents, parts or features of this unit as deemed necessary, without prior
notice and without obligation to install any such changes on previously
delivered units. Reasonable care is taken at the factory to ensure that
the specifications and information in this manual corresponds with that
of the unit with which it was supplied. However, special orders and “after
factory” modifications may render some or all information in this manu-
al inapplicable to your unit. Further, as several generations of this mobile
base and several versions of this manual may be in circulation, if you
own an earlier or later version of this unit, this manual may not depict
your mobile base exactly. If you have any doubts or questions
contact your retailer or our support line with the model number of your
unit for clarification.
GENERAL® INTERNATIONAL
8360 Champ-d’Eau, Montreal (Quebec) Canada H1P 1Y3
Telephone [phone] • Fax [phone] • www.general.ca

Rules for Shop Safety
To help ensure safe operation, please take a moment to learn the machine’s applications and limita-
tions, as well as potential hazards. General® International disclaims any real or implied warranty and
holds itself harmless for any injury that may result from improper use of its equipment.
1. Do not operate machinery when tired, distracted, or
under the effects of drugs, alcohol or any medication
that impairs reflexes or alertness.
2. The working area should be well lit, clean and free of
debris.
3. Keep children and visitors at a safe distance when
the machine is in operation; do not permit them to
operate the machine.
4. Childproof and tamper proof your shop and all ma-
chinery with locks, master electrical switches and
switch keys, to prevent unauthorized or unsupervised
use.
5. Stay alert! Give your work your undivided attention.
Even a momentary distraction can lead to serious
injury.
6. Fine particulate saw dust is a carcinogen that can be
hazardous to health. Work in a well-ventilated area
and whenever possible use a dust collector and wear
eye, ear and respiratory protection devices.
7. Do not wear loose clothing, gloves, bracelets,
necklaces and ornaments while the machine is in
operation.
8. Be sure that adjusting wrenches, tools, drinks and
other clutter are removed from the machine and/or
the table surface before commencing operation.
9. Keep hands well away from blades and all moving
parts. Use a push stick to feed stock, and use a brush,
not hands, to clear away chips and sawdust.
10. Use recommended-speed blades, cutting tools and
accessories for the workpiece material.
11. Be sure the blade or cutting tool has gained full oper-
ating speed before beginning to cut.
12. Always use a clean, properly sharpened blade. Dirty
or dull blades are unsafe and can lead to accidents.
13. Do not push or force stock into the blade or cutting
tool. The machine will perform better and more safely
when working at the rate for which it was designed.
14. Use suitable support when cutting stock that does not
have a flat surface. Always hold stock firmly against
the fence when ripping, or against the miter gauge
when cross-cutting.
15. To minimize risk of injury in the event of work piece
kickback, never stand directly in-line with the blade or
in the potential kickback path of the work piece.
16. Avoid working from awkward or off balance positions.
Do not overreach during cutting operation; keep both
feet on floor. Never lean over or reach over the blade
and never pull the work piece over the blade from
behind. Use outfeed support or have an assistant help
when ripping long material.
17. Keep guards in place and in working order. If a guard
must be removed for maintenance or cleaning, be
sure it is properly reattached before using the tool
again.
18. Never leave the machine running with the power on
when not in operation.
19. If using a power feeder, stop the feeder before
stopping the machine.
20. Use of parts and accessories NOT recommended by
General® International may result in equipment mal-
function or risk of injury.
21. Never stand on machinery. Serious injury could result
if the tool is tipped over or if blade or cutting tool is
unintentionally contacted.
22. Always disconnect the tool from the power source
before servicing, changing accessories, performing
any maintenance, cleaning, adjustments, or if the
machine will be left unattended.
23. Make sure that switch is in the “OFF” position before
plugging in the power cord.
24. Make sure tool is properly grounded.If tool is equipped
with a 3-prong plug it should be used with a three-pole
receptacle. Never remove the third prong.

Additional Safety Instructions
for Mobile Bases
Because each shop situation is unique, no list of safety guidelines can ever be complete.
The most important safety feature in any shop is the knowledge and good judgement of the user. Use common
sense and always keep safety considerations, as they apply to your individual shop conditions, first and foremost
in mind. If you have any doubts about the safety of an operation you are about to perform: STOP! Do not perform
the operation until you have validated from qualified individuals if the operation is safe to perform and what is
the safest method to perform it.
1. SECURE ALL FASTENERS
Make sure that all nuts, bolts or other fasteners on the mobile base are fully tightened before
installing a machine on your mobile base.
2. RESPECT THE RATED WEIGHT LIMIT
Do not install machines weighing more than the rated weight capacity of the mobile base.
3. SELECT APPROPRIATE LOCATION FOR USE
Use only on flat, smooth, sturdy and stable surfaces, that are free of debris and able to support the
weight of the machine and the operator.
4. ENGAGE LOCKING LEVERS
Verify that all wheel locking levers are fully engaged on your mobile base before turning on your
machine. Failure to ensure that your machine is completely immobile may cause serious injury if
the machine begins to move across the floor when in use or as the workpiece is fed into the
blade(s) or cutting tool.
5. LOOK BEFORE YOU MOVE THE MACHINE
Ensure that there is a clear path to the spot where you are re-locating the machine before moving
it. Avoid rolling over the power cord or any debris, clutter or obstructions.
6. DO NOT OVEREXERT
The mobile base is designed to roll smoothly up to its rated weight capacity and requires only
steady firm and even pressure to re-locate the machine. If you find that excessive force is needed:
STOP and check for obstructions or damage to the wheels before proceeding.
3

UNIVERSAL MOBILE BASE
50-025
UNPACKING & CHECKING CONTENTS
Remove all parts and components from the box and check for missing or damaged items as per the list of contents
below.
Note: please report any damaged or missing items to your General
®
International distributor immediately.




    
        
1. FIXED WHEEL MOUNTING BRACKET x 2
(LEFT AND RIGHT)
2. FRONT CASTER BRACKET x 2
(LEFT AND RIGHT)
3. CASTER MOUNTING PLATE x 2
4. WHEEL BRACKET x 2
5. EXTERIOR SHORT PLATE x 2
6. INTERIOR SHORT PLATE x 2
7. CASTER x 2
8. FOOT LEVER x 2
9. EXTERIOR LONG PLATE x 2
10.INTERIOR LONG PLATE x 2
11.FIXED WHEEL x 2
12.FOOT PAD x 2
13.CAP SCREW x 4 (5/16” x 3-1/2”)
14.SPACER/BUSHING x 4
15.FLANGE BOLT x 32 (1/4” x 1/2”)
16.HEX NUT x 32 (1/4”)
17.LOCK WASHER x 2 (1/2”)
18.HEX NUT x 2 (1/2”)
19.LOCK WASHER x 4 (5/16”)
20.HEX NUT x 4 (5/16”)
21.CAP SCREW x 2 (1/4” x 1-3/4”)
22.LOCK NUT x 2 (1/4”)
23.HEX NUT x 2 (3/8”)
4

ASSEMBLY INSTRUCTIONS







STEP 2
Assemble the wheel bracket (#4), caster mounting
plate (#3), and foot lever (#8) as shown using the 5/16”
hex nuts (#20), 5/16” lock washers (#19), spacer/bush-
ing (#14) and 5/16” x 3-1/2” cap screws (#13).



STEP 3
Install the caster (#7) to the wheel bracket assembly
using the lock washer (#17) and hex nuts (#18).
REQUIREMENTS FOR ASSEMBLY AND SET UP
• Socket wrench kit
• Adjustable wrench
• Tape measure
• Pen or Pencil
• An extra person for help with lifting
5
STEP 1
Before starting to assemble the mobile base, take note of the outside measurements of your machine.
NOTE: A jointer is depicted in this example for illustration purposes only. You can use your 50-025 mobile base on any open
or closed base machinery within the minimum and maximum square or rectangular sizes as listed on the cover
page.
Maximum rated load capacity of this mobile base is 500 lbs (227 kg). Surpassing the rated load capacity can lead to
mobile base failure, serious personal injury and/or damage to your machine.
?
?
B
A
STOP
START
RÈGLE DE SÉCURITÉ - SAFETY RULES
VCZXZBXCZ
HXCVHJZXVCHVZSJXHVC,
XVCBHJSVDCVWSDV
JHSCHDSDVCVHJ, HSDVB
HBSDHJCVHSDHVCV,
HSVDDVWS
HSDUKCVB.SDV
HJSVCHJVVBNCMXBV JB
BVNMXCB,ZVB,Z
VCZXZBXCZ
HXCVHJZXVCHVZSJX
XVCBHJSVDCVWSDV
JHSCHDSDVCV
HBSDHJCVHSDHVCV,
HSVDDVWS
HSDUKCVB.SDV
HJSVCHJV
BVNMXCB,ZVB,Z
xkcjnvjknckxvnkzx;nvcvb
cvjkbncvbkoidmbp«b
vikmodfidfmofmcmpmpè
dkmfdnoziµonpompmnmc;è
kfnifxcbvinvobnoncvknxcklvnzxlcnvklxzècv
ckxvnljkxcbnkvnzxc;vbnklzxcnbklcvnklbnclkvnblkzxcn
xcvbjlxzbvlbzdfulbivubidufbfvuibicdcvbuidfbuivbuidbfvuiui

6

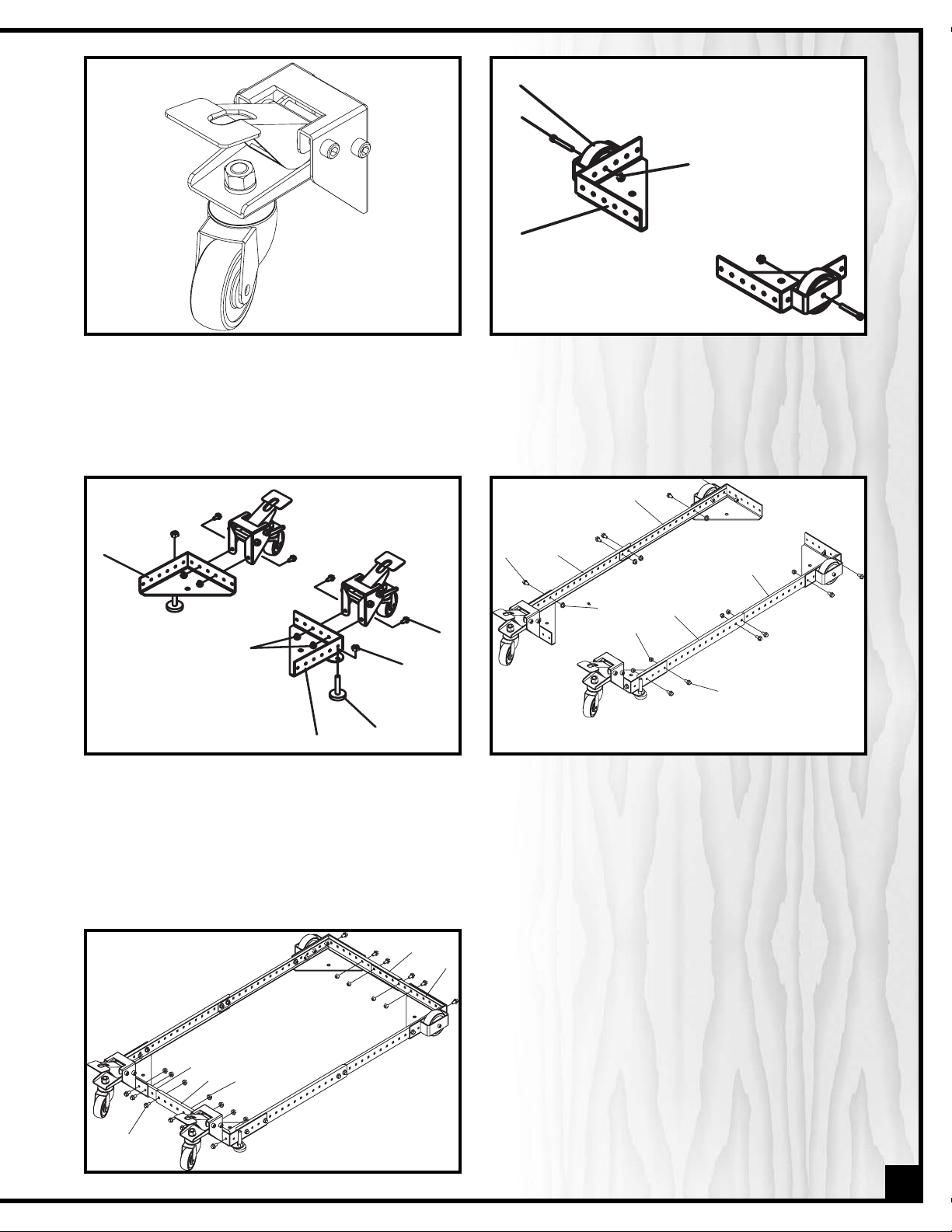

STEP 4
The completed assembly is shown in the illustration
above. Follow the same procedures for the second
caster mounting plate and wheel bracket assembly.




Step 5
Fit the two fixed wheels (#11) onto the two fixed wheel
mounting brackets (#1) as shown using the two
1/4” x 1-3/4” cap screws (#21) and 1/4” lock nuts (#22).
 






Step 6
Attach the completed wheel bracket assembly from
step 2 to the front caster brackets (#2) as shown using
two 1/4” x 1/2” flange bolts (#15) and two 1/4” hex nuts
(#16) per bracket.








Step 7
Using your machine length (measurement “A”from Step
1) as a reference, assemble the exterior (#9) and inte-
rior long plates (#10), and then attach them to the cast-
er assembly and fixed wheel assembly as shown using
1/4” x 1/2” flange nuts (#15) and 1/4” hex nuts (#23). As
each side is completed, double check your measure-
ments and, if necessary, adjust the length to fit the
length of your machine.






Step 8
Using your machine width (measurement “B” from Step
1) as a reference, assemble the exterior (#5) and the
interior short plates (#6) as shown, using 1/4” x 1/2”
flange bolts (#15) and 1/4” hex nuts (#16)
As each end is completed, double check your meas-
urements and if necessary, adjust the width to fit the
width of your machine.

Your mobile base assembly should now be completed. Before attempting to install the machine on
the base, double check all measurements to ensure that the machine will fit onto the base without
problems. Lengthen or shorten-up any base dimensions as needed, then re-check your measure-
ments. You are now ready to install your machine onto your mobile base.
7
OPERATING INSTRUCTIONS
1. Push foot pedals down to engage wheels.
3. Flip up foot pedals to lock wheels in place. 4. On uneven surfaces, adjust foot pads (#12)
to level the base and keep the machine
from rocking when in use.
Make sure the wheels are locked and the machine has been immobilized before starting the machine.
NOTE: Follow the manufacturers’ recommendations for handling or lifting the machine. Make sure to have ade-
quate help available for lifting – Do Not Over Exert!
2. Move the machine to desired location in
the shop.

8







 








 


















 





PARTS LIST
50-025
PART N0. DESCRIPTION SPECIFICATION QTY
50025-01 EXTERIOR LONG PLATE 17-1/2” x 1-1/2” (445 x 40 mm) 2
50025-02 INTERIOR LONG PLATE 17-3/4” x 1-3/8” (450 x 35 mm) 2
50025-03 EXTERIOR SHORT PLATE 11-1/2” x 1-1/2” (295 x 40 mm) 2
50025-04 INTERIOR SHORT PLATE 11-3/4” x 1-3/8” (300 x 35 mm) 2
50025-05 FIXED WHEEL MOUNTING BRACKET (LEFT) REAR 1
50025-05-1 FIXED WHEEL MOUNTING BRACKET (RIGHT) REAR 1
50025-06 FRONT CASTER BRACKET (RIGHT) 1
50025-06-1 FRONT CASTER BRACKET (LEFT) 1
50025-07 WHEEL BRACKET 2
50025-08 CASTER MOUNTING PLATE 2
50025-09 FOOT LEVER 2
50025-10 CASTER 1/2” x 2-1/2”(12.7 x 63.5 mm) 2
50025-11 FIXED WHEEL 5/16” x 3” (8 x 76.2 mm) 2
50025-12 FOOT PAD 3/8” x 2” (9.5 x 51 mm) 2
50025-13 CAP SCREW 5/16” x 3-1/2” 4
50025-14 LOCK WASHER 5/16” 4
50025-15 HEX NUT 5/16” 4
50025-16 CAP SCREW 1/4” x 1-3/4” 2
50025-17 FLANGE BOLT 1/4” x 1/2” 32
50025-18 SPACER / BUSHING Ø 8.5 x Ø 18 x 3.8 T 4
50025-19 HEX NUT 1/4” 32
50025-20 LOCK NUT 1/4” 2
50025-21 HEX NUT 1/2” 2
50025-22 LOCK WASHER 1/2” 2
50025-23 HEX NUT 3/8” 2

IMPORTANT: When ordering replacement parts, always give the model number, serial number of
the machine and part number. Also a brief description of each item and quantity
desired.
50-025
8360, Champ-d’Eau, Montreal (Quebec)
Canada H1P 1Y3
Tel.: [phone]
Fax : [phone] Parts & Service
Fax : [phone] Order Desk
[email protected]
www.general.ca
