Generalmusic 271221 User manual

271221
IMPORTANT
ReadBefore UsingKeyboard!
Congratulations on your purchase of the new Equinox Synthesizer Workstation from
Generalmusic. ThisinstrumentisequippedwithcuttingedgeFlashROMmemory,sothatyour
new keyboard can be permanently updated by disk with the latest operational advantages and
newfeatures. Itisimportantthatyoufollowtheprocedurebelowbeforeusingyourinstrument
forthe first time toensurethat the instrument functionsproperly. Checkwithyourauthorised
Generalmusic dealer for exciting new features to load in your Flash ROM in the future.
STEP 1 With the instrument turned OFF,insert the Generalmusic Equinox
Operating System Disk included in your materials packet into the disk
drive. After you have inserted the disk, turn the instrument ON.
STEP 2 You will see a message in the instrument display screen that says:
Loading OS-DISK clears ALL MEMORY!! <Enter to Load/Escape to
abort>
Press ENTER and wait about 3 minutes for the new Operating System
to load. When the new system has finished loading, you will see the
following message in the instrument display screen:
Loading Successful!! <Enter to continue>
At this time, Press ENTER again and the instrument will proceed
through the normal operating display screens. You can now Turn
OFF the instrument in preparation for the final step listed below.
IMPORTANT: REMOVE THE OPERATING SYSTEM DISK BE-
FORE PROCEEDING TO THE FINAL STEP!
FINAL STEP As you turn the instrument ON,KEEP ROTATING THE DIAL until
the following message appears in your display screen:
!!WARNING!! Dial on Power-Up Requests Memory Clear!!
<Enter to clear/Escape to abort>
Press ENTER. You have now completed the
update process, and your Generalmusic Equinox
has been permanently upgraded.
Note: There may be a BatteryWarning message when you initially turn on the instrument.
This message will not appear after the instrument has been plugged in and turned ON for a
few hours. During this time,the internal battery that holds new information in memory
will recharge. For now,just press ENTER or ESCAPE to continue on if the message appears
when you power-up the instrument.

Cod. 271221 English
Owner’s manual

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation mark within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK,DONOTREMOVECOVER(ORBACK).NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICINGTOQUALIFIEDSERVICEPERSONNEL.
IMPORTANT SAFETY INSTRUCTIONS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS
1. Read all the instructions (Safety, Installation and FCC if applicable) before using the product.
2. Do not use this product near water (example, near a swimming pool, spa, tub, sink or wet basement) and do not expose to
rain.
3. This product should be used only with a cart or stand that is recommended by the manufacturer, or should be used with the
components supplied. If this product requires assembly before being played, take special care to follow the assembly
instructions found at the back of the manual.
4. This product, whether alone or in combination with an amplifier and headphones or speakers, may be capable of producing
sound levels that could cause permanent hearing loss. Do not operate for long periods of time at a high volume level or at a
level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an audiologist.
5. WARNING: Do not place this product or any other objects on the power cord, or place it in a position where one could walk
on, trip over or roll anything over power or connecting cords of any kind.
6. This product should be located so that its location does not interfere with its proper ventilation.
7. This product should be located away from heat sources such as radiators, heat registers, or other products that produce heat.
8. This product should be connected to a power supply only of the type described in the operating instructions or as marked on
the product.
9. This product may be equipped with a polarised line plug (one blade wider than the other). This is a safety feature. If you are
unable to insert the plug into the wall outlet, contact an electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the plug.
10. The power supply cord of the product should be unplugged from the outlet when left unused for long periods of time.
11. Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
12. This product should be serviced by qualified service personnel when:
a) the power supply cord or the plug has been damaged; or
b) objects have fallen, or liquid has been spilled into the product; or
c) the product has been exposed to rain; or
d) the product does not appear to operate normally or exhibits marked changes in performance; or
e) the product has been dropped, or the enclosure damaged.
13. Do not attempt to service the product beyond that described in the user-maintenance instructions. All servicing should be
referred to qualified service personnel.
14. Some products may have benches and/or accessory mounting fixtures that are either supplied as part of the product or as
optional accessories. Please ensure that benches are correctly assembled and stable and any optional fixtures (where
applicable) are well secured before use.
15. Electromagnetic Interference (RFI) This electronic product utilises digital sample wave processing technology (S.W.P.) that
may adversely affect radio/TV reception. Read the FCC note on the inside back cover of the owner’s manual for additional
information.
SAVE THESE INSTRUCTIONS
The information in this publication has been carefully prepared and checked. The manufacturers however decline all liability for
eventualerrors. Allrightsarereserved.Thispublicationmaynotbecopied,photocopiedorreproducedinpartorinwholewithoutprior
written consent from Generalmusic S.p.A. Generalmusic reserves the right to apply any aesthetic, design or function modifications
it considers necessary to any of its products without prior notice. Generalmusic declines all liability for damage to property or persons
resulting from improper use of the instrument.
Makesurethatallinternalelectronic options are installed by an authorized Generalmusicservicetechnician.Checkwithanauthorized
Generalmusic dealer for information on the closest service center.
Copyright Generalmusic © 1998. All rights reserved.
Productsandbrandnamesthatarereferredtointhispublication(Akai,Apple,Ensoniq,Emu, IBM,Jaz,Kurzweil,Macintosh,Microsoft,
MS-DOS, Roland, Sample Vision, Windows, Zip) may either be trademarks and/or registered trademarks of their respective owners.
The Publisher/s and Author/s make no claim to these trademarks.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Contents a
Contents
Introduction i
The Owner’s Manual ii
QUICKGUIDE
Front Panel layout 2
Rear Panel (Connections) 5
Setting up and getting to know the instrument 6
Connecting a set of headphones 6
Connecting to an amplification system 6
Turn on the power 7
Adjust the volume 7
Connect the pedals 7
Using the wheels 8
Using Aftertouch 8
Playing with or without the effects 9
Transposing the instrument up or down 9
Using the Solo button 10
The basics of Equinox 11
USERGUIDE
1 • SOUND MODE 1. 2
Sound Families 1. 2
Drum Kits and Drum Sounds 1. 3
Selecting Sounds 1. 4
Moving Between Families 1. 6
Editing and changing Sounds 1. 6
Quick Edit - (using the Sliders) 1. 8
Storing Sounds 1. 11
User sound locations 1. 11
Mirror locations 1. 12
Advanced Edit - (using the Menus) 1. 13
Wave Menu 1. 14
Layers 1. 14
Layer 1. 15
Waveform 1. 16
Volume 1. 16
Amp. Envelope 1. 16
Filter 1. 17
Pitch Envelope 1. 18
L.F.O 1. 19
Pan 1. 20
Control Menu 1. 22

○○○○○○○○○○
b Contents
Effects Menu 1. 24
Effects functions 1. 25
Other Menu 1. 27
2 • PERFORMANCE MODE
Parts List 2. 2
Parts Menu 2. 2
The Parts List functions 2. 4
Part selection 2. 6
Mixer Menu 2. 7
Effects Menu 2. 8
Other Menu 2. 9
3 • DRUM MODE
Editing a Drum Kit 3. 2
Bank / Prog 3. 2
Volume 3. 2
Pan 3. 2
Transpose / Tuning 3. 3
Filter 3. 3
Exclude 3. 3
Reverb / Profx Send 3. 3
Audio Out 3. 3
Dynamic Switch 3. 4
Copy button 3. 5
Expand button 3. 5
Compare button 3. 5
Restore button 3. 6
Control, Effect and Other 3. 6
Storing your new Drumkit 3. 6
4 • SAMPLE MODE
Sample Mode -Playback/Edit 4. 2
Sample Translator 4. 3
Assigning Samples 4. 5
Other assign functions 4. 7
Editing Samples 4. 8
5 • DRAWBAR MODE
Function buttons 5. 2
Type Menu 5. 2
Setup Menu 5. 3
Effects Menu 5. 4
Split Menu 5. 5
Storing Drawbar settings 5. 6
Copying Drawbars to Performances 5. 6

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Contents c
6 • ARPEGGIATOR
Edit Menu 6. 2
7 • GROOVES
Groove Library 7. 1
Groove Patches 7. 3
Creating a Groove Patch 7. 4
Storing your Groove Patch 7. 7
Transposing a Groove in real time 7. 8
Shuffle 7. 9
Editing single Grooves 7. 11
Groove Lab 7. 13
8 • DISK
Understanding the RAMFILE 8. 2
Save 8. 2
Load 8. 6
Utilities 8. 8
9 • SYSTEM 1
Controls 9. 2
Tune 9. 4
Master 9. 6
Other 9. 8
10 • MIDI
Stnth Menu 10. 2
Seq. Menu 10. 3
Master Menu 10. 4
Dump Menu 10. 7
11 • SEQUENCER
Recording a sequence - the basics 11. 2
Changing sounds and volume levels 11. 4
Navigating around your song 11. 5
Exiting and re-entering RECORD MODE 11. 5
Recording another song 11. 6
Record Mode functions 11. 7
Playback/Edit Mode functions 11. 10
The “UNDO” button 11. 11
Edit Menu 11. 12
Creating a groove from a song 11. 23
Events 11. 24
Using the Event list 11. 30
Editing Events in the list 11. 32
Master Menu 11. 41
Option Menu 11. 41

○○○○○○○○○○
d Contents
Clear Menu 11. 41
Undo Menu 11. 42
Effect Menu 11. 43
Track Menu 11. 44
Mixer Menu 11. 44
12 • USER PANEL
Creating a new Panel configuration 12. 2
Slider settings 12. 4
Button settings 12. 5
13 • NOTEPAD
14 • Credits
APPENDIX
ROM-Sounds A. 2
Grooves list A. 13
Performances list A. 16
Drawbars list A. 16
Arpeggio list A. 16
Effects list - 3 Effect Configuration A. 17
Effects list - 2 + 2 Effect Configuration A. 17
PROFX Block diagrams A. 18
MIDI Implementation chart A. 28/29
Index A. 31

○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Introduction i
Introduction
Thank you for purchasing the new Equinox Synthesizer Work-
station from Generalmusic.
The Equinox, available in 61 key and 76 key versions, contains
enormous technological potential to give professional musicians
the essential tools for just about any situation - whether it’s for
composition, live or studio work.
• An immense database (16 Mb samples) with over 1000 pre-
set Sounds and user memory locations to store more than
2000new sounds. 112 Performance memories and a Groove
machine featuring over 1000 user-programmable Grooves.
• Unique Drawbar mode for instant access to vintage electron-
ic organ sounds using the 8 panel sliders as drawbars with
key-click, percussion, overdrive, etc..
• 250.000 event, 16 track sequencer with advanced song edit-
ing facilities.
• Advanced Sound editing facilities with 64 note polyphony,
128digital filters with resonance, up to6oscillators per voice,
3 Lfos and up to 21 independent Envelopes with 10 segment
resolution.
• SampleTranslatorto create user-samplesand load newsam-
plesofthe mostpopular formats(Wav(PC),Aiff(Mac),Akai™,
Kurzwail™, Smp, Snd. Future os versions will allow loading
of Roland™, Ensoniq™ and Emu™ samples.
• Full MIDI implementation - The Equinox is the perfect Mas-
ter Controller for advanced MIDI set-ups (32 MIDI Channel
control, 16 programmable Midi Zones, 8 programmable Slid-
ers, 2 programmable Wheels, 3 assignable Pedals).
• Flash-ROM memory which allows the instrument’s memory
to be instantly upgraded by simply inserting a special floppy
disk in the drive.
• TheEquinox canbefittedwith optionalmemory(8Mbbacked
Sample RAM and up to 32 Mb SIMMs), an internal Hard Disk
(2 Gigabytes) and a SCSI port (compatible with CD-ROM,
Zip™, Jaz™ external hard drives).

○○○○○○○○○○○○○○
ii Introduction
TheOwner’sManual
To ensure long, trouble-free operation, please read this manual
carefully.TheOwner’s Manualissupplied ina3-ring binder which
can easily be updated as new features are added. The Quick
Guide introduces you to the functions of each button on the con-
trol panel and shows how to move around the display. Graphical
illustrations are included for better understanding of these exam-
ples. Once you are acquainted with the instrument’s basic func-
tions, use the User Guide to discover the full potential of your
Equinox.
At the end of the manual is the Appendix containing various
tables, MIDI information and an index.

Front & Rear Panel 1
○○○○○○○○○○○○○○○○○○
CAPS SPACE DELETE A
I/O BCDEFGHI JKLMNOPQR
12
STU
34 5
VW X
6Y7Z,890
.'
QuickGuide
Front panel
Rear panel
This Quick Guide explains briefly what each button and control
does on the Front panel and explains more about the jacks and
connectors of the Rear panel.
Following this you’ll find information about setting the instrument
up and some basic operating instructions.

2 Quick Guide
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
12
FrontPanellayout
1. Two programmable Wheels: The left wheel is spring load-
ed and normally used for Pitch Bend. The right wheel is free-
moving and normally used for Modulation.
2. Disk Drive: Handles 3.5” double density (2DD) or high den-
sity (2HD) floppy disks.
3. Master and Input sliders: The Master slider controls the
overall volume of the instrument. The Input slider controls
the level of the Line/Mic signals fed into the Input jacks.
4. Controllers section: Totally programmable slider and but-
ton panel. In Sound mode, the sliders are used for real time
sound editing (Envelope, Filter and LFO). In Drawbar mode,
the sliders operate as drawbars and the buttons 5-8 activate
typ-ical electronic organ functions (Click, Perc, Slow/Fast
Rotary). In Performance and Song modes, the sliders con-
trol the volumes of the 16 parts and the buttons select the
parts (Tracks).
5. User: Allows you to specify your own functions for the 8
sliders and buttons.
6. Drawbar: Activates Drawbar mode.
7. Transpose
b /#: Mastertransposerinsemitonesteps(range
+/– 24 semitones).
6
34
78
5
910
1
2

Front & Rear Panel 3
○○○○○○○○○○○○○○○○○○

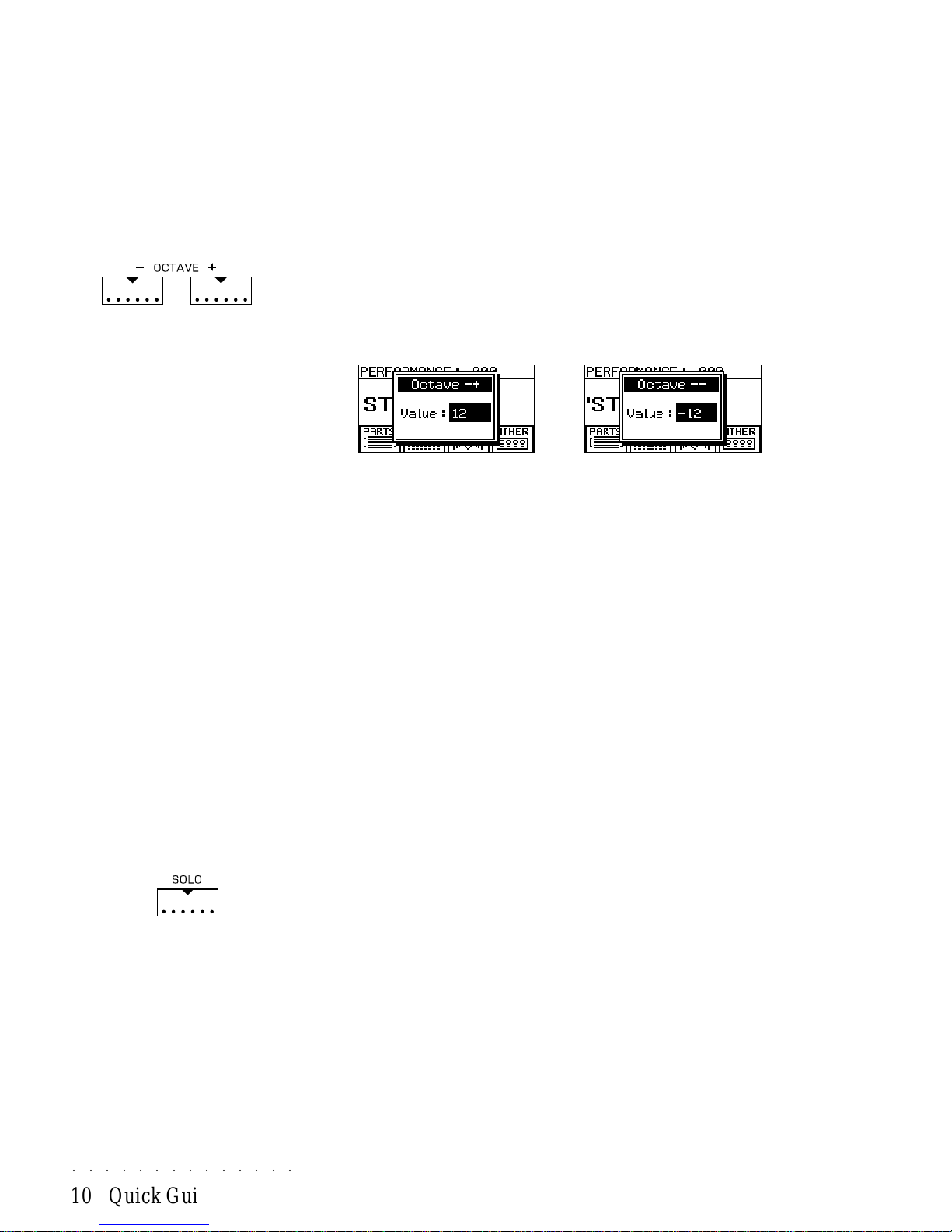

8. Octave –/+: Master and section octave transposer (range +/
– 5 octaves).
9. Solo: Isolates a single sound from the rest in multi-track
situations.
10. FX OFF: when on (LED on), the effects processors are by-
passed and the sounds are emitted dry.
11. Display and selection buttons (F1 … F4): A 128 x 64
pixel,backlitgraphic LCD display. The four buttons below F1
… F4 select functions shown in the display which change
according to the current mode.
12. Contrast: A small knob to control the display contrast.
13. Notepad: Utility to view text files, (song lists, lyrics etc.).
14. Undo: Cancels the last performed task in edit situations.
15. Help: Shows the on-line help menu in several different lan-
guages.
16. Store: Saves your modifications to memory (Performances,
Sounds, etc.).
17. Keypad: Anumerickeypad used for entering specific values
(data selection, parameter editing, etc.).
11
19
23
12 13 14 15 16
18
17
20 21 22
25
24

4 Quick Guide
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
18. Data Entry Dial, Navigational cursors and Enter/Escape
buttons: A data entry Dial for the continuous selection of
data. 4directional buttons (cursors)whichmove the display’s
negative highlight cursor in the direction of the arrow (up/
down/left/right). The Enter button is used in different situa-
tions either to delve deeper into a function or to confirm a
decision. The Escape button cancels operations and can
also be used to exit from certain edit menus.
19. Libraries: 4 buttons, used to recall the different types of
internal sounds (Sound, Performance, Drum, Sample).
20. System: Contains a number of different functions which af-
fect the instrument as a whole (pedals, tuning, keyboard ve-
locity, etc.).
21. Midi: Allows you to modify the functions which affect the
instrument’s Midi and Computer ports.
22. Disk: Contains all the necessary functions to load, save and
organize data on Floppy disks, the internal Hard Disk or any
external SCSI devices.
23. Sequencer: 5 buttons which control the sequencer func-
tions (Play, Stop, Rew [<<], FF [>>], Record) and 2 buttons
for Song Selection and Song Edit.
24. Grooves: Allows you to listen to the on-board groove librar-
ies as well as edit and create your own groove patches.
25. Arpeggiator: Activatestheon-boardArpeggiatorand allows
you to create your own custom arpeggio patterns.

Front & Rear Panel 5
○○○○○○○○○○○○○○○○○○
RearPanel(Connections)
1. SCSI port (optional). Allows external storage media to be
connected to the unit (CD-ROM, Jaz™, Zip™ etc.).
2. Pedals: Damper, 1, 2, Volume. Three programmable pedal
jacks(Damper,1, 2) for continuous control pedals and switch
action pedals (with reversible polarity) and a Volume jack for
a volume pedal.
3. Computer port: Serial connector for direct computer con-
nection (Apple Macintosh or IBM PC and compatibles).
4. MIDI: Twin set of independent ports for MIDI connections.
MIDI IN 1/2, MIDI THRU 1/2, MIDI OUT 1/2).
5. Outputs: (Left, Right, 1, 2). Stereo Left/Right jacks and aux-
iliary 1, 2 jacks to monitor the Equinox through an external
amplification system. For Mono reproduction, use either the
Left or Right jack. Outputs 1 & 2 emit “dry” sounds (no ef-
fects).
6. Mic/Line Inputs: (1, 2, Gain 1, Gain 2). Audio inputs for
Microphone or Line signals (musical instrument, cassette re-
corder, CD player or microphone). For Mono connections,
use the In 1 jack. The volume of the Mic/Line signal fed into
the In 1 & 2 jacks is controlled by the Input panel slider. The
two Gain controls 1 & 2 control the impedance of the signal
fed into the respective In jacks. Fully anti-clockwise = Line
level. Fully clockwise = Mic level.
7. Power On/Off Switch and mains socket: The switch turns
the instrument on and off. Insert the supplied power cord
into the mains socket and the other end into a suitable wall
outlet.
1234
6
57

○○○○○○○○○○○○○○
6 Quick Guide
Settingupandgettingtoknowtheinstrument
The Equinox does not have it ‘s own built in amplification so
either headphones or an external amplifier/speaker system are
required.
For external amplification, a high quality stereo keyboard ampli-
fier system is recommended.
Connectingasetofheadphones
If you prefer to play with headphones for high quality personal
monitoring, plug a standard stereo headphone set (8 Ω ) into one
ofthe two headphones jacks located on the left sideof the instru-
ment, under the Wheels panel.
Use the Master volume slider to adjust the headphone volume.
Connectingtoanamplificationsystem
Before connecting audio cables, be sure that the power switch
on the rear panel is off and the master volume is at minimum.
Connect the power cord to the rear panel mains socket and in-
sert the other end of the power cord into a suitable grounded wall
outlet.
Connectthe audio cables tothestereo audio outputs (Left,Right)
and the other ends to your amplifier system. Use audio cables
with standard 1/4” jacks. To connect to domestic stereo units,
use RCA jacks. For mono reproduction, connect to either the
Left or Right output jack. The auxiliary outputs 1 and 2 emit “dry”
signals (i.e. no effects).
Stereo
amplification
system

○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Setting-up 7
Turnonthepower
The power switch is located on left side of the rear panel (when
sitting in front of the keyboard).
Turn the power on only after all the connections to other equip-
ment (amplifiers, Midi devices, etc.) have been made.
After a short scanning period, the display will appear showing
the last used mode (Sound, Performance, Drawbar, etc.).
The various modes available are explained afterwards.
Adjustthevolume
Adjust the general volume of the instrument with the Master pan-
el slider.
If you are using headphones, you should find that about three
quarter volume is a comfortable listening level.
Connectthepedals
There are four rear panel PEDALS jacks marked Volume, 1, 2
and Damper which accept control pedals.
The Volume jack is a non-programmable port for a standard Vol-
ume Pedal. The remaining three jacks (Damper, 1, 2) are fully
editable although their functions have been pre-set at the facto-
ry.
The default configuration of the pedals is as follows:
Ped1 = Expression
Ped2 = Start/Stop
Damper = Damper (sustain)
Volume = Volume
Your pedals settings can either be stored with each performance
or they can be “locked” so that their functions are global.
Note: better results are obtained
by adjusting the volume of the
mixer or amplifier controls rather
than lowering the volume of the
instrument.
(All Generalmusic control pedals
are optional accessories).

○○○○○○○○○○○○○○
8 Quick Guide
The pedal jacks 1, 2 and Damper are function assignable and
canbe independently enabledordisabled for eachofthe 16 parts
in a Performance.
All three pedals (1, 2, Damper) can be programmed to accept
Switch action (on/off) or Continuous (graduated levels) control
pedals (Volume type). It is also possible to reverse the polarity of
the Switch action pedals.
Usingthewheels
The on-board controlling devices include two wheels on the left
key block.
The default configuration of the wheels is as follows:
Wheel 1 (left) = Pitch Bend
Wheel 2 (right) = Modulation
Wheel 1 is spring loaded to return to the central position.
Wheel 2 is free-moving and remains at the last set position.
The programmed Wheel configuration is a general setting which
applies to the instrument as a whole.
The Wheels can be independently enabled or disabled for each
of the 16 parts in a Performance.
UsingAftertouch
This feature makes is possible to vary the degree of modulation
by varying the pressure applied to the keys. No effect is pro-
ducedwith normal key pressure, but the effect can be introduced
by applying pressure to the keys after playing them.
The Aftertouch effect can be independently enabled or disabled
for each of the 16 parts in a Performance.
Press harder after playing
the keys
Pitch Bend wheel
Modulation wheel

○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Setting-up 9
Playingwithorwithouttheeffects
Whether you are playing single Sounds, Performances, Draw-
bars, etc., you’ll find that in all cases one or more effects will be
applied to the sounds you are playing. If you prefer to play with-
out effects, you can instantly bypass the internal digital effects
processors by pressing the FX OFF button.
Whenthe LED is off,thesound(s) will play withtheirprogrammed
effects.
When the LED is ON, the sound(s) will play “dry” (without ef-
fects).
The on/off status of the FX OFF button cannot be memorised.
Transposingtheinstrumentupordown
MasterTranspose
The TRANSPOSE b/# buttons allow real time pitch adjustments
(transpositions) in steps of one semitone (range ± 24 semitones
= 2 octaves).
• PresstheTRANSPOSE# orTRANSPOSE b buttonstoraise
(#) or lower (
b ) the pitch.
Transp #: Transp
b:
…
The pitch of the instrument is instantly raised (#) or lowered
( b ) one step and a window will appear showing the current
Transpose value (0 = standard pitch).
Press the Transpose # or
b button as many times as neces-
sary until you reach the desired pitch. The display returns to
normal after a few seconds. The LED of the Transpose # or
b button remians on to show that the instrument has been
transposed up or down.
Toclearthekeyboardtransposesetting
• Press both TRANSPOSE buttons at the same time.
Note: Transposing with the #/ b
buttons affects the instrument as a
whole. If, for example, you switch
fromSounds mode toPerformance
mode, the Performances will also
play at the new pitch. If you turn
the instrument off, turning on again
will restore normal pitch.

○○○○○○○○○○○○○○
10 Quick Guide
Sectiontransposer(Octaves)
If you are playing a single Sound (in Sounds mode), you can
transpose in octave steps within the range +/– 5 octaves (60
semitones) by means of the Octave +/– buttons.
If you are playing in Performance mode, the Octave +/– buttons
affect the currently selected part (shown in negative highlight in
the parts list).
• Press the OCTAVE + or OCTAVE – button as many times as
desired until you reach the correct octave..
Octave +: Octave –:
…
The setting is shown in a temporary window and the LED on
the octave button turns on to show the raised or lowered sta-
tus of the sound (or part). The display returns to normal after
a few seconds.
UsingtheSolobutton
In multi-part situations (Performance, Drawbars, Song), the Solo
button isolates a sound from the rest in order that you may make
some changes and listen to the result without listening to all the
other sounds. Once you have obtained the sound you want, you
can select another part to solo or deactivate Solo to restore the
multi-part situation to normal.
• Simply press the SOLO button to activate the function (LED
on).
InPerformance andSongmodes, thecurrentSound isshown
in the Parts list. To select another sound, simply press the
corresponding Part select button.
In Drawbar mode, the sound heard will correspond to the
selected Drawbar, shown in the Drawbar Setup display. To
listen to another Drawbar, simply move the corresponding
Slider.
Note: Unlike the Master transpos-
er, Octave transpositions only af-
fect the current Sound or Perform-
ance part. If, for example, you are
playing in Sounds mode and you
changeSound or switchto Perform
mode, the octave transposition will
be cancelled.
