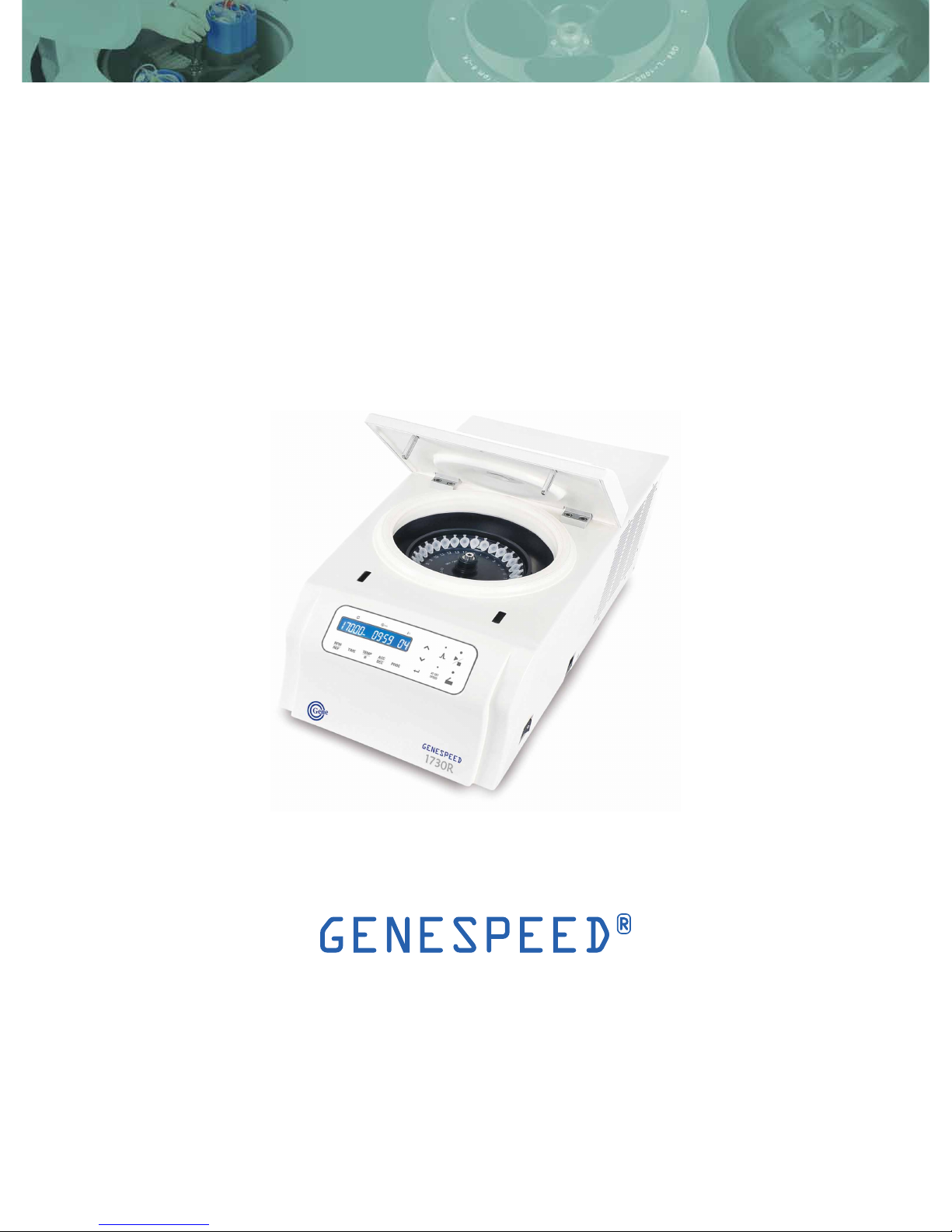

GeneSpeed 1730R User manual

Refrigerated, High-Speed Micro Centrifuge
1730R
User’s Manual
Gene Company Limited
8/F., Shell Industrial Building, 12 Lee Chung Street, Chai Wan, Hong Kong
Tel:[phone] Fax:[phone]
[email protected]
http://www.genecompany.com/

GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
2
GENESPEED®GENESPEED®
Content
Meanings of Symbols & Safety Precautions ……………………………………………… 3
Safety Labels on Instrument ……………………………………………………………… 3
Safety Precautions ………………………………………………………………………… 3
Product Description & Technical Specications ………………………………………… 5
Product Description ……………………………………………………………………… 5
Technical Specications …………………………………………………………………… 6
Installation ………………………………………………………………………………… 7
Power On / Off and Lid Release
…………………………………………………………… 7
Rotor Coupling and Disassembling ……………………………………………………… 8
Positioning of Sample Tubes ……………………………………………………………… 9
Operation…………………………………………………………………………………… 10
Key Functions of Control Panel …………………………………………………………… 10
Setting Rotation Speed (RPM/RCF) ……………………………………………………… 12
Setting Time ……………………………………………………………………………… 13
Setting Temperature and Fast Cool………………………………………………………… 14
Setting Acceleration / Deceleration (ACC/DEC) ………………………………………… 15
START / STOP …………………………………………………………………………… 16
PULSE (Short Spin) ……………………………………………………………………… 17
Save / Call Program ……………………………………………………………………… 17
End Alarm ………………………………………………………………………………… 18
Emergency Lid Open (Manual Lid Release) ……………………………………………… 19
Maintenance ……………………………………………………………………………… 20
Outer Part of Instrument, Chamber, Shaft and Rotor ……………………………………… 20
Troubleshooting …………………………………………………………………………… 21
Checklist …………………………………………………………………………………… 21
Error Codes ………………………………………………………………………………… 21
1.
1.1
1.2
2.
2.1
2.2
3.
3.1
3.2
3.3
4.
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
4.10
5.
5.1
6.
6.1
6.2

GENESPEED®GENESPEED® GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
3
This manual is for the users who operate the device for the rst time.
This manual provides information on the detailed instructions, precaution,
troubleshooting and maintenance care.
1. Meanings of Symbols & Safety Precautions

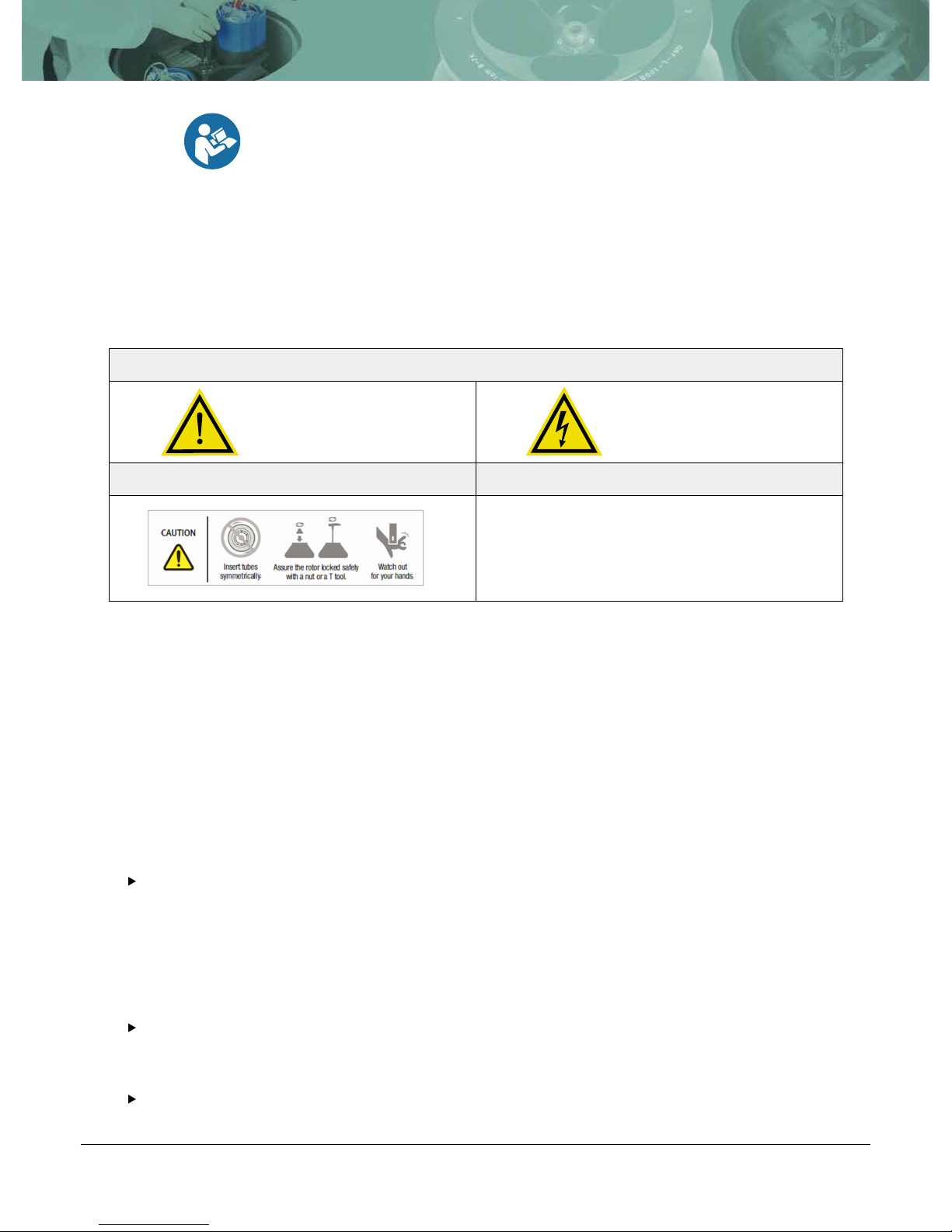

1.1 Safety Labels on Instrument
The labels on the instrument represent safety instructions and directions.
Symbol Meaning Symbol Meaning
Attention and warning Attention and warning for
electric shock
Symbol Meaning
Attention and warning for correct way of
samplebalancing in the rotor.
Attention and warning for rotor coupling.
Attention and warning for door opening and closing.
1.2 Safety Precautions
Before using the instrument, please read this operation manual to ensure correct usage. Incorrect
handling of the instrument could possibly result in personal injury or physical damage on the
instrument or its accessories.
1. ALWAYS locate the instrument on a flat, rigid and stable table capable of withstanding the weight
of the instrument and its spinning operation.
2. ALWAYS make a safety zone of 30 cm around the centrifuge to indicate that neither hazardous
materials nor persons should be permitted within the area during operation.
ALWAYS position the instrument with enough space on each side of instrument to ensure
proper air circulation.
3. ALWAYS install the instrument within a temperature and humidity controlled environment.
(Permissible ambient temperature: +5℃~ +35 ℃, Relative humidity: ≤85%)
4. Before connecting the power, check the rated voltage.
5. Should not use unapproved rotors and associated accessories.
Only use rotors from Gene Company Limited with appropriate centrifugal tubes and suitable
adaptors to embrace sample containers tightly enough inside rotors.
6. Before operating the instrument, check if the rotor and the rotor lid are securelyfastened.
Should operate the instrument with a rotor properly installed and secured to the motor shaft.

GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
4
GENESPEED®GENESPEED®
7. Mount the rotor on the motor shaft properly, check it with spinning manually.
8. Do not stop the rotor by touching with hand during the instrument is running.
9. Emergency lid open should be performed only when spinning is completely stopped.
10. Should not exceed the rated speed or specic gravity. Samples whose density is greater than 1.2g/
ml must have reduced maximum rotational speed to avoid rotor failure.
11. The sample content should not exceed 80% of total capacity of a tube. Otherwise, it would cause
spillage of sample fluid and even the tube breakage.
12. ALWAYS load the tubes symmetrically with evenly weighted samples to avoid rotor imbalance.
If necessary, use the water blank to counterbalance the unpaired sample.
13. The operation speed should not exceed the highest value of the individual guaranteed g-forces of
each centrifuge, rotor, bucket or adaptors and sample container, especially the guaranteed g-force of
sample container should not be neglected.
14. The rotors should be cleaned and kept dry after every use for longer life and safety.
15. ALWAYS disconnect the power supply prior to maintenance care and service to avoid electrical
shock.
16. ALWAYS use proven disinfection procedures after centrifuging biohazardousmaterials.
17. Should not centrifuge flammable, toxic, radioactive, explosive, or corrosive materials.
18. When it is necessary to use toxic or radioactive materials or pathogenic micro-organisms which
belong to the Risk Group II of WHO: “Laboratory Bio- safety Manual,”should follow national
regulations.
Do not place dangerous materials within 30 cm distance around the instrument, and that is also
recommended by IEC 61010-2-020.
Use the emergency lid open function only when the lid button on the control panel is dumb
under the condition of complete stop of rotor running.
Never try to open or move the instrument if it is not completely stopped.
If the power input is more than +/- 10% of the recommended voltage or uctuates frequently, it
may cause malfunction of the instrument and often result serious damage.
Install the instrument at the place without any kinds of corrosive gases.
√
√
√
√
√

GENESPEED®GENESPEED® GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
5
2. ProductDescription&TechnicalSpecications
2.1 Product Description
1 Lid 2 Emergency Lid-Lock Release Hole 3 Power Socket
4 Power Switch 5 Display & Control Panel
①
②
③
④
⑤

GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
6
GENESPEED®GENESPEED®
2.2 Technical Specications
Max. RPM/RCF 17,000 rpm/ 27,237 xg
Max. capacity 30 x 1.5/2.0 ml, 8 x 8-tube PCR strips
Temp. range(℃) -20 ~ +40
FAST COOL button Yes
Time control Pulse, timed < 100 min or continuous
Time counting modes Selectable, at set speed or from starting
RPM/RCF conversion Yes
Noise level(dB) ≤56
ACC/DEC (step or time) 9/10 steps (17/17 sec)
Program memory 100
Parameters on display window RPM (RCF), Oper Status, Lid
Open/Close, Min:Sec, Temp, ACC, DEC
Display Blue LCD
Automatic rotor Identication Yes
Imbalance cut-off Yes
Safety lid lock Yes
Lid drop protection Yes
Power supply(V/Hz) 220/50~60
Dimension(W x D x H, mm) 310 x 620 x 265
Weight without rotor (kg) 43
CE mark Yes
Cat. No. GS-1730R-NA
Note!
•This instrument has following functions for safety
•Automatic rotor identication function
•Automatic detection and alarms for imbalance, excess speed and heating

GENESPEED®GENESPEED® GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
7
3. Installation
3.1 Power On/Off and Lid Release
3.1.1 Power On/Off
Action
3.1.2 Lid Release
For lidopening, the lid button [ ] is used.
Display shows the status of the lid(open , closed ).
Action
Connect the AC power cord to the power socket on the back of the
instrument and put the plug into the outlet.
Check the proper power.
Turn on the instrument by pressing thepower switch on the right
side of the instrument. Turn on the switch [ I ].
Touch [LID] button when the lid is closed (Lid LED shows off).
When the lid is open, the display status changes from to
and lid LED turns on.
1
1
2

GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
8
GENESPEED®GENESPEED®
3.2 Rotor Coupling and Disassembling
3.2.1 Fixed Angle Rotor
Action
Before coupling a rotor, clean the motor shaft, rotor, and chamber
with soft dry towel.
If you ndany foreign substances, they must be removed from
the motor shaft, rotor and chamber.
Mount a proper rotor into the motor shaft and x it using Rotor
Locking Tool.
To assemble the rotor, rotate the Rotor LockingToolclockwise
until tightly assembled.
To disassemble the rotor, rotate the Rotor LockingTool
counterclockwise.
Grasp the rotor with one hand and assemble or disassemble the
rotor using the Rotor Locking Tool.
1
2
Note!
•The lid is not opened while the instrument is running.
•If the lid is opened, the instrument could not be operated even with pressing the [ ]
button.
•For operational safety, this instrument has the automatic rotor recognition function.
•When you supply the power, "Rotor Scan…” will be appeared. If the rotor is absent,
the “Error 9”will be appeared. This message will be cleared after rotor coupling and
running.
•The lid is not automatically opened after nishing operation to keep the sample at proper
temperature.
•Power Failure: If there is any power failure during the operation, lid is not opened with
[ ] button. The lid can be opened only when the operation is completely stopped and
the power is on again. If you want to open the lid at the power failure, please refer to
‘4.10
Emergency Lid Open’.

GENESPEED®GENESPEED® GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
9
After placing the sample tubes into the holes of the rotor, close the
rotor byrotating the rotor lid nut clockwise.
To close the rotor lid, rotate clockwise.
To open the rotor lid, rotate counterclockwise.
3
Caution!
•When you run a xed angle rotor, make sure that the rotor lid is tightly closed. If you
don’t close the rotor lid completely, it will be crushed.
3.3 Positioning of Sample Tubes
Action
Before loading sample tubes, check the water drop or dirt in the
rotor hole or inner adaptor.
If you nd any water drops or dirt in the rotor hole or adaptor,
remove them with soft and dry cloth.
The sample tubes should be placed in the rotor holes in a balanced
way.
The sample tubes should be loaded symmetrically with the
density andthe weight considered to avoid imbalance.
In case the number of samples cannot make balance in weight,
please use control tubes. Otherwise, it can cause noise or vibration,
which may damage the instrument.
Only use appropriate centrifugal tubes and do not exceed the
speed beyond the tube’s max g-strength.
1
2
Note!
•For the safety, the instrument has ‘Imbalance Cut-off’function to sense the imbalance
of the loaded tubes.

GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
10
GENESPEED®GENESPEED®
4. Operation
4.1 Key Functions of Control Panel
1. RPM/RCF
RPM/RCF indicates rotating speed.
The maximum RPM/RCF of 1730R is 17,000/27,237.
2. TIME
Time can be set at ‘Minute’and ‘Second’with the range up to 99 min 59 sec (00:00:
continuous).
3. TEMP
Temperature can be set from -20 degree to 40 degree. When [TEMP] button is kept pressed for
longer than 2 seconds, it can reach rapid refrigeration up to the setting temperature value (Fast
Cool).
4. ACC/DEC
The acceleration and deceleration rates can be set from1 to 9 and from 0 to 9, respectively. The
DEC ‘0’in deceleration means natural deceleration. As the number increases,the acceleration
or the deceleration becomes faster.
5. PROG (Program)
Max. 100 programs can be saved and recalled.
When [PROG] button is kept pressed for longer than 2 seconds, all buttons can be locked or
unlocked.
6. UP/DOWN
When setting up the RPM/RCF and Time, you can put the set value with up and down button.
7. ENTER
[ENTER] button is for completion of data setting.
8. PULSE
[PULSE] button is for quick and short spin-down. Rotor spins whilethe button is kept pressed
and stops immediately as the button is released.

GENESPEED®GENESPEED® GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
11
9. AT SET SPEED
AT SET SPEED mode counts the run time once the actual run speed reaches to the set speed
value.
[AT SET SPEED] button is for settingthe number of sound and volume as user mode (touch for
more than 2 seconds).
10. START/STOP
[START/STOP] button is to start or stop centrifugation.
11. LID
[LID] button is to open the closed centrifuge lid.

GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
12
GENESPEED®GENESPEED®
4.2 Setting Rotation Speed (RPM/RCF)
The rotation speed is indicatedas RPM (Rotation per Minute)/ RCF (Relative Centrifugal
Force).
The speed range is 500~17,000 rpm and 24~27,237 xg.
Action
Touch [RPM/RCF] once.
The RPM mode is activated bytouching [RPM/RCF].
If the RCF mode is selected, touch [RPM/RCF] once more.
The input RPM value flickerson the display window and can be
set here.
TouchUp [ ] or Down [ ] button to change input value.
RPM setting unit: 10 rpm
RCF setting unit:1xg
If you keep holding nger on the Up/Down buttons for more
than 5 seconds, the RPM/ RCF value is gradually increased or
decreased with 100 rpm, 1000 rpm unit and 10 xg, 100 xg and 1000
xg unit.
If you do not touchthe Up/Down button for 15 seconds, the
setting mode is cleared.
Touch the [ENTER] button to save the setting value.
1
2
3

GENESPEED®GENESPEED® GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
13
4.3 Setting Time
Time can be set at ‘Minute’and ‘Second’and the operation time is available up to 99
min 59 sec or continuous (00 min 00 sec).
Two alternative time counter modes are available. When‘AT SET SPEED’mode is not set,
the time countstarts at the point whenSTART/STOP [ ] button is pressed. On the other hand,
the ‘AT SET SPEED’mode counts the time of rotation at the set speed.
4.3.1 Setting AT SET SPEED
Action
4.3.2 Setting Time
Time setting unit: 1min. / 1 sec.
Action
Touch [AT SET SPEED] button once.
AT SET SPEED Mode:
For exact time control, this instrument can be set with AT SET
SPEED mode which counts the run time once the actual run speed
reaches to the set speed value and stops when the deceleration
begins.
Touch[TIME] button once.
If [TIME] button is touched once, the input value of the
‘SEC’signflickers.
Touch Up [ ] or Down [ ] button to change the second
value.
If you do not touch the Up/Down button for 15 seconds, the
setting mode is cleared.
Touch [ENTER] button to pass the ‘MIN’value setting.
1
1
2
*[AT SET SPEED] lamp turns on: From t1 to t2
*[AT SET SPEED] lamp turns off: From t0 to t2

GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
14
GENESPEED®GENESPEED®

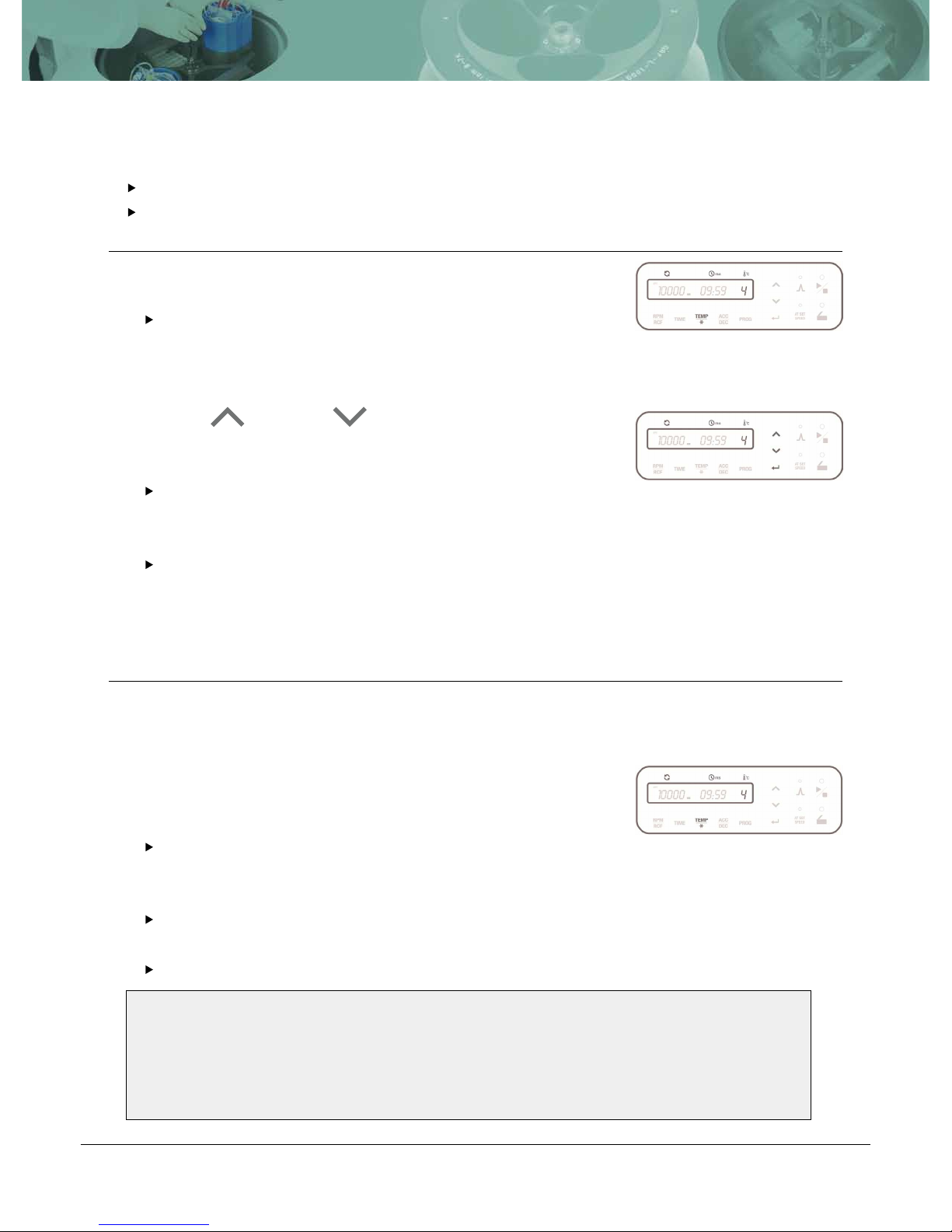

4.4 Setting Temperature and Fast Cool
4.4.1 Setting Temperature
Temperature can be set from -20℃to 40℃
Temp setting unit: 1 ℃
Action
4.4.2 Setting Fast Cool
Action
Touch [TEMP] button.
The input value of the ‘TEMP’sign flickerson the display
window and can be set here.
Touch Up [ ] or Down [ ] button to change input ACC or
DEC value.
If you do not touch the Up/Down button for 15 seconds, the
setting mode is cleared.
Touch [ENTER] button to complete the setting.
Setting the temperature. (Please refer to 4.4.1 Setting Temperature).
After installation of the rotor and closing the lid of instrument, touch
the [TEMP] button for more than 2 seconds.
For fast cooling, the instrument is refrigerated down to the set
temperature in a short time.
During the fast cooling, the rotor runs at low speed (1,000 rpm).
The passed time is showed on the display window.
1
1
2
2
Note!
•If you’d like to load your sample tubes before pressing the [Fast Cool] button, please
check if the sample is safe during spinning at 1,000 rpm.
•Before starting Fast Cooling, please check the rotor coupling and symmetry of sample
tubes.

GENESPEED®GENESPEED® GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
15
4.5 Setting Acceleration/ Deceleration (ACC/DEC)
Acceleration (level: 1~9) and deceleration (level: 0~9 (0: spontaneous deceleration)) can be
controlled according to the sample characteristics
Action
Touch [ACC/DEC] button.
The input value of the ACC or DEC valueappears on TEMP
position of the display window and can be set here.
Touch Up [ ] or Down [ ] button to change input ACC or
DEC value.
Input the desired level of ACC from 1 to 9. (Level 9: The
fastest acceleration)
Input the desired level of DEC from 0 to 9. (Level 0: Natural
deceleration / Level 9: The fastest deceleration).
If you do not touch the Up/Down button for 15 seconds, the
setting mode is cleared.
Touch [ENTER] button to complete the setting.
1
2

GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
16
GENESPEED®GENESPEED®
4.6 START / STOP
START/STOP [ ] button is used to start or stop the centrifugation.
4.6.1 START
Action
4.6.2 STOP
Action
After setting the RPM/RCF, Time, TEMP and ACC/DEC,
touchSTART/STOP [ ] button.
When the rotation starts, the ‘START LED’is turned on.
[START/STOP] buttoncan be readyonly when the lid is closed.
When you touch [ENTER] button during operation, display
window shows the saved setting parameters.
Touch [ ] button to stop spinning.
If you touch [START/STOP] button, the operation stops
immediately.
When you touch [START/STOP] button twice, the operation is
stopped with DEC 9.
1
1
Note! Stop at the Maximum Braking Deceleration
•Touch [ ] button twice for the fastest deceleration. And the rotation stops at the maximum
deceleration rate (DEC9) regardless of the set DEC value.

GENESPEED®GENESPEED® GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
17
4.7 PULSE (Short Spin)
This function can be used for the quick and short spin-down. If the touched pulse [] button is
released, the centrifuge decelerates immediately. (Short Spin)
Action
4.8 Save / Call Program
Action
Touch [ ]button and release at the point you want to stop the
operation. And then, the centrifuge decelerates immediately.
If the actual speed reaches the set value, the centrifuge starts to
decelerateeven when [PULSE] button is kept pressed.
Set parameters (RPM/RCF, Time, Temperature and ACC/DEC,
etc.) and savethem in the program. (refer to 4.2 Setting Rotation
Speed/ 4.3 Setting Time/ 4.4 Setting Temperature and Fast Cool / 4.5
Setting Acceleration / Deceleration)
Touch [PROG] button twice.
The program number flickers and the “SAVE”sign appears
on the display window.
Touch Up[ ] or Down [ ] button to select the program
number and touch [ENTER] button to complete the saving.
If you do not touch the Up/Down button for 15 seconds, the
setting mode is cleared.
Maximum 100 programs can be saved. (Program number: 00 to
99)
1
1
2
3
Save Program
•The set parameters (speed, time and ACC/DEC) can be stored in the individual programs
and recalled for next use.
Call Program
•The saved programs from 0 to 99 can be recalled at need.

GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
18
GENESPEED®GENESPEED®
Action
4.9 End Alarm
Users can select the preferred end alarm. Repeat account and sound pitch of the end alarm can
be selected.
4.9.1 Access to End Alarm
Action
4.9.2 Setting the Repeat Count of End Alarm
Action

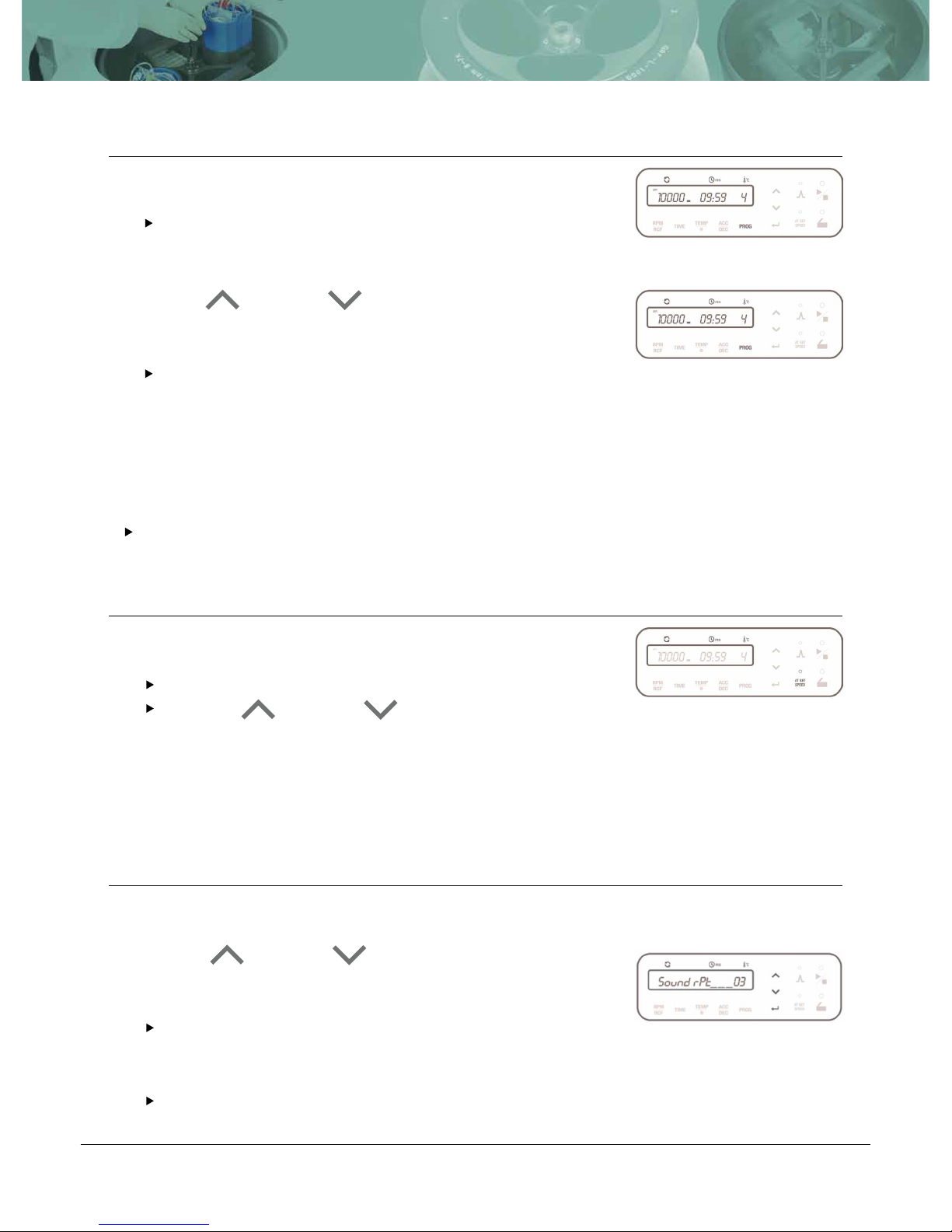

Touch [PROG] button once.
The program number flickers and the “CALL”sign appears
on the display window.
Touch Up[ ] or Down [ ] button to select the program
number you want to recall and then touch [ENTER] button.
If you do not touch the Up/Down button for 15 seconds, the
setting mode is cleared.
Keep [AT SET SPEED] button pressed for more than 2 seconds.
‘Sound rPt’appears on the display window.
Touch Up [ ] or Down [ ] button to select the mode
(Sound rPt (Repeat)/ Sound LEVEL)and then touch [ENTER]
button.
Check the “Sound rPt”on the display window.
Touch Up [ ] or Down [ ] button tochange the repeat count
and then touch the [ENTER] button.
The mode is passed to ‘Sound Level’by touching [ENTER]
button.
Repeat counts of end alarm: 0~99 (0: silent, 99: 99 times)
1
1
1
2
1

GENESPEED®GENESPEED® GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
19
4.9.3 Setting the Sound Pitch of End Alarm
Action
4.10 Emergency Lid Open (Manual Lid Release)
When the lid of the instrument is not opened by pressing the lid buttondue toan accidental
power shut-off or any unexpected causes, users can manually open the lid by following the
instruction.
Action
Check the “Sound LEVEL”on the display window.
Touch Up [ ] or Down [ ] button tochange the sound pitch
and then touch the [ENTER] button.
The mode is clearby touching [ENTER] button.
Sound LEVEL: 0~10 (0: silent)
Check if the rotor in the centrifuge is completely stopped.
Find a hole for manual lidcontrolon the left side of the instrument.
Insert Emergency Lid-Lock Release Tool into the hole and push it
until the lid is released.
After the lidis opened, it is recommended to wait until
electricity gets back to normal.
1
1
2
3
2
Caution!
•The manual lid release should be performed only when spinning is completely stopped. If
not, it could bring about harmful damage to the operators or the samples.

GENESPEED®GENESPEED®
Refrigerated High-Speed Micro Centrifuge, 1730R
20
GENESPEED®GENESPEED®
5. Maintenance
5.1 Outer Part of Instrument, Chamber, Shaft and Rotor
Outer Part of Instrument
1. Clean the outside of the instrument with dry soft cloth. If necessary, dip the cloth in neutral
detergent and clean any contaminated area. Keep completely dry after cleaning.
2. Do not use any volatile chemicals such as alcohol, benzene, benzole, and thinner, etc.
3. Be careful not to make scratches on the surface of the instrument.
Scratches may cause corrosion on the surface of the instrument.
Any parts with rust should be cleaned with neutral detergents and kept dry.
Chamber
1. Keep dry inside the chamber after every use.
2. If the chamber is contaminated, clean contaminated area with the cloth dipped in neutral
detergent.
Shaft
1. Always keep the motor shaft clean to avoid any imbalance problem caused by the
contaminants.
2. After using the instrument, take out the rotor from the shaft and clean the shaft with dry soft
cloth to keep dry.
3. If the rotor cannot be easily removed from the shaft, do not pull the rotor by force and call a
service engineer authorized by Gene Company Limited.
Rotor
1. If any parts become contaminated, clean them with soft wet cloth and keep the rotor dry.
2. Be careful not to make scratches inside or on the surface of rotors. Any small scratches can
cause corrosion of the rotor and big damage to the instrument.
3. While the instrument is not used, remove the rotor from the motor shaft and stand it upside
down.
