Genie Z-34/22 User manual

Operator’s Manual Second Edition
Ninth Printing
Part No. 43654
with Maintenance Information
Before serial number Z34N-2101 and Z34-1735:
Incorrect operation can result from use of this manual on machines that have not been updated
according to Genie Campaign Bulletin 070001. Death or Serious Injury can result.
This manual only applies to machines that have been updated according to Genie Campaign
Bulletin 070001. Contact Genie Industries for information on this bulletin.
After serial number Z34N-2100 and Z-34-1734:
Genie Campaign Bulletin 070001 does not apply to these machines.

Genie Z-34/22 & Genie Z-34/22N Part No.43654
Operator's Manual Second Edition • Ninth Printing
Copyright © 1996 by Genie Industries
First Edition: Third Printing, July 1996
Second Edition: Ninth Printing, June 2007
"Genie" and "Z" are registered trademarks of
Genie Industries in the U.S.A. and many other
countries.
These machines comply with
ANSI/SIA 92.5-1992.
Printed on recycled paper
Printed in U.S.A.
Important
Read, understand and obey these safety rules and
operating instructions before operating this machine.
Only trained and authorized personnel shall be
permitted to operate this machine. This manual should
be considered a permanent part of your machine and
should remain with the machine at all times. If you
have any questions, call Genie Industries.
Contents
Page
Safety ........................................................................ 1
Controls ..................................................................... 8
Pre-operationInspection........................................... 10
Maintenance............................................................. 12
Function Tests.......................................................... 14
Workplace Inspection ............................................... 19
Operating Instructions .............................................. 20
Transport & Lifting Instructions ................................. 25
Decals ...................................................................... 28
Specifications ........................................................... 30
Contact us:
Internet:http://www.genielift.com
e-mail:[email protected]

PartNo.43654 GenieZ-34/22&GenieZ-34/22N 1
Operator's Manual
Second Edition • Ninth Printing
Safety Rules
Danger
Failure to obey the instructions and
safety rules in this manual will
result in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardoussituations.
Knowandunderstandthesafetyrulesbefore
going on to the next section.
2 Alwaysperformapre-operationinspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Youread,understandandobey:
Manufacturer'sinstructionsandsafety
rules—safetyandoperator'smanuals
andmachinedecals
Employer's safety rules and worksite
regulations
Applicablegovernmentalregulations
Youare properlytrained tosafely operatethe
machine.

2 GenieZ-34/22&GenieZ-34/22N PartNo.43654
Operator's Manual Second Edition • Ninth Printing
SAFETY RULES
Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Maintain safe distances from electrical power lines
and apparatus in accordance with applicable
governmental regulations and the following chart.
Voltage Minimum Safe
Phase to Phase Approach Distance
Feet Meters
0 to 300V Avoid Contact
300V to 50KV 10 3.05
50KV to 200KV 15 4.60
200KV to 350KV 20 6.10
350KV to 500KV 25 7.62
500KV to 750KV 35 10.67
750KV to 1000KV 45 13.72
Allow for platform movement, electrical line sway or
sag and beware of strong or gusty winds.
Keep away from the machine if it contacts
energized power lines. Personnel on the ground or
in the platform must not touch or operate the
machine until energized power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.
Tip-over Hazards
Occupants and equipment shall not exceed the
maximum platform capacity.
Maximum platform capacity 500 lbs 227 kg
Maximum occupants 2
Do not raise or extend the boom unless the
machine is on a firm, level surface.
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds in the platform only when the
machine is on a severe slope.
If the tilt alarm sounds:
Do not extend, rotate or raise the boom above
horizontal. Move the machine to a firm, level
surface before raising the platform. If the tilt alarm
sounds when the platform is raised, use extreme
caution to retract the boom and lower the platform.
Donot rotate theboom while lowering.Move the
machine to a firm, level surface before raising the
platform.

PartNo.43654 GenieZ-34/22&GenieZ-34/22N 3
Operator's Manual
Second Edition • Ninth Printing
SAFETY RULES
Do not drive the machine on a slope that exceeds
the maximum uphill, downhill or side slope rating of
the machine. Slope rating applies to machines in
thestowed position.
Maximumslope rating, stowed position,
Counterweight uphill 20% (11°)
Counterweight downhill 20% (11°)
Side slope 20% (11°)
Note: Slope rating is subject to ground conditions
andadequatetraction.
Donot drivethe machineon or near uneven terrain,
unstablesurfacesorother hazardous conditions
withthe boom raised or extended.
Do not push off or pull toward any object outside
of the platform.
Maximum allowable
side force - ANSI & CSA
150 lbs / 667 N
Maximum allowable
manual force - CE
90 lbs / 400 N
Do not alter or disable machine components that in
any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not modify or alter an aerial work platform.
Mountingattachments forholding toolsor other
materialsontotheplatform,toeboards or guardrail
system can increase the weight in the platform and
the surface area of the platform or the load.
Do not alter or disable the limit switches.
Do not drive over 0.6 mph / 1 km/h with the primary
boomraisedorextendedor the secondary boom
raised.
Do not use the platform controls to free a platform
thatiscaught, snagged orotherwiseprevented
from normal motion by an adjacent structure. All
personnelmust be removedfrom theplatform
before attempting to free the platform using the
groundcontrols.
Do not operate the machine in strong or gusty
winds. Do not increase the surface area of the
platform or the load. Increasing the area exposed to
the wind will decrease machine stability.
Use extreme care and slow speeds while driving
the machine in the stowed position across uneven
terrain,debris, unstableor slipperysurfaces and
nearholesanddrop-offs.

4 GenieZ-34/22&GenieZ-34/22N PartNo.43654
Operator's Manual Second Edition • Ninth Printing
SAFETY RULES
Fall Hazards
Occupants must wear a
safety belt or harness and
complywithapplicable
governmentalregulations.
Attach lanyard to the anchor
providedinthe platform.
Do not sit, stand or climb on the platform guard
rails. Maintain a firm footing on the platform floor at
all times.
Do not climb down from the platform when raised.
Keep the platform floor clear of debris.
Lower the platform entry mid-rail or close the entry
gatebeforeoperating.
Do not place or attach overhanging loads to any
part of this machine.
Do not place ladders or scaffolds in the platform or
against any part of this machine.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition and lug nuts
areproperlytightened.
Do not use batteries that weigh less than the
originalequipment.Batteriesare used as
counterweight and are critical to machine stability.
Each battery must weigh 88 lbs / 40 kg. Each
battery box including batteries must weigh a
minimum of 452 lbs / 205 kg.
Do not use the machine as a crane.
Do not push the machine or other objects with the
boom.
Do not contact adjacent structures with the boom.
Do not tie the boom or platform to adjacent
structures.
Do not place loads outside the platform perimeter.

PartNo.43654 GenieZ-34/22&GenieZ-34/22N 5
Operator's Manual
Second Edition • Ninth Printing
SAFETY RULES

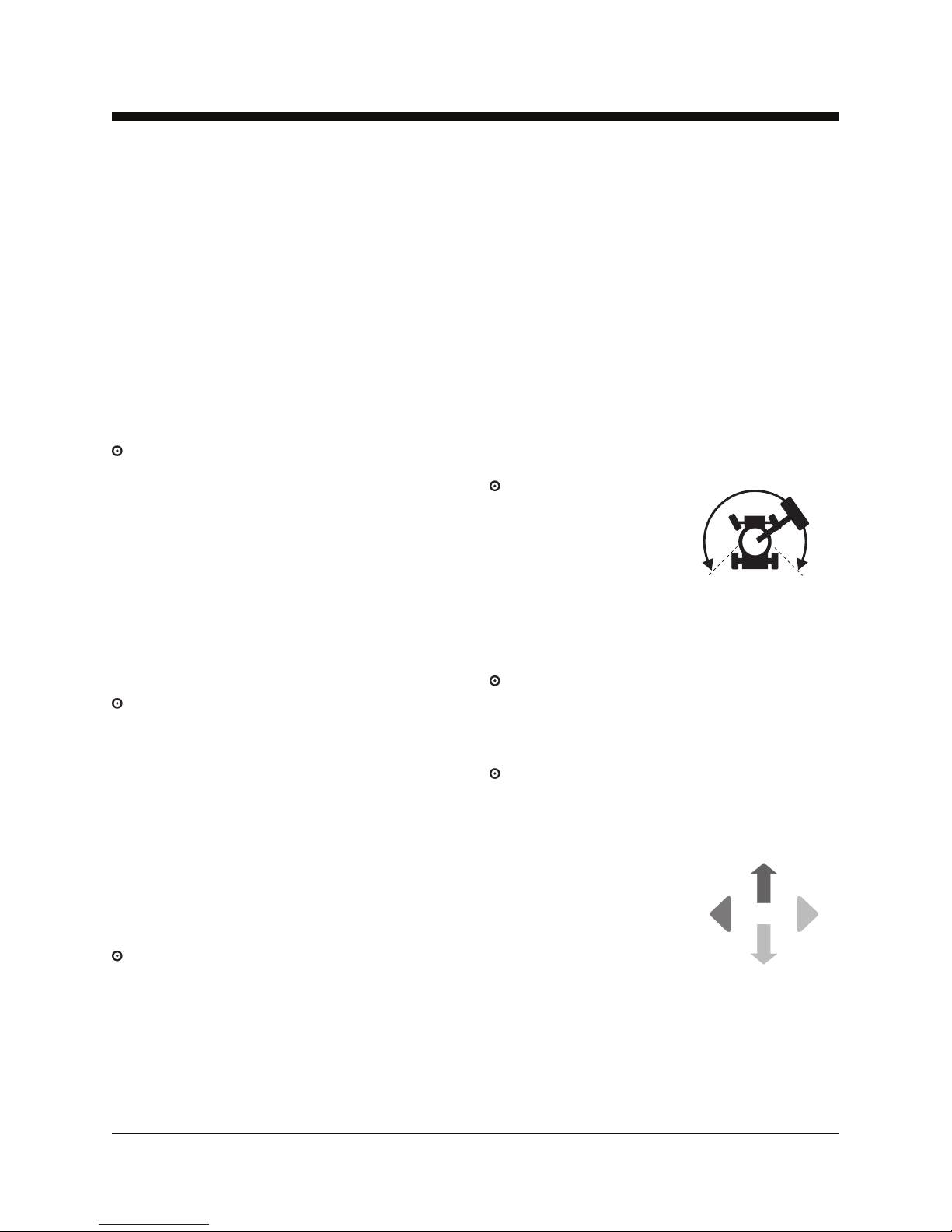

Collision Hazards
Be aware of limited sight
distance and blind spots
whendrivingoroperating.
Beaware of boom position whenrotating the
turntable.
The machine must be on a level surface or secured
beforereleasingthebrakes.
Do not drive the machine with the brakes released.
If the travel alarm sounds when not driving, the
brakesarereleased.
Checkworkareaforoverheadobstructionsorother
possiblehazards.
Beawareofcrushinghazardswhengraspingthe
platformguardrail.
Itisrecommended that operatorswearanapproved
hardhatwhenoperatingthemachine.
Observeandusethecolor-codeddirectionarrows
on the platform controls and drive chassis for drive
and steer functions.
Do not operate a boom in the path of any crane
unless the controls of the crane have been locked
outand/or precautions havebeen taken toprevent
any potential collision.
Nostuntdriving orhorseplaywhile operatinga
machine.
Do not lower the boom unless the area below is
clearofpersonnel and obstructions.
Limit travel speed according to the condition of the
ground surface, congestion, slope, location of
personnel, and any other factors which may cause
collision.
Use extreme care and slow speeds while driving
the machine in the stowed position on any slope.
Do not drive on a slope with boom raised.
Do not allow the machine speed on any slope to
exceed 3 mph / 4.8 km/h (walking pace).
Stop the machine by returning the drive control
handle to the center position or releasing the foot
switch.
When stopped on a slope, the machine may initially
moveslightly downhillwhen thedrive controlhandle
is moved to drive up the slope. Be sure the area
behind the machine is clear.
Do not drive on a slope with the wheels turned. Be
surethe wheelsare alignedup anddown theslope.
Always use a winch to
loadandunloada
machinefrom a
transportvehicle.

6 GenieZ-34/22&GenieZ-34/22N PartNo.43654
Operator's Manual Second Edition • Ninth Printing
Component Damage Hazard
Do not use the machine as a ground for welding.
Damaged Machine Hazards
Donot use adamaged ormalfunctioning machine.
Conductathoroughpre-operationinspectionofthe
machine and test all functions before each work
shift. Immediately tag and remove from service a
damagedormalfunctioningmachine.
Besure all maintenance has beenperformed as
specified in this manual and the
GenieZ-34/22&GenieZ-34/22NServiceManual.
Be sure all decals are in place and legible.
Be sure the operator’s, safety and responsibilities
manuals are complete, legible and in the storage
container located on the platform.
Bodily Injury Hazard
Do not operate the machine with a hydraulic oil or
air leak. An air leak or hydraulic leak can penetrate
and/orburnskin.
SAFETY RULES
Decal Legend
Genie product decals use symbols, color coding
and signal words to identify the following:
Safety alert symbol—used to alert
personneltopotentialpersonal
injury hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Red—usedtoindicatethe
presence of an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
Orange—used to indicate the
presence of a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
Yellow with safety alert symbol—
used to indicate the presence of a
potentially hazardous situation
which, if not avoided, may cause
minor or moderate injury.
Yellow without safety alert
symbol—used to indicate the
presence of a potentially
hazardous situation which, if not
avoided, may result in property
damage.
Green—used to indicate operation
or maintenance information.

PartNo.43654 GenieZ-34/22&GenieZ-34/22N 7
Operator's Manual
Second Edition • Ninth Printing
SAFETY RULES
Battery Safety
Burn Hazards
Batteries contain acid. Always wear protective
clothingandeyewearwhenworkingwithbatteries.
Avoid spilling or contacting battery acid. Neutralize
battery acid spills with baking soda and water.
The battery pack must remain in upright position.
Do not expose the batteries or the charger to water
orrain.
Explosion Hazards
Keep sparks, flames and
lightedtobacco awayfrom
batteries. Batteries emit an
explosive gas.
The battery pack cover
must remain off during the
entirecharging cycle.
Do not contact the battery terminals or the cable
clamps with tools that may cause sparks.
Component Damage Hazards
Do not use any battery charger greater than 48V to
chargethebatteries.
Both battery packs must be charged together.
Disconnectthe battery pack plug beforeremoving
the battery pack.
Electrocution Hazards
Connect the battery charger to a
grounded,AC3-wireelectrical
outlet only.
Inspect daily for damaged cord,
cablesandwires.Replace
damageditemsbefore
operating.
Avoid electrical shock from contact with battery
terminals. Remove all rings, watches and other
jewelry.
Tip-over Hazard
Do not use batteries that weigh less than the
originalequipment.Batteriesare used as
counterweight and are critical to machine stability.
Each battery must weigh 88 lbs / 40 kg. Each
battery box including batteries must weigh a
minimum of 452 lbs / 205 kg.
Lifting Hazard
Use a forklift to remove or install the battery packs.

8 GenieZ-34/22&GenieZ-34/22N PartNo.43654
Operator's Manual Second Edition • Ninth Printing
Controls
Platform Control Panel
1 Driveenableswitch
2 Driveenableindicatorlight
3 Auxiliarypowerswitch
4 Platform level switch
5 Hornbutton
6 Primaryboomextend/retract switch
7 RedEmergencyStopbutton
8 Notused
9 Battery charge indicator and/or low voltage
interrupt(option)
10 Proportionalcontrolhandlefordrivefunctionand
thumb rocker for steer function
11 Boomfunctionspeedcontroller
12 Jib boom up/downswitch
13 Lowbattery indicator light
14 Secondaryboomup/downswitch
15 Primaryboomup/downswitch
16 Turntablerotateswitch
17 Platform rotate switch

PartNo.43654 GenieZ-34/22&GenieZ-34/22N 9
Operator's Manual
Second Edition • Ninth Printing
CONTROLS
Ground Control Panel
1 Turntablerotateswitch
2 Platform rotate switch
3 Platform level switch
4 Primaryboomextend/retract switch
5 Auxiliarypower switch
6 Hourmeter
7 Key switch for platform/off/ground selection
8 RedEmergencyStopbutton
9 10A breaker for electrical circuits
10 Remotebrakerelease
11 Notused
12 Jib boom up/downswitch
13 Primaryboomup/downswitch
14 Functionenableswitch
15 Secondaryboomup/downswitch

10 GenieZ-34/22&GenieZ-34/22N PartNo.43654
Operator's Manual Second Edition • Ninth Printing
Pre-operation Inspection
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardous situations.
2 Alwaysperformapre-operation
inspection.
Knowandunderstandthepre-operation
inspection before going on to the next
section.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Fundamentals
It is the responsibility of the operator to perform a
pre-operationinspectionandroutinemaintenance.
Thepre-operation inspection is a visual inspection
performed by the operator prior to each work shift.
The inspection is designed to discover if anything
is apparently wrong with a machine before the
operator performs the function tests.
Thepre-operationinspectionalsoservesto
determine if routine maintenance procedures are
required. Only routine maintenance items
specified in this manual may be performed by the
operator.
Refer to the list on the next page and check each
of the items and locations for modifications,
damage or loose or missing parts.
A damaged or modified machine must never be
used. If damage or any variation from factory
delivered condition is discovered, the machine
must be tagged and removed from service.
Repairs to the machine may only be made by a
qualified service technician, according to the
manufacturer's specifications. After repairs are
completed, the operator must perform a
pre-operation inspection again before going on to
the function tests.
Scheduled maintenance inspections shall be
performed by qualified service technicians,
according to the manufacturer's specifications and
the requirements listed in the responsibilities
manual.

PartNo.43654 GenieZ-34/22&GenieZ-34/22N 11
Operator's Manual
Second Edition • Ninth Printing
Pre-operation Inspection
!Be sure that the operator's, safety and
responsibilitiesmanualsarecomplete,legible
and in the storage container located on the
platform.
!Be sure that all decals are legible and in place.
See Decals section.
!Check for hydraulic oil leaks and proper oil level.
Add oil if needed. See Maintenance section.
!Check for battery fluid leaks and proper fluid
level. Add distilled water if needed. See
Maintenance section.
Check the following components or areas for
damage, modifications and improperly installed or
missing parts:
!Electricalcomponents, wiringand electrical
cables
!Hydraulic power unit, tank, hoses,
fittings, cylinders and manifolds
!Driveandturntable motors anddrivehubs
!Boomwearpads
!Tiresandwheels
!Limit switches, alarms and horn
!Nuts, bolts and other fasteners
!Platformentry mid-railbar orgate
PRE-OPERATION INSPECTION
Checkentire machine for:
!Crack in welds or structural components
!Dentsordamage to machine
!Be sure that all structural and other critical
components are present and all associated
fasteners and pins are in place and properly
tightened.
!Be sure that both battery packs are in place,
latchedandproperlyconnected.
!After you complete your inspection, be sure that
all compartment covers are in place and
latched.

12 GenieZ-34/22&GenieZ-34/22N PartNo.43654
Operator's Manual Second Edition • Ninth Printing
Maintenance
Observe and Obey:
Only routine maintenance items specified in
this manual shall be performed by the operator.
Scheduled maintenance inspections shall be
completed by qualified service technicians,
according to the manufacturer's specifications
and the requirements specified in the
responsibilities manual.
Maintenance Symbols Legend
Thefollowing symbols havebeen
used in this manual to help
communicate the intent of the
instructions. When one or more of
the symbols appear at the
beginning of a maintenance
procedure, it conveys the meaning
below.
Indicates that tools will be required
to perform this procedure.
Indicates that new parts will be
required to perform this procedure.
Check the Hydraulic Oil Level
Maintaining the hydraulic oil at the proper level is
essential to machine operation. Improper hydraulic
oil levels can damage hydraulic components. Daily
checks allow the inspector to identify changes in
oil level that might indicate the presence of
hydraulic system problems.
1 Be sure that the boom is in the stowed position.
2 Check the hydraulic oil level.
Result: The hydraulic oil level should be at the
FULL mark on the dipstick or visible in the sight
glass or between the FULL and ADD marks on the
hydraulictank.
3 Add hydraulic oil if necessary.
Hydraulic Oil Specifications
Hydraulic oil type Refer to machine decal

PartNo.43654 GenieZ-34/22&GenieZ-34/22N 13
Operator's Manual
Second Edition • Ninth Printing
Check the Batteries
Proper battery condition is essential to good
engine performance and operational safety.
Improper fluid levels or damaged cables and
connections can result in engine component
damage and hazardous conditions.
Electrocution hazard. Contact with
hot or live circuits could result in
death or serious injury. Remove
all rings, watches and other
jewelry.
Bodily injury hazard. Batteries
contain acid. Avoid spilling or
contacting battery acid. Neutralize
battery acid spills with baking
soda and water.
Perform this test after fully
charging the batteries.
1 Put on protective clothing and eye wear.
2 Be sure that the battery cable connections are
tight and free of corrosion.
3 Remove the battery vent caps.
4 Check the battery acid level. If necessary,
replenish with distilled water to the bottom of the
battery fill tube. Do not overfill.
5 Install the vent caps.
MAINTENANCE
Scheduled Maintenance
Maintenanceperformedquarterly,annuallyand
every two years must be completed by a person
trainedandqualifiedtoperform maintenance onthis
machineaccording tothe procedures found in the
service manual for this machine.
Machines that have been out of service for more
than three months must receive the quarterly
inspection before they are put back into service.

14 GenieZ-34/22&GenieZ-34/22N PartNo.43654
Operator's Manual Second Edition • Ninth Printing
FunctionTests
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardous situations.
2 Alwaysperformapre-operation
inspection.
3 Alwaysperformfunctiontestspriorto
use.
Knowandunderstandthefunctiontests
before going on to the next section.
4 Inspect the workplace.
5 Only use the machine as it was intended.
1 Select a test area that is firm, level and free of
obstruction.
At the Ground Controls
2 Turn the key switch to ground control.
3 Pull out the red Emergency Stop button to
the on position.
Result:The beacon (ifequipped) shouldflash.
TestEmergencyStop
4 Push in the red Emergency Stop button to the
off position.
Result: All ground and platform control functions
shouldnotoperate.
5 Pull out the red Emergency Stop button to
the on position.
Fundamentals
The function tests are designed to discover any
malfunctions before the machine is put into
service. The operator must follow the step-by-step
instructions to test all machine functions.
A malfunctioning machine must never be used. If
malfunctions are discovered, the machine must be
tagged and removed from service. Repairs to the
machine may only be made by a qualified service
technician, according to the manufacturer’s
specifications.
After repairs are completed, the operator must
preform a pre-operation inspection and function
tests again before putting the machine into
service.

PartNo.43654 GenieZ-34/22&GenieZ-34/22N 15
Operator's Manual
Second Edition • Ninth Printing
FUNCTION TESTS
Test Auxiliary Controls
11 Turn the key switch to ground control.
12 Simultaneously hold the auxiliary power switch
on and activate each boom function toggle
switch.
Note: To conserve battery power, test each
function through a partial cycle.
Result: All boom functions should operate.
13 Turn the key switch to platform control.
At the Platform Controls
TestEmergencyStop
14 Push in the platform red Emergency Stop button
to the off position.
Result: All platform control functions should not
operate.
TesttheHorn
15 Pull out the red Emergency Stop button to the
onposition.
16 Push the horn button.
Result:Thehornshould sound.
TesttheFootSwitch
17 Do not press down the foot switch. Activate
each machine function.
Result: The machine functions should not
operate.
Test the Boom Functions
6 Do not hold the function enable switch to either
side. Attempt to activate each boom and
platform function toggle switch.
Result: All boom and platform functions should
notoperate.
7 Hold the function enable switch to either side
and activate each boom and platform function
toggle switch.
Result: All boom and platform functions should
operate through a full cycle. The descent alarm
(if equipped) should sound while the boom is
lowering.
Machines equipped with Platform Level Control
Disable Function: The platform level toggle switch
will not operate when the primary boom is raised
past the drive speed limit switch.
Test the Tilt Sensor
8 Pull out the platform red Emergency Stop
button to the on position. Turn the key switch to
platform control.
9 Open the ground control side turntable cover
and locate the tilt sensor next to the function
manifold.
10 Press down one side of the tilt
sensor.
Result: The alarm, located in the
platform, should sound.

16 GenieZ-34/22&GenieZ-34/22N PartNo.43654
Operator's Manual Second Edition • Ninth Printing
FUNCTION TESTS
TestMachineFunctions
18 Move the lift/drive select switch to the lift
position(ifequipped).
19 Press down the foot switch.
20 Activate each machine function toggle switch.
Result: All boom/platform functions should
operate through a full cycle.
Note: Control the speed of boom functions by
adjusting the boom function speed controller.
Drive and steer functions are not affected by the
boom function speed controller.
Machines equipped with Platform Level Control
Disable Function: The platform level toggle switch
will not operate when the primary boom is raised
past the drive speed limit switch.
TesttheSteering
21 Move the lift/drive select switch to the drive
position(ifequipped).
22 Press down the foot switch.
23 Depress the thumb rocker switch on top of the
drive control handle in the direction identified
by the blue triangle on the control panel.
Result: The steer wheels should turn in the
direction that the blue triangles point on the
drive chassis.
24 Depress the thumb rocker switch in the direction
identified by the yellow triangle on the control
panel.
Result: The steer wheels should turn in the
direction that the yellow triangles point on the
drive chassis.
TestDriveandBraking
25 Move the lift/drive select switch to the drive
position(ifequipped).
26 Press down the foot switch.
27 Slowly move the drive control handle in the
direction indicated by the blue arrow on the
control panel until the machine begins to move,
then return the handle to the center position.
Result: The travel alarm should sound. The
machine should move in the direction that the
blue arrow points on the drive chassis, then
come to an abrupt stop.
28 Slowly move the drive control handle in the
direction indicated by the yellow arrow on the
control panel until the machine begins to move,
then return the handle to the center position.
Result: The travel alarm should sound. The
machine should move in the direction that the
yellow arrow points on the drive chassis, then
come to an abrupt stop.
Note: The brakes must be able to hold the machine
on any slope it is able to climb.

PartNo.43654 GenieZ-34/22&GenieZ-34/22N 17
Operator's Manual
Second Edition • Ninth Printing
TestLimitedDrive Speed
29 Move the lift/drive select switch to the lift
position(ifequipped).
30 Press down the foot switch.
31 Raise the primary boom 1 foot / 30 cm.
32 Move the lift/drive select switch to the drive
position(ifequipped).
33 Slowly move the drive control handle to the full
drive position.
Result: The maximum achievable drive speed
with the primary boom raised should not
exceed 1 foot / 30 cm per second.
34 Move the lift/drive select switch to the lift
position(ifequipped).
35 Lower the boom to the stowed position.
36 Raise the secondary boom 1 foot / 30 cm.
37 Move the lift/drive select switch to the drive
position(ifequipped).
38 Slowly move the drive control handle to the full
drive position.
Result: The maximum achievable drive speed
with the secondary boom raised should not
exceed 1 foot / 30 cm per second.
39 Move the lift/drive select switch to the lift
position(ifequipped).
40 Lower the boom to the stowed position.
41 Extend the primary boom 1 foot / 30 cm.
42 Move the lift/drive select switch to the drive
position(ifequipped).
43 Slowly move the drive control handle to the full
driveposition.
Result:The maximumachievable drive speed
withthe primary boomextended shouldnot
exceed 1 foot / 30 cm per second.
If the drive speed with the primary boom raised or
extendedorthe secondary boomraisedexceeds
1 foot / 30 cm per second, immediately tag and
remove the machine from service.
TesttheDrive Enable System
44 Move the lift/drive select switch to the lift
position(ifequipped).
45 Press down the foot switch and retract the
primary boom to the stowed position.
46 Rotate the turntable until the boom moves past
oneofthenon-steer wheels.
Result:Thedriveenable
indicatorlight should
comeonand remainon
while the boom is
anywhereintherange
shown.
47 Move the lift/drive select switch to the drive
position(ifequipped).
48 Move the drive control handle off center.
Result: The drive function should not operate.
49 Hold the drive enabletoggle switch up or down
and slowly move the drive control handle off
center.
Result:The drivefunction shouldoperate.
Note: When the drive enable system is in use, the
machine may drive in the opposite direction that the
drive and steer control handle is moved.
Usethecolor-codeddirection
arrowsonthe platform controls
and the drive chassis to
identify the direction of travel.
FUNCTION TESTS
Blue
Yellow

18 GenieZ-34/22&GenieZ-34/22N PartNo.43654
Operator's Manual Second Edition • Ninth Printing
TesttheLift/DriveSelectFunction
(CEmodels)
Machineswithlift/driveselectswitch:
50 Move the lift/drive select switch to the lift
position.
51 Press down the foot switch.
52 Move the drive control handle off center.
Result:No drive functionsshould operate.
53 Activate each boom function toggle switch.
Result: All boom functions should operate.
54 Move the lift/drive select switch to the drive
position.
55 Press down the foot switch.
56 Activate each boom function toggle switch.
Result:No boom functionsshould operate.
57 Move the drive control handle off center.
Result:The drive functionsshould operate.
Machineswithoutlift/driveselectswitch:
58 Press down the foot switch.
59 Move the drive control handle off center and
activate a boom function toggle switch.
Result:No boomfunctions shouldoperate. The
machine will move in the direction indicated on
thecontrolpanel.
FUNCTION TESTS
TestAuxiliaryControls
60 Move the lift/drive select switch to the
appropriateposition(ifequipped).
61 Press down the foot switch.
62 Simultaneously hold the auxiliary power switch
on and activate each function control handle or
toggle switch.
Note: To conserve battery power, test each
function through a partial cycle.
Result: All boom, steer and drive functions
shouldoperate.
