Genie ZX-135/70 with Jib-Extend User manual

Service Manual
Serial Number Range
ZX-135/70
from ZX13513-2001
Part No. 218700
Rev D2
August 2014

Service Manual August 2014
Introduction
ii ZX-135/70 Part No. 218700
Intr od ucti on Intr od ucti on
Important
Read, understand and obey the safety rules and
operating instructions in the appropriate Operator's
Manual on your machine before attempting any
maintenance procedure.
This manual provides detailed scheduled
maintenance information for the machine owner
and user. It also provides troubleshooting and
repair procedures for qualified service
professionals.
Basic mechanical, hydraulic and electrical skills
are required to perform most procedures. However,
several procedures require specialized skills, tools,
lifting equipment and a suitable workshop. In these
instances, we strongly recommend that
maintenance and repair be performed at an
authorized Genie dealer service center.
Compliance
Machine Classification
Group B/Type 3 as defined by ISO 16368
Machine Design Life
Unrestricted with proper operation, inspection and
scheduled maintenance.
Technical Publications
Genie has endeavored to deliver the highest
degree of accuracy possible. However, continuous
improvement of our products is a Genie policy.
Therefore, product specifications are subject to
change without notice.
Readers are encouraged to notify Genie of errors
and send in suggestions for improvement. All
communications will be carefully considered for
future printings of this and all other manuals.
Contact Us:
Internet: www.genielift.com
E-mail: [e-mail]
Copyright © 2014 by Terex Corporation
218700 Rev D2, August 2014
First Edition, Fourth Printing
Genie is a registered trademark of Terex South Dakota, Inc. in
the U.S.A. and many other countries.
“ZX” is a trademark of Terex South Dakota, Inc..

August 2014 Service Manual
Introduction
Part No. 218700 ZX-135/70 iii
Revision History
Revision Date Section Procedure / Page / Description
A 12/2012 Initial Release
B 9/2013 3-30, 3-43, Electrical Schematic
B1 12/2013 4-55_57
C 4/2014 2-8, 4-55_57, 4-58_61
D 4/2014 Updated Fault Codes
Updated Performance Specifications
D1
6/2014
Maintenance
B-19
D2
8/2014
Maintenance
Added B-20, Moved D-9 to C-8, C-1
Repair
1-2
Reference Examples:
Section – Maintenance, B-3
Electronic Version
Click on any procedure or page number highlighted in blue to view
the update.
Section – Repair Procedure, 4-2
Section – Fault Codes, All charts
Section – Schematics, Legends and schematics

Service Manual August 2014
Introduction
iv ZX-135/70 Part No. 218700

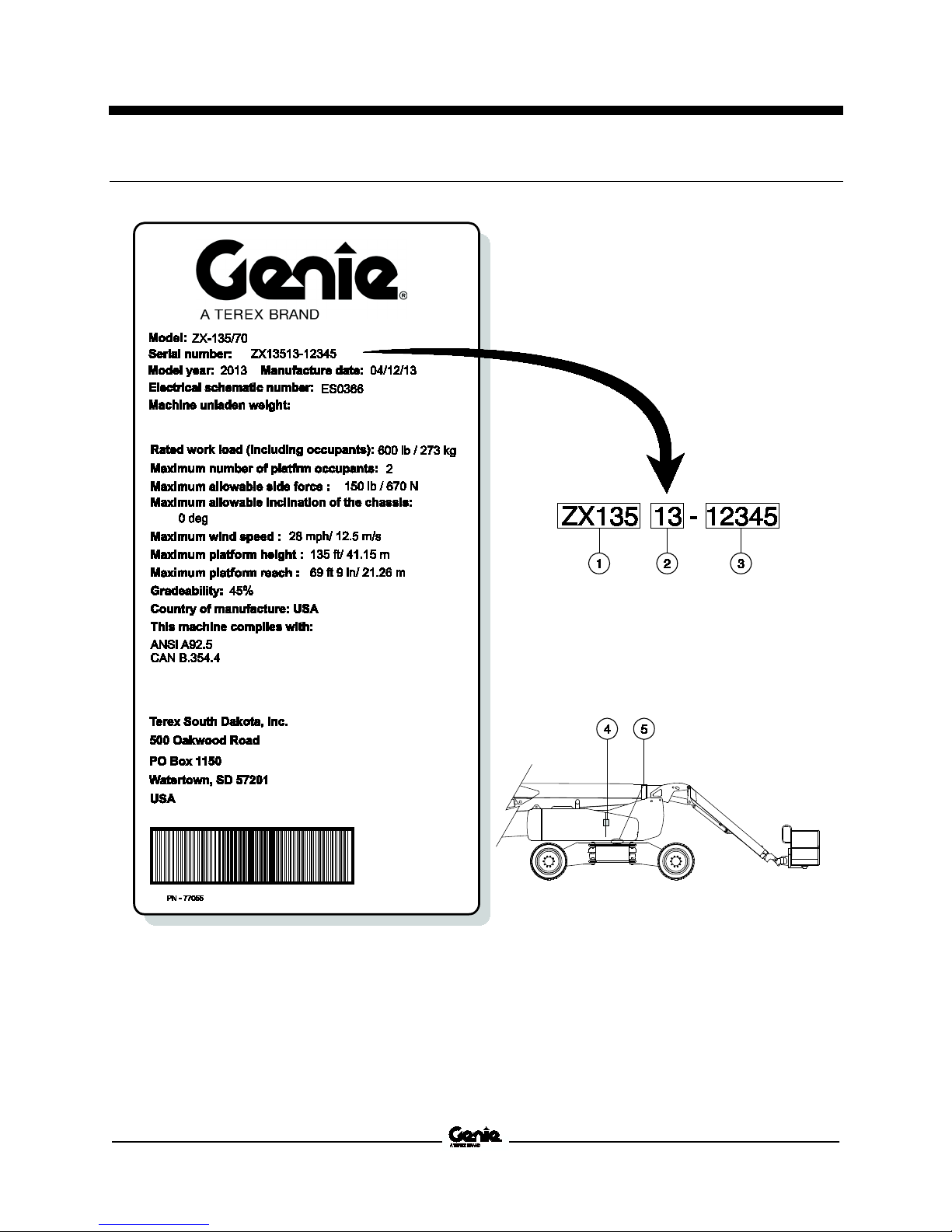

Serial Number Legend
1 Model
2 Model year
3 Sequence number
4 Serial label (located under cover)
5 Serial number (stamped on chassis)

August 2014 Service Manual
Safety Rules
Part No. 218700 ZX-135/70 v
Section 1 Safet y R ules
Danger
Failure to obey the instructions and safety rules in
this manual and the appropriate Operator's Manual
on your machine will result in death or serious
injury.
Many of the hazards identified in the operator's
manual are also safety hazards when maintenance
and repair procedures are performed.
Do Not Perform Maintenance
Unless:
You are trained and qualified to perform
maintenance on this machine.
You read, understand and obey:
•manufacturer's instructions and safety rules
•employer's safety rules and worksite
regulations
•applicable governmental regulations
You have the appropriate tools, lifting
equipment and a suitable workshop.

Service Manual August 2014
Safety Rules
vi ZX-135/70 Part No. 218700

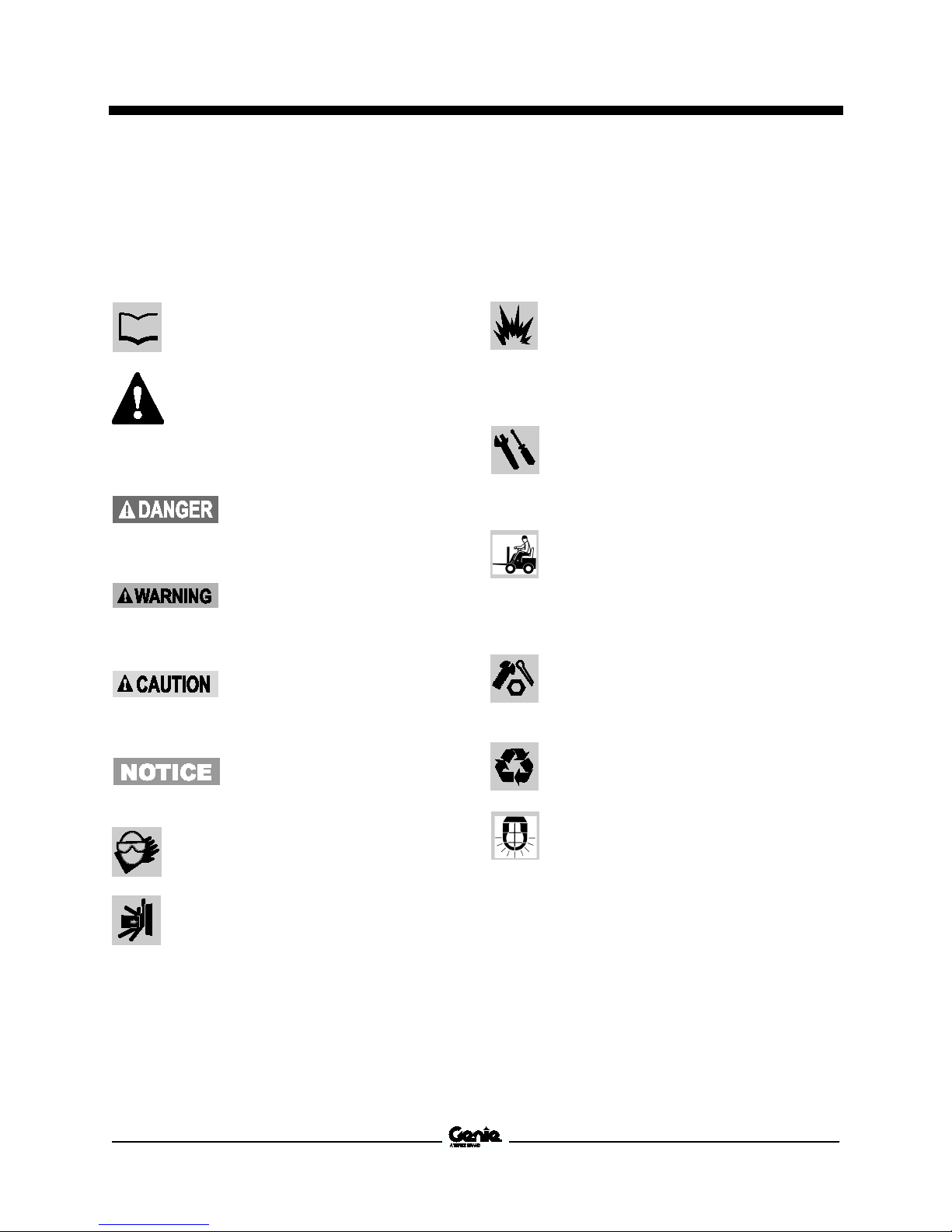

Personal Safety
Any person working on or around a machine must
be aware of all known safety hazards. Personal
safety and the continued safe operation of the
machine should be your top priority.
Read each procedure thoroughly. This
manual and the decals on the machine,
use signal words to identify the following:
Safety alert symbol
—used to
alert personnel to potential
personal injury hazards. Obey all
safety message
s that follow this
symbol to avoid possible injury or
death.
Indicates a imminently hazardous
situation which, if not avoided,
will result in death or serious
injury.
Indicates a potentially hazardous
situation which, if not avoided,
could result in
death or serious
injury.
Indicates a potentially hazardous
situation which, if not avoided,
may cause minor or moderate
injury.
Indicates a potentially hazardous
situation which, if not avoided,
may result in property damage.
Be sure to wear prote
ctive eye wear and
other protective clothing if the situation
warrants it.
Be aware of potential crushing hazards
such as moving parts, free swinging or
unsecured components when lifting or
placing loads. Always wear approved
steel
-toed shoes.
Workplace Safety
Any person working on or around a machine must
be aware of all known safety hazards. Personal
safety and the continued safe operation of the
machine should be your top priority.
Be sure to keep sparks, flames and
lighted tobacco away from flammable and
combustible materials like battery gases
and engine fuels. Always have an
approved fire extinguisher within easy
reach.
Be sure that all tools and working areas
are properly maintained and ready for
use. Keep work surfaces clean and free
of debris that could get into machine
components and cause damage.
Be sure any forklift, overhead crane or
other lifting or supporting device is fully
capable of supporting and stabilizing the
weight to be lifted. Use only chains or
straps that are in
good condition and of
ample capacity.
Be sure that fasteners intended for one
time use (i.e., cotter pins and self
-locking
nuts) are not reused. These components
may fail if they are used a second time.
Be sure to properly dispose of old oil or
other
fluids. Use an approved container.
Please be environmentally safe.
Be sure that your workshop or work area
is properly ventilated and well lit.

August 2014
Table of Contents
Part No. 218700 ZX-135/70 vii
Introduction Introduction...........................................................................................................ii
Important Information ............................................................................................. ii
Revision History..................................................................................................... iii
Serial Number Legend .......................................................................................... iv
Serial Number Legend .......................................................................................... iv
Section 1Safety Rules ..........................................................................................................v
General Safety Rules ............................................................................................. v
Section 2 Specifications .......................................................................................................1
Machine Specifications...........................................................................................1
Performance Specifications....................................................................................1
Hydraulic Specification ...........................................................................................2
Hydraulic Component Specifications......................................................................4
Deutz TD2011L04i Engine Specifications..............................................................6
Perkins 1104D-44T Engine Specifications .............................................................8
Machine Torque Specifications ..............................................................................9
Hydraulic Hose and Fitting Torque Specifications ...............................................11
Torque Procedure ................................................................................................12
SAE and Metric Fasteners Torque Charts ...........................................................14

August 2014
Table of Contents
viii ZX-135/70 Part No. 218700
Section 3 Scheduled Maintenance Procedures ............................................................... 15
Introduction .......................................................................................................... 15
Pre-Delivery Preparation Report.......................................................................... 19
Maintenance Inspection Report ........................................................................... 21
Checklist A Procedures..................................................................................... 23
A-1 Inspect the Manuals and Decals ................................................................... 23
A-2 Perform Pre-operation Inspection ................................................................. 24
A-3 Perform Function Tests ................................................................................. 24
A-4 Perform Engine Maintenance – Perkins Models ........................................... 25
A-5 Perform Engine Maintenance – Deutz Models.............................................. 25
A-6 Check the Hydraulic Return Filter Condition Indicator .................................. 26
A-7 Perform 30-Day Service ................................................................................ 27
A-8 Grease the Turntable Rotation Bearing and Rotate Gear............................. 27
A-9 Replace the Drive Hub Oil............................................................................. 28

August 2014
Table of Contents
Part No. 218700 ZX-135/70 ix
Checklist B Procedures .....................................................................................29
B-1 Inspect the Batteries ......................................................................................29
B-2 Inspect the Electrical Wiring ..........................................................................30
B-3 Test the Key Switches ...................................................................................32
B-4 Inspect the Engine Air Filter...........................................................................34
B-5 Check the Oil Cooler and Cooling Fins - Deutz Models ................................35
B-6 Check the Exhaust System............................................................................36
B-7 Confirm the Proper Brake Configuration .......................................................37
B-8 Inspect the Tires, Wheels and Lug Nut Torque .............................................38
B-9 Check the Drive Hub Oil Level and Fastener Torque....................................39
B-10 Test the Platform Self-leveling.....................................................................40
B-11 Test the Engine Idle Select Operation .........................................................41
B-12 Test the Ground Control Override ...............................................................42
B-13 Test the Drive Brakes ..................................................................................43
B-14 Test the Drive Speed – Stowed Position .....................................................44
B-15 Test the Drive Speed – Raised or Extended ...............................................45
B-16 Test the Alarm and Optional Flashing Beacon ............................................46
B-17 Perform Hydraulic Oil Analysis ....................................................................46
B-18 Test the Safety Envelope Limit Switches ....................................................47
B-19 Test the Primary Boom Angle Sensor .........................................................51
B-20 Inspect for Turntable Bearing Wear.............................................................52

August 2014
Table of Contents
x ZX-135/70 Part No. 218700
Checklist C Procedures..................................................................................... 54
C-1 Perform Engine Maintenance - Deutz Models .............................................. 54
C-2 Perform Engine Maintenance - Deutz Models .............................................. 54
C-3 Perform Engine Maintenance - Perkins Models............................................ 55
C-4 Replace the Engine Air Filter Element .......................................................... 55
C-5 Grease the Platform Overload Mechanism (if equipped).............................. 56
C-6 Test the Platform Overload System (if equipped) ......................................... 57
C-7 Check and Adjust the Engine RPM............................................................... 59
C-8 Inspect for Turntable Bearing Wear .............................................................. 62
Checklist D Procedures..................................................................................... 64
D-1 Check the Boom Wear Pads......................................................................... 64
D-2 Check the Free-wheel Configuration ............................................................ 65
D-3 Replace the Drive Hub Oil............................................................................. 66
D-4 Adjust the Turntable Rotatation Gear Backlash............................................ 68
D-5 Replace the Hydraulic Filter Elements .......................................................... 69
D-6 Perform Engine Maintenance - Deutz Models .............................................. 71
D-7 Perform Engine Maintenance - Perkins Models............................................ 72
D-8 Check the Turntable Rotation Bearing Bolts................................................. 72
Checklist E Procedures..................................................................................... 74
E-1 Test or Replace the Hydraulic Oil.................................................................. 74
E-2 Perform Engine Maintenance - Perkins Models............................................ 76
E-3 Perform Engine Maintenance - Deutz Models .............................................. 77
E-4 Perform Engine Maintenance - Perkins Models............................................ 77
E-5 Perform Engine Maintenance - Perkins Models............................................ 78
E-6 Perform Engine Maintenance - Deutz Models .............................................. 78
E-7 Perform Engine Maintenance - Perkins Models............................................ 79
E-8 Perform Engine Maintenance - Deutz Models .............................................. 79

August 2014
Table of Contents
Part No. 218700 ZX-135/70 xi
Section 4 Repair Procedures .............................................................................................80
Introduction...........................................................................................................80
Display Module ...................................................................................................82
Platform Controls ...............................................................................................90
Platform Controls..................................................................................................90
1-1 ALC-1000 Circuit Board .................................................................................91
1-2 Joysticks.........................................................................................................92
Platform Components......................................................................................101
2-1 Platform ........................................................................................................101
2-2 Platform Leveling Cylinder ...........................................................................102
2-3 Platform Rotator ...........................................................................................103
2-4 Platform Level Sensor..................................................................................105
2-5 Platform Overload System (if equipped) ......................................................107
Jib Boom Components ....................................................................................109
3-1 Jib Boom Cable Track..................................................................................110
3-2 Jib Boom ......................................................................................................113
3-3 Jib Boom Lift Cylinder ..................................................................................115
3-4 Jib Boom Level Cylinder ..............................................................................116
3-5 Jib Boom Extension Cylinder .......................................................................117
3-6 Jib Boom Bellcrank Angle Sensor................................................................119

August 2014
Table of Contents
xii ZX-135/70 Part No. 218700
Boom Components.......................................................................................... 124
4-1 Primary Boom Cable Track.......................................................................... 125
4-2 Secondary Boom Cable Track..................................................................... 128
4-3 Primary Boom .............................................................................................. 131
4-4 Primary Boom Lift Cylinder .......................................................................... 133
4-5 Secondary Boom Lift Cylinder ..................................................................... 134
4-6 Primary Boom Extension Cylinder ............................................................... 138
4-7 Secondary Boom Extension Cylinders ........................................................ 139
4-8 Primary Boom Angle Sensor ....................................................................... 141
4-9 Secondary Boom Angle Sensor................................................................... 144
Engines ............................................................................................................. 147
5-1 RPM Adjustment.......................................................................................... 147
5-2 Flex Plate ..................................................................................................... 147
Ground Controls .............................................................................................. 149
6-1 Service Bypass/Recovery Key Switch......................................................... 149
6-2 Circuit Boards .............................................................................................. 152
6-3 Membrane Decal ......................................................................................... 152
Hydraulic Pumps.............................................................................................. 154
7-1 Function Pump............................................................................................. 154
7-2 Drive Pump .................................................................................................. 157

August 2014
Table of Contents
Part No. 218700 ZX-135/70 xiii
Manifolds...........................................................................................................160
8-1 Function Manifold Components ...................................................................160
8-2 Valve Adjustments - Function Manifold........................................................164
8-3 Platform Manifold .........................................................................................166
8-4 Jib Boom Manifold........................................................................................168
8-5 Function Enable Valve .................................................................................170
8-6 Turntable Rotation Manifold .........................................................................171
8-7 Steer and Axle Manifold ...............................................................................172
8-8 Valve Adjustments - Steer and Axle Manifold..............................................176
8-9 Traction Manifold Components ....................................................................178
8-10 Valve Adjustments - Traction Manifold ......................................................182
8-11 Drive Oil Diverter Manifold Components (welder option)...........................183
8-12 Valve Coils .................................................................................................184
Turntable Rotation Components ....................................................................186
9-1 Turntable Rotation Assembly .......................................................................186
9-2 Turntable Level Sensor ................................................................................188
Axle Components.............................................................................................191
10-1 Steer Sensors ............................................................................................191
10-2 Steer Cylinders...........................................................................................196
10-3 Axle Extension Cylinders ...........................................................................197
10-4 Axle Angle Sensors....................................................................................198

August 2014
Table of Contents
xiv ZX-135/70 Part No. 218700
Section 5 Fault Codes....................................................................................................... 201
Introduction ........................................................................................................ 201
Control System Fault Codes .............................................................................. 202
Fault Matrix ........................................................................................................ 219
Section 6 Schematics ....................................................................................................... 221
Introduction ........................................................................................................ 221
Wire Circuit Legend ........................................................................................... 222
Wire Color Legend ............................................................................................. 226
Limit Switches and Angle Sensors..................................................................... 231
Circuit Connector Legend .................................................................................. 235
Drive Chassis and Platform Controller Pin Legend ........................................... 238
Safety Controller Pin Legend ............................................................................. 239
Turntable Controller Pin Legend ........................................................................ 240
Telematics Connector Pin Legend..................................................................... 241
Engine Relay and Fuse Panel Legend - Deutz TD2011L04i ............................. 242
Engine Relay and Fuse Panel Legend - Perkins 1104D-44T ............................ 243
Electrical Symbols Legend................................................................................. 244
Hydraulic Symbols Legend ................................................................................ 245
Perkins 1104D Engine Electrical Schematic...................................................... 248
Generator Wiring Schematic.............................................................................. 249
Hydraulic Generator (Welder Option) ................................................................ 252
Hydraulic Schematic .......................................................................................... 253
Electrical Schematic (Includes Deutz Engine) ................................................... 255

August 2014 Service Manual
Part No. 218700 ZX-135/70 15
This page intentionally left blank.

August 2014 Service Manual
Specifications
Part No. 218700 ZX-135/70 1
Section 2 Speci fi c ati ons
Machine Specifications
Tires and wheels
Tire size
445D50/710, 18PR
Tire ply rating
18
Tire
weight, new foam-filled
(minimum)
815 l
bs
370 k
g
Overall tire diameter
45.47 i
n
115.5 c
m
Wheel diameter
28 i
n
71.1 c
m
Wheel width
15 i
n
38.1 c
m
Wheel lugs
10 @ 3/4 -
16
Lug nut torque, dry
420 ft-
lbs
569.4 Nm
Lug nut torque, lubricated
320 ft-
lbs
433.9 Nm
Fluid capacities
Fuel tank
40 g
allons
151.4 l
iters
Hydraulic tank
65 g
allons
246 l
iters
Hydraulic system (including tank)
123 g
allons
466 l
iters
Drive hubs
47 f
l oz
1.4 l
iters
Turntable rotation drive hub
40 f
l oz
1.18 l
iters
Drive hub oil
type: SAE 90 multipurpose hypoid gear oil
API service classification GL5
Performance Specifications
Drive speed, maximum
Stowed position, high speed
2.8 m
ph
4.5 k
m/h
40 ft / 8.9 s
ec
12.2 m / 8.9 s
ec
Raised or extended
0.7 m
ph
1.1 k
m/h
40 ft / 40 s
ec
12.2 m / 40 s
ec
Raised and extended
0.4 m
ph
0.64 k
m/h
40 ft / 68.5 s
ec
12.2 m / 68.5 s
ec
Braking distance, maximum
High range on paved surface
3 to 6 f
t
1 to 2
m
Gradeability
See Operator's
Manual
Boom function speeds,
maximum from platform
controls
Jib boom up/down
38 to 43 s
econds
Jib boom extend/retract
28 to 38 s
econds
Primary boom up/down
-
60° to +70°
110 to 125 s
econds
Primary boom extend/retract
35 to 48 s
econds
Secondary boom up/down
80 to 95 s
econds
Secondary boom extend/retract
88 to 98 s
econds
Turntable rotate, 360°
fully stowed
88 to 92 s
econds
Turntable rotate, 360°jib or
primary booms extended
160 to 180 s
econds
Turntable rotate, 360°jib and
primary booms extended
280 to 350 s
econds
For operational specifications, refer to the
Operator's Manual.
Continuous improvement of our products is a
Genie policy. Product specifications are
subject to change without notice or obligation.

Service Manual August 2014
Specifications
2 ZX-135/70 Part No. 218700
Hydraulic Specifications
Hydraulic
Fluid Specifications
Genie specifications require hydraulic oils which are
designed to give maximum protection to hydraulic
systems, have the ability to perform over a wide
temperature range, and the viscosity index should
exceed 140. They should provide
excellent antiwear,
oxidation prevention, corrosion inhibition, seal
conditioning, and foam and aeration suppression
properties.
Cleanliness level,
minimum
ISO 15/13
Water content,
maximum
250 p
pm
Recommended Hydraulic Fluid
Hydraulic oil type
Chevron
Rando HD Premium
Viscosity grade
32
Viscosity index
200
Optional Hydraulic Fluids
Mineral based
Shell Tellus S2 V 32
Shell Tellus S2 V 46
Chevron 5606A
Biodegradable
Petro Canada Environ MV
46
Fire resistant
UCON Hydrolube HP-
5046
Note: Genie specifications require additional
equipment and special installation instructions for
the approved optional fluids. Consult Genie
Product Support before use.
Optional fluids may not have
the same hydraulic lifespan and
may result in component
damage.
Note: Extended machine operation can cause the
hydraulic fluid temperature to increase beyond it's
maximum allowable range. If the hydraulic fluid
temperature consistently exceeds 200°F / 90°C an
optional oil cooler may be required.
Do not top off with incompatible
hydraulic fluids. Hydraulic fluids
may be incompatible due to the
differences in base additive
chemistry. When incompatible
fluids are mixed, insoluble
materials may form and deposit
in the hydraulic system,
plugging hydraulic lines, filters,
control valves and may result in
component damage.
Note: Do not operate the machine when the
ambient air temperature is consistently above
120°F / 49°C.
Hydraulic Fluid Temperature
Range
Ambient air temperature
1 Chevron hydraulic oil 5606A
2 Petro-Canada Environ MV 46
3 UCON Hydrolube HP-5046D
4 Chevron Rando HD premium oil MV

August 2014 Service Manual
Specifications
Part No. 218700 ZX-135/70 3
Chevron Rando HD Premium Oil
MV Fluid Properties
ISO Grade
32
Viscosity index
200
Kinematic Viscosity
cSt @ 200°F / 100°C
cSt @ 104°F / 40°C
7.5
33.5
Brookfield Viscosity
cP @
-4°F / -20°C
cP @
-22°F / -30°C
1040
3310
Flash point
375°F / 190°C
Pour point
-58°F / -
50°C
Maximum continuous operating
temperature
171°F / 77°C
Note: An hydraulic oil heating system is
recommended when the ambient temperature is
consistently below 0°F / -18°C.
Note: Do not operate the machine when the
ambient temperature is below -20°F / -29°C with
Rando HD Premium MV.
Chevron 5606A Hydraulic Oil
Fluid Properties
ISO Grade
15
Viscosity index
300
Kinematic Viscosity
cSt @ 200°F / 100°C
cSt @ 104°F
/ 40°C
cSt @
-40°F / -40°C
5.5
15.0
510
Flash point
180°F / 82°C
Pour point
-81°F / -
63°C
Maximum continuous operating
temperature
124°F / 51°C
Note: Use of Chevron 5606A hydraulic fluid, or
equivalent, is required when ambient temperatures
are consistently below 0°F / -17°C unless an oil
heating system is used.
Continued use of Chevron
5606A hydraulic fluid, or
equivalent, when ambient
temperatures are consistently
above 32°F / 0°C may result in
component damage
Petro-Canada Environ MV 46
Fluid Properties
ISO Grade
46
Viscosity index
154
Kinematic Viscosity
cSt @ 200°F / 100°C
cSt @ 104°F / 40°C
8.0
44.4
Flash point
482°F / 250°C
Pour point
-49°F / -
45°C
Maximum continuous operating
temperature
180°F / 82°C
UCON Hydrolube HP-5046 Fluid
Properties
ISO Grade
46
Viscosity index
192
Kinematic Viscosity
cSt @ 149°F / 65°C
cSt @ 104°F / 40°C
cSt @ 0°F /
-18°C
22
46
1300
Flash point
None
Pour point
-81°F / -
63°C
Maximum continuous operating
temperature
189°F / 87°C
Continuous improvement of our products is a
Genie policy. Product specifications are
subject to change without notice or obligation.

Service Manual August 2014
Specifications
4 ZX-135/70 Part No. 218700
Hydraulic Component Specifications
Drive Pump
Type: bi
-directional variable displacement piston pump
Displacement per revolution
2.8 c
u in
46 c
c
Flow rate @ 235
0 rpm 28.5 g
pm
108 L/min
Drive pressure, maximum
3625 p
si
250 b
ar
Charge Pump
Type
gerotor
Displacement per revolution
0.85 c
u in
13.9 c
c
Flow rate @ 235
0 rpm 9 g
pm
34 L/min
Charge
pressure @ 2350 rpm
Neutral position
315 p
s
i21.7 b
ar
Function pump
Type: variable displacement piston pump
Displacement per revolution
0 to 2.75 c
u in
0 to 45 c
c
Flow rate @ 235
0 rpm 0 to 28 g
pm
0 t
o 106 L/min
Pressure, maximum
2900 p
si
200 b
ar
Pressure compensator
2900 p
si
200 b
ar
Standby pressure
250 p
si
17 b
ar
Auxiliary Pump
Type: fixed displacement gear pump
Displacement per revolution
0.15 cu in
2.47 c
c
Function manifold
System relief valve pressure, maximum
(measured at test
port)
3100 p
si
213.7 b
ar
Primary boom extend relief pressure
(measured at ptest port)
2600 p
si
179 b
ar
Jib and platform manifolds
Platform rotate and platform level flow
regulator
0.2 g
pm
0.76 L/min
Jib manifold flow regulator
2 g
pm
7.6 L/min
Steer/Axle Manifold
Axle extend relief pressure
2400 p
si
165 b
ar
Traction Manifold
Hot oil relief pressure
250 p
si
17.2 b
ar
Hydraulic Filters
High pressure filter:
Beta 3 ≥ 200
High pressure filter bypass pressure
102 p
si
7 b
ar
Medium pressure
filter
Beta 3 ≥ 200
Medium pressure filter bypass pressure
51 p
si
3.5 b
ar
Hydraulic tank return filter
10 micron
with 25 p
si /
1.7 b
ar
bypass
Drive motor case drain return filter
Beta 10 ≥ 2
Continuous improvement of our products is a
Genie policy. Product specifications are
subject to change without notice or obligation.

August 2014 Service Manual
Specifications
Part No. 218700 ZX-135/70 5
Brakes
Brake relief pressure
190 p
si
13 b
ar
Drive Motors
Displacement per revolution, high
speed
0.8 c
u in
13.3 c
c
Displacement per revolution, low
speed (square end)
2.7 c
u in
45 c
c
Displacement per revolution, low
speed (circle end)
1.5 c
u in
25 c
c
Manifold Component Specifications
Plug torque
SAE No. 2
36 in-
lbs / 4 Nm
SAE No. 4
10 ft-
lbs / 13 Nm
SAE No. 6
14 ft-
lbs / 19 Nm
SAE No. 8
38 ft-
lbs / 51 Nm
SAE
No. 10 41 ft-
lbs / 55 Nm
SAE No. 12
56 ft-
lbs / 76 Nm
Valve coil resistance specifications
Solenoid valve,
3 position 4 way
(schematic item A, B, C, D, W)
7.2Ω
Solenoid Valve,
2 position 3 way
(schematic items D, E, F, G, I, Z )
5.6Ω
Solenoid Valve,
2 position 3 way
(schematic items P,Q )
7.2Ω
Solenoid Valve,
2 position 3 way
(schematic items AE )
8.8Ω
Proportional solenoid valve,
3 position 4 way
(schematic items Y and AF)
8.8Ω
Solenoid Valve,
2 position 3 way
(schematic items AD)
7.1Ω
Solenoid valve,
2 position, 2 way
(schematic item A)
3.5 t
o
5.5Ω
Continuous improvement of our products is a
Genie policy. Product specifications are
subject to change without notice or obligation.
