Genie GS-2668 RT User manual

Operator’s Manual
with Maintenance Information
First Edition
Tenth Printing
Part No. 48735

Genie GS-2668 RT & Genie GS-3268 RT Part No. 48735
Operator's Manual First Edition · Tenth Printing
Copyright © 1998 by Genie Industries
First Edition: Tenth Printing, January 2004
"Genie" is a registered trademark of
Genie Industries in the U.S.A. and many other
countries. "GS" is a trademark of Genie
Industries.
Thesemachinescomplywith
ANSI/SIA 92.6-1999.
Printed on recycled paper
Printed in U.S.A.
®
Important
Read,understandandobeythesesafetyrulesand
operating instructions before operating this machine.
Only trained and authorized personnel shall be
permitted to operate this machine. This manual
should be considered a permanent part of your
machine and should remain with the machine at all
times. If you have any questions, please call Genie
Industries.
Contents
Page
Safety ........................................................................ 1
Legend ...................................................................... 7
Controls..................................................................... 8
Pre-operationInspection ........................................... 12
Maintenance ............................................................. 14
Function Tests.......................................................... 17
Work Place Inspection .............................................. 20
OperatingInstructions............................................... 21
TransportInstructions ............................................... 25
FloorLoading ............................................................ 26
Decals ...................................................................... 27
Specifications ........................................................... 29
Contact us:
Internet:http://www.genielift.com
e-mail:[email protected]

PartNo.48735 GenieGS-2668RT&GenieGS-3268RT 1
Operator's Manual
First Edition · Tenth Printing
Safety Rules
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator's
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the work place.
5 Only use the machine as it was intended.
You read, understand and obey:
Manufacturer's instructions and safety
rules—safety and operator's manuals
and machine decals
employer's safety rules and worksite
regulations
applicablegovernmental regulations
You are properly trained to safely operate the
machine.

2 GenieGS-2668RT&GenieGS-3268RT PartNo.48735
Operator's Manual First Edition · Tenth Printing
SAFETY RULES
ElectrocutionHazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Maintain safe distances from electrical power lines
and apparatus in accordance with applicable
governmental regulations and the following chart.
Voltage Minimum Safe
Phase to Phase Approach Distance
Feet Meters
0 to 300V Avoid Contact
300V to 50KV 10 3.05
50KV to 200KV 15 4.60
200KV to 350KV 20 6.10
350KV to 500KV 25 7.62
500KV to 750KV 35 10.67
750KV to 1000KV 45 13.72
Allow for platform movement, electrical line sway
or sag and beware of strong or gusty winds.
Keep away from the machine if it contacts
energized power lines. Personnel on the ground
or in the platform must not touch or operate the
machine until energized power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.
Tip-overHazards
Occupants and equipment shall not exceed the
maximum platform capacity or the maximum
capacity of the platform extension.
Maximum capacity - GS-2668RT
Platform retracted 1250 lbs 567 kg
Platform extended - Platform only 950 lbs 431 kg
Platform extended - Extension only 300 lbs 136 kg
Maximum occupants - ANSI and CSA 4
Maximum occupants - CE
Outdoor use 4
Indoor use only 4
Maximum capacity - GS-3268RT
Platform retracted 1000 lbs 454 kg
Platform extended - Platform only 700 lbs 318 kg
Platform extended - Extension only 300 lbs 136 kg
Maximum occupants - ANSI and CSA 4
Maximum occupants - CE
Outdoor use 2
Indoor use only 4
1250 lbs / 567 kg Platform only
950 lbs / 431 kg
Extension only
300 lbs / 136 kg
1000 lbs / 454 kg Platform only
700 lbs / 318 kg
Extension only
300 lbs / 136 kg

PartNo.48735 GenieGS-2668RT&GenieGS-3268RT 3
Operator's Manual
First Edition · Tenth Printing
SAFETY RULES
Do not operate the machine in strong or gusty
winds. Do not increase the surface area of the
platform or the load. Increasing the area exposed to
the wind will decrease machine stability.
Donotdrivethe machine on or near uneven terrain,
unstablesurfacesorotherhazardousconditions
with the platform raised.
Use extreme care and slow speeds while driving
the machine in stowed position across uneven
terrain,debris,unstableor slippery surfaces and
nearholesanddrop-offs.
Do not push off or pull toward any object outside of
theplatform.
GS-2668 RT
ANSI & CSA - 4 person 200 lbs / 890 N
CE - Indoor use only - 4 person 200 lbs / 890 N
CE - Outdoor use - 4 person 90 lbs / 400 N
GS-3268 RT
ANSI & CSA - 4 person 200 lbs / 890 N
CE - Indoor use only - 4 person 200 lbs / 890 N
CE - Outdoor use - 2 person 150 lbs / 667 N
Do not alter or disable the limit switch(s).
Do not drive over 0.5 mph (0.8 km/h) with the
platformraised.
Modelswithout outriggers: Do not raise the platform
unless the machine is on a firm, level surface.
Modelswithoutriggers: Donotlowerthe outriggers
unless the machine is on a firm surface. Avoid
drop-offs, holes, unstable or slippery surfaces and
otherpossiblehazardousconditions.
Models with outriggers: Do not raise the platform
unless the machine is level. Do not set the
machine up on a surface where it cannot be leveled
usingonlytheoutriggers.
Modelswithoutriggers: Use common sense and
planningwhenloweringtheoutriggersonaslope.
The steer end outriggers must be lowered first.
Do not use the platform controls to free a platform
thatiscaught,snaggedorotherwise prevented
from normal motion by an adjacent structure. All
personnelmustberemovedfromtheplatform
before attempting to free the platform using the
groundcontrols.
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds on the chassis and in the
platform when the machine is on a severe slope.
If tilt alarm sounds:
Lower the platform. Move the machine to a firm,
level surface. If the tilt alarm sounds when the
platform is raised, use extreme caution to lower the
platform.

4 GenieGS-2668RT&GenieGS-3268RT PartNo.48735
Operator's Manual First Edition · Tenth Printing
SAFETY RULES
Do not alter or disable machine components that in
any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not modify or alter an aerial work platform.
Mountingattachmentsforholdingtoolsorother
materialsontotheplatform, toeboardsorguardrail
system can increase the weight in the platform and
the surface area of the platform or the load.
Do not place or attach fixed or overhanging loads to
any part of this machine.
Do not place ladders or scaffolds in the platform or
against any part of this machine.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition, castle nuts
areproperlytightenedandcotterpinsareproperly
installed.
Do not use the machine as a crane.
Do not push the machine or other objects with the
platform.
Do not contact adjacent structures with the
platform.
Do not tie the platform to adjacent structures.
Do not place loads outside the platform perimeter.
Fall Hazards
Occupantsshouldwear a
safety belt or harness and
complywithapplicable
governmentalregulations.
Attach lanyard to anchor
providedinplatform.
Do not sit, stand or climb on the platform guard
rails. Maintain a firm footing on the platform floor at
all times.
Do not climb down from the platform when raised.
Keep the platform floor clear of debris.
Closetheentrygatebeforeoperating.
Do not operate the machine unless the guard rails
are properly installed and the entry is secured for
operation.

PartNo.48735 GenieGS-2668RT&GenieGS-3268RT 5
Operator's Manual
First Edition · Tenth Printing
SAFETY RULES
Collision Hazards
Be aware of limited sight
distance and blind spots
whendrivingoroperating.
Beawareof extendedplatformpositionwhen
movingthemachine.
Machine must be on level surface or secured
beforereleasingbrakes.
Itisrecommendedthatoperatorswearanapproved
hardhatwhenoperatingthemachine.
Checkworkarea foroverheadobstructionsorother
possiblehazards.
Beawareofcrushinghazardwhengraspingthe
platformguardrail.
Observeandusecolor-codeddirectionarrowson
the platform controls and platform decal plate for
drive and steer functions.
Do not operate a machine in the path of any crane
ormovingoverheadmachineryunlessthecontrols
of the crane have been locked out and/or
precautionshave been taken to prevent any
potentialcollision.
Nostuntdrivingorhorseplaywhileoperating a
machine.
Do not lower the platform unless the area below is
clearofpersonnelandobstructions.
Limit travel speed according to condition of ground
surface, congestion, slope, location of personnel
and any other factors which may cause collision.
Component Damage Hazards
Do not use any battery or charger greater than 12V
tojump-starttheengine.
Do not use the machine as a ground for welding.
Be sure hydraulic shutoff valves (located by
hydraulictank)areopenbeforestartingengine.
Explosion and Fire Hazards
Do not start the engine if you smell or detect liquid
petroleumgas(LPG),gasoline,dieselfuelorother
explosive substances.
Donotrefuelthemachinewiththeenginerunning.
Refuel the machine and charge the battery only in
anopen,well-ventilatedareaaway fromsparks,
flames and lighted tobacco.
Donotoperatethemachineinhazardouslocations
orlocationswhere potentiallyflammableor
explosive gases or particles may be present.

6 GenieGS-2668RT&GenieGS-3268RT PartNo.48735
Operator's Manual First Edition · Tenth Printing
Damaged Machine Hazards
Donotuseadamagedormalfunctioningmachine.
Conductathoroughpre-operationinspectionofthe
machine and test all functions before each work
shift. Immediately tag and remove from service a
damagedormalfunctioningmachine.
Besureallmaintenancehasbeenperformedas
specified in this manual and the appropriate Genie
service manual.
Be sure all decals are in place and legible.
Be sure the operator’s, safety and responsibilities
manualsarecomplete, legible and in the storage
containerlocatedontheplatform.
Crushing Hazards
Keep hands and limbs out of scissors.
Usecommonsenseandplanningwhenoperating
the machine with the controller from the ground.
Maintain safe distances between the operator, the
machine and fixed objects.
Maintain a firm grasp on the platform rail when
pulling the snap pin. Do not allow the platform
guard rails to fall.
Bodily Injury Hazard
Alwaysoperatethemachineinawell-ventilated
areatoavoidcarbonmonoxidepoisoning.
Do not operate the machine with a hydraulic oil or
air leak. An air leak or hydraulic leak can penetrate
and/orburnskin.
SAFETY RULES
Decal Legend
Genie product decals use symbols, color coding
and signal words to identify the following:
Safety alert symbol—used to alert
personneltopotentialpersonal
injury hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Red—usedtoindicate the
presence of an imminently
hazardous situation which, if not
avoided, will result in death or
seriousinjury.
Orange—used to indicate the
presence of a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
Yellow with safety alert symbol—
used to indicate the presence of a
potentiallyhazardoussituation
which, if not avoided, may cause
minor or moderate injury.
Yellow without safety alert
symbol—used to indicate the
presence of a potentially
hazardous situation which, if not
avoided, may result in property
damage.
Green—usedtoindicateoperation
or maintenance information.

PartNo.48735 GenieGS-2668RT&GenieGS-3268RT 7
Operator's Manual
First Edition · Tenth Printing

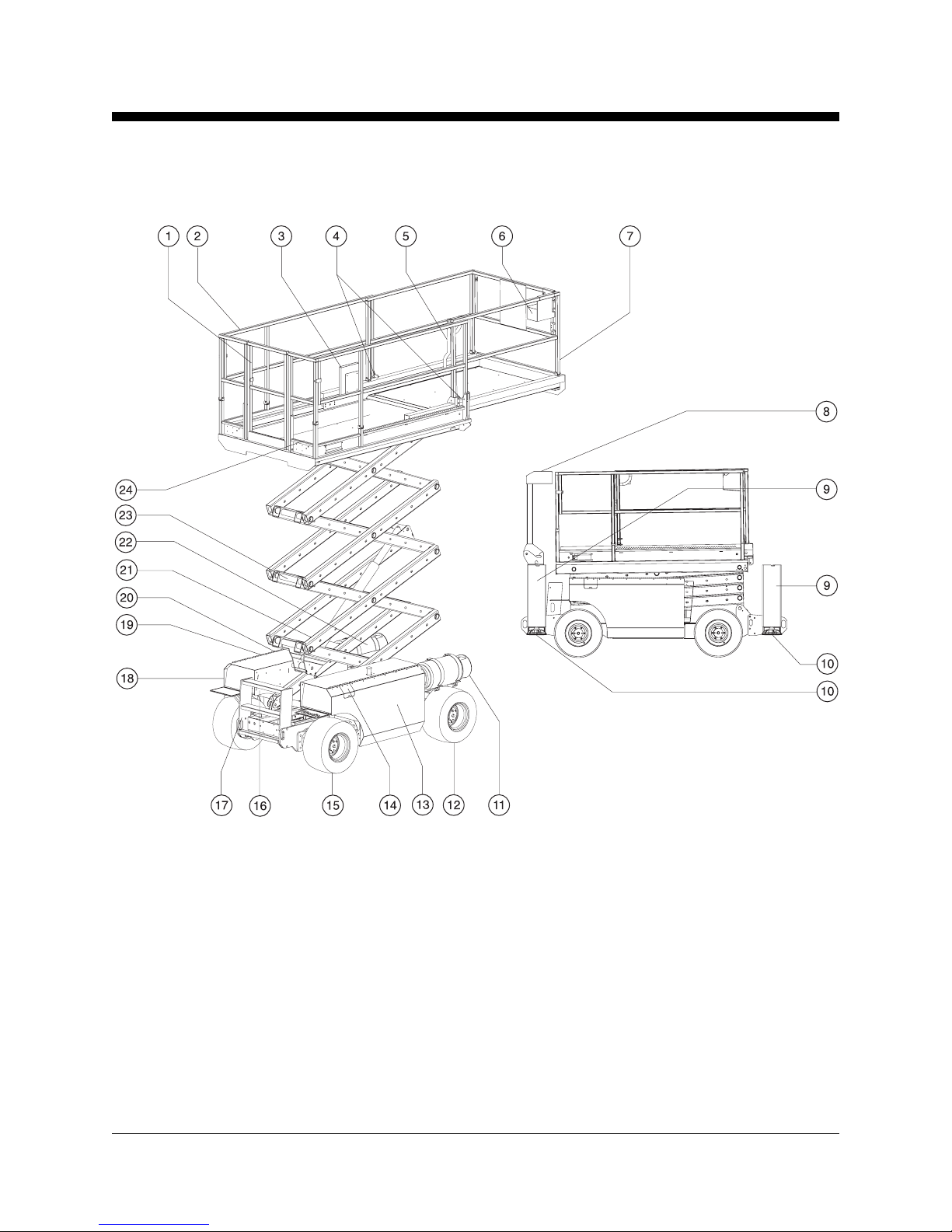

Legend
1 Platform entry gate
2 Platformguardrails
3 Manualstoragecontainer
4 Lanyardanchoragepoint
5 Platform extension lock
handle
6 Platformcontrols
7 Platformextension
8 Outriggercontrolpanel(if
equippedwithmanualcontrol
outriggers)
9 Outriggerhousing(ifequipped
withoutriggers)
10 Outriggerfootpad(ifequipped
withoutriggers)
11 LPG tank
12 Steertire
13 Engine side cover
14 Fuel tank
15 Non-steertire
16 Tiltalarm(undercover)
17 Entryladder/transport
tie-down
18 Groundcontrolswithmanual
loweringvalveandLED
diagnosticreadout
19 Groundcontrolssidecover
20 Hydraulic oil level indicator
(undercover)
21 Brakereleasepumpknoband
brakereleaseknob(hidden
from view in this picture)
22 LPGtank(optional)
23 Safety arm
24 GFCIoutlet

8 GenieGS-2668RT&GenieGS-3268RT PartNo.48735
Operator's Manual First Edition · Tenth Printing
Controls
Platform Controls (models
without outriggers)
1 Enginestopbutton
2 Enginestartbutton
3 Glowplugbutton
(Diesel models)
4 High idle button with indicator
light
5 Horn button
6 Machine on incline button:
Low speed operation for
inclines
7 Generator select switch with
indicatorlight
8 Platformextend/retract
enablebutton(option)
9 Headlight/taillight
button (option)
10 Emergency Stop button
11 Function enable switch
12 Proportional control handle
for drive functions and
optional platform extend/
retract function
13 Thumb rocker switch for
steer function
14 Errorindicatorlight
15 Powerlight
16 Function enable/high speed
select button for up/down
function
17 Function enable/low speed
select button for up/down
function
18 Platform up/down select
switch
19 Choke button (Gasoline/LPG
models)
20 LPG operation button with
indicator light (Gasoline/LPG
models)
Diesel models Gasoline/LPG models

PartNo.48735 GenieGS-2668RT&GenieGS-3268RT 9
Operator's Manual
First Edition · Tenth Printing
CONTROLS
Ground Control Panel
1 20 amp circuit breaker for system circuit
2 Fuel select switch (Gasoline/LPG models)
3 Hourmeter
4 Chokeswitch(Gasoline/LPGmodels)
Glow plug switch (option - Diesel models)
5 Volt meter (option)
6 Water temperature gauge with indicator light
(option)
7 Engine oil pressure gauge with indicator light
(option)
8 LEDdiagnosticreadout
9 EmergencyStopbutton
10 Keyswitchforplatform/off/groundcontrol
selection
11 High idle select toggle switch
12 Engine start toggle switch
13 Function enable toggle switch
14 Platform up/down toggle switch
15 Platformextend/retracttoggleswitch(option)
16 7 amp circuit breaker for controls circuit

10 GenieGS-2668RT&GenieGS-3268RT PartNo.48735
Operator's Manual First Edition · Tenth Printing
CONTROLS
Outrigger Control Panel (if equipped with
manual control outriggers)
1 Lifterrorindicatorlight
2 Functionenablebutton
3 Outriggersraise/lowerbutton
4 EmergencyStopbutton

PartNo.48735 GenieGS-2668RT&GenieGS-3268RT 11
Operator's Manual
First Edition · Tenth Printing
CONTROLS
1 Enginestopbutton
2 Enginestartbutton
3 Glowplugbutton
(Dieselmodels)
4 Highidlebuttonwith
indicatorlight
5 Outriggerandhorn
button
6 Outriggerbutton
7 Outriggerand
machineonincline
button:Lowspeed
operationfor
inclines
13 Proportionalcontrol
handlefordrive
functionsand
optionalplatform
extend/retract
function
14 Thumbrocker
switch for steer
function
15 Lifterrorindicator
light
16 Errorindicatorlight
17 Powerlight
18 Functionenable/high
speed select button
forup/downfunction
19 Functionenable/low
speed select button
forplatformup/down
function
20 Platformup/down
andoutrigger
up/downtoggle
switch
21 Chokebutton
(Gasoline/LPG
models)
22 OutriggerandLPG
operationbutton
withindicatorlight
(Gasoline/LPG
models)
Diesel models Gasoline/LPG models
Platform Controls (if equipped with auto level outriggers)
8 Outriggerand
generatorselect
buttonwithindicator
light
9 Outriggerfunction
enablebutton
10 Outriggerautolevel
button
11 EmergencyStop
button
12 Functionenable
switch

12 GenieGS-2668RT&GenieGS-3268RT PartNo.48735
Operator's Manual First Edition · Tenth Printing
Pre-operation Inspection
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator's
manual.
1 Avoid hazardous situations.
2 Always perform a pre-operation
inspection.
Know and understand the pre-operation
inspection before going on to the next
section.
3 Always perform function tests prior to use.
4 Inspect the work place.
5 Only use the machine as it was intended.
Fundamentals
It is the responsibility of the operator to perform a
Pre-operationInspectionandroutinemaintenance.
The Pre-operation Inspection is a visual inspection
performed by the operator prior to each work shift.
The inspection is designed to discover if anything
isapparentlywrongwithamachinebeforethe
operator performs the function tests.
ThePre-operationinspectionalsoservesto
determineifroutinemaintenanceproceduresare
required.Onlyroutinemaintenanceitemsspecified
in this manual may be performed by the operator.
Refer to the list on the next page and check each
of the items and locations for modifications,
damage or loose or missing parts.
A damaged or modified machine must never be
used. If damage or any variation from factory
deliveredcondition is discovered, the machine
must be tagged and removed from service.
Repairs to the machine may only be made by a
qualified service technician, according to the
manufacturer'sspecifications.Afterrepairsare
completed,theoperatormust performa
pre-operationinspectionagainbeforegoingonto
the function tests.
Scheduledmaintenanceinspectionsshallbe
performedbyqualifiedservicetechnicians,
accordingtothemanufacturer'sspecificationsand
the requirements listed in the responsibilities
manual.

PartNo.48735 GenieGS-2668RT&GenieGS-3268RT 13
Operator's Manual
First Edition · Tenth Printing
PRE-OPERATIONINSPECTION
Pre-operation Inspection
oBe sure that the operator’s, safety and
responsibilitiesmanualsarecomplete,legible
and in the storage container located in the
platform.
oBe sure that all decals are legible and in place.
See Decals section.
oCheck for engine oil leaks and proper oil level.
Add oil if needed. See Maintenance section.
oCheck for hydraulic oil leaks and proper oil level.
Add oil if needed. See Maintenance section.
oCheckforengine coolant leaks and proper level
of coolant. Add coolant if needed. See
Maintenancesection.
oCheck for battery fluid leaks and proper fluid
level. Add distilled water if needed. See
Maintenancesection.
Checkthefollowingcomponentsorareasfor
damage, modifications and improperly installed or
missing parts:
oElectricalcomponents,wiringandelectrical
cables
oHydraulic hoses, fittings, cylinders and
manifolds
oFuel and hydraulic tanks
oDrivemotors
oWearpads
oTiresandwheels
oEngineandrelatedcomponents
oLimit switches, alarms and horn
oNuts, bolts and other fasteners
oPlatform entry gate
oBeaconandalarms(ifequipped)
oBrakereleasecomponents
oSafety arm
oPlatformextension
oScissor pins and retaining fasteners
oPlatform control joystick
oGenerator(ifequipped)
Checkentiremachinefor:
oCracks in welds or structural components
oDentsordamagetomachine
oBe sure that all structural and other critical
components are present and all associated
fasteners and pins are in place and properly
tightened
oSide rails are installed and snap pins and bolts
are fastened

14 GenieGS-2668RT&GenieGS-3268RT PartNo.48735
Operator's Manual First Edition · Tenth Printing
Observe and Obey:
Only routine maintenance items specified in this
manualshallbeperformedbytheoperator.
Scheduledmaintenanceinspectionsshallbe
completed by qualified service technicians,
accordingtothemanufacturer'sspecifications
andtherequirements specified in the
responsibilitiesmanual.
Maintenance Symbols Legend
Thefollowingsymbolshavebeen
used in this manual to help
communicate the intent of the
instructions. When one or more of
the symbols appear at the
beginningofamaintenance
procedure,itconveysthemeaning
below.
Indicates that tools will be required to
performthisprocedure.
Indicates that new parts will be required to
performthisprocedure.
Indicates that a cold engine is required
beforeperformingthisprocedure.
Check the Engine Oil Level
Maintaining the proper engine oil level is essential
togoodengineperformanceandservicelife.
Operatingthemachinewithanimproper oil level
candamageenginecomponents.
Check the oil level with the
engineoff.
1 Check the oil level dipstick.
Result: The oil level should be at the FULL mark
on the dipstick. Add oil as needed.
Kubota DF-750 Engine 3.44 quarts
Oil capacity (including filter) 3.25 liters
Oil viscosity requirements
Use oils meeting API classification SF (labeled SF/CC
or SF/CD) for improved wear protection. Units ship with
10W-40 SG/CC
Kubota D-905 Engine 5.4 quarts
Oil capacity (including filter) 5.1 liters
Oil viscosity requirements
Engine oil should have properties of API classification
CC/SE, CD/SE, CC/SF or CD/SF grades. Units ship
with 10W-40 SG/CC.
Maintenance

PartNo.48735 GenieGS-2668RT&GenieGS-3268RT 15
Operator's Manual
First Edition · Tenth Printing
Check the Hydraulic Oil Level
Maintaining the hydraulic oil at the proper level is
essentialtomachineoperation.Improperhydraulic
oil levels can damage hydraulic components. Daily
checks allow the inspector to identify changes in oil
level that might indicate the presence of hydraulic
system problems.
Performthisprocedurewith the
platform in the stowed position and
the engine off.
1 Visually inspect the sight gauge located on the
side of the hydraulic oil tank.
Result: The hydraulic oil level should be within
the top 2 inches (5 cm) of the sight gauge.
2 Add oil if necessary. Do not overfill.
Hydraulic oil specifications
Hydraulic oil type Dexron equivalent
Tank capacity 21.5 gallons 81.4 liters
Hydraulic system 25 gallons 94.6 liters
(including tank)
Check the Batteries
Proper battery condition is essential to good engine
performanceandoperationalsafety.Improperfluid
levels or damaged cables and connections can
resultinenginecomponentdamageandhazardous
conditions.
Electrocutionhazard.Contactwith
hot or live circuits may result in
death or serious injury. Remove all
rings,watchesandotherjewelry.
Bodily injury hazard. Batteries
contain acid. Avoid spilling or
contactingbatteryacid.Neutralize
battery acid spills with baking soda
andwater.
1 Put on protective clothing and eye wear.
2 Be sure that the battery cable connections are
freeofcorrosion.
3 Be sure that the battery hold downs and cable
connections are tight.
4 Remove the battery vent caps.
5 Check the battery acid level. If needed,
replenish with distilled water to the bottom of the
battery fill tube. Do not overfill.
6 Install the vent caps.
Addingterminalprotectorsanda
corrosionpreventativesealantwill
helpeliminatecorrosion onthe
battery terminals and cables.
MAINTENANCE

16 GenieGS-2668RT&GenieGS-3268RT PartNo.48735
Operator's Manual First Edition · Tenth Printing
Check the Engine Coolant
Level
Maintaining the engine coolant at the proper level is
essential to engine service life. Improper coolant
level will affect the engine's cooling capability and
damageengine components. Daily checks will
allow the inspector to identify changes in coolant
level that might indicate cooling system problems.
1 Check the fluid level in the coolant recovery
tank. Add fluid as needed.
Result: The fluid level should be in the
NORMALrange.
Bodily injury hazard. Fluids in the
radiatorareunderpressureand
extremely hot. Use caution when
removingcapandaddingfluids.
Scheduled Maintenance
The scheduled maintenance items must be
completedby a person trained and qualified to
performmaintenanceonthis machine accordingto
the procedures found in the service manual for this
machine.
Inspectionsandmaintenancedescribedbelow
requirethequalifiedentitytorecordandretain
records of all inspections and maintenance items
for four years.
Machines that have been out of service for more
than three months must receive the quarterly
inspection before placing the machine back into
service.
MAINTENANCE
The Schedule
There are five types of maintenance inspections
that must be performed according to a schedule—
daily, quarterly, six months, annual, two year. To
accountforrepeatedprocedures,the
Scheduled
MaintenanceProceduresSectionandthe
MaintenanceInspectionReport havebeendivided
into five subsections—A, B, C, D and E. Use the
followingcharttodeterminewhichgroup(s)of
proceduresarerequiredtoperformascheduled
inspection.
Inspection Table or Checklist
Daily or every 8 hours A
Quarterly or every 250 hours A + B
Six months or every 500 hours A + B + C
Annual or every 1000 hours A + B + C + D
Two year or every 2000 hours A + B + C + D + E
Maintenance Inspection Report
Themaintenanceinspectionreportcontains
checklists for each type of scheduled inspection.
Make copies of the Maintenance Inspection Report
to use for each inspection. Store completed forms
forthree years.

PartNo.48735 GenieGS-2668RT&GenieGS-3268RT 17
Operator's Manual
First Edition · Tenth Printing
1 Select a test area that is firm, level and free of
obstruction.
At the Ground Controls
2 PullouttheplatformandgroundredEmergency
Stop button to the ON position.
3 Turn the key switch to ground control.
4 Observethediagnostic
LEDreadout.
Result: LED should look
like picture at right.
5 Start the engine. See
OperatingInstructions
section.
Test Emergency Stop
6 Push in the ground red Emergency Stop button
to the OFF position.
Result: The engine should turn off and no
functionsshouldoperate.
7 Pull out the red Emergency Stop button to
the ON position and restart the engine.
TesttheUp/DownFunctions
Theaudiblewarningsonthismachineandthe
standard horn all come from the same central
alarm. The horn is a constant tone. The descent
alarm sounds at 60 beeps per minute. The alarm
that goes off when the machine is not level sounds
at180 beeps per minute.
8 Do not hold the function enable switch to either
side and activate the platform up function.
Result:Nofunctionshouldoperate.
FunctionTests
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator's
manual.
1 Avoid hazardous situations.
2 Always perform a pre-operation
inspection.
3 Always perform function tests prior to
use.
Know and understand the function tests
before going on to the next section.
4 Inspect the work place.
5 Only use the machine as it was intended.
Fundamentals
The Function Tests are designed to discover any
malfunctions before the machine is put into
service. The operator must follow the step-by-step
instructions to test all machine functions.
A malfunctioning machine must never be used. If
malfunctions are discovered, the machine must be
tagged and removed from service. Repairs to the
machine may only be made by a qualified service
technician, according to the manufacturer's
specifications.
After repairs are completed, the operator must
perform a pre-operation inspection and function
tests again before putting the machine into service.

18 GenieGS-2668RT&GenieGS-3268RT PartNo.48735
Operator's Manual First Edition · Tenth Printing
FUNCTIONTESTS
Test the Horn
16 Push the horn button.
Result:Thehornshouldsound.
Test the Up/Down Functions and the Function
Enable Switches
17 Start the engine.
18 Activate the platform up function.
Result: The platform should not raise.
19 Push and hold a function enable/speed select
button.
20 Activate the platform up function.
Result: The platform should raise.
21 Release the function enable button.
Result: The platform should stop raising.
22 Push and hold a function enable/speed select
button. Activate the platform down function.
Result: The platform should lower. The descent
alarm should sound while the platform is
lowering.
Test the Steering
Note:Whenperformingthe steer anddrivefunction
tests, stand in the platform facing the steer end of
themachine.
23 Press and hold the function enable switch.
24 Depress the thumb rocker switch on top of the
control handle in the direction identified by the
bluetriangleonthecontrolpanel.
Result: The steer wheels should turn in the
direction that the blue triangle points on the
controlpanel.
9 Hold the function enable switch to either side
and activate the platform up function.
Result: The platform should raise.
10 Hold the function enable switch to either side
and activate the platform down function.
Result:The platform should lower. The descent
alarm should sound while the platform is
lowering.
Test the Manual Lowering
11 Hold the function enable switch to either side
and activate the platform up function and raise
the platform approximately 2 feet (0.6 m).
12 Pull the manual lowering knob or push the
manual lowering button located next to the
ground controls.
Result: The platform should lower. The descent
alarm will not sound.
13 Turn the keyswitch to platform control.
At the Platform Controls
TestEmergencyStop
14 Push in the platform red Emergency Stop button
to the OFF position.
Result:Nofunctionsshouldoperate.
15 Pull the red Emergency Stop button out to the
ON position.
Result:Thegreenpowerlightshouldcomeon.
