Genie CM7989HB-FQ-A4 User manual

EASY
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
Allen Wrench (Included)
Assembly Instructions
Tools Required for Assembly:
Page 1 of 5
DIFFICULT
ASSEMBLY RATING
Wrench (Included)

Page 2 of 5

Parts List Hardware List
#1 x 1 pc
Headboard
#2 x 2 pcs
Leg
#A x 8 pcs
Bolt 5/16”x1-1/2”
#B x 4 pcs
Bolt 5/16”x2-1/4”
Before you begin, please read Page 2
of “Assembly and Care Advice”.
And remember, do not tighten until
each step is completed or instructed.
#C x 16 pcs
Lock Washer
MD
#D x 16 pcs
Flat Washer
Page 3 of 5
#E x 4 pcs
Hex Nut
#F x 1 pc
Flat Wrench
#G x 1 pc
Allen Wrench

Turn right (clockwise) to tighten
Page 4 of 5
#A x 8 pcs
#C x 8 pcs
#D x 8 pcs
Open the Velcro to remove legs and hardware
pack from behind the headboard (#1).

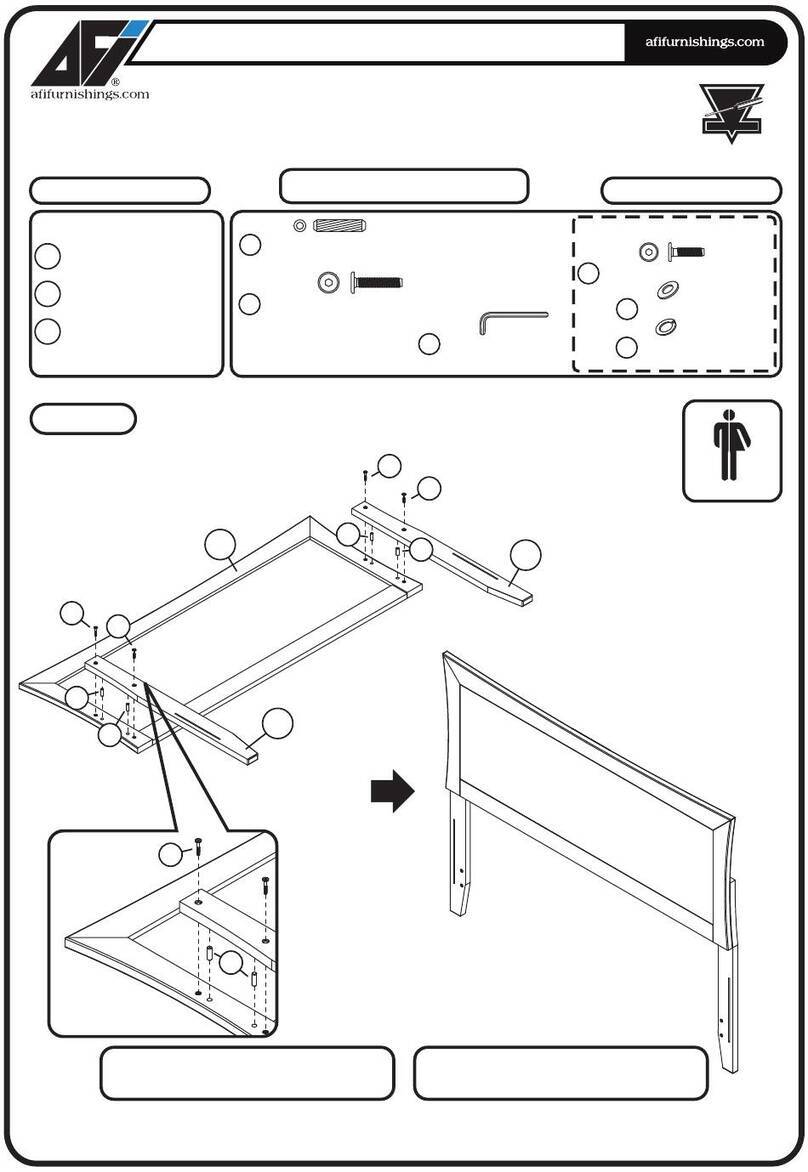

I. Align the legs (#2) with the pre-
drilled holes on the back of the
headboard (#1).
II. Prepare 8 bolt assemblies by
inserting FIRST the lock
washer (#C) onto the bolt (#A)
and then the flat washer (#D)
onto the SAME bolt (#A), in
that order.
III. Insert the bolt assemblies
through the legs (#2) and
secure those bolts using the
Allen wrench (#G) to lock them
in with the headboard (#1).
.
#1
#1
#2
#2

Turn right (clockwise) to tighten
Page 5 of 5
#B x 4 pcs
#C x 8 pcs
#D x 8 pcs
#E x 4 pcs
ASSEMBLY IS COMPLETED
This is an optional step to assemble the headboard onto
the bed frame (sold separately). Align the holes of the
completed headboard with the holes of the bed frame.
Insert the bolts and washers according to diagram
below. Use the supplied tools to secure those parts.
