ServiceGuide GHT-502D

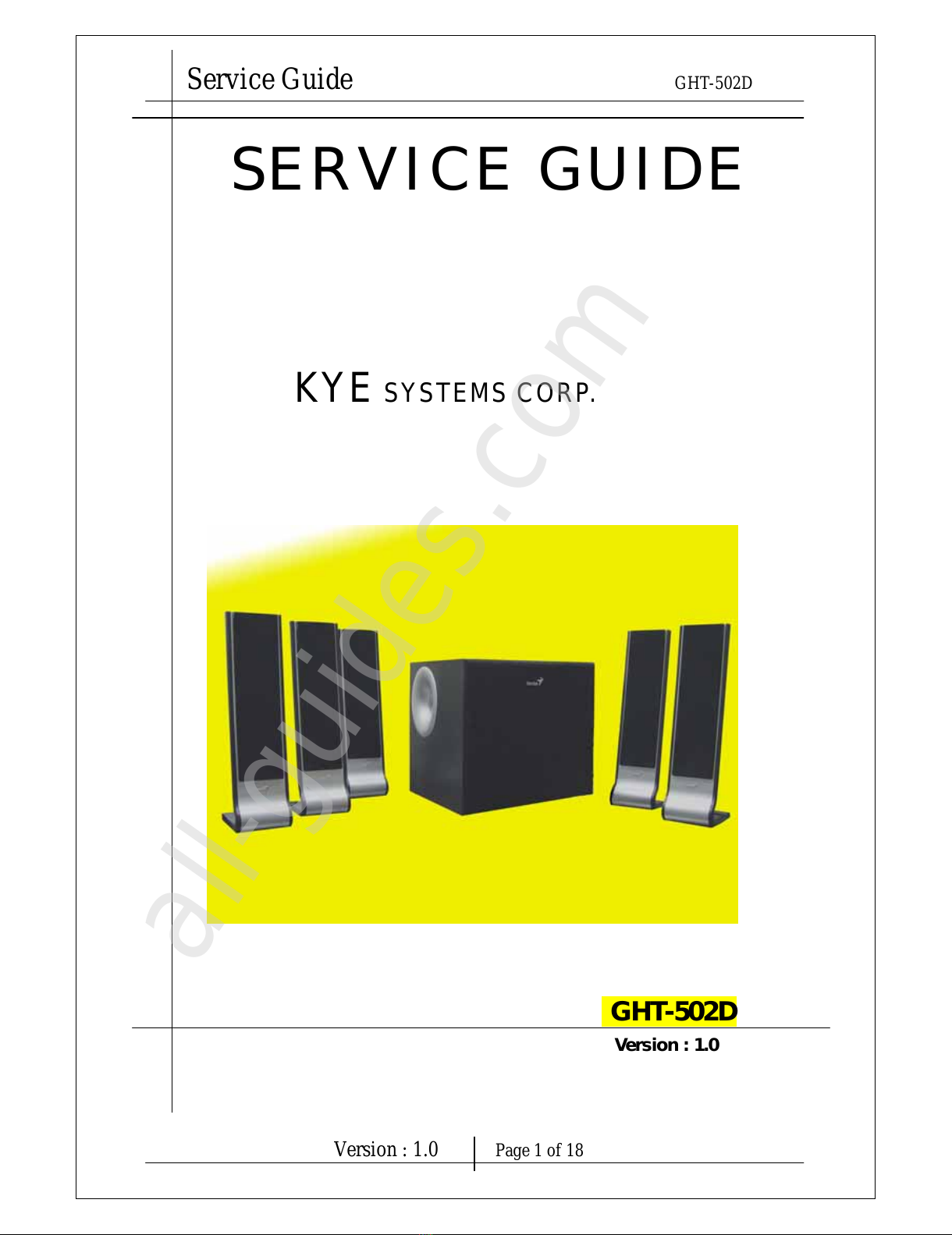

SERVICE GUIDE
KYESYSTEMS CORP.
GHT-502D
Version : 1.0
Version : 1.0 Page 1 of 18
All manuals and user guides at all-guides.com
all-guides.com

ServiceGuide GHT-502D
RevisionHistory
Version Date Change
1.0 11/05/2004
Version : 1.0 Page 2 of 18
All manuals and user guides at all-guides.com

ServiceGuide GHT-502D
Table of Contents
Revision History …………………………………………………………………….2
Table of Contents ……………………………………………………………………3
Getting Started ………………………………………………………………………4
Conventions Used in this Guide ……………………………………….4
Safety Precautions ……………………………………………………..4
Chapter 1. How to Handle Defective Returns……………………………………..5
1.1 Overview …………………………………………………………..5
1.2 Problems …………………………………………………………...6
1.2.1 FL/FR, RL/RR channels no sound …………………7
1.2.2 CEN channel no sound………….……………....…8
1.2.3 Woofer channel no sound....……………...………..8
1.2.4 Decoder no power…………………………………9
Chapter 2. Specifications …………………………………………………………10
Chapter 3. Block Diagram ……………………………………………………….12
Chapter 4. Exploded View ……………………………………………………….13
Chapter 5. Part List ………………………………………………………………15
Chapter 6. Schematic Diagram …………………………………………………...17
Chapter 7. Important Notes ………………………………………………………18
7.1 Packing Requirement for Sending the PCB Assembly by Post …..18
7.2 Short of Spare Parts while Repairing a Speaker System …………18
Version : 1.0 Page 3 of 18
All manuals and user guides at all-guides.com

ServiceGuide GHT-502D

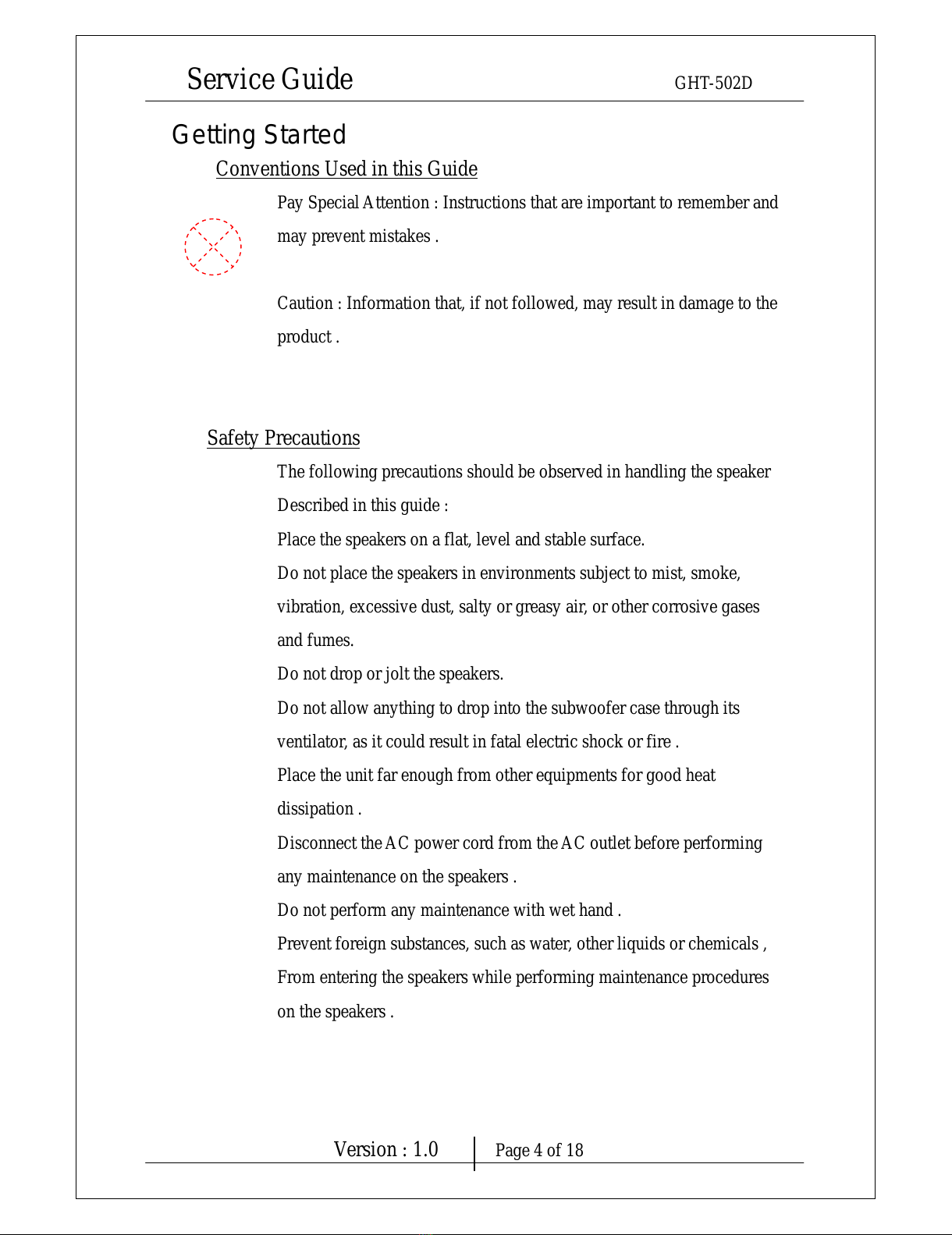

Getting Started
Conventions Used in this Guide
Pay Special Attention : Instructions that are important to remember and
may prevent mistakes .
Caution : Information that, if not followed, may result in damage to the
product .
Safety Precautions
The following precautions should be observed in handling the speaker
Described in this guide :
Place the speakers on a flat, level and stable surface.
Do not place the speakers in environments subject to mist, smoke,
vibration, excessive dust, salty or greasy air, or other corrosive gases
and fumes.
Do not drop or jolt the speakers.
Do not allow anything to drop into the subwoofer case through its
ventilator, as it could result in fatal electric shock or fire .
Place the unit far enough from other equipments for good heat
dissipation .
Disconnect the AC power cord from the AC outlet before performing
any maintenance on the speakers .
Do not perform any maintenance with wet hand .
Prevent foreign substances, such as water, other liquids or chemicals ,
From entering the speakers while performing maintenance procedures
on the speakers .
Version : 1.0 Page 4 of 18
All manuals and user guides at all-guides.com

ServiceGuide GHT-502D
Chapter 1. How to Handle Defective Returns
1.1 Overview
Version : 1.0 Page 5 of 18
Verifying problems
Proceeding necessary tests
Receiving Defective speakers from
Customers
Analyzing possible malfunction
causes
Deciding & proceeding the
rectification methods
Replace necessary defective parts
Proceeding tests to
Verif
y
if the s
p
eaker is
functionin
g
normall
y
Return the speakers with proper
repackaging to customers
Function NG
Function OK
Function OK
Function NG
All manuals and user guides at all-guides.com

ServiceGuide GHT-502D
1.2 Problems
Item Problem Description
1.2.1 FL/FR, RL/RR channels no sound
1.2.2 CEN channel no sound
1.2.3 Woofer channel no sound
Version : 1.0 Page 6 of 18
1.2.4 Decodernopower
All manuals and user guides at all-guides.com
all-guides.com

ServiceGuide GHT-502D
Attention
1.2.1 FL/FR , RL/RR channels no sound
Problem
Solutions
Version : 1.0 Page 7 of 18
Please follow the numbered sequence marked within parenthesis given in individual
Flow chat, in that this is the best-recommended sequence to rectify the problems .
FL/FR,RL/RR channels no sound
Broken or short circuit
Defective C505-508,U501 ,
C501-C504,U901
Speaker cable dis-connect or
speaker damaged
Check solder points on
PCB
Check and Replace
defective IC or
Component
Re-connect speaker cable or
replace defective speaker(s)
Analyzer and
Identify the Causes
All manuals and user guides at all-guides.com

ServiceGuide GHT-502D

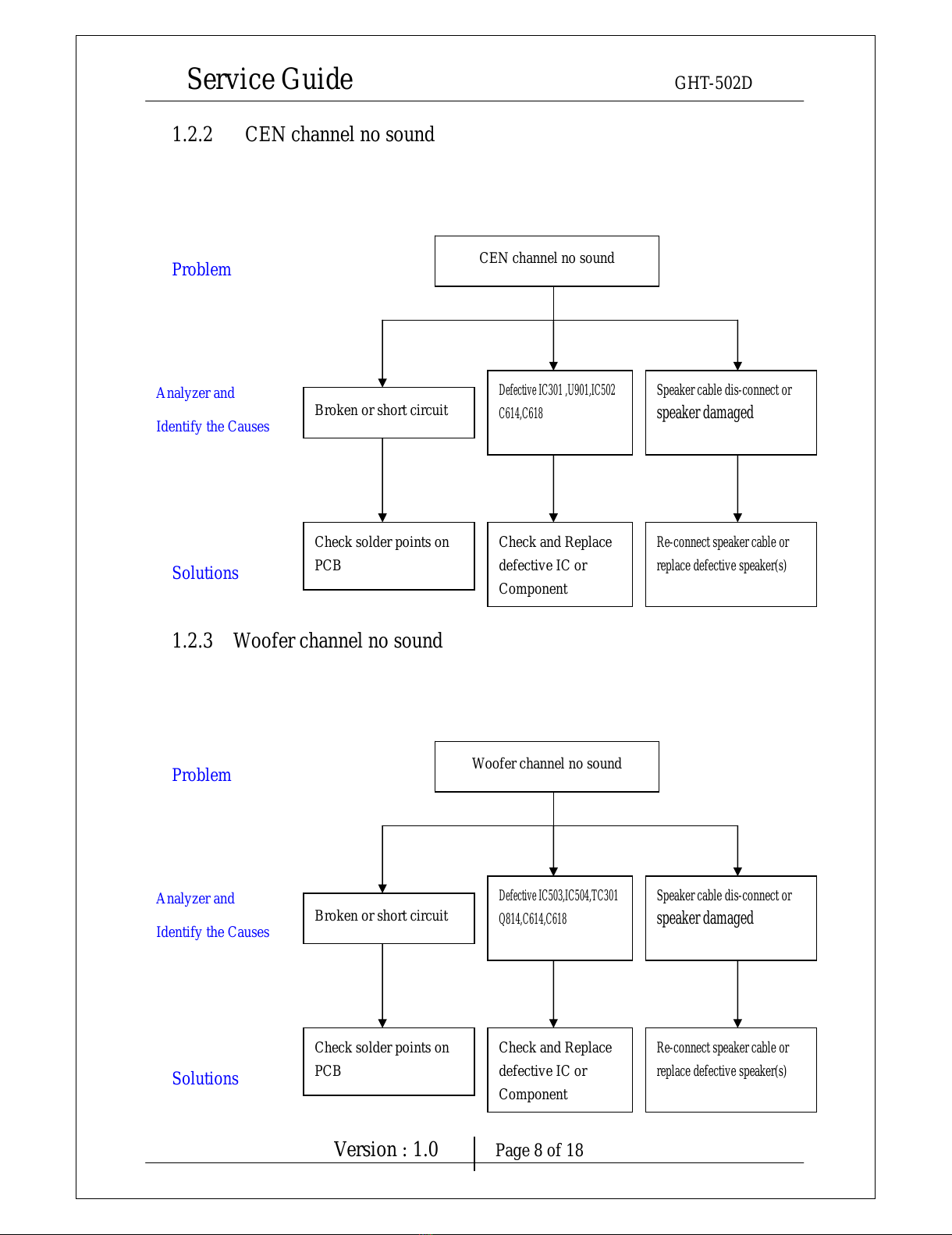

1.2.2 CEN channel no sound
Problem
Solutions
1.2.3 Woofer channel no sound
Problem
Solutions
Version : 1.0 Page 8 of 18
CEN channel no sound
Broken or short circuit
Defective IC301 ,U901,IC502
C614,C618
Speaker cable dis-connect or
speaker damaged
Check solder points on
PCB
Check and Replace
defective IC or
Component
Re-connect speaker cable or
replace defective speaker(s)
Analyzer and
Identify the Causes
Woofer channel no sound
Broken or short circuit
Defective IC503,IC504,TC301
Q814,C614,C618
Speaker cable dis-connect or
speaker damaged
Check solder points on
PCB
Check and Replace
defective IC or
Component
Re-connect speaker cable or
replace defective speaker(s)
Analyzer and
Identify the Causes
All manuals and user guides at all-guides.com

ServiceGuide GHT-502D

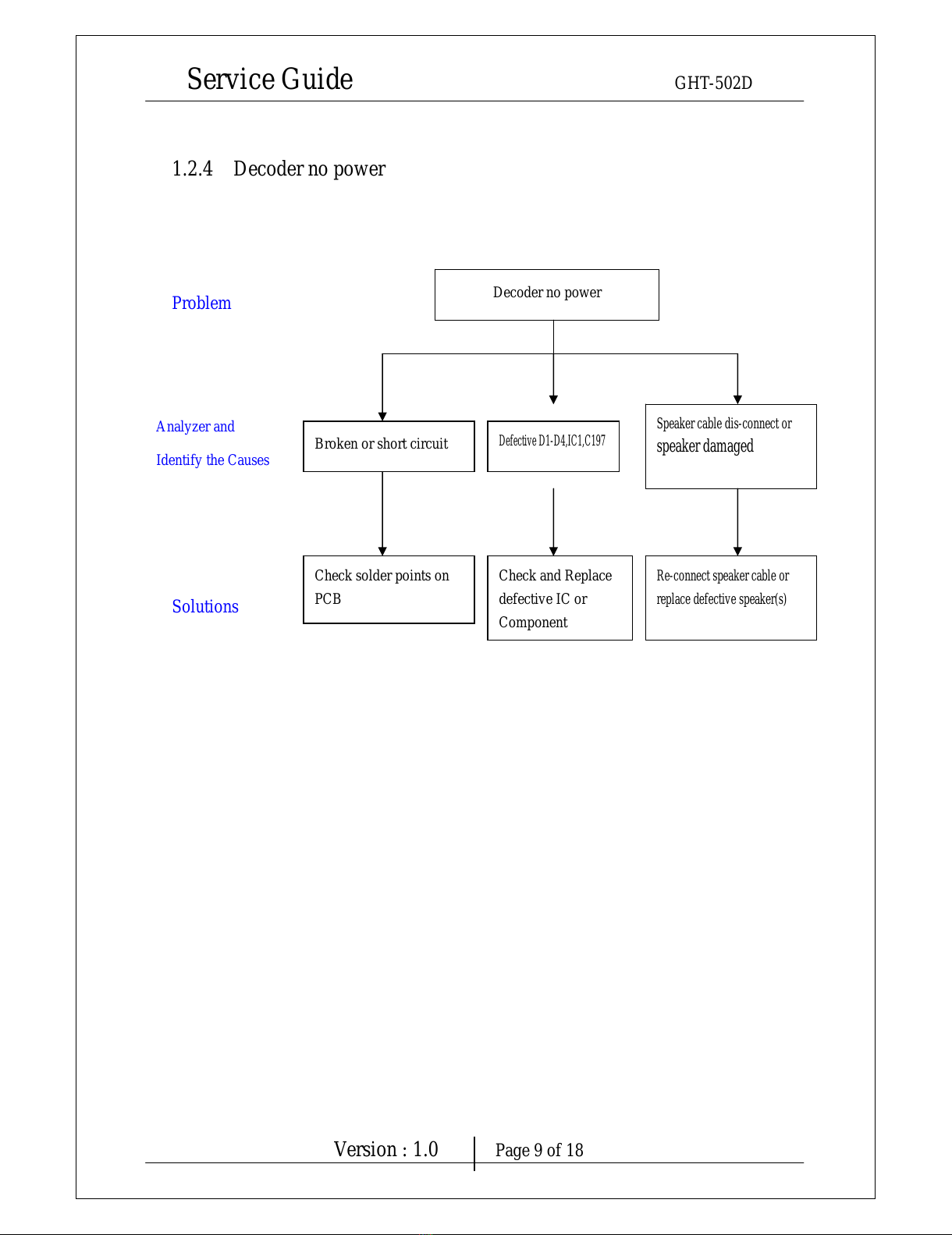

1.2.4 Decoder no power
Problem
Solutions
Version : 1.0 Page 9 of 18
Decoder no power
Broken or short circuit
Defective D1-D4,IC1,C197
Speaker cable dis-connect or
speaker damaged
Check solder points on
PCB
Check and Replace
defective IC or
Component
Re-connect speaker cable or
replace defective speaker(s)
Analyzer and
Identify the Causes
All manuals and user guides at all-guides.com

ServiceGuide GHT-502D

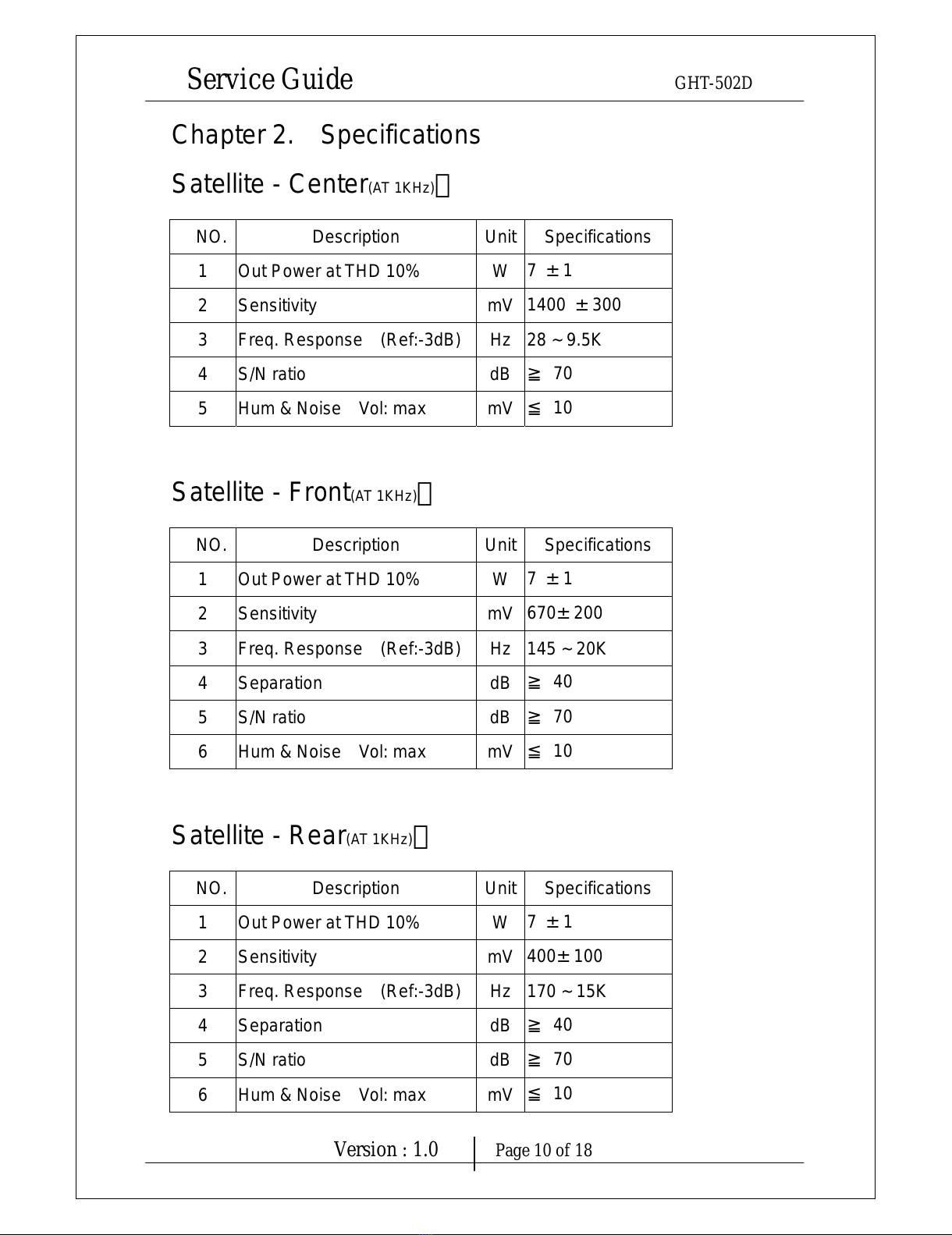

Chapter 2. Specifications
Satellite - Center(AT 1KHz)：
NO. Description Unit Specifications
1 Out Power at THD 10% W 7 ±1
2 Sensitivity mV 1400 ±300
3 Freq. Response (Ref:-3dB) Hz 28 ~ 9.5K
4 S/N ratio dB ≧70
5 Hum & Noise Vol: max mV ≦10
Satellite - Front(AT 1KHz)：
NO. Description Unit Specifications
1 Out Power at THD 10% W 7 ±1
2 Sensitivity mV 670±200
3 Freq. Response (Ref:-3dB) Hz 145 ~ 20K
4 Separation dB ≧40
5 S/N ratio dB ≧70
6 Hum & Noise Vol: max mV ≦10
Satellite - Rear(AT 1KHz)：
Version : 1.0 Page 10 of 18
NO. Description Unit Specifications
1 Out Power at THD 10% W 7 ±1
2 Sensitivity mV 400±100
3 Freq. Response (Ref:-3dB) Hz 170 ~ 15K
4 Separation dB ≧40
5 S/N ratio dB ≧70
6 Hum & Noise Vol: max mV ≦10
All manuals and user guides at all-guides.com

ServiceGuide GHT-502D
Host(Woofer)(AT 100Hz)：
NO. Description Unit Specifications
1 Out Power at THD 10% W 40 ±5
2 Sensitivity mV 320±100
3 Freq. Response (Ref:-3dB) Hz 20 ~ 150
4 S/N ratio dB
≧70
5 Hum & Noise Vol: max mV ≦10
Version : 1.0 Page 11 of 18
All manuals and user guides at all-guides.com
all-guides.com

ServiceGuide GHT-502D

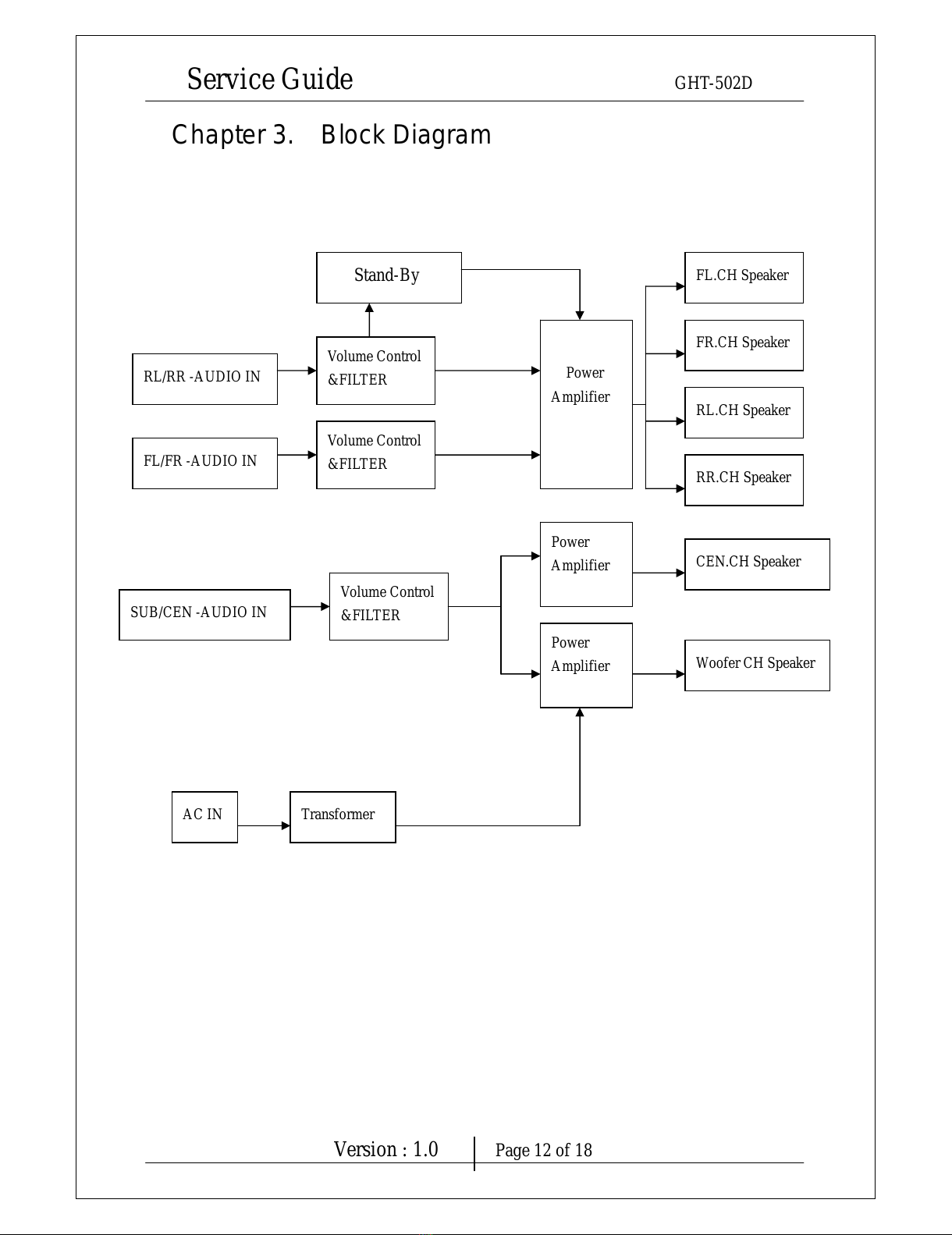

Chapter 3. Block Diagram
Version : 1.0 Page 12 of 18
RL/RR -AUDIO IN Volume Control
&FILTER
Power
Amplifier
FL.CH Speaker
RL.CH Speaker
Woofer CH Speaker
AC IN Transformer
Stand-By
FR.CH Speaker
RR.CH Speaker
CEN.CH Speaker
Power
Amplifier
Power
Amplifier
FL/FR -AUDIO IN
SUB/CEN -AUDIO IN
Volume Control
&FILTER
Volume Control
&FILTER
All manuals and user guides at all-guides.com

ServiceGuide GHT-502D

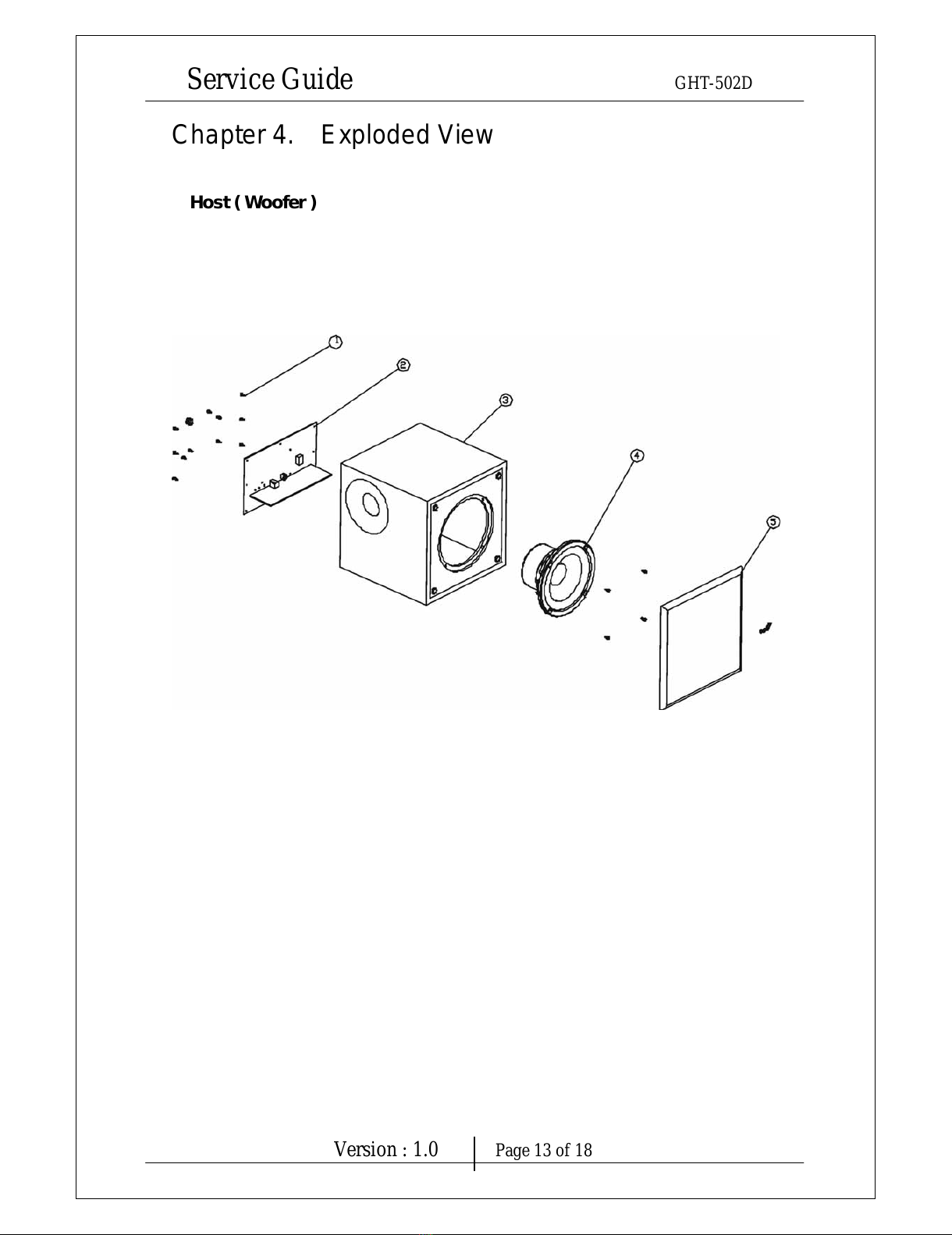

Chapter 4. Exploded View
Host ( Woofer )
Version : 1.0 Page 13 of 18
All manuals and user guides at all-guides.com

ServiceGuide GHT-502D
Satellite
Version : 1.0 Page 14 of 18
All manuals and user guides at all-guides.com

ServiceGuide GHT-502D
Chapter 5. Part List
Version : 1.0 Page 15 of 18
No. DESCRIPTION Qty UNIT Part No.
1 GHT-502/BODY/SATELLITE-FL 1 PC 3-101-01
2 GHT-502/BODY/SATELLITE-FR 1 PC 3-101-02
3 GHT-502/BODY/SATELLITE-RL 1 PC 3-101-03
4 GHT-502/BODY/SATELLITE-RR 1 PC 3-101-04
5 GHT-502/BODY/SATELLITE-CEN 1 PC 3-101-05
6 SPEAKER UNIT DBA218 5 PC 2-100-01
7 RUBBER, SW-FLAT2.1 1250/SATE. 10 PC 2-100-07
8 GHT-502D/BODY/WOOFER/230V-EU 1 PC 4-101-01
9 SPEAKER UNIT 6.5” 4 ohm 40W 1 PC 3-100-01
10 PCBA, GHT-502D 1 PC 4-101-02
11 IC, TDA7377, SW-Flat2.1 1250 1 PC 2-100-06
12 IC, TDA2030A, GHT-502 3 PC 3-100-02
13 IC, YG4558/MC4558, SW-Flat2.1 1250 1 PC 2-100-04/05
14 IC, TL084N, GHT-502 1 PC 3-100-04
15 IC, L7812, GHT-502D 1 PC 4-100-01
16 RUBBER, SW-Flat2.1 1250/HOST 4 PC 2-100-08
17 TRANSFORMER, 230V:13.4VACx2 & 3.7A;
14.5VAC & 0.8A 1 PC 4-100-02
18 AUDIO CABLE-1, 3 to 3 , GHT-502 1 PC 3-100-08
19 DC POWER CORD, GHT-502D 1 PC 4-100-03
20 CARTON, GHT-502D 1 PC 4-102-03
21 CUSHION, GHT-502D 1 SET 4-102-02
22 Round Yellow Type Label ( ON CARTON ) 2 PC 1-102-05
23 S/N LABEL ( ON CARTON & WOOFER) 2 PC 4-102-01
24 MANUAL, GHT-502D 1 PC 4-102-04
25 PE BAG, SW-Flat2.1 1250/HOST 1 PC 2-102-07
All manuals and user guides at all-guides.com

ServiceGuide GHT-502D
26 PE BAG, SW-Flat2.1 1250/SATE. 5 PC 2-102-08
27 PE BAG, DC POWER CORD, GHT-502D 1 PC 4-102-05
28 PE BAG, AUDIO CABLE 1 PC 3-102-05
29 CARDBOARD, English, GHT-502D 1 PC 4-102-06
Version : 1.0 Page 16 of 18
All manuals and user guides at all-guides.com
all-guides.com

ServiceGuide GHT-502D
Chapter 6. Schematic Diagram
Version : 1.0 Page 17 of 18
All manuals and user guides at all-guides.com

ServiceGuide GHT-502D
Chapter 7. Important Notes
7.1 Packing Requirement for Sending the PCB Assembly by Post
PCB assembly is a kind of sophisticated electronic circuit board. Well
packing will be required when sending them by post.
* Some sophisticated IC components are mounted on the PCB assembly,
hence it is necessary to pack each PCB assembly with a separate static
protecting bag, in order to avoid static electricity.
* Reliable external packing is also very important when sending PCB
assembly by post, in that it would avoid unnecessarily lost or damage.
7.2 Short of Spare Parts while Repairing a Speaker System
If you are short of spare parts when you have some speaker systems waiting
to be repaired, it would be recommended to take the necessary parts form
one speaker system, so that you may have the as many speaker systems.
Version : 1.0 Page 18 of 18
