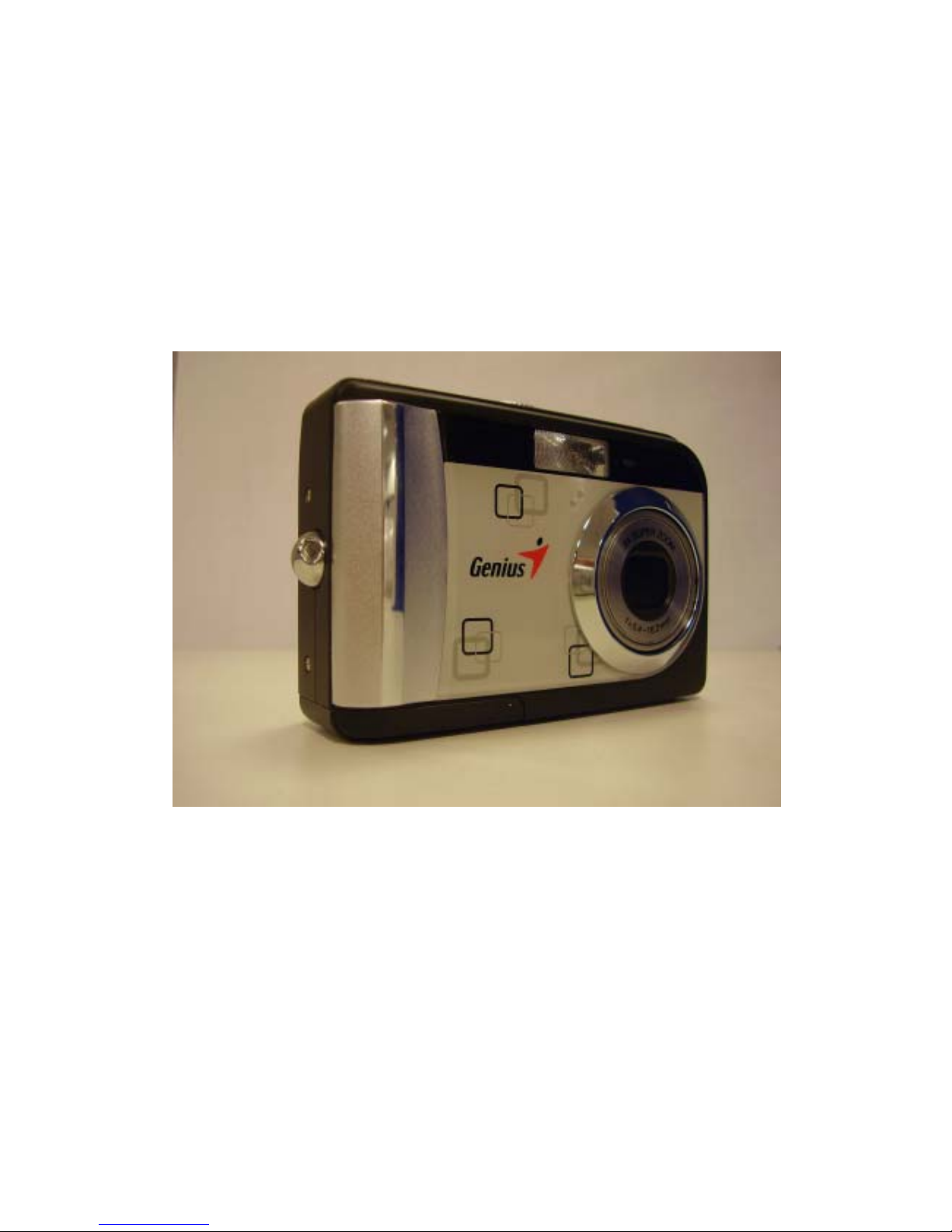

Genius G-Shot P436 User manual

Service Manual
G-Shot P436
Version K01A

Service Manual G-Shot P436
Contents ………………………………...…………..2
1.Function Test ………………………………………3
2.Troubleshooting ……………………………………5
3.Disassemble Procedure ……………………………9
4.Firmware Update Procedure ………………….….12
5.Parts List ……………………………………...……13
6.Tools …..…………………………………….………18
Version: K01A 2

Service Manual G-Shot P436
1. Function Test
TOOL/EQUIPMENT
SD card*2, TV,AC adapter, lens-wiping paper
USB cable, flower, accessory, computer
OPERATION DESCRIPTION
ITEM OPERATON DESCRIPTION
Part I
1 Take out the camera, open the battery cover and insert SD card.
Camera cannot be powered on if insert the battery reversely. Insert
battery rightly and power on. Check if can power on normally.
Confirm if the FW version is correct during power on process. Enter
capture mode and confirm if the battery icon is consistent with the real
battery situation and if the memory icon on LCD is SD icon.
2 Knock the camera on the desk slightly for three times (5cm distance
between camera and the surface of desk, bottom down, do not scratch
the cosmetic). Camera cannot come out any abnormity, for example,
power breaks, SD card ejects, and etc.
3 Take a photo in Auto mode and press Rec-play button to
confirm the image. No abnormity can come out in the process of
photography, storage and play. Power off; remove the batter
y
and close
battery cover.
Part II
A 1. Insert the 3.0 VAC adapter, power on in theAuto mode. View
towards far and near in capture mode respectively, and check if the
images on LCD are clear and display is normal. Check LCD noise
facing to dark place, and if the bad dot accord to the standard.
2. Rotate the dial for each mode, check if each mode on LCD’s top left
corner displays normally. Press Display button (OK button) twice to
confirm if TFT-LCD operation is normal.
B 1.Press W/T to stretch out to Tele, and then draw back to Wide
segment, confirm if there is any abnormity of lens when stretch out and
draw back.
2. When view towards near (about 1.0m) or far (over 2.5m) in Wide
segment, press S1 to focus, and check if the focus is ok, which means
focus frame displays green. Stretch out to T segment and repeat the
focus action. That the focus frame displays red is NG. Take out and
maintain.
3. Press the arrow button (Self-timer mode ), TFT-LCD displays
self-timer symbol and self-timer’s time. Take a photo to the flower with
2s’forced flash.
C Make the spot test of 10 PCS from each section, trigger to take 30
pictures in forced flash mode and confirm if there is any abnormity,
such as missing flash, hang on, power off automatically etc.
Version: K01A 3

Service Manual G-Shot P436
D Shift to landscape mode and take a piece of photo towards
beyond (more than 3m) in No flash mode. Then switch to night
and red-eye mode , take a photo facing to the dark place
under desk, and the camera must have flash and the pre-flash and
main flash shall have clear differences before and after.
E Shifting to video mode , the symbol is displayed. Press Shutter
button to record more than 5s, using the sound box to catch record.
F Connect TV and press playback button to enter into playback mode,
view the pictures. There should not be NG pictures and the pictures
should not have color aberration. Select the Movie document, press
SET button to enter into movie play mode; The voice should not be
abnormal or too low. Press Wide button and LCD displays
nine-thumbnail image; press direction button can select picture up,
down, left and right.All the above operation should e normal. Take out
the abnormal ones to maintain and pull out the TV wire.
G Draw out 10 PCS from each section, shift to SETUP mode , select
LCD BRIGHTNESS and press OK button to enter LCD brightness
adjustment menu. Press left-right button to adjust LCD brightness to
confirm if the LCD brightness changes regularly.
H Select format menu to format the internal memory of camera. After
this, set to default to the camera. After all the above are ok, power off
and confirm if the lens can retract.
*S1 : Press down halfway
S2 : Press down fully
Version: K01A 4

Service Manual G-Shot P436
2. Troubleshooting
Item NG point NGAnalyzing solution
Charge
Triggering
System
Charging failure 1>. Check if connectors TP45-TP50 of J401 are
cold solder, no solder, insufficient solder,
short-circuit, wrong solder, and etc. if there is
any, remove the abnormity;
2>. If (1) is normal, check if U401 and related
components and voltage are normal, remove
the abnormity;
3>. If (1), (2) are normal, check if Q402 and
T401 are normal, remove the abnormity;
4>. If (1), (2), (3), check if D401, R401~R406
and big capacitor are normal, remove the
abnormity;
5>. If above are normal, check if controlled pins
of MCU board are normal, remove the
abnormity.
Triggering failure/
flash missing/ flash
only once
1>. Check if tube is offset or installed reversely,
wires of tube are cold solder or insufficient
solder, remove the abnormity;
2>. If (1) is normal, check if copper foil of
reflector contact well;
3>. If (1), (2) are normal, check if big capacitor
is insufficient solder and voltage is normal. If
voltage is too low, check if R401~R406 are
normal, remove the abnormity;
4>. If (1), (2), (3) are normal, check if Q403 is
triggered, cold solder or insufficient solder,
C505 is cold solder or broken, remove the
abnormity;
5>. If (1), (2), (3), (4) are normal, check if +5V
voltage is normal, remove the abnormity;
6>. If above items are normal, check controlled
pins on MCU board are normal, removes the
abnormity.
Lens
system Lens flexing issue 1>. Check if connecting board of lens is NG, cold solder or insufficient solder, remove the
abnormity;
2>. If (1) is normal, check if R84, R87, R89, R90
on MCU board are cold solder or insufficient
solder, remove the abnormity;
3>. If (1), (2) are normal, check if CN1 and CN2
contact well, remove the abnormity;
4>. If above items are normal, check if U8 and
related circuit are cold solder or insufficient
solder, remove the abnormity.
Version: K01A 5

Service Manual G-Shot P436
Aperture shift NG 1>. Check if lens connecting board contact NG,
cold solder or insufficient solder, remove the
abnormity;
2>. If (1) is normal, check if R80, R81, R82,
R83, R85, R86 are cold solder or insufficient
solder, remove the abnormity;
3>. If (1), (2) are normal, check if CN1 and CN2
contact well, remove the abnormity;
4>. If above items are normal, check if U8 and
related circuit are cold solder or insufficient
solder, remove the abnormity.
Lens focus failure Check if lens and around components are
normal; remove the abnormity.
Lens resolution
issue 1>. Check if CCD is assy well, remove the abnormity;
2>. Check if lens is NG. Change lens
Lens noise 1>. Check if lens is NG. Change lens
2>. Check if the components around lens are
cold solder or insufficient solder, remove the
abnormity.
Power on failure
(without current) 1>. Check if the connection between MCU panel and soft connecting panel of Shutter is
NG, remove the abnormity;
2>. Check if the fuse F1 on power board is
broken, remove the abnormity;
3>. Check if crystal Y3 is short-circuit, cold
solder or no solder, remove the abnormity;
4>. Check if the POWCTRL related circuit is
cold solder, insufficient solder, short-circuit,
component broken, and etc. Remove the
abnormity;
5>. Check if the related tube pins of U11 are
cold soldered, insufficient solder, no solder,
short circuit, and etc. Remove the abnormit
y
.
Power and
system
Power on fail (with
current) 1>. Check if the connection between MCU panel and soft connecting panel of Shutter is
biased or NG, remove the abnormity;
2>. Reuse the USB update FW, confirm if the
camera can power on;
3>. Check if U10 is cold solder, no solder or
insufficient solder, remove the abnormity;
4>. Record U10 again to confirm if the camera
can power on;
5>. Check if S3.3V is normal, remove the
abnormity;
6>. Check if inductance and audion on power
board are cold solder or short circuit; remove
the abnormity.
Version: K01A 6

Service Manual G-Shot P436
Power on without
sound/ with
abnormal sound
1>. Check if two poles of buzzer are cold solder
or broken, remove the abnormity;
2>. Check if buzzer is ok, remove the
abnormity;
3>. Check if R15, Q5, R8, R113 are cold solder,
insufficient solder or NG, remove the
abnormity.
The shift between
AC power and
battery is NG.
1>. Check if power connector is cold solder,
insufficient solder, short circuit or NG, remove
the abnormity;
2>. Check if D15 is broken, short circuit or
insufficient solder; remove the abnormity.
TFT-LCD image
unstable Check if golden finger of CCD FPC and connector contact well.
TFT-LCD white
image 1>. Check if LCD interface is inserted to the bottom or the interface is cold solder, root of
LCD FPC is broken, remove the abnormity;
2>. Check if each group of power +5VD,
+8.5VL, 3.3VD, -8.0VL of LCD are normal.
TFT-LCD display
menu without image 1>. Check if switch of shutter is normal, remove the abnormity;
2>. Check if CCD flex board assy well, remove
the abnormity;
3>. Check if output of CCD related components
is OK, remove the abnormity;
4>. Check if each group of voltage of CCD is
OK; remove the abnormity.
TFT-LCD color
aberration/ color
difference
1>. Check if CCD flex board is OK or assy OK,
remove the abnormity;
2>. Check if soldering of CCD is short-circuit,
insufficient solder or cold solder, remove the
abnormity;
3>. Check if capacitor C503, Q501 on CCD flex
board are OK, remove the abnormity;
4>. Check if U1 is cold solder, insufficient solder
or broken, remove the abnormity.
TFT-LCD no image
but TV displays
normally
1>. Check if TV connector is OK, remove the
abnormity;
2>. Check if VIDEO_DET is OK; remove the
abnormity.
Display
and image
system
TV no image but
LCD displays
normally
1>. Check if AV connector and related
components are OK, remove the abnormity;
2>. Check if VIDEO_DET is OK; remove the
abnormity.
Version: K01A 7

Service Manual G-Shot P436
USB connecting
failure or can not
search the disk
1>. Check if USB connector is OK, remove the
abnormity;
2>. Check if USB_DTC related circuit is OK,
remove the abnormity;
3>. Confirm if ASIC and related circuits are
OK; remove the abnormity.
Others
TV play/ no sound/
noise/ voice too low/
too high
1>. Check if AV connector and R315, C181 are
OK, remove the abnormity;
2>. Check if wires of microphone are solder
well, remove the abnormity;
3>. Check if microphone is OK; remove the
abnormity.
If change any PCB of DSC, the calibration is necessary.
Version: K01A 8

Service Manual G-Shot P436

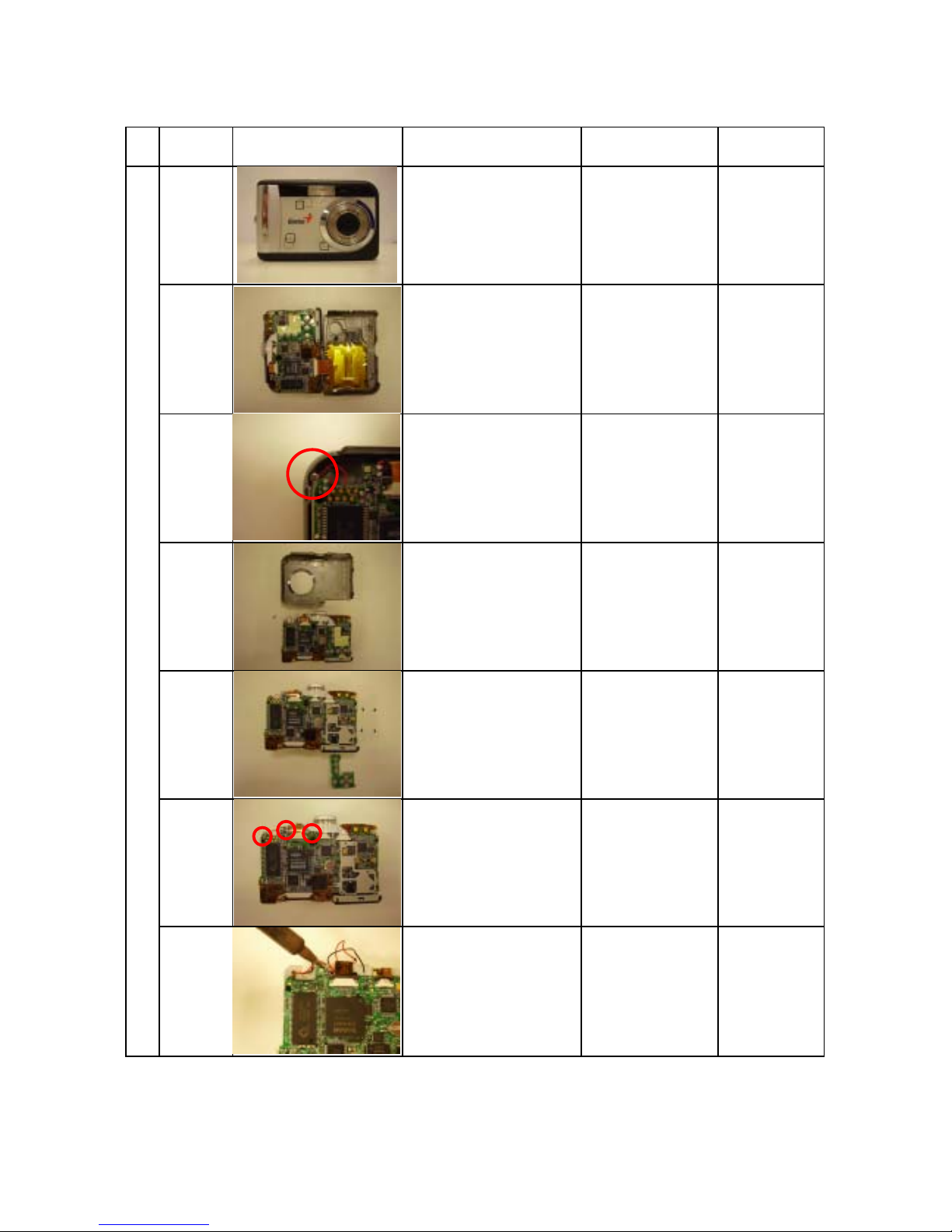

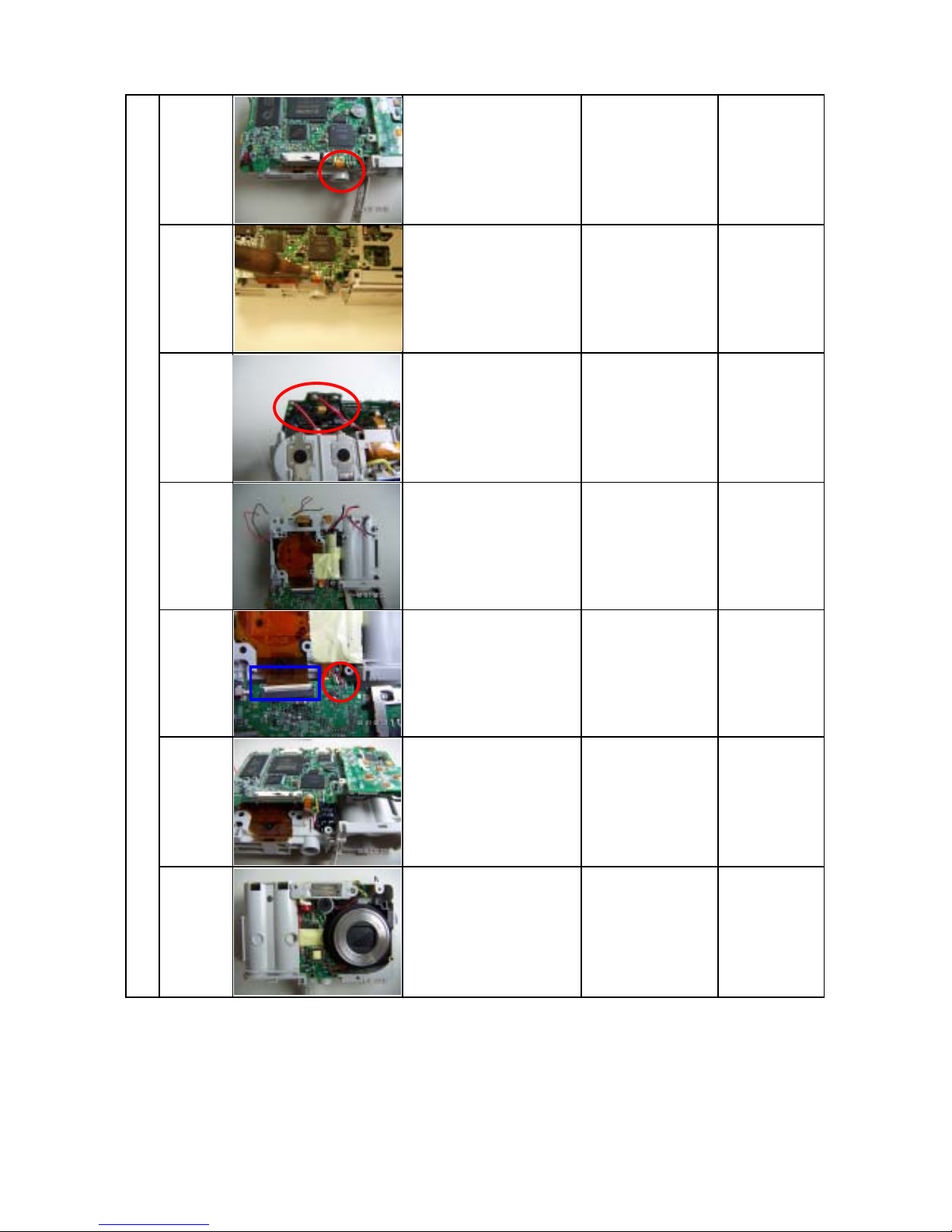

3. Disassemble Procedures
Step Figure Description Remark Tools
1Finished Product
Examine if
there's any
scratch on the
surface.
2Remove the Rear
Cover at the camera
housing.
Do not scratch
the camera
surface while
removing Rear
Cover .
Screw driver
3Remove the screws
from the camera as
shown. Screw driver
4Remove the Top
Cover at the camera
housing.
Do not scratch
the camera
surface while
removing Top
Cover.
5Remove the SW PCB
from MCU PCB ASY. Screw driver
6The soldering points
are as image shown.
7Desolder the soldered
joints by soldering
iron as shown.
Soldering
iron
Disassemble procedures
Version: K01A 9

Service Manual G-Shot P436
8The soldering points
are as image shown. Soldering iron
9Desolder the soldered
joints by soldering
iron as shown.
Soldering
iron
10 The power wire and
soldered joints as
shown.
Soldering
iron
11 Disassemble the
MCU PCB ASY. Screw driver
12 The soldering points
and FPC connector
are as image shown.
13 Disconnect the FPC
connector from MCU
PCB. Tweezer
14 The Strobe PCB ASY
located at the camera
housing.
Version: K01A 10

Service Manual G-Shot P436
15 Disconnect the
connector form strobe
PCB ASY as shown. Tweezer
16 Remove the strobe
PCB and flash tube
from Main Frame. Screw driver
17 Remove the lens unit
as shown. Screw driver
Version:K01A 11

Service Manual G-Shot P436
4. Firmware Update Procedure
To update this camera firmware, you will need to have
1. The new firmware file.
2. One SD card.
3. One card reader.
Please follow the steps below to perform the update process:
1. Prepare a formatted and empty SD card.
2. Insert a SD card to the card reader. Copy the firmware file (file name
should be "dc4345pr.bin ") into the SD card. Make sure the new firmware
file is copied to the SD card.
3. Insert the SD card into the camera.
4. Plug in the AC adapter into the camera.
5. Press "Shutter" & "Playback" button at the same time and press “Power”
button, then loosen “Power” button, LCD will display the image and loose the
“Shutter”, “Playback “ button. At this time camera enters update process
automatically and LED blinks.
6. When LED stops blinking, LCD will display the “OK” ,it means update ok.
7. Reformat the SD card if you want to use it again.
Note: Don’t remove the power source during firmware update procedures.
.
Version: K01A 12

Service Manual G-Shot P436
5. Part List (G-Shot P436)
Item Parts Name Pcs / set P/N Remark
1 Front CoverASY 1 9R744-2000
2 Rear CoverASY 1 9R744-3000
3 Lens Module ASY 1 9T246-6000
4 Battery Cover 1 9Q334-4600-99
5 MCU PCB ASY 1 9T247-0202
6 Strobe PCB ASY 1 9T247-4200
7 Switch-2 PCB ASY 1 9Q347-3001
8 LCD 1 02092-0016-01
Version: K01A 13

Service Manual G-Shot P436
1. Front CoverASY
2. Rear CoverASY
Version: K01A 14

Service Manual G-Shot P436

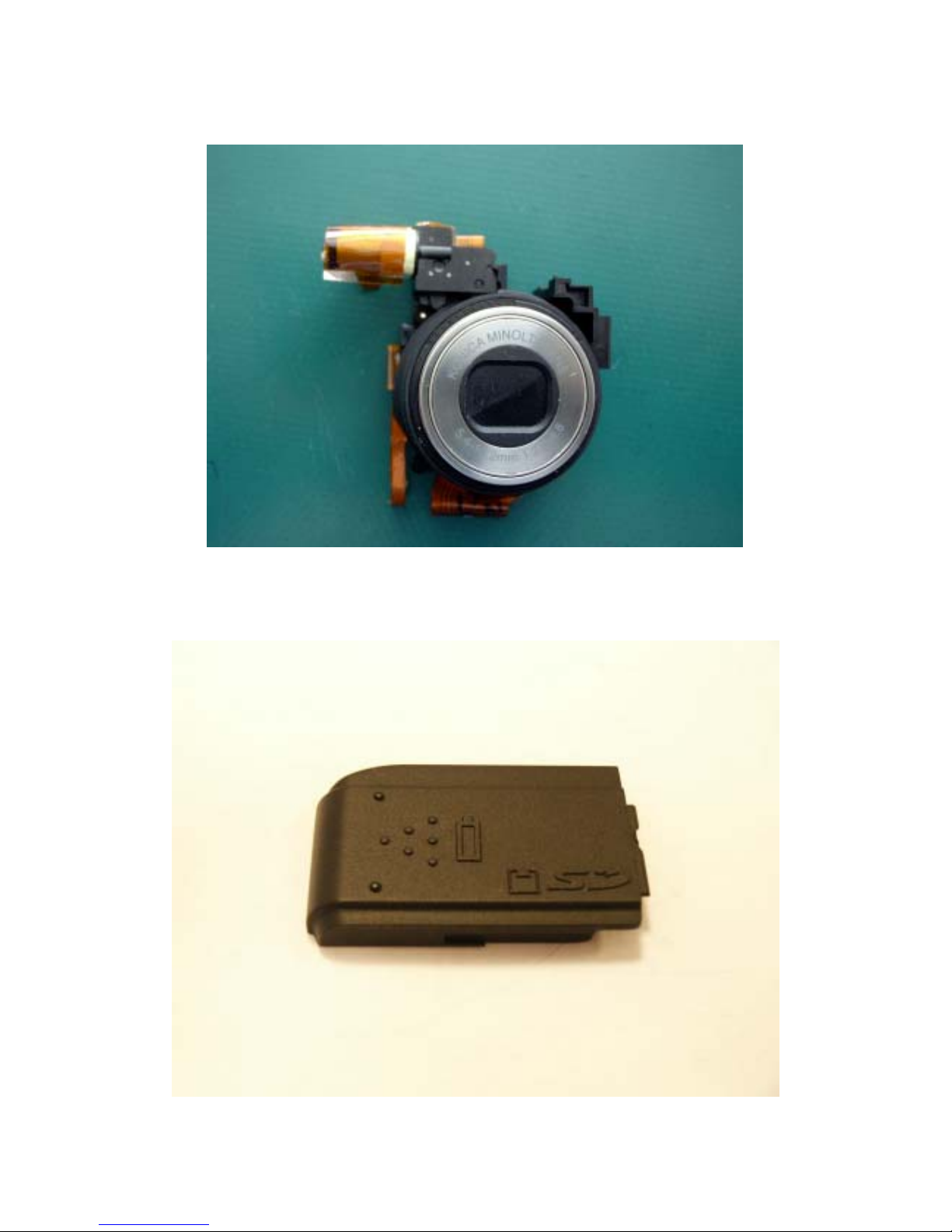

3. Lens Module ASY
4. Battery Cover
Version: K01A 15

Service Manual G-Shot P436

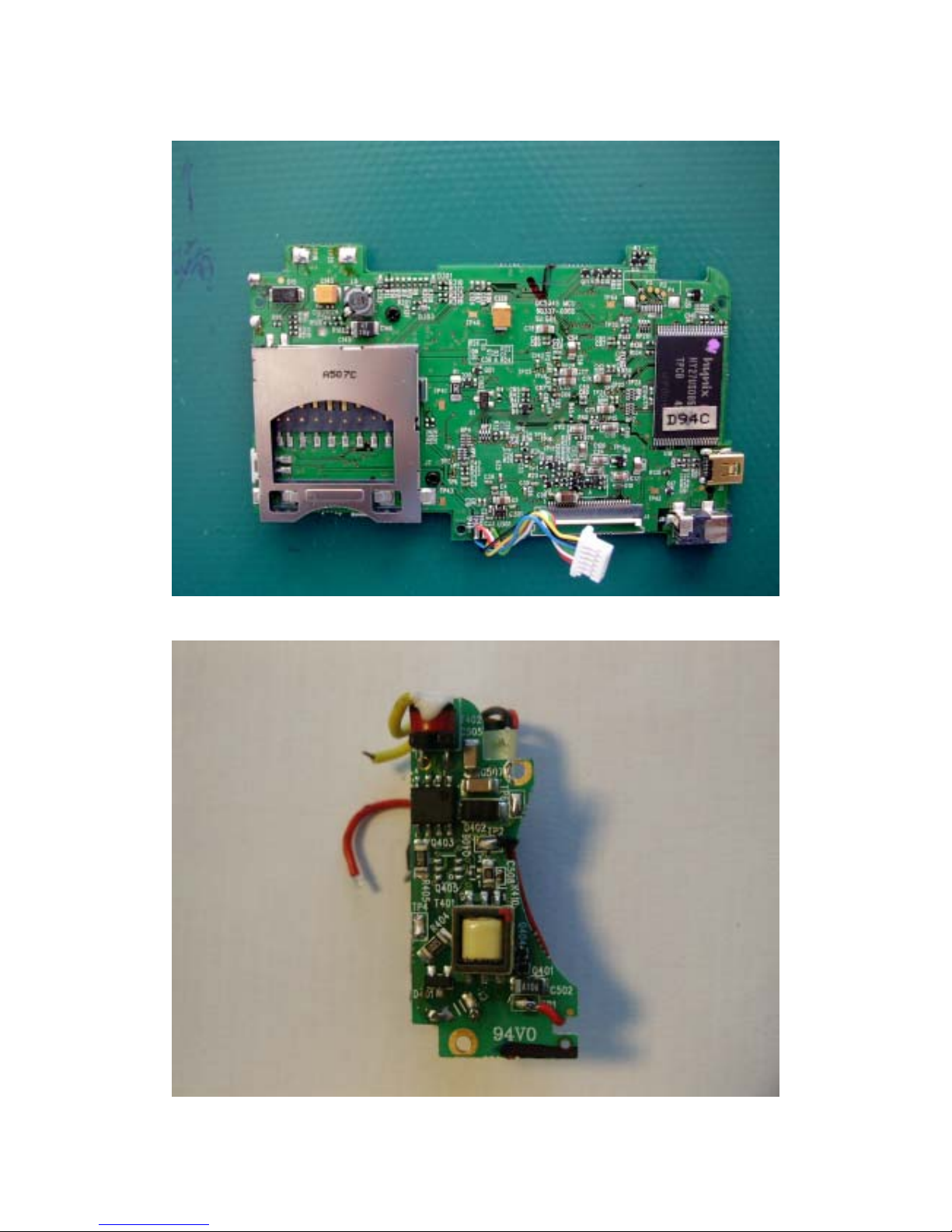

5. MCU PCB ASY
6. Strobe PCBASY
Version: K01A 16

Service Manual G-Shot P436

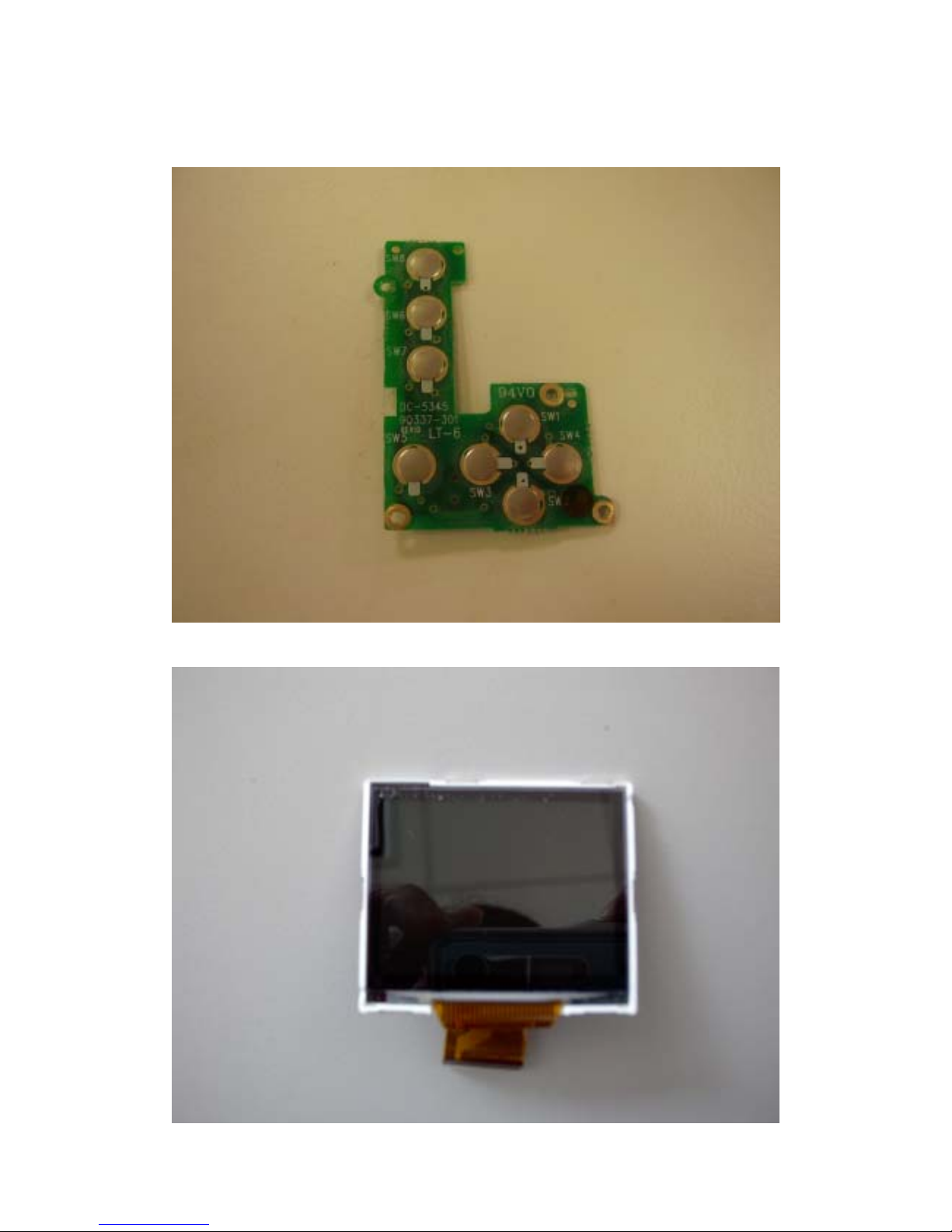

7. Switch-2 PCBASY
8. LCD
Version: K01A 17

Service Manual G-Shot P436
6. Tool
Item Description Mark
1 Screw Driver (2.0m/m)
2 Tweezers
3 Soldering iron
1. Screw Driver
Version: K01A 18

Service Manual G-Shot P436
2. Tweezers
Version: K01A 19

Service Manual G-Shot P436
Version: K01A 20
3. Soldering iron
