GENTRON GG10000 User manual

I EN I N®
Own®r's Manual
1 o,nno WATT GENERATOR
Plesseresd sfldssvetheseinstructions,
HAVE OUEST/OHSORHEEDSERVICE
DO HOTRETURN TOSTORE!
PLEASE CALL TOLLFREE: 888.896.6881
www. GentronUSA. com

Manua!
Table OfCuntents
Topic Page
Limited Warranty 2
Safety Guidelines 4
General Precautions 5
Battery 11
Assembly 12
Operation 15
Inspection, Cleaning and Maintenance 19
Installation 20
Compliance 21
Specifications 22
Parts List 23
_ WARNING! READ AND UNDERSTAND ALL SAFETY PRECAUTIONS IN THIS MANUAL BEFORE
OPERATING, FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL
INJURY, PROPERTY DAMAGE, AND/OR VOIDING OFYOUR WARRANTY, GENTRON® PRODUCTS WILL NOT
BE LIABLE FORANY DAMAGE BECAUSE OF FAILURE TO FOLLOW THESE INSTRUCTIONS,

Manua!

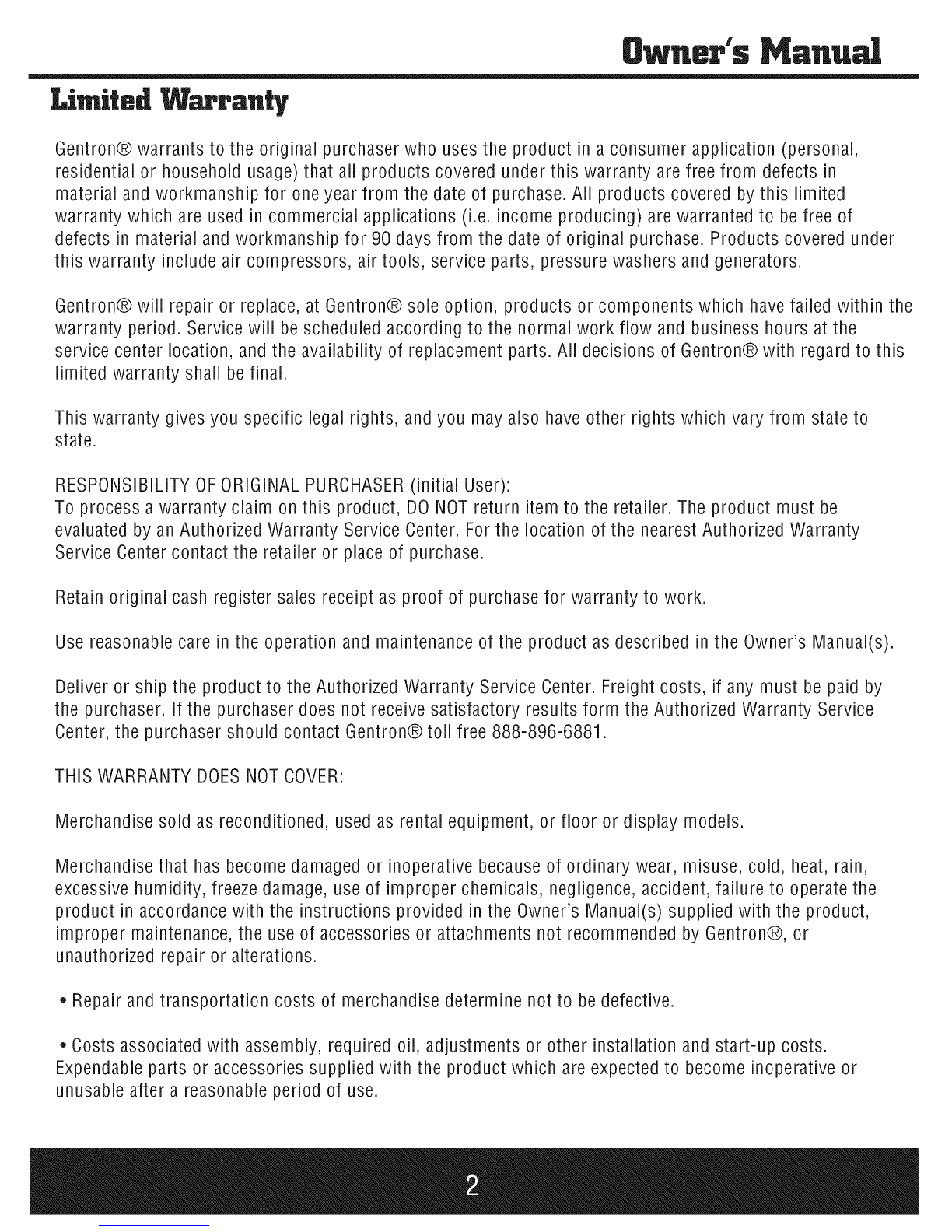

Limi|ed W uTan|¥
Gentron® warrants to the original purchaser who uses the product in a consumer application (personal,
residential or household usage) that all products covered under this warranty are free from defects in
material and workmanship for one year from the date of purchase. All products covered by this limited
warranty which are used in commercial applications (i.e. income producing) are warranted to be free of
defects in material and workmanship for 90 days from the date of original purchase. Products covered under
this warranty include air compressors, air tools, service parts, pressure washers and generators.
Gentron® will repair or replace, at Gentron® sole option, products or components which have failed within the
warranty period. Service will be scheduled according to the normal work flow and business hours at the
service center location, and the availability of replacement parts. All decisions of Gentron® with regard to this
limited warranty shall be final.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
RESPONSIBILITY OFORIGINAL PURCHASER (initial User):
To process a warranty claim on this product, DO NOT return item to the retailer. The product must be
evaluated by an Authorized Warranty Service Center. For the location of the nearest Authorized Warranty
Service Center contact the retailer or place of purchase.
Retain original cash register sales receipt as proof of purchase for warranty to work.
Use reasonable care in the operation and maintenance of the product as described in the Owner's Manual(s).
Deliver or ship the product to the Authorized Warranty Service Center. Freight costs, if any must be paid by
the purchaser. If the purchaser does not receive satisfactory results form the Authorized Warranty Service
Center, the purchaser should contact Gentron® toll free 888-896-6881.
THIS WARRANTY DOES NOT COVER:
Merchandise sold as reconditioned, used as rental equipment, or floor or display models.
Merchandisethat has become damagedor inoperative because of ordinary wear, misuse, cold, heat, rain,
excessive humidity, freezedamage, use of improper chemicals, negligence, accident, failure to operate the
product in accordance with the instructions provided in the Owner's Manual(s) supplied with the product,
improper maintenance, the useof accessories or attachments not recommended by Gentron®, or
unauthorized repair or alterations.
o Repair and transportation costs of merchandise determine not to be defective.
Costs associated with assembly, required oil, adjustments or other installation and start-up costs.
Expendable parts or accessories supplied with the product which are expected to become inoperative or
unusable after a reasonable period of use.

Manua!
Limi|ed W uTan|¥
Merchandise sold by Gentron® which has been manufactured by and identified as the product of another
company, such as gasoline engines. The product manufacturer's warranty, if any, will apply.
ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSETHAT MAY RESULT
FROM ANY DEFECTS, FAILURE OR MALFUNCTION OFTHE PRODUCT IS NOT COVERED BY THIS
WARRANTY.Somestatesdo not allowtheexclusion,so it maynotapplyto you.
IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY OR FITNESS FORA PARTICULAR
PURPOSE, ARE LIMITED TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. Some states do not
allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

Manua!
Safety Guidelines - Definitiuns
This manual contains important information that you need to know and understand in order to keep YOU
SAFE and to PREVENT EQUIPMENT PROBLEMS, The following symbols help you recognize this information,
Please read the manual and pay attention to these sections,
Save These important Safety instructions! Read and understand all of these safety instructions= Be sure to
retain them for future use,
_iL WARNING! Warnings indicate a certainty or strong possibility of personal injury or death if
instructions are not followed,
_ CAUTION: Cautions indicate a possibility of equipment damage if instructions are not followed
_, NOTE: Notes give helpful information
_ WARNING! Improper operation or maintenance of this product could result in serious injury an
property damage= Read and understand all warnings and operating Instructions before using this equipment=
When using air tools, basic safety precautions should always be followed to reduce the risk of personal
injury=

Manua!
General Precautions
Z_ WARNING! Failure to follow these instructions can result in severe injury or death.
DANGER!
Carbon Monoxide
Using a generetor indoors WILL KILL YOU IN MINUTES.
CarbonMonoxide
Generator exhaust contains high levels of carbon monoxide (CO), a poisonous gas you cannot see or smell.
If you can smell the generator exhaust, you are breathing CO. But even If you cannot smell the exhaust, you
could be breathing CO.
• NEVER use a generator inside homes, garages, crawlspaces, or other partly enclosed areas. Deadly levels
of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT
supply enough fresh air.
• ONLY use a generator outdoors and far away from open windows, doors, and vents. These openings can
pull in generator exhaust.
Even when you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or
battery-backup COalarm in the home.
If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air RIGHT AWAY.
See a doctor. You could have carbon monoxide poisoning.
Gasolineand Oil
This product requires oil and fuel. Attempting to start the engine without oil will ruin the engine and void the
warranty. Work in well ventilated area. Keep cigarettes, flames or sparks away from the work area or where
gasoline is stored.
_1_ WARNING! Gasoline is extremely flammable and is explosive under certain conditions. Keep out of
reach of children.
Gasoline fuel and fumes are flammable and potentially explosive. Use proper fuel storage and handling
procedures. Always have multiple ABC class fire extinguishers nearby.
Keep the generator and surrounding area clean at all times.
Fuel or oil spills must be cleaned up immediately. Dispose of fluids and cleaning materials as per any local,
state, or federal codes and regulations. Store oily rags in a covered metal container.
o Never store fuel or other flammable materials near the generator.

Manua!
General Precautions
Do not smoke, or allow sparks, flames or other sources of ignition around the engine and fuel tank. Fuel
vapors are explosive.
Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and connections
to avoid sparking or arcing. These events could ignite fumes or vapors.
Do not refill the fuel tank while the engine is running or while the engine is still hot. Do not operate the
generator with known leaks in the fuel system
Excessive buildup of unburned fuel gases in the exhaust system can create a potentially explosive condition.
This buildup can occur after repeated failed start attempts, valve testing, or hot engine shutdown, if this
occurs, open exhaust system drain plugs, if equipped, and allow the gases to dissipate before attempting to
restart the generator.
Use only engine manufacturer recommended fuel and oil.
HotComponents
_ WARNING! Engine and exhaust system parts become very hot and remain hot for some time after the
engine is run. Wear insulated gloves or wait until the engine and exhaust system have cooled before
handling these parts.
Work Area
Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases,
or dust. Generators create sparks which may ignite the dust or fumes.
Keep bystanders, children, and visitors away while operating a generator. Provide barriers or shields as
needed.
EiectricaJ Safety
Grounded tools must be plugged into an outlet properly installed and grounded in accordance with all
codes and ordinances. Never remove the grounding prong or modify the plug in any way. Do not use any
adapter plugs.
Grounding provides a low-resistance path to carry electricity away from the user in the event of an electrical
malfunction.
Double insulated tools are equipped with a polarized plug where one blade is wider than the other. This plug
fits in a polarized outlet only one way. if the plug does not fit fully in the outlet, reverse the plug. if it still
does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way.
Double insulation eliminates the need for the three-wire grounded power cord and grounded power supply
system.

Manua!
General Precautions
Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an
increased risk of electric shock if your body is grounded.
Do not expose generator to rain or wet conditions. Water entering a generator will increase the risk of
electric shock.
Do not abuse the power cord. Keep power cords away from heat, oil, sharp edges, or moving parts. Replace
damaged power cords immediately. Damaged power cords increase the risk of electric shock.
When operating a power tool outside, use an outdoor extension cord marked "W-A" or "W'. These extension
cords are rated for outdoor use, and reduce the risk of electric shock.
All connections and conduits from the generator to the load must only be installed by trained and licensed
electricians, and in compliance with all relevant local, state, and federal electrical codes and standards, and
other regulations where applicable.
The generator must be earth-grounded for fixed installations in accordance with all relevant electrical codes
and standards before operation.
Do not attempt to connect or disconnect load connections while standing in water, or wet or soggy ground.
Do not touch electrically energized parts of the generator and interconnecting cables or conductors with any
part of the body, or with any non-insulated conductive object.
Connect the generator only to a load or electrical system (110/120 volt) that is compatible with the electrical
characteristics and rated capacities of the generator.
Before servicing equipment powered by the generator, disconnect the equipment from its power input.
Keep all electrical equipment clean and dry. Replace any wiring where the insulation is cracked, cut abraded
or otherwise degraded. Replace terminals that are worn, discolored, or corroded. Keep terminals clean and
tight.
Insulate all connections and disconnected wires.
Guard against electric shock. Prevent body contact with grounded surfaces such as pipes, radiators, ranges,
and refrigerator enclosures.
PersenaJSafety
Stay alert. Watch what you are doing, and use common sense when operating a generator. Do not use
generator while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while
operating generators may result in serious personal injury.

Manua!
General Precautions
Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
Avoid accidental starting. Makesure the power switch is in its "OFF" position, and disconnect the spark plug
wire when not in use.
Remove adjusting keys or wrenches before turning the generator on. A wrench or a key that is left attached
to a rotating part of the generator may result in personal injury.
Do not overreach. Keep proper footing and balance at all times.
Use safety equipment. Always wear eye protection. Wear ANSI approved safety impact eye goggles. Dust
mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.
Do not force the generator. Usethe correct generator for your application. Thecorrect generator will do the
job better and safer at the ratefor which it is designed.
Do not use the generator if the power switch does not turn it on or off. Any generator that cannot be
controlled with the power switch is dangerous and must be replaced.
GeneratorUseand Care
Make sure the power switch is in its "OFF" position and disconnect the spark plug wire before making any
adjustment, changing accessories, or storing the generator. Such preventive safety measures reduce the risk
of starting the generator accidentally.
Store idle generators out of reach of children and other untrained persons. Generators are dangerous in the
hands of untrained users.
Maintain generators with care. Do not usedamaged generator. Tag damaged generators "Do not use" until
repaired.
Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may
affect the generator's operation. If damaged, have the generator serviced before using. Many accidents are
caused by poorly maintained generators.
Use only accessories that are recommended by the manufacturer for your model. Accessories that may be
suitable for one generator may become hazardous when used on another generator.
Servicing
Maintain labels and name plates on the generator and engine. These carry important information= If
unreadable or missing, contact Gentron® immediately for a replacement.
Generator service must be performed only qualified repair personnel. Service or maintenance performed by
unqualified personnel could result in a risk of injury.

Manua!
General Precautions
When servicing a generator, use only identical replacement parts. Follow all appropriate instructions in this
manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of electric
shock or injury.
Heart Pacemakers
,i_ WARNING! People with pacemakers should consult their physician(s) before using this product.
Electromagnetic fields in close proximity to a heart pacemaker could cause interference to or failure of the
pacemaker.
Installation
Ensure installation meets all applicable safety, and local and national electrical codes= Have installation
performed by a qualified, licensed electrician and building contractor.
All electrical work, including the earth-ground connection, should be completed by a licensed electrician.
Any separate fuel storage or generator supply facility must be built or installed in full compliance with all
relevant local, state, and federal regulations.
if the generator is installed outdoors, it must be weatherproofed and should be soundproofed, it should not
be run outdoors without protection to the generator and wiring conduit.
The generator weighs 220 Ibs. Two or more people should assist when moving or lifting this product. Never
lift the generator using the engine or alternator lifting lugs. Connect lifting equipment to the frame of the
generator.
Before lifting the generator, ensure the lift rigging and supporting structure are in good condition, and are
rated to lift such a load.
Keep all personnel away from the suspended generator during relocating.
The supporting floor/ground surface should be level and strong enough to safely hold the weight of the
generator, if the floor/grounded surface is not level, strong cross members should be placed under the full
length of the generator frame at its low side.
For trailer installation, the generator should be mounted on the center point of the trailer, over the wheels.
The trailer must be capable of supporting the weight of the generator and all contents (tools, etc.)
Install sound-and weather-proofing only when it is not raining or snowing to avoid trapping moisture within
the generator's area.
iVlechanical
Always make sure the power switch is in its "OFF" position= Disconnect the spark plug wire, and allow the
engine to completely cool before carrying out maintenance.

Manua!
General Precautions
Check for damaged parts. Before using the generator, any part that appears damaged shouid be carefuiiy
checked to determine that it wiil operate properly and perform its intended function. Check for aiignment and
binding of moving parts, any broken parts or mounting fixtures, and any other condition that may affect
proper operation technician.
The generator is designed with guards for protection from moving parts, in any case, care must stiil be taken
to protect personnel and equipment from other mechanical hazards when working around the generator.
Do not operate the generator with safety guards removed. Whiie the generator is running, do not attempt to
reach around the safety guard for maintenance or any other reason.
Keep hands, arms, iong hair, ioose ciothing, and jeweiry away from moving parts. Be aware that when engine
parts are moving fast they cannot be seen cieariy.
Keep access doors on enciosures ciosed and iocked when access is not required.
When working on or around the generator aiways wear protective ciothing inciuding ANSi approved safety
gioves, safety eye goggies, and safety hat.
Do not aiter or adjust any part of the generator that is assembied and suppiied by the manufacturer.
Aiways foiiow and compiete scheduied engine and generator maintenance.
Chemicals
Avoid contact with hot fuei, oii, exhaust fumes, and hot soiid surfaces.
Avoid body contact with fueis, oiis, and iubricants used in the generator, if swaiiowed, seek medical
treatment immediateiy. Do not induce vomiting if fuel is swaiiowed. For skin contact, immediateiy wash with
soap and water. For eye contact, immediateiy fiush eyes with ciean water and seek medical attention.
Noise
Proionged exposure to noise ieveis above 85 DBA is hazardous to hearing. Aiways wear ANSi approved ear
protection when operating or working around the generator when it is running.
ExtensionCord
if an extension cord (not inciuded) is used, make sure to use oniy UL approved cords having the correct
gauge and iength according to the foiiowing tabie:
Namepiate Amps _ Cord Lengths
(@ fuil ioad) 0'-50' 20'-100' 100'-150'
0- 5 16AWG 16AWG 12AWG
5.1 -8 16AWG 14AWG 10AWG
8,8 - 12 14AWG 12AWG
]
150'-200'
12AWG

Ma.ual
Battery
Assembly
To start generator with electric start you will need a battery (not included). You can use a 12v lawn
tractor battery with the following specifications:The dimensions are Wx7.5" Dx5" Hx7"(including
terminals). A rated cranking amperage of 200. Terminals are regular, not reversed. Note: Using a
battery not designed for this unit may void warranty. Also this generator can also be started with
the pull start.
Photos below demonstrate how to install the battery.
1) Screw off the IVI6X12 bolts as shown below.
Open up the plate Connect battery and put in the cabin
2) Screw on one bolt to rivet the battery and screw the bolts to close up the plate as shown below.
Rivet battery Close upthe plate

Manual
Assembly
Unpacking
1. Remove the generator and loose parts box from the carton.
2. Compare the loose parts with the inventory list below.
LooseParts(Wheel kit and handle)
Check all loose parts against the following list. Contact your dealer toll free at 888.896.6881
if any of the loose parts shown are not included with your generator
HardwareCheck:
Your Hardware Kit should include:
1) 2 Handles with bolts and brackets
2) 4 (six) IVISx4Ommbolts, (6mm x 1.0) thread
3) 4 (six) IVI8Nuts (6mm x 1.0) thread
4) 2 (two) rubber bushings with 2 nuts
5) 2 (two) axle shafts and axle mount brackets
6) 2 (two) washers
7) 4 (four) cotter pins
8) 8 (eight) bolts and nuts for the leg and the axle mount brackets
9) 1 (one) generator leg
10) 2 (two) wheels (not shown)
5
@@@@
1
@@@ @@@@ @

Manual
Assembly
HafldJeIflstaiJatiofl
Install the handle bracket. Connect handle with the bracket.

Manual
Assembly
Wheel Kit InstalJation
Start by installing the
rubber floor mounts
onto the support leg
as shown.
Note: The leg should
be installed on the
same side as the pull
handle.
Here is the hardware required to install
the support leg. Placea block of wood
under the generatorso that you don't
haveto hold it up while trying to install
the leg. Placethe support legunderthe
frame. Pushthe bolt through the frame and
thru the leg.Threada nut onto the bolt.
Tighten with a wrench.
This is what the leg
looks like when it is
installed.
Slide the wheels
onto the axle.
Place a washer
over the wheel
Thewheels should be installed on the
side opposite to the handle. Placea
block of wood under the generator so
that you don't have to hold it up while
trying to install the axle. Placethe axle
mount brackets. Thread two bolts through
the frame and through the axle mounting
plates. Thread a nut onto the bolt and
tighten. Pushthe axle shaft into the axle
mount bracket. Then push the cotter pin
through the axle and bend it backwards as
shown.
Push the cotter pin through the axle and
bend it backwards as shown
Your generator is now mobile. Enjoy!
8 8
8 8

Manua!
Operatiun Electric Start ................... Fuel Tank
,_ NOTE: The parts listed above are
helpful for locating the controls mentioned
below.
d_ CAUTION: Prior to first using the generator, the
engine must be filled with a high quality sae 10w-30
grade engine oil. To do so unscrew and remove the
engine's oil dipstick located at the bottom of the
engine crankcase. Fill the engine's crankcase until the
oil level is level with the upper marked line on the
dipstick. Then, screw the dipstick back into the oil fill
hole.
Control Panel
ENGINEOILRECOMMENDATIONS
Oil is a major factor affecting performance and service life. Use 4-stroke automotive detergent oil.
SAE 10W 30 is recommended for general use. Other viscosities shown in the chart may be used when the
average temperature in your area is within the recommended range.
SAE Viscosity Grades
-20 0 20 40 60 80 IO0°F
t_ Jt J
-20 -10 0 10 20 30 40°C
AMBIENT TEMPERATURE
Upper Level Oil Fill and
Dipstick
BeforeStarting the Generator
1. Check that the engine power switch is in its "OFF" position (see diagram on next page).
2. Before the first use, remove the fuel tank cap and fill the fuel tank with unleaded gasoline. When fueling,
be sure that the fuel strainer is in place. Replace the fuel tank cap. Thereafter, check the engine's fuel gauge
for the amount of unleaded gasoline in the fuel tank. If necessary, refill the fuel tank with unleaded gasoline.
The generator must be turned off and cooled down before refilling the fuel tank.

Manua!
8peratiun
Starting
1. Turn the engine switch to the ON position. The engine switch enables and
disables the ignition system.
OFF: To stop the engine. RUN: To run the engine.
2. The fuel vaive is iocated between the fuel tank and the carburetor.
When the vaive iever is in the ON position, fuel is aiiowed to flow from
the fuel tank to the carburetor. Be sure to return the fuel vaive iever to
the OFFposition after stopping the engine.
3. To start a coid engine, move the choke iever to the CLOSED position.
To restart a warm engine, ieave the choke iever in the OPEN position.
The choke iever opens and cioses the choke vaive in the carburetor.
The CLOSED position enriches the fuel mixture from starting a coid engine.
The OPEN position provides the correct fuel mixture for operation after
starting, and for restarting a warm engine.
4. Operate the Recoil Starter: Turn the key to the "Run" position. Puil the
starter grip iightiy until you feel resistance, then puil briskiy. Return the
starter grip gentiy. Puiiing the starter grip operates the recoil starter to
crank the engine.
ELECTRIC START. For Eiectric Start just turn the key to start.
NOTE: Make sure correct battery is instaiied.
(see battery instaiiation for detaiis)
5. if the choke iever has been moved to the CLOSED
position to start the engine, graduaiiy move it to the
OPEN position as the engine warms up.
Stopping Engine
Turn the engine switch to the OFFposition.
2. Turn the fuel vaive iever to the OFFposition.
When the engine is not in use, ieave the fuel vaive iever in the OFFposition
to prevent carburetor fiooding and to reduce the possibiiity of fuel ieakage.
q
OFF
KeySta_
Fuel
Choke Rod
Open
Starting Grip j
.....2
Choke Rod

Manua!
Operatiun
Powering120 Volt ACToolsAnd Equipment:
1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity
(120V AC) is adequate to supply all electrical loads that the unit will power. If powering exceeds the
generator's capacity, it may be necessary to group one or more of the tools and/or equipment for connection
to a separate generator.
_ CAUTION: Attempting to power sensitive electronic equipment without the use of an approved
line conditioner may cause damage to the equipment. Gentron® is not responsible for any direct or indirect
damage caused by failure to use an approved line conditioner.
2. Once the generator is running, simply connect the power cords of 120 volt AC powered tools and
equipment into the 120 volt AC dual outlets.
,_ NOTE: The generator features an AC non-fuse circuit breaker to protect the AC circuit in case of an
overload. Should an overload occur, the breaker will "trip" to its "off" position, In this case, refer to above in
this position. Then, reset the circuitry system by turning the circuit breaker to its "on" position.
3. Disconnect all electrical powered tools and equipment from the generator's 120 volt AC duel outlets.
4. After the engine and generator have completely cooled, store generator in a safe, clean, dry location (if
not already installed).
Powering 12 Volt DCtools and Equipment:
1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity
(12V DC) is adequate to supply all electrical loads that the unit will power. If powering exceeds the
generator's capacity, it may be necessary to group one or more of the tools and/or equipment for connection
to a separate generator.
2. Connect the power cord of a 12V DC powered tool or equipment to the DC Terminals.
_ CAUTION: Make sure to connect the positive (+) lead of the power cord to the positive (÷) terminal on
the generator, and connect the negative (-) lead of the power cord to the negative (-) terminal on the
generator.
3. Start and run the engine as described above.
4. When finished using the generator, turn the engine power switch to its "OFF" position. Turn the fuel valve
to its "OFF" position.
5. Disconnect the electrical powered tools' power cord from the generator's DC terminals.
6. After the engine and generator have completely cooled, store the generator in a safe, clean, dry location
(if not already installed in one).
NOTE: The 12V DC is generally used for charging batteries.

Manua!
Operatiun
Spark Plug Service
In order to service the spark plug, you will need a spark plug wrench (commercially available).
Recommended spark plugs: NHSP LD F7TC. To ensure proper engine operation, the spark plug must be
properly gapped and free of deposits.
1. Remove the spark plug cap.
2. Use a spark plug wrench to remove the spark plug.
3. Visually inspect the spark plug. Discard it if the insulator is cracked or chipped. Clean the spark plug with
a wire brush if it is to be reused.
4. Measure the plug gap with a feeler gauge.
5. Check that the spark plug washer is in good condition.
6. After the spark plug is seated, tighten with a spark plug in by hand to prevent cross-threading.
7. After the spark plug is seated, tighten with a spark plug wrench to compress the washer.
,_ NOTE: The spark plug must be securely tightened. An improperly tightened spark plug can become
very hot and could damage the Engine. Never use spark plugs which have an improper heat range. Use only
recommended spark plus or equivalent.

Manual
Spark Plug Service
Z_ WARNING! Always make sure the engine power switch is in its "OFF" position. Disconnect the spark
plug wire from the engine and allow sufficient time for the engine and generator to completely cool before
performing any inspections, maintenance, or cleaning.
Before each use, inspect the generator. Check for:
Loose screws
Misaligned or binding moving parts
Cracked or broken parts
Damaged electrical wiring
Any other condition that may affect safe operation.
If an engine problem occurs, have it checked by a qualified service technician before further use. Do not use
damaged equipment.
Before each use, make sure the engine's oil and gas levels are adequate. If necessary, fill the crankcase until
the oil level is even with the oil hill hole and/or fill the fuel tank.
Before each use, remove all debris with a soft brush, rag, or vacuum.
Lubricate all moving parts using a premium quality, lightweight machine oil.
Oil has to be drained after the first 20 hours of use. This is the break in period. Then after every 50 hours
of use, drain the old engine oil and replace with a high quality SAE 10W-30 grade engine oil.
Every 300 hours of use, have a qualified, certified technician perform thorough maintenance on the generator
and engine.
For long term storage, either drain fuel into suitable container or add a fuel preservative/stabilizer (not
included) to prevent fuel breakdown.
