REFERENCE GUIDE: 60004KL
KOLO™ Collector Device
English
Español pg. 20
pg. 39
Francés
Welcome
The KOLO™ Collector Device enables bi-directional
data flow between KOLO™ dispensers and the
KOLO™ Cloud Server.
For questions regarding this device or for
replacement components, please call:
1-800-890-0896.
Visit gppro.com to learn more about all of our
products and solutions.
PRT-0000000165 REV B © 2020 GP Pro. All rights reserved.
5

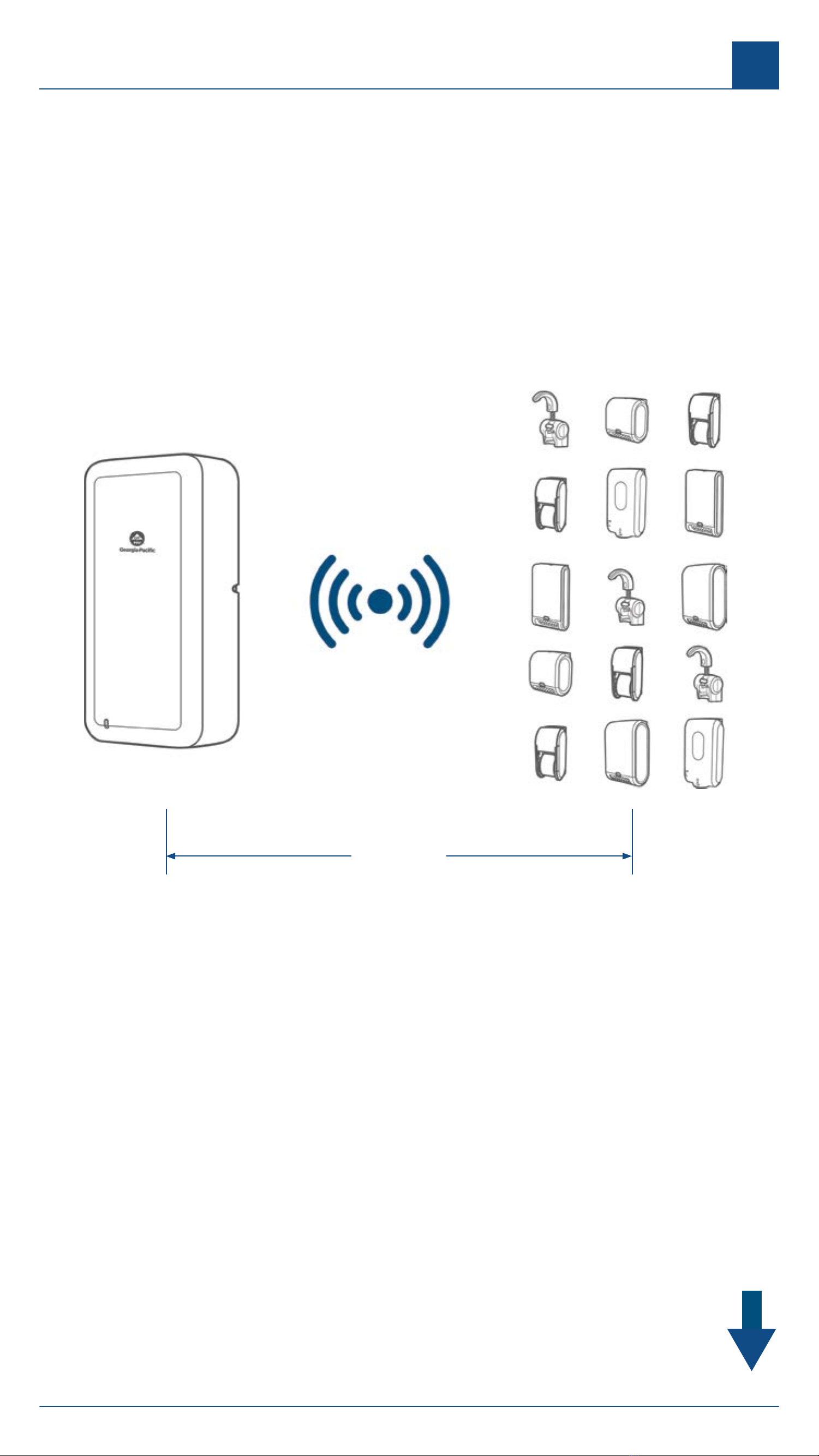

General Placement Guidelines
Number of Devices Required
Each KOLO™ Collector Device can support
dispenser data collection for up to 15 devices
at a distance of up to 50’.
Note: Quad tissue dispensers
count as 2 devices.
Note: KOLO™ Collector Devices may collect
data up to 100’ in open-air usage
areas without interference from
significant building infrastructure.
50’
(15.24 m)
Next
PRT-0000000165 REV B © 2020 GP Pro. All rights reserved.
6
General Placement Guidelines
Location
The KOLO™ Collector Device should be
installed in a location that is both secure
from tampering or vandalism and also
minimizes the visual impact of the unit
on the usage area.
Next
Under-Counter Placement
Wall Placement
PRT-0000000165 REV B © 2020 GP Pro. All rights reserved.
7
General Placement Guidelines
Location
When the length of the room is up to 50’
– if 1 Collector is required, it can be
placed at any length of the room
where location is advantageous.
– if 2 Collectors are required, place
them equidistant across the span of
the room or at each end of the room.
Next
< 50’
(< 15.24 m)
< 15 devices
1 Collector Placement
> 15 devices
2 Collector Placement
PRT-0000000165 REV B © 2020 GP Pro. All rights reserved.
9
General Placement Guidelines
Precautions
When deciding on the
placement location for the
KOLO™ Collector Device, the
following precautions should
be considered:
– Do not place below
stored liquids or in close
proximity to extreme heat,
steam or water sources.
– If using the AC Adapter,
do not place where the
cord is likely to be walked
on or over posing a trip
hazard.
– Battery powered
Collectors should not
be ceiling mounted.
AC-powered Collectors
could be ceiling mounted
with the appropriate
hardware.
PRT-0000000165 REV B © 2020 GP Pro. All rights reserved.
10

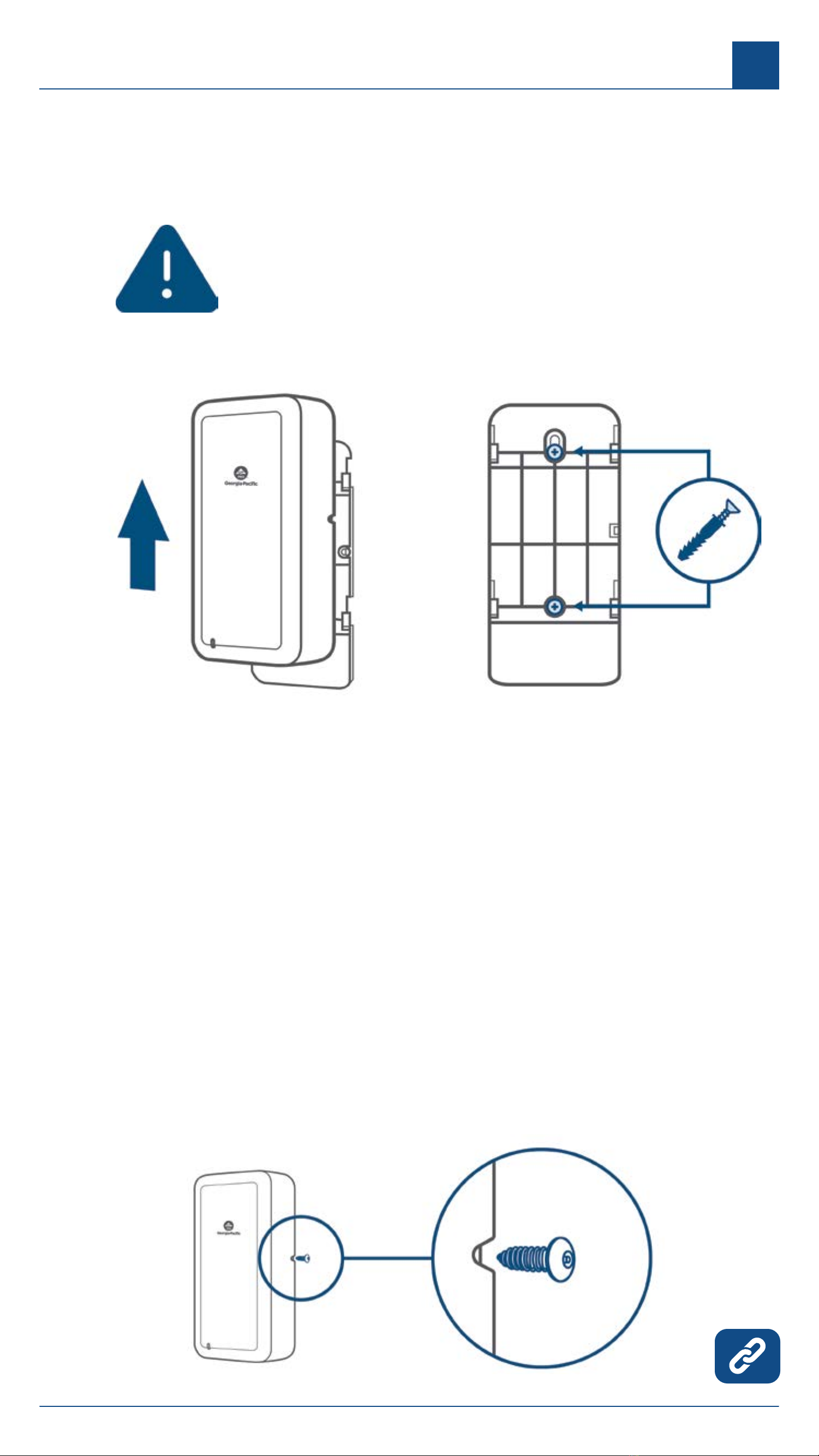

Installation
KOLO™ Collector Devices must
be mounted using 2 anchored
screws (not included).
Note: Install batteries before replacing cover.
Note: For additional security against battery
theft, a 4mm button cap screw (not
included) can be added to the side of
the unit.
Note: A 4mm button cap screw (not
included) should be added to the
side of the unit in all ceiling-mount
applications.
PRT-0000000165 REV B © 2020 GP Pro. All rights reserved.
11

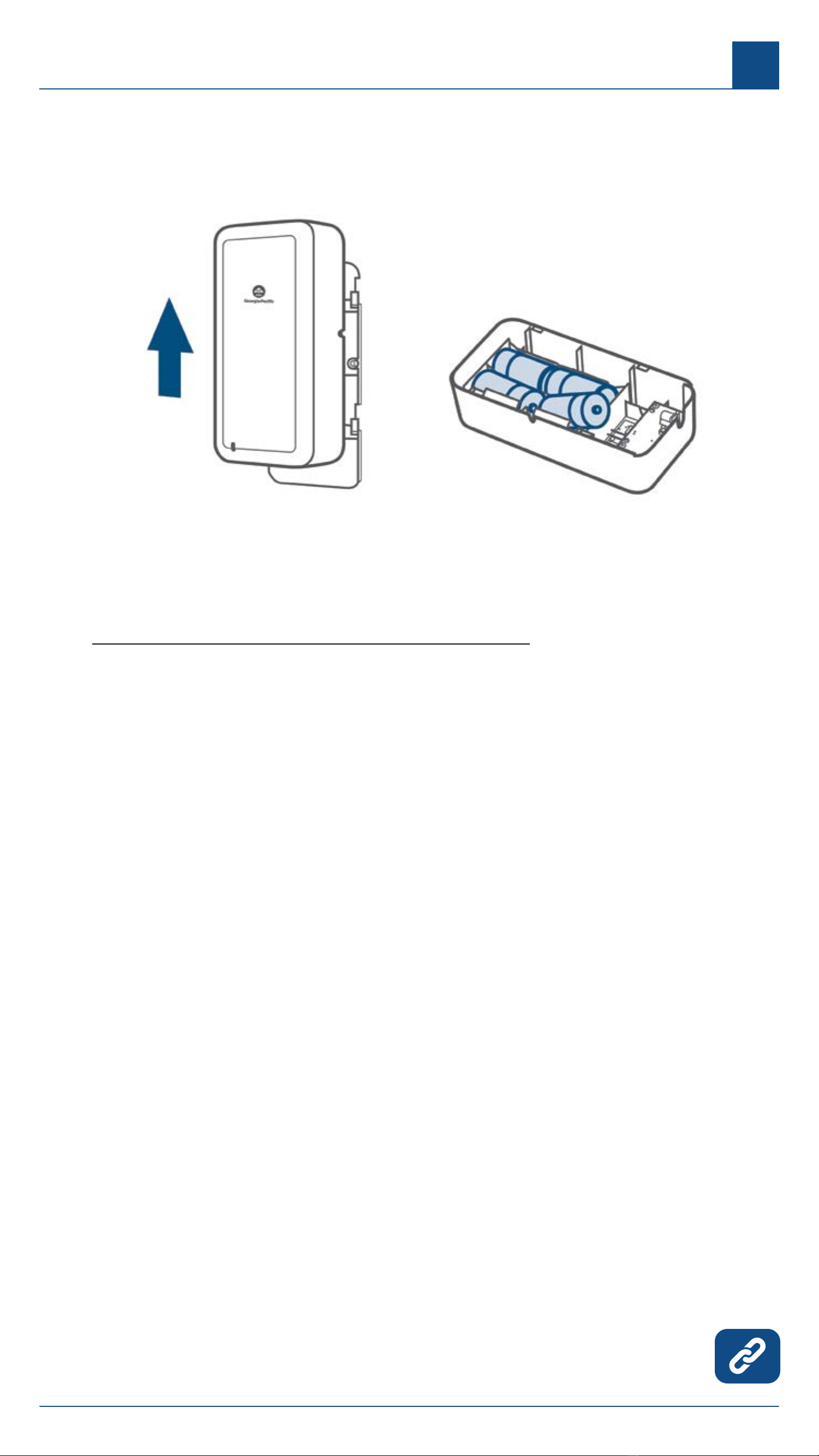

Battery Replacement
Battery Handling and Disposal
1. Keep in original packaging until ready for use.
2. Remove battery from device when not in use for an
extended period of time.
3. Never disassemble battery. Chemicals inside battery
can be dangerous if swallowed or exposed to skin.
4. Avoid mechanical or electrical abuse.
5. Keep away from children.
6. Battery is not designed to be recharged.
7. Avoid extreme temperatures.
8. Do not incinerate, since battery may explode at
excessive temperatures.
9. Do not dispose of large amounts of batteries as it
creates a safety risk.
10. Dispose of accumulated batteries in accordance with
appropriate federal, state, and local regulations.
11. Do not mix old and new batteries or nonrechargeable
and rechargeable batteries.
PRT-0000000165 REV B © 2020 GP Pro. All rights reserved.
12
Commissioning
A collector must be installed
and commissioned prior to
commissioning any device(s)
that will use the Collector to
communicate it’s data to the
KOLO™ Cloud Server.
Details for Collector
commissioning are provided
in the support documentation
built into the KOLO™ Connect
Application.
PRT-0000000165 REV B © 2020 GP Pro. All rights reserved.
13
Operation
LED
Reset
Unit is Ready:
Low Battery:
Reset:
after battery install, LED will
blink and then remain solid
for a moment.
solid red indicates batteries
need to be replaced.
push and hold internal switch;
LED will blink red;
release switch when LED
stops blinking.
PRT-0000000165 REV B © 2020 GP Pro. All rights reserved.
14
User Manual
IoT Gateway Module
Note: The final assemblies using this module would each
have an appropriate User Manual specific to their
features/functions.
Internet of Technology devices for bidirectional
communication - Module Features:
- Internet Technology Modem
- 170 dB maximum link budget
- +15 dBm high eciency PA
- Low RX current of 4.6 mA
- Integrated DC-DC converter and LDO
- High sensitivity: down to -148 dBm
- 88 dB blocking immunity at 1 MHz oset
- Co-channel rejection of 19 dB in LoRa mode
- Internet Technology modulation
- Built-in bit synchronizer for clock recovery
- Automatic Channel Activity Detection (CAD) with
ultra-fast AFC
Next
PRT-0000000165 REV B © 2020 GP Pro. All rights reserved.
15
User Manual
IoT Gateway Module
Wireless Technology Features:
- Wireless Technology: single mode
- Internal antenna
- Rx sensitivity: -95 dBm
- Ultra-low power consumption
- Tx: 4.9 mA peak (at 0 dBm, DC/DC on)
- Rx: 4.8 mA peak (DC/DC on)
- Industrial temperature range (-40°C to +85°C)
Next
PRT-0000000165 REV B © 2020 GP Pro. All rights reserved.
16
Regulatory Statements
FCC
This device complies with Part 15 of the FCC Rules and with Industry
Canada License-exempt RSS standard(s). Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
FCC Interference Statement - Part 15.105 (b)
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged
to try to correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To comply with FCC and Industry Canada RF exposure limits for
general population/uncontrolled exposure, the antenna(s) used for this
transmitter must be installed to provide a separation distance of at least
20 cm (7.9”) from all persons and must not be operating in conjunction
with any other antenna or transmitter, except in accordance with FCC
multi-transmitter product procedures.
Next
.
PRT-0000000165 REV A © 2019 GP Pro. All rights reserved.
REFERENCE GUIDE: 60004KL
Dispositivo recopilador KOLO™
English
Español
pg. 1
pg. 39
Francés
Bienvenido
El dispositivo recopilador KOLO™ permite el flujo
de datos bidireccional entre los dispensadores
KOLO™ y el servidor en la nube KOLO™.
Si tiene preguntas con respecto a este dispositivo
o los componentes de repuesto, llame al
1-800-890-0896.
Visite gppro.com para conocer más sobre todos
nuestros productos y soluciones.
