Geotech 1.66 Reclaimer User manual

Rev 2/14/17 Part # 26600222
Geotech 1.66
Reclaimer
Installation and Operation Manual

1
Table of Contents
DOCUMENTATION CONVENTIONS ................................................................... 2
Section 1: System Description........................................................................... 3
Section 2: System Installation............................................................................ 4
Section 3: System Operation.............................................................................. 4
Section 4: System Maintenance......................................................................... 5
Section 5: System Troubleshooting .................................................................. 7
Section 6: System Specifications ...................................................................... 8
Section 7: Replacement Parts List................................................................... 10
The Warranty...................................................................................................... 13

2
NOTE
DOCUMENTATION CONVENTIONS
This uses the following conventions to present information:
An exclamation point icon indicates a WARNING of a situation
or condition that could lead to personal injury or death. You
should not proceed until you read and thoroughly understand the
WARNING message.
WARNING
CAUTION
A raised hand icon indicates CAUTION information that relates to
a situation or condition that could lead to equipment malfunction
or damage. You should not proceed until you read and thoroughly
understand the CAUTION message.
A note icon indicates NOTE information. Notes provide additional
or supplementary information about an activity or concept.

3
Section 1: System Description
Function and Theory
The Geotech 1.66 Reclaimer can be configured as a Top Fill, Bottom Fill, or Top and
Bottom Fill fixed intake, positive air displacement pump. The Geotech 1.66 Reclaimer is
designed to withstand the most aggressive down well environments including highly
corrosive fluids without fear of material breakdown or failure.
The Geotech 1.66 Reclaimer will operate in wells 2” (5cm) inside diameter or larger
vertical wells.
The Geotech 1.66 Reclaimer will recover fluids from depths up to 500’
(152m). Refer to Section 3: System Operation.
Flow rates of up to 3 GPM (11.4 LPM) are possible. Refer to Section
6: System Specifications.

4
Section 2: System Installation
Attach product discharge and air supply hoses to the proper barbed fittings on the pump.
Refer to Figure 1-1 and 1-2 below for fitting configurations.
If pump configuration was not sent as a complete system, use the following steps for
assembly:
1. Attach air supply hose to Geotech Pneumatic Controller air supply fitting.
2. Ensure all hoses are installed properly and securely to the fittings.
3. Attach the safety cable to the support look using proper crimps or cable clamps.
The 1.66 Reclaimer can now be lowered into the recovery well. For optimum efficiency,
the 1.66 Reclaimer must be positioned in the well with intake adequately submerged.
Figure 1-1: 1.66” Reclaimer
Bottom Fill
Figure 1-2: 1.66” Reclaimer
Top Fill
Discharge
Air
Air
Discharge
Fluid Intake

5
Section 3: System Operation
Top Fill Configuration
The Top Fill configuration for the 1.66 Reclaimer is placed in a recovery well with the top
inlet submerged below static groundwater. Combined with the Geotech Pneumatic
Controller, the 1.66 Reclaimer cyclically fills and empties.
Bottom Fill Configuration
The Bottom Fill configuration for the 1.66 Reclaimer is placed ina recover well with the
bottom intake submerged below static groundwater. Combined Geotech’s Pneumatic
Controller, the 1.66 Reclaimer cyclically fills and empties.
Well recharge rate and time sequence settings on the Geotech Pneumatic
Controller will affect the maintainable fluid level.
Compressed air is utilized in this system. To determine pressure
requirements, use .5 PSI per foot (.03 bar per 30.5cm) of lift plus ten. For
example, 30’ (9m) of head would need a minimum of 25 PSI (1.7 bar).
Consult a controller manual for air pressure requirements needed.
Well recharge rate and time sequence settings on the Geotech Pneumatic
Controller will affect the maintainable fluid level. See Figure 3-1.
Figure 3-1: 1.66” Reclaimer

6
Section 4: System Maintenance
The Geotech 1.66 Reclaimer has been designed to be virtually maintenance free. In the
event clogging occurs in the pump or trapped particulate in the check ball seats,
disassemble the 1.66 Reclaimer pump and rinse with clean water to dislodge any matter.
The 1.66 Reclaimer is constructed of 300 series Stainless Steel and
Polytetrafluoroethylene (PTFE) to provide many years of continued service with minimal
maintenance. See Figure 4-1.

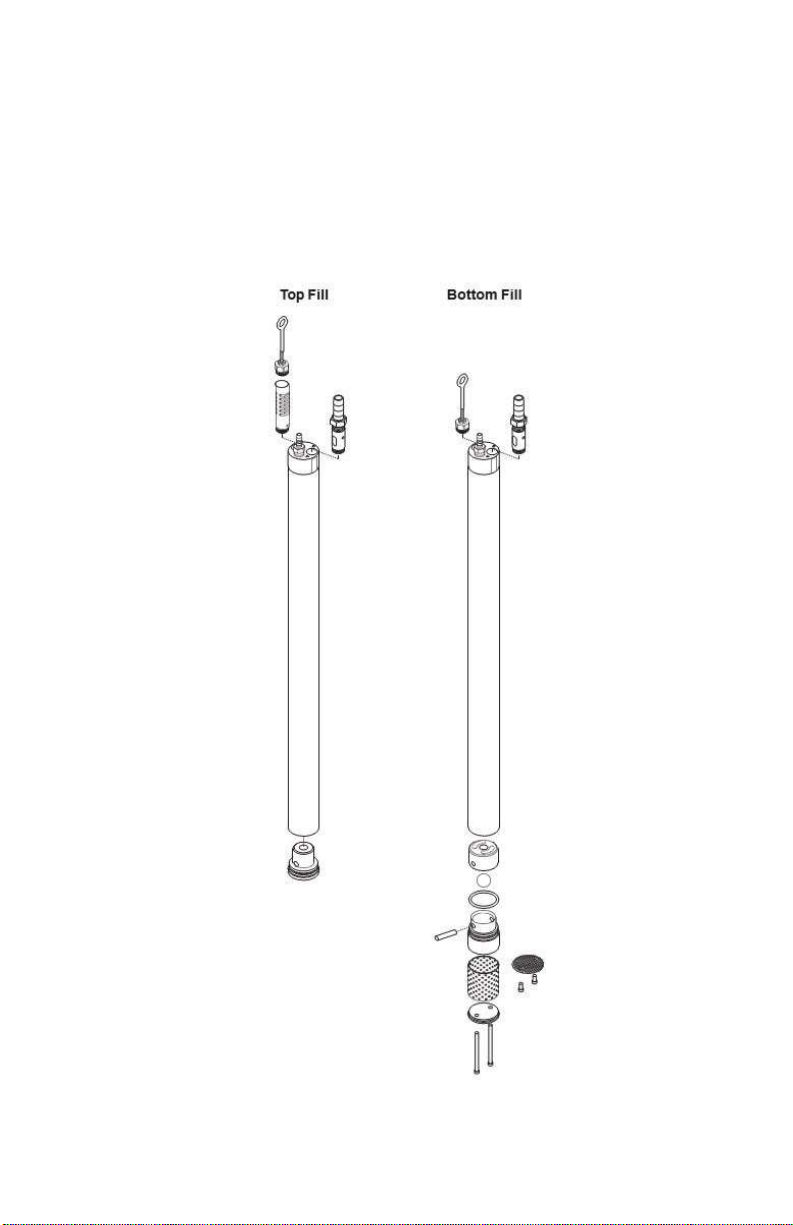

Figure 4-1: 1.66 Reclaimer Maintenance

7
Section 5: System Troubleshooting
Problem: Pump does not discharge fluid to the surface.
Solutions:
Check the controller to ensure it is functioning properly.
oConsult controller manual.
Ensure that the air pressure is adequate to overcome the total dynamic head
pressure the pump is working against.
oConsult the controller manual for air pressure requirements.
Inlet screen is clogged.
oRemove the pump from the well, disassemble, and clean screen.
Inlet pipe plug is clogged.
oRemove pump from the well, disassemble, clear the clog, and clean
plug.
Air exhaust vent hose is clogged.
oRemove the pump from the well, disassemble, and clear the vent hose.
Hoses are kinked or cut.
oReplace damaged hoses.

8
Section 6: System Specifications
1.66 Reclaimer
Outside Diameter
1.66” (4.22cm)
Max. Operating Depth
500’ (152m)
Min. Well Inner Diameter
2” (5cm)
Operating Pressure Range
10-300 PSI (.7 - 20.7 bar)
Fittings
Stainless Steel
Fluid Discharge
1/2" –3/4"
Air Supply
1/4" –3/8”
Figure 6-1: 1.66 Reclaimer Specification Diagram
*Refer to Table 6-1: 1.66 Reclaimer Specifications

9
Table 6-1: 1.66 Reclaimer Specifications
1.66 Reclaimer
Dimensions - in. (cm)
Weight lbs.
(kg)
Volume/Cycle
gallons (L)
Max. Flow
Rate GPM
(LPM)
A
B
C
24" Top Fill
24
(61)
0
30.25
(76.8)
4.0
(1.8)
0.1
(.4)
2
(7.6)
24" Bottom Fill (No
Screen)
24
(61)
0
27.25
(69.2)
4.0
(1.8)
0.1
(.4)
2
(7.6)
24" Bottom Fill (Flat
Screen)
24
(61)
0.25
(.6)
27.5
(69.8)
4.5
(2)
0.1
(.4)
2
(7.6)
24" Bottom Fill
(2" Screen)
24
(61)
2
(5)
29.25
(74.3)
5.0
(2.3)
0.1
(.4)
2
(7.6)
24" Top & Bottom Fill (No
Screen)
24
(61)
0
30.25
(76.8)
4.0
(1.8)
0.1
(.4)
2
(7.6)
24" Top & Bottom Fill (Flat
Screen)
24
(61)
0.25
(.6)
30.5
(77.5)
4.5
(2)
0.1
(.4)
2
(7.6)
24" Top & Bottom Fill (2"
Screen)
24
(61)
2
(5)
32.25
(81.9)
5.0
(2.3)
0.1
(.4)
2
(7.6)
36" Top Fill
36
(91)
0
42.25
(107.3)
5.4
(2.4)
0.2
(.8)
2.4
(9)
36" Bottom Fill (No
Screen)
36
(91)
0
39.25
(99.7)
5.4
(2.4)
0.2
(.8)
2.4
(9)
36" Bottom Fill (Flat
Screen)
36
(91)
0.25
(.6)
39.5
(100.3)
5.9
(2.7)
0.2
(.8)
2.4
(9)
36" Bottom Fill
(2" Screen)
36
(91)
2
(5)
41.25
(104.8)
6.4
(2.9)
0.2
(.8)
2.4
(9)
36" Top & Bottom Fill (No
Screen)
36
(91)
0
42.25
(107.3)
5.4
(2.4)
0.2
(.8)
2.4
(9)
36" Top & Bottom Fill
(Flat Screen)
36
(91)
0.25
(.6)
42.5
(107.9)
5.9
(2.7)
0.2
(.8)
2.4
(9)
36" Top & Bottom Fill (2"
Screen)
36
(91)
2
(5)
44.25
(112.4)
6.4
(2.9)
0.2
(.8)
2.4
(9)
48" Top Fill
48
(122)
0
54.25
(137.8)
7.8
(3.5)
0.4
(1.5)
3
(11.4)
48" Bottom Fill (No
Screen)
48
(122)
0
51.25
(130.2)
7.8
(3.5)
0.4
(1.5)
3
(11.4)
48" Bottom Fill (Flat
Screen)
48
(122)
0.25
(.6)
51.5
(130.8)
8.3
(3.8)
0.4
(1.5)
3
(11.4)
48" Bottom Fill
(2" Screen)
48
(122)
2
(5)
53.25
(135.2)
8.8
(4.0)
0.4
(1.5)
3
(11.4)
48" Top & Bottom Fill (No
Screen)
48
(122)
0
54.25
(137.8)
7.8
(3.5)
0.4
(1.5)
3
(11.4)
48" Top & Bottom Fill (Flat
Screen)
48
(122)
0.25
(.6)
54.5
(138.4)
8.3
(3.8)
0.4
(1.5)
3
(11.4)
48" Top & Bottom Fill (2"
Screen)
48
(122)
2
(5)
56.25
(142.9)
8.8
(4.0)
0.4
(1.5)
3
(11.4)

10

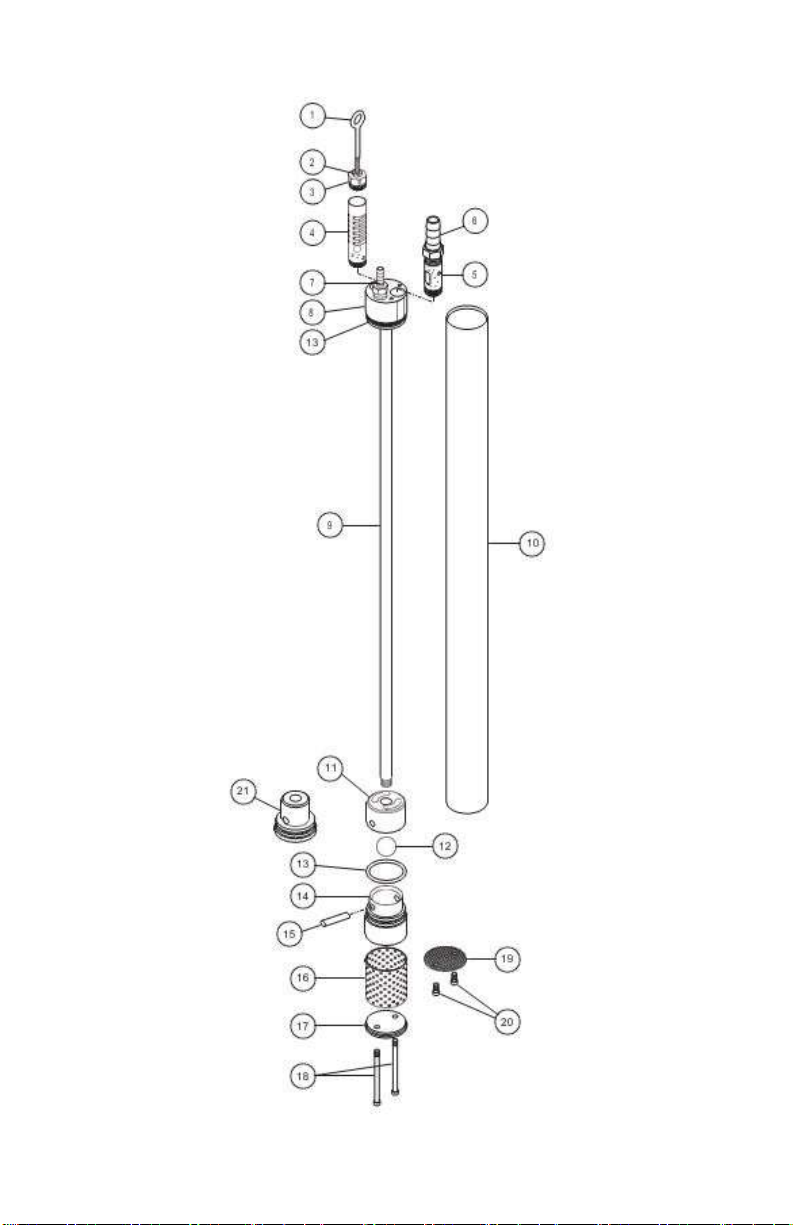

Section 7: Replacement Parts List

11
Item
Qty
Description
Part No.
1
1
BOLT, SS6, 10-24 x 3", EYE W/NUT
16600133
2
1
NUT, SS8, 10-24
11200650
3
1
PLUG, HANGER, SS4, 1.66
26600178
4
1
INTAKE ASSY, UPPER, 1.66
56600056
5
1
ASSY, DISCHARGE, 1.66
56600068
6
1
HOSEBARB, SS6, 1/2 x 3/8 MPT
16600217
7
1
HOSEBARB, SS6, 1/4 x 1/8 MPT
17200072
8
1
HEAD, RECLAIMER, 1.66, CAP, UPPER
26600217
9
1
PIPE, CENTER, SS4, 1/4 x 24, 1.66 RECLAIMER
26600213
1
PIPE, CENTER, SS4, 1/4 x 36,1.66 RECLAIMER
26600214
1
PIPE CENTER, SS4, 1/4 x 48" 1.66 RECLAIMER
26600215
10
1
HOUSING, RECLAIMER, 1.66, SS4, 24"
56600063
1
HOUSING, RECLAIMER, 1.66, SS4, 36"
56600064
1
HOUSING, RECLAIMER, 1.66, SS4, 48"
56600065
11
1
CAP, BOTTOM INLET, 1.66
26600070
12
1
BALL, TFE, 3/4"
17500085
13
2
O-RING, VITON, #126
17500104
14
1
BOTTOM INLET, SS, 1.66
26600071
15
1
PIN, DOWEL, SS8, 1/4 x 1.5"
16600124
16
1
SCREEN, INLET, SS, 1.66 x 2
26600083
17
1
CAP, BOTTOM INLET, SCREEN, 1.66
26600072
18
2
SCREW, SS8, 8-32 x 2.25", SHCS
16600132
19
1
SCREEN, INLET, SS, 1.66, FLAT
26600134
20
2
SCREW, SS6, 8-32 x 3/8” SHCS
16600130
21
1
CAP, BOTTOM BLANK, 1.66
26600069
MANUAL, RECLAIMER, 1.66
26600222

12
EDCF #
Description
Date
Previous Release
6/10/2012
2042
Changed part numbers and descriptions (parts 9, 17, 20)
changed manual into 5 ½ X 8 ½ format, minor editing. StellaR
2/14/2017

13
The Warranty
For a period of one (1) year from date of first sale, product is warranted to be free from
defects in materials and workmanship. Geotech agrees to repair or replace, at Geotech’s
option, the portion proving defective, or at our option to refund the purchase price thereof.
Geotech will have no warranty obligation if the product is subjected to abnormal operating
conditions, accident, abuse, misuse, unauthorized modification, alteration, repair, or
replacement of wear parts. User assumes all other risk, if any, including the risk of injury,
loss, or damage, direct or consequential, arising out of the use, misuse, or inability to use
this product. User agrees to use, maintain and install product in accordance with
recommendations and instructions. User is responsible for transportation charges
connected to the repair or replacement of product under this warranty.
Equipment Return Policy
A Return Material Authorization number (RMA #) is required prior to return of any
equipment to our facilities, please call our 800 number for appropriate location. An RMA #
will be issued upon receipt of your request to return equipment, which should include
reasons for the return. Your return shipment to us must have this RMA # clearly marked
on the outside of the package. Proof of date of purchase is required for processing of all
warranty requests.
This policy applies to both equipment sales and repair orders.
FOR A RETURN MATERIAL AUTHORIZATION, PLEASE CALL OUR
SERVICE DEPARTMENT AT 1-800-833-7958.
Model Number: ________________
Serial Number: ________________
Date of Purchase: ________________
Equipment Decontamination
Prior to return, all equipment must be thoroughly cleaned and decontaminated. Please
make note on RMA form, the use of equipment, contaminants equipment was exposed to,
and decontamination solutions/methods used. Geotech reserves the right to refuse any
equipment not properly decontaminated. Geotech may also choose to decontaminate the
equipment for a fee, which will be applied to the repair order invoice.

Geotech Environmental Equipment, Inc.
2650 East 40th Avenue Denver, Colorado 80205
[phone] ● [phone] ● FAX [phone]
email: [email protected] website: www.geotechenv.com
