Geotech 1.66x36 User manual

Rev 05/25/2017 Part # 11150323
Geotech Portable
Bladder Pumps
Installation and Operation Manual

1
Table of Contents
Section 1: System Description........................................................................... 4
Section 2: System Installation............................................................................ 6
Section 3: System Operation.............................................................................. 8
Section 4: System Maintenance....................................................................... 13
Section 5: System Troubleshooting ................................................................ 20
Section 6: System Specifications .................................................................... 21
Section 7: Replacement Parts List................................................................... 22
EC Declaration of Conformity .......................................................................... 31
The Warranty...................................................................................................... 32

2
NOTE
DOCUMENTATION CONVENTIONS
This document uses the following conventions to present information:
An exclamation point icon indicates a WARNING of a situation
or condition that could lead to personal injury or death. You
should not proceed until you read and thoroughly understand the
WARNING message.
WARNING
CAUTION
A raised hand icon indicates CAUTION information that relates to
a situation or condition that could lead to equipment malfunction
or damage. You should not proceed until you read and thoroughly
understand the CAUTION message.
A note icon indicates NOTE information. Notes provide additional
or supplementary information about an activity or concept.

3
For long-term storage greater than 1 week, care should be taken to clean and dry all
pump components. This will help with long-term reliability. An inert lubricant can be used
on the O-ring seals to promote longevity and elasticity.
Pump operation and decontamination should be performed to your standard operating
procedures.
Operation of system utilizing non-Geotech OEM parts could result in equipment failure or
malfunction and may void warranty. This includes air and fluid tubing.
Avoid operating the system without securely anchoring safety cable attached to down well
components.
Always wear appropriate gloves and be mindful of contaminated fluids contacting your
person and entering the environment when operating any ground water sampling device.
WARNING
The following applies only to users in European countries:
This product is designated for separate collection at an appropriate collection
point. Do not dispose of as household waste.
For more information, contact the seller or the local authorities in charge of waste
management.
Do not operate this equipment if it has visible signs of significant
physical damage other than normal wear and tear.
Notice for consumers in Europe:
This symbol indicates that this product is to be collected
separately.
In order to ensure that your pump has a long service life and
operates properly, adhere to the cautions below and read this
manual before use.

4
Section 1: System Description
Function and Theory
Geotech’s pneumatic Portable Bladder Pumps operate with a unique action, ideal for both
gentle low-flow sampling and higher flow rate purging. Timed ON/OFF cycles of
compressed air alternately squeeze the flexible bladder to displace water out of the pump
to the surface and then exhaust the air allowing the pump to refill.
Fluid enters the pump through the fluid inlet check valve at the bottom of the pump body
via hydrostatic pressure. The pump must be submerged to operate. The bladder then fills
with fluid. Compressed air enters the space between the bladder and the interior of the
pump housing. The intake check valve closes and the discharge check valve (top) opens.
Compressed air squeezes the bladder, pushing the fluid to the surface (see figure 1-1).
The discharge check valve prevents back flow from the discharge tubing. Driven by the
Bladder Pump Controller (BP Controller) or Geocontrol PRO, this cycle automatically
repeats.
Compressed air does not contact the sample. The bladder prevents contact between the
pump drive air and the sample.

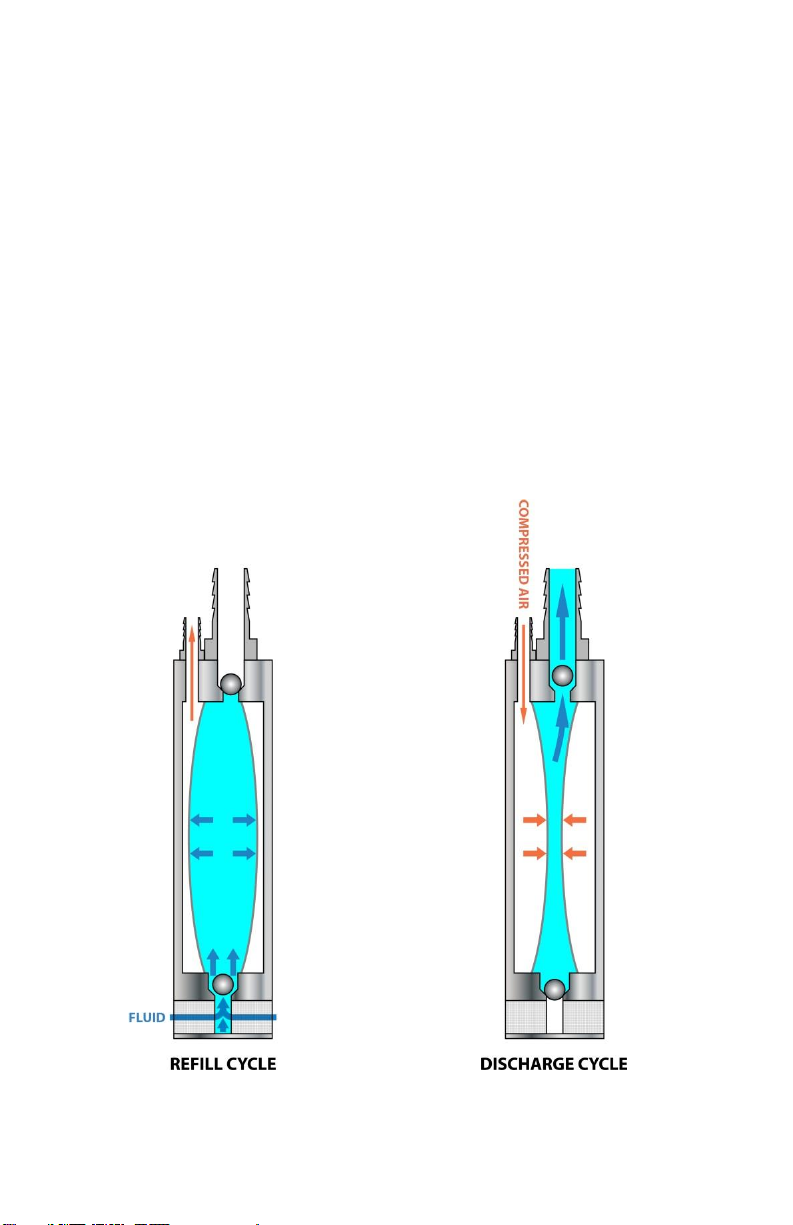

Figure 1-1: Bladder Pump Operation

5
System Components
A Geotech Portable Bladder Pump consists of four components as follows:
- Bladder Assembly
- Pump Housing
- Internal Tube Assembly
- Intake Screen Assembly
* Optional: Drop Tube Intake Assembly. See Section 7: Replacement Parts List.
Bladder Assembly
The bladders are extruded PTFE to provide a long life and to ensure undisturbed samples.
The internal bladders are easily replaceable, see Section 4: System Maintenance.
Pump Housing
The bladder pump housing is constructed of electro polished 316 Stainless Steel. The
housing components consist of threaded top and bottom caps, and the housing tube.
Viton O-rings provide the high-pressure seals between the end caps and the housing
tube.

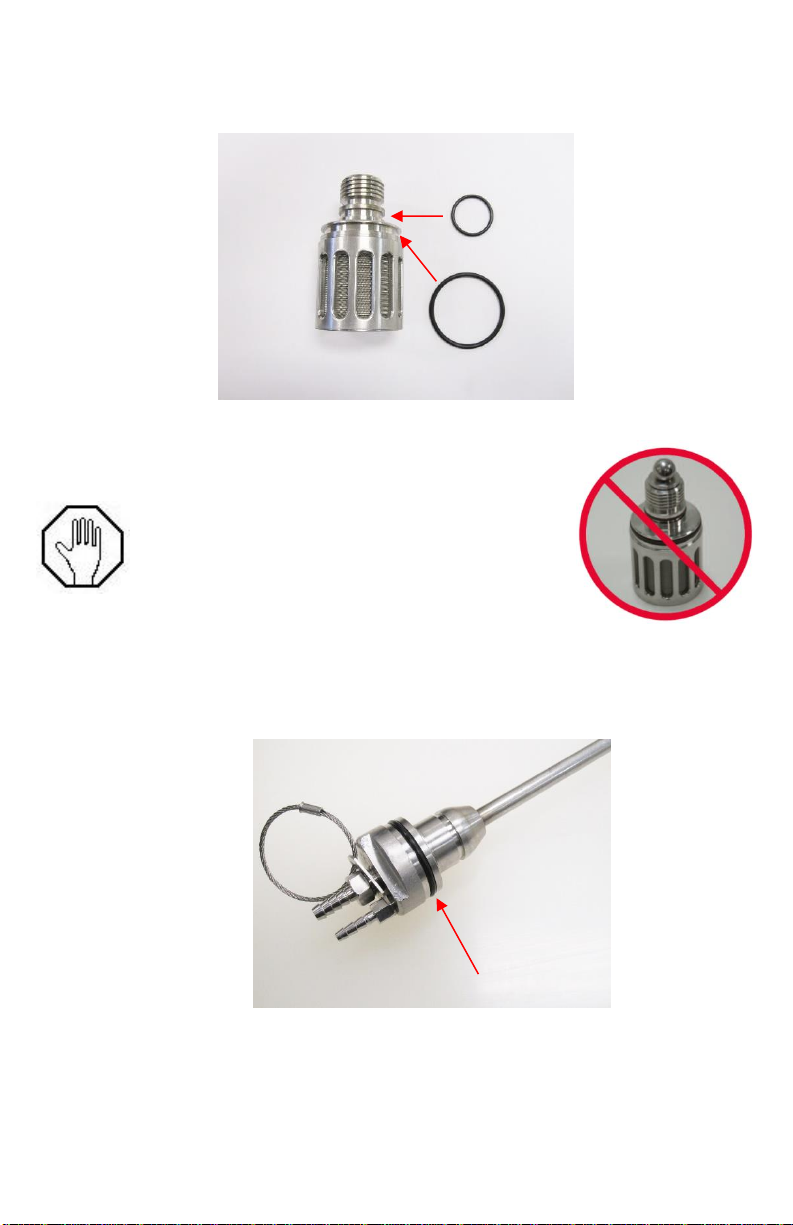

Intake screen
The intake filter screen is constructed of 316 Stainless Steel and is easily removable for
field maintenance. The intake filter screen protects and extends the life of the bladder
material (see Warranty).
Optional Drop Tube Intake Assembly
An optional drop tube can be used to sample from depths below the specified maximum
sampling depth. The drop tube assembly connects a remote intake to the pump through a
tube connected to the pump inlet. The intake depth can be any custom length of tubing.
The pump assembly itself must be submerged below the water level. This means the
depth to water cannot exceed the maximum pumping depth of the pump.
Read and understand your portable generator and/or portable air
compressor user manual for proper installation and operation and
Earth grounding instructions. If using portable compressed gas tanks,
exercise proper caution, use safety protection devices as outlined by
the supplier, and observe any additional safety requirements
mandated by local jurisdiction.

6
Section 2: System Installation
The user must determine site-specific parameters such as water level, recharge rate and
adherence to low flow purging guidelines.
Safety Cable
Before deploying any sampling pump, secure a safety cable from an anchoring point at or
near the wellhead to the top of the pump.
Pump Controller
Geotech Portable Bladder Pumps can be operated with Geotech’s Geocontrol PRO, BP
Controller 300PSI, or BP Controller 500PSI. Be sure to consult the user guide of the
controller you are using.
The Geocontrol PRO is an easy-to-use portable compressor and logic unit specifically
designed to operate Geotech’s Portable Bladder Pumps.
Pump Tubing Lines
The Geotech Portable Bladder Pump requires two tubing lines. One of the lines is used for
the air supply and exhaust. The second line is used for discharge fluid. See Section 6:
System Specifications of this manual for tubing sizes. When using the 1.66" (4cm)
diameter pump, the larger diameter tube is for fluid and the smaller one for air.
Read the following before installation to prevent damage to the
bladder pump.
On the .675" (1.7cm) and .85" (2cm) diameter pumps, both air and
fluid lines are the same size. The letter “A” is stamped near the hose
barb on the top of the pump. This indicates the air supply. The
remaining barb is for the discharge fluid line.
Failure to attach air and fluid lines to the appropriate ports could
result in damage to the bladder.
Use of an air source and controller not supplied by Geotech could
result in pressure buildup and unexpected pressure storage in the
pump and airline. Therefore, operation of the pump is not
recommended with equipment other than that provided by Geotech.
In the case a 1.66x36” Portable Bladder Pump is deployed deeper than
155’ (47m) with a Geocontrol PRO, the pump’s overall flow rate will
slightly decrease. To obtain full bladder volumes in this scenario, please
use the BP Controller 300PSI.

7
Reverse Coil Method
When lowering the pump into the well it is important to reverse the natural bend of the
coiled tubing so the tubing will straighten out as it is lowered (see Figure 2-1). As the
pump and tubing are lowered into the well, the direction of the bend should be reversed
from the direction in which it is coiled. If the tubing is allowed to uncoil naturally and the
natural bend not interrupted, the tubing will continue its coil into the well. Using the reverse
coil method will avoid hang-ups or difficulty in lowering the pump into the well, especially
when the well is not vertical, or has come out of alignment for any reason.
Optional Drop Tube Assembly
If a Drop Tube Intake assembly is employed, a third tubing line is necessary to connect
from the bottom of the bladder pump to the top of the Drop Tube intake.
For deployment of optional Drop Tube Assembly, attach desired length of drop tube
between the intake’s hose barb and hose barb on bottom of pump. For added security, a
safety cable may be installed to support the drop tube intake to the bottom of pump.
Send the drop tube intake down the well followed by the drop tube tubing, then the pump
and finally the air and fluid discharge lines.
Figure 2-1: Reverse Coil Method

8
Section 3: System Operation
Once tubing and safety cable are connected, slowly deploy the pump into the well. If depth
to water is known, a mark can be placed on the tubing to indicate when the pump has
reached the desired level.
The pump must be fully submerged. Optimal pump performance is achieved with
submergence of greater than 10’ (3m) of water column. Less submergence could result in
reduced pump performance depending on type of fluid* being pumped and physical
condition of the bladder. Older, worn bladders can develop a shape memory and may not
be able to fill completely without sufficient submergence. Pumping will still be achieved
and the sampling event can be completed.
* designed for pumping groundwater only, other fluids at user’s risk
Once the pump is at the desired level within the well, set the controller DISCHARGE and
FILL timers. These settings should be such that the bladder is never over compressed.
Set the pressure cycle so the fluid stream exiting the fluid line just starts to fall off when
the DISCHARGE timer expires. If the controller being used has a pressure gauge, you will
notice the pressure level will increase and then stabilize during pumping and start to
increase after all of the water has been evacuated from the pump. If you notice the
pressure increasing after a pump cycle, reduce DISHCARGE TIME.
Using the Example Flow Rates, set the FILL TIME to optimize the amount of fluid
discharged during the pressure cycle.
Both FILL TIME and DISCHARGE TIME will vary depending on submergence, depth to
water, tubing size and overall tubing length.
More information can be found in the user manual specific to the controller you are using.
Flowrates
Bladder Pump flow rates are influenced by pump size (diameter and length), pump depth
and submergance, as well as controller selection (i.e.: compressor performance, valve
flow coefficient). A large pump at shallow depths will produce the most flow, and a small
pump at maximum depths will produce the least amount of flow.
Factors that increase flow:
increased submergance (depth of pump below water line).
a strong compressor, like the Geocontrol PRO, will enable fast pressure build up
in the airline tubing and pump cavity.
a clean intake screen will maximize the amount of water entering into the pump.
A thin, less rugged bladder could fill more easily in lower submergence
applications. Geotech has chosen to implement the use of more
reliable heavy walled Poly or robust PTFE material to accommodate
longer life of the bladder and overall reliability of the pump.

9
Example flow rates: Table 3-1: Flow Rates with a 25’ (7.6m) Airline
@ 25 ft. (7.6 m) airline*
(3 ft. (0.9 m) submergence)
Pump Size:
Discharge Tube
Size:
Flow:
Approx. Geocontrol PRO Settings
Fill Time:
Discharge Time:
1.66 x 36"
(4 x 91 cm)
1/4" ID x 3/8" OD
(64 x 127 mm)
43 oz/min
(1.3 L/min)
10 sec.
7 sec.
1.66 x 18"
(4 x 46 cm)
33 oz/min
(1 L/min)
5 sec.
5 sec.
0.85 x 18"
(2.2 x 46 cm)
.17" ID x 1/4" OD
(43 x 64 mm)
20 oz/min
(0.6 L/min)
1 sec.
2 sec.
0.675 x 18"
(1.7 x 46 cm)
10 oz/min
(0.3 L/min)
1 sec.
2 sec.
Table 3-2: Flow rates with a 150’ (46m) Airline
@ 150 ft. (46 m) airline*
(3 ft. (0.9 m) submergence)
Pump Size:
Discharge Tube
Size:
Flow:
Approx. Geocontrol PRO Settings
Fill Time:
Discharge Time:
1.66 x 36"
(4 x 91 cm)
1/4" ID x 3/8" OD
(64 x 127 mm)
9 oz/min
(260
mL/min)
20 sec.
55 sec.
1.66 x 18"
(4 x 46 cm)
6 oz/min
(175
mL/min)
15 sec.
40 sec.
0.85 x 18"
(2.2 x 46 cm)
.17" ID x 1/4" OD
(43 x 64 mm)
2 oz/min
(59
mL/min)
8 sec.
30 sec.
0.675 x 18"
(1.7 x 46 cm)
1 oz/min
(27
mL/min)
5 sec.
25 sec.
* Airline tubing size: .17”ID x ¼” OD (4 x 6 mm)
Speak with a Geotech representative to determine the best configuration to fulfill your
sampling needs.
Flow rates are based on 3’ (0.9m) of pump submergence. Typically,
field environments will provide greater submergence (10 ft. + (3 m)),
which will increase flow.

10
Selecting an Air Source
The Geocontrol PRO is an easy-to-use portable compressor and logic unit, specifically
designed to operate portable Bladder Pumps deployed down to 180’ (55m) or less.
Air consumption depends on the volume of tubing and the size of deployed Bladder Pump.
Follow the general guidelines and examples below to calculate the air consumption for
specific sampling configurations.
Volume of Tubing
TUBING LENGTH
TUBE I.D.
1 ft./
0.3 m
10 ft./
3 m
50 ft./
15 m
100 ft./
30 m
250 ft./
76 m
500 ft./
152 m
0.17 in/
0.43 cm
0.3 in³/
5 cm³
3 in³/
50 cm³
15 in³/
246 cm³
30 in³/
492 cm³
75 in³/
1230 cm³
150 in³/
2460 cm³
0.25 in/
0.64 cm
0.6 in³/
10 cm³
6 in³/
100 cm³
30 in³/
492 cm³
60 in³/
984 cm³
150 in³/
2460 cm³
300 in³/
4920 cm³
Air Volume of Bladder Pumps
BP DIAMETER
BP LENGTH
VOLUME (in³)
1.66 in/
4 cm
36 in/
91 cm
78 in³/
1278 cm³
1.66 in/
4 cm
18 in/
46 cm
39 in³/
640 cm³
0.85 in/
2.2 cm
18 in/
46 cm
10 in³/
164 cm³
0.675 in/
1.7 cm
18 in/
46 cm
6 in³/
100 cm³
Calculation guideline:
Volume of Tubing (in³/cm³)
+ Volume of Bladder Pump (in³/ cm³)
= Air Consumption per cycle (in³/ cm³)
If planning to use an air compressor, use one with a reserve tank to insure proper air
supply to the pump. If using a Nitrogen Tank, see Figure 3-1 for Nitrogen Tank Volume vs.
Bladder Pump consumption.

11

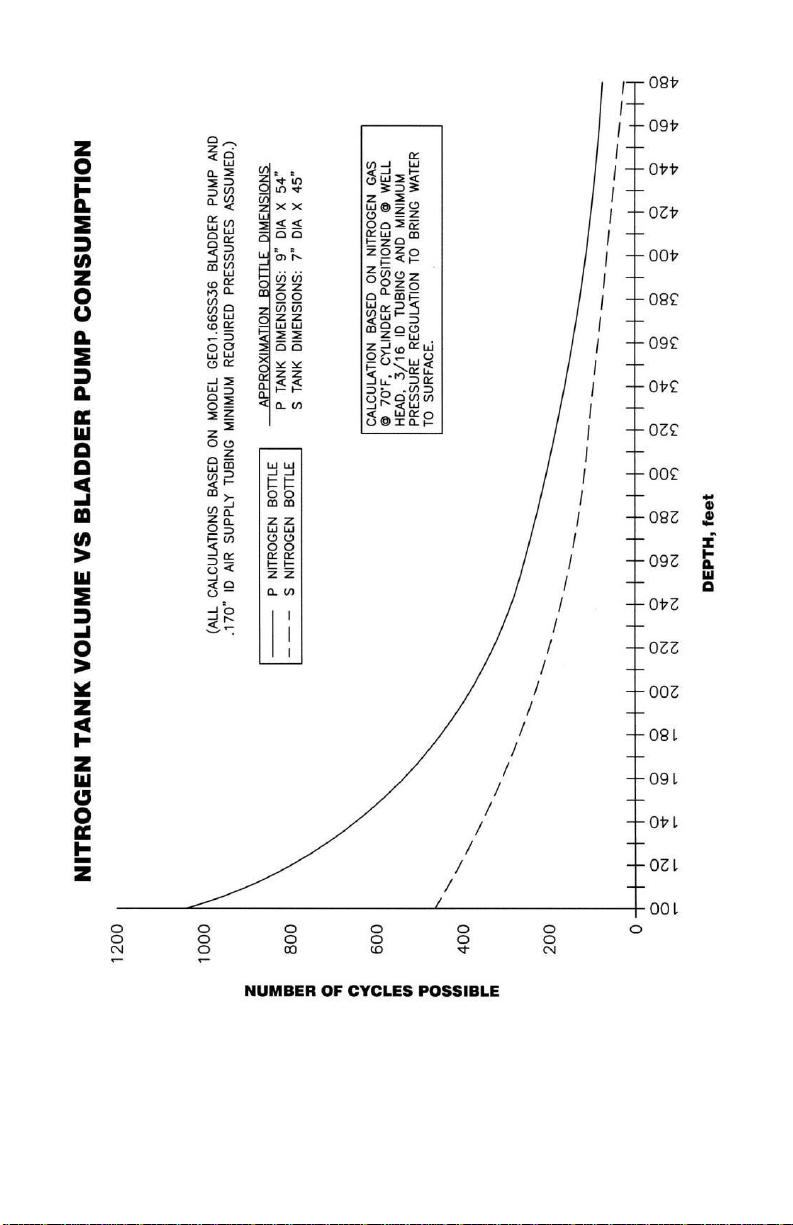

Figure 3-1: Tank Volume vs. BP Consumption

12
Determining PSI
Determine the air pressure needed to operate the Bladder Pump based on the length of
the air supply line to the pump (well depth). Use the simplified formula:
0.5 PSI (per foot) + 10 PSI (to account for tubing friction) = required PSI
0.12 bar (per meter) + 0.7 bar (to account for tubing friction) = required bar
As mentioned above, the additional 10 PSI/ 0.7 bar is to account for the pump itself and
friction loss along the airline tubing. When the length of the airline is 50’ (15m) or less,
there is no need for the additional pressure.
To determine minimum operating pressures for the specific Bladder Pump model you are
using, consult the pump’s specifications. Typically, the minimum operating pressure will be
5 PSI/ 0.4 bar above static head.
The formulas stated above are not absolute, and are meant to
provide baseline information.

13
Section 4: System Maintenance
Remove the pump from the well. It is not necessary to remove the air and sample lines
from the pump. Upon removal, note the pump may be filled with fluid.
Bladder Removal Steps:
1. Remove the bottom intake assembly and outer housing by turning the housing
counter-clockwise.
Use your hand or a strap wrench
If the pump does not easily come off, use the wrench flats on the cap to
provide leverage. The housing should twist/slide off.
DO NOT grip the hose barbs.
Figure 4-1: Removal of the bottom intake and outer housing
2. Remove the lower Compression Ring (#21150042) by pulling it off the end of the
internal center tube assembly (18” #21150091; 36” #21150136).
Figure 4-2: Removal of bottom Compression Ring

14
3. Remove the upper Compression Ring (#21150042) by sliding it over the bladder
and over the end of the internal center tube assembly.
Figure 4-3: Removal of upper Compression Ring

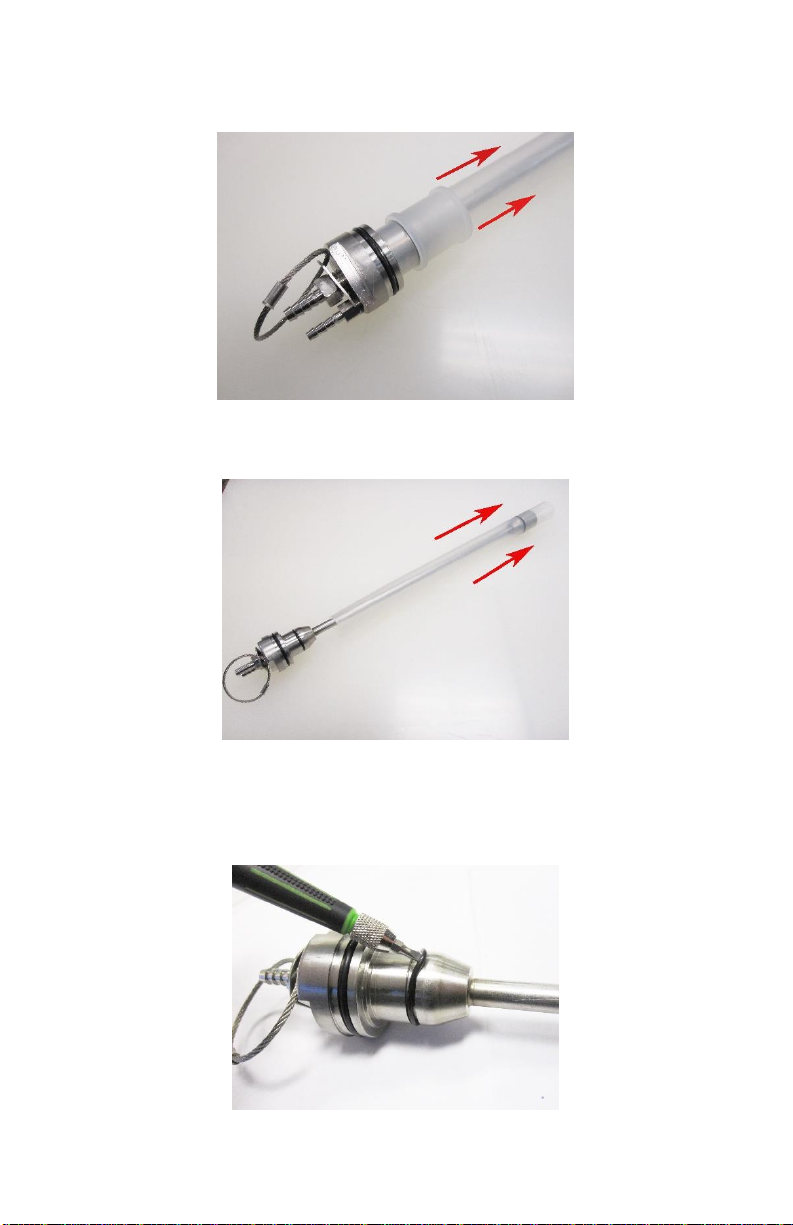

4. Pulling from the lower end of the bladder (18” 21150054; 36” #21150141), slide
the bladder off the internal center tube weldment assembly.
Figure 4-4: Removal of Bladder
5. Remove all O-rings.
If needed, use a flat object to help the O-ring out of the groove on the center
tube weldment assembly,
Do not over-stretch, damage, or puncture the O-rings in any way.
Figure 4-5: Removal of O-rings

15
6. Clean and prepare replacement parts as needed.
Bottom Intake Assembly
1. Pull the Check Ball Retainer from the Bottom Intake Assembly.

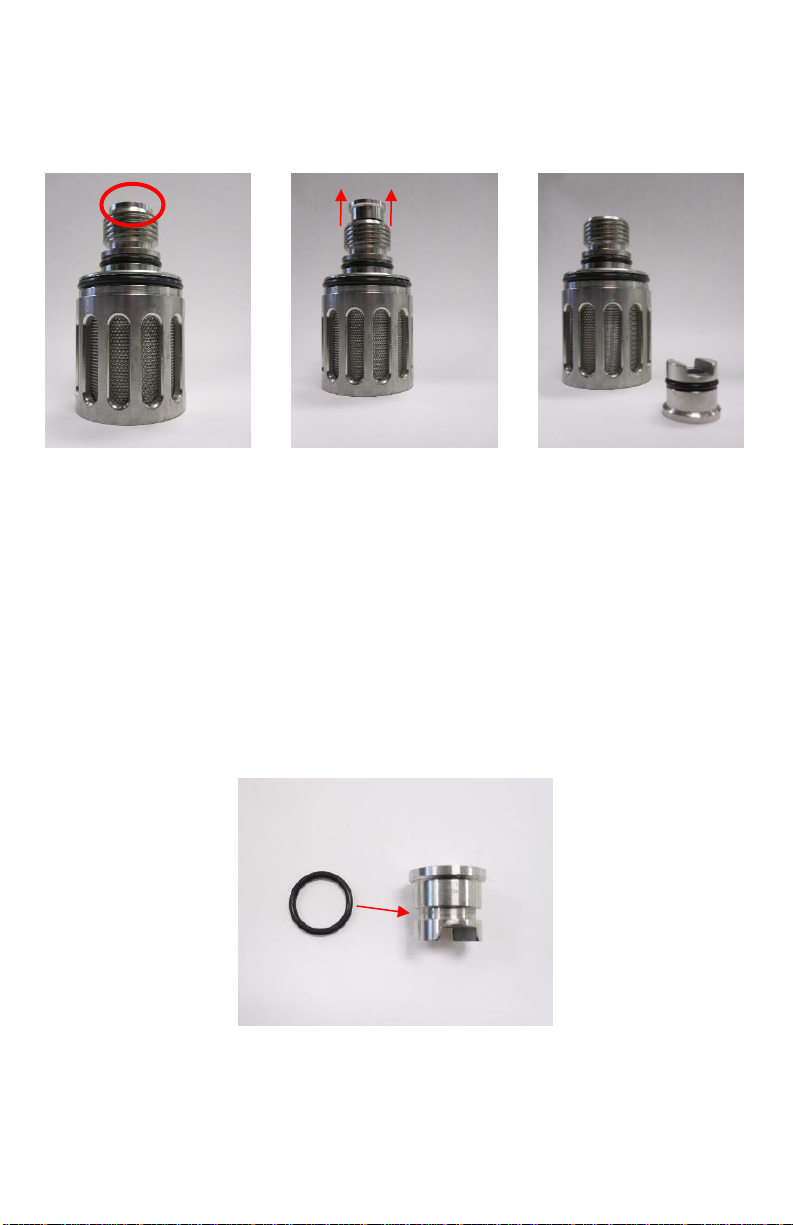

Figure 4-7a: Check Ball
Retainer
Figure 4-7b: Removing Check
Ball Retainer
Figure 4-7c: Check Ball
Retainer Removed
2. Remove the SS Check Ball from the inside of the Bottom Intake Assembly.
3. Remove all O-rings on the assembly.
If needed, use a flat object to help the O-rings out of the grooves on the
Bottom Intake Assembly
Do not over-stretch, damage, or puncture the O-rings in any way.
4. Clean and prepare replacement parts as needed.
Bottom Intake Reassembly
1. Install O-ring (#17500119) in the groove on the Check Ball Retainer.
Ensure that O-rings are not twisted.
Figure 4-8: Check Ball Retainer O-ring

16
2. Install O-rings (#11150332 & #1110318) in the grooves on the Bottom Intake
Assembly.
Ensure that O-rings are not twisted.
Figure 4-9: O-rings on the Bottom Intake Assembly
3. Insert the SS Check ball into the Bottom Intake Assembly.
4. Push the Check Ball Retainer in ensuring the O-ring is no longer visible.
Bladder Reassembly:
1. Install O-ring (#11150318) on the cap of the center tube weldment assembly.
Figure 4-10: Cap O-ring
SS CheckBall must be inside the Bottom Intake
Assembly.
The configuration shown may damage pump.

17
2. Install O-ring (#11150319) on the upper end of the center tube weldment
assembly.
Figure 4-11: Upper end O-ring
3. Install O-ring (#11150319) on the lower end of the center tube weldment
assembly.
Figure 4-12: Lower O-ring
4. Slide bladder (18” #21150054; 36” #21150141) onto the internal center tube
weldment assembly, over the O-ring (#11150319) on the bottom end of the
center tube assembly, and then over the O-ring (#11150319) on the upper end of
the center tube weldment assembly.
Do not to roll the O-rings.
If needed, use Deionized water or a silicone based lubricant on the O-ring
seals to help the bladder slide over the O-rings.
Figure 4-13a: Sliding bladder on
Figure 4-13b: Bladder entirely on

18
5. Slide the Compression Ring (#21150042) over the bladder to the upper end of
the center tube weldment assembly.

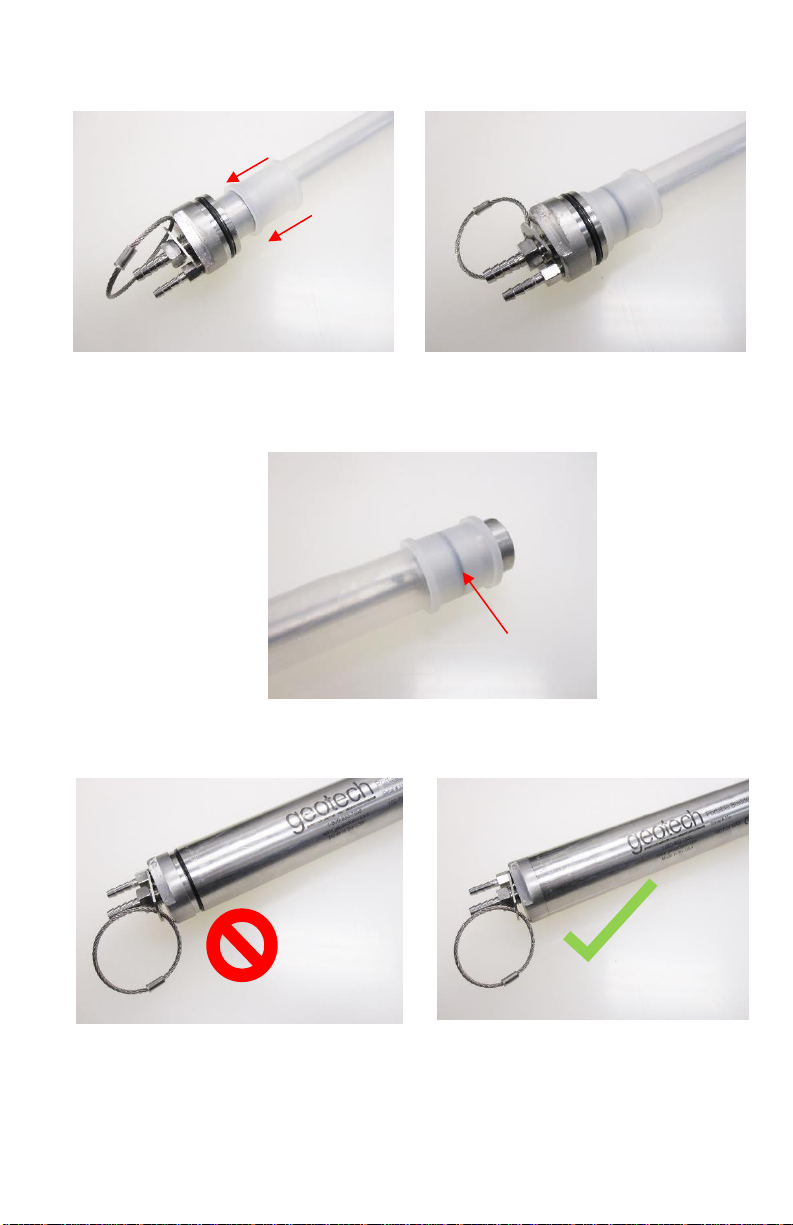

Figure 4-14a: Compression Ring on Bladder
Figure 4-14b: Compression ring secured
6. With the upper end of the bladder secured by the Compression Ring
(#21150042) slide the second compression ring over the end of the bladder until
the O-ring is visible in the middle of the Compression Ring.
Figure 4-15: Bottom Compression ring with visible O-ring
7. Replace the outer housing (18”#21150041;36”#51150141)
Be sure the outer housing is sealed against the upper cap.
Figure 4-16a: Incorrect Installation
Figure 4-16b: Correct Installation
