Quick Start Guide
GV-IPCam
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
Fixed IP Dome
Target Fixed Dome
ICH265HISIV119-A
Motorized IP Dome

© 2019 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in
part, without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any
kind and assumes no responsibility for errors or omissions. No liability is
assumed for incidental or consequential damages arising from the use of
the information or products contained herein. Features and specifications
are subject to change without notice. Note: no memory card slot or local
storage function for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows is the
registered trademark of Microsoft Corporation.
February 2019

ii
Contents
Caution.............................................................................. iv
Safety Notice .................................................................... iv
Options .............................................................................. v
Creating GV-IP Camera’s Login Credentials................. vi
Note for Adjusting Focus and Zoom............................. vii
Chapter 1 Introduction ......................................................1
Target Fixed Dome..........................................................................1
Motorized IP Dome..........................................................................2
1.1 Packing List ..............................................................................3
1.2 Overview ..................................................................................4
1.3 Installation ................................................................................6
1.4 Connecting the Camera............................................................9
1.5 I/O Terminal Block ..................................................................10
1.5.1 Pin Assignment..........................................................10
1.6 Loading Factory Default..........................................................11
1.6.1 Using the Web Interface.............................................11
1.6.2 Directly on the Camera ..............................................12
Chapter 2 Accessing the Camera..................................13
2.1 System Requirement...............................................................13
2.2 Accessing the Live View .........................................................13
2.2.1 Checking the Dynamic IP Address .............................14

iii
2.2.2 Configuring the IP Address ........................................15
2.3 Adjusting Image Clarity...........................................................17
Chapter 3 The Web Interface .........................................19
Chapter 4 Upgrading System Firmware ........................22

iv
Caution
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Safety Notice
The GV-IPCAM uses a Lithium battery as the power supply for its internal
real-time clock (RTC). The battery should not be replaced unless required!
If the battery does need replacing, please observe the following:
Danger of Explosion if battery is incorrectly replaced
Replace only with the same or equivalent battery, as recommended by
the manufacturer
Dispose of used batteries according to the manufacturer's instructions

v
Options
Optional devices can expand your camera’s capabilities and versatility.
Contact your dealer for more information.
Device Description
Power Adapter
The power adapter is available for all Fixed IP Dome
Camera. Contact your sales representative for the
countries and areas supported.
GV-PA191 PoE
Adapter
The GV-PA191 PoE adapter is designed to provide
power and network connection to the cameras over
a single Ethernet cable.
GV-POE Switch
The GV-POE Switch is designed to provide power
along with network connection for IP devices. The
GV-POE Switch is available in various models with
different numbers and types of ports.
GV-Mount
Accessories
The GV-Mount Accessories provide a
comprehensive lineup of accessories for installation
on ceiling, wall corner and pole. For details, see GV-
Mount Accessories Installation Guide.
GV-Relay V2
The GV-Relay V2 is designed to expand the voltage
load of GV IP devices. It provides 4 relay outputs,
and each can be set as normally open (NO) or
normally closed (NC) independently as per your
requirement.
GV-Relay V2 does not support GV-EFD2101 / 3101
/ 5101.
Smoked Cover
The smoked cover is an IK7, tinted camera cover
designed for GV-Fixed IP Dome to conceal the
direction of the camera lens.

vi
Creating GV-IP Camera’s Login
Credentials
The default Administrator and Guest accounts are no longer supported by
GV-IPCAM H.265 series firmware V1.14 or later. When purchasing a
new camera or performing factory resetting, you need to set up a login
username and password for the camera.
1. Download and install GV-IP Device Utility from the company
website.
2. On the GV-IP Device Utility window, click to search for your GV-
IP camera.
3. Double-click your GV-IP camera in the GV-IP Device Utility list. This
dialog box appears.
4. Click the Change Username and Password tab to type a new
username and password. Note that the new password must meet
the password strength requirements.
5. Optionally click Upgrade all devices to use the same username
and password on all other devices.

vii

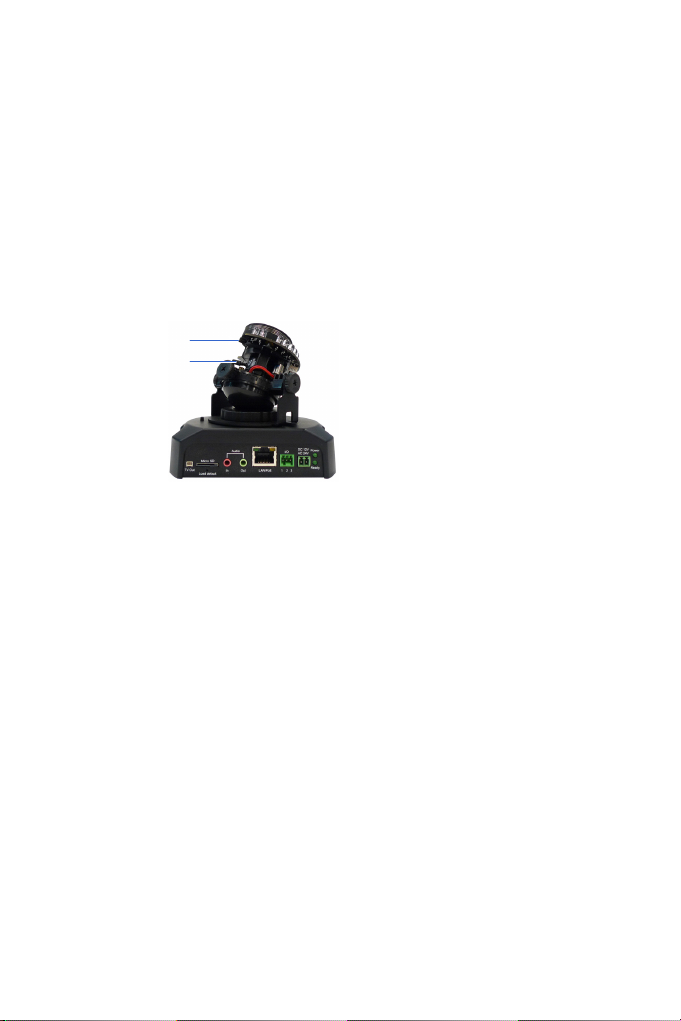

Note for Adjusting Focus and Zoom
When adjusting the Focus and Zoom Screws, do not over tighten the
Focus and Zoom screws. The screws only need to be as tight as your
finger can do it. It is not necessary to use any tools to get them tighter.
Doing so can damage the structure of lens.
For example,
Focus Screw
Zoom Screw
Fixed IP Camera
The maximum torque value for all the zoom and focus screws is 0.049 N.m

Introduction
1
1
Chapter 1 Introduction
Target Fixed Dome
The Target Fixed Dome (GV-EFD) is an indoor, fixed network camera
equipped with an automatic IR-cut filter and IR LEDs for day and night
surveillance. Adjustable in 3 axis (pan, tilt and rotate), it offers an entry-
level surveillance solution with all the essential features and excellent
image quality..
Model No. Specifications Description
GV-EFD2101 Varifocal
Lens
P-Iris, f: 3 ~ 9 mm,
F/1.7, 1/2.8” Ø14
mm Mount
2 MP, H.264, Super
Low Lux, WDR
GV-EFD3101 Varifocal
Lens
P-Iris, f: 3 ~ 9 mm,
F/1.7, 1/2.8” Ø14
mm Mount
3 MP, H.264, Super
Low Lux, WDR Pro
GV-EFD5101 Varifocal
Lens
P-Iris, f: 3 ~ 9 mm,
F/1.7, 1/2.7” Ø14
mm Mount
5 MP, H.264, Low
Lux, WDR

2
Motorized IP Dome
GV-MD8710-FD is a motorized IP camera specifically designed for face
detection. The camera is equipped with a WDR Pro, an automatic IR-cut
filter and IR LEDs for day and night surveillance. With its motorized
varifocal lens, the user can zoom and focus the camera from the Web
interface. The camera can support H.265 video codec to achieve better
compression ratio while maintaining high quality pictures at reduced
network bandwidths. For night operations, the camera allows up to 30 m
(98.4 ft) IR effective distance. Adjustable in 3 axis (pan, tilt and rotate), it
offers smart surveillance solutions with all the essential features and
excellent image quality.
Model No. Specifications Description
GV-MD8710-FD
Motorized
Varifocal
Lens
P-Iris, f: 4 ~ 8 mm,
F/1.44, 1/2.5” Ø14
mm Mount
8 MP, H.265,
Low Lux, WDR
Pro

Introduction
3
1
1.1 Packing List
Target Fixed IP Dome / Motorized
IP Dome
Torx Wrench
Screw x 3
Screw Anchor x 3
TV-Out Wire (Not supported by
GV-MD8710-FD)
Installation sticker
Shielding Ground Wire (only GV-
MD8710-FD)
I/O Wire (only GV-
MD8710-FD)
Download Guide Warranty Card
Note: Power adapter can be purchased upon request.

4

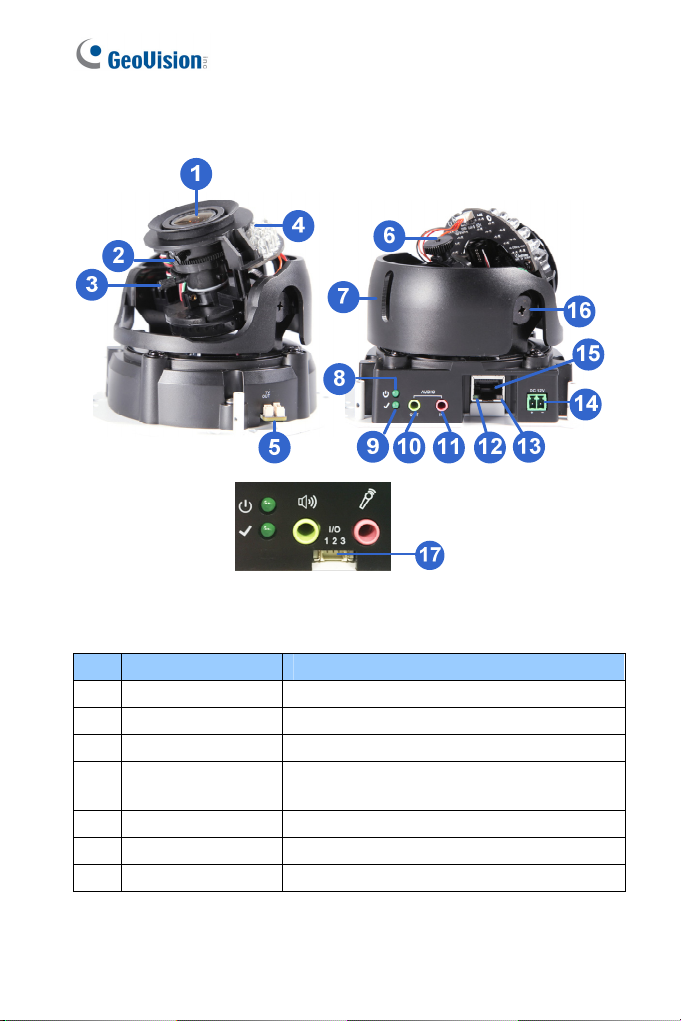

1.2 Overview
Figure 1-1
No. Name Description
1 Lens Receives image inputs.
2 Focus Screw Adjusts the focus of the camera.
3 Zoom Screw Adjusts the zoom of the camera.
4 Default Button Resets the camera to factory default. For
details, see 2.5 Loading Factory Default.
5 TV-Out Provides video inputs (D1 resolution).
6 Rotational Screw Loosens to adjust the camera angle.
7 Pan Disc Loosens to pan the camera.

Introduction
5
1
No. Name Description
8 Power Turns on (green) when power is on.
9 Status Turns on (green) when the system is ready.
10 Audio Out Connects a speaker for audio output.
11 Audio In Connects a microphone for audio input.
12 Link Turns on (green) when the network is
connected.
13 ACT Turns on (orange) when data are being
transmitted.
14 DC 12V Port Connects to power.
15 LAN / PoE Connects to a 10/100 Ethernet or PoE.
16 Tilt Screw Loosens the screw to adjust tilt angle.
17 I/O Terminal Block Connects to I/O devices. For details, see 1.5
I/O Terminal Block.
Note: For GV-EFD2101 / GV-EFD3101 / GV-EFD5101, the TV-out
function can only be used during installation to adjust the focus of the
camera. To use the TV out function, connect the supplied black BNC
connector to a monitor and select your signal format (NTSC or PAL) at
the TV Out field on the Web interface. The default signal format is
NTSC. For details, see 4.1.1 Video Settings, GV-IPCam Firmware
Manual. The TV-out wire must be removed before you secure the
housing cover.

6
1.3 Installation
The camera can be installed on the wall or the ceiling. Before installing the
camera, make sure the installing site is shielded from rain and moisture.
1. Use the supplied torx wrench to loosen three screws on the housing
cover, and take out the camera body.
Figure 1-2
2. Place the installation sticker where you want to install it, and make 3
marks on the ceiling or the wall for screw anchors
Figure 1-3
3. Drill the marks and insert the screw anchors.
4. Connect the camera to network and power. For details, see 2.4
Connecting the Camera.
5. Secure the camera to the ceiling or the wall with the supplied screws.
6. Access the live view. For details, see 3.2 Accessing the Live View.

Introduction
7
1
7. Adjust image clarity using the GV-IP Device Utility program. For
details, see 3.3 Adjusting Image Clarity.
8. Loosen the tile screw, pan screw or rotational screw. Adjust the
angles based on the live view as needed, and tighten the screws
again.
Figure 1-4
9. For GV-MD8710-FD only, secure the “L” shaped end of the shield
ground wire to one of the indicated positions.
Figure 1-5

8
10. Place the housing cover back and tighten the three screws to secure
it. Remove the indicated part when necessary.
Figure 1-6

Introduction
9
1
1.4 Connecting the Camera
1
2
Figure 1-7
1. Connect power using one of the following methods:
Plug the power adapter to the 12V terminal block. The power
adapter is an optional device. For detail, see Options in the
manual.
Use the Power over Ethernet (PoE) function and the power will be
provided over the network cable.
The power and status LEDs shall turn on (green).
2. Use a standard network cable to connect the camera to your network.
3. You are ready to access the live view, adjust the image clarity and
configure the basics. See Getting Started, Chapter 2, GV-IPCam
Firmware Manual.

10
1.5 I/O Terminal Block
Note the I/O Terminal Block is only supported by GV-MD8700-FD. The
terminal block, located on the back panel of the camera, provides the
interface to one input and one output devices. The I/O terminal block can
be used for applications such as motion detection, event alerts via E-Mail
and FTP, and center monitoring through Center V2 and VSM.
1.5.1 Pin Assignment
The pin assignment for the I/O terminal block:
For the output point, please check if your output device meets the following
Absolute Maximum Ratings before connecting it to the output point.
Breakdown Voltage 277V AC, 30V DC
Continuous Load Current 5A (NO), 3A (NC)
Note: Absolute Maximum Ratings are those values beyond which
damage to the camera may occur. Continuous operation of the camera at
the absolute rating level may affect the camera reliability.
The camera supports one digital input and one digital output of dry contact.
Pin Function
1 Digital Input
2 GND
I/O
123
Figure 1-8 3 Digital Output
For details on how to enable an installed I/O device, see 4.3 I/O Settings,
GV-IPCam Firmware Manual.

Introduction
11
1
1.6 Loading Factory Default

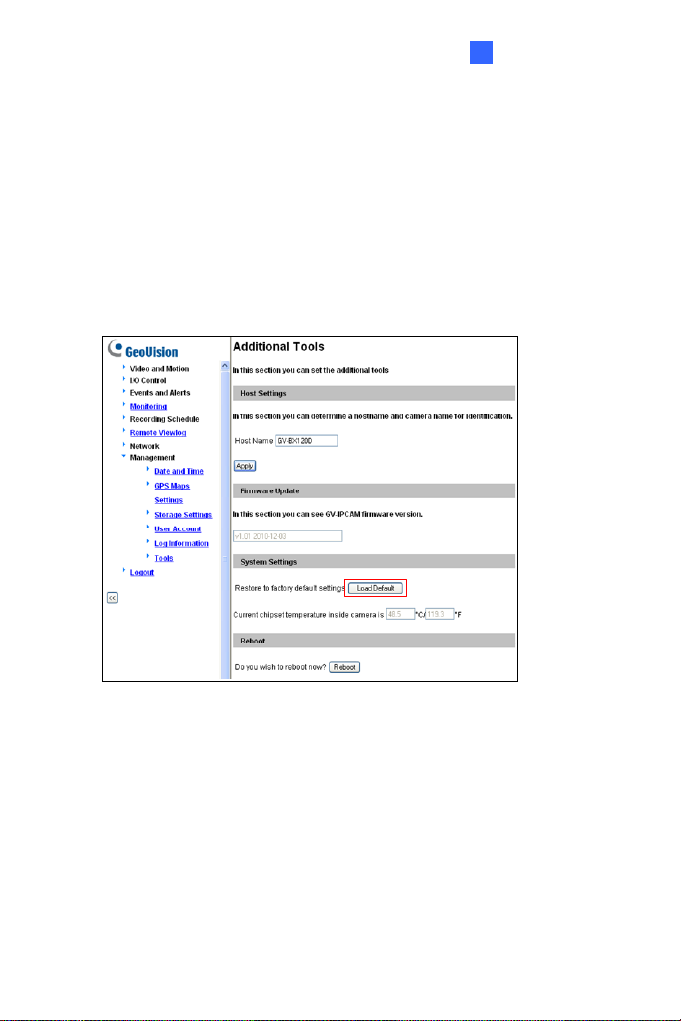

1.6.1 Using the Web Interface
You can restore default settings through the Web Interface.
1. On the left menu of Web interface, select Management and select
Tools. The Additional Tools dialog box appears.
2. Click the Load Default button in the System Settings section.
Figure 1-9

12

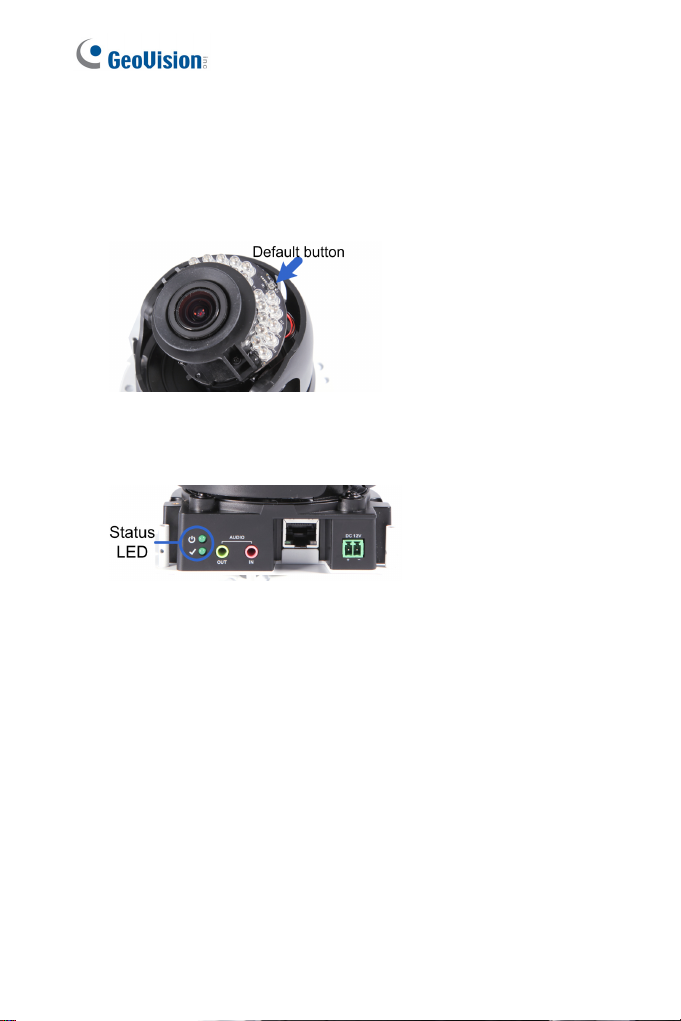

1.6.2 Directly on the Camera
1. Keep the power and network cables (or PoE) connected to the
camera.
2. Press and hold the default button for about 8 seconds.
Figure 1-10
3. Release the default button when the status LED blinks.
Figure 1-11
When the status LED fades, the process of loading default settings is
completed and the camera reboots automatically
