Get Packed GPCS-C26U User manual

0
SEMI-AUTOMATIC CARTON
SEALING MACHINE
TMD-C26U
20210826
SEMI-AUTOMATIC CARTON SEALING MACHINE
GPCS-C26U
OPERATION MANUAL

1
1. GENERAL
1.1 Notice of installation . . . . . . . . . . . . . . . . 2
1.2 Notice of operation . . . . . . . . . . . . . . . . 2
2. SPECIFICATION
2.1 Spec. table. . . . . . . . . . . . . . . . . . . . 3
2.2 Machine dimension. . . . . . . . . . . . . . . . . 4
2.3 Machine description. . . . . . . . . . . . . . . . . 5
3. OPERATION DESCRIPTION
3.1 Installation . . . . . . . . . . . . . . . . . . . . 6
3.2 Operation of control panel . . . . . . . . . . . . . . . 8
4.COUNTER INSTRUCTION . . . . . . . . . . . . . 9
5.ELECTRIC
5.1 Electric capacity . . . . . . . . . . . . . . . . . . 10
5.2 Electric diagram . . . . . . . . . . . . . . . . . . 11
6.TROUBLE SHOOTING
6.1 Belt adjustment. . . . . . . . . . . . . . . . . .15
6.2 Fuse replacement . . . . . . . . . . . . . . . . .15
7.PARTS LIST
7.1 Side belt . . . . . . . . . . . . . . . . . . . . 16
7.2 Column. . . . . . . . . . . . . . . . . . . . . 19
7.3 Machine body . . . . . . . . . . . . . . . . . . 21

2
1. GENERAL
1.1 Notice of installation
To make sure of a safe and correct operation, please check
the below items before installing the machine:
1) Power source capacity must be larger than the machine
need.
2) A shorter ground wire is better.
3) Machine standard power is 110V/230V (-15% - +10%).
4) Machine standard power Hertz is 50/60 Hz. (±2%)
5) Machine is good between temperatures 0℃- 45℃.
6) Any thing/substance around the machine should not produce loud
noise and vibration.
1.2 Notice of operation
To have good protection for the operator, please make sure of the
following conditions:
1) Before operating, please read the machine manual carefully.
2) Make sure no good have been put on the power cable.
3) Make sure no goods been have put on the upper tape head unit.
4) Don’t allow damp parts or water to touch the electric parts.

3
2. SPECIFICATION
2.1 Spec. table
model
TMD-C26U
Tape
50mm(2”)
Belt speed
20m/min
Capacity
(L)150mm~unlimitecl
(W)150mm~500mm
(H)120mm~500mm
Consumption
450W
Machine size
1620mm(L)x804mm(W)x1237mm(H)
Sound level
60dB
Machine net weight
131KG
Standard option:
⚫3” tape head

4
2.2 Machine dimension
TMD-C26U

5
2.3 Machine description

6
3. OPERATION DESCRIPTION
3.1 Installation
1) Open the box. Please remove carefully to avoid damaging the machine.
2) Lift the machine to install casters (4 wheels), at the same time tighten
the A nut to fix the casters in place.
3) Set the machine to the desired height, then tighten the B screw.
A
B

7
4) Set up the machine and relocate to the desire place.
5) Attach the roller table to the machine body.
6) Load the tape head with tape. (Please refer to the tape head instruction
manual.

8
7) Place a box filled with product on the in feed conveyor, position on the
side drive belts and top section to accommodate the desired box width
and height by using the width and height adjustment crank.
Follow by adjusting the tow handle knobs against the sides of carton to
secure the carton’s center.
8) Connect the power cable with the socket to an 110V/230V power
source.
9) Plug in, press “start” button for testing.

9
3.2 OPERATION OF CONTROL PANEL
Press to stop motors and belts.
Press to start motors and belts.
Emergency stop
Circuit Breaker:
- When overload, circuit breaker will be activated.
- Press the button to reset the machine.
- Or it will reset automatically after 60 seconds.

10
4. COUNTER INSTRUCTION
1. It is forbidden to cancel, disassemble, modify or not respect the implemented
safety measures. In that case, the manufacturer will not be hold responsible
for any possible damage caused.
2. Do not use the machine in a place where water and oil might splash
3. Use only the specified power supply cable
4. Do not pull the power supply cable to move the machine. It will damage or
break the cord
5. Do not use the machine in any way which is not specified in this manual
7. It is forbidden to exceed the limits of use and operation on what regards
weights and sizes of loads.
8. It is forbidden to use the machine with unstable loads which show hazard of
falling.

11
5. ELECTRIC
5.1 Electric capacity
1) Power consumption
Belt motor
0.18*2KVA
Machine power consumption
0.4KVA
Power socket requirement
0.5KVA
2) Power cable. . . . . . . . . . 1.25mm²
3) Machine input. . . . . . AC 110V/2230V 1-Phase

12
5.2 Electric diagram

13
1SB9
W1
1
NC
21
L1 R
1G3
XT1
U1 U1
1F4 1Q8
M
R
E
E
Y
C
N
E
G
S
T
O
P
T
I
U
C
R
I
C
R
E
K
A
E
R
B
23
24
13
14
R
NT1
U1
1A1

14
TMD-C26U PAGE 1 OF 1 DRAW1
123456
N
N
L1 L1
78910
1PHASE 0.2kW
PE
1~,230V, 50/60HZ
POWER SUPPLY
1Q8
R
RIGHT MOTOR
FILM:TMD-C26U-01-B2 DATE:2014.DEC.10
U<
24 14 23 13 A1
1SB9
START BUTTON
STOP BUTTON
W1
1
U1
N
(1~110V,50/60HZ)
110V(KJD17-110V-A1)
1M7
1M4
LIFT MOTOR
1G3
1F4
250V 3A250V 3A250V 3A
110V 5A
110V(KJD17-110V-A1) 230V(KJD17-230V-A1)
1PHASE 0.2kW

15

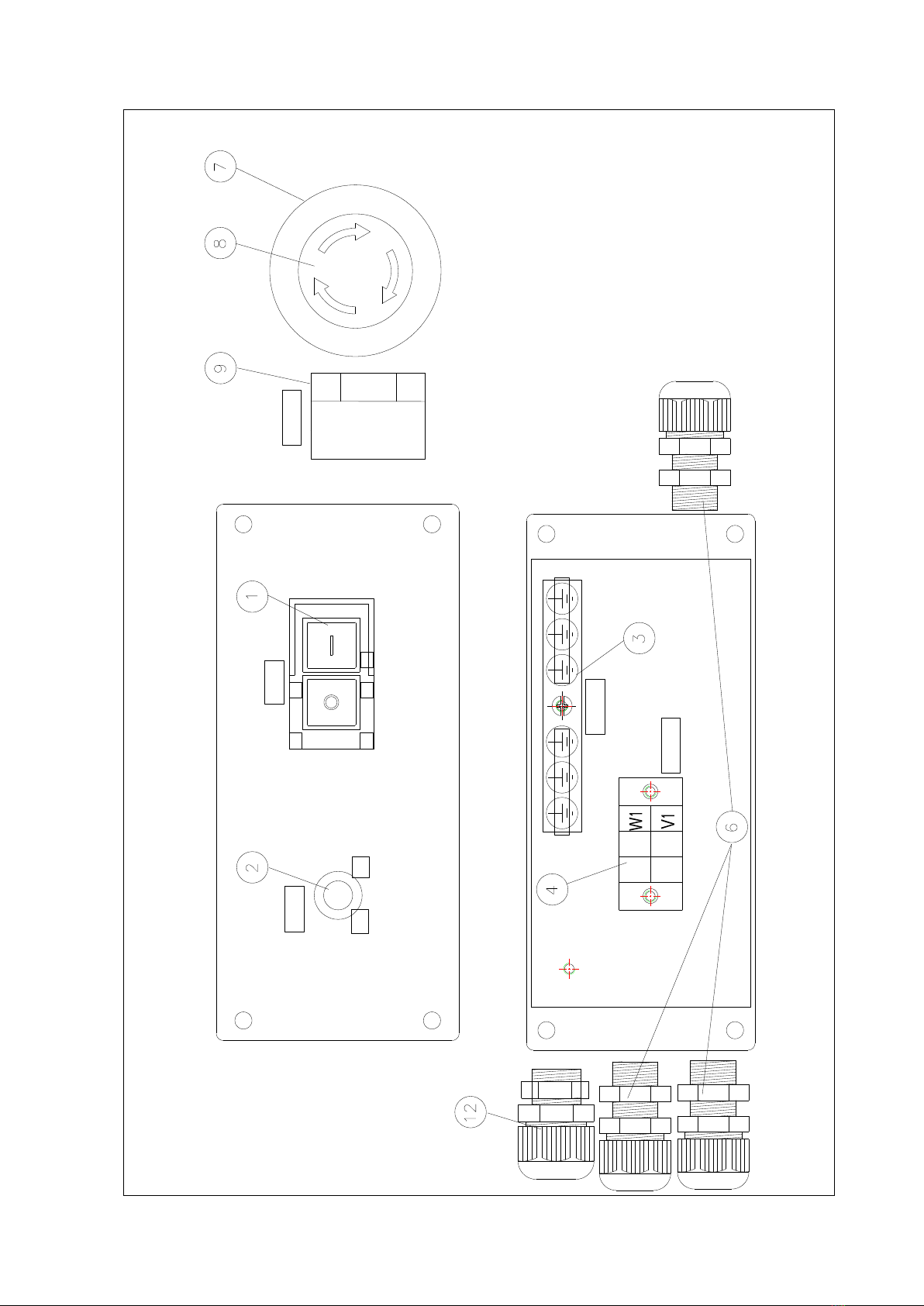

ELECTRIC PARTS LIST FOR TMD-C26U
KEY NO
PART NO.
DESCRIPTION
QTY
1
P0302-010003500
SWITCH BOX (220~240V)
1
P0302-010003600
SWITCH BOX (120V)
1
2
KA02002900
Thermal Circuit Breaker KMB-3I(220V)
1
P0305-030005600
Thermal Circuit Breaker KMB-5I(110V)
1
3
70560601
TERMINAL BLOCKS TB6P
1
4
P0304-010003900
TERMINAL BLOCKS TB15-3
1
6
P0316-010000210
WIRE HOLDER, MG16A-10SG
3
7
KA0900160
EMERGENCY STOP LABEL
1
8
7155BC20
EMG. SWITCH
1
9
7158BZ12
BUTTON SEAT CONTACTOR NCx1
1
12
P0401-0012900
WIRE HOLDER, N-FN17-15B
1

16
6. TROUBLE SHOOTING
6.1 Belt adjustment
1) Loosen the belt screw (A) to adjust the belt to a suitable tension
screw (B).
6.2 Fuse Reset
1) Symptom: machine will not start to operate.
A) Please check the power input.
B) Release the E-stop button.
C) Press circuit breaker to reset the fuse.
D) Press start button to run.

17
7. PART LIST
7.1 Side belt

18
PARTS LIST FOR EXC-TMD-C26U
KEY NO
PART NO.
DESCRIPTION
Q’TY
1
P01-042290B
BELT COVER (L)
1
2
P0902-0006700
BELT 50*1550
2
3
P02-0292600
PULLEY FOLLOWER
2
4
P02-028510A
PULLEY SHAFT
2
5
P01-042350A
GUIDE PLATE (L)
1
6
P02-028520A
ADJUSTMENT BLOCK
2
7
P02-0285000
SUPPORT SCREW
4
8
P01-042270B
BELT SEAT(L)
1
9
P02-0284900
ROLLER SHAFT
8
10
P06-003200A
ROLLER 2”
16
11
745122L2
745124L2
745111L1
745122L1
MOTOR,1/4HP, 220V/50HZ,T15:1
MOTOR,1/4HP, 240V/50HZ,T15:1
MOTOR,1/4HP, 110V/60HZ,T18:1
MOTOR,1/4HP, 220V/60HZ,T18:1
1
1
1
1
12
P01-042300B
BELT COVER (R)
1
13
P1101-1606040AZ
SCREW M6x40L
1
14
P01-0440200
CONNECTING PLATE
2
15
P02-0287500
PULLEY DRIVE SHAFT
2
16
210A6202ZZ
BEARING 202ZZ
2
17
P02-028480A
PULLEY DRIVER
2
18
P1101-1606040AZ
SCREW
1
19
P02-0287400
SUPPORT SCREW
2
20
P01-043330B
SLIDING PLATE
2
21
P01-042280B
BELT SEAT (R)
1
22
745122R2
745124R2
745111R1
745122R1
MOTOR,1/4HP, 220V/50HZ,T15:1
MOTOR,1/4HP, 240V/50HZ,T15:1
MOTOR,1/4HP, 110V/60HZ,T18:1
MOTOR,1/4HP, 220V/60HZ,T18:1
1
1
1
1
23
P01-042340A
GUIDE PLATE (R)
1
24
CA302000
SHAFT SEAT
4
25
CA302200
CHAIN SPROCKET
2
26
P01-0433400
SPROCKET COVER
1
27
CA3015R0
SPINDLE SUPPORT
2
28
P02-0284500
SUPPORT SHAFT
4
29
P02-028420A
WIDTH TREADED ROD (REAR)
1
30
P0901-0009900
CHAIN, 35x122
1
31
P02-0284300
WIDTH TREADED ROD (FRONT)
1
S.W:SPRING WASHER W:WASHER

19
PARTS LIST FOR EXC-TMD-C26U
KEY NO
PART NO.
DESCRIPTION
Q’TY
32
CA3015L0
SPINDLE SUPPORT
2
33
P02-0284400
ROD EXTENTION
1
34
P02-0283800
HANDLE CRANK
1
S.W:SPRING WASHER W:WASHER
