Getidy KD Series User manual

EURO
CERT 1128 0197
English
JN-23
MODEL:
Steam Sterilizer
Instruction Manual
CLASS B and S

1.Summary &Suitalbe Using Range........................................................................................................................08
2.Technical parameter.............................................................................................................................................08
3.Installation............................................................................................................................................................12
4. ...............................................................................16
5. ................................................................................................27
6.Mantenance..........................................................................................................................................................38
7.Scraping.................................................................................................................................................................45
APPENDIX 1:Preparing the instruments for sterilization.....................................................................................45
APPENDIX 2:Packing...............................................................................................................................................46
APPENDIX 3:Positioning the load..........................................................................................................................47
APPENDIX 4:Description of tests...........................................................................................................................49
APPENDIX 5:Validating the cycles.........................................................................................................................51
APPENDIX 6:Quality of process water...................................................................................................................52
APPENDIX 7:JN-23 steam sterilizer hydraulic circuit...........................................................................................53
APPENDIX 8:Circuit diagram of JN-23 steam sterilizer........................................................................................54
APPENDIX 9:Alarm code and solutions of JN-23 steam sterilizer........................................................................55
APPENDIX 10:Accessories......................................................................................................................................57
JN-23 steam sterilizer function and operation instruction
JN-23 steam sterilization program introduction
Contents
Page 01 of 58

To buyers:
Thank you very much for your choice of using our Desktop Pressure
steam sterilizer!
Before you use steam sterilizer,please fill in “User Report”firstly.
Had it,we can check your using file promptly,so we can service
you more quickly and effective!
Page 02 of 58

Page 03 of 58

Page 04 of 58

ZHEJIANG GETIDY MEDICAL INSTRUMENT CO.,LTD.
ADDRESS:Duancun, Dongnan Industrial Zone, Shuxi Street, Wuyi, Jinhua, Zhejiang321200, China.
TEL:[phone] 87707499 DOWNLOAD Web: www.getidy.com
E-MAIL:[e-mail] [e-mail]

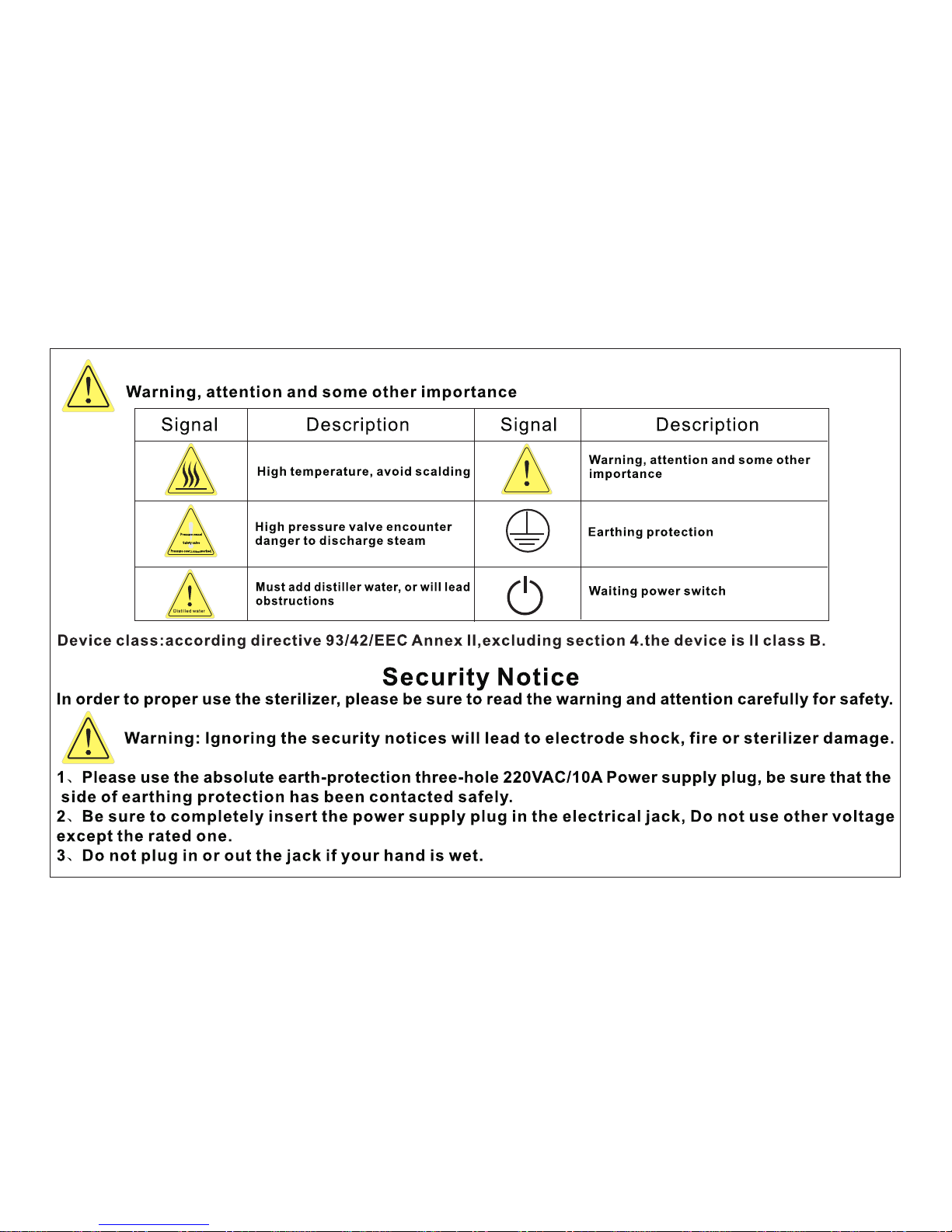

Page 05 of 58

Page 06 of 58

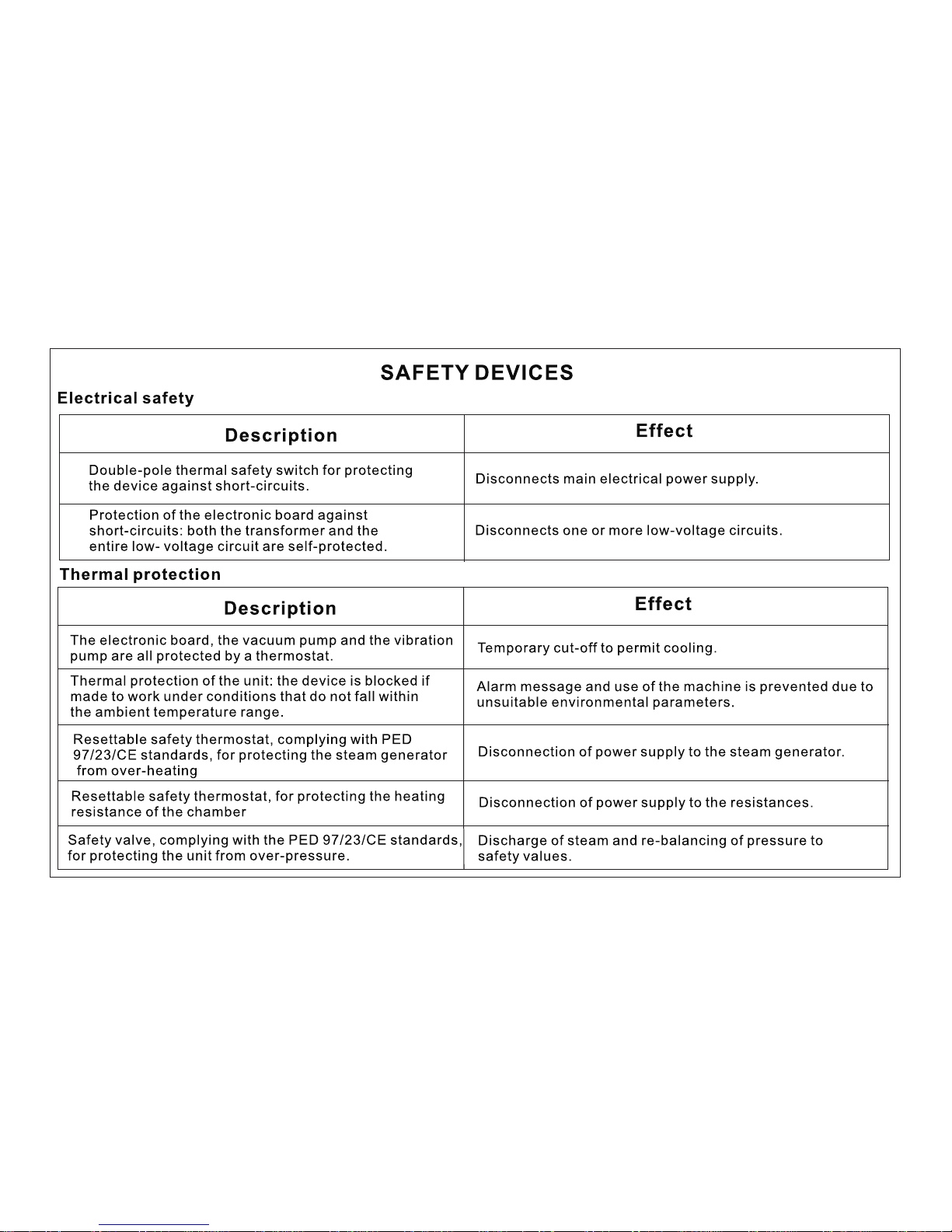

Page 07 of 58

Page 08 of 58
CLASS: B and S
POWER SUPPLY VOLTAGE: AC 230V 10%
MAINS FREQUENCY:50~60Hz
POWER OUTPUT: 1600W
CHAMBER: 23L
DIAMETER x DEPTH: 250mmx450mm
ABSORBED CURRENT: 10A
STERILIZATION CYCLES: 6
±
φ
TEST CYCLES: 3
CAPACITY OF CLEAN-WATER TANK: 4.5L
CAPACITY OF USED-WATER TANK: 3.5L
GROSS WEIGHT: 65Kg
NET WEIGHT: 59Kg
PACKING SIZE(LxWxH):730mmx580mmx560mm

Page 09 of 58

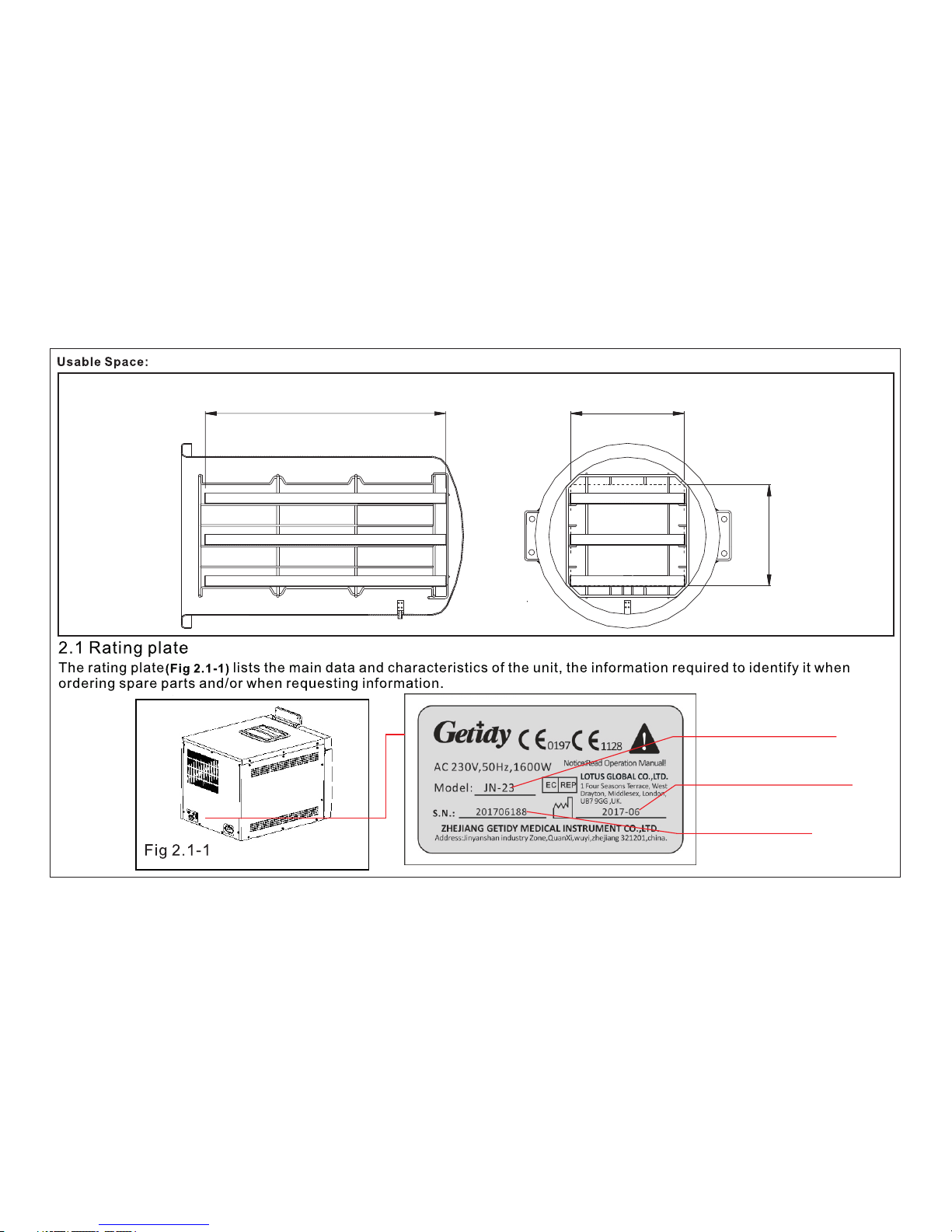

JN-23 overall space required

Serial Number
Date of Manufacture
Model:JN-23
Usable space 23 litres=10.60litres
380 180
150
Page 10 of 58

Page 11 of 58

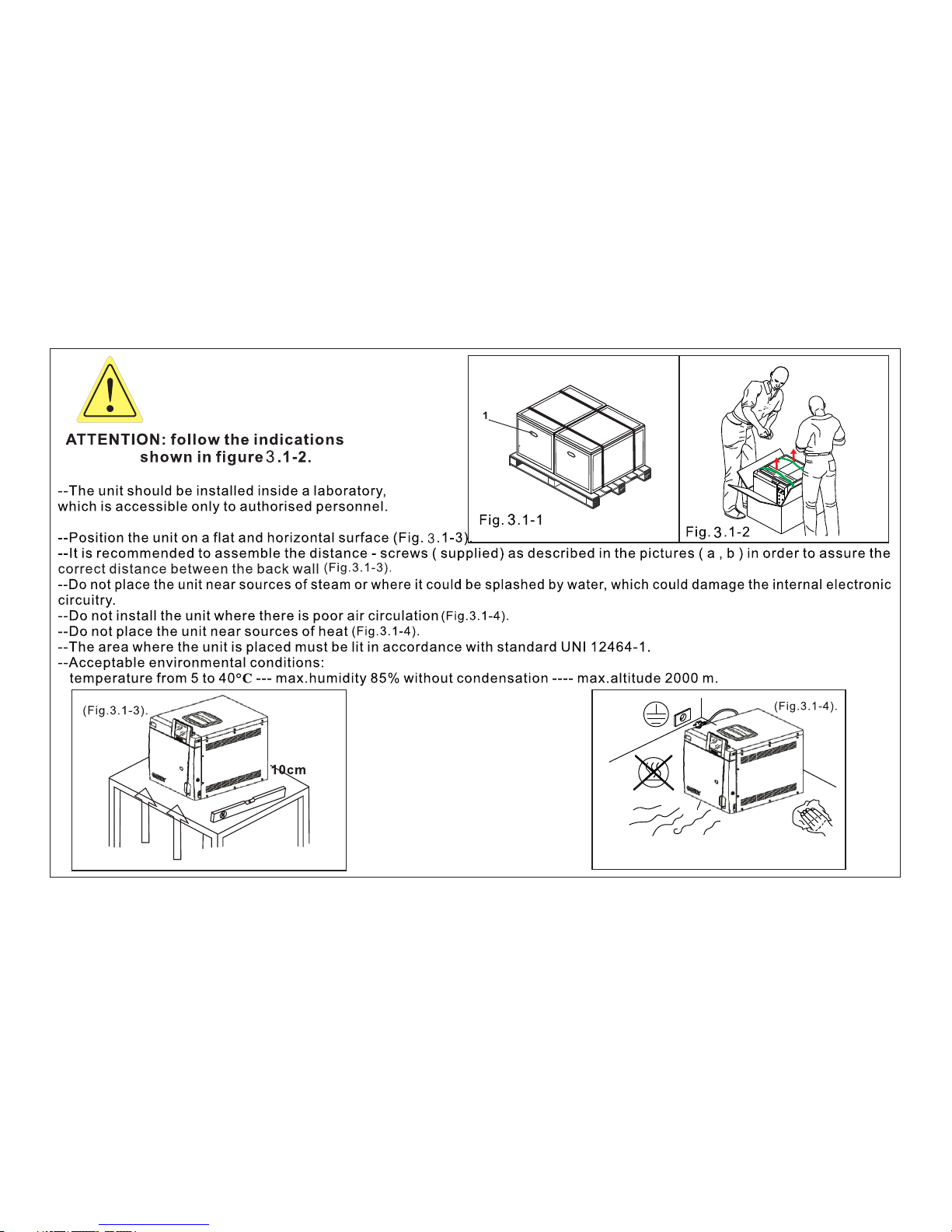

Page 12 of 58

Page 13 of 58

-The two front feet of the sterilizer are raised by 2 to 3 cm, resulting in the front end point being higher than the rear end
point.

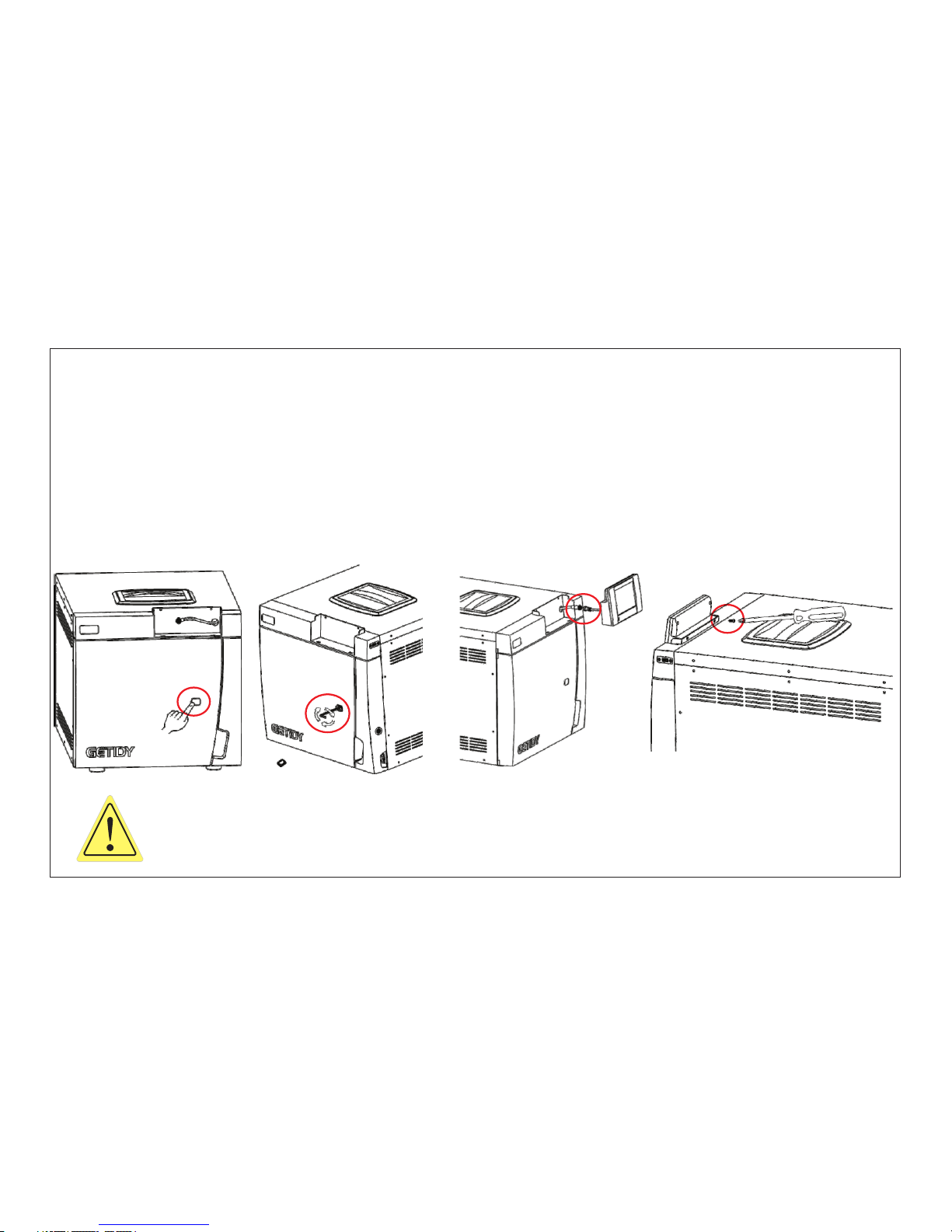

-Artificially open the door to the steps:
(1)Open the small cover of the sterilizer door.(Fig.3.1-5)
(2)Insert the hexagon spanner into the door shaft and rotated clockwise until the door is fully opened.(Fig.3.1-6)
(3)Remove the operation panel placed in the chamber and connect the operation panel and the control panel.
The connector is tightened.(Fig.3.1-7)
(4)Fixed operation panel.(Fig.3.1-8)
ATTENTION:
When you meet the power supply to stop,you can also follow the above steps to open the door.Remove the
instruments in the chamber before the power is restored.
However, it is important to confirm that the pressure in the before the above operation can be performed,
chamber is reduced to 0.000bar
Fig.3.1-5 Fig.3.1-6 Fig.3.1-7 Fig.3.1-8
Page 14 of 58

-Bring the instrument tray and accessories, remove the poly bag.
-After you put medical instrument into the tray,turn on the power (green switch indicator
light).(Fig.3.1-9)
-Press the power revert button and LCD screen appears the main interface.(Fig.3.1-9)
-Select the sterilization program you want, then press start to sterilization.
-For details, please refer to Chapter 4.

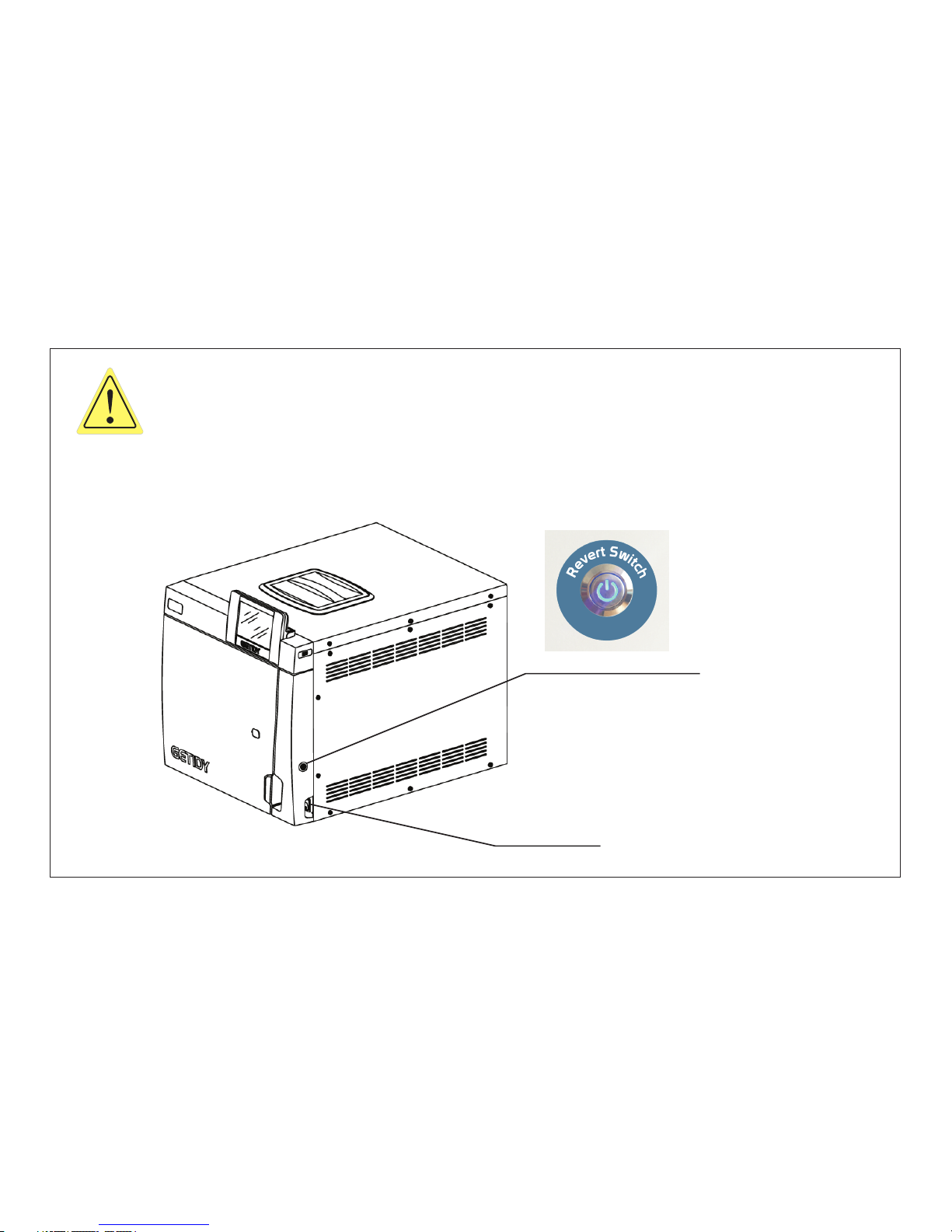

power recovery button
power switch
Fig.3.1-9
Page 15 of 58

4.JN-23 steam sterilizer function and operation instruction
4.1 JN series steam sterilizer contains 1-time(solid/plastic) and 3-times(hollow/prion/cotton) vacuum programs.
With lager color LCD screen for showing pressure, temperature, time, running state and error warning.
Temperature precision: 0.1℃ ;Pressure precision: 0.001bar.
4.2 Operator interface introduction
Turn on the power at the bottom right,click the power revert button located on the right side of the middle.
Page 16 of 58
“SET UP 1”
1.Language:
Chinese/Russian/Spanish/Farsi
English/French/Italian
2.Date and time
3.User information
4.Calibration:
Temperature/Pressure/Water quality
monitoring
5.Preference:
6.Service:
Maintenance Infor/Pipeline Cleaning
SystemTest/Alarm Codes/ Auto-Water
Supply
Sleepmode/Delay Start/Power Saving
“SET UP 2”
1.System information
2.Label Printer
3.USB Record
4.MINI-Printer
5.System Setting
6.Cellphone App
“Vacuum Test”hot key
“134 PROIN”PROGRAM hot key℃
“Vacuum Test”“Helix Test”“B&D Test”
Unlock icon.
Only when it is displayed on the screen,
can be open the door.
Main Interface Sterilization Program:
1. （ ）
（ ）
（ ）
（ ）
（ ）
Solid 134 -04Min-1times
2.Hollow 134 -04Min-3times
3.Prion 134 -20Min-3times
4.Cotton 121 -30Min-3times
5.Plastic 121 -20Min-1times
6.User-definned
Temperature:121 or 134
Sterilization time:04~60Min
Dry time:01~60min
Vacuum times:1times or 3times
℃
℃
℃
℃
℃
℃ ℃

4.3 Warning icon introduction

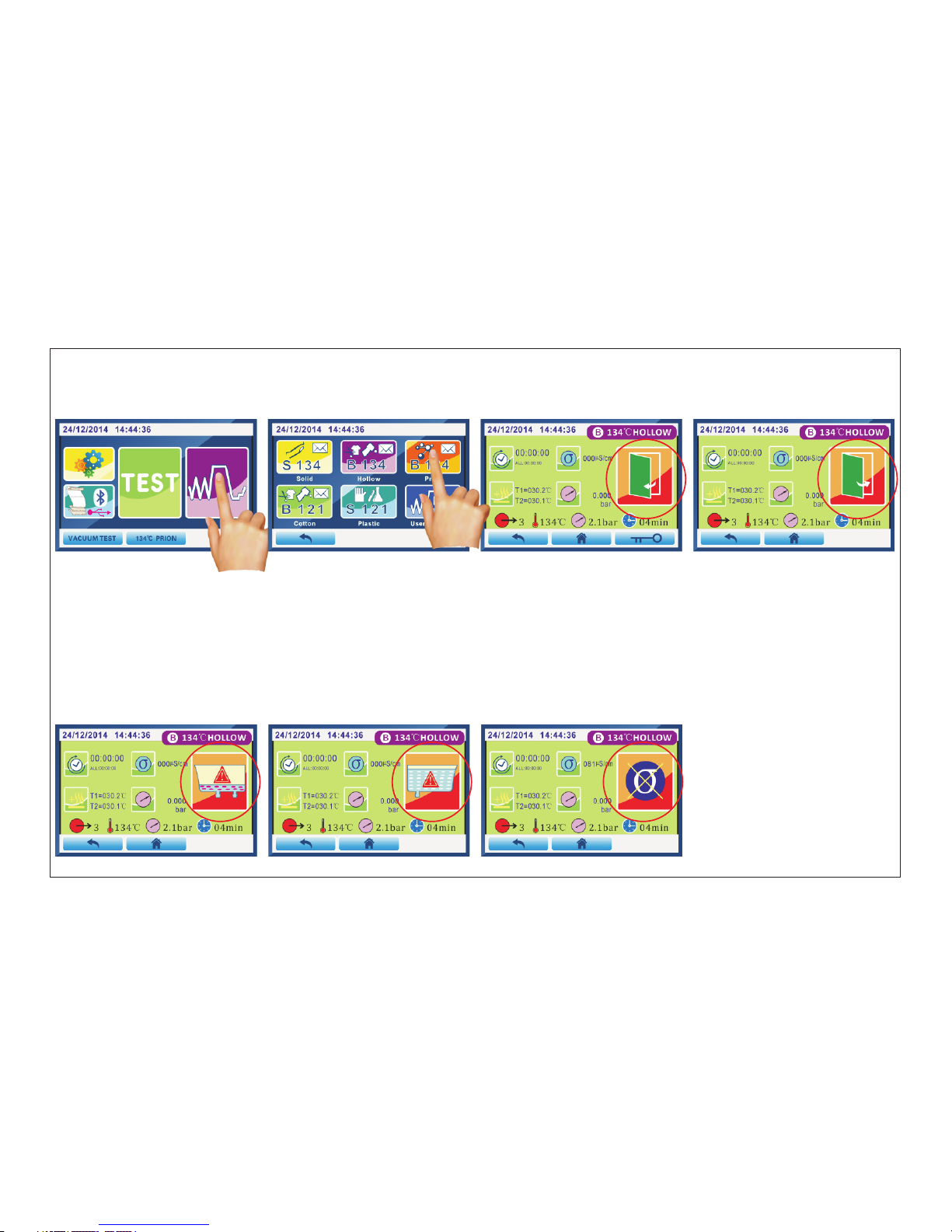

Press “program ”(Fig.4.3-1),to enter the program interface(Fig.4.3-2).Select the program you want and
enter.
click to
4.3.1 Door status
A)when you turn on the power and the door was closeing,it is show Fig.4.3-3 interface warning.It promps you to
open the the warning will be eliminated.door and close the door again. Then
B)when it shows Fig.4.3-4 interface warning,means that the current sterilizer door is open.Prompts you to close the
door, the warning will eliminated.
4.3.2 water status
A)when it show Fig.4.3-5 interface warning,means that the clean-water tank is lack of water. Prompts you to add distilled
water, the warning will be eliminated.
B)when it show Fig.4.3-6 interface warning,means that the used-water tank is full. Prompts you to drain the waste water,
the warningwill be eliminated.
Page 17 of 58
Fig.4.3-1 Fig.4.3-2 Fig.4.3-3 Fig.4.3-4
Fig.4.3-5 Fig.4.3-6 Fig.4.3-7

C)when it show Fig.4.3-7 interface warning,means that distilled water was unqualified (σ>80μms).
Prompts you to drain unqualified water in the clean-water tank and add the qualified distilled water again.The warning
Will be eliminated. Water supply requirements:
●conductivity ≤15μs/cm（Room temperature） ●bleach content≤2mg/L
●PH：5~7 ●Hardness：≤0.02mmol/L
Automatic supply water
connection
Drain used-water
connection
Drain clean-water
connection
Highest water level cordon
Fig.4.3-8 Fig.4.3-9
WARN: ,the sterilization program can be started.
Or it will out of operation.
Only if all the warnings were eliminated
D)Automatic water supply and Drain operation (Fig.4.3-8) and adding water manually (Fig.4.3-9)
4.4“SET UP 1” introduction
4.4.1.Language: Chinese/Russian/Spanish/Farsi/English/Franch/Italian
4.4.2.Date and time
4.4.3.User information
4.4.4.Calibration: Temperature/Pressure/Water quality monitoring
4.4.5.Preference:
4.4.6.Service: Maintenance Infor/Pipeline Cleaning/SystemTest/Alarm Codes/ Auto-Water Supply
Sleepmode/Delay Start/Power Saving
Page 18 of 58

4.4.1.Language:
Fig.4.4-1 Fig.4.4-2 Fig.4.4-3 Fig.4.4-4
Click“SET UP 1”(Fig.4.4-1)into Fig.4.4-2 interface.Select the program you want and click to enter.
Click “LANGUAGE”(Fig.4.4-3) into Fig.4.4-4 interface.click “ ”,Select language you want,then click“ ”
to save and exit.
4.4.2.Date and time
Click “Date and Time”(Fig.4.4-5) into Fig.4.4-6 interface.Click“ ”,change number of “Year,Month,Date,Hour,
Minute,second”,then click “ ”to save and exit.
4.4.3.User information
Click“User info”(Fig.4.4-7) into Fig.4.4-8 interface.Click the corresponding button.After entering the user name,then
click “ ”to save and exit.
4.4.4.Calibration: Temperature/Pressure/Water quality monitoring
Click “Calibration”(Fig.4.4-9) into Fig.4.4-10 interface.Click“ ”to change the number of “T1/T2/Pv/P/σ”.
ATTENTION: That default value only can be adjusted by professional technicians.
Fig.4.4-5 Fig.4.4-6 Fig.4.4-7 Fig.4.4-8
