GFA Pisa User manual

Pisa Swivel Recliner
DESCRIPTION
TV Chair With Footstool
LINE ART
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

This product is designed to seat people up to a maximum of 115kgs (18 stone)
Check and re-tighten parts/nuts & bolts every three months
For any assistance with assembly, please contact Global Furniture Alliance on 01291 645080
Option 2or email [email protected]
Alternatively you can go to the following websites :-
www.youtube.com (YouTube Channel - Global Furniture Alliance)
www.gfa.uk.com (Product Ranges - Assembly Instruction Videos)
For any missing/damaged parts, please contact your retailer.
Please retain these instructions for future reference and in case of any queries, please quote the
following batch number to your retailer. (The batch number is also located on the underside of
the seat pad or footstool pad)
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com
FLAME RETARDANCY
GFA’s leathers/bonded leathers/PUs/fabrics meet the requirements of BS5852 Part 1 Source 0
(Cigarette) Ignition Source 1 (Match) as laid out in the UK Furniture and Furnishings (Fire) (Safety)
Regulations 1988 with amendments in 1989, 1993 and 2010.

IMPORTANT: Please read this manual carefully before beginning
assembly of this product. Keep this manual for future reference.
Identify all the parts and hardware.
Do not discard any of the packaging until you have checked that you have all of the parts and
hardware required. Hardware package may have spare parts.
WARNING: This item contains small parts which can be swallowed by children and pets. Keep
children and pets away during assembly. To avoid danger of suffocation, always keep plastic bags
away from children and pets.
We recommend that you assemble this unit on a carpeted floor to avoid scratches. We do not
recommend the use of power tools for assembly as this could damage the unit. Only use manual
tools.
Requires 2 people for ease of assembly.
SAFETY INFORMATION
CARE and MAINTENANCE
Wipe regularly with clean water and a damp, clean, soft white cloth
General cleaning can be done as needed with a mild detergent and water solution. Always rinse
with clean water and dry.
For heavy soiling, dampen a soft white cloth or soft bristle brush. Use care as scrubbing can damage
the surface.
More difficult stains can be treated, but this should be occasional, not daily, cleaning.
ANY cleaning solution used must be removed with clean water and a clean white cloth. Cleaning
residue left on the material can cause it to dry out and crack, or affect the colour.
DO NOT use any cleaners with corrosive ingredients (lye, acids or ammonia).
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

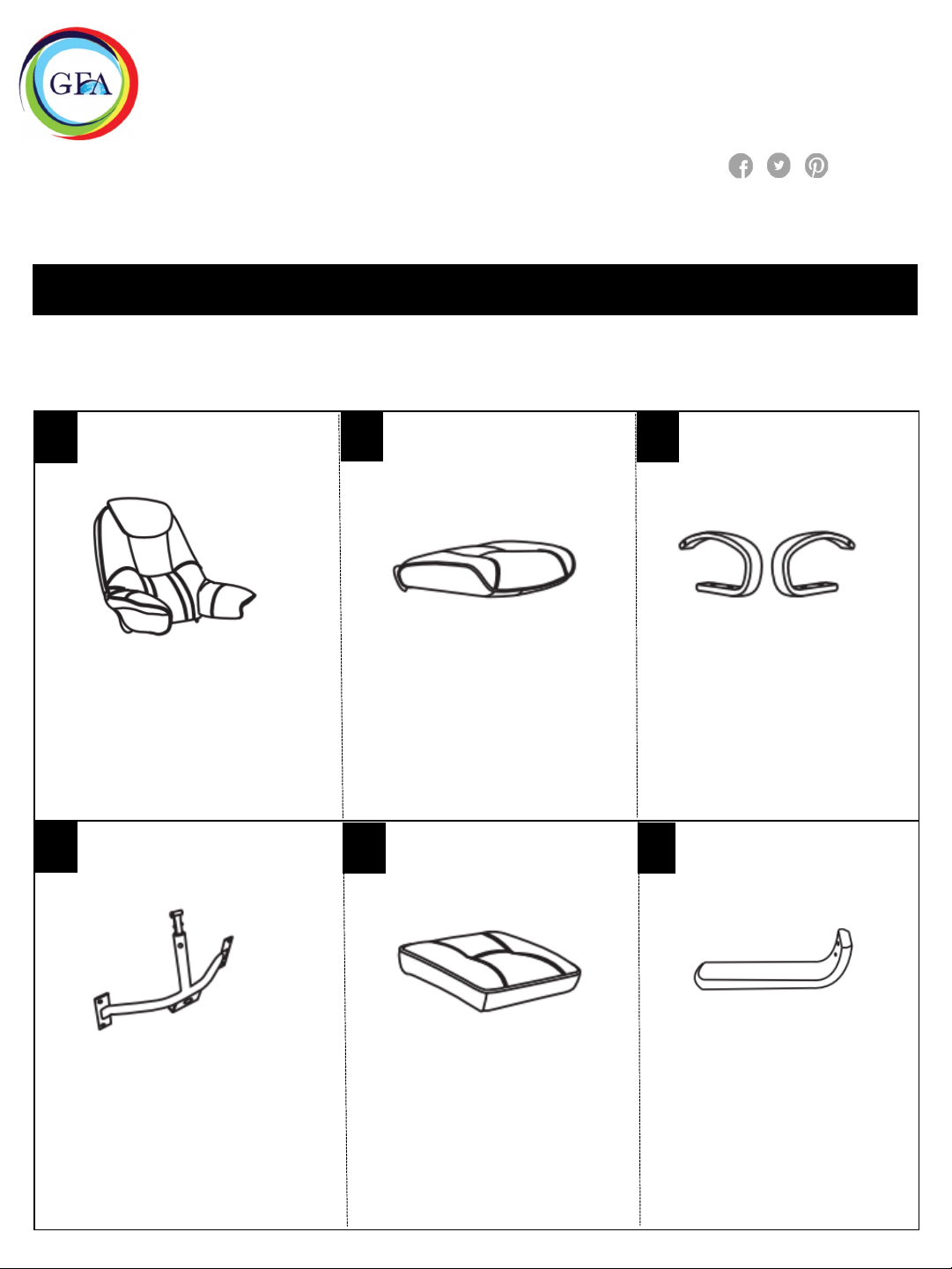

PRE-ASSEMBLY INFORMATION
PARTS DESCRIPTION
B
AC
E
D
Back Cushion
Qty 1
Seat Cushion
Qty 1
Left Armrest &
Right Armrest
Qty 1 Set
U-Frame
Qty 1
Footstool Pad
Qty 1
F
Chair Leg
Qty 5
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

PRE-ASSEMBLY INFORMATION
PARTS DESCRIPTION

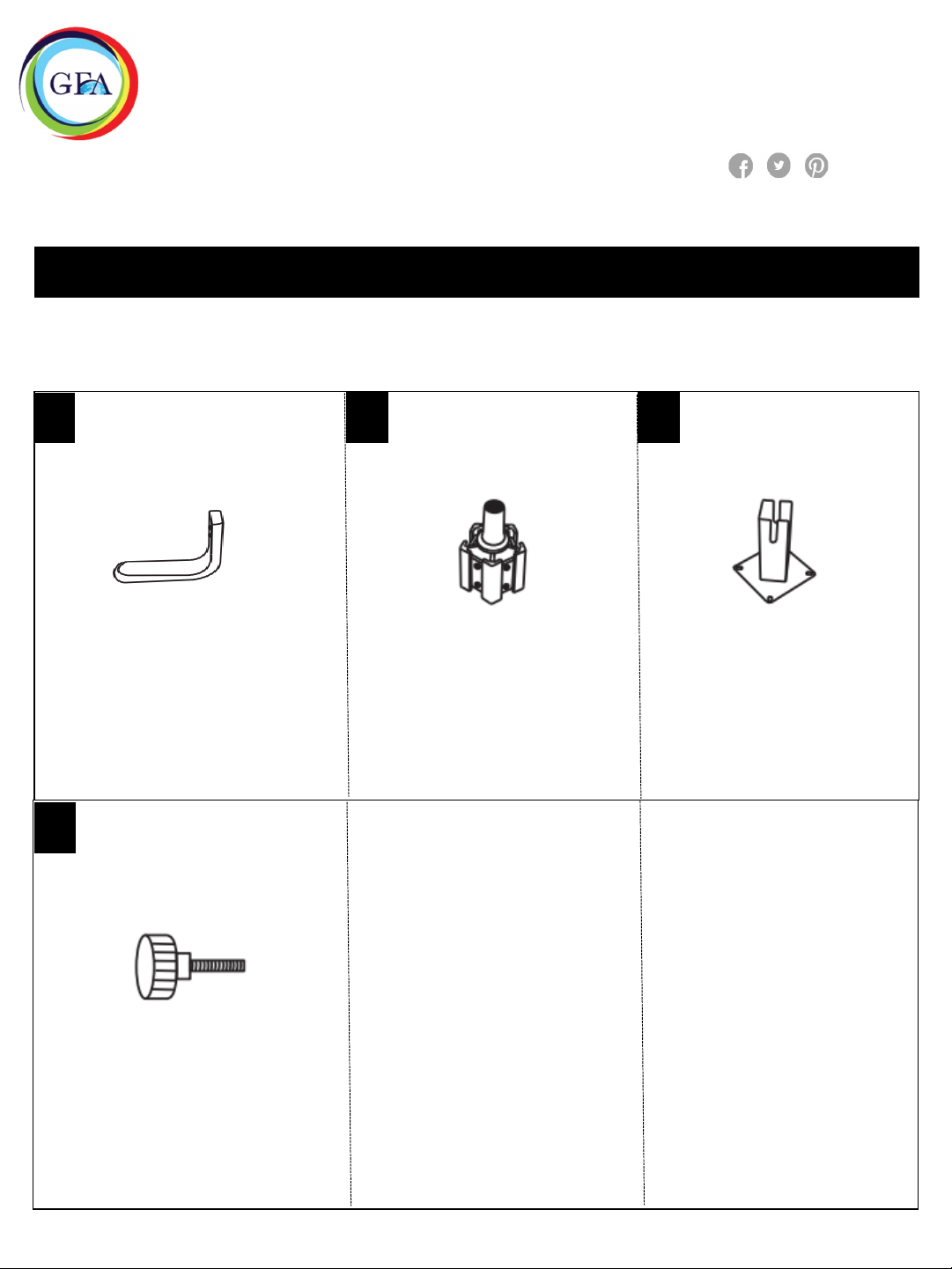

H
G
Footstool Leg
Qty 4
Chair Spindle
Qty 1
Footstool Spindle
Qty 1
I
J
Adjustable Handle
Qty 1
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

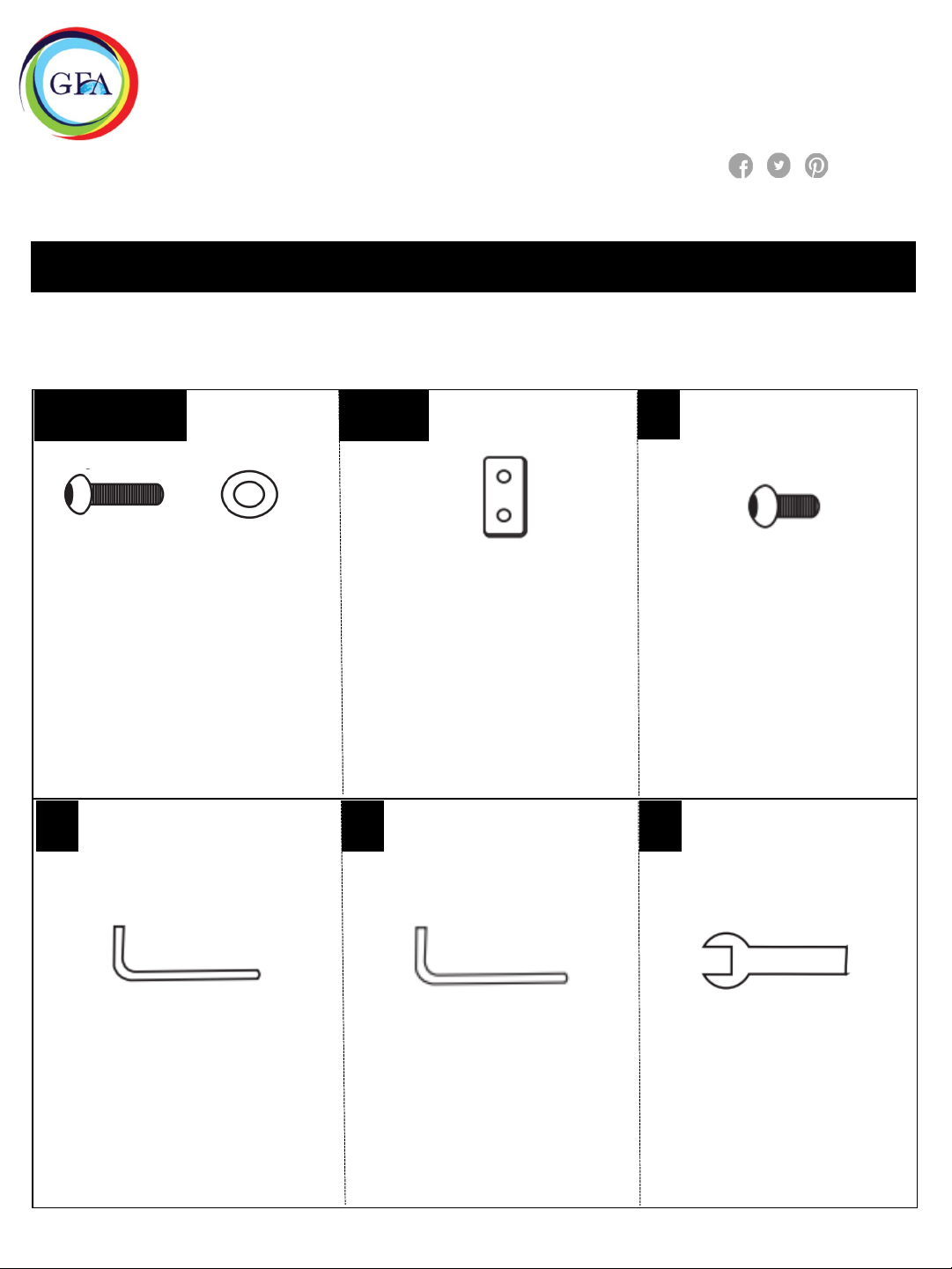

PRE-ASSEMBLY INFORMATION
HARDWARE DESCRIPTION
LK M
O-a/b/cN
Allen Key Screw
M8*25mm
Qty 4
Allen Key Screw
with Locking Nut
M8*60mm
Qty 1
Allen Key Screw
M8*35mm
Qty 18
Allen Key Screw
with Ferrule and
Cap M8*60mm
Qty 2
P
Big Washer
8.5*22*2mm
Qty 18
Connection and
Locking Clip
Qty 2
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

PRE-ASSEMBLY INFORMATION
HARDWARE DESCRIPTION
RQ-a/b S
T
Footstool
Bracket
Qty 4
M6 Allen Key
Qty 1
Allen Key Screw
M6*50mm
Qty 4
Small Washer
6.5*18*1.5mm
Qty 4
Allen Key
Screw
M6*16mm
Qty 4
M8 Allen Key
Qty 1
Large Allen
Wrench
Qty 1
U V
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

ASSEMBLY
STEP 1

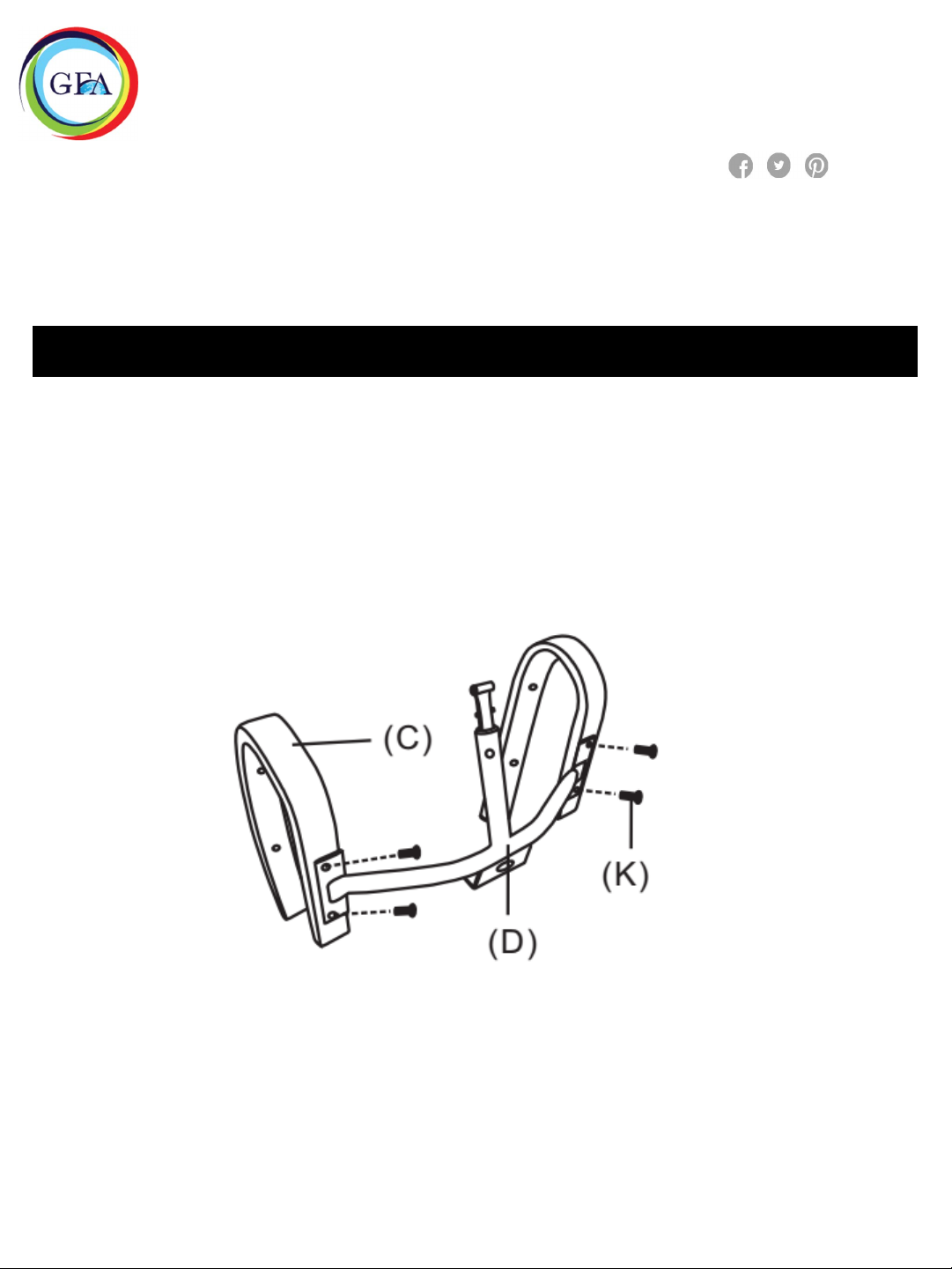

Attach the extension tube (D) to the armrests (C) with four allen key screws (K), and
finger tighten with M6 allen key (T) .
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

ASSEMBLY
STEP 2
Insert the adjustable handle (J) into the hole on the extension tube (D) and tighten with
clockwise rotation.
Position seat cushion (B) as shown and align the the holes on the seat cushion with the
extension tube,connecting the seat cushion and extension tube by using allen key screw with
locking nut (L) , finger tighten with large allen wrench (V) and M8 allen key (U) .
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com
ASSEMBLY

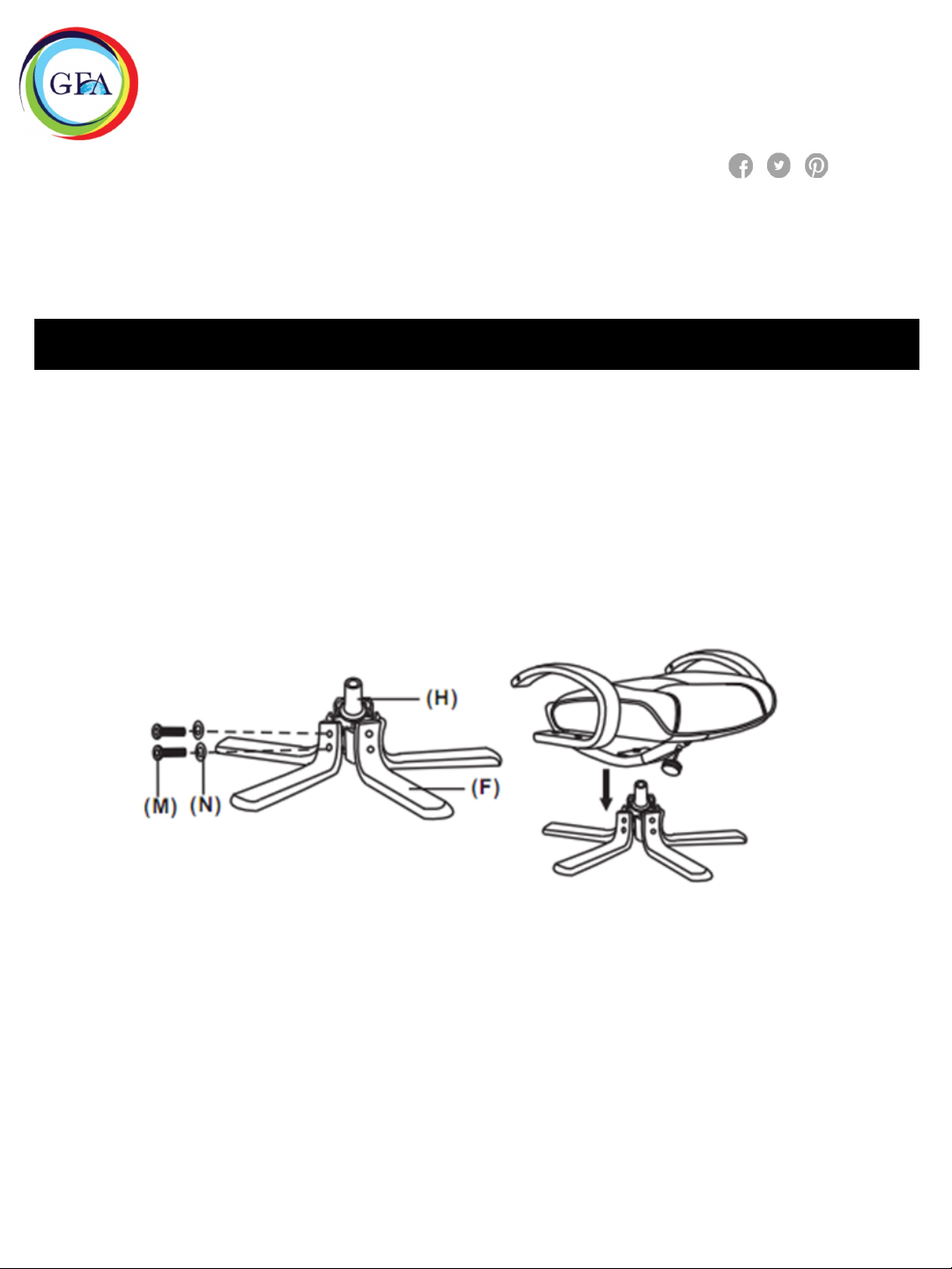

STEP 3
Align the holes on the chair spindle (H) and the holes on the chair legs (F) as shown,
tighen the legs to the spindle one by one with allen key screws (M) and washers (N) by
using M6 allen key .
Then align the hole at the centre of the extension tube to the chair spindle, press the seat
cushion down so that it rests firmly .

ASSEMBLY
STEP 4
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

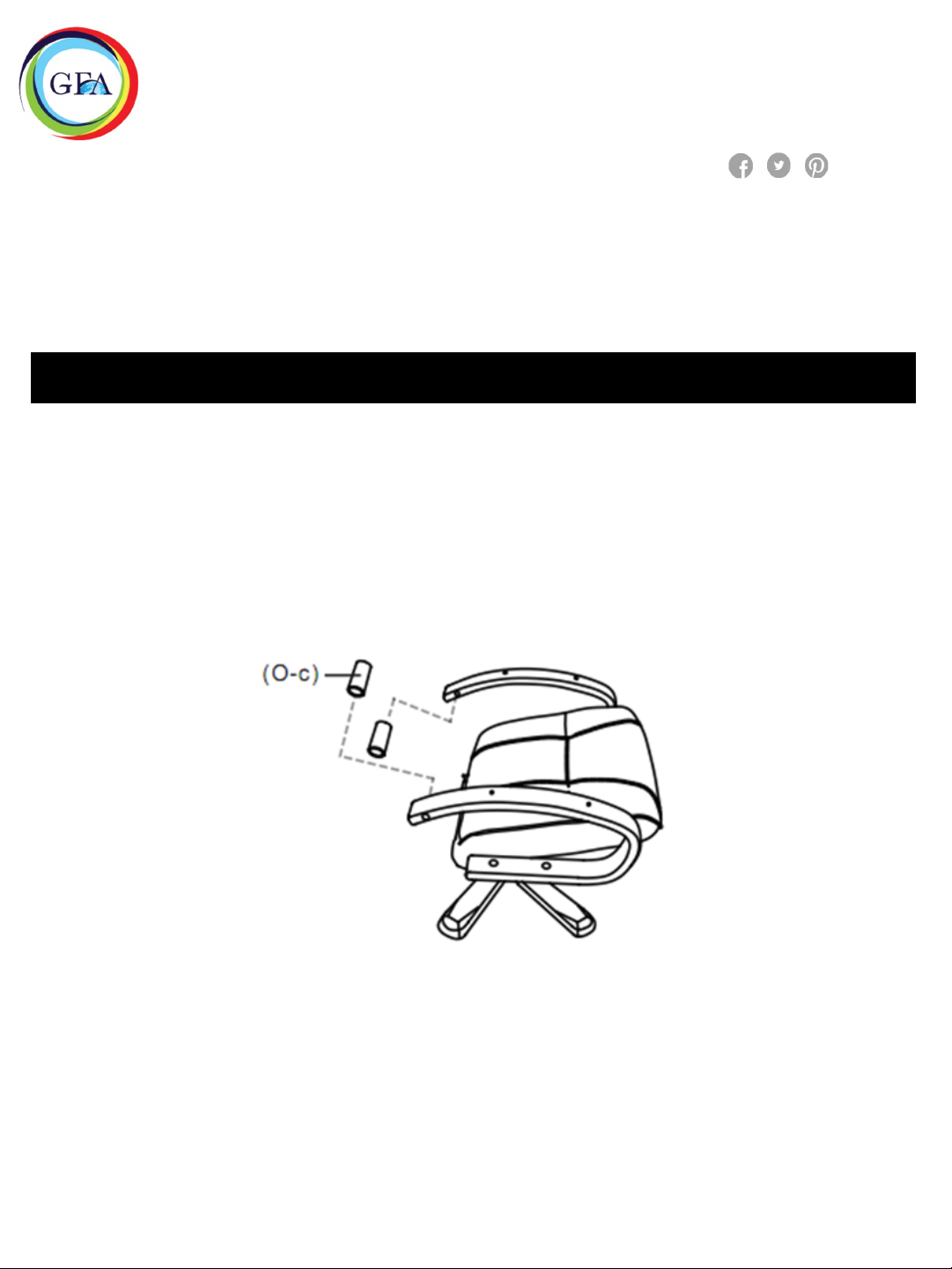

Insert the ferrules (O-c) into the holes of armrests as above diagram shows .

ASSEMBLY
STEP 5
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

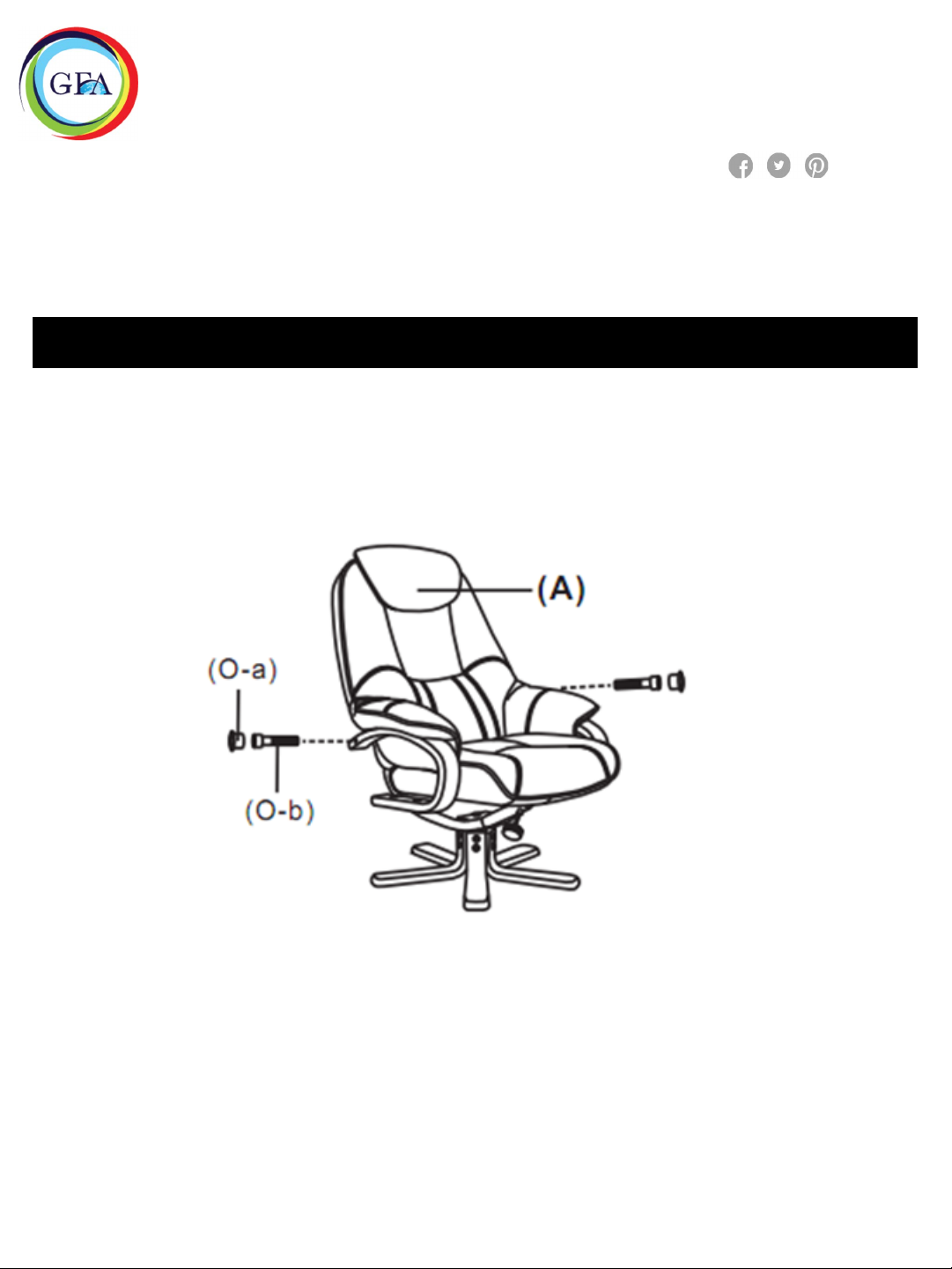

Position the back cushion (A) as shown, attach the back cushion to the wood armrests
with two allen key screws (O-b) and two screw caps (O-a) like the diagram shows above,
finger tighten with M8 allen key (U).

ASSEMBLY
STEP 6

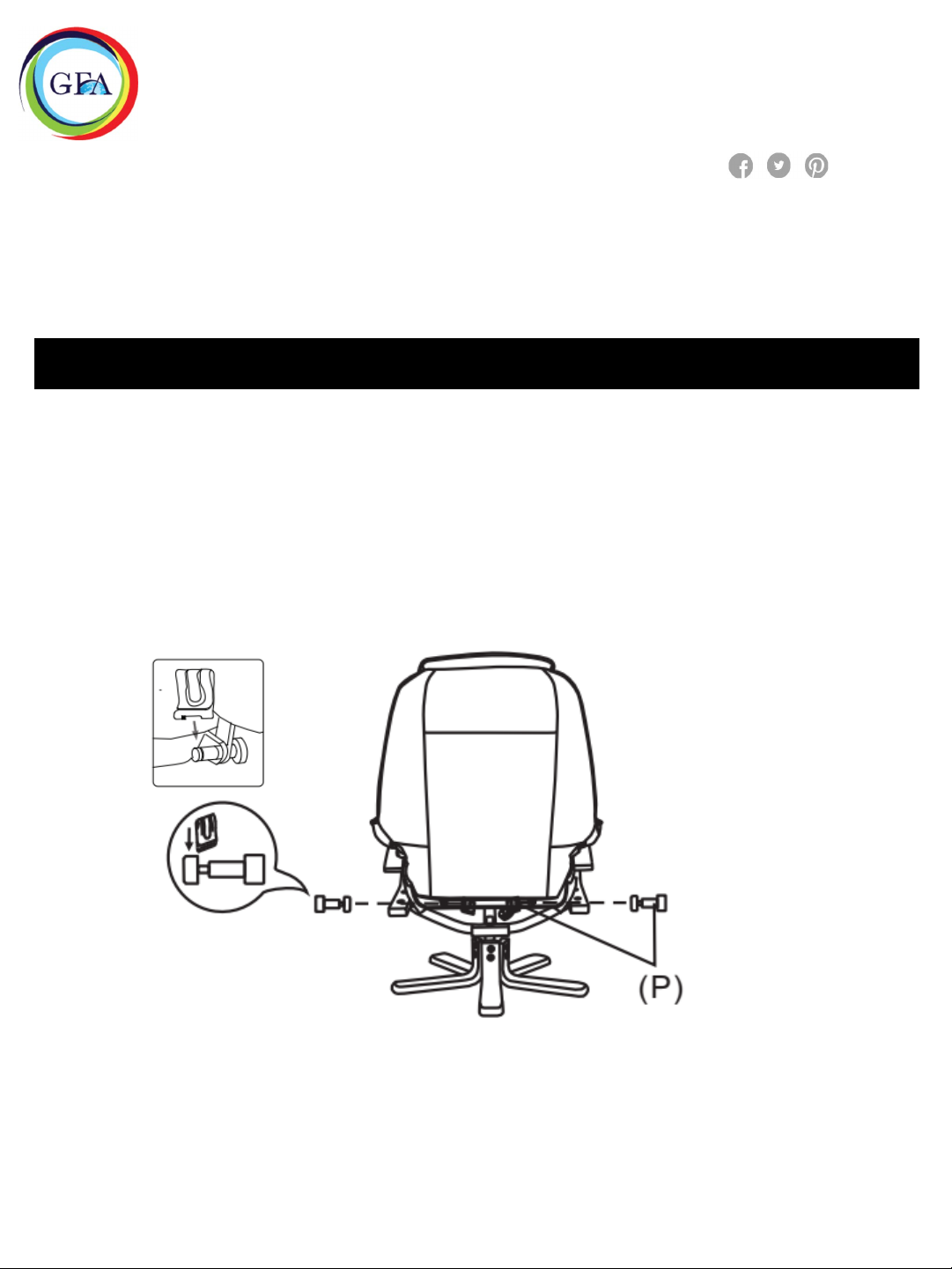

Come to the back of the chair, align the hole on the metal hinge pieces of back cushion and seat
cushion, put the connection clips (P) through the holes, then fix it with the locking clips (P) as the
detailed picture showsabove .
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

ASSEMBLY
STEP 7

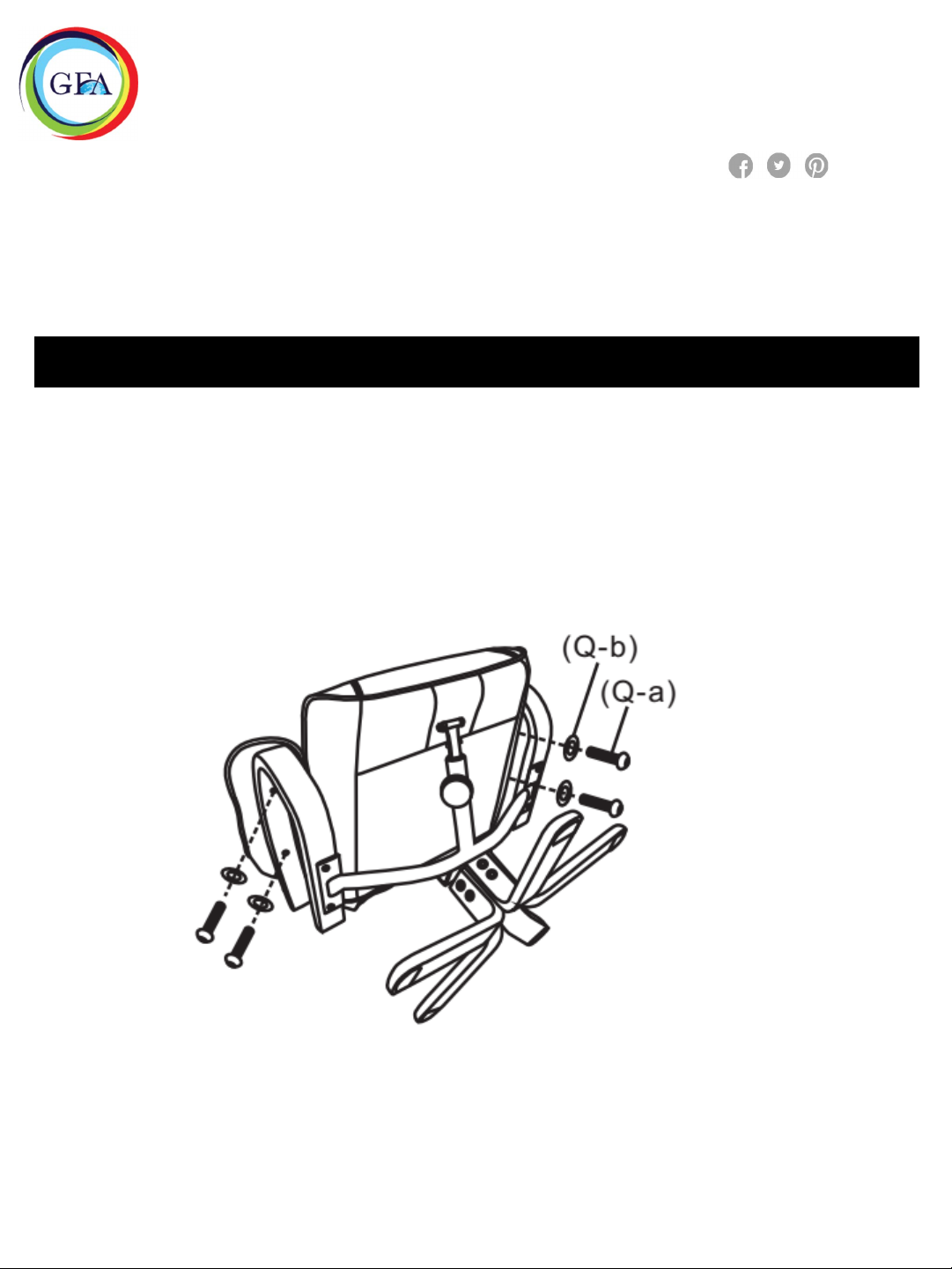

Fix the wood armrests to the armrest pads with four allen key screws (Q-a) and four small
washers (Q-b), finger tighten by using M6 allen key (T).
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

ASSEMBLY
STEP 8

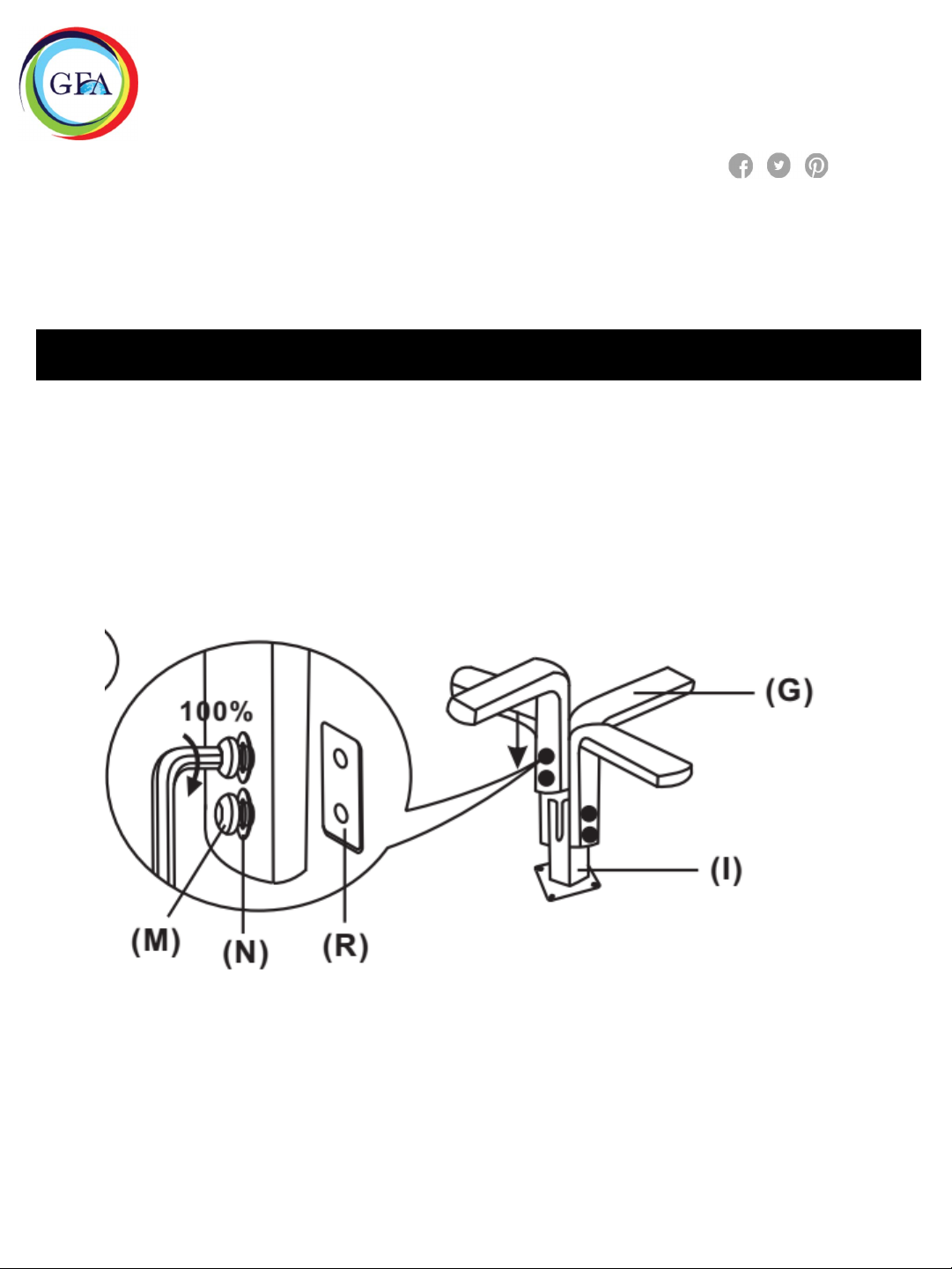

Assemble the footstool spindle (I) and footstool legs (G) together, put the footstool bracket (R)
behind the groove of the footstool spindle (I), align the holes and then tighten with allen
screws (M) and washers (N) by using M6 allen key (T).
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

ASSEMBLY
STEP 9

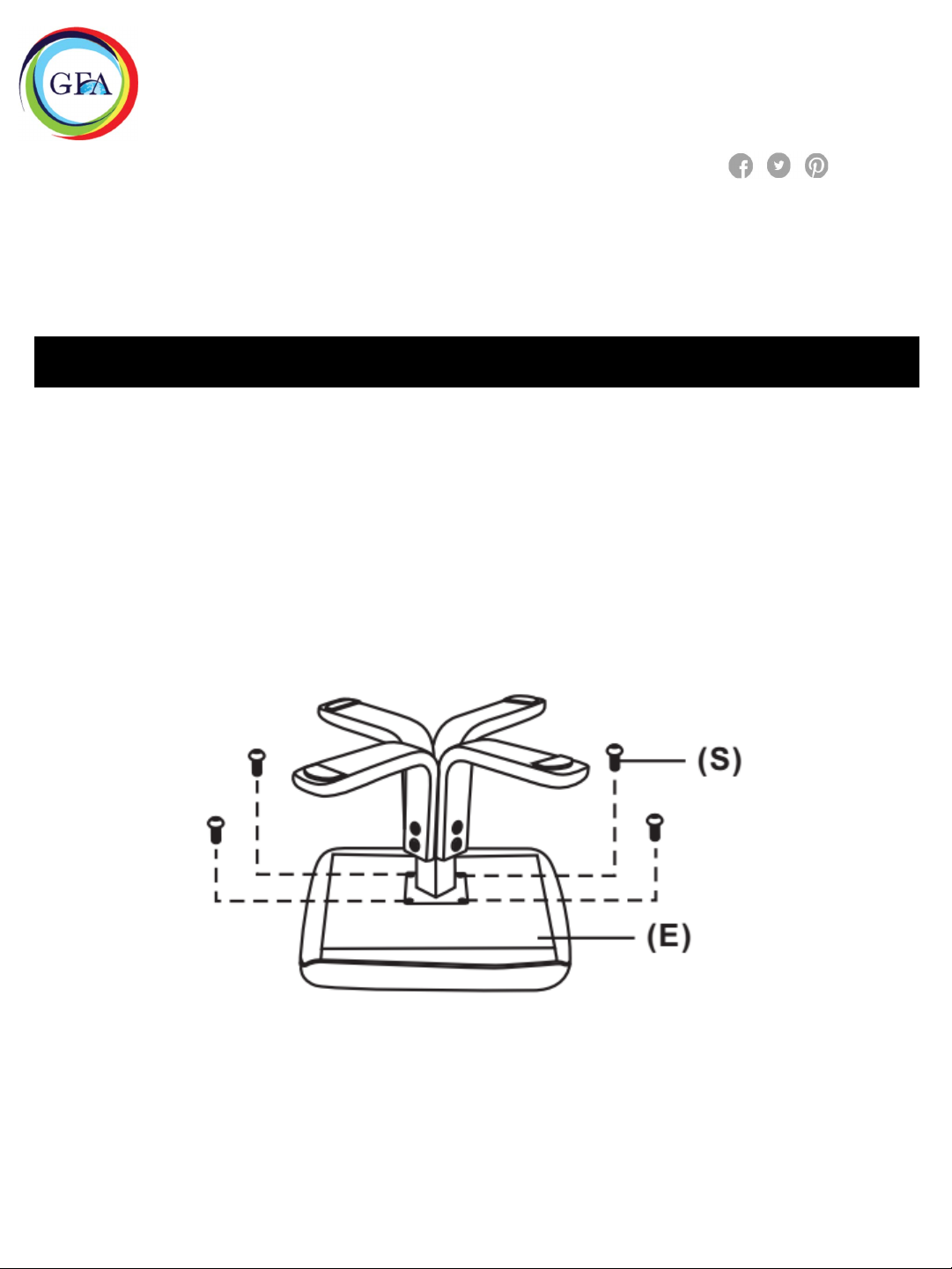

Attach the footstool spindle to the footstool pad (E) with allen key screws (S), then tighten the
screws with M6 allen key (T).
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

ASSEMBLY
STEP 10
Flip the footstool over and place in front of the chair.
Adjustable handle function -Twist clockwise to tighten the tilt tension OR twist anti-clockwise to
loosentilt tension .
GLOBAL FURNITURE ALLIANCE LTD
t. 01291 645080
f. 01291 645099
e. [email protected]
www.gfa.uk.com

Thank you for purchasing a product from Global Furniture Alliance Ltd. These products have been
made to demanding, high-quality standards and are guaranteed for domestic use against
manufacturing faults for a period of 12 months from the date of purchase. This warranty does not
affect your statutory rights.
We reserve the right to repair or replace the defective product, at its discretion.
This product is guaranteed for 12 months if used for normal purposes. Any warranty is invalid if the
product has been overloaded or subject to neglect, improper use or an attempted repair by anyone
other than an authorized agent. Heavy-duty or daily professional/commercial usage are not
guaranteed.
Due to continuous product improvement, we reserve the right to change the product specifications
without prior notice.
