GHIELMETTI GMS 3164 Dante User manual

Dante Monitoring System
GMS 3164 Dante
Manual
Edition 02/2020

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 3 of 37
Contents
1 Introduction ........................................................................................................................................................................................5
2 General description ..........................................................................................................................................................................6
2.1 Front Side .................................................................................................................................................................................... 6
2.2 Back side ...................................................................................................................................................................................... 6
3 GMS 3164 ante - System ............................................................................................................................................................7
4 Installation and Start-up ................................................................................................................................................................8
5 Manual operation on device ........................................................................................................................................................9
5.1 Boot screen ................................................................................................................................................................................. 9
5.2 Controls ..................................................................................................................................................................................... 10
5.2.1 Navigation knob ................................................................................................................................................................................. 10
5.2.2 Volume knob ....................................................................................................................................................................................... 10
5.2.3 Balance knob........................................................................................................................................................................................ 10
5.2.4 User button ........................................................................................................................................................................................... 10
5.2.5 Mode button ........................................................................................................................................................................................ 11
5.2.6 Headphone Out .................................................................................................................................................................................. 11
5.3 Navigation – Navigation knobs ....................................................................................................................................... 11
5.4 Audio Monitoring ................................................................................................................................................................. 12
5.5 Meter Mode ............................................................................................................................................................................ 13
5.5.1 Status information ............................................................................................................................................................................. 14
5.5.2 Channel selection ............................................................................................................................................................................... 15
5.5.2.1 etail information....................................................................................................................................................................... 15
5.6 Menu Setup ............................................................................................................................................................................. 17
5.6.1 Setup Structure ................................................................................................................................................................................... 17
5.6.2 Main Menu............................................................................................................................................................................................ 18
5.6.2.1 Monitoring ..................................................................................................................................................................................... 18
5.6.2.1.1 Internal ....................................................................................................................................................................................................... 18
5.6.2.1.2 Analog out................................................................................................................................................................................................ 19
5.6.2.1.3 igital out ................................................................................................................................................................................................. 19
5.6.2.2 Meters .............................................................................................................................................................................................. 19
5.6.2.2.1 Layout – isplay number of channels.......................................................................................................................................... 20
5.6.2.2.2 Assignment .............................................................................................................................................................................................. 20
5.6.2.2.3 Mode .......................................................................................................................................................................................................... 21
5.6.2.2.4 Scale – isplay unit of level meter ................................................................................................................................................ 21
5.6.2.3 Mixing .............................................................................................................................................................................................. 22
5.6.2.4 Audio Network ............................................................................................................................................................................. 22
5.6.2.4.1 isconnect all.......................................................................................................................................................................................... 22
5.6.2.4.2 Rediscover devices ............................................................................................................................................................................... 22
5.6.2.4.3 Connection management .................................................................................................................................................................. 22
5.6.2.5 Info .................................................................................................................................................................................................... 24
5.6.3 Configuration ....................................................................................................................................................................................... 24
5.6.4 ialogue ................................................................................................................................................................................................. 25
5.6.4.1 Numeric value .............................................................................................................................................................................. 25
5.6.4.2 IP Address ...................................................................................................................................................................................... 26
5.6.4.3 Radio buttons (1 off n) with value ....................................................................................................................................... 26
6 Remote manual .............................................................................................................................................................................. 27
6.1 Open web browser ............................................................................................................................................................... 27
6.2 Remote dialog ........................................................................................................................................................................ 27
6.2.1 Monitoring dialog .............................................................................................................................................................................. 28

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 4 of 37
6.2.2 Settings dialog .................................................................................................................................................................................... 29
6.2.2.1 Input Channel List ....................................................................................................................................................................... 29
6.2.2.2 Mixer List ........................................................................................................................................................................................ 30
6.2.3 About ialog ........................................................................................................................................................................................ 31
6.3 SW Update ............................................................................................................................................................................... 31
6.4 ante Firmware Update ..................................................................................................................................................... 33
7 Standards and approvals ............................................................................................................................................................ 35
7.1 CE eclaration ........................................................................................................................................................................ 35
7.2 Standards.................................................................................................................................................................................. 35
8 Technical data ................................................................................................................................................................................. 36

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 5 of 37
1 Introduction
GMS 3164 Dante is a monitoring and metering device that can display up to 64 AoIP channels from
the ante network.
GMS 3164 Dante can be operated with its front elements on the device («Local-GUI » with display
and buttons) and remotely through a WEB browser («Web-GUI») for monitoring meters.
GMS 3164 Dante has a separate LAN/Ethernet port for remote viewing or for updating software.
Following we use the term «GUI» for both above operating modes, and AoIP-channels are termed
«Dante-Channel» or «Channel», respectively (for more Information visit https://www.audinate.com).

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 6 of 37
2 General description
GMS 3164 Dante is an Audio monitoring device for display, listen and observe Audio over IP signals
from a ANTE network. Beside many special futures you can display up to 64 ante channels. For its
function you don’t necessarily need a ante-Controller.

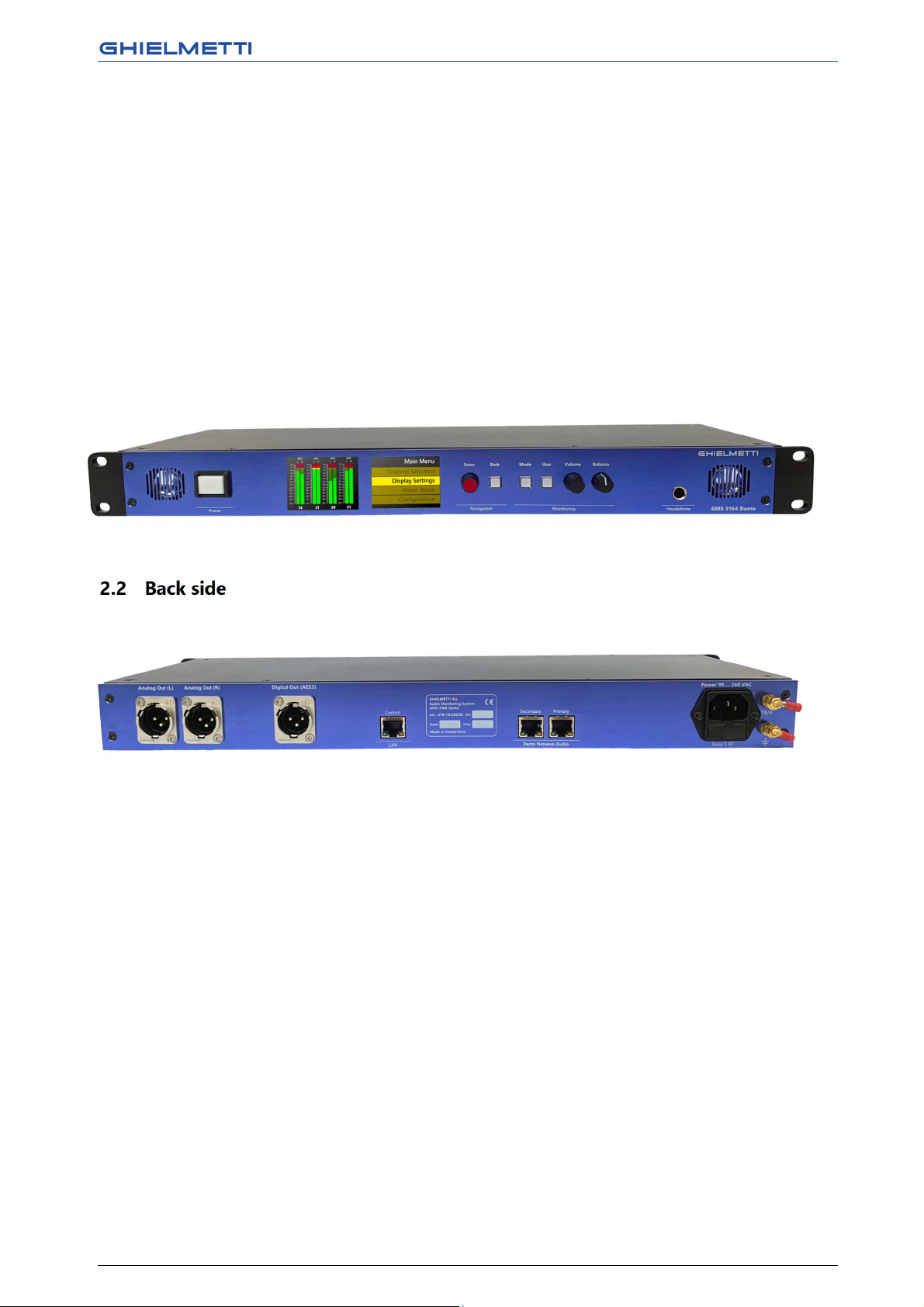

2.1 Front Side
GMS 3164 Dante is a 19”, 1RU device with steel and aluminium body. Assembly depth is 150 mm.
2.2 Back side

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 7 of 37
3 GMS 3164 Dante - S stem
« GMS 3164 Dante -S stem» includes the GMS 3164 ante - Hardware (Embedded Hardware), GMS
3164 ante - Firmware (Embedded Software) and GMS 3164 ANTE-Web-GUI-Software (Internet-
Browser-Web pages).

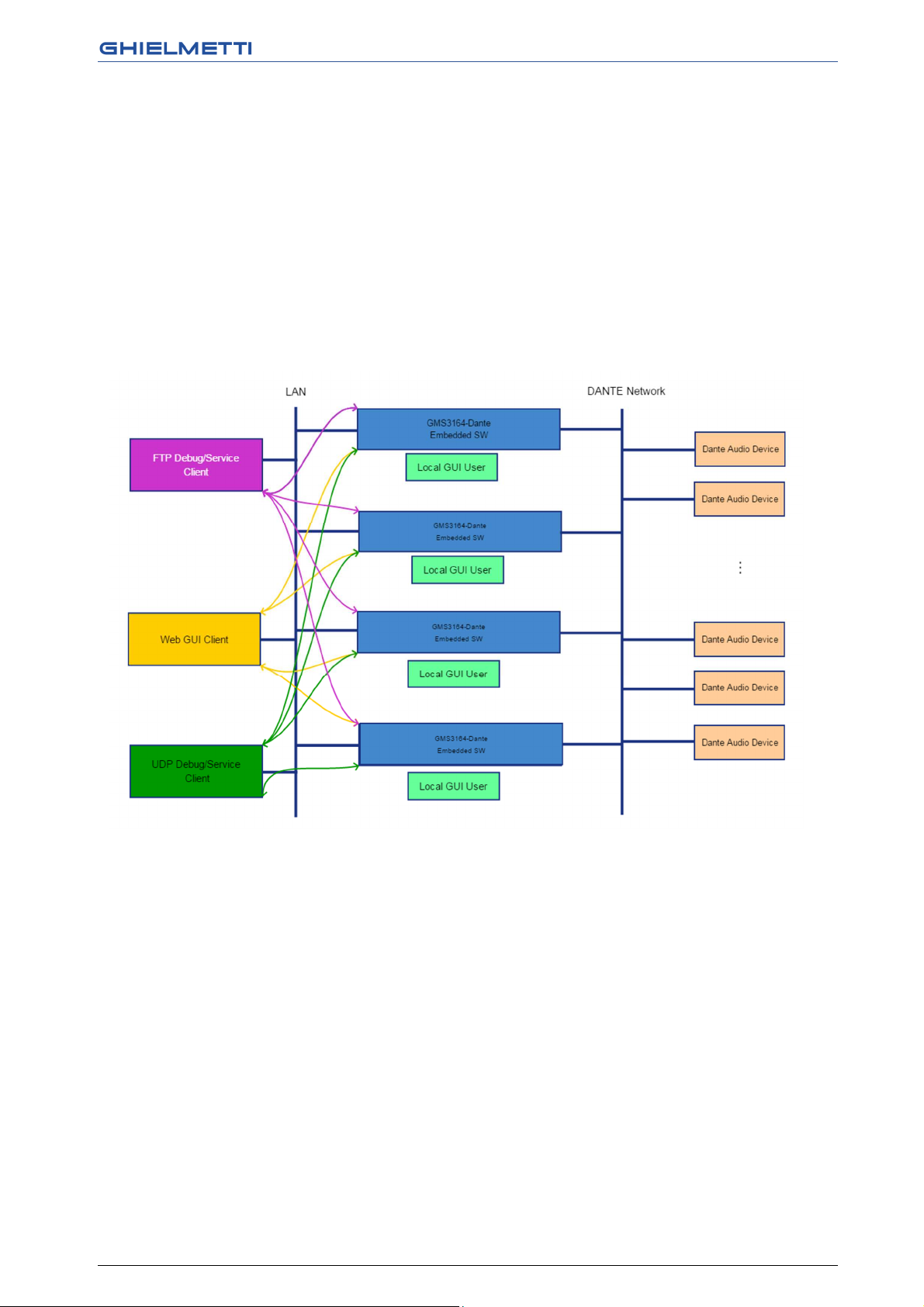

System overview

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 8 of 37
4 Installation and Start-up
The installation includes plug-in the main supply and connect to the Dante-Network.
After you push the Power button on the front of the device the system will start automatically. At
system start-up, the device will connect to the Dante network and all active channels will be
displayed.
GMS 3164 Dante can be used locally (Cap. 6) or remotely over the web browser (for best
performance with Google Chrome).
Analog Out
(left)
Line Signal
Analog Out
(right)
Line Signal
Digital Out
AES/EBU-Signal
LAN port for
-Remote onitoring
-Remote SW-Update
DANTE-Network
Primary-port
DANTE-Network
Secondary-port
(for redundant
Dante
n
et
work
)
ain supply
90 … 260 VAC
Body earthing
connection
Technical
earthing (TE)
Audio

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 9 of 37
5 Manual operation on device
5.1 Boot screen
Start-up time for the Brooklyn II is about 8 seconds. While booting you will see below display. By
pushing the „back“ button you can skip the boot screen. On the bottom of the start-up screen, there
is a progress bar, which shows the progress of start-up procedures.

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 1 of 37
5.2 Controls
5.2.1 Navigation knob
As an interface for GUI use the knob with push function (enter) or the button (back) right next to
the screens on the right side.
5.2.2 Volume knob
With push function to select the output (intern speaker / headphone, analog out, digital out)
5.2.3 Balance knob
(intern speaker / headphone, analog out, digital out)
5.2.4 User button
Standard function: mute.
Optional programable for other functions.
Speaker left
ain Switch
On/Off
Colour TFT Display
left
2.2 inch
240 x 320 Pixel
Colour: 65K
Colour TFT
Display right
2.2 inch
240 x 320 Pixel
Colour: 65K
Navigation knobs
With push
funktion(Enter) ESC-Button for
Back
and
Cancel
Speaker right
ode for: select the
channel to monitor
User/ ute for:
Speaker
Headphone
Analog Out
Digital Out
Volume for:
- Speaker
- Headphone
- Analoge Out
-
Digital Out
Balance for:
- Speaker
- Headphone
- Analoge Out
- Digital Out
Headphone-Out
6.35mm

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 11 of 37
5.2.5 Mode button
For Switching between mono channel, stereo channel or olby 5.1 (if activated)
olby 5.1: selects 6 channels simultaneously. The Order of the channels is defined by: left, right,
centre, effect (subwoofer), surround left und surround right
Stereo mix will produce the following down mix:
Left channel: left (0dB) + centre (-3dB) + Surround left (-3dB)
Right channel: right (0dB) + centre (-3dB) + Surround right (-3dB)
5.2.6 Headphone Out
When a headphone is plugged, speakers on the device are automatically turned off.

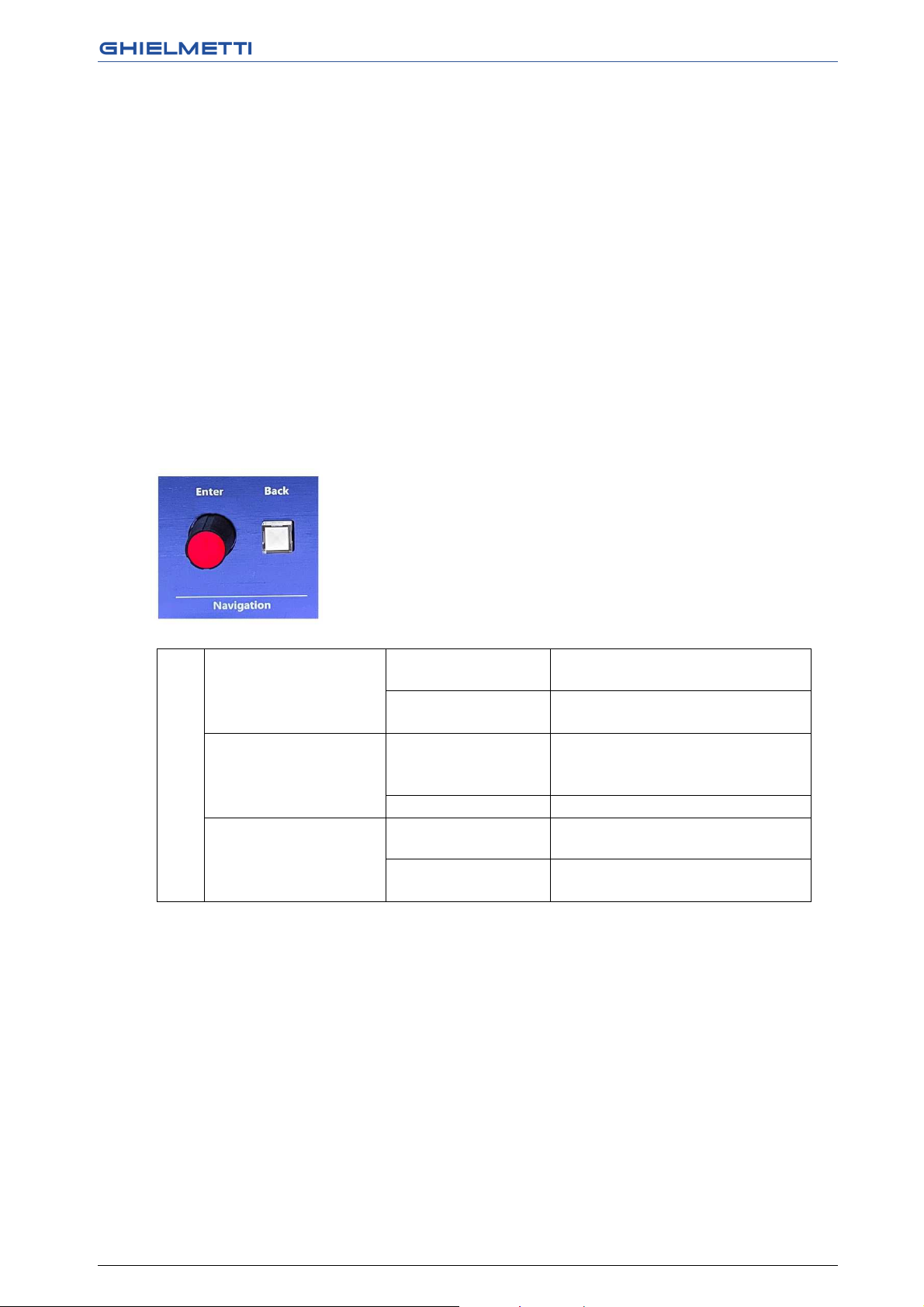

5.3 Navigation – Navigation knobs
Navigation
Navigation knob

Turn clockwise

menu navigation up
 raise value

Turn
counter
clockwise

menu n
avigation
down
 reduce value
Enter
b
utton
on navigation knob

Push
(normal)

C
all
-
up
a
udio
m
eter
i
nformation
 select menu item

accept
value

Push
(
>
2 sec
)

Call
-
up
main menu
Back
button

Push
(normal)

1 s
tep back in settings

Leave the actual screen

Push
(
>2 sec
)

From any
s
creen/
m
enu

back to the channel view

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 12 of 37

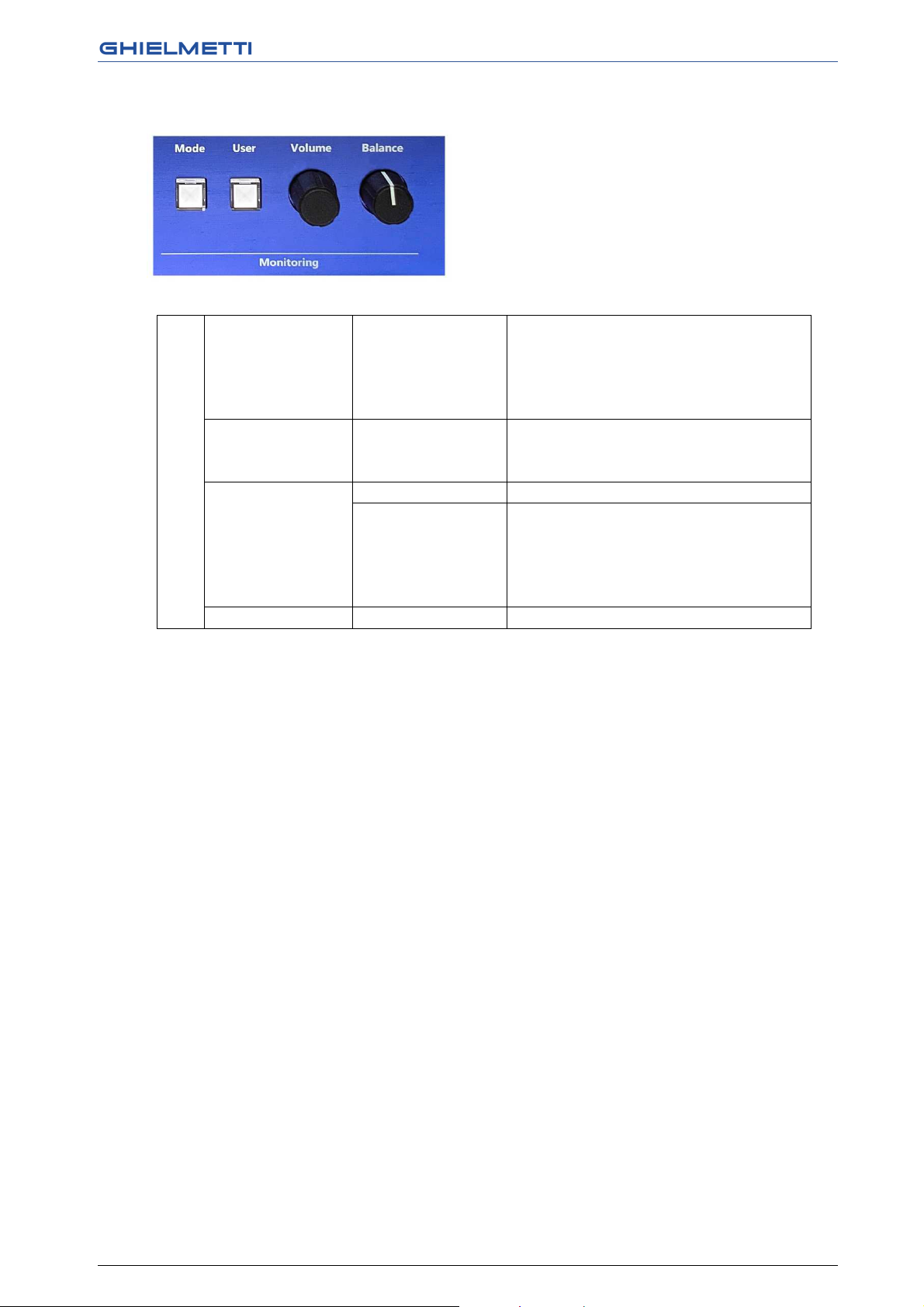

5.4 Audio Monitoring
Monitoring
Mode
button

P
ush
(normal)

Switch between different mode
s
of the
level meters:
 mono channel
 Stereo channel

Dolb 5.1
User
button

P
ush
(normal)

Mute
 Execution of the function, which is
assigned by the user (as of SW v4)
Volume
knob
push function

Turn

raise or reduce the volume

P
ush
(normal)

Select the
output
, on
which
the volume
control should be activated:
 Speakers and headphone (Int)
 Analog Out (Aout)

Digital
Out
( out)
Balance
-
knob

Turn

Balance
for the
active output

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 13 of 37

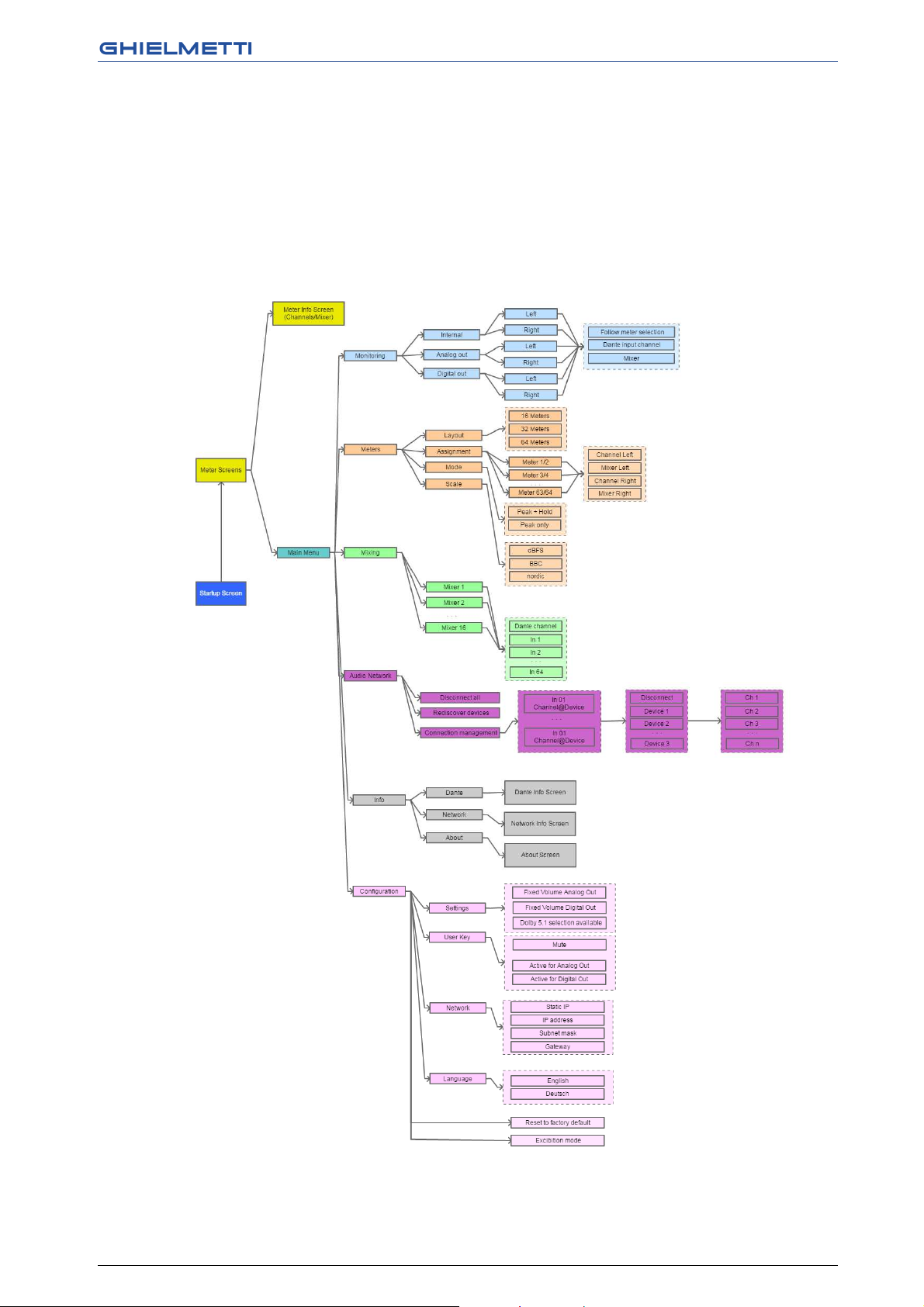

Schematic depiction of the navigation:
5.5 Meter Mode
Generally, the device is in „meter mode“.
For the metering of either 16, 32 or 64 channel both screens are in use. In case you call-up the
settings menu of the device, this will be shown on the right screen while the left screen is still in use
for monitoring.

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 14 of 37
5.5.1 Status information
In the header of the screen there are status information displayed:
 Pri. / Sec:
ante Network Primary / Secondary (grey: no communication with Brooklyn Module, green: active,
red: inactive)
 GMS3164-xx zz:
evice name from GMS 3164 ante Monitor (xxyyzz: last 3 Bytes from MAC-Address)
 nn %:
Actual value of the volume (Int, Aout, out). Active output can be chosen by pressing the volume
knob.
 Int:
Speaker / Headphone
 Aout:
Analog Out
 Dout:
igital Out

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 15 of 37
5.5.2 Channel selection
With the Navigation knob, one can select the channels to be monitored.
The selected channel(s) will be marked with a yellow square
Mono channel:
Dual channel:
The Channel number shows-up in different colours:
- Gre : In active connection on the channel
- White: Channel connection is loading
- Green: Active channel connection
- Red: Failure, no channel connection
- Blue: Channel is connected to the mixer

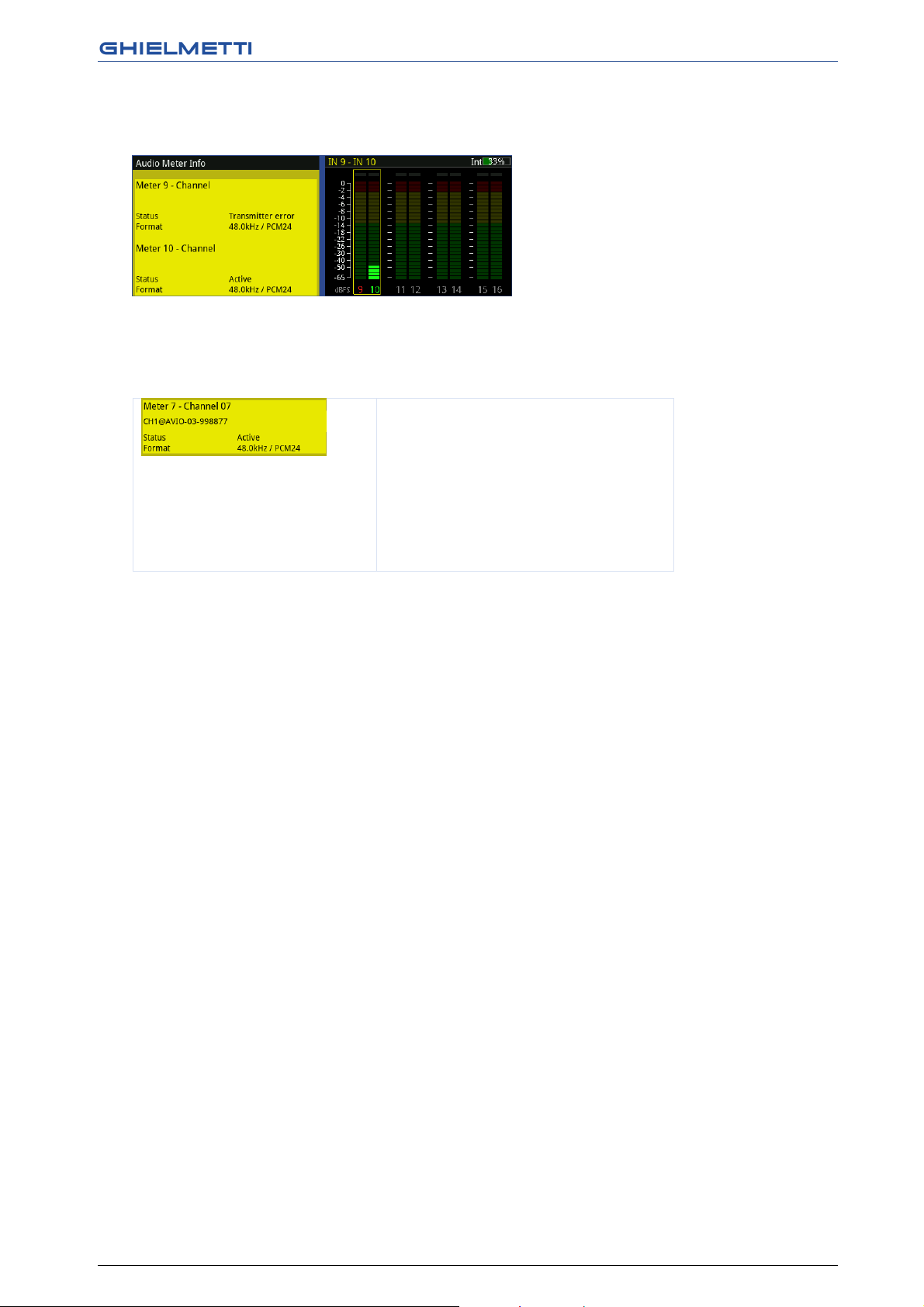

5.5.2.1 Detail information
To display the detail information about the selected channel(s), press the Enter button

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 16 of 37
epending on which screen the channel is chosen, the information window will show-up on the left or
on the right hand side.
In Audio Meter Info window, following information is listed:
Name
of the
input
channel
Name of the connection: in the format
channel@device
Status: of the connection
Format: sample rate / decoding

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 17 of 37
5.6 Menu Setup
5.6.1 Setup Structure
The user interface is made from different windows, which depends on the selected function or the
status

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 18 of 37
5.6.2 Main Menu
If no Audio meter is selected, one can call-up the Main Menu by pushing the Navigation knob.
The Main Menu can also be called from any window by long pressing (>2 sec) the Enter button.
The Main Menu will always be displayed on the right-hand screen.
5.6.2.1 Monitoring
In „Monitoring “, one can configure outputs of the ante network channels (listening).
Internal
:
configuration
of
intern
al
speaker
and
headphone
Analog out: configuration of analog output
Digital out: Configuration of digital output
5.6.2.1.1 Internal
Selection
of
left o
r
right channel from intern
al
speaker or headphone:
Left: left channel
Right: right channel
Follow m
eter
s
election
:
listen to
the selected
audio meter
Fix. Dante Channel: selected channel will be
played (Channel 1,2, … or 64)
Mixer: selected mixer will be played (mixer
1,2, … or 16)

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 19 of 37
5.6.2.1.2 Analog out
Same menu and same parameter as ‘Internal’.
5.6.2.1.3 Digital out
Same menu and same parameter as ‘Internal’.
5.6.2.2 Meters
This menu allows the configuration of displayed audio meters
La out
:
isplay
the
number of
channels
(16,
32 or 64)
Assignment: Configuration of the audio
meters (groups in the view).
Mode: Configuration of the level meter mode
(Peak Hold or Peak onl )
Scale: display of the level meter unit:
dBFS, BBC, nordic

GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/ 3. 2.2 2 Page 2 of 37
5.6.2.2.1 La out – Displa number of channels
16 channels:
32 channels:
64 channels:
5.6.2.2.2 Assignment
Configuration of the audiometer. Always configured as a pair of channels.
Selection
of the
a
udio meter to
be
configur
ed
Meter 1/2, 3/4 … 63/64
Show ante input channel on
left meter
.
Show mixer channel on left meter.
Show ante input channel on right meter.
Show mixer channel on right meter.
