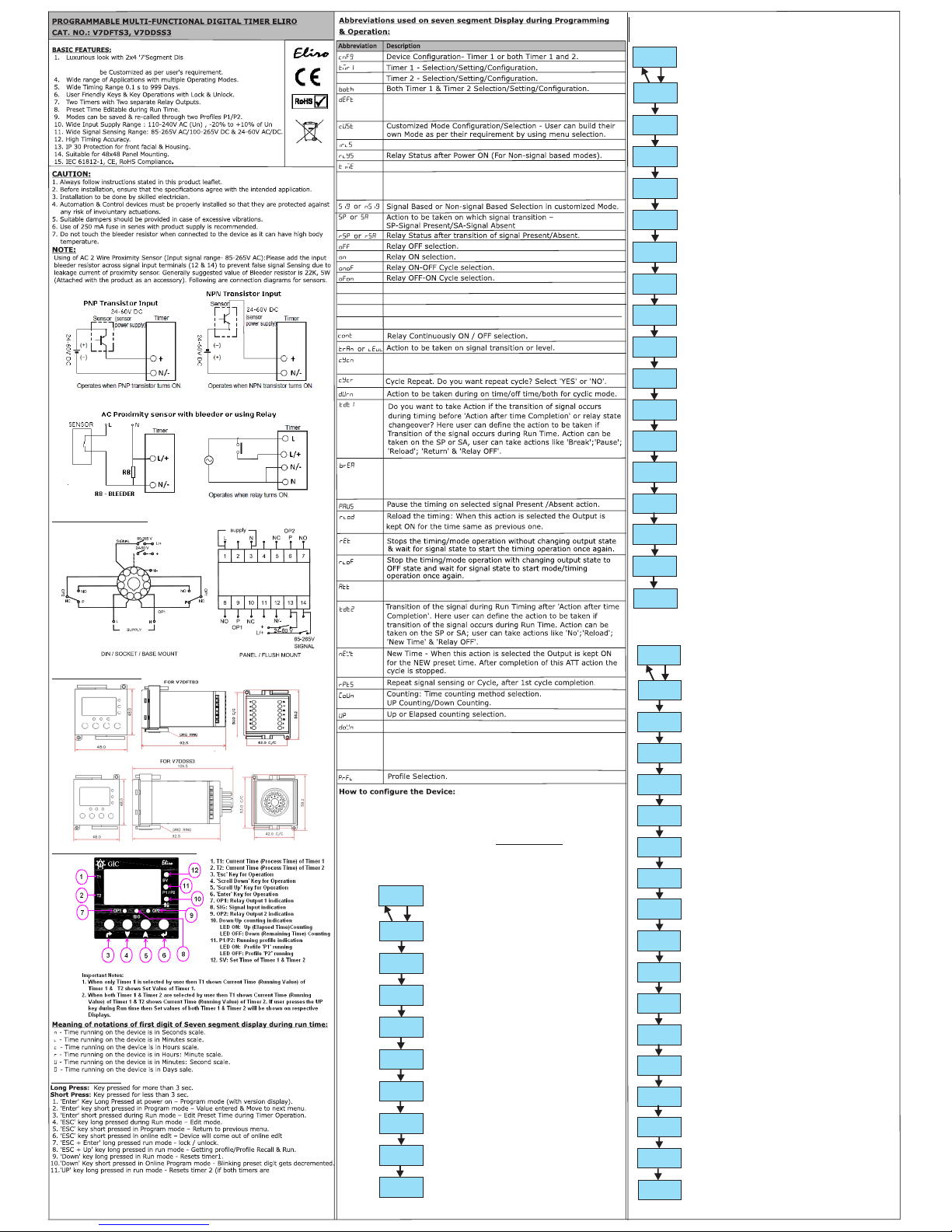

GIC Eliro V7DDSS3Eliro V7DFTS3 User manual

7
8
6
5
4
3
2
1
9
10
11
CONNECTION DIAGRAM:
OVERALL DIMENSIONS:
NOMENCLATURE FOR FRONT FACIA:
Example 1: IMPULSE ON ENERGIZING Select the Menu as given below to configure
the Timers for IMPULSE ON ENERGIZING (Default).
VLL010-05
For Operating procedures of all 35 Defaults modes & Customized modes refer 'User
Manual' which can be downloaded from our website www.gicindia.com.
Example 2: SIGNAL ON/OFF DELAY TYPE (Refer Mode No. 13 on pageno. 02)
Select the Menu as given below to configure the Timers for SIGNAL ON/OFF TYPE 2
(Customized).
2. 35 Default Modes.
Break: If Break condition is selected in tdt1: ATT action is started,
there are four ATT actions Reload, Relay Off, New time and No.
Action will be taken after signal changes its state.If break is applied
no ATT is selected then toggle relay status and stop the cycle.
User can configure the device (Timer 1 or Both Timers) in either Default Mode or
Customized Mode. Following are the examples of Operating Procedures to configure the
device in Default or Customized mode.
T im e r 1 m o d e s e l e c t i o n
CnFb
both
tmr1
dEFt
dEFt
16
ON time Scale
& time selection
tmr2
dEFt
dEFt
16
ON time Scale
& time selection
coUn
UP
SLoC
YES
PrFL
P1
Device configuration selection (tMr1 /both)-
Select ‘BOTH’ (Both Timers configuration).
T im e r 1 m o d e s e l e c t i o n
Timer 1 mode selection
select Default.
Default mode number selection
Select 16.
Select the time scale & time for
which relay should remain ON.
Timer 2 mode selection
Select Default.
Default mode number selection
Select 16.
Select the time scale & time for
which relay should remain ON.
Time counting mode up/down
Select UP counting.
Enable or disable Semi-lock functionality
Select Yes.
At which profile number you want to save this profile
Select P1.
ENTER
ESC
totL
Total time selection for Forward-Reverse Default Mode : 33.
Configure the time for which "Pause-Forward-Pause-Reverse"
cycle is required to be executed.
FWd
rEv
Forward time (T1 On) Relay 1 selection.
Reverse time (T2 On) Relay 2 selection.
SLoC
Enable or disable Semi-lock functionality. If semilock functionality
is enabled then allow user to edit timings in RUN mode even if
the display is locked, by just pressing enter key for less than
three seconds.
PSon
PSoF
Pause-ON-Pause-OFF cyclic mode selection.
Pause-OFF-Pause-ON cyclic mode selection.
OFF time Scale
& time selection
ESC
CnFb
tMr1
tmr1
CUSt
CUSt
SIG
tdt1
YES
tdt1
SA
coUn
doWn
SLoC
YES
PrFL
P1
Device configuration selection (tMr1 /both)- Select ‘Timer 1'
T im e r 1 m o d e s e l e c t i o n
Timer 1 mode selection (dEFt/CUSt)- select Customized
Customized mode selection(SIG/nSIG)- Select Signal based
ENTER
IrLS
oFF
Initial output state before required signal state detection. E.g. this
Mode/timer operation start at signal present, then here IrLS means
the Output state before signal presents.
Action to be taken on which signal transition (SP/SA)
Select Signal Present- Select SP- Level.
SIG
SP
rSP
OFF
Relay status after the transition of signal present (On/OFF)
Select Relay OFF.
Select the time scale & time for which relay should remain OFF
Do you want to take action if the transition of signal occurs during
Run time (YES/No) - Select Yes.
Select transition on which you want to take any action (SA/SP)-
Select Signal Absent.
tdt1
brEA
What Action do you want to take if the transition of signal absent
occurs during timing (brEA/rLod/rEt/rLoF/PAUS)- Select Break
Att
rlod
Select the action after above time completion on signal absent
(no/rLoad/rLof/nEWt)- Select Reload
tdt2
YES
Do you want to take action if the transition of signal occurs during
Run time after change in relay state (YES/no)- Select Yes
tdt2
SA
tdt2
PAUS
Action to be taken on which signal transition (SA/SP)-
Select SA - Signal Absent
Do you want to take action if the transition of the signal absent
occurs after change in relay state (PAUS/rLoD/rEt/rloF)-
Select Pause
rPtS
YES
Do you want to repeat this cycle after every signal transition
(YES/no) Select Yes.
Counting method (UP/doWn)- here selected ‘Down’ as an example.
Enable or disable semi-lock functionality
Select Yes.
At which profile number you want to save this profile
Select P1
Example 3: ASYMMETRIC CYCLE PULSE START (Refer Mode No: 11 on page no 02
Select the menu as given below to configure the timers for ASYMMETRIC CYCLE
PULSE START (Customized) '
ESC
OFF time Scale
& time selection
CnFb
tMr1
tmr1
CUSt
CUSt
SIG
tdt1
YES
tdt1
SA
coUn
doWn
SLoC
YES
PrFL
P2
Device configuration selection (tMr1 /both)- Select ‘Timer 1'
Timer1 mode selection
Timer 1 mode selection (dEFt/CUSt)- select Customized
Customized mode selection(SIG/nSIG)- Select Signal based
ENTER
IrLS
oFF
Initial output state before required signal state detection. E.g. this
Mode/timer operation start at signal present, then here IrLS
means the Output state before signal presents.
Action to be taken on which signal transition (SP/SA)
Select Signal Present- Select SP- Level.
SIG
SP
rSP
onof
Relay status after the transition of signal present (On/OFF)
Select Relay ON-OFF.
Select the time scale & time for which relay should remain in the
OFF state.
Do you want to take action if the transition of signal occurs during
Run time (YES/No) - Select Yes.
Select transition on which you want to take any action (SA/SP)-
Select Signal Absent.
dUrn
both
During which relay status you want to take action if the transition
of signal absent during run timing (on/oFF/both)- Select Both.
tdt1
rLof
What action do you want to take if the transition of signal absent
occurs during timing (brEA/rLod/rEt/rLoF/PAUS) - Select Relay OFF.
rPtS
YES
Do you want to repeat this cycle after every signal transition
(YES/no) Select Yes.
Counting method (UP/doWn)- here selected ‘Down’ as an example.
Enable or disable semi-lock functionality
Select Yes.
At which profile number you want to save this profile
Select P2
CYCn
onE
CYCr
YES
Number of ON-OFF cycles (onE/tWo)- Select One.
Do you want to repeat the cycle (YES/no)- Select :Yes.
ON time Scale
& time selection
Select the time scale & time for which relay should remain in the
ON state.
tmr2
Default Mode Configuration/Selection - User can select different
default Modes for Timer 1 and Timer 2. There are 35 inbuilt
default modes available.
Initial relay status before signal detection.
Configure the time for which Relay is required to be ON/OFF.
Number of ON/OFF Cycles i.e. user can select the two cycles with
different ON time & OFF time.
Action after time Completion, on opposite transition of signal or
level i.e. if cycles starts on SP then action for ATT is at SA.
Down or Remaining counting selection.
12.’UP’ key short pressed in online edit mode - If both timers are configured then display
will show Set value of both the timers for 2 sec. When only one timer is configured then
it wil have no effect on the screen.
13.’Up/down’ short pressed in Program mode - Increment/ Decrement the value/parameter.
14.’Down + UP’ key long pressed in run mode when both timers are selected - Reset the
timer1 and timer2 both.
Key Conventions:
selected).
play.
3. Modes can
.
.

Operating Mode & Description Timing Diagram
MODE - 00: ON DELAY
On application of the supply voltage, the preset time
duration (T) starts. On completion of the pre-set time,
the output is switched ON & remains on till the supply
voltage is present.
MODE-01: ON DELAY CONSTANT SUPPLY TYPE 2
Timing will commence when the supply voltage is applied
and input signal removed. After the time period has elapsed,
output is switched ON. If signal is applied during the timing
then the timing stops. Timing will restart only when signal
is removed again. Therefore there are two methods this
timer can be controlled, either by application or removal
of signal input and with the interruption of the supply
voltage to the timer with signal removal.
MODE-02: ON DELAY CONSTANT SUPPLY TYPE 3
A permanent supply voltage is required. The timing period
starts when the signal is present and will continue irrespective
of any further changes to signal input.
After the time period has elapsed output is switched ON.
Signal change has no effect during timing period. To reset
the timer, signal must be removed and then closed once again.
MODE-03: ON DELAY (CONTROL SWITCH RESETTABLE)
When the supply voltage is applied and signal is present, the
timing function starts. If signal is removed and present again
during the preset timing then timing is restarted and output
stays OFF. After preset time has elapsed the output is ON.
MODE – 04: SIGNAL ON DELAY
Time commences as supply voltage and signal is present.
When input signal is absent, the timing resets. The output is
switched ON at the end of the preset time duration (TOFF).
When output is ON if signal is absent then output switches OFF.
MODE - 05: INVERTED SIGNAL ON DELAY
When supply voltage is applied and if signal is absent then
the preset time duration (TOFF) starts. On preset time
completion, the output is switched ON. If signal is present
during timing period, then timing stops and timing restarts
when signal is removed.
MODE -06: INVERTED SIGNAL ON DELAY TYPE 2
When the supply voltage is applied and input signal is absent,
the preset time duration (TOFF) starts. After the time period
has elapsed, the output is switched ON. Signal change has no
effect during timing period. Output stays ON until supply
voltage has been interrupted.
MODE – 07: SIGNAL OFF DELAY
When the supply voltage is applied & input signal present, the
output is switched ON. When the signal is absent the preset
time duration commences & the output is switched OFF at
the end of the preset time duration. If signal is present during
timing period, then timing stops and timing restarts when
signal is absent again.
MODE-08: OFF DELAY CONST. SUPPLYTYPE 2
A permanent supply voltage is required. When the input signal
is present the output is switched ON immediately. When input
signal is removed the timing period starts. After the time period
has elapsed output is switched OFF. Once the timing period has
started further changes in the input signal will have no effect.
However once the timing cycle has been completed the process
may be started again by closing input signal. While the timer is
executing the only way to reset the timer is to interrupt the
supply.
MODE - 09: CYCLIC ON/OFF
On application of supply voltage, the output is initially switched
ON for the preset 'ON' time duration (TON) after which it is
switched OFF for the preset 'OFF' time duration (TOFF).
This Cycle repeats and continues till supply is present.
MODE - 10: CYCLIC OFF/ON
On application of supply voltage, the output is initially switched
OFF for the preset 'OFF' time duration (TOFF), after which it is
switched ON for the preset 'ON' time duration (TON).
This Cycle repeats and continues till supply is present.
MODE-11: ASYMMETRIC CYCLE PULSE START
A permanent supply voltage is required. The timer function is
triggered by the input signal. When input signal present the
output is switched ON while the first preset time period (TON)
elapses. Once this time period (TON) has elapsed output is
switched OFF for the second preset time (TOFF) period. Once
this second time period (TOFF) had elapsed then output
switched ON and the cycle will start from the beginning again.
If input signal is opened during timing (TON or TOFF) the cycle
will stop and output is switched OFF, cycle will start with output
ON state when the input signal present again.
MODE-12: ASYMMETRIC RECYCLER PULSE START
TYPE 2
A permanent supply voltage is required. The timer function is
triggered by input signal. When input signal is present the output
is switched OFF while the first preset time period (TOFF) elapses.
Once this time period has elapsed output is switched ON for the
second preset time period (TON). Once this second time period
(TON) had elapsed then output is switched OFF and the cycle
will start from the beginning again. If input signal is absent
during timing (TON or TOFF) the cycle will stop and output is
switched OFF, cycle will start with output OFF state when the
input signal present again.
MODE – 13: SIGNAL ON OFF DELAY
On application of signal the preset time (T) starts. After this
preset time has elapsed, output is switched ON. During this
timing, if signal is absent then output is switched ON
immediately and OFF delay is started. Once this time period
has elapsed the output is switched OFF. During this OFF delay
if signal is present again the output switched OFF immediately
and ON Delay restarted.
MODE –14: SIGNAL ON OFF DELAY TYPE 1
On application of supply voltage & input signal the preset time
(T) starts. After this preset time has elapsed, output is switched
ON. During this timing, if signal is absent then output is
switched ON immediately and preset timing is restarted.
Opening the signal during this timing suspends timing but does
not reset the time sequence. Timing will resume immediately
when signal is present again. Therefore, total time taken before
the delayed contact changes state is the preset time plus any
time that the signal is opened. Once this time period has
elapsed the output is switched OFF.
MODE – 15: SIGNAL ON/OFF Type 2
On application of input signal, the preset delay time period (T)
starts. During this timing if signal is removed then timing is
stopped and timing will be restarted when signal applied again.
After this time period has elapsed output is switched ON.
On removal of input signal, the preset time period starts again
& the output is switched OFF when the preset time duration is
complete. Output stays OFF until supply voltage has been
interrupted.
MODE - 16: IMPULSE ON ENERGIZING
On application of supply voltage, the output is instantly switched
ON for the preset time duration (TON) after it is switched OFF.
MODE - 17: IMPULSE ON/OFF
When supply voltage is applied and on closing or opening of
input signal, the output is switched ON & the preset time duration
starts. On completion of the time duration the output is switched
OFF. During timing period, changing the state of the input signal
dose not affects output but resets time.
MODE – 18: ACCUMULATIVE DELAY ON SIGNAL
On application of supply voltage, the preset timing duration
commences. When input signal is present, the timing pauses &
resumes only when the input signal is absent. The output is
switched ON at the end of the preset time duration (TOFF).
Operating Mode & Description Timing Diagram
MODE - 19: ACCUMULATIVE DELAY ON INVERTED
SIGNAL
Time commences as supply voltage is applied and signal is
present. When input signal is absent, the timing pauses &
resumes only when the input signal is present again. The output
is switched ON at the end of the preset time duration.
MODE - 20: ACCUMULATIVE IMPULSE ON SIGNAL
On application of supply voltage, the output is switch ON & the
preset timing duration commences. When input signal is present,
the timing pauses & resumes only when the input signal is absent.
The output is switched OFF at the end of the preset duration (TON).
MODE - 21: LEADING EDGE IMPULSE
On application of supply voltage & input signal, the output is
switched ON for preset time. After completion of preset time
period, output is switched OFF. If the input signal is applied or
opened during preset timing period, the output and timing
remains unaffected.
MODE - 22: LEADING EDGE IMPULSE 2
On application of the input signal the output is immediately
switched ON. The output remains ON for the preset time duration
(T) after which it is switched OFF. If the input signal is absent
during the pre-set time, the output immediately switched OFF.
MODE - 23: TRAILING EDGE IMPULSE
When the supply voltage is applied and input signal is absent,
the output is switched ON for the preset time duration (T).After
completion of preset time period, output is switched OFF. If I/P
signal is present during the preset timing period then output is
switched OFF & timing stops.
MODE - 24: TRAILING EDGE IMPULSE 2
When the input signal to the timer is absent, the output is
immediately switched ON for the preset time duration (TON)
after which it is switched OFF. If the input signal is present
during the pre-set time, the output remains unaffected.
MODE - 25: DELAYED IMPULSE
On application of supply and input signal, the preset 'OFF' time
duration (TOFF) starts. The output is switched ON at the end of
preset 'OFF' time duration. Then the preset 'ON' time starts
irrespective of the signal state & ON till the completion of ' TON'.
During the output OFF period if signal is present then timing is
restarted, but output is unaffected. The signal change has no
effect during time period (TON).
MODE-26: DELAYED IMPULSE TYPE 2
A permanent supply is required. When signal is present the output
will remain OFF while the first preset time period (TOFF) elapses.
Once this time period has elapsed the output is switched ON for
the second preset time period (TON). Once this second time period
(TON) had elapsed then output is switched OFF and cycle stops.
Output stays OFF until supply voltage has been interrupted.
During timing period (TON or TOFF) if signal is absent then output
is switched OFF and the cycle stops, cycle will start with output
OFF state when the input signal present again.
MODE-27: DELAYED PULSE (CONSTANT SUPPLY)
POWER BASED
The timing period (TOFF) starts when the supply is applied to the
timer. After the preset has elapsed output is switched ON for the
preset pulse (TON) duration. To reset the timer the supply has to
be interrupted. If this interruption occurs during the pulsed
output (TON) then the output is switched OFF and the timer will
reset.
MODE-28: DELAYED PULSE (REMOTE TRIG.)
The timing period (TOFF) will start when input signal is closed with
the supply connected. After preset time (TOFF) has elapsed the
output is switched ON for the per-selected pulse (TON) duration.
To reset the timer either input signal needs to be removed or
supply has to interrupt. If this action occurs during the pulsed
output cycle (TON) then output is switched OFF and the timer
will reset.
MODE-29: DELAYED PULSE (CONST. SUPPLY TYPE 1)
Supply to the unit must be continuous. On application of input
signal the time period 'TOFF' starts to run. On completion of 'TOFF',
the relay output is switched ON immediately and the time period
'TON' starts to run. On completion of 'TON' the output is switched
OFF. The input signal has no effect until 'TOFF' or 'TON' have
completely expired.
MODE-30: ON PULSE (CONTROL SWITCH
RESETTABLE)/ WATCH DOG TYPE
When the supply is connected and signal is applied, output is
switched ON and the timing function starts. If signal is removed
and applied during the preset timing then timing is restarted and
output stays ON. After preset time(TON) has elapsed the output
is switched OFF
MODE – 31: ON PULSE (SUPPLY RESET)
On application of supply voltage the output is switched ON. The
first pulse of input signal starts the preset time period. Receiving
pulses during the time period extends it and output stays ON.
Receiving no signal pulses during the time period completes it
and output is switched OFF. Output stays OFF until supply
voltage has been interrupted.
MODE – 32: Leading Edge Bi-stable or Step Relay
After every signal, the output contact changes their states,
alternately switching from open to close & vice versa.
Important Note:
As per the timing diagram this mode is not time base mode,
hence ideally there is no need to enter the time. But if we have
select action on Signal present as relay ON continuously, then
as per flow chart of the TDT2 (Action on Transition during Run
Time) will not shown. So select relay on time maximum
i.e. 999 Days.
Timeout:
1. If user is in Program mode or in Profile selection, & there is no any single key press event for 45 sec.
Then device will RUN with previous settings (Restart the Operation).
2. If user is in Preset Time Edit mode during Run Time & there is no any single key press event for 45 sec.
Then device will RUN with previous settings (Resume the Operation)
Preset Time/Set Value: The Time duration selected or entered by the user.
Run Time/Current Time/Process Value:
This is the running time on the device. In down counting mode it indicates the remaining time of Preset Time
and in Up counting it indicates the elapsed time.
VLL010-05
PRODUCT SPECIFICATIONS:
Parameter Specifications
Supply Characteristics:
Input Supply & Frequency Range 110-240V AC (Un) , -20% to +10% of Un, 47-63 Hz
Power Consumption 9 VA max.
Reset Time < 200 ms @ Rated Supply for Both Relay ON condition.
Initiate Time < 100 ms
Signal Characteristics:
Input signals High Range: 85-265V AC/ 100-265V DC,
Low Range: 24-60V AC/DC
Signal Sensing Time Guaranteed signal Present 50 ms. But for DC, signal
present may get detected for 5 ms pulse.
Signal Wait period 100ms @ Power 'ON' & for signal based modes only
No. of Signal I/P & Signal Isolation 1 Isolated Signal , Signal Isolation - 2 KV
Feature Characteristics:
No. of Timers & No of Relay Outputs 2 Timers (Independent) & 2 Separate Relay Outputs.
No. of Default Modes 34 (Run Time Editable).
Customized Modes Can be programmed as per customer requirement.
No. of Timing Profiles 2 profiles can be saved & Recall whenever required.
Timing Resolution
Timing Range
Timing Resolution
Timing Range
Day Day. Hrs Hrs. Min
999
Min.
99.9
Sec Sec. Hr-Min Min-Sec
99.9 999 99.9 999
999 99.9 9.99 9.99
Timing Accuracy +/- 0.01%
Factory Default Setting Timer 1: On Delay 10 sec. Timer 2: On Delay 10 Sec.
Display 7-Segment 2x4 digit common cathode type.
Keypad 4 front key as Enter, Up, Down & Esc.
Key De-bounce Time 100 ms Max.
Time Counting Options User Selectable: Elapsed Time (Up) or
Remaining Time (Down).
LED Indications SG (G) Op1 (R) Op2 (R) SV (R) P1/P2 (R) Up/
Down (R)
Signal
Present
Relay
OP1 ON
Relay
OP2 ON
Set
Value
Profile P1
Running
Up
Counting
Environmental Characteristics:
Operating Temperature
Storage Temperature-
-5 to +55º c
10 to 60º c
5 to 95%
2000m
Any
Relative Humidity
Operating Altitude
Enclosure Protection
Pollution Degree
Operating Position
IP 30 for Housing & front Facial and IP 20 for Terminals
II
Mechanical Characteristics:
Dimensions (W x H x D) 896-6872: 48 x 48 x 92.5 mm & 896-6879: 48 x 48 x 106.5
Mounting Type 896-6872 - Panel/Flush, 896-6879 – DIN/Base/Socket
Weight (Packed) 160gms Approx.
45 x 45 mm
Panel Cut-out
UL 94-V0
Enclosure Material
EMI/EMC Compliance:
Test Compliance
Standard
Edition Level
Harmonic Current Emission IEC 61000-3-2 Ed. 3.0 (2005-11) Class A
ESD Immunity IEC 61000-4-2 Ed. 1.2 (2001-04) II
Radiated Susceptibility
Electrical Fast Transient ( Power Ports & Signal Port)
Surge Immunity (Power Port)
Surge Immunity (Signal Port)
Conducted Susceptibility
Voltage Dips (AC)
Voltage Dips (DC) for Signal
Conducted Emission
Radiated Emission
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-11
IEC 61000-4-29
CISPR 14-1
CISPR 14-1
Ed. 3.0 (2006-02)
Ed. 2.0 (2004-07)
Ed. 2.0 (2005-11)
Ed. 2.0 (2005-11)
Ed. 2.2 (2006-05)
Ed. 2.0 (2004-03)
Ed. 2.0 (2004-03)
Ed. 5.0 (2005-11)
Ed. 5.0 (2005-11)
III
IV
IV
III
III
I, II, IV & V
I & II
Class A
Class A
Safety Compliance:
Test Compliance Std. Edition Level
Test Voltage (I/P & O/P)
Test Voltage (All Terminals & Enclosure)
Single Fault
Insulation Resistance
Leakage Current
IEC 60947-5-1
IEC 60255-5-1
IEC 61010-1
UL 508
UL 508
Ed. 3.0 (2003-11)
Ed. 3.0 (2003-12)
Ed. 2.0 (2001-02)
Ed. 17 (1999-01)
Ed. 17 (1999-01)
2 KV
4 KV
----->
50 KΩ
< 3.5 mA
Environmental Compliance:
Cold Heat
Dry Heat
Vibration
Repetitive Shock
Non-Repetitive Shock
IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-6
IEC 60068-2-27
IEC 60068-2-27
Ed. 6.0 (2007-03)
Ed. 5.0 (2007-07)
Ed. 7.0 (2007-12)
Ed. 4.0 (2008-02)
Ed. 4.0 (2008-02)
-----
-----
5g
40g, 6 ms
30g, 15 ms
TERMINAL DETAILS:
0.5 N.m (4.5 Lb.in)
1 x 1.5 mm
Solid / Stranded Wire
2
AWG 1 X 26 to 14
AWG CURRENT(A)
14
16
18
20
22
8
6.4
4.8
3.2
1.6
Use Cu wire of 75ºC only.
Timing Reloaded
Timing Reloaded
Timing stopped &
Relay OFF
Timing Reloaded
Timing stopped
Timing stopped
Timing Pause
Timing Break
Timing Stopped
Relay Output Characteristics:
Contact Rating
Utilization Category
Contact Material Contact Material
Mechanical Life Expectancy
Electrical Life expectancy
Switching Frequency
1800 Operations/hour.
1*105 Operations.
5*106 Operations.
Ag alloy (Cd free).
DC 13: Ue rated voltage V – 24; Ie rated current A – 2.0.
AC 15: 250V AC/2A, Cos Ø = 0.6, 85ºc, 100000 Operations.
5A NO & 3A NC @250VAC/30VDC Resistive.
MODE – 33: Forward- Reverse Mode With total time
Note: 1) Cycle will start if signal is high at Power ON or signal
transition occurs from low to high. 2)Total time and cycle will
restart when signal transition occurs from low to high.3) There
will be no change in Timer status if signal transition occurs
from high to low. 4) After completion of one cycle (when total
time counting is complete), cycle will start again when signal
transition occurs from low to high.
A permanent supply voltage is required. The timer function is
triggered by input signal. When input signal is present then both
output are switched OFF for first pause time period (P). After
completion of pause time period then output R1 is switched ON
(R2 OFF)for the second preset time period (t1). Once this
second time period (t1) had elapsed again output R1 is switched
OFF. After completion of next pause time (P) period then output
R2 is switched ON for the third preset time period (t2). Above
cycle will repeat for total time duration (T).
MODE – 34: Forward- Reverse Mode Without total time
A permanent supply voltage is required. The timer function is
triggered by input signal. When input signal is present then both
output are switched OFF for first pause time period (P). After
completion of pause time period then output R1 is switched ON
(R2 OFF)for the second preset time period (t1). Once this
second time period (t1) had elapsed again output R1 is switched
OFF. After completion of next pause time (P) period
then output R2 is switched ON for the third preset time
period (t2).
Note:1) Cycle will start if signal is high at Power ON or signal
transition occurs from low to high. 2) Cycle will restart when
signal transition occurs from low to high. 3) There will be no
change in Timer status if signal transition occurs from high to
low.
U
S
T
P
PPt2
t1 t1
T
R1
R2
T : Total time
P : Pause time
t1 : Forward time
t2 : Reverse time.
R2
R1
P
PPt2
t1 t1
U
S
P : Pause time
t1 : Forward time
t2 : Reverse time.
