Gigabyte XB-8US5150SP User manual



󶯸󺂴󱙆󳽳
󶘮󱠅󱙆󳽳
󽋋󺫜󼌣




󴀩󴉆󸑤

English
1
1
2
3

󽗉
󽗈
󽗉






󽘪


󽘪
DCIN
SS
SS
1
2
3





󽗉󽗈
󽗉



English
2










SS
12 13 11109
18


1
2
3
4
5
6
7
8
9
10 
11 
12 
13 
14 
15 
16 
17 
18 
DCIN
SS
SS
15
14 16 17
8
2
3
4
1
5
6
7

English

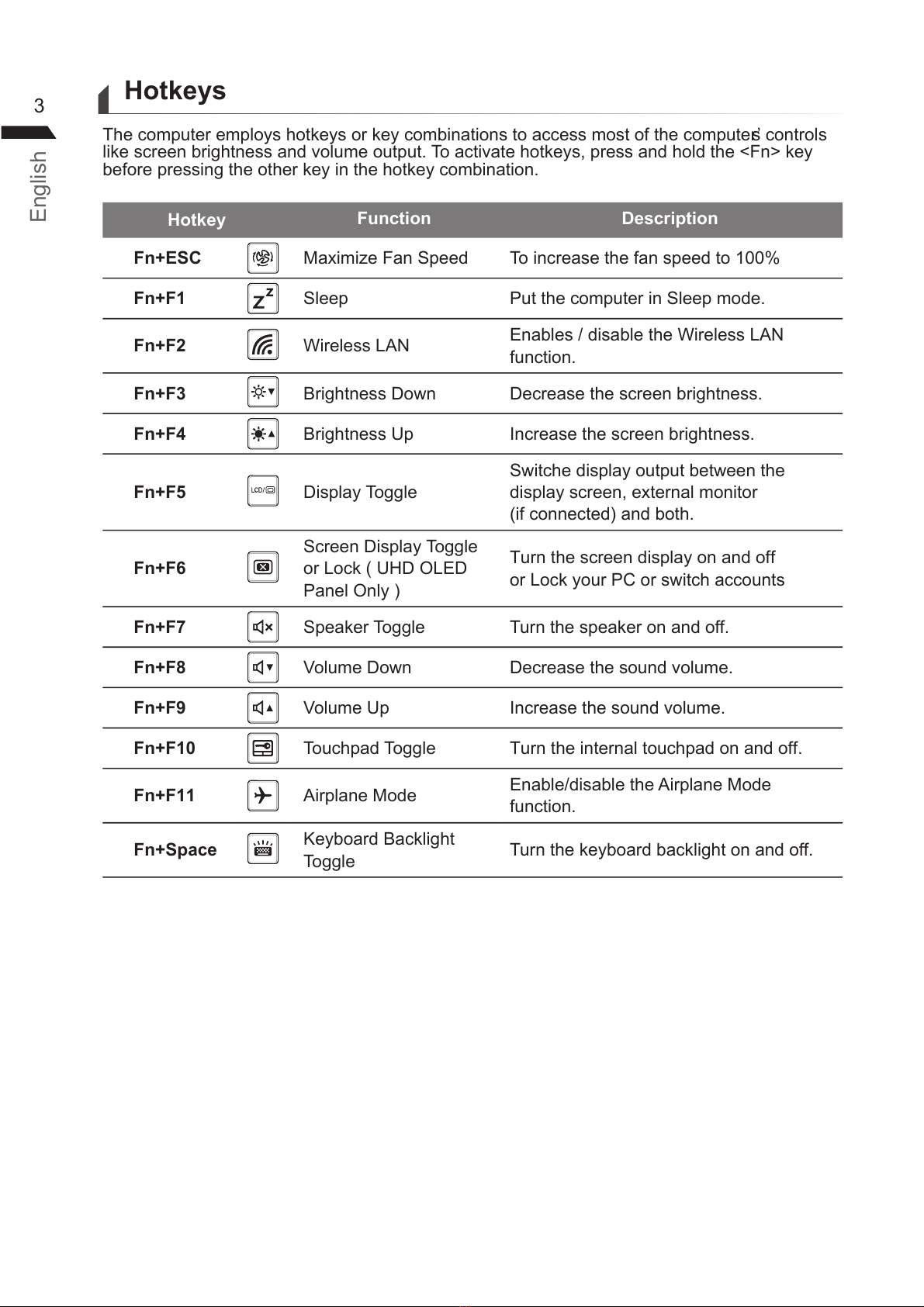

3Hotkeys
The computer employs hotkeys or key combinations to access most of the computer’s controls
like screen brightness and volume output. To activate hotkeys, press and hold the <Fn> key
before pressing the other key in the hotkey combination.
Hotkey Function Description
Fn+ESC Maximize Fan Speed To increase the fan speed to 100%
Fn+F1 Sleep Put the computer in Sleep mode.
Fn+F2 Wireless LAN Enables / disable the Wireless LAN
function.
Fn+F3 Brightness Down Decrease the screen brightness.
Fn+F4 Brightness Up Increase the screen brightness.
Fn+F5 Display Toggle
Switche display output between the
display screen, external monitor
(if connected) and both.
Fn+F6
Screen Display Toggle
or Lock ( UHD OLED
Panel Only )
Turn the screen display on and off
or Lock your PC or switch accounts
Fn+F7 Speaker Toggle Turn the speaker on and off.
Fn+F8 Volume Down Decrease the sound volume.
Fn+F9 Volume Up Increase the sound volume.
Fn+F10 Touchpad Toggle Turn the internal touchpad on and off.
Fn+F11 Airplane Mode Enable/disable the Airplane Mode
function.
Fn+Space Keyboard Backlight
Toggle Turn the keyboard backlight on and off.

English
4

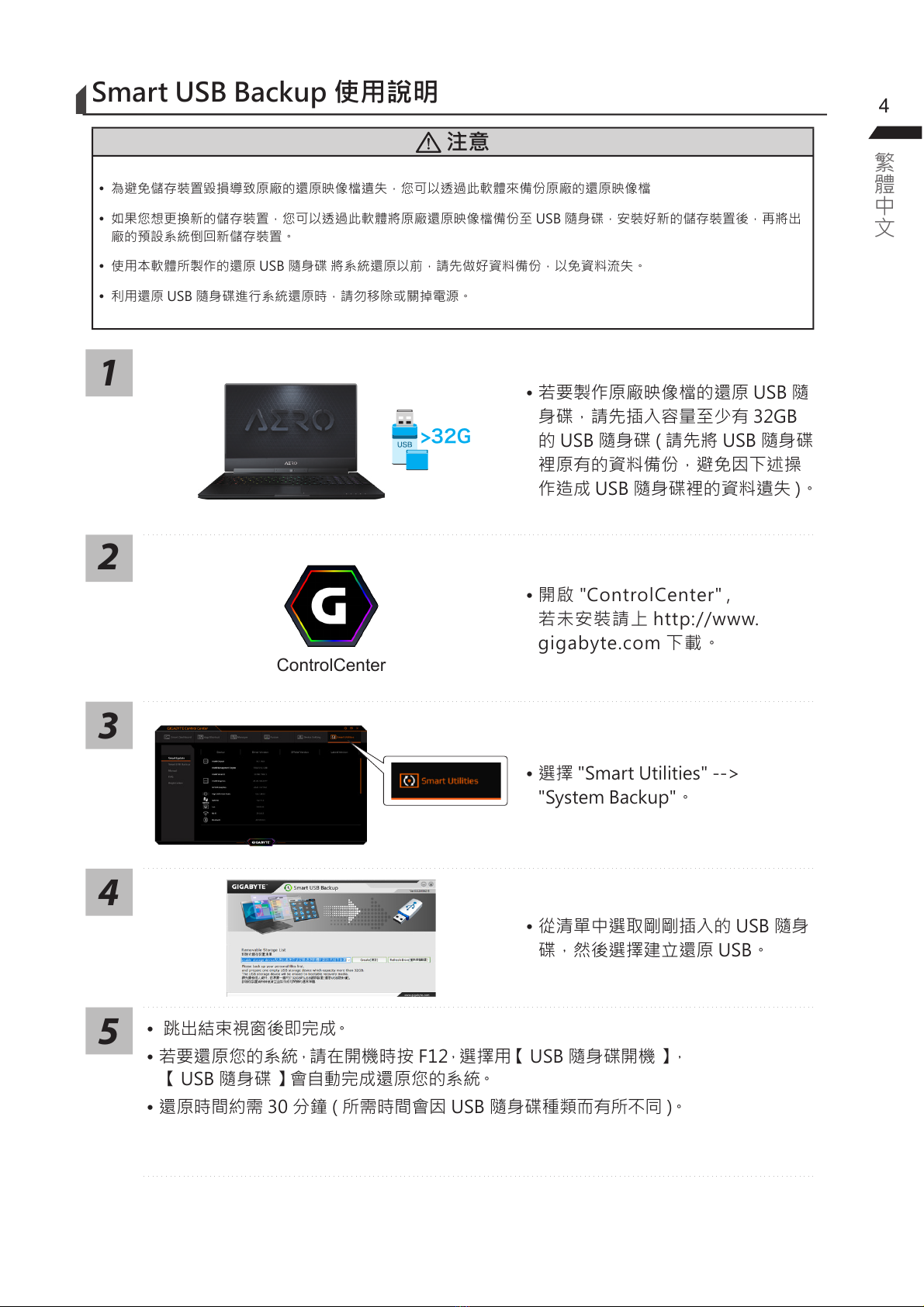

Smart USB Backup Guide
WARNING
yYou can backup original recovery image through this application in case of losing by device damage.
y You can backup original recovery image to USB Flash Drive and restore the system if any storage system
replacement with the recovery USB Flash Drive.
y Before you restore the system through the recovery USB Flash Drive, please make sure that you have already made
the backup of your data.
yPlease DO NOT shut down or un-plug the system when performing backup through recovery USB Flash Drive.
1
>32G
• Please plug in the USB Flash Drive
which is at least 32GB in capacity
to make the original image (backup
the data in USB rst. All data will
be eliminated during the creation of
recovery USB Flash Drive)
2
ControlCenter
• Open the "ControlCenter"(If it’s not
installed, please download from
http://www.gigabyte.com)
3
• Select "Smart Utilities"-->"System
Backup"
4
• Select your USB Flash Drive from
the drop-down list and start to
create the recovery USB disk.
5
yThe window will pop out when the creation of recovery disk is done.
yPlease press F12 on starting the system when you need to restore the system.
Select " boot from recovery USB Flash Drive " and the system will be restored.
yThe time needed for restore will be around 30 mins
(time needed may vary by USB disk model).

English
5Recovery Guide
System Recovery ( Restore your laptop operating system )
When something is going wrong with the laptop operating system, the storage of the laptop
has a hidden partition containing a full back up image of the operating system that can be
used to restore the system to factory default settings.
Note
yIf the storage has been switched or the partition deleted, the recovery option will no
longer be available and a recovery service will be needed.
yThe recovery function is only available on devices with O/S preinstalled. Devices with DOS
do not have the recovery function.
Launch System Recovery
The system recovery feature is preinstalled before the laptop is shipped from the factory. The
option menu allows you to launch the Windows recovery tool to reinstall the operating system
to factory default.
The brief introduction below will show you how to start the recovery tool and restore your system.
All ready to go
Make sure your PC is plugged in. This will take a few minutes.

English
6

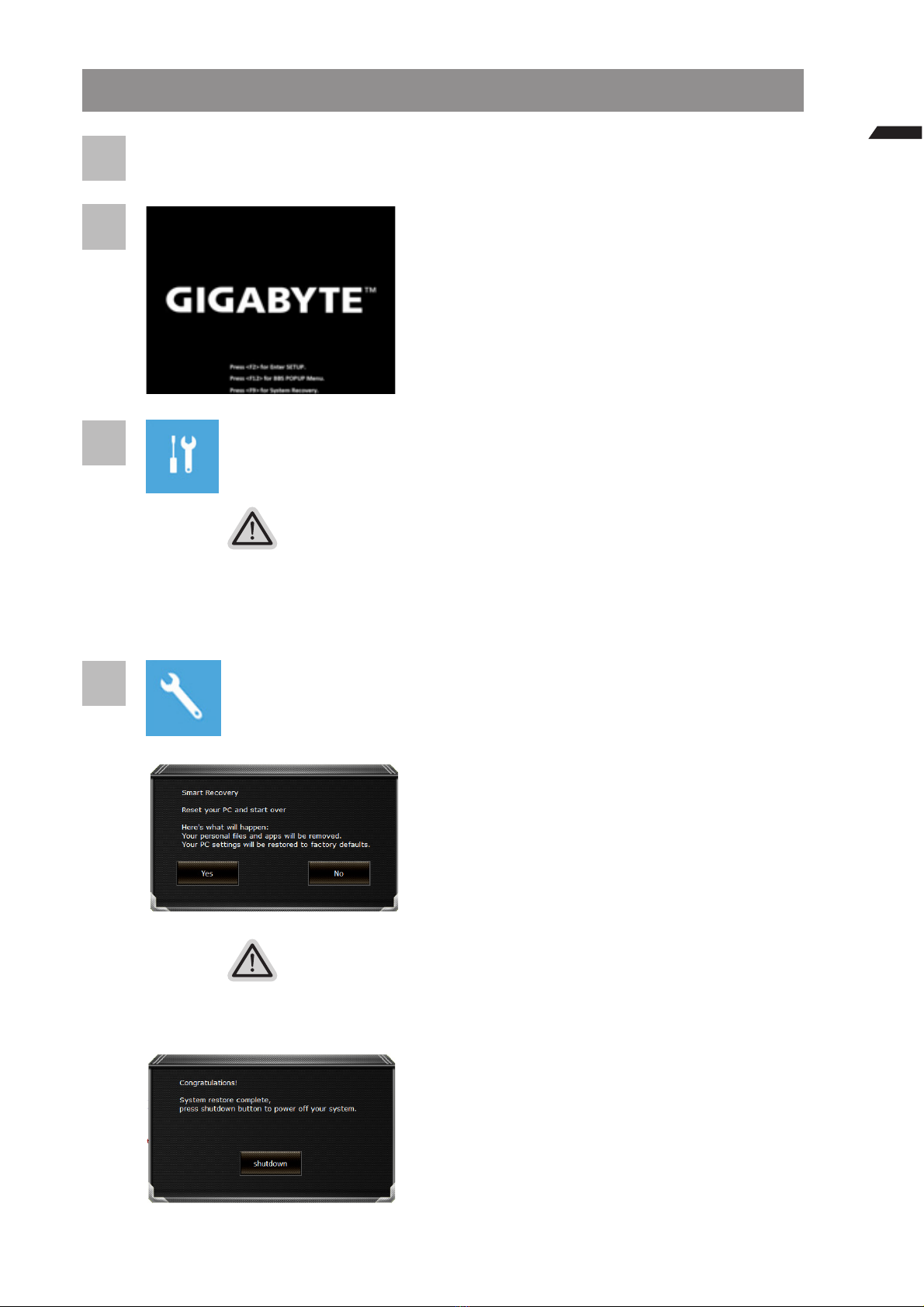

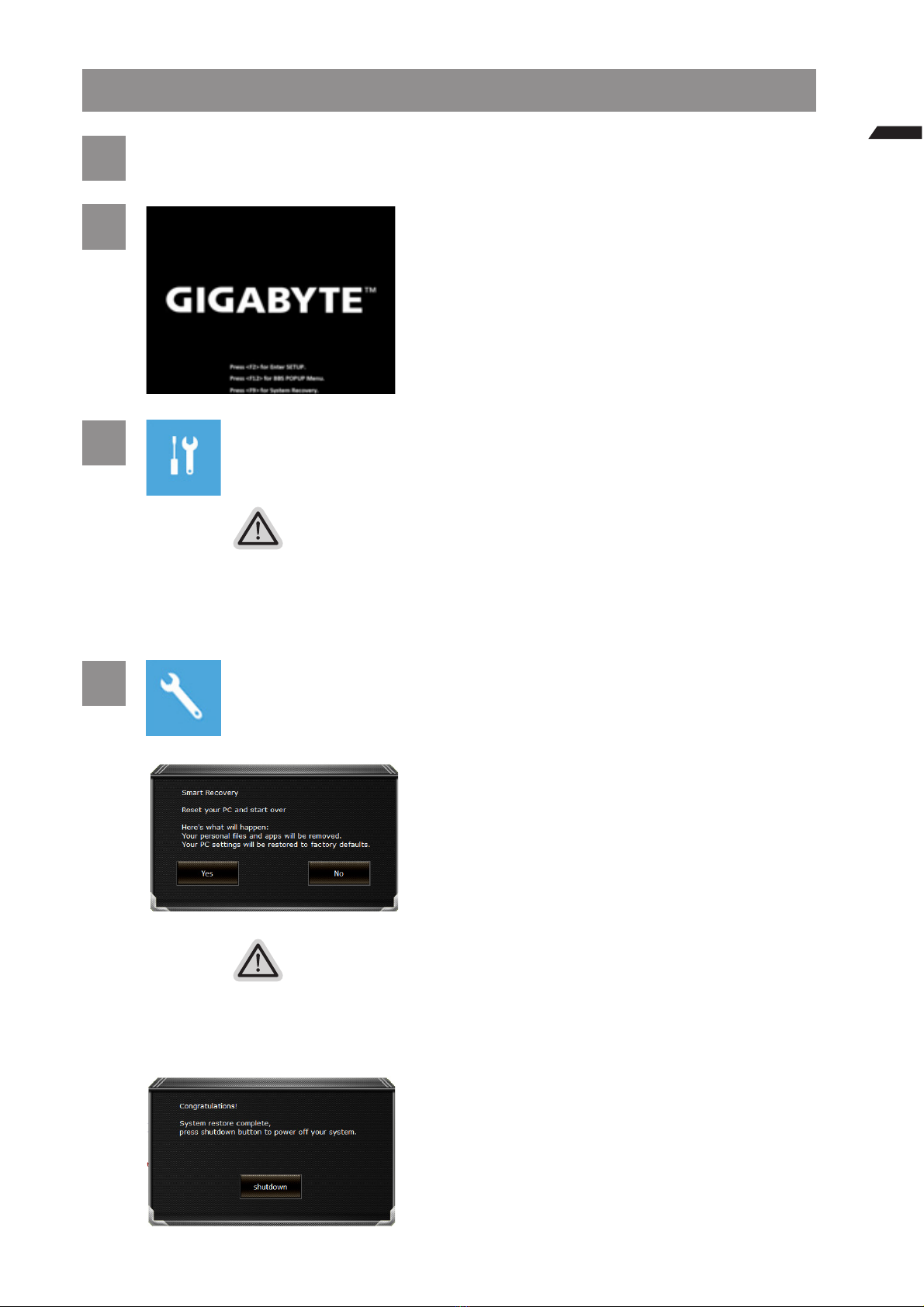

Windows 10 Recovery Guide
1Turn off and restart the laptop.
2
During the laptop turn on process,
press and hold F9 key to launch the tool.
3Choose "Troubleshoot" to enter the recovery settings.
( Also you can choose "Continue" to exit recovery system and continue to Windows 10 for les or
data backup. )
There are two options for system recovery
˙Reset this PC -
You can choose to keep or remove your les and then reinstalls Windows without
losing your les.
˙ GIGABYTE Smart Recovery -
Your PC settings will be restored to factory default settings.
Caution: All personal data and les will be lost.
4GIGABYTE Smart Recovery
The recovery will be activated and you will see the
option buttons on the window.
Click on "Yes" to start it.
Caution
˙ Once the "Recovery" is selected, your personal data and les will be deleted after
the laptop starts restoring, and the operating system will be reset to factory default
settings.
˙A progress indicator bar will show on the window when the recovery process is
running. Please make sure the AC-adapter is plugged in and do not turn off the laptop.
After the system recovery is completed, you will
see the option button on the window, please click
on "Shutdown".

English
75Advanced options
System Restore
Use a restore point recorded on your PC to restore Windows.
System Image Recovery
Recover Windows using a specic system image le.
Startup Repair
Fix problems that keep Windows from loading.
Command Prompt
Use the Command Prompt for advanced trobleshooting.
UEFI Firmware Settings
Change settings in your PC’s UEFI rmware.
Startup Settings
Change Windows Startup behavior.
Appendix
Warranty & Service:
Warranty and service and related information please refer to the warranty card or
GIGABYTE service website as the below link:
https://www.gigabyte.com/Support/Laptop
FAQ:
FAQ (Frequent Asked Questions) please refer to the below link:
https://www.gigabyte.com/Support/Faq
