1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6VMA motherboard. It is a PentiumII / III / Celeron
Processor based PC /AT compatible system with AGP/ PCI / ISA Bus, and
has been designed to be the fastest PC / AT system. There are some new
features allow you to operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel PentiumII / III / CeleronProcessor based PC / AT compatible
mainboard.
qSlot 1 supports PentiumII / III / Celeronprocessor running at 233-650
MHz.
qVIA Apollo chipset, Supports AGP / SDRAM / Ultra DMA/33 IDE /
Keyboard and PS/2 Mouse Power On / ACPI features.
qBuilt-in PCI ESS SOLO-1 audio chip.(Optional)
qSupports external Modem Ring-On on COMA & COMB and internal
Modem Ring-On.
qSupports Wake-up on LAN (JP7).
qSupports 3xDIMMs using 3.3V EDO or SDRAM DIMM module.
qSupports EDO 16MB ~ 384 MB, SDRAM 16MB ~ 768MB (128Mb DRAM
technology) memory on board.
q3xPCI Bus slots, 1xISA Bus slots, 1xAGP slot.
qSupports 2 channels Ultra DMA/33 IDE ports for 4 IDE Devices.
qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x Floppy port.
qSupports1xLine in, 1xLine Out, 1xMicro in, 2xCD Line in(For PCB
Ver:1.0) (Support 1x CD Line in for PCB version 1.2 and above) ,1x
GAME Port.
(Optional)
qSupports 2xUSB ports, 1xPS/2 Mouse, 1xPS/2 Keyboard.

Introduction
1-2
qLicensed AWARD BIOS, 2Mbits FLASH RAM.
q24.5 cm x 20 cm Micro-ATX form factor, 4 layers PCB.
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for
different testing data values gotten by users. (The different Hardware &
Software configuration will result in different benchmark testing results.)
•CPU PentiumIII 500MHz processor
•DRAM (128x1)MB SDRAM (Winbond 902WB W986408BH-8H)
•CACHE SIZE 512 KB included in CPU
•DISPLAY Onboard Intel Corporation 810 Graphics Controller
Hub (4MB SDRAM)
•STORAGE Onboard IDE (IBM DTTA-371800)
•O.S. Windows NT™4.0 SPK5
•DRIVER Display Driver at 1024 x 768 65536 colors 75Hz.
VIA Bus Master IDE Driver Ver2.3.15
Intel PentiumIII
Processor 500MHz(100x5)
Winbench99 CPU mark99 37.5
FPU Winmark 99 2560
Business Disk Winmark 99 4140
Hi-End Disk Winmark 99 9200
Business Graphics Winmark 99 196
Hi-End Graphics Winmark 99 370
Winstone99

6VMA
1-3
3.3V EDO/SDRAM
DIMM Sockets
Floppy Port
Business Winstone99 32.1
Hi-End Winstone99 27.9

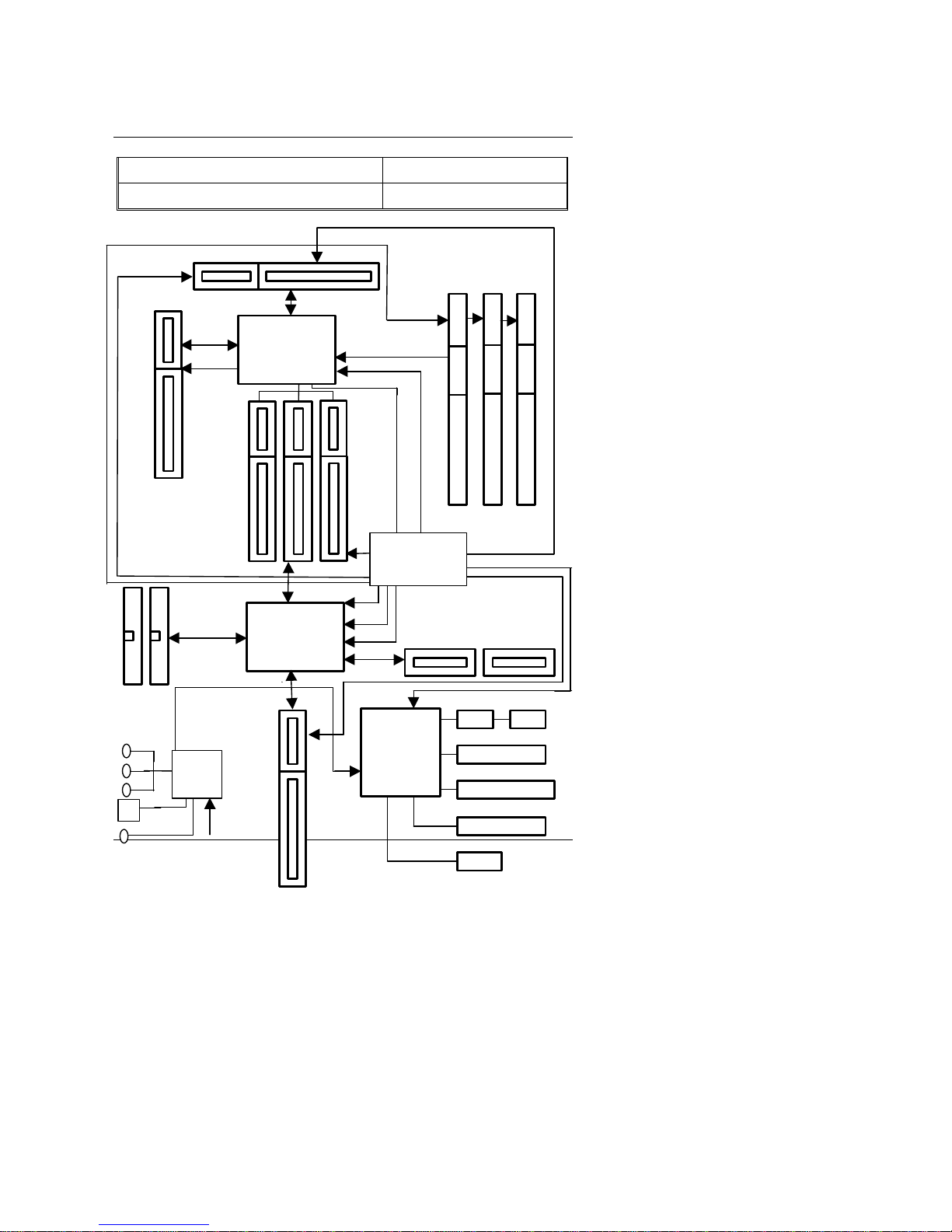

1.4. BLOCK DIAGRAM
PS/2 Keyboard
24MHz
33MHz
33MHz
33MHz
100MHz
Ultra DMA/33
IDE Ports
IDE Bus
PCI Bus
ISA Bus
AGP Bus
LPT Port
COM Ports
DRAM Bus
PS/2 Mouse
USB Bus
USB Ports
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
Winbond
83977EF
Host Bus
VIA
82C693
CHIPSET
VIA
82C596A
CHIPSET
Clock
Generator
MIC
L-IN
L-OUT SOLO1
33MHz
14.318MHz
66MHz
Game
Port
100MHz
AGP SLOT
TEL

Introduction
1-4
1.5. INTRODUCE THE Pentium

II / III Processor
Figure 1:Universal Retention Mechanism & attach Mount
Figure 2:OEM PentiumII Processor

6VMA
1-5
Figure 3: OEM PentiumIII Processor
1.6 What is AGP ?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI
bridge device that supports an AGP port. The main purpose of the AGP port
is to provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-
bits at 33MHz) or as an AGP port which supports 2x data-rate, a read queue,
and side band addressing. When the 2x-data rate is used, the port can
transmit data at 533MB/sec (66.6*2*4). The read-queue can be used to
pipeline reads –removing the effects of the reads-latency. Side band
addressing can be used to transmit the data address on a separate line in
order to speed up the transaction.

Specification
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −PentiumII / III / Celeron233 –650MHz.
−242 pins 66/100 MHz slot1 on board.
•SPEED −66/100 MHz system speed.
−66 MHz AGP bus speed. (2X mode 133MHz)
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•DRAM MEMORY −3 banks 168 pins DIMM module sockets on board.
−Use 16 / 32 / 64 / 128 / 256 MB DIMM module
DRAM.(128Mb DRAM technology)
−Supports EDO 16MB ~ 384 MB,
SDRAM 16MB~768MB.
(128Mb DRAM technology)
−Supports 3.3V EDO / SDRAM.
•CACHE MEMORY −32 KB 1st cache memory included in CPU.
−128KB 2nd cache in CPU.
−Supports DIB speed mode for L2 Cache.
•I/O BUS SLOTS −3 33MHz Master / Slave PCI-BUS.
−1 8MHz 16 bits ISA BUS.
−1 66MHz / 133MHz AGP bus.
•IDE PORTS −2 Ultra DMA 33 Bus Master IDE channels on
board.(Using IRQ14,15)
−Support Mode 3,4 IDE & ATAPI CD –ROM.
•I/O PORTS −Supports 2 16550 COM ports.
−Supports 1 LPT port.
−Supports 1 Floppy port.
−Supports 2 USB ports.
−Supports 1 PS/2 Mouse.
−Supports 1 PS/2 Keyboard.

6VMA
2-2
•Audio Ports
(Optional)
−1x Line in
−1x Line out
−1x Micro in
−1x Game Port
−2x CD Line in (For PCB Ver :1.0)
1x CD Line in (For PCB version 1.2 and above)
•GREEN FUNCTION −Suspend mode support.
−Green switch & Green LED support.
−IDE & Display power down support.
−Monitor all IRQ / DMA / Display / I/O events.
•BIOS −2M bits FLASH RAM.
−Supports Plug & Play, DMI Function.
•DIMENSION −Micro ATX Form Factor, 4 layers PCB.
2.2. SOFTWARE
•DRIVER −TUCD CD Driver.
•BIOS −Licensed AWARD BIOS.
−AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
•O.S. −Operation with MS-DOS, Windows95,
Windows98, WINDOWSNT, OS/2, NOVELL
and SCO UNIX.
2.3. ENVIRONMENT
•Ambient Temp. −0°C to +50°C (Operating).
•Relative Hum. −0 to +85% (Operating).
•Altitude −0 to 10,000 feet (Operating).
•Vibration −0 to 1,000 Hz.
•Electricity −4.9 V to 5.2 V. (Max. 20A current at 5V.)

Hardware Installation
3-1
3. HARDWARE INSTALLATION
3.1. UNPACKING
The mainboard package should contain the following:
•The 6VMA mainboard.
•Universal Retention Mechanism & Attach Mount
•USER'S MANUAL for mainboard.
•Cable set for IDE, Floppy devices.
•CD for Mainboard.(TUCD)
The mainboard contains sensitive electric components, which can be easily
damaged by static electricity, so the mainboard should be left in its original
packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat.
The operator should be wearing an anti static wristband, grounded at the
same point as the anti-static mat.
Inspect the mainboard carton for obvious damage. Shipping and handling
may cause damage to your board. Be sure there are no shipping and
handling damages on the board before proceeding.
After opening the mainboard carton, extract the system board and place it
only on a grounded anti-static surface component side up. Again inspect the
board for damage. Press down on all of the socket IC's to make sure that
they are properly seated. Do this only on with the board placed on a firm flat
surface.
M DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED.

6VMA
3-2
3.2. MAINBOARD LAYOUT
PCB Ver : 1.0
SOLO 1
BIOS
JP10
JP7
TEL CN6
JP5
GAME&AUDIO
COMB
COMA
LPT USB
JP1
J3
SLOT 1
BAT1
SW2
JP11
J11
JP13
JP15
LED1
SW1
JP6
JP14
BZ1
J14
IR
BANK 0
BANK 1
PCI1
PCI2
PCI3
ISA
ATX POWER
FLOPPYIDE1
IDE2
6VMA
VIA
82C693
VIA
82C596A
BANK 2
× Figure 3.1 Ø
PCB Ver : 1.2
SOLO 1
BIOS
JP10
TEL
GAME&AUDIO
COMA
USB
JP1
J3
BAT1
JP11
JP13
JP15
LED1
JP6
BZ1
IR
BANK 1
PCI1
PCI3
ATX POWER
IDE1
JP21
6VMA
VIA
82C693
VIA
82C596A
BANK 2
×Figure 3.2Ø

Hardware Installation
3-3
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS
tI/O Ports Connector
USB USB port.
IDE1 For Primary IDE port.
IDE2 For Secondary IDE port.
FLOPPY For Floppy port
PS/2 For PS/2 Keyboard / Mouse port.
COMB For Serial port2 (COM B).[Support External Modem Ring
On.]
COMA For Serial port1 (COM A).[Support External Modem Ring
On.]
LPT For LPT port.
GAME For GAME port.(Optional)
AUDIO For MIC,LINE-IN,LINE-OUT port.(Optional)
tSlot 1
For PentiumII / III / Celeronprocessor installed
tJ3 : CPU FAN : CPU cooling FAN Power Connector
Pin No. Function
1GND.
2+12V
3Signal
tJ13 : Power FAN :Power FAN Power Connector
Pin No. Function
1GND.
2+12V
3Signal
tJ14 : System FAN : System FAN Power Connector
Pin No. Function
1GND.
2+12V
3Signal
tJP7 : Wake on Lan
Pin No. Function
1+5V SB
2GND

6VMA
3-4
3Signal
tIR : INFRARED Connector (IR) --(Optional)
Pin No. Function
1IR Data Output
2GND
3IR Data Input
4Signal
5POWER (+)
tJP18 : Onboard Sound Function Selection (Optional)
Pin No. Function
1-2 Close Onboard Sound Function Enabled(Default).
2-3 Close Onboard Sound Function Disabled.
tJP1 : Keyboard Power On Selection
Pin No. Function
1-2 Close Enabled Keyboard power on.
2-3 Close Disabled Keyboard power on (Default).
tJP14: CLEAR CMOS Function
Pin No. Function
1-2 Close Clear CMOS
2-3 Close Normal operation (Default).
tJP13: Suspend To RAM Function (Optional).
Pin No. Function
OPEN Normal operation(Default).
Close Enabled Suspend To RAM.
tJP11: System Acceleration
Pin No. Function
1-2 short For 100MHz Turbo and other frequencies
2-3 short For 100MHz Normal (Default).
tJ11: Internal Modem Card RING PWR ON
Pin No. Function
1Signal

Hardware Installation
3-5
2GND
tSB-LINK (For PCI Sound Card Connector) (Optional)
Pin No. Function
1Signal
2GND
3NC
4Signal
5GND
6Signal
tJP10 : CASE OPEN Function (Optional)
Pin No. Function
1Signal
2GND
tTEL:The Connector is for Modem with internal Voice connector(Optional)
Pin No. Function
1Signal-In
2GND
3GND
4Signal-Out
tCN6 : CD Audio Line In (Optional)
Pin No. Function
1GND
2Right
3GND
4Left
tJP5 : CD Audio Line In (Optional)
Pin No. Function
1Right
2GND
3GND
4Left

6VMA
3-6
tJP5 : CD Audio Line In (Optional)
(This function is support in PCB version 1.2 and above)
Pin No. Function
1Left
2GND
3GND
4Right
tJP21 : Internal Buzzer Connector
(This function is support in PCB version 1.2 and above)
Pin No. Function
1-2 Short BZ1 Enable(Default)
Open BZ1 Disable

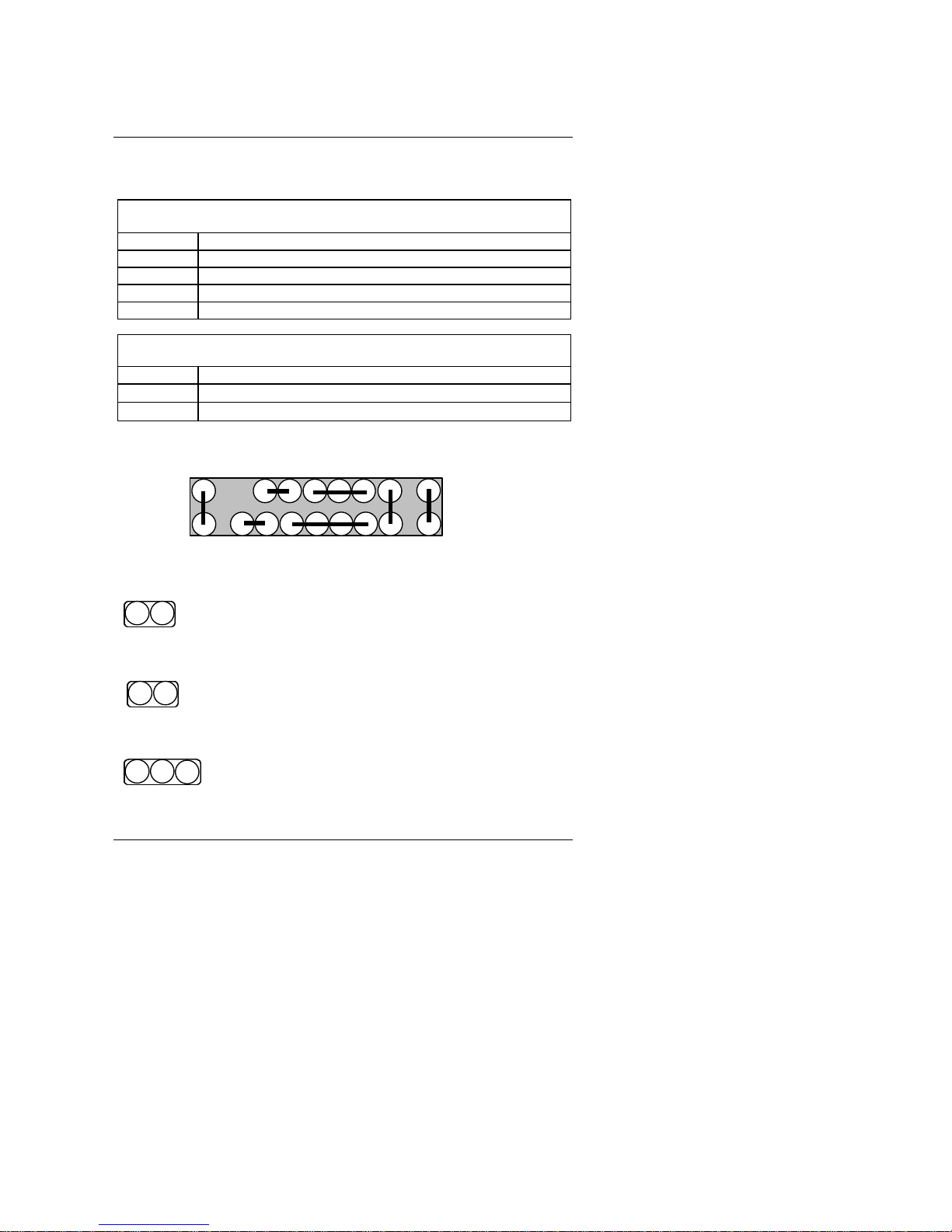

JP6 : For 2X11 PINs Jumper
PW: Soft Power Connector
Open: Normal Operation
Short: Power On/Off
RES: Reset Switch
Open: Normal Operation
Short: For Hardware Reset System
P+P − P − : Power LED
PIN 1 : anode (+)
PIN 2 : cathode (−)
PIN 3 : cathode (−)
1
PW P+P−P−HD
RES S P K
GN
GD
JP6 1
1 1
1

Hardware Installation
3-7
SPK: Speaker Connector
PIN 1 : VCC (+)
PIN 2 : VCC
PIN 3 : Data
PIN 4 : Data (−)
SPK : Internal Speaker Connector (Default)
PIN 1 : VCC (+)
PIN 2-PIN3 : Short
PIN 4 : Data (−)
HD: IDE Hard Disk Active LED
PIN 1: LED anode (+)
PIN 2: LED cathode ( − )
GN: Green Function Switch
Open : Normal operation
Short : Entering Green Mode
GD: Green LED
PIN 1 : LED anode (+)
PIN 2 : LED cathode ( − )
3.4. DRAM INSTALLATION
The main board can be installed with 16 / 32 / 64 / 128 / 256 MB (128Mb
Technology) 168 pins DIMM module DRAM, and the DRAM speed must be
67~100 MHz for SDRAM when system bus speed is set to 66MHz. The
DRAM memory system on main board consists of bank 0, 1& bank 2.
Since 168 pins DIMM module is 64 bits width, using 1 PCS which can match
a 64 bits system. The total memory size is 16MB ~ 256MB SDRAM. The
DRAM installation position refer to Figure 3.1, and notice the Pin 1 of DIMM
1
1
1
+
−
1+
−

6VMA
3-8
module must match with the Pin 1 of DIMM socket. Insert the DRAM DIMM
module into the DIMM socket at Vertical angle. If there is a wrong direction
of Pin 1, the DRAM DIMM module couldn't be inserted into socket
completely.
3.5. CPU SPEED SETUP
The default system bus speed is 66 / 100MHz (SW2). The user can change
the DIP SWITCH (SW1) selection to set up the CPU speed for 233 - 650MHz
processor. The CPU speed must match with the frequency RATIO. It will
cause system hanging up if the frequency RATIO is higher than CPU's.
SW1:
CLK RATIO 1 23 4
X3 ON OFF ON ON
X3.5 OFF OFF ON ON
X4 ON ON OFF ON
X4.5 OFF ON OFF ON
X5 ON OFF OFF ON
X5.5 OFF OFF OFF ON
X6 ON ON ON OFF
X6.5 OFF ON ON OFF
X 7 ON OFF ON OFF
X 7.5 OFF OFF ON OFF
X 8 ON ON OFF OFF
X 8.5 OFF ON OFF OFF
X 9 ON OFF OFF OFF
X 9.5 OFF OFF OFF OFF
SW2: CPU 1 23 4
66 ON OFF OFF ON
75 ON ON OFF ON
83 ON OFF ON ON
100 OFF OFF OFF OFF
112 OFF ON OFF OFF
133 OFF OFF ON OFF
