Gigabyte GA-G33M-S2H User manual

* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.
GA-G33M-S2H
LGA775 socket motherboard for Intel®CoreTM processor family/
Intel®Pentium®processor family/Intel®Celeron®processor family
User's Manual
Rev. 1001
12ME-G33MS2H-1001R

Motherboard
GA-G33M-S2H
Jul. 13, 2007
Motherboard
GA-G33M-S2H
Jul. 13, 2007

Copyright
©2007 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
The logo is exclusively licensed to GIGABYTE UNITED INC. by GIGA-BYTE
TECHNOLOGY CO., LTD.
GIGABYTE UNITED INC. is designated by GIGA-BYTE TECHNOLOGY CO., LTD as the exclu-
sive global distributor of GIGABYTE branded motherboards.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE without prior
notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any
form or by any means without GIGABYTE's prior written permission.
Documentation Classifications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For detailed product information, carefully read the User's Manual.
For instructions on how to use GIGABYTE's unique features, read or download the
information on/from the Support\Motherboard\Technology Guide page on our website.
For product-related information, check on our website at:
http://www.gigabyte.com.tw
Identifying Your Motherboard Revision

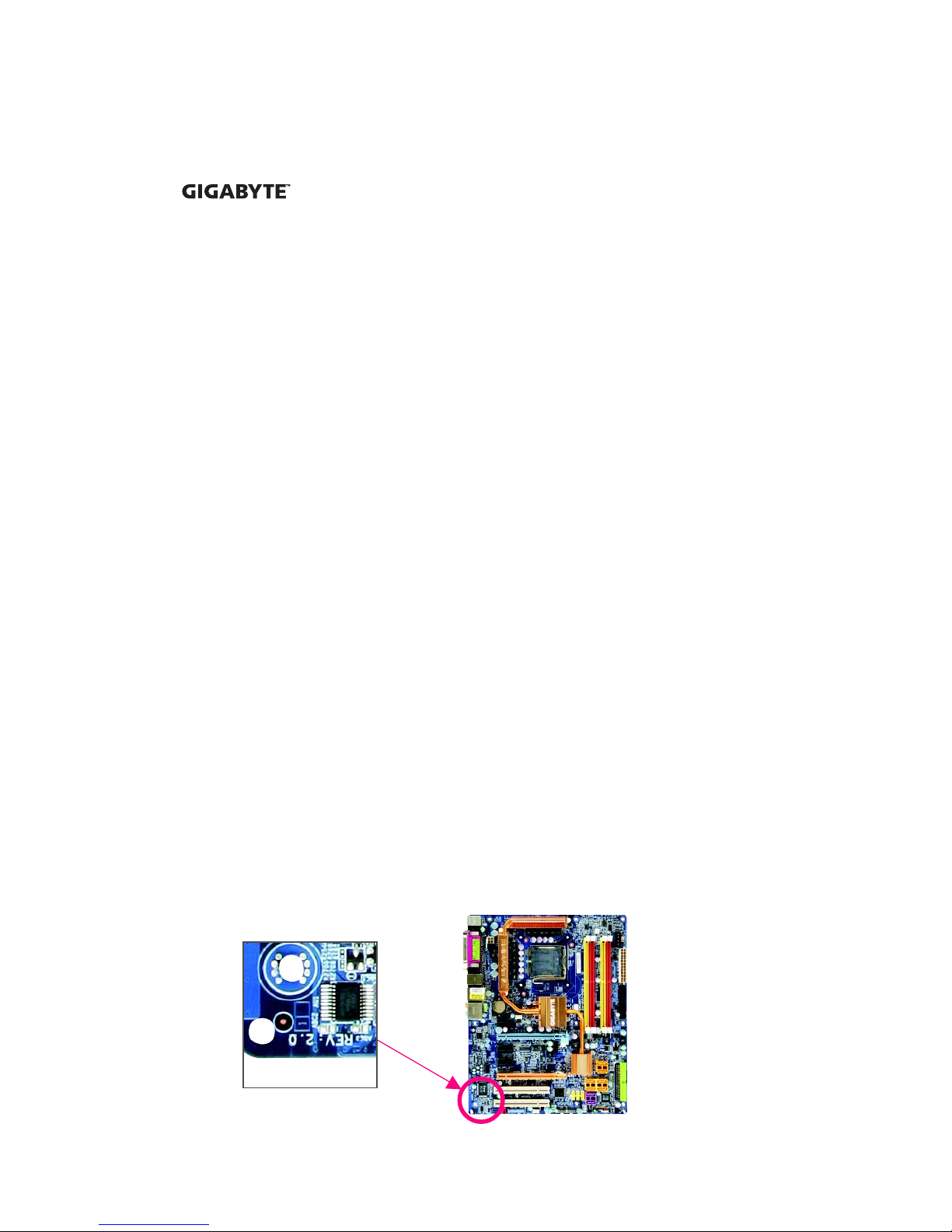

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:

- 4 -
Table of Contents
Box Contents ................................................................................................................. 6
OptionalItems ................................................................................................................. 6
GA-G33M-S2H Motherboard Layout ............................................................................. 7
Block Diagram ................................................................................................................ 8
Chapter 1 Hardware Installation .................................................................................... 9
1-1 Installation Precautions ..................................................................................... 9
1-2 Product Specifications .................................................................................... 10
1-3 Installing the CPU and CPU Cooler .............................................................. 13
1-3-1 Installing the CPU ................................................................................................ 13
1-3-2 Installing the CPU Cooler ................................................................................... 15
1-4 Installing the Memory ..................................................................................... 16
1-4-1 Dual Channel Memory Configuration ................................................................ 16
1-4-2 Installing a Memory ............................................................................................. 17
1-5 Installing an Expansion Card ......................................................................... 18
1-6 Back Panel Connectors ................................................................................. 21
1-7 Internal Connectors ........................................................................................ 24
Chapter 2 BIOS Setup................................................................................................. 35
2-1 Startup Screen ................................................................................................ 36
2-2 The Main Menu .............................................................................................. 37
2-3 Standard CMOS Features ............................................................................. 39
2-4 Advanced BIOS Features .............................................................................. 41
2-5 IntegratedPeripherals ..................................................................................... 43
2-6 Power Management Setup ............................................................................. 46
2-7 PnP/PCI Configurations ................................................................................. 48
2-8 PC Health Status ........................................................................................... 49
2-9 MB Intelligent Tweaker(M.I.T.) ....................................................................... 51
2-10 Load Fail-Safe Defaults ................................................................................... 54
2-11 Load Optimized Defaults ................................................................................. 54
2-12 Set Supervisor/User Password ..................................................................... 55
2-13 Save & Exit Setup ......................................................................................... 56
2-14 Exit Without Saving ....................................................................................... 56

- 5 -
Chapter 3 Drivers Installation ...................................................................................... 57
3-1 Installing Chipset Drivers ............................................................................... 57
3-2 SoftwareApplications ..................................................................................... 58
3-3 Driver CD Information .................................................................................... 58
3-4 Hardware Information ..................................................................................... 59
3-5 Contact Us ..................................................................................................... 59
Chapter 4 Unique Features ......................................................................................... 61
4-1 Xpress Recovery2 ......................................................................................... 61
4-2 BIOS Update Utilities ..................................................................................... 66
4-2-1 Updating the BIOS with the Q-Flash Utility ...................................................... 66
4-2-2 Updating the BIOS with the @BIOS Utility ....................................................... 69
4-3 EasyTune 5 .................................................................................................... 71
4-4 Windows Vista ReadyBoost ........................................................................... 72
Chapter 5 Appendix .................................................................................................... 73
5-1 Configuring Audio Input and Output ................................................................. 73
5-1-1 Configuring 2/4/5.1/7.1-Channel Audio ............................................................ 73
5-1-2 Installing the S/PDIF In Cable (Optional) ........................................................... 76
5-1-3 Enabling the DTS (Digital Theater Systems) Function ................................... 78
5-1-4 Configuring Microphone Recording ................................................................... 79
5-1-5 Using the Sound Recorder ................................................................................. 81
5-2 Troubleshooting ............................................................................................... 82
5-2-1 Frequently Asked Questions ............................................................................. 82
5-2-2 Troubleshooting Procedure ................................................................................ 83

- 6 -
The box contents above are for reference only and the actual items shall depend on product package you obtain.
The box contents are subject to change without notice.
Box Contents
GA-G33M-S2H motherboard
Motherboard driver disk
User's Manual
Intel®LGA775 CPU Installation Guide
One IDE cable and one floppy disk drive cable
Two SATA 3Gb/s cables
I/O Shield
Optional Items
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-51/R)
4-port USB 2.0 bracket (Part No. 12CR1-1UB030-21/R)
2-port IEEE 1394a bracket (Part No. 12CF1-1IE008-01/R)
SATA bracket (Part No.12CF1-3SATPW-11R)
S/PDIF in cable (Part No. 12CR1-1SPDIN-01/R)
COM port cable (Part No. 12CF1-1CM001-31/R)
LPT port cable (Part No. 12CF1-1LP001-01R)

- 7 -
GA-G33M-S2H Motherboard Layout
KB_MS
LGA775
ATX
GA-G33M-S2H
USB LAN
CD_IN
F_AUDIO
AUDIO
MBIOS
FDD
PCIE_16
IT8718
IDE
DDRII1
F1_1394
TSB43AB23
PCIE_1
PCI1
BAT
CI
CODEC
ATX_12V
USB 1394 ESATA
HDMI
CLR_CMOS
RTL 8110SC
CPU_FAN
SATAII0
F_USB3 F_USB2
OPTICAL
PCI2
SPDIF_I
SYS_FAN
Intel®ICH9
LPT
DVI-D VGA
Intel®G33
DDRII2 DDRII3 DDRII4
Sil1392
F2_1394
F_USB1 F_USB4
SATAII1
SATAII2
PWR_LED F_PANEL
JMicron 368
COMA
SPDIF_O

- 8 -

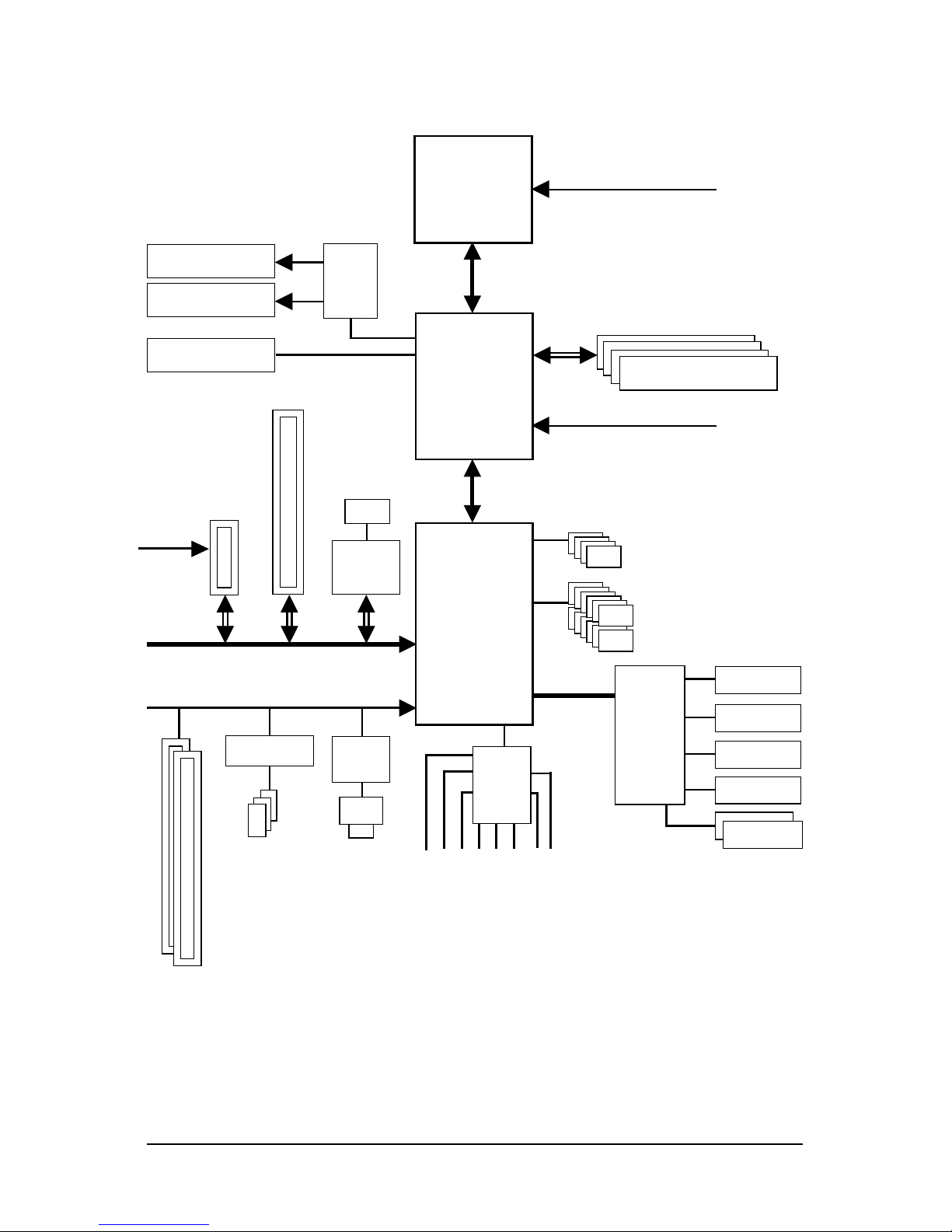

Block Diagram
(Note) Simultaneous output for DVI-D and HDMI is not supported.
LGA775
Processor
Intel®G33
4 SATA 3Gb/s
LPC BUS
Intel®ICH9
12 USB Ports
Line-Out
MIC
CODEC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Center/Subwoofer Speaker Out
Surround Speaker Out
2 PCI
PCI Bus
3 IEEE 1394a
TSB43AB23
RJ45
RTL
8110SC
LAN
LPT Port
BIOS
Floppy
COM Port
PS/2 KB/Mouse
IT8718
Host
Interface
DDR2 800/667 MHz
Dual Channel Memory
1 PCI Express x1
PCI Express Bus
PCIe CLK
(100 MHz)
x1
ATA-133/100/
66/33 IDE
Channel
x1
JMicron
368
1 PCI Express x16
x4
DVI-D
HDMI(Note)
Sil1392
GMCH CLK
(333/266/200 MHz)
D-Sub
CPU CLK+/-
(333/266/200 MHz)

Hardware Installation- 9 -
English
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's
manual and follow these procedures:
•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
•When handling the motherboard, avoid touching any metal leads or connectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keep your hands dry and first touch a metal object to eliminate static electricity.
•Prior to installing the motherboard, please have it on top of an antistatic pad or within a
electrostatic shielding container.
•Before unplugging the power supply cable from the motherboard, make sure the power supply
has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface
.
•Do not place the computer system in a high-temperature environment.
•Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certified computer technician.
Chapter 1 Hardware Installation

GA-G33M-S2H Motherboard - 10 -
English
1-2 Product Specifications
CPU Support for an Intel®CoreTM 2 Extreme processor/
Intel®CoreTM 2 Quad processor/Intel®CoreTM 2 Duo processor/
Intel®Pentium®processor Extreme Edition/Intel®Pentium®D processor/
Intel®Pentium®4 processor Extreme Edition/Intel®Pentium®4 processor/
Intel®Celeron®D processor in the LGA 775 package
(Go to GIGABYTE's website for the latest CPU support list.)
Support for Intel®Hyper-Threading Technology
L2 cache varies with CPU
Front Side Bus 1333/1066/800 MHz FSB
Chipset North Bridge: Intel®G33 Express Chipset
South Bridge: Intel®ICH9
Memory 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR2 800/667 MHz memory modules
(Go to GIGABYTE's website for the latest memory support list.)
Onboard Graphics Integrated in the North Bridge
Audio Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Support for DTS (dts NEO:PC)
Support for S/PDIF In/Out
Support for CD In
LAN RTL 8110SC chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slot supporting PCI Express x4 mode (Note 2)
1 x PCI Express x1 slot
2 x PCI slots
Storage Interface South Bridge:
- 1 x floppy disk drive connector via the I/O controller supporting up to 1
floppy disk drive
- 3 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2) supporting up
to 3 SATA 3Gb/s devices (Note 3)
- 1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA
3Gb/s device
JMicron 368 chip:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
IEEE 1394a T.I. TSB43AB23 chip
Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394 bracket
connected to the internal IEEE 1394 headers)
USB Integrated in the South Bridge
Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets
connected to the internal USB headers)

Hardware Installation- 11 -
English
Internal Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
3 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x IEEE 1394a headers
4 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x chassis intrusion header
1 x power LED header
Back Panel 1 x PS/2 keyboard port
Connectors 1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port (Note 4)
1 x HDMI port (Note 5)
1 x optical S/PDIF Out connector
1 x eSATA 3Gb/s port
1 x IEEE 1394a port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side
Speaker Out/Line In/Line Out/Microphone)
I/O Controller iTE IT8718 chip
Hardware Monitor System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU fan speed control
BIOS 1 x 8 Mbit flash
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

GA-G33M-S2H Motherboard - 12 -
English
Unique Features Support for @BIOS
Support for Download Center
Support for Q-Flash
Support for EasyTune (Note 6)
Support for Xpress Install
Support for Xpress Recovery2
Support for Virtual Dual BIOS
Bundled Software Norton Internet Security (OEM version)
Operating System Support for Microsoft®Windows®Vista/XP/2000
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
(Note 1) Due to Windows XP 32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) The GA-G33M-S2H supports up to PCI Express x4 mode. (Please refer to the graphics cards
support list on page 19)
(Note 3) To enable hot plug capability for the SATA connectors controlled by the ICH9 South Bridge,
you must install Windows Vista (on ICH9, hot plug is supported in Windows Vista only) and
configure the SATA connectors for AHCI mode. (Refer to Chapter 2, "BIOS Setup," "Integrated
Peripherals," for details on enabling AHCI.)
(Note 4) The DVI-D port does not support D-Sub connection by adapter.
(Note 5) Due to an Intel G33 graphics driver limitation, the GA-G33M-S2H does not currently support
Blu-ray/ HD DVD format playback. Once released, full driver support from Intel will be updated
on the GIGABYTE website.
(Note 6) Available functions in Easytune may differ by motherboard model.

Hardware Installation- 13 -
English
1-3 Installing the CPU and CPU Cooler
Read the following guidelines before you begin to install the CPU:
•Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
•Always turn off the computer and unplug the power cord from the power outlet before
installing the CPU to prevent hardware damage.
•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you
may locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
•Apply an even and thin layer of thermal grease on the surface of the CPU.
•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and
damage of the CPU may occur.
•Set the CPU host frequency in accordance with the CPU specifications. It is not recom-
mended that the system bus frequency be set beyond hardware specifications since it
does not meet the standard requirements for the peripherals. If you wish to set the fre-
quency beyond the standard specifications, please do so according to your hardware
specifications including the CPU, graphics card, memory, hard drive, etc.
Hyper-Threading Technology System Requirements:
(Go to Intel's website for more information about the Hyper-Threading Technology)
•An Intel®CPU that supports HT Technology
•A chipset that supports HT Technology
•An operating system that is optimized for HT Technology
•A BIOS that supports HT Technology and has it enabled
(Refer to Chapter 2, "BIOS Setup," "Advanced BIOS Features," for instructions on enabling
the HT Technology.)
1-3-1 Installing the CPU

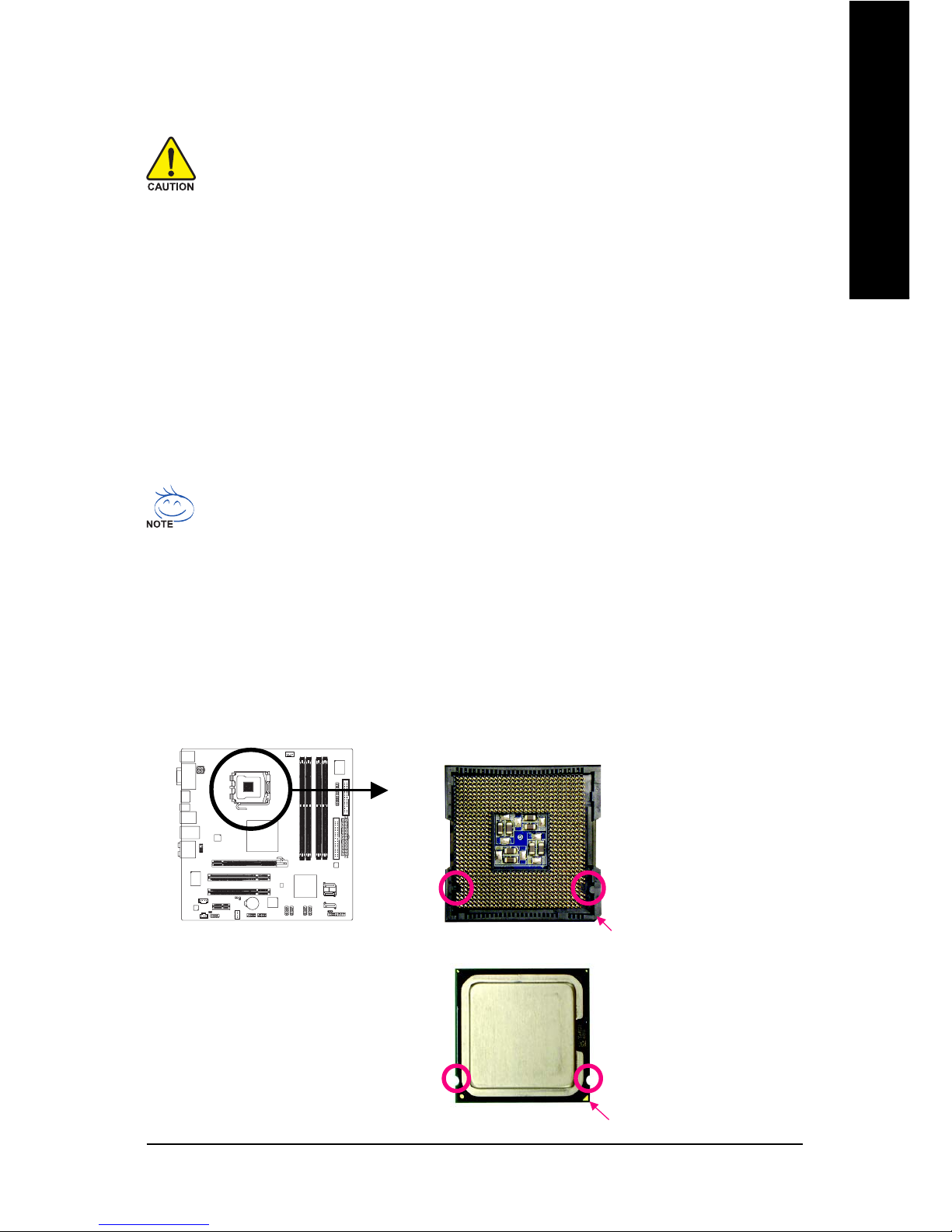

A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
NotchNotch
Alignment Key
Alignment Key
LGA 775 CPU
LGA775 CPU Socket
Pin One Corner of the CPU Socket
Triangle Pin One Marking on the CPU

GA-G33M-S2H Motherboard - 14 -
English

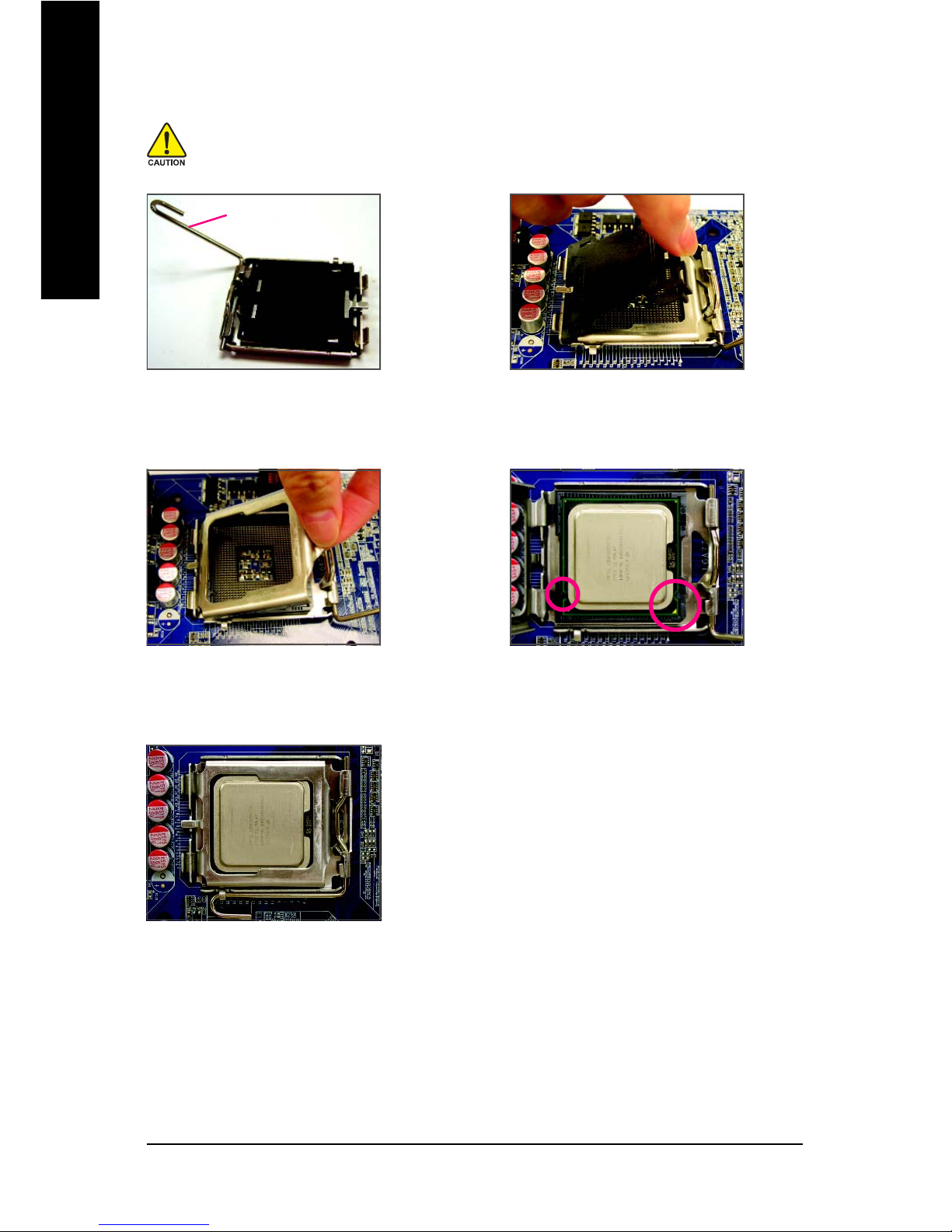

B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.
Step 2:
Remove the protective socket cover.
Before installing the CPU, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the CPU.
Step 1:
Completely raise the CPU socket lever.
Step 4:
Hold the CPU with your thumb and index
fingers. Align the CPU pin one marking (triangle)
with the pin one corner of the CPU socket (or
you may align the CPU notches with the socket
alignment keys) and gently insert the CPU
into position.
Step 3:
Lift the metal load plate on the CPU socket.
Step 5:
Once the CPU is properly inserted, replace
the load plate and push the CPU socket lever
back into its locked position.
CPU Socket Lever

Hardware Installation- 15 -
English
1-3-2 Installing the CPU Cooler

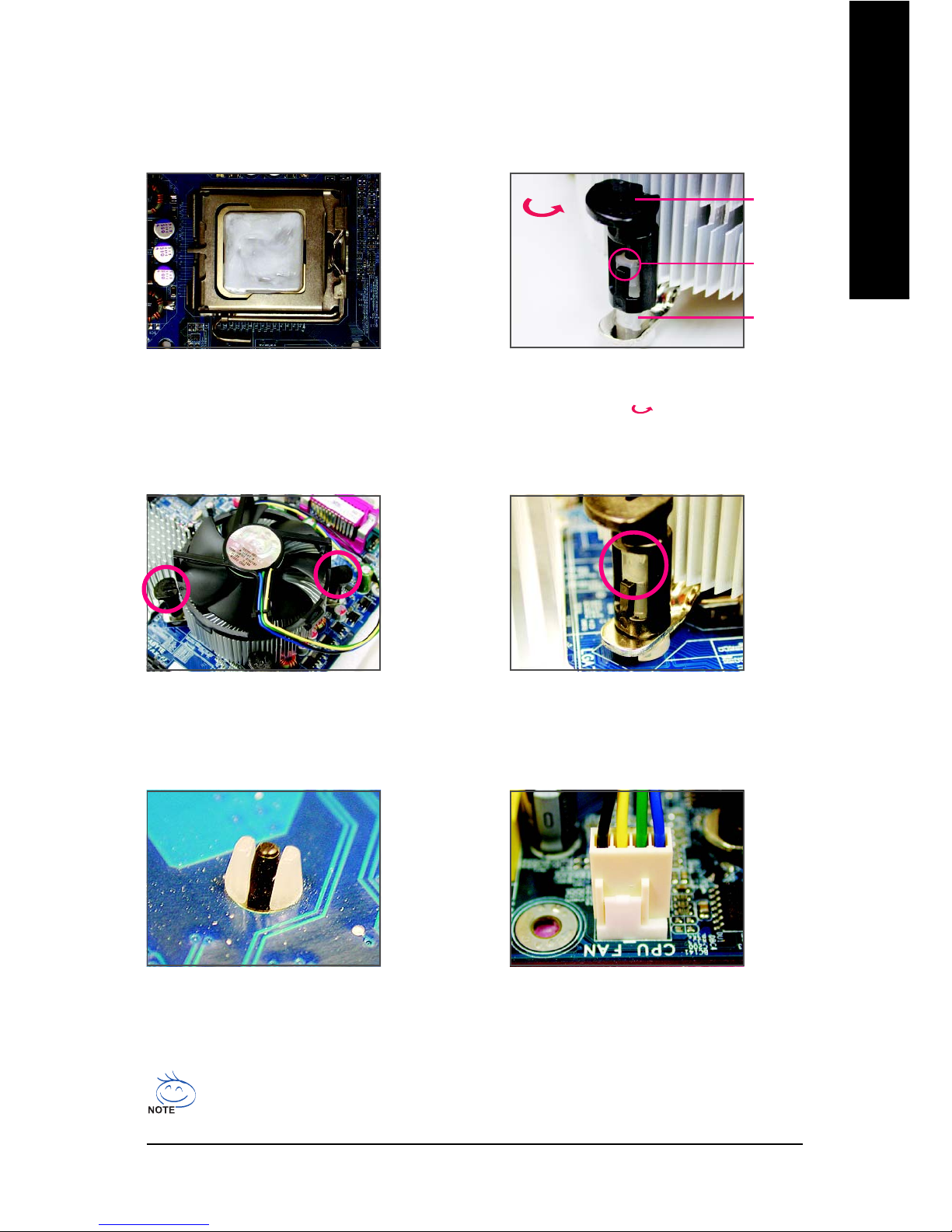

Follow the steps below to correctly install the CPU cooler on the motherboard. (The following procedure
uses Intel®boxed cooler as the example cooler.)
Step 1:
Apply an even and thin layer of thermal grease
on the surface of the installed CPU.
Step 3:
Place the cooler atop the CPU, aligning the
four push pins through the pin holes on the
motherboard. Push down on the push pins
diagonally.
Step 4:
You should hear a "click" when pushing down each
push pin. Check that the Male and Female push pins
are joined closely. (Refer to your CPU cooler instal-
lation manual for instructions on installing the cooler.)
Use extreme care when removing the CPU cooler because the thermal grease/tape between
the CPU cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler may
damage the CPU.
Step 5:
After the installation, check the back of the
motherboard. If the push pin is inserted as the
picture above, the installation is complete.
Step 6:
Finally, attach the power connector of the CPU
cooler to the CPU fan header (CPU_FAN) on
the motherboard.
Male
Push Pin
Female
Push Pin
The Top
of Female
Push Pin
Direction of
the Arrow Sign
on the Male
Push Pin
Step 2:
Before installing the cooler, note the direction
of the arrow sign on the male push pin.
(Turning the push pin along the direction of
arrow is to remove the cooler, on the contrary,
is to install.)

GA-G33M-S2H Motherboard - 16 -
English
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
•Make sure that the motherboard supports the memory. It is recommended that memory of
the same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest memory support list.)
•Always turn off the computer and unplug the power cord from the power outlet before
installing the memory to prevent hardware damage.
•Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.
Due to chipset limitation, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one DDR2 memory module is installed.
2. When enabling Dual Channel mode with two or four memory modules, it is recommended that
memory of the same capacity, brand, speed, and chips be used and installed in the same
colored DDR2 sockets for optimum performance.
When memory modules of different capacity and chips are installed, a message which says
memory is operating in Flex Memory Mode will appear during the POST. Intel®Flex Memory
Technology offers greater flexibility to upgrade by allowing different memory sizes to be
populated and remain in Dual Channel mode/performance.
Two Modules
Four Modules
DDRII1 DDRII2 DDRII3 DDRII4
DS/SS - - DS/SS - -
- - DS/SS - - DS/SS
DS/SS DS/SS DS/SS DS/SS
Dual Channel Memory Configurations Table
(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)
DDRII1 DDRII2 DDRII3 DDRII4

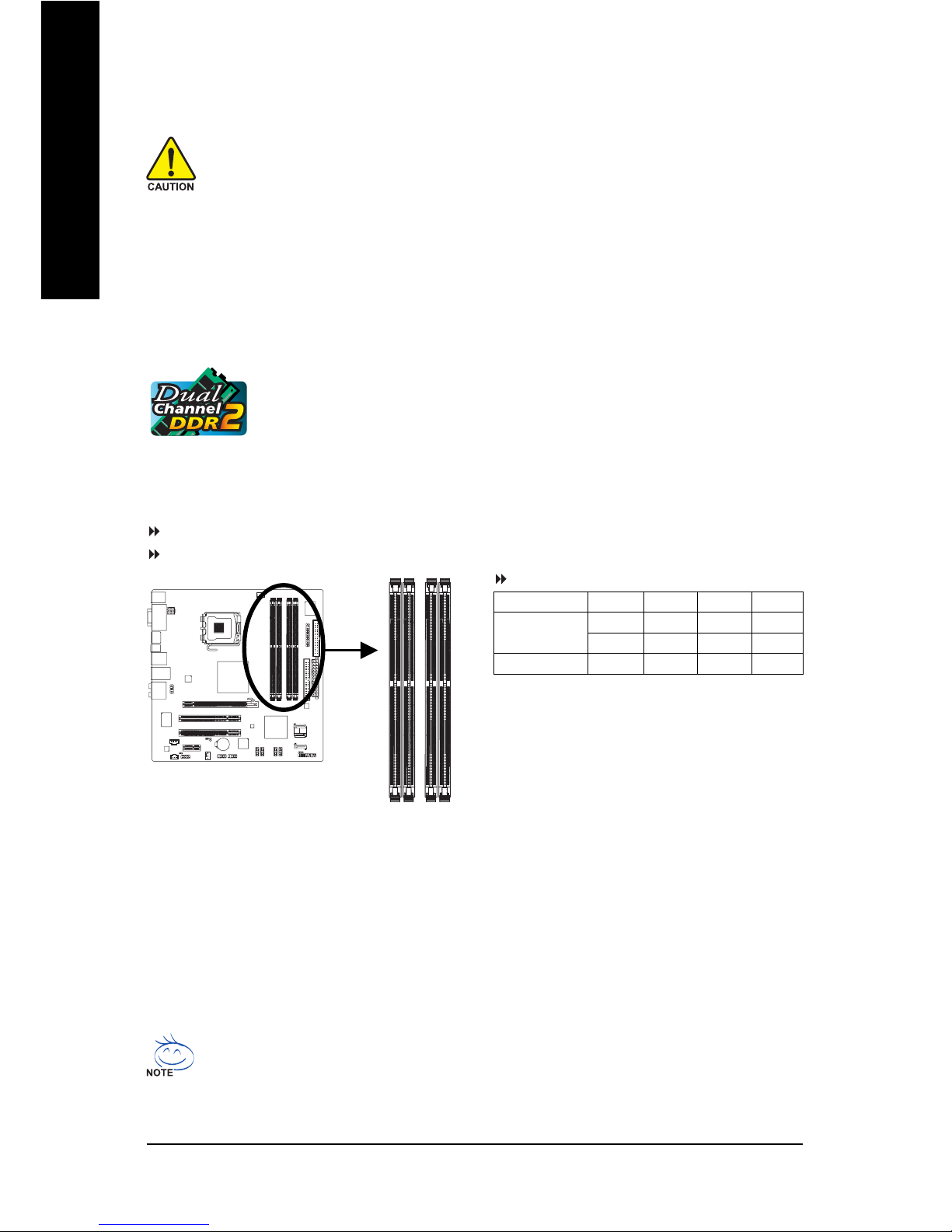

1-4-1 Dual Channel Memory Configuration
This motherboard provides four DDR2 memory sockets and supports Dual Channel
Technology. After the memory is installed, the BIOS will automatically detect the
specifications and capacity of the memory. Enabling Dual Channel memory mode
will double the original memory bandwidth.
The four DDR2 memory sockets are divided into two channels and each channel has two memory
sockets as following:
Channel 0: DDRII1, DDRII2
Channel 1: DDRII3, DDRII4

Hardware Installation- 17 -
English
1-4-2 Installing a Memory
Notch
DDR2 DIMM
Before installing a memory module , make sure to turn off the computer and unplug
the power cord from the power outlet to prevent damage to the memory module.
DDR2 DIMMs are not compatible to DDR DIMMs. Be sure to install DDR2 DIMMs on
this motherboard.
A DDR2 memory module has a notch, so it can only fit in one direction. Follow the steps below to
correctly install your memory modules in the memory sockets.
Step 1:
Note the orientation of the memory module. Spread the retaining
clips at both ends of the memory socket. Place the memory
module on the socket. As indicated in the picture on the left,
place your fingers on the top edge of the memory, push down
on the memory and insert it vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap into place when
the memory module is securely inserted.

GA-G33M-S2H Motherboard - 18 -
English
1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
•Make sure the motherboard supports the expansion card. Carefully read the manual that
came with your expansion card.
•Always turn off the computer and unplug the power cord from the power outlet before
installing an expansion card to prevent hardware damage.
PCI Express x16 Slot
PCI Express x1 Slot
PCI Slot
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. After installing all expansion cards, replace the chassis cover(s).
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for
your expansion card(s).
7. Install the driver provided with the expansion card in your operating system.
Example: Installing and Removing a PCI Express x16 Graphics Card:
•Installing a Graphics Card:
Gently insert the graphics card into the PCI Ex-
press x16 slot. Make sure the graphics card is
locked by the latch at the end of the PCI Ex-
press x16 slot.
•Removing the Card:
Press the white latch at the end of the PCI Express x16 slot to release the
card and then pull the card straight up from the slot.

Hardware Installation- 19 -
English
PCI Express x16 Graphics Card Support List
The items below are supported under Windows XP operating system only. When using an add-on
graphics card, please first delete the onboard graphics driver before installing the driver for the add-on
graphics card.
Graphics Chip Maker Model Name
ATI Radeon X300 LE GIGABYTE GV-RX30128D
ATI Radeon X300 SE GIGABYTE GV-RX30S128D
ATI Radeon X300 SE + Hyper Memory GIGABYTE GV-RX30HM128D
ATI Radeon X550 GIGABYTE GV-RX55128D
ATI Radeon X600 Pro GIGABYTE GV-RX60P128DE
ATI Radeon X600 XT GIGABYTE GV-RX60X128V
ATI Radeon X700 GIGABYTE GV-RX70128D
ATI Radeon X700 Pro GIGABYTE GV-RX70P128D
ATI Radeon X800 GIGABYTE GV-RX80256D
ATI Radeon X800 XL GIGABYTE GV-RX80L256V
ATI Radeon X850 XT GIGABYTE GV-RX85T256V-B
ATI Radeon X1300 GIGABYTE GV-RX13128D-RH
ATI Radeon X1300 Pro GIGABYTE GV-RX13P256D-RH
ATI Radeon X1550 GIGABYTE GV-RX155256D-RH
ATI Radeon X1600 Pro GIGABYTE GV-RX16P256DE-RH
ATI Radeon X1600 XT GIGABYTE GV-RX16T256V-RH
ATI Radeon X1650 Pro GIGABYTE GV-RX165P256D-RH
ATI Radeon X1650 XT GIGABYTE GV-RX165T256D-RH
ATI Radeon X1800 XL GIGABYTE GV-RX18L256V-B
ATI Radeon X1800 XT GIGABYTE GV-RX18T512V-B
ATI Radeon X1900 XTX GIGABYTE GV-RC19T512B-RH
ATI Radeon X1950 Pro GIGABYTE GV-RX195P256D-RH
ATI Radeon X1950 XTX GIGABYTE GV-RX195X512VB-RH
ATI Radeon X600 XT MSI RX600 XT-TD128
ATI Radeon X700 Pro ASUS AX700PRO
ATI Radeon X800 XT ASUS AX800XT
(Continued...)

GA-G33M-S2H Motherboard - 20 -
English
Graphics Chip Maker Model Name
NVIDIA Geforce PCX 5300 GIGABYTE GV-NX53128D
NVIDIA Geforce PCX 5750 GIGABYTE GV-NX57128D
NVIDIA Geforce PCX 5900 GIGABYTE GV-NX59128D
NVIDIA Geforce 5200 Ultra GIGABYTE GV-NX55128DP
NVIDIA Geforce 6200 GIGABYTE GV-NX62128D
NVIDIA Geforce 6500 GIGABYTE GV-NX65128DE
NVIDIA Geforce 6600 GIGABYTE GV-NX66128DP2
NVIDIA Geforce 6600 LE GIGABYTE GV-NX66L128DP
NVIDIA Geforce 6800 GIGABYTE GV-NX68256D
NVIDIA Geforce 6800 GT GIGABYTE GV-NX68T256DH
NVIDIA Geforce 6800 Ultra GIGABYTE GV-NX68U256D-B
NVIDIA Geforce 7100 GS GIGABYTE GV-NX71G512P8-RH
NVIDIA Geforce 7300 GS GIGABYTE GV-NX73G128D-RH
NVIDIA Geforce 7300 GT GIGABYTE GV-NX73T256D-RH
NVIDIA Geforce 7300 LE GIGABYTE GV-NX73L128D-RH
NVIDIA Geforce 7600 GS GIGABYTE GV-NX76G256D-RH
NVIDIA Geforce 7600 GT GIGABYTE GV-NX76T256D-RH
NVIDIA Geforce 7800 GT GIGABYTE GV-NX78T256V-B
NVIDIA Geforce 7800 GTX GIGABYTE GV-NX78X256V-B
NVIDIA Geforce 7900 GS GIGABYTE GV-NX79G256DP-RH
NVIDIA Geforce 7900 GT GIGABYTE GV-NX79T256DP-RH
NVIDIA Geforce 7900 GTX GIGABYTE GV-NX79X512VB-RH / GV-NX79X512DB-RH
NVIDIA Geforce 8800 GTX GIGABYTE GV-NX88X768H-RH (A power supply with 700-watt or
above is recommended)
NVIDIA Geforce 6600 ASUS EN6600/TD/128
NVIDIA Geforce 6600 GT ASUS EN6600GT/TD/128
NVIDIA Geforce 6600 GT Leadtek WinFast PX6600GT TDH
NVIDIA Geforce 6800 GT MSI NX6800GT-TD256E
NVIDIA Geforce 7600 GT ELSA GLADIAC 760GT
NVIDIA Geforce 7900 GT ELSA GLADIAC 790GT
