GA-K8VNXP-939 /
GA-K8V Ultra-939
AMD Socket 939 Processor Motherboard
User's Manual
Rev. 1003
12ME-K8VN939-1003

May 21, 2004
Motherboard
GA-K8VNXP-939
MotherboardMotherboard MotherboardMotherboard
Motherboard
GA-K8VNXP-939
May 21, 2004

Feb. 1, 2005
Motherboard
GA-K8V Ultra-939
MotherboardMotherboard MotherboardMotherboard
Motherboard
GA-K8V Ultra-939
Feb. 1, 2005

- 4 -
GA-K8VNXP-939/GA-K8V Ultra-939 Motherboard
English

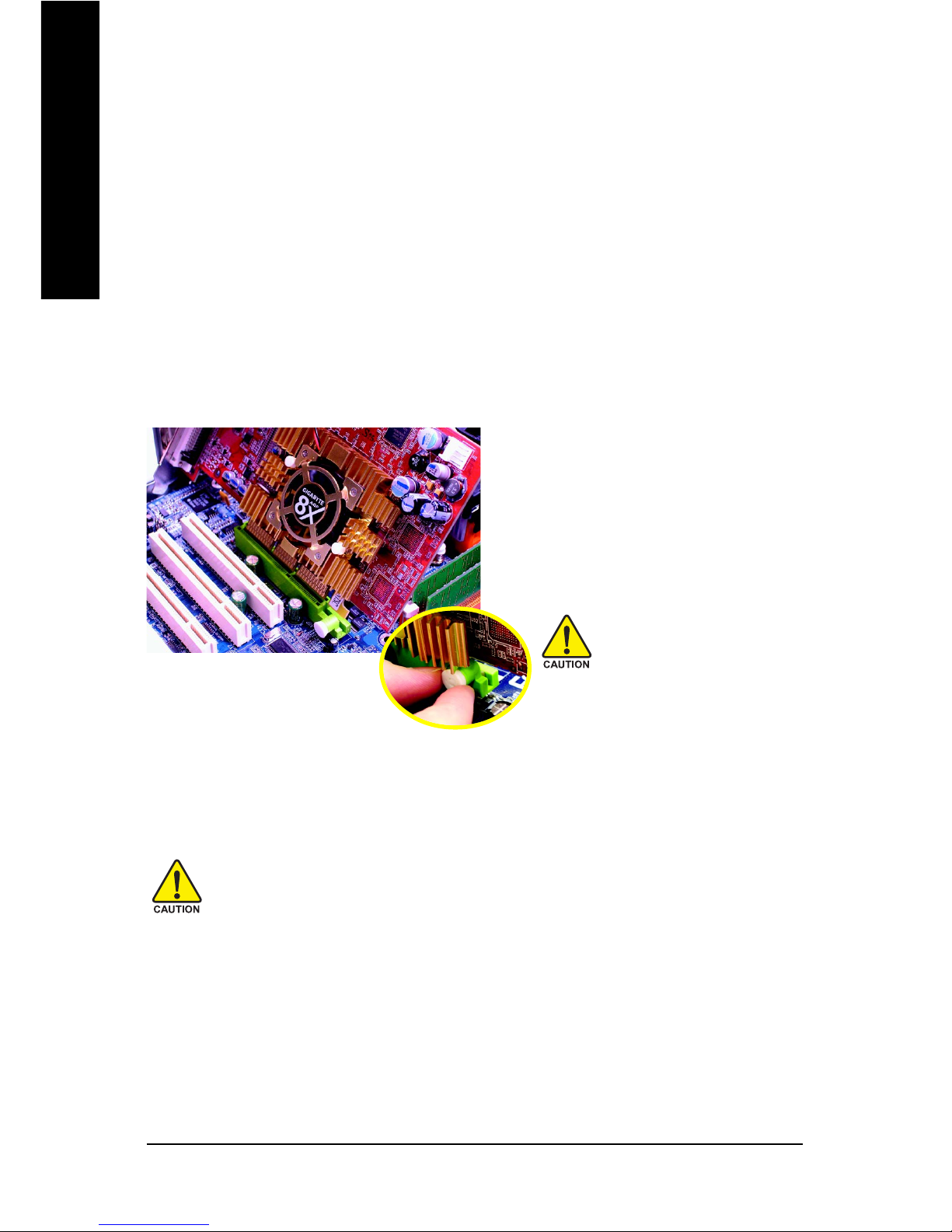

When you installing AGP card, please make sure the following notice is fully understood and
practiced. If your AGP card has "AGP 4X/8X (1.5V) notch" (show below), please make sure
your AGP card is AGP 4X/8X.
Caution: AGP 2X card is not supported by VIA K8T800 Pro. You might experience
system unable to boot up normally. Please insert an AGP 4X/8X card.
AGP 4X/8X notch
Read Me First!

Read Me First!
English
- 5 -
Prepare your computer...
Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some precautions whenever you
work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do not have one,
touch both of your hands to a safely grounded object or to a metal object, such as the power
supply case.
3. Hold components by the edges and try not touch the IC chips, leads or connectors, or other
components.
4. Place components on a grounded antistatic pad or on the bag that came with the components
whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX power
connector on the motherboard.
Installing the motherboard to the chassis...
If the motherboard has mounting holes, but they don't line up with the holes on the base and there
are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the
mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so
be careful of your hands). In this way you can still attach the motherboard to the base without worrying
about short circuits. Sometimes you may need to use the plastic springs to isolate the screw from the
motherboard PCB surface, because the circuit wire may be near by the hole. Be careful, don't let the
screw contact any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it
may damage the board or cause board malfunctioning.

- 6 -
GA-K8VNXP-939/GA-K8V Ultra-939 Motherboard
English
Table of Contents
Read Me First! ........................................................................................ 4
Chapter 1 Introduction ............................................................................ 8
Features Summary ...................................................................................... 8
GA-K8VNXP-939/GA-K8V Ultra-939 Motherboard Layout ........................ 10
Block Diagram ........................................................................................... 11
Chapter 2 Hardware Installation Process ............................................. 13
Step 1: Install the Central Processing Unit (CPU)..................................... 14
Step 2: Installing Cool-Plus (Northbridge Cooling Fan) ........................... 16
Step 2-1: Installing Cool-Plus ......................................................................................... 16
Step 2-2: Removing Cool-Plus ...................................................................................... 16
Step 3: Install Memory Modules ................................................................ 16
Step 4: Install Expansion Cards ................................................................ 18
Step 5: Install I/O Peripherals Cables ....................................................... 19
Step 5-1: I/O Back Panel Introduction ............................................................................ 19
Step 5-2: Connectors Introduction .................................................................................. 21
Chapter 3 BIOS Setup ......................................................................... 37
The Main Menu (For example: GA-K8V Ultra-939 BIOS Ver. : E1) .......... 38
Standard CMOS Features......................................................................... 40
Advanced BIOS Features .......................................................................... 42
Integrated Peripherals ............................................................................... 43
Power Management Setup ....................................................................... 46
PnP/PCI Configurations ............................................................................. 48
PC Health Status........................................................................................ 49
Frequency/Voltage Control ........................................................................ 50

Table of Contents
English
- 7 -
Top Performance ...................................................................................... 51
Load Fail-Safe Defaults ............................................................................. 51
Load Optimized Defaults ........................................................................... 52
Set Supervisor/User Password .................................................................. 52
Exit Without Saving .................................................................................... 53
Save & Exit Setup ....................................................................................... 53
Chapter 4 Technical Reference ........................................................... 55
@BIOS™Introduction................................................................................. 55
Dual Power System-Gold (DPS-Gold) Introduction* ................................ 56
Flash BIOS Method Introduction............................................................... 57
2- / 4- / 6- / 8- Channel Audio Function Introduction ................................. 64
Jack-Sensing and UAJ Introduction .......................................................... 70
Xpress Recovery Introduction ................................................................... 72
Serial ATA BIOS Setting Utility Introduction ............................................... 75
Chapter 5 Appendix ............................................................................. 83
"*" Only for GA-K8VNXP-939.

- 8 -
GA-K8VNXP-939/GA-K8V Ultra-939 Motherboard
English
Motherboard yGA-K8VNXP-939 or GA-K8V Ultra-939
CPU ySocket 939 for AMD Athlon™64 / 64FX processor (K8)
y2000MHz system bus
ySupports core frequencies in excess of 3200+ and faster
Chipset yNorthbridge: VIA K8T800 Pro
ySouthbridge: GA-K8VNXP-939: VIA VT8237
GA-K8V Ultra-939: VIA VT8237R
Memory y4 DDR DIMM memory slots, support up to 4GB DRAM (Max.)(Note 1)
ySupports Dual Channel DDR400/333/266 DIMM
Slots y1 AGP slot supports 8X/4X(1.5V) mode
y5 PCI slots
IDE Connections y2 IDE connection (UDMA 33/ATA 66/ATA 100/ATA 133),
allows connection of 4 IDE devices
FDD Connections y1 FDD connection, allows connection of 2 FDD devices
Onboard SATA y4 Serial ATA connectors:
GA-K8VNXP-939: 2 ports from VT8237 (SATA0_SB, SATA1_SB)
GA-K8V Ultra-939: 2 ports from VT8237R(Note 2) (SATA0_SB, SATA1_SB)
2 ports from SiI3512 controller (SATA0_SII, SATA1_SII)
Peripherals y1 parallel port supporting Normal/EPP/ECP mode
y2 Serial ports (COMA, COMB)
y8 USB 2.0/1.1 ports (rear x 4, front x 4 via cable)
y3 IEEE1394b ports (requires cable)
y1 front audio connector
y1 IR connector
y1 PS/2 keyboard port
y1 PS/2 mouse port
Onboard LAN yOnboard RTL8110S chip (10/100/1000 Mbit)(LAN1)
yOnboard RTL8201 chip (10/100 Mbit)(LAN2)
y2 RJ45 ports
Chapter 1 Introduction
Features Summary
(Note 1) Due to standard PC architecture, a certain amount of memory is reserved for system usage
and therefore the actual memory size is less than the stated amount. For example, 4 GB of
memory size will instead be shown as 3.xxGB memory during system startup.
(Note 2) It is recommended to use SATA (1.5Gb/s) hard disks.

Introduction
English
- 9 -
OnboardAudio yALC850 CODEC (UAJ)
ySupports Jack Sensing function
ySupports 2 / 4 / 6 / 8 channel audio (Note 3)
ySupports Line In ; Line Out ; MIC
ySurround Back Speaker (by optional Audio Combo Kit)
ySPDIF In / Out
yCD In / Game connector
Onboard SATA RAID yOnboard VIA VT8237 / VT8237R chipset
(SATA0_SB, SATA1_SB) ySupports data striping (RAID 0) or mirroring (RAID 1)
ySupports data transfer rate of up 150 MB/s
ySupports hot plugging function
ySupports a maximum of 2 SATA connections
Onboard SATA RAID yOnboard Silicon Image SiI3512 chipset
(SATA0_SII, SATA1_SII) ySupports data striping (RAID 0) or mirroring (RAID 1)
ySupports data transfer rate of up 150 MB/s
ySupports hot plugging function
ySupports a maximum of 2 SATA connections
I/O Control yIT8705
Hardware Monitor ySystem voltage detection
yCPU temperature detection
yCPU / System fan speed detection
yCPU / System fan failure warning
yCPU smart fan control
yThermal shutdown function
BIOS yUse of licensed AWARD BIOS
ySupports Dual BIOS/Q-Flash
Additional Features ySupports DPS-Gold (Dual Power System-Gold)*
ySupports @BIOS
ySupports EasyTune
Overclocking yOver voltage via BIOS (CPU/DDR/AGP)
yOver clock via BIOS (CPU/DDR/AGP/PCI)
Form Factor yATX form factor; 30.5cm x 24.4cm
"*" Only for GA-K8VNXP-939.
(Note 3) To set up an 8 channel audio configuration, you must use Audio Combo Kit (optional device).

- 10 -
GA-K8VNXP-939/GA-K8V Ultra-939 Motherboard
English
F_USB2
F_USB1
F2_1394
F1_1394
SPDIF_IO
F_AUDIO
"*" Only for GA-K8VNXP-939.
(Note) GA-K8VNXP-939: VIA VT8237
GA-K8V Ultra-939: VIA VT8237R
GA-K8VNXP-939 or GA-K8V Ultra-939
MS/KB
COMA
LPT
USB
LAN1
ATX_12V
SOCKET 939
CPU_FAN
IDE1
IDE2
DDR2
COMB
PWR_LED
BATTERY
PCI1
PCI2
PCI3
MAIN
BIOS
CODEC
PWR_FAN
VIA VT8237 or
VT8237R (Note)
DDR3
PCI4
PCI5
GAME
IR
SiI3512
BACKUP
BIOS
SATA1_SB
RAM_LED
ATX
SYS_FAN
NB_FAN
DDR1
SUR_CEN
AUDIO
F_PANEL

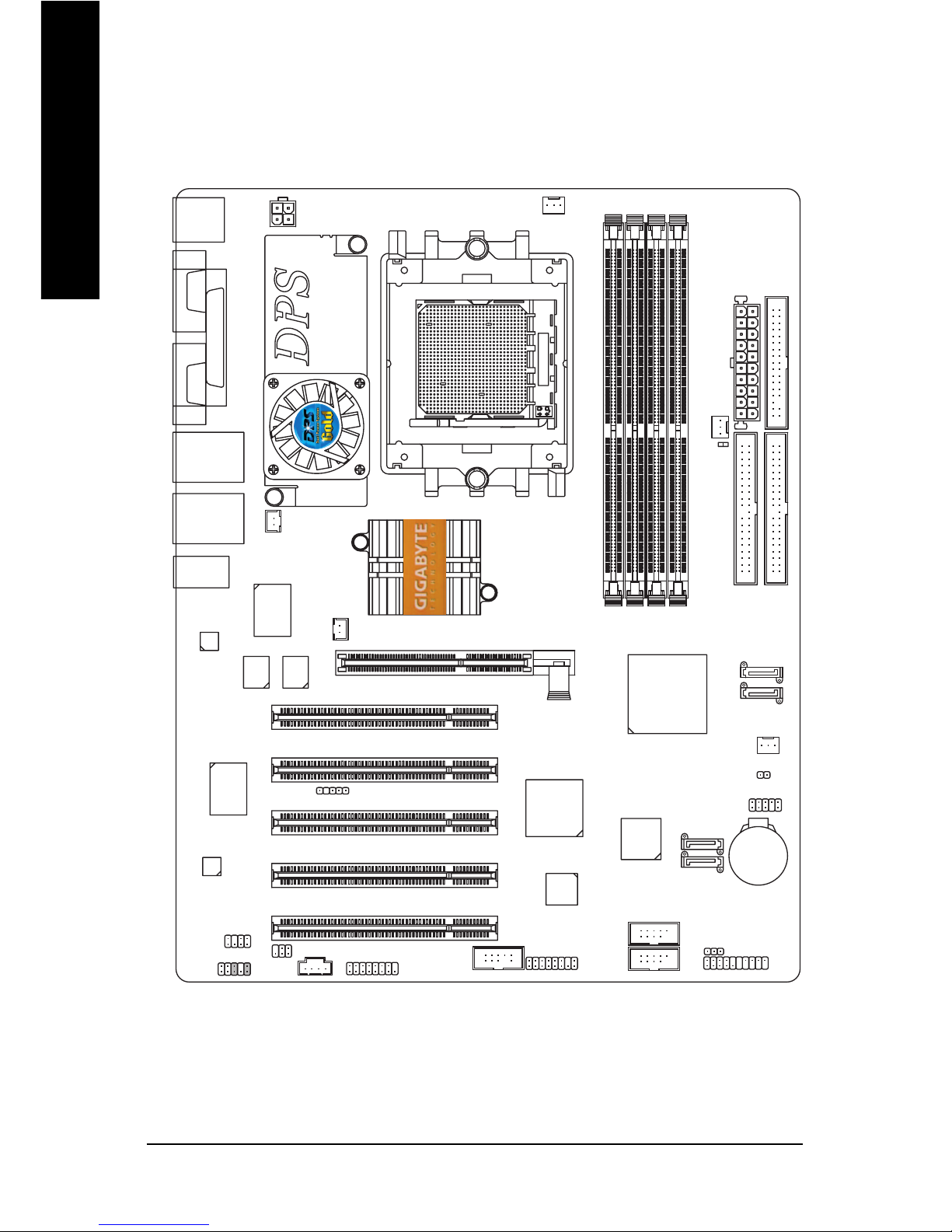

GA-K8VNXP-939/GA-K8V Ultra-939 Motherboard Layout
INFO_LINK
AGP
VIA K8T800 Pro
USB
LAN2
FDD
IT8705
TSB82AA2
SATA0_SB
CD_IN
TSB81BA3
RTL8201
RTL
8110S
CLR_CMOS
DDR4
SATA0_SII
SATA1_SII
DPS_FAN*
*

Introduction
English
- 11 -

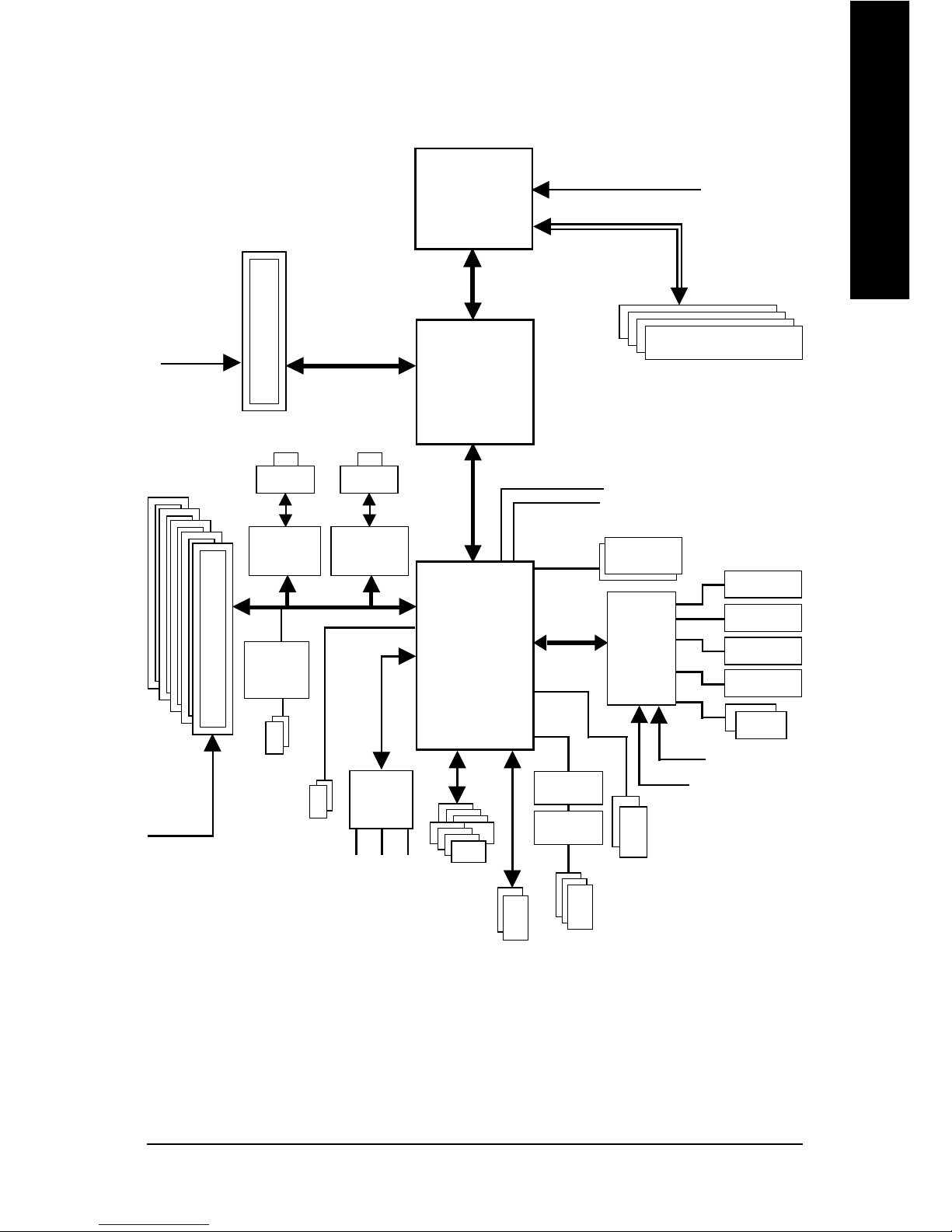

Block Diagram
(Note) GA-K8VNXP-939: VIA VT8237
GA-K8V Ultra-939: VIA VT8237R
VIA K8T800 Pro
CPUCLK+/- (200MHz)
H.T. Bus 2000MHz
33 MHz
14.318 MHz
AGP
4X/8X
AGPCLK
(66MHz)
5 PCI
PCICLK
(33MHz)
RJ45
AC97 Link
RTL8110S
MIC
LINE-IN
LINE-OUT
AC97
CODEC
2 Serial ATA
DDR400/333/266MHz
VIA VT8237 or
VT8237R (Note)
RJ45
RTL8201
LPC BUS
8 USB
Ports
IT8705
24 MHz
33 MHz
Game Port
Floppy
LPT Port
2 COM Ports
BIOS
3 IEEE1394b
TSB82AA2
IR
SiI3512
ATA33/66/100/133
IDE Channels
LAN1
LAN2
AMD K8
Socket 939
CPU
Dual Channel Memory
2 Serial ATA
TSB81BA3 PS/2 KB/Mouse

- 12 -
GA-K8VNXP-939/GA-K8V Ultra-939 Motherboard
English

Hardware Installation Process
English
- 13 -
To set up your computer, you must complete the following steps:
Step 1 - Install the Central Processing Unit (CPU)
Step 2 - Installing Cool-Plus (Northbridge Cooling Fan)
Step 3 - Install Memory Modules
Step 4 - Install Expansion Cards
Step 5 - Install I/O Peripherals Cables
Chapter 2 Hardware Installation Process
Step 3Step 5
Step 4
Step 5
Step 1
Step 5
Congratulations! You have accomplished the hardware installation!
Turn on the power supply or connect the power cable to the power outlet. Continue with the
BIOS/software installation.
Step 2

- 14 -
GA-K8VNXP-939/GA-K8V Ultra-939 Motherboard
English

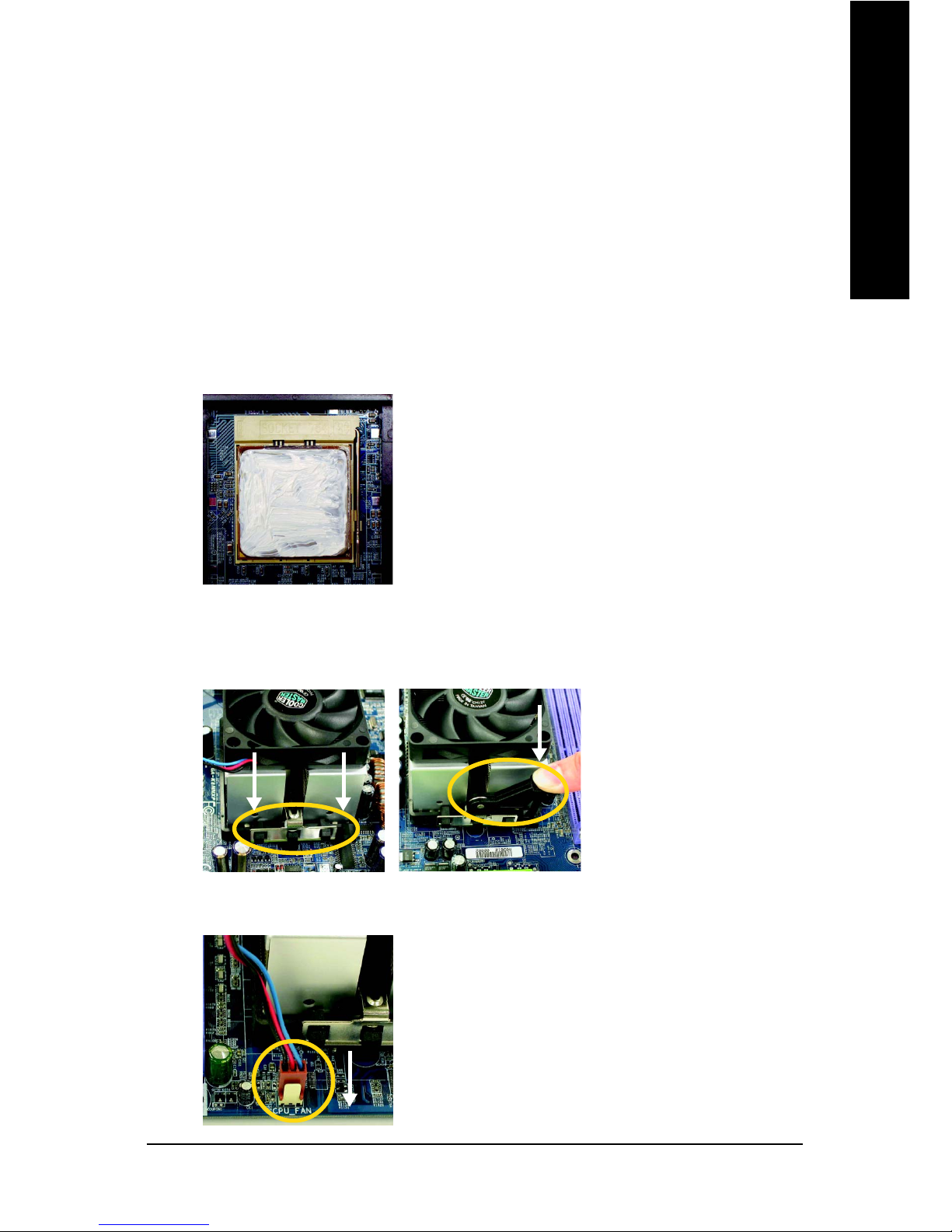

Step 1: Install the Central Processing Unit (CPU)
Before installing the CPU, please comply with the following conditions:
Socket Lever
The installation of the processor and cooling fan is performed in four main steps:
1. Please make sure that the motherboard supports the CPU.
2. Please take note of the one indented corner of the CPU. If you install the CPU in the
wrong direction, the CPU will not insert properly. If this occurs, please change the insert
direction of the CPU.
3. Please add an even layer of heat sink paste between the CPU and heatsink.
4. Please make sure the heatsink is installed on the CPU prior to system use, otherwise
overheating and permanent damage of the CPU may occur.
5. Please set the CPU host frequency in accordance with the processor specifications. It is
not recommended that the system bus frequency be set beyond hardware specifications
since it does not meet the required standards for the peripherals. If you wish to set the
frequency beyond the proper specifications, please do so according to your hardware
specifications including the CPU, graphics card, memory, hard drive, etc.

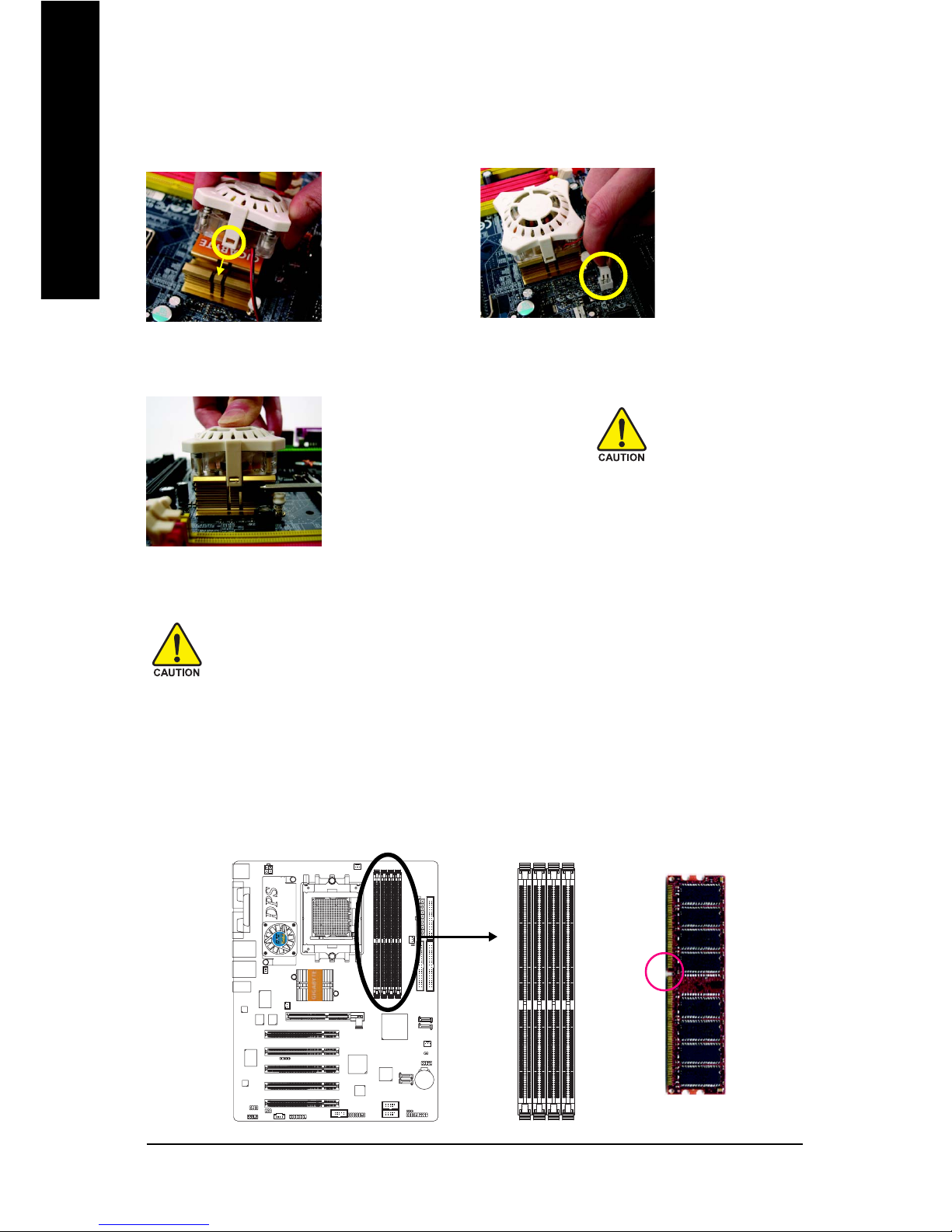

Step1-1. First, check the processor pins to see that none are bent. Move the socket lever to the
unlocked position as shown in Figure 1.(90oto the plane of the motherboard) prior to inserting
the processor. The pin 1 location is designated on the processor by a copper triangle that
matches up to a triangle on the socket as shown in Figure 2. Align the processor to the socket
and gently lower it into place. Do not force the processor into the socket.
Figure 1.
Pull the lever to the 90-degree directly.
Figure 2.
Pin 1 location on the Socket and Processor. Move the
socket lever to the locked position while holding pressure
on the center of the processor.

Hardware Installation Process
English
- 15 -
Step1-2. When the processor is installed in the socket, apply thermal grease to the processor(as shown
in Figure 3) prior to installing the heatsink. Phase change materials develop strong adhesive
forces between the heatsink and processor. Removing the heatsink under such condi-
tions can cause the processor to be removed from the socket without moving the
socket lever to the unlocked position and then damage the processor pins or socket
contacts.
** We recommend you to apply the thermal tape to provide better heat conduction between
your CPU and heatsink. (The CPU cooling fan might stick to the CPU due to the hardening of
the thermal paste. During this condition if you try to remove the cooling fan, you might pull the
processor out of the CPU socket alone with the cooling fan, and might damage the processor.
To avoid this from happening, we suggest you to either use thermal tape instead of thermal
paste, orremove the cooling fan with extreme caution.)
Figure 3.
Application of thermal grease to the processor.
Step 1-4. Connect the fan power wires to the header on the motherboard as shown in Figure 6.
Figure 6.
Connecting the fan power wires.
Step 1-3.Once the thermal grease has been applied to the processor, the heatsink can be attached to
the processor. Align the heatsink assembly with the support frame mating with the backer plate
standoffs as shown in Figure 4 & 5.
Figure 4 & 5.
Alignment of heatsink assembly
with standoffs.

- 16 -
GA-K8VNXP-939/GA-K8V Ultra-939 Motherboard
English
Before installing the memory modules, please comply with the following conditions:
1. Please make sure that the memory used is supported by the motherboard. It is recom-
mended that memory of similar capacity, specifications and brand be used.
2. Before installing or removing memory modules, please make sure that the computer
power is switched off to prevent hardware damage.
3. Memory modules have a foolproof insertion design. A memory module can be installed
in only one direction. If you are unable to insert the module, please switch the direction.
Step 3: Install Memory Modules
The motherboard supports DDR memory modules, whereby BIOS will automatically detect memory
capacity and specifications. Memory modules are designed so that they can be inserted only in one
direction. The memory capacity used can differ with each slot.
DDR
Notch
1. To attach Cool-Plus
to a heatsink, align the
extensions on both
sides with the grooves
in the heatsink as
shown. Firmly press
down until it snaps into
position.
2. Once the fan is prop-
erly affixed onto the
heatsink, plug the
power cable into the
NB_FAN connector.
Before proceeding, first check to make
sure that the fan's power cable is
disconnected. Then, while applying
pressure to the top of the fan, carefully
use a screwdriver to dislodge the
extension on one side.
Exerting too much pres-
sure on the fan during
removal might cause
the side extensions to
break-off.
Step 2-1: Installing Cool-Plus
Step 2-2: Removing Cool-Plus
Step 2: Installing Cool-Plus (Northbridge Cooling Fan)

Hardware Installation Process
English
- 17 -
Dual Channel DDR:
The GA-K8VNXP-939/GA-K8V Ultra-939 supports the Dual Channel Technology. When the Dual
Channel Technology is activated, the bandwidth of memory bus will be double the original one.
Due to CPU limitation, if you want to operate the Dual Channel Technology, please follow the guidelines
below for Dual Channel memory configuration.
1. Dual Channel mode will not be enabled if only one DDR memory module is installed.
2. To enable Dual Channel mode with 2 memory modules (it is recommended to use memory
modules of identical brand, size, chips, and speed), you must install them into DIMM sockets
of the same color.
3. To enable Dual Channel mode with 4 memory modules, it is recommended to use memory
modules of identical brand, size, chips, and speed.
The following is a Dual Channel Memory configuration table: (DS: Double Side, SS: Single Side)

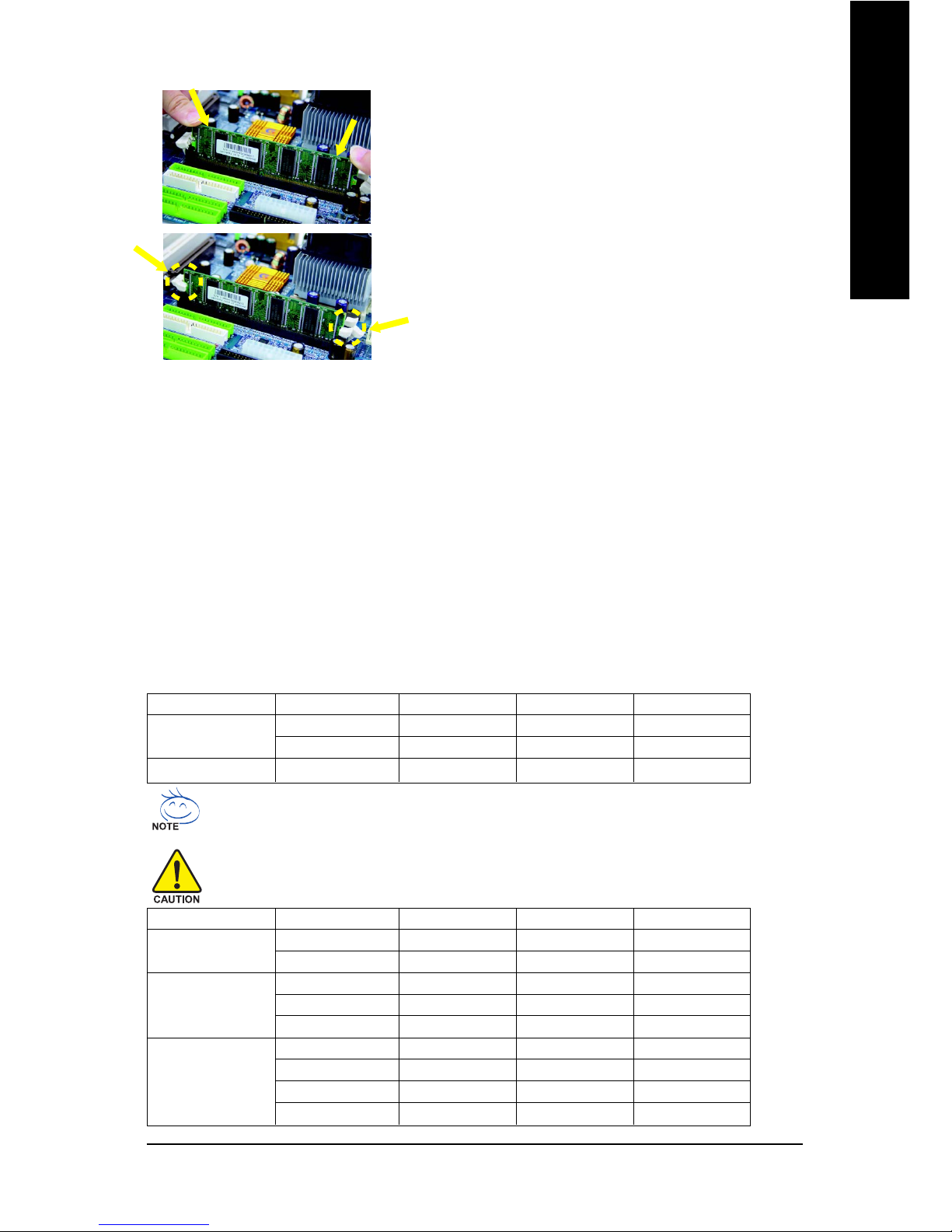

1. The DIMM socket has a notch, so the DIMM memory
module can only fit in one direction. Insert the DIMM memory
module vertically into the DIMM socket. Then push it down.
2. Close the plastic clip at both edges of the DIMM sockets to
lock the DIMM module.
Reverse the installation steps when you wish to remove
the DIMM module.
2 memory modules
4 memory modules
DDR1 DDR2 DDR3 DDR4
DS/SS DS/SS X X
X X DS/SS DS/SS
DS/SS DS/SS DS/SS DS/SS
1 memory module
2 memory modules
3 memory modules
DDR1 DDR2 DDR3 DDR4
X DS/SS X X
X X X DS/SS
X DS/SS DS/SS X
DS/SS X X DS/SS
X DS/SS X DS/SS
DS/SS DS/SS DS/SS X
X DS/SS DS/SS DS/SS
DS/SS X DS/SS DS/SS
DS/SS DS/SS X DS/SS
All of the memory configurations below will cause system unable to boot.
(DS: Double Side, SS: Single Side)
If two memory modules are to be used to achieve Dual Channel mode, we recommend
installing them in DDR1 and DDR2 DIMM sockets.

- 18 -
GA-K8VNXP-939/GA-K8V Ultra-939 Motherboard
English
Step 4: Install Expansion Cards
You can install your expansion card by following the steps outlined below:
1. Read the related expansion card's instruction document before install the expansion card into the
computer.
2. Remove your computer's chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer's chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.
Installing a AGP VGA card:
When an AGP 2X (3.3V) card is installed the 2X_DET will light up, indicating a non-supported
graphics card is inserted. Informing users that system might not boot up normally due to AGP
2X (3.3V) is not supported by the chipset.
Please carefully pull out the small white-
drawable bar at the end of the AGP slot
when you try to install/uninstall the VGA
card. Please align the VGA card to the
onboard AGP slot and press firmly down
on the slot. Make sure your VGA card is
locked by the small white-drawable bar.

Hardware Installation Process
English
- 19 -
Step 5: Install I/O Peripherals Cables

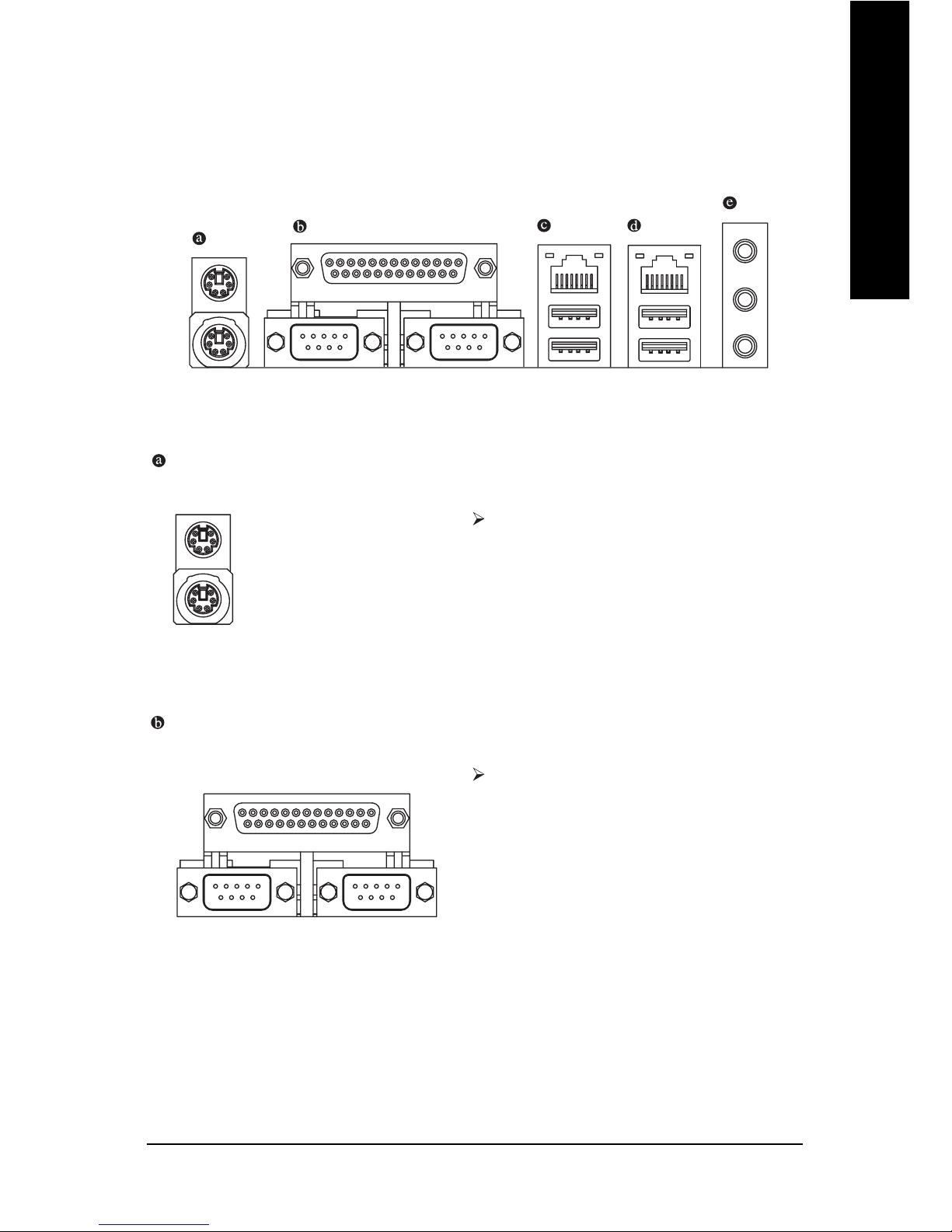

Step 5-1: I/O Back Panel Introduction
This connector supports 2 standard COM ports
and 1 Parallel port. Devices like printer can be
connected to Parallel port; mouse and modem
etc. can be connected to Serial ports.
This connector supports standard PS/2
keyboard and PS/2 mouse.
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
Parallel Port (25 pin Female)
COMA COMB
Serial Port (9 pin Male)
PS/2 Keyboard and PS/2 Mouse Connector
Parallel Port, Serial Ports (COMA / COMB)

- 20 -
GA-K8VNXP-939/GA-K8V Ultra-939 Motherboard
English
Line In
MIC In
Line Out
After install onboard audio driver, you may
connect speaker to Line Out jack, microphone to
MIC In jack. Devices like CD-ROM, walkman
etc. can be connected to Line-In jack.
Please note:
You are able to use 2-/4-/6-/8-channel audio
feature by S/W selection.
If you want to enable 8-channel function you can
refer to page 29, and contact your nearest dealer
for optional SUR_CEN cable.
If you want the detail information for 2-/4-/6-/8-channel audio setup
installation, please refer to page 64.

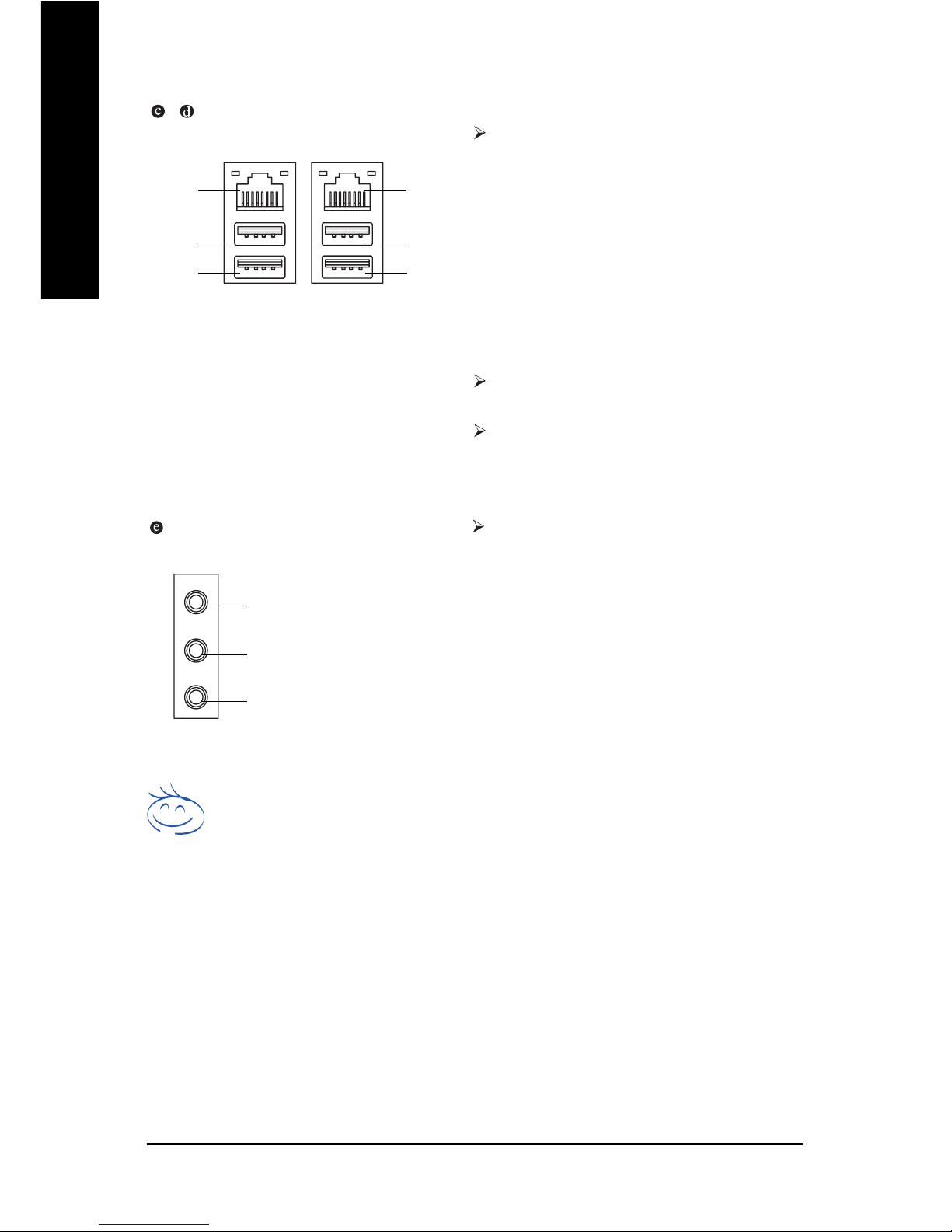

/USB/LAN Connector
Audio Connectors
Before you connect your device(s) into USB
connector(s), please make sure your device(s)
such as USB keyboard, mouse, scanner, zip,
speaker...etc. have a standard USB interface.
Also make sure your OS supports USB
controller. If your OS does not support USB
controller, please contact OS vendor for
possible patch or driver upgrade. For more
information please contact your OS or device(s)
vendors.
LAN1 connector is fast Ethernet with 10/100/
1000 Mbps speed.
LAN2 connector is fast Ethernet with 10/100
Mbps speed.
USB 0
USB 1
USB 2
USB 3
LAN2 LAN1
