Gigabyte G593-ZD2-AAX1 User manual

G593-ZD2-AAX1

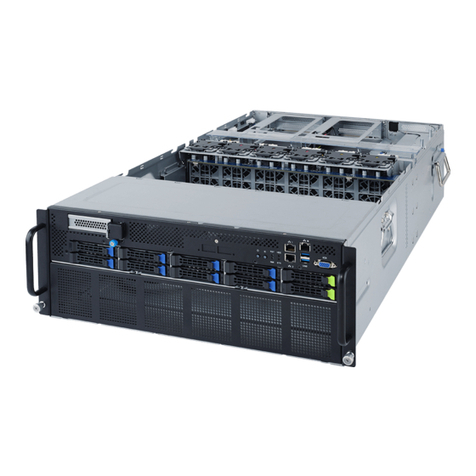

HPC Server - 5U DP SXM5 H100 8-GPU Server System
User Manual
Rev. 1.0

Copyright
© 2023 Giga Computing Technology CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of Giga Computing.
Changes to the specications and features in this manual may be made by Giga Computing
without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without Giga Computing's prior written permission.
Documentation Classications
In order to assist in the use of this product, Giga Computing provides the following types of documen-
tation:
 User Manual: detailed information & steps about the installation, conguration and use of this
product (e.g. motherboard, server barebones), covering hardware and BIOS.

User Guide: detailed information about the installation & use of an add-on hardware or
software component (e.g. BMC rmware, rail-kit) compatible with this product.
Quick Installation Guide: a short guide with visual diagrams that you can reference easily for
installation purposes of this product (e.g. motherboard, server barebones).
Please see the support section of the online product page to check the current availability of these
documents.
For More Information
For related product specications, the latest rmware and software, and other information please visit our website at
http://www.gigabyte.com/Enterprise
For GIGABYTE distributors and resellers, additional sales & marketing materials are available from our reseller
portal: http://reseller.b2b.gigabyte.com
For further technical assistance, please contact your GIGABYTE representative or visit
https://esupport.gigabyte.com/ to create a new support ticket
For any general sales or marketing enquiries, you may also message GIGABYTE server directly by email:
server[email protected]

Conventions
The following conventions are used in this user's guide:
NOTE!
Gives bits and pieces of additional
information related to the current topic.
CAUTION!
Gives precautionary measures to
avoid possible hardware or software problems.
WARNING!
Alerts you to any damage that might
result from doing or not doing specic actions.

Server Warnings and Cautions
Before installing a server, be sure that you understand the following warnings and cautions.
WARNING!
To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding plug. The grounding plug is an important safety
feature.
• Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all
times.
• Unplug all the power cords from the power supplies to disconnect power to the equipment.
•
• Shock Hazard! Disconnect all power supply cords before servicing.
• Do not route the power cord where it can be walked on or pinched by items placed against it.
Pay particular attention to the plug, electrical outlet, and the point where the cord extends from
the server.
WARNING!
To reduce the risk of personal injury from hot surfaces, allow the drives
and the internal system components to cool before touching them.
WARNING!
This server is equipped with high speed fans. Keep away from hazardous
moving fan blades during servicing.
WARNING!
This equipment is intended to be used in Restrict Access Location. The
access can only be gained by Skilled person.
Only authorized by well trained professional person can access the
restrict access location.
CAUTION!
• Do not operate the server for long periods with the access panel open or removed. Operat-
ing the server in this manner results in improper airow and improper cooling that can lead to
thermal damage.
• Danger of explosion if battery is incorrectly replaced.
• Replace only with the same or equivalent type recommended by the manufacturer.
• Dispose of used batteries according to the manufacturer’s instructions.

Electrostatic Discharge (ESD)
CAUTION!
ESD CAN DAMAGE DRIVES, BOARDS, AND OTHER PARTS. WE RECOMMEND THAT YOU
PERFORM ALL PROCEDURES AT AN ESD WORKSTATION. IF ONE IS NOT AVAILABLE,
PROVIDE SOME ESD PROTECTION BY WEARING AN ANTI-STATIC WRIST STRAP AT-
TACHED TO CHASSIS GROUND -- ANY UNPAINTED METAL SURFACE -- ON YOUR SERVER
WHEN HANDLING PARTS.
Always handle boards carefully. They can be extremely sensitive to ESD. Hold boards only by
their edges without any component and pin touching. After removing a board from its protective
wrapper or from the system, place the board component side up on a grounded, static free sur-
face. Use a conductive foam pad if available but not the board wrapper. Do not slide board over
any surface.
System power on/o󰀨: To remove power from system, you must remove the system from
rack. Make sure the system is removed from the rack before opening the chassis, adding, or
removing any non hot-plug components.
Hazardous conditions, devices and cables: Hazardous electrical conditions may be
present on power, telephone, and communication cables. Turn off the system and discon-nect
the cables attached to the system before servicing it. Otherwise, personal injury or equipment
damage can result.
Electrostatic discharge (ESD) and ESD protection: ESD can damage drives,
boards, and other parts. We recommend that you perform all procedures in this chapter only at
an ESD workstation. If one is not available, provide some ESD protection by wearing an antistatic
wrist strap attached to chassis ground (any unpainted metal surface on the server) when handling
parts.
ESD and handling boards: Always handle boards carefully. They can be extremely
sensi-tive to electrostatic discharge (ESD). Hold boards only by their edges. After removing a
board from its protective wrapper or from the system, place the board component side up on a
grounded, static free surface. Use a conductive foam pad if available but not the board wrapper.
Do not slide board over any surface.
Installing or removing jumpers: A jumper is a small plastic encased conductor that slips
over two jumper pins. Some jumpers have a small tab on top that can be gripped with n-gertips
or with a pair of ne needle nosed pliers. If the jumpers do not have such a tab, take care when
using needle nosed pliers to remove or install a jumper; grip the narrow sides of the jumper with
the pliers, never the wide sides. Gripping the wide sides can dam-age the contacts inside the
jumper, causing intermittent problems with the function con-trolled by that jumper. Take care to
grip with, but not squeeze, the pliers or other tool used to remove a jumper, or the pins on the
board may bend or break.

CAUTION!
Risk of explosion if battery is replaced incorrectly or with an incorrect type. Replace the battery
only with the same or equivalent type recommended by the manufacturer. Dispose of used bat-
teries according to the manufacturer’s instructions.

- 7 -
Table of Contents
Chapter 1 Hardware Installation ...................................................................................10
1-1 Installation Precautions.................................................................................. 10
1-2 Product Specications.................................................................................... 11
1-3 System Block Diagram................................................................................... 15
1-4 PCIe Block Diagram....................................................................................... 16
Chapter 2 System Appearance.....................................................................................17
2-1 Front View...................................................................................................... 17
2-2 Rear View....................................................................................................... 18
2-3 Front Panel LED and Buttons ........................................................................ 19
2-3-1 RoT LEDs...............................................................................................................20
2-4 Front Panel System LAN LEDs...................................................................... 22
2-5 Power Supply Unit (PSU) LED....................................................................... 23
2-6 Hard Disk Drive LEDs .................................................................................... 24
Chapter 3 System Hardware Installation ......................................................................25
3-1 Removing and Installing the Chassis Top Cover............................................ 26
3-2 Removing and Installing the GPU Tray.......................................................... 27
3-3 Removing the Heat Sink ................................................................................ 28
3-4 Installing the CPU .......................................................................................... 29
3-5 Installing the Memory..................................................................................... 30
3-5-1 Twelve Channel Memory Conguration..................................................................30
3-5-2 Installing the Memory ............................................................................................31
3-5-3 Processor and Memory Module Matrix Table .........................................................31
3-5-4 DIMM Population Table ..........................................................................................32
3-6 Installing the M.2 Device and Heat Sink ........................................................ 33
3-7 Installing the PCI Expansion Card ................................................................. 34
3-8 Installing the Hard Disk Drive......................................................................... 36
3-9 Replacing the System Fan Module ................................................................ 37
3-10 Removing and Installing the Power Supply.................................................... 38
3-11 Installing the System into the Cabinet............................................................ 39
3-12 Removing the System from the Cabinet ........................................................ 40
3-13 Cable Connection........................................................................................... 42
3-13-1 Motherboard to PCIe Board....................................................................................42
3-13-2 Motherboard/Front IO Board to Rear Side FHHL Card Cable................................44

- 8 -
3-13-3 Motherboard to PCIe Board and HDD Backplane Board .......................................46
Chapter 4 Motherboard Components ...........................................................................48
4-1 Motherboard Components ............................................................................. 48
4-2 Jumper Setting .............................................................................................. 50
4-3 Backplane Board Storage Connector ............................................................ 51
4-3-1 CBPG680 ...............................................................................................................51
Chapter 2 BIOS Setup ..................................................................................................52
5-1 The Main Menu .............................................................................................. 54
5-2 Advanced Menu ............................................................................................. 57
5-2-1 Trusted Computing .................................................................................................58
5-2-2 PSP Firmware Versions..........................................................................................59
5-2-3 Legacy Video Select...............................................................................................60
5-2-4 AST2600 Super IO Conguration...........................................................................61
5-2-5 S5 RTC Wake Settings...........................................................................................63
5-2-6 Serial Port Console Redirection .............................................................................64
5-2-7 CPU Conguration..................................................................................................68
5-2-8 PCI Subsystem Settings.........................................................................................69
5-2-9 USB Conguration..................................................................................................71
5-2-10 Network Stack Conguration..................................................................................73
5-2-11 Post Report Conguration ......................................................................................74
5-2-12 NVMe Conguration ...............................................................................................75
5-2-13 SATA Conguration.................................................................................................76
5-2-14 Graphic Output Conguration.................................................................................77
5-2-15 AMD Mem Conguration Status.............................................................................78
5-2-16 Tls Auth Conguration ............................................................................................79
5-2-17 RAM Disk Conguration .........................................................................................80
5-2-18 iSCSI Conguration................................................................................................81
5-2-19 Intel(R) Ethernet Controller X710 for 10GBASE-T .................................................82
5-2-20 VLAN Conguration................................................................................................84
5-2-21 MAC IPv4 Network Conguration...........................................................................85
5-2-22 MAC IPv6 Network Conguration...........................................................................86
5-3 AMD CBS Menu............................................................................................. 87
5-3-1 CPU Common Options...........................................................................................88
5-3-2 DF Common Options..............................................................................................94
5-3-3 UMC Common Options ........................................................................................101
5-3-4 NBIO Common Options........................................................................................122
5-3-5 FCH Common Options .........................................................................................133
5-3-6 SOC Miscellaneous Control .................................................................................142
5-3-7 CXL Common Options..........................................................................................144

- 9 -
5-4 AMD PBS Menu........................................................................................... 145
5-4-1 RAS ......................................................................................................................146
5-5 Chipset Setup Menu..................................................................................... 148
5-5-1 North Bridge .........................................................................................................149
5-5-2 Fabric Resource ...................................................................................................150
5-6 Server Management Menu........................................................................... 152
5-6-1 System Event Log ................................................................................................154
5-6-2 View FRU Information ..........................................................................................155
5-6-3 BMC Network Conguration .................................................................................156
5-6-4 IPv6 BMC Network Conguration.........................................................................157
5-7 Security Menu .............................................................................................. 158
5-7-1 Secure Boot .........................................................................................................159
5-8 Boot Menu.................................................................................................... 161
5-9 Save & Exit Menu......................................................................................... 163
5-10 BIOS Recovery ............................................................................................ 164
5-11 BIOS POST Beep code (AMI standard)....................................................... 165
5-11-1 PEI Beep Codes...................................................................................................165
5-11-2 DXE Beep Codes .................................................................................................165

Hardware Installation
- 10 -
1-1 Installation Precautions
The motherboard/system contain numerous delicate electronic circuits and components which
can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully
read the user manual and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist
strap, keep your hands dry and rst touch a metal object to eliminate static electricity.
• Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power
supply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your
hardware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven surface .
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to
system components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certied computer technician.
Chapter 1 Hardware Installation

Hardware Installation
- 11 -
1-2 Product Specications
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
System
Dimension
5U
447 x 222.25 x 945 (W x H x D, mm)
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
CPU AMD EPYC™ 9004 series processors
AMD EPYC™ 9004 series processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
*Up to 128-core, 256 threads per processor
cTDP up to 300W at ambient 35°C
*cTDP supported up to 400W under limited thermal conditions. Please contact
technical support for more details.
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
Socket 2 x LGA 6096
Socket SP5
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
Chipset System on Chip
Socket
Socket
Security
Security
Security UEFI Secure Boot
Silicon root of trust (Option)
SNMP Support: V3
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
Memory 24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture per processor
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
LAN Front side:
2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
NCSI function supported
1 x 10/100/1000 management LAN
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
Video Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
Storage Front side:
8 x 2.5" Gen5 NVMe hot-swappable bays, from PEX89104
NOTE:
We reserve the right to make any changes to the product specications and product-related
information without prior notice.

Hardware Installation
- 12 -
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
Expansion Slot Supports NVIDIA HGX™ H100 with 8 x SXM5 GPUs
8 x PCIe x16 (Gen5 x16) low-prole slots, from PEX89104
2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_0
2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_1
1 x M.2 slot:
- M-key
- PCIe Gen3 x1, from CPU_0
- Supports 2280/22110 cards
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
Internal I/O 2 x M.2 slots
1 x TPM header
1 x Front panel header
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
Front I/O 2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN (default port)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
Rear I/O 1 x MLAN
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
Backplane I/O Speed and bandwidth: PCIe Gen5 x4
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Hardware Installation
- 13 -
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
Power Supply 4+2 3000W (240V) 80 PLUS Titanium redundant power supplies
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input:
- 240Vdc/ 14A
DC Output:
- Max 1450W at 115-127V~
+ 54V/ 26.6A
+ 12Vsb/ 3A
- Max 2900W at 200-220V~
+ 54V/ 53.4A
+ 12Vsb/ 3A
- Max 3000W at 220-240V~ or 240Vdc
+ 54V/ 55.6A
+ 12Vsb/ 3A
NOTE:
The system power supply requires C19 type power cord
The power supply specications provided herein is for the default server
conguration. Different SKUs have different PSU specs, so please see the
system rating label on the server for the accurate PSU specication.
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
System
Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Prole
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Conguration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Hardware Installation
- 14 -
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
System Fans Front: 5 x 80x80x80mm (17,200rpm), 6 x 60x60x76mm (21,700rpm)
Rear: 6 x 80x80x80mm (17,000rpm), 4 x 40x40x56mm (29,700rpm)
Internal: 4 x 40x40x28mm (25,000rpm), 4 x 60x60x56mm (24,000rpm)
Socket
Socket
Security
Security Server Operating Properties
Power Supply
System fanSystem fanSystem fan
Operating
Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Hardware Installation
- 15 -
1-3 System Block Diagram

Hardware Installation
- 16 -
1-4 PCIe Block Diagram
HDD5
CPU1 CPU0
PCIe G5 Switch PCIe G5 Switch PCIe G5 Switch PCIe G5 Switch
SLOT12
SLOT10
SLOT11
SLOT9
SLOT7
GPU0GPU1
GPU2GPU3
GPU4
GPU5
GPU6
GPU7
SLOT8 SLOT5 SLOT6 SLOT2 SLOT3SLOT1SLOT4
NVMe5
HDD4
NVMe4
HDD7
NVMe7
HDD6
NVMe6
HDD1
NVMe1
HDD0
NVMe0
HDD3
NVMe3
HDD2
NVMe2
Gen5 x16
Gen5 x16
Gen5 x16
Gen5 x16
Gen5 x16
Gen5 x16
Gen5 x16
Gen5 x16
Gen5 x16 Gen5 x16
Gen5 x16 Gen5 x16
Gen5 x4
Gen5 x4
Gen5 x16 Gen5 x16
Gen5 x16 Gen5 x16
Gen5 x4
Gen5 x4
Gen5 x16 Gen5 x16
Gen5 x16 Gen5 x16
Gen5 x4
Gen5 x4
Gen5 x16 Gen5 x16
Gen5 x16 Gen5 x16
Gen5 x4
Gen5 x4
SLOT9
SLOT11
SLOT10
SLOT12
SLOT8 SLOT7 SLOT6 SLOT5 SLOT4 SLOT3 SLOT2 SLOT1
GPU0
GPU3 GPU7
GPU4
GPU5 GPU6 GPU2 GPU1
HDD0
HDD1 HDD2 HDD3 HDD4 HDD5 HDD6 HDD7
CPU0 Domain
CPU1 Domain
Front Side
Rear Side

System Appearance
- 17 -
Chapter 2 System Appearance
2-1 Front View
5 63 421
HDD0
HDD1 HDD2 HDD3 HDD4 HDD5
F_60
FAN
1/2
F_80
FAN
1/2
HDD6 HDD7
F_60
FAN
3/4
F_60
FAN
5/6
F_60
FAN
7/8
F_60
FAN
9/10
F_60
FAN
11/12
F_80
FAN
3/4
F_80
FAN
5/6
F_80
FAN
7/8
F_80
FAN
9/10
No. Description
1. USB 3.2 Gen1 Port x 2
2. 10/100/1000 Server Management LAN Port
3. VGA Port
4. Front Panel LEDs and Buttons
5. 10GbE LAN Port x 2
6. GPU Tray
NOTE! Drives with green latches support NVMe.
• Go to the section 2-3 Front Panel Buttons and LEDs for detail description of function LEDs.

System Appearance
- 18 -
2-2 Rear View
11
3 2
PSU1
PSU2
PSU3
PSU4
PSU5
PSU6 SLOT9
SLOT11
SLOT10
SLOT12
R_80
FAN
9/10
R_80
FAN
1/2
R_80
FAN
3/4
R_80
FAN
5/6
R_80
FAN
7/8
R_80
FAN
11/12
SLOT8 SLOT7 SLOT6 SLOT5
SLOT4 SLOT3 SLOT2 SLOT1
No. Description
1. PCIe Card Cage x 2
2. PCIe Slot x 4
3. 10/100/1000 Server Management LAN Port

System Appearance
- 19 -
2-3 Front Panel LED and Buttons
No. Name Color Status Description
1. Reset Button Press the button to reset the system.
2. NMI button
Press the button server generates a NMI to the processor
if the multiple-bit ECC errors occur, which effectively halt
the server.
3. HDD Status
LED
Green On HDD locate
Blink HDD access
Amber On HDD fault
Green/
Amber Blink HDD rebuilding
N/A Off No HDD access or no HDD fault.
4.
System
Status
LED(Note)
Green Solid On System is operating normally.
Amber
Solid On
Critical condition, may indicate:
System fan failure
System temperature
Blink
Non-critical condition, may indicate:
Redundant power module failure
Temperature and voltage issue
Chassis intrusion
N/A Off
System is not ready, may indicate:
POST error
NMI error
Processor or terminator missing
5. Power button
with LED
Green On System is powered on
Green Blink System is in ACPI S1 state (sleep mode)
N/A Off • System is not powered on or inACPI S5 state (power off)
• System is in ACPI S4 state (hibernate mode)
6. ID Button(Note) Press the button to activate system identication
1
2
3
4 5 6
(Note) If your server features RoT function, please see the following section for detail LED behavior.

System Appearance
- 20 -
2-3-1 RoT LEDs
ID LED
Status LED
LED on Front panel(Note5)
ID LED Status LED
EC Firmware (FW) Authentication fail or not exit
EC FW is broken or not exit (Note1) OFF OFF
Authenticating/Recovering BMC/BIOS Images
Authenticating Images OFF OFF
Recovering BMC Active Flash
Blinks Blue
4 times per
second
Blinks Green
4 times per
second
Recovering BIOS Active Flash
Blinks Blue
4 times per
second
Blinks Green
4 times per
second
Authentication (AUTH) Pass
Recovering BIOS Active Flash OFF OFF
BMC : AUTH pass after doing recovery
BIOS : AUTH pass after doing recovery OFF OFF
BMC : AUTH pass after doing recovery
BIOS : AUTH pass OFF OFF
BMC : AUTH pass
BIOS : AUTH pass after doing recovery OFF OFF
Active Flash Authentication (AUTH) Fail
BMC : AUTH Fail(Note2)
Blinks Blue
1 time per
second
Blinks Green
1 time per second
BIOS : AUTH fail(Note2)
Blinks Blue
1 time per
second
Blinks Amber
1 time per second
