Gigabyte FGSD-1022VHP User manual

8-/16-/24-Port 10/100TX 802.3at PoE+
Gigabit TP/SFP Ethernet Switch with Smart LCD
FGSD-1022VHP/FGSW-1822VHP/FGSW-2622VHP
User’s Manual

Copyright
Copyright © 2021 by PLANET Technology Corp. All rights reserved. No part of
this publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or
by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied,
with respect to the contents hereof and specically disclaims any warranties,
merchantability or tness for any particular purpose. Any software described
in this manual is sold or licensed "as is". Should the programs prove defective
following their purchase, the buyer (and not PLANET, its distributor, or its dealer)
assumes the entire cost of all necessary servicing, repair, and any incidental or
consequential damages resulting from any defect in the software. Further, PLANET
reserves the right to revise this publication and to make changes from time to time
in the contents hereof without obligation to notify any person of such revision or
changes.
All brand and product names mentioned in this manual are trademarks and/or
registered trademarks of their respective holders.
Trademarks
PLANET is a registered trademark of PLANET Technology Corp. All other
trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all
environments and applications, and makes no warranty and representation, either
implied or expressed, with respect to the quality, performance, merchantability, or
tness for a particular purpose.
PLANET has made every eort to ensure that this User’s Manual is accurate;
PLANET disclaims liability for any inaccuracies or omissions that may have
occurred. Information in this User’s Manual is subject to change without notice
and does not represent a commitment on the part of PLANET. PLANET assumes
no responsibility for any inaccuracies that may be contained in this User’s Manual.
PLANET makes no commitment to update or keep current the information in this
User’s Manual, and reserves the right to make improvements to this User’s Manual
and/or to the products described in this User’s Manual, at any time without notice.
If you nd information in this manual that is incorrect, misleading, or incomplete,
we would appreciate your comments and suggestions.

FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the Instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
WEEE Warning
To avoid the potential eects on the environment and human health as a
result of the presence of hazardous substances in electrical and electronic
equipment, end users of electrical and electronic equipment should
understand the meaning of the crossed-out wheeled bin symbol. Do not
dispose of WEEE as unsorted municipal waste; WEEE should be collected
separately.
Revision
PLANET 8-/16-/24-Port 10/100TX 802.3at PoE+ SFP Ethernet Switch with Smart
LCD User's Manual
Models: FGSD-1022VHP, FGSW-1822VHP, FGSW-2622VHP
Revision: 3.2 (October. 2021)
Part No.: 2351-AK5040-005

Table of Contents
1. Introduction ............................................................................................... 5
1.1 Package Contents ................................................................................ 5
1.2 Product Description.............................................................................. 6
1.3 Features ............................................................................................10
1.4 Specications .....................................................................................12
2. Hardware Description.................................................................................15
2.1 Front Panel ........................................................................................15
2.1.1 LCD Monitor Indicators ..............................................................16
2.1.2 LED Indicators ..........................................................................17
2.2 Rear Panel .........................................................................................19
2.3 LCD Management ...............................................................................20
2.3.1 Switch Mode .............................................................................21
2.3.2 Budget Control..........................................................................23
2.3.3 PSE Port Priority........................................................................23
2.3.4 PSE Port Enable ........................................................................24
2.3.5 PD Type ...................................................................................24
2.3.6 Alive Check...............................................................................25
2.3.7 Bandwidth Detection..................................................................26
2.3.8 Fan Control...............................................................................26
2.3.9 Screen Saver ............................................................................26
2.3.10 Language ................................................................................27
2.3.11 Default Setting.........................................................................27
2.3.12 System ...................................................................................27
3. Hardware Installation .................................................................................28
3.1 Desktop Installation ............................................................................29
3.2 Rack Mounting ...................................................................................30
3.3 Installing the SFP Transceiver ..............................................................31
3.4 Product Applications............................................................................33
3.5 Power over Ethernet Powered Devices ..................................................34
4. Power over Ethernet Overview ....................................................................35
5. Troubleshooting .........................................................................................38

5
1. Introduction
Thank you for purchasing PLANET 8/16/24-Port 10/100TX 802.3at PoE+ SFP
Ethernet Switch series, FGSD-1022VHP, FGSW-1822VHP and FGSW-2622VHP. The
descriptions of these models are shown below:
FGSD-1022VHP 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo
Desktop Switch with LCD PoE Monitor
FGSW-1822VHP 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP + 2-Port
SFP Ethernet Switch with LCD PoE Monitor
FGSW-2622VHP 24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP + 2-Port
SFP Ethernet Switch with LCD PoE Monitor
“802.3at PoE+ Switch” is used as an alternative name in this user’s manual.
1.1 Package Contents
Open the box of the 802.3at PoE+ Switch and carefully unpack it. The box should
contain the following items:
802.3at PoE+ Switch x 1 User’s Manual x 1
Power Cord x 1 Rubber Feet x 4
Rack-mounting Brackets x 2 Screws Package x 1

6
If any of these pieces are missing or damaged, please contact your dealer
immediately; if possible, retain the carton including the original packing material,
and use them again to repack the product in case there is a need to return it to us
for repair.
1.2 Product Description
Ideal High-performance Integration Solution for Secure IP Surveillance
Infrastructure
Particularly designed for the growing popular IP surveillance applications, PLANET
FGSD/FGSW 802.3at PoE+ Switch series is positioned as a surveillance switch with
the central power management and IP camera monitoring.
The FGSD/FGSW 802.3at PoE+ Switch series brings an ideal, secure surveillance
system at a lower total cost. The FGSD/FGSW 802.3at PoE+ Switch series provides
multiple 10/100 Mbps 802.3at/af PoE ports able to supply sucient PoE power to
IEEE 802.3at PoE IP cameras at the same time. It is also able to be connected
with an 8-/16-/32-channel NVR system, uplinked to the backbone switch and the
monitoring center. With such high-performance switch architecture, the recorded
video les from the PoE IP cameras can be saved in the NVR system to enable the
administrators to control and monitor the surveillance images both in the local LAN
and the remote sites.
Model FGSD-1022VHP FGSW-1822VHP FGSW-2622VHP
10/100TX Copper 8 x RJ45 16 x RJ45 24 x RJ45
10/100/1000T Copper 2 x RJ45 (Combo) 2 x RJ45 2 x RJ45
1000X Fiber Optic 2 x SFP Slots
(Combo) 2 x SFP Slots 2 x SFP Slots
802.3af/at PoE+ Ports 816 24
PoE Budget 120 watts 300 watts 300 watts
Enclosure 12” metal case 19” metal case 19” metal case
Just “Plug and Watch” for a Quick Solution
The FGSD/FGSW 802.3at PoE+ Switch series is an ideal Plug and Watch Power
over Ethernet solution which provides quick installation, real-time PoE work status
monitoring and immediate troubleshooting through its unique LCD display to
improve work eciency and quality without any PC or software required.

7
The FGSD/FGSW 802.3at PoE+ Switch series is equipped with 8/16/24
10/100BASE-TX ports featuring 30-watt 802.3at Power over Ethernet Plus (PoE+)
copper interfaces. With a total PoE power budget of up to 120/300 watts and
non-blocking data switching performance, the FGSD/FGSW 802.3at PoE+ Switch
series fullls the demand of sucient PoE power for HD IP surveillance. It oers a
desktop-sized, reliable and visible power solution for small businesses and system
integrators deploying Power over Ethernet networks.
Smart LCD Power LED
Gigabit TP/SFP
LNK/ACT Status
PoE & LNK/ACT
Status
Menu/Enter/Back
Up/Down Button
2 x Gigabit TP/SFP
16 x 10/100BASE-TX 802.3at PoE+
Smart and Intuitive LCD Control
The FGSD/FGSW 802.3at PoE+ Switch series provides an intuitive color panel on
its front panel that facilitates the Ethernet management and PoE PD management.
They greatly promote management eciency in large-scale network, such as
enterprises, hotels, shopping malls, government buildings and other public areas,
and feature the following special management and status functions:
PoE management and status
Port management and status
Switch Mode: Standard, VLAN, Extend
Budget and bandwidth control
PD alive check
Maintenance: Screen saver, fan control, factory default and save conguration

8

4 6 82
1 3 5 7
12 14 1610
911 13 15
20 22 2418
17 19 21 23
FGSW-2622VHP
Menu (5 sec)
Enter
Back
PWR
Up
Down
Gigabit
25 27
26 28
PoE
1
2
5
6
9
10
13
14
17
18
21
22
3
4
7
8
11
12
15
16
19
20
23
24
PoE In-Use
ACTLNK
26
25
28
27
ACTLNK
10/100 1000

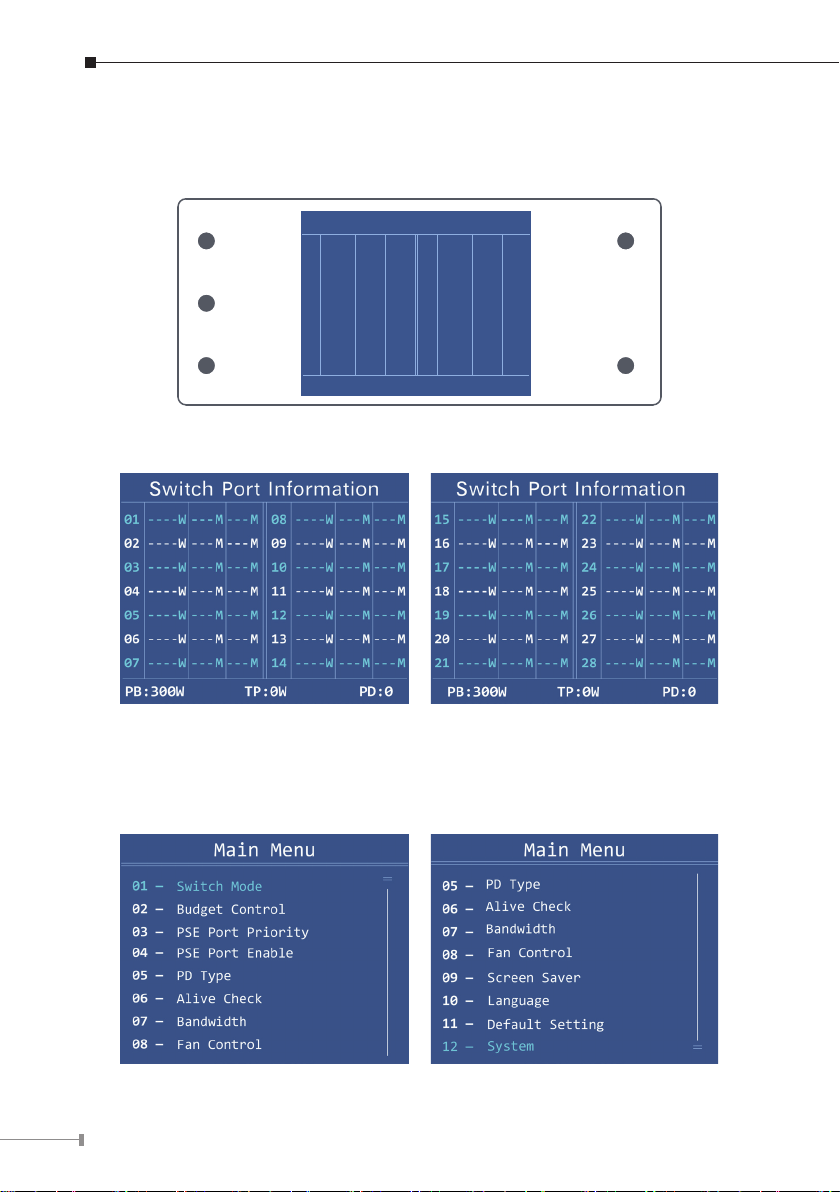

Main Menu
01 —
02 —
03 —
05 —
06 —
07 —
08 —
Switch Mode
Budget Control
PSE Port Priority
PD Type
Alive Check
Bandwidth
Fan Control
04 — PSE Port Enable
Switch Port Information
30.3
01 W --- M-33M
----
02 W ---M--- M
----W
03 ---M---M
15.4W
04 -10M---M
----W
05 ---M---M
----
06 W ---M---M
----
07 W ---M---M
----
08 W ---M---M
-8.3
09 W ---M-11M
----
10 W ---M---M
-OFF
11 ----M---M
----
12 W ---M---M
17.6W
13 -11M-12M
----
14 W ---M---M
PB:300W TP:72W PD:4
PSE Port Enable
Port Status
>
Enable01
Disable
<UP>/<Down>:Select
<Enter>:Confirm <Back>:Return
Current Setting: Enable

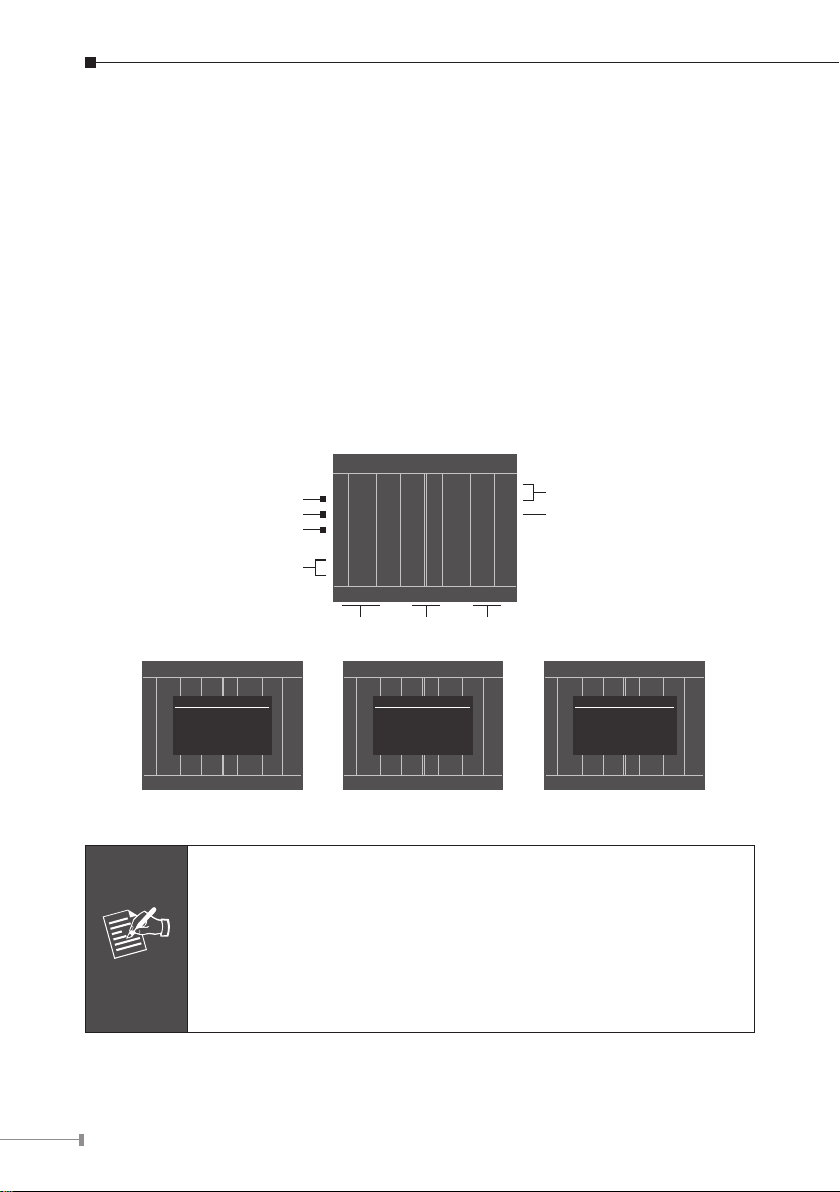

Switch Mode
Options:
VLAN
Extend
Standard>
Switch Mode
Options:
VLAN
Extend
Standard>
Standard, VLAN and Extend Operation Modes Oered
The FGSD/FGSW 802.3at PoE+ Switch series provides Standard, VLAN and Extend
operation modes. The FGSD/FGSW 802.3at PoE+ Switch series operates as a
normal IEEE 802.3af/at PoE Switch in the Standard operation mode.
Standard Mode (default)
Power
PoE
100 meters (328 feet)
FGSW-1822VHP
PoE
100BASE-TX UTP with PoE
PoE IP Camera
> Standard
VLAN
Extend

9
The VLAN operation mode features the port-based VLAN function that can help to
prevent the IP camera’s multicast or broadcast storm from inuencing each other.
VLAN Isolation Mode
Ports 17 and 18 for uplink
Ports 1~16 Access Permitted
FGSW-1822VHP PC
Ports 1 to 16
Access Denied
PoE
PoE
PoE
1000
1000BASE-SX/LX Fiber-optic
1000
100BASE-TX UTP
PoE
100BASE-TX UTP with PoE
IP Camera
IP Camera
IP Camera
NVR
Standard
> VLAN
Extend
In the Extend operation mode, the FGSD/FGSW 802.3at PoE+ Switch series
operates on a per-port basis at 10Mbps duplex operation but can support 20-
watt PoE power output over a distance of up to 250 meters overcoming the 100m
limit on Ethernet UTP cable. With this brand-new feature, the FGSD/FGSW Series
provides an additional solution for 802.3af/at PoE distance extension, thus saving
the cost of Ethernet cable installation. Its VLAN isolation function isolates ports so
as to prevent broadcast storm and defend DHCP spoong in the Extend operation
mode.
Extend Mode
Power
250 meters (820 feet)
PoE
FGSW-1822VHP
PoE
10BASE-T UTP with PoE
PoE IP Camera
Standard
VLAN
> Extend
Flexible Extension Solution
The two mini-GBIC slots built in the FGSD/FGSW 802.3at PoE+ Switch series
are compatible with the 1000BASE-SX/LX SFP (Small Form-factor Pluggable)
ber transceiver, uplinked to the backbone switch and monitoring center in long
distance. The distance can be extended from 550 meters (multi-mode ber) to
10/20/40/80/120 kilometers (single-mode ber or WDM ber). They are well suited
for applications within the enterprise data centers and distributions.

10
Robust Protection
The FGSD/FGSW 802.3at PoE+ Switch series provides contact discharge of
±4/6KV DC and air discharge of ±6/8KV DC for Ethernet ESD protection. It also
supports ±4/6KV surge immunity to improve product stability and protects users’
networks from devastating ESD attacks, making sure the ow of operation does
not uctuate.
Easy Installation and Cable Connection
As data and power are transmitted over one cable, the FGSD/FGSW 802.3at PoE+
Switch series does not need a second cable and electrical outlets on the wall,
ceiling or any unreachable place. Thus, it helps to lower the installation costs and
simplify the installation eort. All the RJ45 copper interfaces of the FGSD/FGSW
802.3at PoE+ Switch series support 10/100/1000Mbps auto-negotiation for optimal
speed detection through RJ45 Category 6, 5 or 5e cable. It also supports standard
auto-MDI/MDI-X that can detect the type of connection to any Ethernet device
without requiring special straight-through or crossover cables.
1.3 Features
Physical Port
FGSD-1022VHP
8-port 10/100BASE-TX Fast Ethernet Gigabit RJ45 copper
2 10/100/1000BASE-T TP and 2 1000BASE-X mini-GBIC SFP shared
combo interfaces
FGSW-1822VHP
16-port 10/100BASE-TX Fast Ethernet RJ45 copper
2 10/100/1000BASE-T TP and 2 1000BASE-X mini-GBIC SFP interfaces
FGSW-2622VHP
24-port 10/100BASE-TX Fast Ethernet RJ45 copper
2 10/100/1000BASE-T TP and 2 1000BASE-X mini-GBIC SFP interfaces
Power over Ethernet
Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
Up to 8/16/24 ports of IEEE 802.3af/at devices powered
Supports PoE Power up to 30 watts for each PoE port
Each port supports 54V DC power to PoE powered device
120-watt PoE budget (FGSD-1022VHP)
300-watt PoE budget (FGSW-1822VHP/FGSW-2622VHP)

11
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m in standard mode and 250m in extend
mode
Smart LCD
The LCD switch features “Standard”, “VLAN” and “Extend” mode selection;
the “Extend” mode features 20-watt PoE transmission distance of 250m at
speed of 10Mbps and VLAN isolation
The LCD switch is able to isolate ports to prevent broadcast storm and defend
DHCP spoong
Power low-voltage, power over-voltage and PSE over-temperature protection
Screen saver, fan control, factory default and save conguratio
PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD alive check
Switching
Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex
operation
9216/16K bytes packet size
Integrates address look-up engine, supporting 8K/16K absolute MAC addresses
IEEE 802.1Q VLAN transparency
Automatic address learning and address aging
Hardware
12/19-inch desktop size, 1U height, rack mountable
2-inch color LCD with smart management functions
LED indicators for system power, per port PoE ready and PoE activity, speed,
Link/Act
1/3 silent fans to provide stable and ecient power performance
Supports Energy-Ecient Ethernet (EEE) function (IEEE 802.3az)
Supports contact discharge of ±4/6KV DC and air discharge of ±6/8KV DC for
Ethernet ESD protection
Supports ±4/6KV surge immunity

12
1.4 Specications
Model FGSD-1022VHP FGSW-1822VHP FGSW-2622VHP
Hardware Specications
802.3af/at PoE
Injector Port 816 24
10/100BASE-TX MDI/
MDIX Ports 816 24
10/100/1000BASE-T
MDI/MDIX Ports 2 (Combo) 2
1000BASE-X SFP/
mini-GBIC Slots 2 (Combo) 2
Switch Architecture Store-and-Forward
Switch Fabric 5.6Gbps/
non-blocking
11.2Gbps/
non-blocking
12.8Gbps/
non-blocking
Switch
Throughput@64 bytes 4.17Mpps@64 bytes 8.3Mpps@64 bytes
9.5Mpps@64
bytes
MAC Address Table 16K entries 8K entries
Maximum Frame Size 16K bytes 9216 bytes
Flow Control IEEE 802.3x pause frame for full duplex; back pressure for
half duplex
LED Indicators
System:
Power (Green)
10/100BASE-TX RJ45 Interfaces:
10/100Mbps LNK/ACT (Green)
PoE-in-Use (Amber)
1000BASE-X SFP Interfaces:
LNK/ACT (Green)
1000BASE-T TP
Interface:
LNK/ACT (Green)
1000Mbps (Green)
1000BASE-T TP Interfaces:
LNK/ACT (Green)
10Mbps (--)
100Mbps (Red)
1000Mbps (Green)
LCD Monitor (W x D) 40.6 x 30.5 mm, 2-inch
Buttons Menu, Enter, Back, Up and Down
Dimensions
(W x D x H)
180
x 280 x 44mm
(1U height)
233 x 440 x 44 mm
(1U height)
Enclosure Metal

13
Weight 1.8kg 3.4kg 3.4kg
Power Requirements 100-240V AC,
50/60Hz, 2.5A max. 100-240V AC, 50/60Hz, 5A max.
Power Consumption/
Dissipation
Max. 130 watts/
446 BTU Max. 330 watts/1132 BTU
Thermal Fan 1 3
ESD Protection
Contact discharge of
±4KV DC
Air discharge of
±6KV DC
Contact discharge of ±6KV DC
Air discharge of ±8KV DC
Surge Protection ±4KV ±6KV
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at
Power Pin Assignment 1/2 (+), 3/6 (-)
PoE Power Budget 120 watts 300 watts
Max. Number of Class
2 PDs 816 24
Max. Number of Class
3 PDs 816 23
Max. Number of Class
4 PDs 411 11
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Ecient Ethernet (EEE)

14
Environment
Operating
Temperature:
0 ~ 50 degrees C
Relative Humidity:
5 ~ 90%
(non-condensing)
Temperature: -10 ~ 60 degrees C
Relative Humidity: 10 ~ 90%
(non-condensing)
* Temperature: < 40 degrees C;
Humidity: < 90%
Temperature: > 40 degrees C;
Humidity: < 50%
Storage
Temperature:
-10 ~ 70 degrees C
Relative Humidity:
5 ~ 90%
(non-condensing)
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90%
(non-condensing)

15
2. Hardware Description
These switches provide three dierent running speeds – 10Mbps, 100Mbps and
1000Mbps and automatically distinguish the speed of the incoming connection.
This section describes the hardware features of 802.3at PoE+ Switch. For easier
management and control of the 802.3at PoE+ Switch, familiarize yourself with its
display indicators and ports. Front panel illustrations in this chapter display the unit
LED indicators. Before connecting any network device to the 802.3at PoE+ Switch,
please read this chapter carefully.
2.1 Front Panel
The front panel of the 802.3at PoE+ Switch consists of 8/16/24 802.3af/at auto-
sensing 10/100Mbps Ethernet RJ45 ports and 2 Gigabit TP/SFP ports. The LCD
monitor and LED Indicators are also located on the front panel of the 802.3at
PoE+ Switch.
FGSD-1022VHP
1
PWR
5
3 7
Gigabit
PoE
910
2 6
4 8
PoE
8-Port 10/100TX 802.3at PoE +
2-Port Gigabit Ethernet Switch
PoE-in-Use
ACTLNK
1000
ACTLNK
4 6 82
1357
10
99 10
SFP
Menu (5 sec)
Enter
Back
Up
Down
Switch Port Information
30.3
01 W ---M-10 M----
06 W
W
---M--- M
----
02 W
W
---M--- M-8.3
07 W ---M-<1 M
----
03 ---M--- M----
08 ---M--- M
15.4W
04 -10M--- M---
09 ---M--- M
-OFF-
05 ---M--- M---
10 223M246 M
PB:120W TP:54W PD:3
Figure 2-1: FGSD-1022VHP Switch Front Panel
4 6 82
1 3 5 7
12 14 1610
911 13 15
FGSW-1822VHP
Menu (5 sec)
Enter
Back
1
PWR
Up
Down
5 9 13
3 7 11 15
PoE
2 6 10 14
4 8 12 16
PoE-in-Use
ACTLNK
Gigabit
17 19
18 20
ACTLNK
100 1000
18
17
20
19
16-Port 10/100TX 802.3at PoE +
4-Port Gigabit Ethernet Switch
Switch Port Information
30.3
01 W ---M-10 M----
06 W
W
---M--- M
----
02 W
W
---M--- M-8.3
07 W ---M-<1 M
----
03 ---M--- M----
08 ---M--- M
15.4W
04 -10M--- M---
09 ---M--- M
-OFF-
05 ---M--- M---
10 223M246 M
PB:120W TP:54W PD:3
Figure 2-2: FGSW-1822VHP Switch Front Panel
4 6 82
1 3 5 7
12 14 1610
911 13 15
20 22 2418
17 19 21 23
FGSW-2622VHP
Menu (5 sec)
Enter
Back
PWR
Up
Down
Gigabit
25 27
26 28
PoE
1
2
5
6
9
10
13
14
17
18
21
22
3
4
7
8
11
12
15
16
19
20
23
24
PoE-in-Use
ACTLNK
26
25
28
27
ACTLNK
100 1000
Switch Port Information
30.3
01 W ---M-10 M----
06 W
W
---M--- M
----
02 W
W
---M--- M-8.3
07 W ---M-<1 M
----
03 ---M--- M----
08 ---M--- M
15.4W
04 -10M--- M---
09 ---M--- M
-OFF-
05 ---M--- M---
10 223M246 M
PB:120W TP:54W PD:3
Figure 2-3: FGSW-2622VHP Switch Front Panel
Fast Ethernet TP interface
10/100BASE-TX copper, RJ45 twisted-pair: Up to 100 meters.
Gigabit TP Interface
10/100/1000BASE-T copper, RJ45 twisted-pair: Up to 100 meters.
Gigabit SFP Slots
1000BASE-SX/LX mini-GBIC slot, SFP (Small Factor Pluggable) transceiver
module: From 550 meters (multi-mode ber) to 10/20/40/80/120 kilometers
(single-mode ber).

16
Smart LCD
The Smart LCD that is located on the front panel of the FGSD-1022VHP, FGSW-
1822VHP, FGSW-2622VHP 802.3at PoE+ Switch provides “PoE Manage-
ment and Status”, “Switch Mode: Standard,VLAN, Extend”,“Budget
and Bandwidth Control”,“Screen Saver”,“Fan Control”, and “Factory
Default”.
2.1.1 LCD Monitor Indicators
The 802.3at PoE+ Switch has an LCD monitor designed for network administrator
who can easily obtain real-time per PoE port output watts information and system
status display, such as over voltage, low voltage, and PoE chipset over temperature
function. The details of each message on the LCD monitor are shown below:
FGSD-1022VHP/FGSW-1822VHP/FGSW-2622VHP LCD Display
Power Low-voltage Protection Power Over-voltage Protection PSE Over-temperature Protection
30.3
01 W ---M---M
ULP
02 ---M---M
OLP
03 ---M---M
SCP
04 ---M---M
----W
05 ---M---M
13.6
06 W ---M---M
14.4
07 W ---M---M
----
08 W -33M---M
----
09 W ---M-33M
-OFF
10 - ---M---M
----
11 W ---M---M
----
12 W ---M---M
----
13 W ---M---M
----
14 W ---M---M
PB:300W TP:0W PD:3
Switch Port Information
Switch Port Information
----
01 W --- M--- M
----
02 W --- M---M
----W
03 ---M---M
----W
04 ---M---M
----W
05 ---M---M
----
06 W --- M--- M
----
07 W --- M--- M
----
08 W --- M--- M
----
09 W --- M--- M
----
10 W --- M--- M
----
11 W --- M--- M
----
12 W --- M--- M
----
13 W --- M--- M
----
14 W --- M--- M
WARNING！
Main supply voltage
is High！
All ports had shut-
down.
PD:0PB:300W TP:0W
----
01 W --- M--- M
----
02 W --- M---M
----W
03 ---M---M
----W
04 ---M---M
----W
05 ---M---M
----
06 W --- M--- M
----
07 W --- M--- M
----
08 W --- M--- M
----
09 W --- M--- M
----
10 W --- M--- M
----
11 W --- M--- M
----
12 W --- M--- M
----
13 W --- M--- M
----
14 W --- M--- M
WARNING！
The PSE device is too
hot!
All ports had shut-
down.
Switch Port Information
PD:0PB:300W TP:0W
----
01 W --- M--- M
----
02 W --- M---M
----W
03 ---M---M
----W
04 ---M---M
----W
05 ---M---M
----
06 W --- M--- M
----
07 W --- M--- M
----
08 W --- M--- M
----
09 W --- M--- M
----
10 W --- M--- M
----
11 W --- M--- M
----
12 W --- M--- M
----
13 W --- M--- M
----
14 W --- M--- M
WARNING！
Main supply voltage
is low！
All ports had shut-
down.
Switch Port Information
PD:0PB:300W TP:0W
PD light load protection
PD overload protection
Short-circuit protection
PoE Usage
Network traffic
PoE OFF
Power Budget Total PoE
Output
Number of PDs
Note
1. The LCD screens of the FGSD-1022VHP and FGSW-1822VHP and
FGSW-2622VHP are the same, except the number of ports and
port allocation.
2. The LCD screens of the FGSD-1022VHP and FGSW-1822VHP and
FGSW-2622VHP will refresh every 15 seconds.
3. For details on LCD Management feature, please refer to “2.3 LCD
Management”.

17
The detailed Smart LCD description of each item is shown below:
Parameters Description
30.3W
(example) It means the output power port of the PoE switch.
OLP It means the port is overloaded corresponding to the PSE, and the
port stops powering.
ULP
It means the port corresponding to the PSE is lightly loaded and
the port stops powering (When the current on the network is less
than 7.5mA, the PSE thinks the PD has been dialed out and the
port stops powering).
SCP It means the port corresponding to the PSE appears to be short-
circuited and the port stops powering.
OFF It means the white and blue OFF shows that the port is blocked by
the menu command.
---W It means the port is without a PD device insert.
---M It means this port does not have data transfers.
<1M It means this port data rate transfers less than 1M.
33M
(example)
The white and blue character represents the data transmission rate
while the red character represents the data transmission rate which
is greater than the bandwidth setting, causing power to restart the
PSE port. If the resumption situation happens for 10 times within 1
hour, the power supply to the port will be cut o.
PB It means power budget.
TB It means total PoE power output information.
PD The number of PDs inserted.
2.1.2 LED Indicators
System
LED Color Function
PWR Green Lights to indicate that the Switch has power.

18
10/100Mbps PoE Ports
LED Color Function
LNK/ACT Green
Lights Indicates the link through that port is successfully
established at 10/100Mbps.
Blinks Indicates that the Switch is actively sending or
receiving data over that port.
PoE-in-Use Amber
Lights Indicates the port is providing DC in-line power.
O Indicates the connected device is not a PoE
powered device (PD).
1000Mbps SFP Slots
LED Color Function
LNK/ACT Green
Lights Indicates the link through that port is successfully
established at 1000Mbps.
Blinks Indicates that the Switch is actively sending or
receiving data over that port.
1000 Green Lights Indicates the port is successfully established at
1000Mbps.
1000Mbps TP Slots (FGSD-1022VHP)
LED Color Function
LNK/ACT Green
Lights Indicates the link through that port is successfully
established at 1000Mbps.
Blinks Indicates that the Switch is actively sending or
receiving data over that port.
10/100 -- Dark Indicates the port is successfully established at
10/100Mbps
1000 Green Lights Indicates the port is successfully established at
1000Mbps.
1000Mbps TP Slots (FGSW-1822VHP/FGSW-2622VHP)
LED Color Function
LNK/ACT Green
Lights Indicates the link through that port is successfully
established at 1000Mbps.
Blinks Indicates that the Switch is actively sending or
receiving data over that port.
10 -- Dark Indicates the port is successfully established at
10Mbps.
100 Red Lights Indicates the port is successfully established at
100Mbps.
1000 Green Lights Indicates the port is successfully established at
1000Mbps.

19
2.2 Rear Panel
The rear panel of the 802.3at PoE+ Switch has an AC power socket (100-240V AC,
50/60Hz, 2.5/5A max.).
50/60Hz
100-240V , 2.5A max.

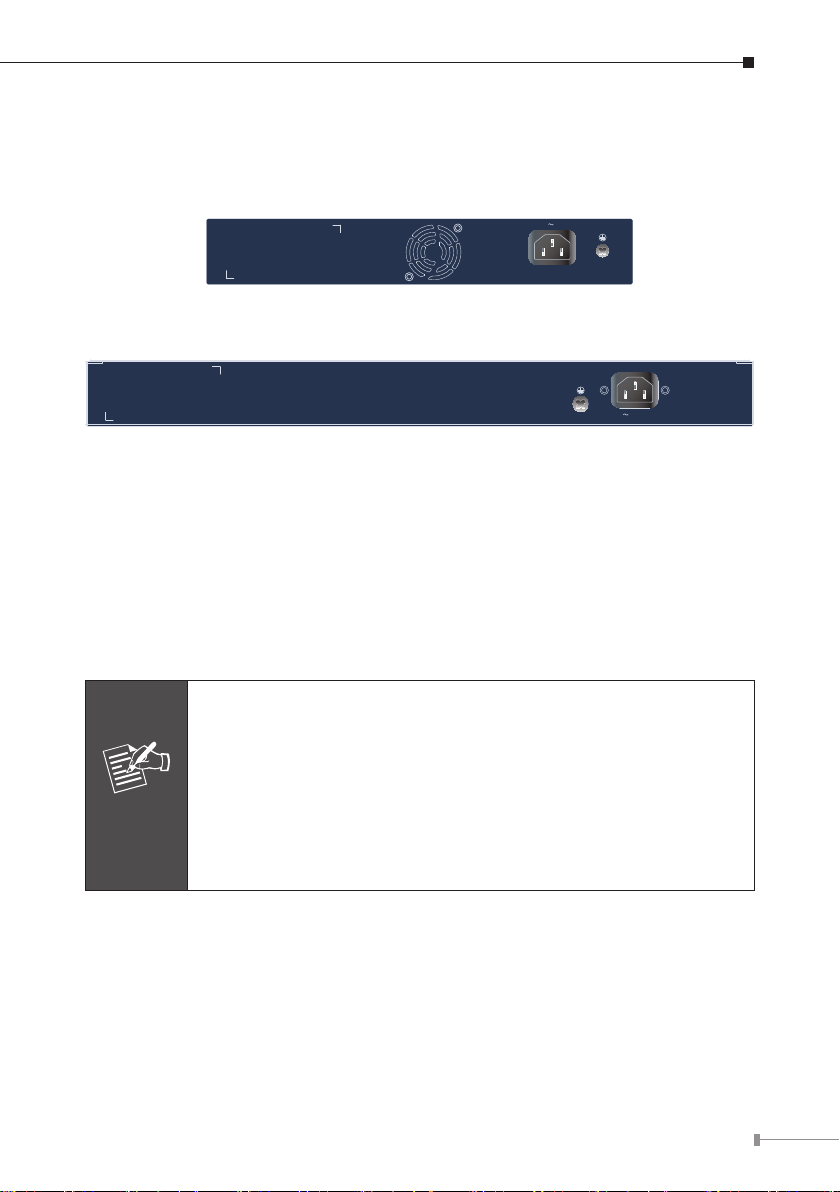

Figure 2-4: FGSD-1022VHP Switch Rear Panel
100-240V , 50/60Hz, 5A max.
Figure 2-5: FGSW-1822VHP/FGSW-2622VHP Switch Rear Panel
AC Power Receptacle
For compatibility with electrical outlet standard in most areas of the world, the
802.3at PoE+ Switch’s power supply automatically adjusts to line power in the
range of 100-240V AC, 50/60Hz, 2.5/5A max.
Plug the female end of the power cord rmly into the receptacle on the rear panel
of the 802.3at PoE+ Switch and the other end into an electrical outlet, and the
power will be ready.
Power
Notice
The device is a power-required device, which means it will not
work till it is powered. If your networks should be active all the
time, please consider using UPS (Uninterrupted Power Supply) for
your device. It will prevent you from network data loss or network
downtime. In some areas, installing a surge suppression device
may also help to protect your 802.3at PoE+ Switch from being
damaged by unregulated surge or current to the Switch or the
power adapter.

20
2.3 LCD Management
The operation of the 5 buttons (Menu, Enter, Back, Up and Down) on the panel:
Up
Down
Menu (5 sec)
Enter
Back
Switch Port Information
30.3
01 W ---M-33M
----
02 W ---M---M
----W
03 ---M---M
15.4W
04 -10M---M
----W
05 ---M---M
----
06 W ---M---M
----
07 W ---M---M
----
08 W ---M---M
-8.3
09 W ---M-11M
----
10 W ---M---M
-OFF
11 ----M---M
----
12 W ---M---M
17.6W
13 -11M-12M
----
14 W ---M---M
PB:300W TP:72W PD:4
Press the menu button to switch the “Switch Port Information”.
Press the menu button for about 5 seconds and enter the Main Menu. Choose
a menu item by scrolling up and down, and press the “Enter” key to get to the
menu item you have chosen. Press the “Back” key to return to the previous
menu.
