Gigawave MTV-HD3 User manual

MTV3- ASUM-7001-07 page 1 of 25
The information contained in this manual remains the property of Gigawave and may not be used,
disclosed or reproduced in any other form whatsoever without the prior written permission of
Gigawave.
Gigawave reserves the right to alter the equipment and specification appertaining to the equipment
described in this manual without notification.
MTV-HD3 RECEIVER
H264/MPEG-4 and MPEG-2 version
OPERATOR’S MANUAL
Copyright 2011 Gigawave Limited

MTV3- ASUM-7001-07 page 2 of 25
CONTENTS
1 GENERAL INFORMATION ..................................................................................................... 4
1.1 General safety instructions ............................................................................................... 4
1.2 Disposal Instructions ......................................................................................................... 4
1.3 Environmental .................................................................................................................... 4
1.4 Health & Safety ................................................................................................................... 5
1.5 Maximum RF Power Density Limits .................................................................................. 6
1.6 Issue Status ........................................................................................................................ 6
2 GENERAL DESCRIPTION ...................................................................................................... 7
3 RECEIVER SPECIFICATIONS ................................................................................................ 8
4 PIN CONNECTIONS ............................................................................................................. 10
4.1 Front panel ........................................................................................................................ 10
4.1.1 SDI /ASI ..................................................................................................................... 10
4.1.2 Genlock input .............................................................................................................. 10
4.1.3 CVBS, YUV, Y/C ......................................................................................................... 10
4.1.4 Audio Connectors ........................................................................................................ 11
4.1.5 Remote control/User Data Connector .......................................................................... 12

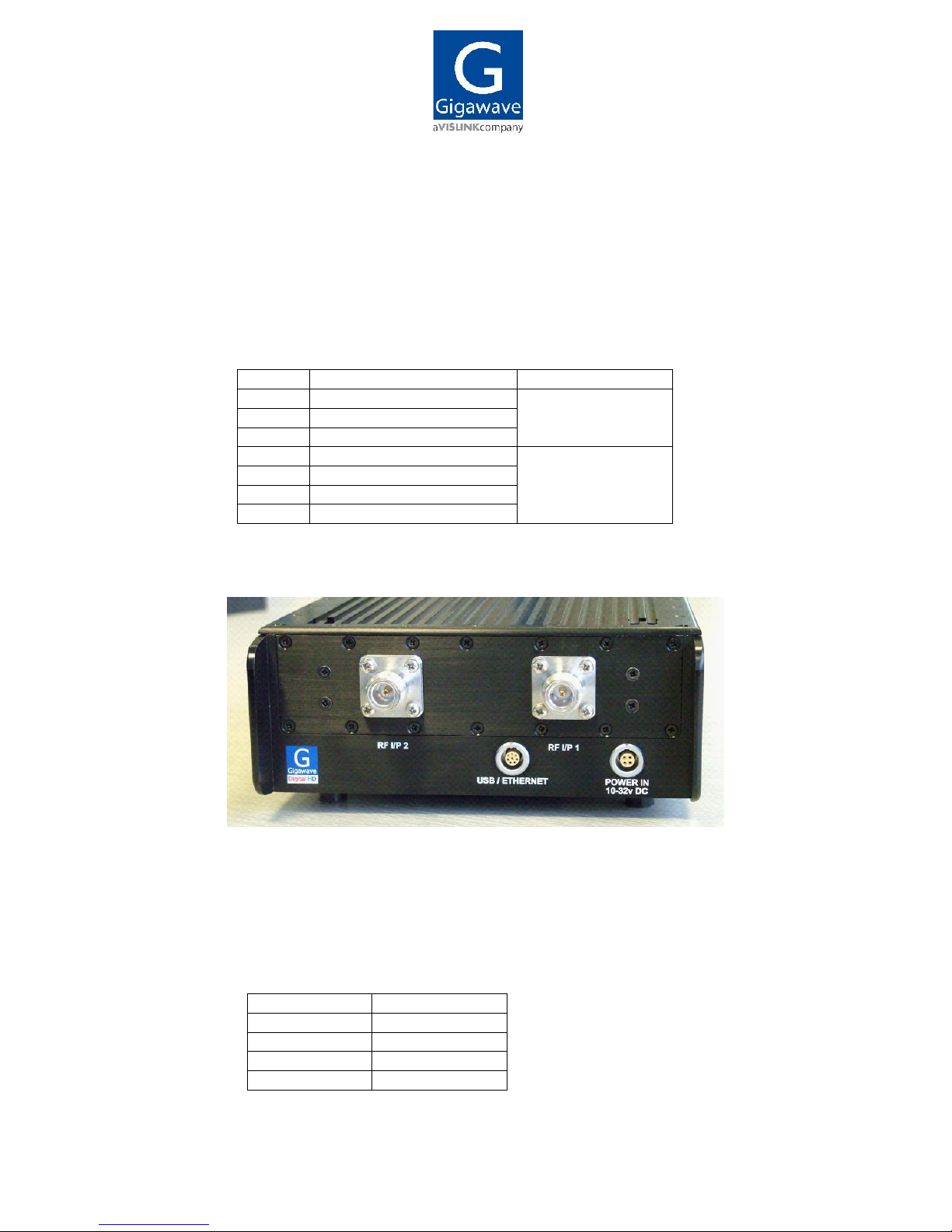

4.2 Rear panel ......................................................................................................................... 12
4.2.1 Power Connector......................................................................................................... 12
4.2.2 10-32V DC .................................................................................................................. 12
4.2.3 RF Inputs (2 way diversity) .......................................................................................... 13
4.2.4 USB / Ethernet ............................................................................................................ 13
5 CONFIGURING THE RECEIVER .......................................................................................... 14
5.1 On / Off switch .................................................................................................................. 14
5.2 Operator Controls / Menus .............................................................................................. 14
5.3 Video monitoring on the front panel LCD screen .......................................................... 14
5.4 Current status and alarm screens ................................................................................... 14

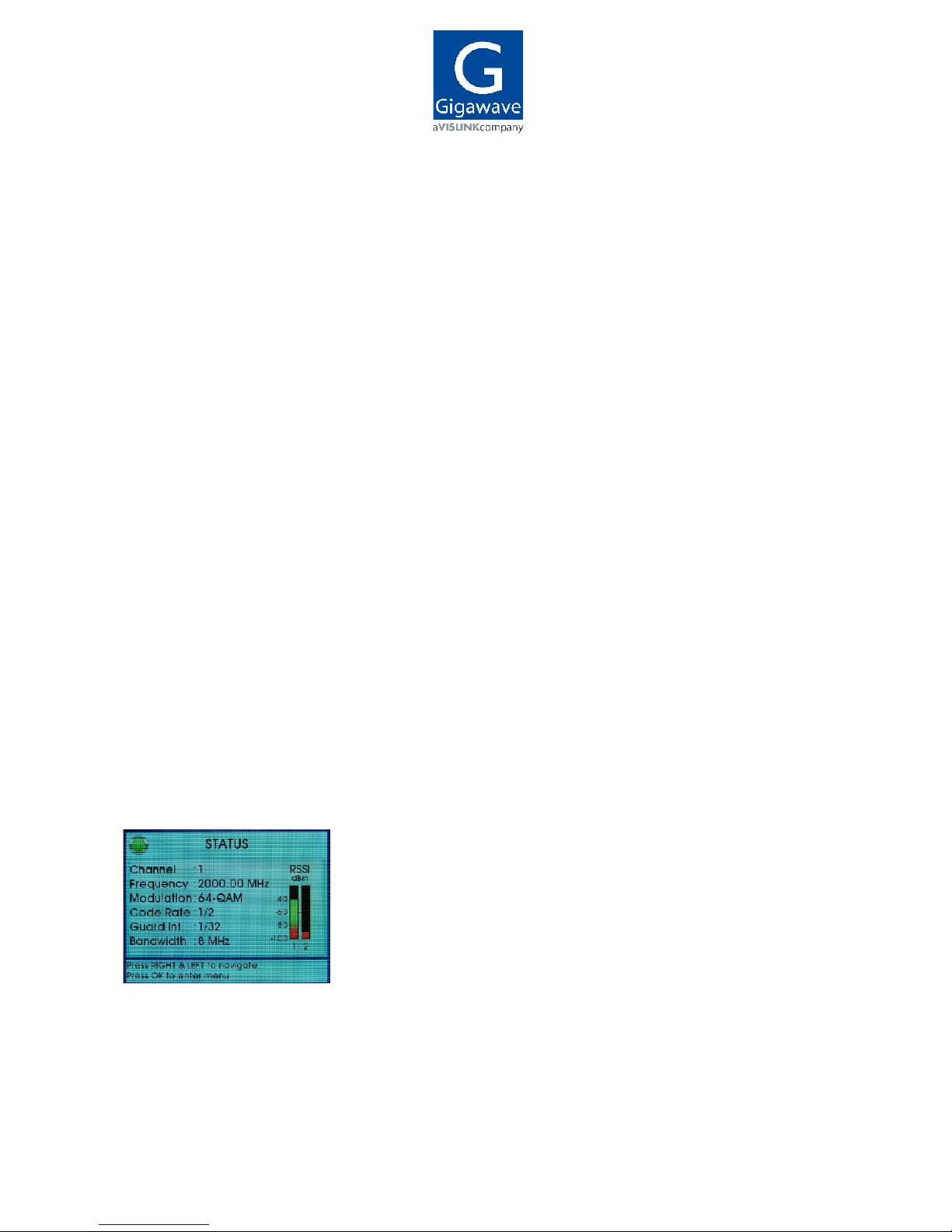

5.4.1 Status overview screen ............................................................................................... 14
5.4.2 Status and alarm screens ............................................................................................ 15
5.4.2.1 Signal status......................................................................................................... 15

MTV3- ASUM-7001-07 page 3 of 25
5.4.2.2 Service information............................................................................................... 15
5.4.2.3 Decoder information ............................................................................................. 16
5.4.2.4 Unit status and alarms .......................................................................................... 16
5.5 Setup menus ..................................................................................................................... 16
5.5.1 Channel / Frequency Menu ......................................................................................... 16
5.5.1.1 Channel................................................................................................................ 16
5.5.1.2 Frequency ............................................................................................................ 17
5.5.1.3 Spectrum and bandwidth ...................................................................................... 17
5.5.2 Genlock ....................................................................................................................... 17
5.5.3 Inputs (decoder signal loss video output mode) ........................................................... 17
5.5.4 Outputs ....................................................................................................................... 17
5.5.4.1 Analogue outputs ................................................................................................. 17
5.5.4.1.1 Video................................................................................................................. 17
5.5.4.1.2 Analogue audio level adjustment ....................................................................... 17
5.5.4.1.3 Audio output impedance.................................................................................... 18
5.5.4.2 Digital outputs ...................................................................................................... 18
5.5.5 Services (MPEG decoder set up) ................................................................................ 18
5.5.6 Output ports ................................................................................................................ 18
5.5.6.1 User data ............................................................................................................. 18
5.5.6.2 USB port .............................................................................................................. 18
5.5.6.3 Ethernet port ........................................................................................................ 19
5.5.7 General settings .......................................................................................................... 19
5.5.7.1 Software versions ................................................................................................. 19
5.5.7.2 Display ................................................................................................................. 19
5.5.7.3 Unit name ............................................................................................................. 19
5.5.7.4 Advanced mode ................................................................................................... 19
5.5.7.5 USB upgrade........................................................................................................ 19
5.5.8 Decryption ................................................................................................................... 20
5.5.9 Receiver menu Tree .................................................................................................... 21
6 PREPARING FOR OPERATION ........................................................................................... 23
6.1 The MTV-HD3 receiver ..................................................................................................... 23
6.1.1 Antennas ..................................................................................................................... 23
6.1.2 Checks ........................................................................................................................ 23
6.2 Transmitter / Receiver tests............................................................................................. 23
7 TABLE OF COFDM BIT RATES ........................................................................................... 24
7.1 DVB-T bit rates ................................................................................................................. 24
7.2 ISDB-T bit rates ................................................................................................................ 25

MTV3- ASUM-7001-07 page 4 of 25
1 GENERAL INFORMATION
1.1 General safety instructions
The information that follows, together with local site regulations, must be studied by
personnel concerned with the operation or maintenance of the equipment, to ensure
awareness of potential hazards.
WARNING- RF Power Hazard: High levels of RF power are present in the unit. Exposure to RF or
microwave power can cause burns and may be harmful to health.
Switch off supplies before removing covers or disconnecting any RF cables, and before inspecting
damaged cables or antennas.
Avoid standing in front of high gain antennas (such as a dish) and never look into the open end of
a waveguide or cable where RF power may be present.
Users are strongly recommended to return any equipment that requires RF servicing to Gigawave.
WARNING- GaAs / BeO Hazard: Certain components inside the equipment contain Gallium
Arsenide and Beryllium Oxide that are toxic substances. Whilst safe to handle under normal
circumstances, individual components must not be cut, broken apart, incinerated or chemically
processed. In the case of Beryllium Oxide, a white ceramic material, the principal hazard is from
the dust or fumes which are carcinogenic if ingested, inhaled or entering damaged skin.
Please consult your local authority before disposing of these components.
CAUTION: Tantalum capacitors: When subjected to reverse or excess forward voltage, ripple
current or temperature these components may rupture and could potentially cause personal injury.
CAUTION: This system contains MOS devices. Electro-Static Discharge (ESD) precautions
should be employed to prevent accidental damage.
1.2 Disposal Instructions
All equipment, including batteries where applicable, should NOT be disposed of with household
waste as they are not bio-degradable in landfill sites. They should NOT be incinerated.
For safe disposal take to:
The local (council/authority) environmental waste site, (in Europe in accordance with the
European Environmental directive).
For details contact your local authority/recycling centre.
1.3 Environmental
It is recommended that the rain cover supplied with the equipment is used to protect the unit from
bad weather and pollution when used outdoors.

MTV3- ASUM-7001-07 page 5 of 25
1.4 Health & Safety
Exposure to Non Ionising (RF) Radiation/Safe Working Distances
The safe working distance from a transmitting antenna may be calculated from the
relationship:
D =  
in which D = safe working distance (meters)
PT = transmitter or combiner power output (watts)
GR = antenna gain ratio = anti log (gain dBi 10)
w = maximum allowed power density (watts/square meter)
The RF power density value is determined by reference to safety guidelines for exposure of
the human body to non-ionising radiation. It is important to note that the guidelines adopted
differ throughout the world and are from time-to-time re-issued with revised guidelines. For
Gigawave use, a maximum power density limit (w) of 1w/m² is to be applied when calculating
minimum safe working distances.
Important Note: It must be remembered that any transmitting equipment radiating power at
frequencies of 100 KHz and higher, has the potential to produce thermal and athermal effects upon
the human body.
To be safe:
a) Operators should not stand or walk in front of any antenna, nor should they allow anyone
else to do so.
b) Operators should not operate any RF receiver or power amplifier with any of its covers
removed, nor should they allow anyone else to do so.
Worked examples
Antenna
Receiver Power
Type
Gain (dBi)
Gain Ratio
2W
4W
10W
30W
OMNI
4 2.5 1 1 1.5 2.5
HELIX
20 100 4 5.6 9 15.5
PARABOLIC
DISH 35 3,162 22.5 32 50 87
MINIMUM SAFE DISTANCE (METRES)
PT. GR
4.w

MTV3- ASUM-7001-07 page 6 of 25
1.5 Maximum RF Power Density Limits
The RF Radiation Power Density limit figure recommended by Gigawave is based upon guideline
levels published in:
a. IEEE standard C95.1 1999 - IEEE Standard for Safety Levels with respect to Human
Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz.
b. Guidelines for Limiting Exposure to Time-varying Electric, Magnetic & Electromagnetic
Fields (up to 300 GHz) published in 1998 by the Secretariat of the International Commission on
Non-Ionising Radiation Protection (ICNIRP).
Both documents define guideline RF power density limits for "Controlled" and "Uncontrolled"
environments. An uncontrolled environment is defined as one in which the person subjected to the
RF radiation may be unaware of and has no control over the radiation energy received. The
uncontrolled environment conditions can arise, even in the best regulated operations and for this
reason the limits defined for the uncontrolled environment have been assumed for the Gigawave
recommended limit.
Documents a) and b) also show the RF power density guidelines to be frequency dependent.
Different power density / frequency characteristics are presented in the two documents. To avoid
complexity and to avoid areas of uncertainty, Gigawave recommends the use of a single power
density limit across the frequency range 100 KHz to 300 GHz. The 1w/m² power density limit we
recommend satisfies the most stringent of the guidelines published to date.
Footnote: The IICNIRP document may be freely downloaded from the internet at
www.icnirp.de/emfgdl (PDF file), the IEEE standard is available on loan from Essex County Library
on payment of a search fee.
1.6 Issue Status
Issue
Date
Changes
Updated by
1
5
th
March 2010 first issue
M. Robinson
2 24
th
March 2010 Revised connections paragraphs 4.1.3 and 4.2.4 M. Robinson
3 13
th
April 2010 Video monitoring on front panel LCD added M. Robinson
4 14
th
April 2011 Ethernet port pin connections, detail expanded M. Robinson
5 18
th
Dec 2011 MPEG-2, H264/MPEG-4 decoder introduced M. Robinson
6 25
th
Nov 2013 Basic Safety Requirement added S. Huynh

MTV3- ASUM-7001-07 page 7 of 25
2 GENERAL DESCRIPTION
The Gigawave MTV-HD3 mini receiver is designed for all applications, both indoor and outdoor,
where a very small light-weight unit is essential to the operation. The unit features two-way
diversity reception using Maximum Ratio Combining technology
The receiver is available with either DVB-T or ISDB-T demodulation (factory options)
The receiver is comprised of a single miniature unit that contains RF down-converter COFDM
demodulator MPEG decoder and video/audio output circuitry.
This version of the receiver features both MPEG-2 and H264/MPEG-4 decoding with automatic
selection.
In HD mode, in addition to the HD SDI output, the unit provides a down-converted to SD monitoring
quality output at the CVBS port.
Video picture monitoring is available on the full colour front panel LCD screen.
The unit provides 4 audios (2 stereo) with analogue, SDI embedded and AES/EBU digital outputs.
The receiver powers from 10 to 32VDC, and outputs HD SDI, SD SDI and analogue composite
video (CVBS), component YUV and YC, and ASI, Audio outputs are analogue, SDI embedded and
AES/EBU digital audio.
The receiver can be used with a variety of Gigawave antennas:-
 PA series Low profile antennas are used for uplinking ground to air, or on-board linking
 HX series antennas offer increased gain and directivity
 FBA fan-beam antennas offer increased gain and 90 degree sector coverage.
 Parabolic antennas offer the highest gain, and longest operational range
 CO series Omni antennas are typically used for ground based mobile operations, or
helicopter air to ground
Full details are given in the Gigawave Antennas data sheet.
At the transmitting site a range of Gigawave digital transmitters may be used; for example the
complementary MTV-HD2 and D-Cam Clip-On, and MVL-D2 transmitters are available in both
H264 and MPEG-2 versions. Please consult the separate operator’s manuals for information
detailing transmitters.

MTV3- ASUM-7001-07 page 8 of 25
3 RECEIVER SPECIFICATIONS
RF Input
2x RF, N Type
Frequency Band
1.3 - 10 GHz band
Tuning Range
400MHz (modulation dependant, consult
factory)
Frequency Selection
Up to 16 pre-set channels or tuning in
1MHz steps via front panel control.
Programmable with 1MHz resolution to
customer
requirements within available bandwidth
(500kHz steps available to special order)
Receiver Noise Factor
4dB max.
Receiver Threshold
-92dBm to BER 10-5 (nom., QPSK)
Receive Antenna
Compatible with all Gigawave antennas
Demodulation
2 way Maximum Ratio Combining
Diversity reception
Demodulation Modes
DVB-T 2k
ISDB-T 2k (factory option)
QPSK, 16QAM, 64QAM
FEC:1/2, 2/3, 3/4, 5/6, 7/8
Guard interval: 1/32, 1/16. 1/8, 1/4
Data Rate
4.98 to 31.7 Mbit/s (automatic selection)
Bandwidth
DVB-T 6, 7, 8MHz
ISDB-T 6, 7MHz
Decoding
H264/MPEG-4 and MPEG-2 (automatic
selection).
Latency
Transmitter encoder dependant
Video Output
HD SDI SMPTE-292M (299M)
SD SDI SMPTE-259M (272M)
Analogue: composite (PAL/NTSC)
Analogue: component (YUV, YC)
HD down-converted to SD CVBS monitor
Video formats
1080i 1920 x 1080, 25 and 29.5Hz
720p 1280 x 720, 50 and 59Hz
480i (NTSC) 720 x 480
576i (PAL) 720 x 576
ASI Output
DVB ASI transport stream, 188 / 204
selectable
Genlock
Genlock input type, SD video –
composite black/burst
HD video – tri-level sync
Genlock timing offset feature

MTV3- ASUM-7001-07 page 9 of 25
Audio Outputs
Digital 2 x AES3 plus SDI embedded
Analogue 2 x stereo / 4 mono
User auxiliary data
Selectable 1200 to 230,400 baud
Power Supply
10 to 32VDC, 26 Watts typical
Monitoring
• Video picture monitoring on the full
colour LCD front panel display
• Comprehensive control and monitoring
menu via front panel control
• COFDM demodulator parameters
• RF Received signal level (dBm and bar
graph)
• C/N, MER, BER (dB and bar graph)
• Summary comprehensive internal lock
alarms
Remote control
Remote control and monitoring via
Ethernet port
USB software upgrade
Software upgrade via rear panel USB
port
Size
76mm high x 179 wide x 275 deep
Weight
2.9kg (6.4lbs)
Environmental
Safe use: -20° to +50°C
To spec: -10° to +45°C
Altitude: 4500m
Humidity: 95% long term
Mechanical Interface
Standard wedge plate compatible with all
Gigawave interfaces.
Specifications may alter at the discretion of Gigawave or to meet customer specific requirements.

MTV3- ASUM-7001-07 page 10 of 25
4 PIN CONNECTIONS
4.1 Front panel
4.1.1 SDI /ASI
Two outputs for either SDI or ASI. Each may be independently selected via front panel menu
system. See 5.5.4
75 BNC connector
4.1.2 Genlock input
Reference input for Genlock. Analogue CVBS or Tri level sync.
75 BNC connector
4.1.3 CVBS, YUV, Y/C
Analogue SD video, Composite PAL/NTSC (CVBS) or component YC / YUV
Connector Type: 6 pin LEMO connector EGG.1B.306.CLN
Pin
Video
CVBS
YC
YUV
1 Y(0v) Y(0v)
2 Y Y
3 0V U(0v)
4 CVBS U
5 C(0v) V(0v)
6 C V
Note: The wiring of this connector is different from the corresponding connector used on the
MTV-D2 TX and Clip-On Tx
