GILMAN gemini GVC222R User manual

1
MODEL NO.: GVC222R
22.2V CYCLONIC
CORDLESS
MULTI-FUNCTIONAL
VACUUM CLEANER
A GILMAN GROUP BRAND
22.2V離心過濾
多功能無線吸塵機

2
Please read and retain for future reference.
• Verify that the mains voltage is the same as that indicated on the rating plate
on the appliance before use.
• Make sure that you always use a grounded wall socket to connect the appliance.
• Always remove the plug from the wall socket when the appliance is not in use.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Make sure that the appliance, the power cord and plug do not make contact
with water.
• Make sure that the appliance, the power cord and plug do not make contact
with hot surface, such as a hot hob or naked ame.
• Check the appliance’s power cord regularly to make sure it is not damaged.
Do not use the appliance if the power cord is damaged. If the power cord is
damaged, it must be replaced by an electrical technician or a person with
similar qualication, in order to avoid any hazards.
• The appliance needs space to allow heat to escape, thereby preventing the
risk of re. Make sure that the appliance has sufcient space around it, and
does not come in contact with ammable material. The appliance, the air
vents must not be covered or blocked when use.
SAFETY INSTRUCTION - GENERAL
SAFETY INSTRUCTION - ELECTRICITY AND HEAT
• Use this appliance solely in accordance with these instructions.
• This appliance is for household use only, not for commercial purpose.
• Remove all packaging material from the appliance before use.
• This appliance shall not be used by children of 0 to 8-year old.
• This appliance can be used by children older than 8-year old and persons
with reduced physical, sensory or mental capabilities or lack of experience
and knowledge, but only if they have been given supervision or instruction
concerning use of the appliance in safe way and understand the hazards
involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and maintenance must not be done by children.
• Have any repairs carried out solely by a qualied electrician. Never try to repair
the appliance yourself.
• Do not handle the plug or appliance with wet hands.
• Do not immerse the main body in water.
• Children shall not play with the appliance.
• Do not leave the appliance unattended when connected to the mains supply.
• Keep hair, loose clothing, ngers and all parts of the body away from openings
of the appliance.
• Only use the attachments/accessories supplied with the product.

3
• Make sure your hands are dry before touching the appliance, power cord or
plug.
• Do not pick up the appliance if it falls into water. Remove the plug from the
socket immediately. Do not use the appliance again.
• Never immerse the appliance, the power cord or the plug in water or any
liquid.
• Clean the appliance thoroughly after every use (Please refer to “Cleaning and
Storage”section.)
• The appliance can not aspirating an aqueous solution that may contain foaming
detergent.
• Do not dismantle the vacuum cleaner while the motor is still operating.
• Never use the vacuum cleaner without the lter.
• Always keep the openings clean and prevent dust or dirt from blocking the air
passage. Do not put any objects into openings. Do not use with any opening
blocked until the obstacles removed.
• Never use the vacuum cleaner to suck up explosive, ammable or combustible
liquids nor anything that may be still burning such as cigarette butts or ash/
cinders. Never vacuum up toxic materials, organic solvents or acids.
• Never vacuum up solid, sharp or piercing objects that may damage the lter.
• Do not clean any parts in a dishwasher.
• The appliance must be disconnected from the supply mains when removing
the battery
SAFETY INSTRUCTION - DURING OPERATION
• Never use the appliance in the vicinity of ammable material.
• Certain part of the appliance may get hot, such as air outlet. Do not touch
these part to prevent scalding yourself.

4
1. Chargingsocket
2. Dustcontainerbutton
3. Dustcontainer
4. Dustcontainerreleasebutton
5. LEDfloorbrush
6. Handle
7. AirOutlet
8. Metaltubereleasebutton
9. Metaltube
10. LEDFloorbrushreleasebutton
16
11
13 14
15
12
7
8
9
10
2
3
4
5

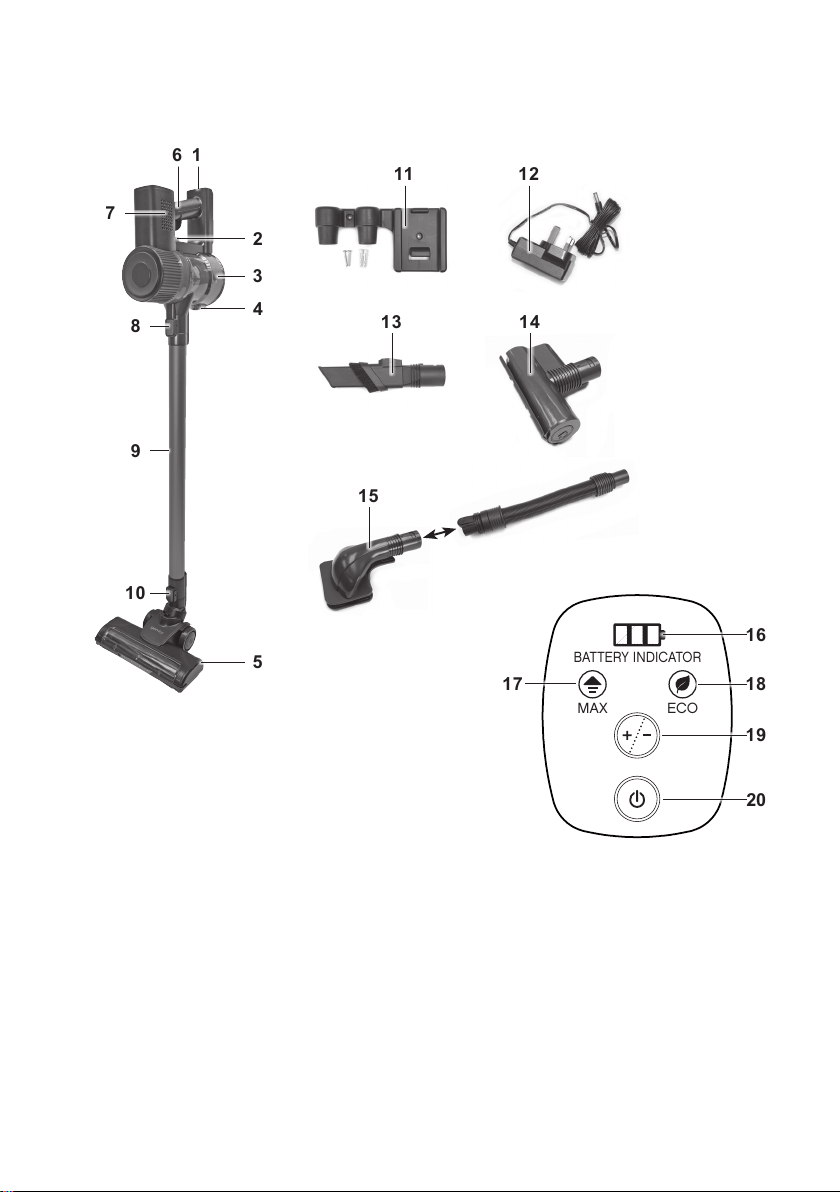

PRODUCT OVERVIEW
MAX ECO
BATTERY INDICATOR
Controlpanel
20
19
16
1817
11. Wallhanger
12. Adaptor
13. 2-in-1crevicenozzle
14. Motorizedbedbrush
15. Petbrushwithfoldabletube
16. Batterylevelandchargingindicator
17. Highspeedindicator
18. Lowspeedindicator
19. High/Lowspeedmodebutton
20. On/Offbutton

5

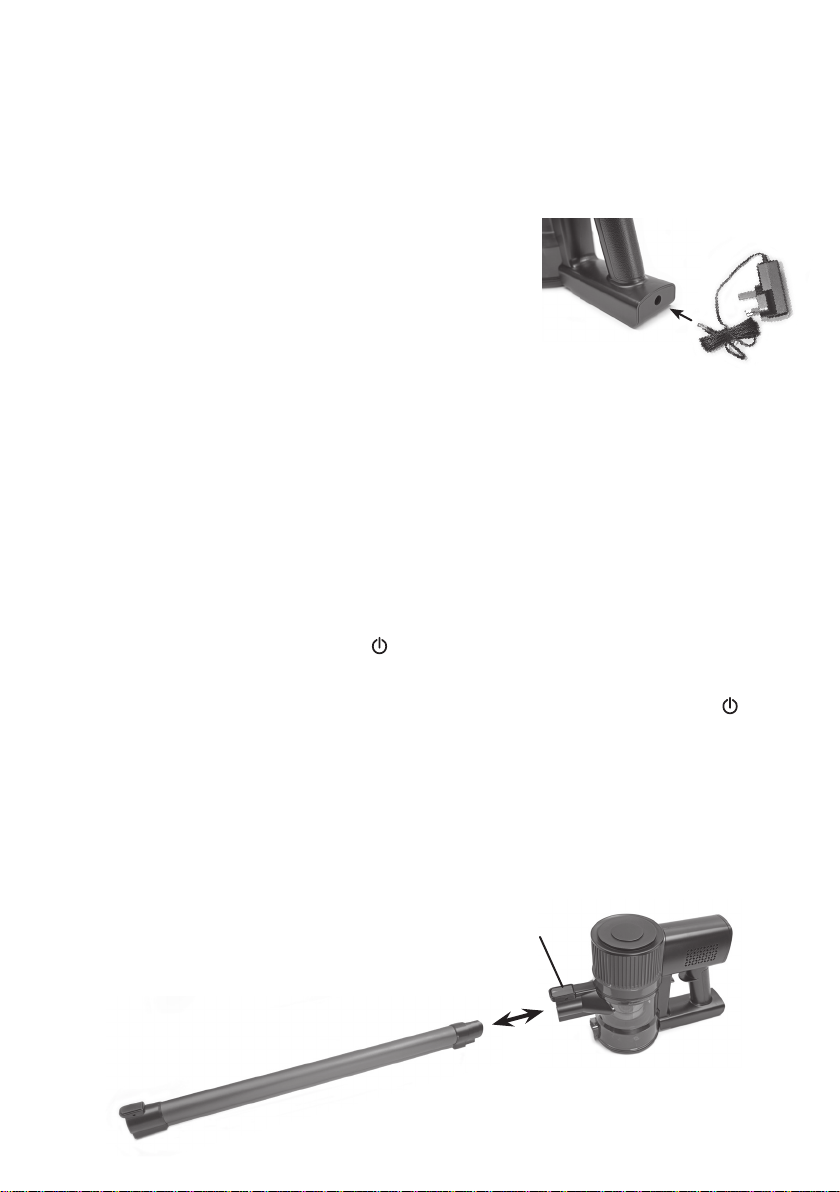

CHARGING
Important note: Please note the vacuum cleaner can not start operation
during charging
• When the vacuum cleaner is charging, the green
battery indicator light is ashing. When the 3-bar
green light of the battery indicator light is on, it
means the battery is fully charged.
• When the 3-bar of green battery indicator turn
to 2 or 1 bar, it means that the battery level will
gradually decrease. Charge again.
Replace the battery with Handle
• If you need the a back up battery or the battery
became more and more weak. You need to
replace a new battery with handle.
After fully charging, press the power on/off button “ ” to start operation, the
vacuum cleaner will work under high speed (red indicator on) at the beginning,
and can press speed “+/-” button once to change at the low speed (green indicator
on). You can select the speed according to your cleaning. If you need to stop operation,
press once on the on/off button “ ”.
Before using your vacuum cleaner for the rst time, allow the battery to charge
for approx. 5.5 hours.
ASSEMBLY & OPERATING INSTRUCTION

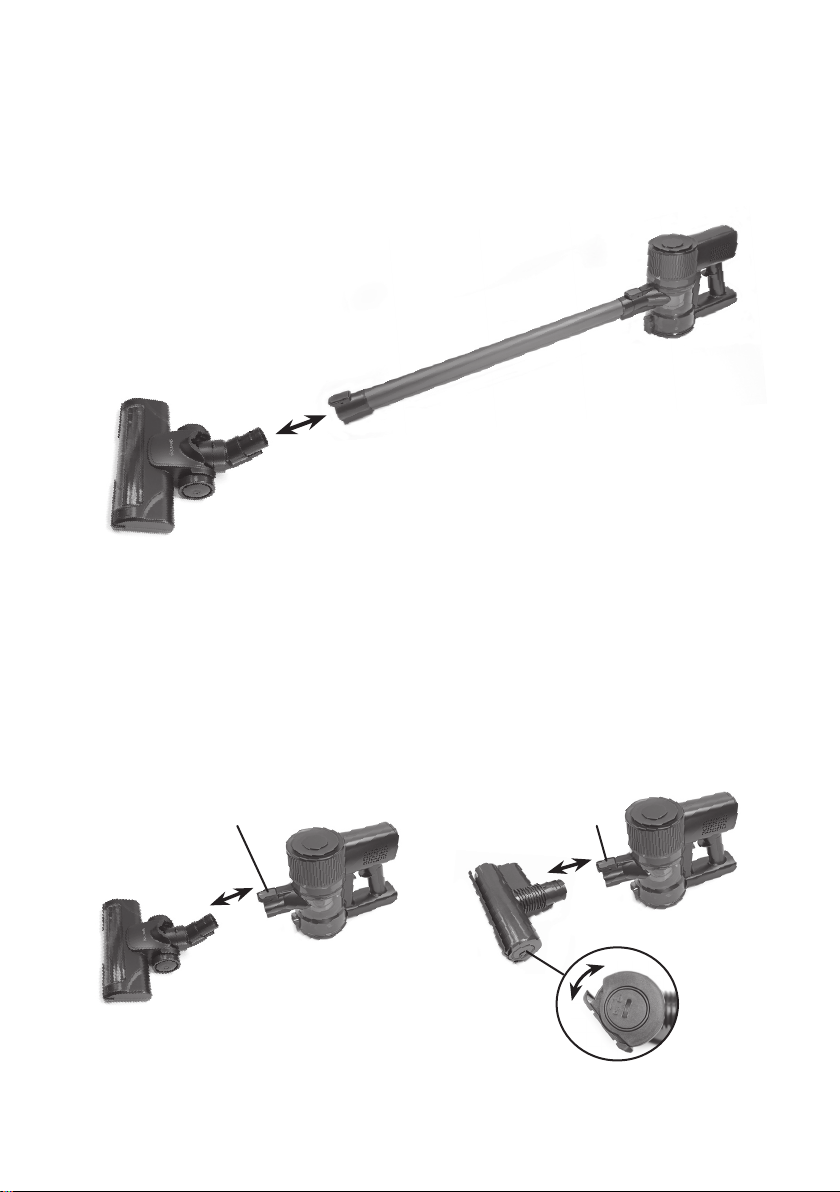

Assemble and Dis-assemble Handheld with metal tube
• Assemble: Insert the end of the metal tube into the main handheld unit, after
hearing the click sound, then the metal tube installed in place.
• Dis-assemble: Use one hand to hold the metal tube, press the release button
on the main handheld unit and remove the metal tube outwards.
Release button

6
Assemble and Dis-assemble the oor brush
• Assemble: Insert the end of the motorized oor brush into the metal tube, after
hearing the click sound, then motorized oor brush installed in place.
• Dis-assemble: Use one hand to hold the motorized oor brush, press the release
button on the metal tube and remove the motorized oor brush outwards.
Motorized oor brush/ bed brush and the main handheld unit
• Assemble: Insert the end of the motorized oor brush/ bed brush into the main
handheld unit, after hearing the click sound, then motorized oor brush/ bed
brush installed in place.
• Dis-assemble: Use one hand to hold the motorized oor brush/ bed brush,
press the release button on the main handheld unit and remove the motorized
oor brush/ bed brush outwards.
Adjustable angle on
motorized bed brush
Release button Release button

7

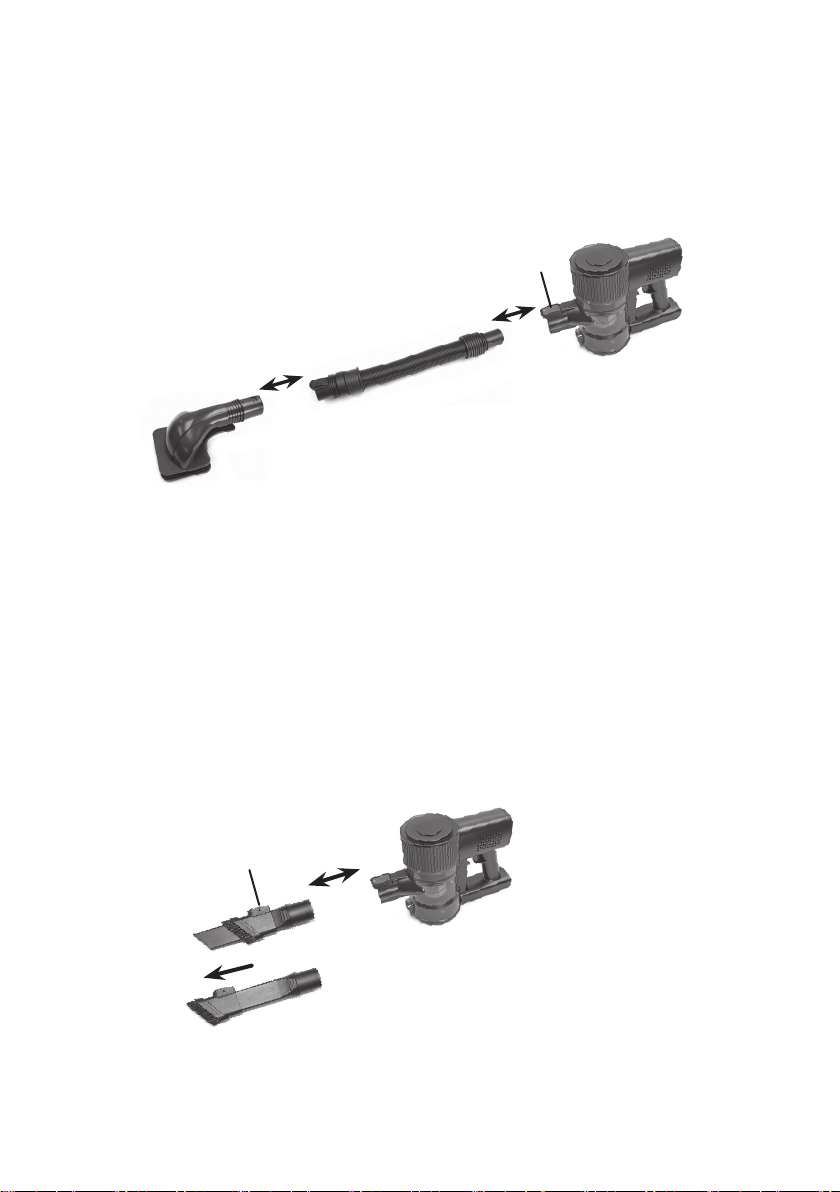

2-in-1 Crevice tool assemble with handheld unit
Pet brush and the main handheld unit
• A: A crevice tool with a narrow nozzle, which you can use to clean window
frames and crevices, etc.
• B: Push unwards the cleaning brush of 2-in-1 crevice tool, you can use to
clean delicate or irregular surfaces, furniture, Venetian blinds,etc.
• Assemble: Insert the end of the pet brush into the main handheld unit, after
hearing the click sound, then pet brush installed in place.
• Dis-assemble: Use one hand to hold the pet brush, press the release button
on the main handheld unit and remove the pet brush outwards.
Release button of
2-in-1 crevice nozzle
A
B
Release button

8
CLEANING AND STORAGE
• Check that the appliance is switched off before cleaning any parts.
• Press the dust cover release button at the front of the dust container, and
unfasten the dust container from the main handheld unit.
• Empty the dust container.
• If necessary, rinse the dust container with water gently, let it air-dry completely
before reassemble.
• When you take off H12 lter.
• Rinse the cyclone, H12 lter with water gently, let them air-dry completely before
reassemble.
The lters can become blocked after some time and can thereby reduce the suction
power. It is therefore important that the above mentioned lter determine to replace.

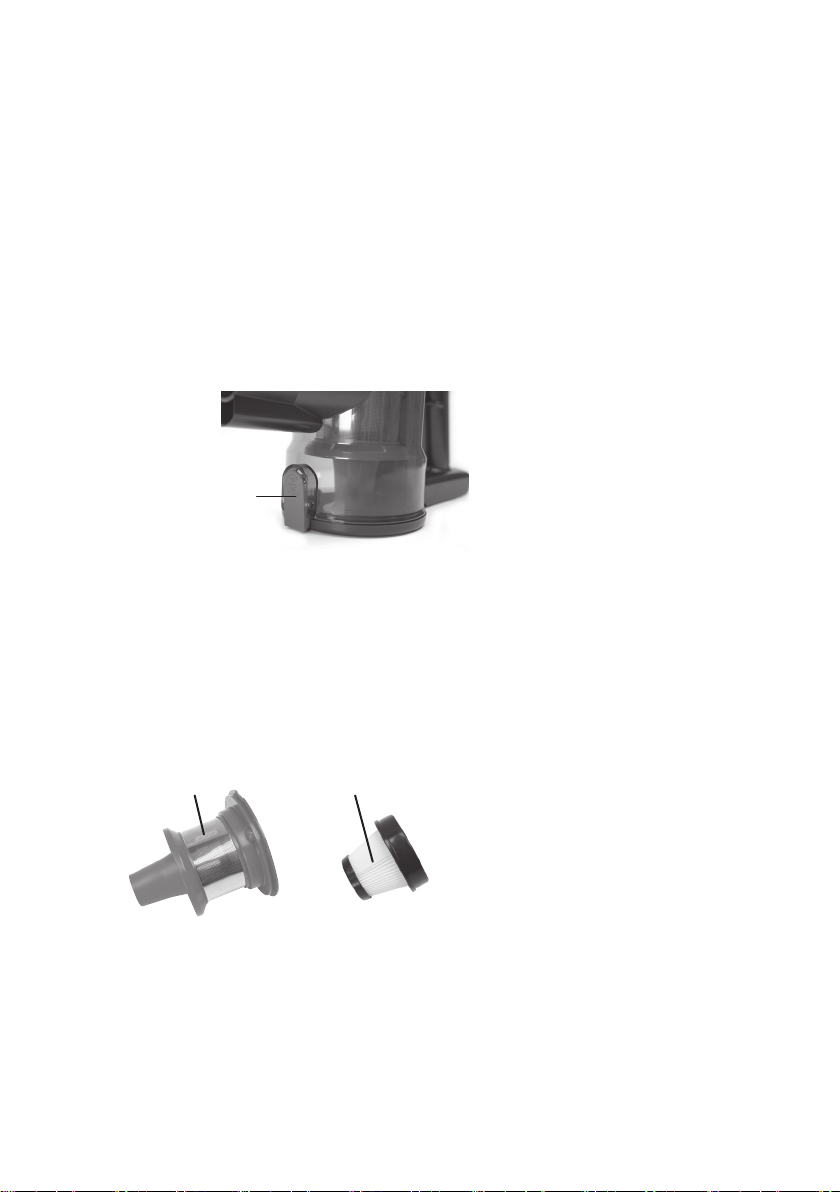

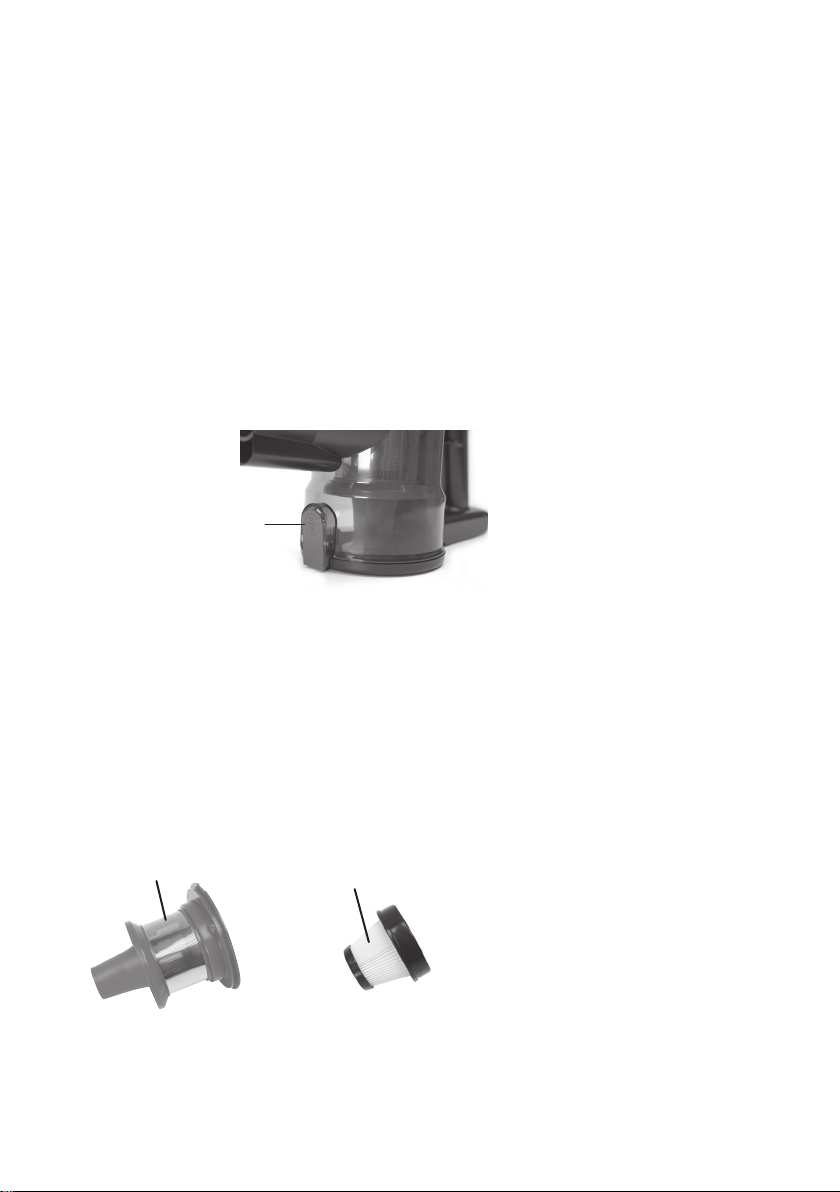

Emptying the dust container
Cleaning or replacing the H12 lter
NOTE: The H12 lter, cyclonic part can become blocked a
fter some time and
can thereby reduce the suction power. It is therefore important that the above
mentioned lter determine to replace.
NOTE: Water could penetrate into the appliance if the lters are not thoroughly
dry. This can result in electrical damage, poor suction performace and smelly
during operation.
Dust container
release button
Cyclone H12 lter

9

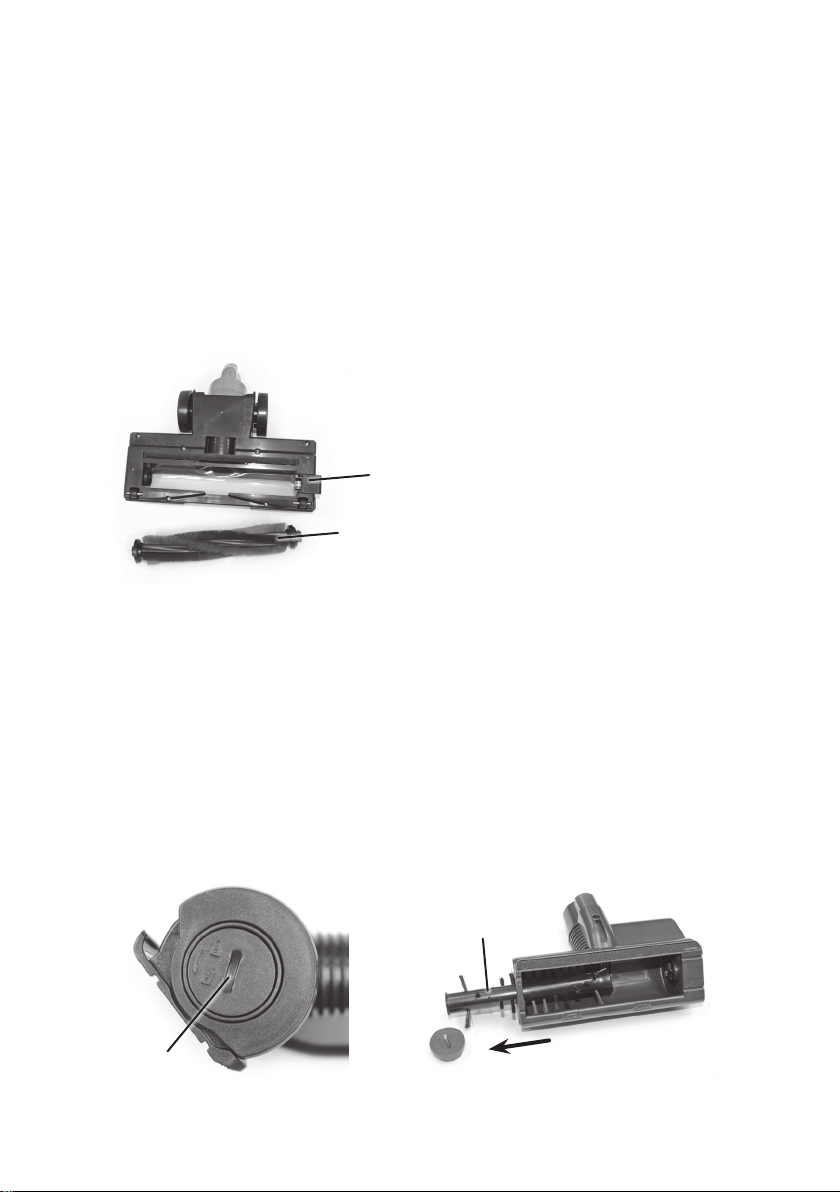

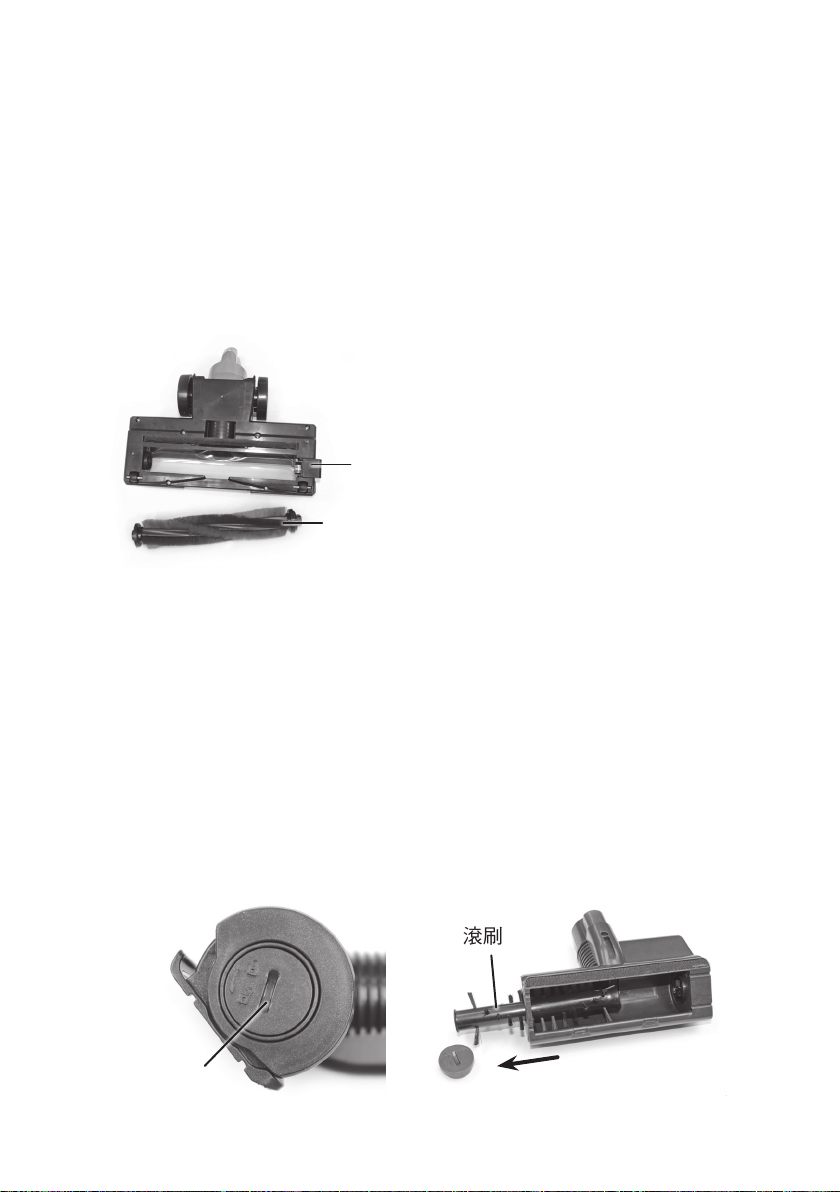

• Slide the sliding switch to open position, remove the roll brush from the oor
brush housing.
• Remove the hairs or dust around the roll brush, rinse the roll brush with water
gently, let it air-dry completely before reassemble.
• After cleaned, install the rolling brush inside the motorized oor brush. Make sure
the rolling brush is proper seat in position. Slide the sliding switch to lock position.
• Turn the unlock/ lock switch to unlock position and push out the roll brush.
• Remove the hairs or dust around the roll brush, rinse the roll brush with water
gently, let it air-dry completely before reassemble.
• After cleaned, install the rolling brush inside the motorized bed brush. Make sure
the rolling brush is proper seat in position. Turn the unlock/ lock switch to lock
position.
The Motorized oor brush can be possibly blocked by big objects or rape around by
hair or long thread.it need to be clean the rolling brush timely.
Clean the motorized oor brush
Clean the motorized bed brush
NOTE: All accessories must dry thoroughly before installing into the appliance.
Sliding switch
Roll brush
Roll brush
Unlock/lock
switch

10
PRODUCT SPECIFICATIONS
Model no.: GVC222R
Voltage: DC 22.2V
Output power: 160W Main unit
15W Floor brush
15W Bed brush
Charging time: Approx.5.5 hours
Two Speed of run time: About 18 mins (High) / 30 mins (Low)
Product Dimension (mm):
Stick Vac with oor brush: 1270(H) x 250(W) x 210(D) mm

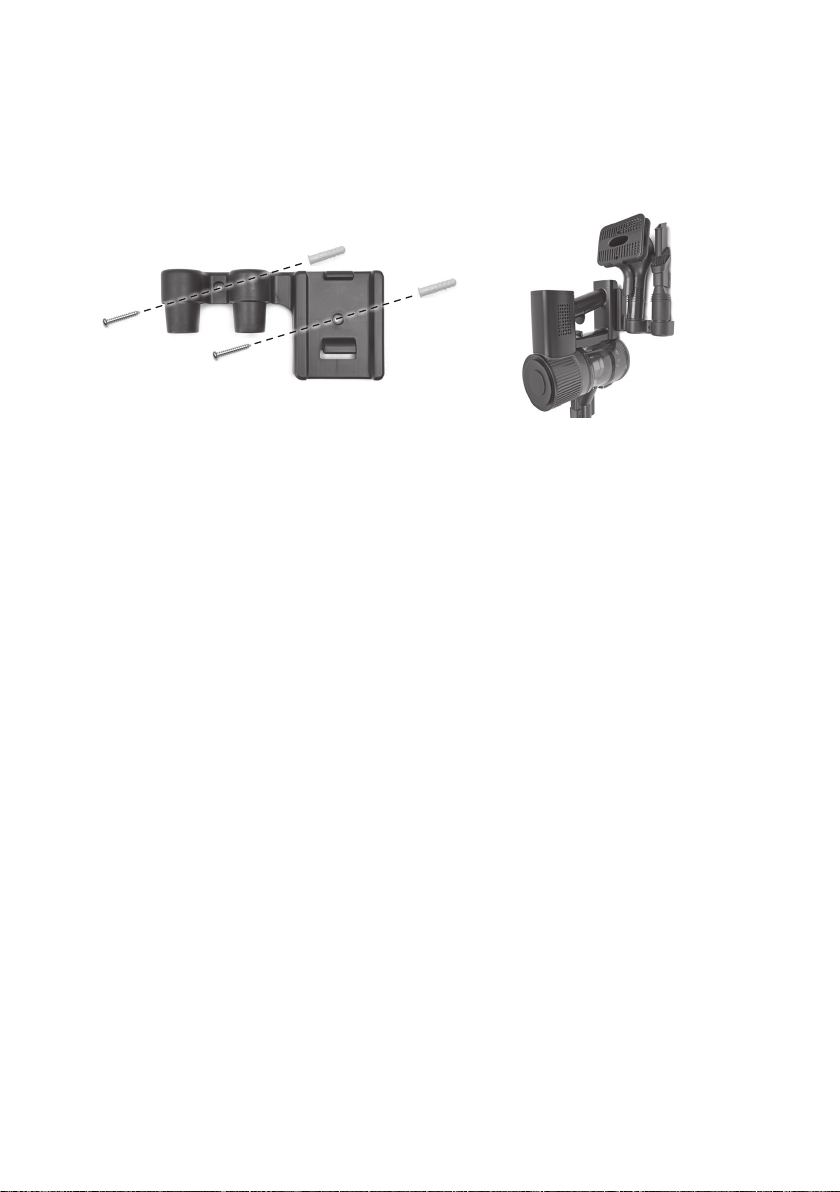

• After cleaning, you can store your appliance on the wall mount hanger. Position
the wall mount hanger against the wall and mark the points at which the fastening
screws are to be inserted. Using a drill, drill the holes for the screws, insert the
plastic anchor provided, then hang the wall mount hanger on the screws, and
tighten the screws up to their full extent.
Storage with Wall mount hanger
*The nal product specication may be varied according to a different lot of
material and actual input voltage power of the usage area.

11
安全指引 - 一般安全
安全指引 - 電子和熱能產品
- 請按照這些說明事項, 使用本產品。
- 本產品僅供家用，不作商業用途。
- 使用前，請將所有包裝材料拆除。
- 0至8歲的兒童不應使用本產品。
- 超過8歲的兒童可使用本產品，但請勿由肢體不健全、感覺或精神上有障礙或
缺乏相關經驗和知識的人使用，除非有負責他們安全的人對他們使用本產品進
行監督或指導。
- 請務必看顧好兒童，以確保他們不玩耍本產品。
- 兒童不應清潔或維修本產品。
- 當需進行任何維修，必須由專業維修人員進行維修。永遠不要嘗試自己修理本
產品。
- 手濕時不可以接觸電源插頭或本機。
- 主機不可以浸入水中。
- 兒童不可以把玩本機。
- 本機開著後不可以無人監管。
- 當本機開著時，頭髮、鬆身衣物、手指和身體其他部份都要離開本機。
- 只使用隨機附送的配件。
- 使用相符的電源和電壓，以防止觸電。
- 本產品只能使用帶接地線的電源插座。
- 當本產品不使用時，請從牆上的插座中拔掉插頭。
- 從牆上插座中拔掉插頭時，應拿著插頭而不是電源線。
- 確保本產品、電源線和插頭不與水接觸。
- 確保本產品、電源線和插頭不接觸發熱表面，如明火。
- 定期檢查本產品的電源線以確保其沒有損壞。如果電源線損壞，請勿使用其產
品，並須由專業維修人員來更換，以避免出現任何危險。
- 切勿在易燃材料附近使用本產品。
-
本產品的某部分可能會發熱。不要觸摸這些部分，以防止燙傷自己。
閱讀下列說明事項並請妥善保管，以供日後參考。

12
安全指引 - 操作期間
- 請勿用潮溼的手插拔電源插頭或接觸本產品。
- 如果本產品落入水中，立即從插槽中拔下插頭，並且不要再次使用本產品。
- 切勿將本產品、電源線或插頭浸入水中或其他液體中。
- 使用後徹底清潔本產品 (請參閱“清潔和保養”)
- 不可吸入任何可能產生泡沫的洗滌劑或水溶液。
- 產品運作時，不可拆卸本產品。
- 確保塵網組件安裝好，才可使用本產品，否則可能造成損壞。
- 吸入口與通風口不得遮蓋或堵塞。不可阻塞所有開口，開口被阻塞時不可使用。
- 不可使用本產品吸入任何正在燃燒/燃點的物品，如燃點的香煙或煙灰。不可吸
入任何爆炸性 物質、易燃性物品、可燃性液體、高溫物品、毒性物質、有機溶
劑、腐蝕性或強酸性物質。
- 不可吸入如玻璃碎片、釘子、石頭、針頭或刀片等邊緣銳利的物品。以免過濾器
受損。
- 不可使用碗碟機清洗本產品的組件。
- 當棄置本產品和已移除內部電池後，切勿連接充電器。

13
部件示意圖
1. 充電口
2. 塵箱鎖扣
3. 塵箱
4. 塵箱釋放按鈕
5. 電動連LED探測燈地扒
6. 手柄
7. 出風口
8. 金屬管釋放按鈕
9. 金屬管
10.地扒釋放按鈕
控制面板
11.掛架
12.火牛
13.2合1伸縮縫隙吸咀
14.電動床刷
15.寵物刷連伸縮長管
16.電池量及充電指示燈
17.高速模式指示燈
18.高速模式指示燈
19.高/低速模式按鈕
20.開/關按鈕
16
11
13 14
15
12
7
8
9
10
2
3
4
5
MAX ECO
BATTERY INDICATOR
20
19
16
1817

14
充電
安裝及使用說明
在第一次使用吸塵機前，先把電池充電約5.5小時。需放置電池於機內充電。
如果電池變得越來越弱，便需要更換新電池。按
主機上的釋放按鈕。然後取出手柄 (裡面有電池)
，再更換一個新的手柄連電池。
充滿電後，按一下電源開/關按鈕 “”，吸塵機開始工作，並以高速(紅色燈亮起)
模式工作；再按+/-調速模式按鈕，以低速(綠色燈亮起)操作模式工作；你可以
根據不同的清潔位置來選擇速度，如果需要停止工作，按一下電源開/關按鈕 “ ”。
注意：吸塵機在充電時不能正常工作。
- 當吸塵機充電時，電池量及充電顯示燈顯示綠燈
閃爍，當電池量及充電顯示燈的3格綠燈長著
時，表示電池已充滿電。
- 當3格綠色電池量及充電顯示燈轉至2或 1格綠
燈時，代表電池量將逐漸降低，當電池量逐漸降
低至本機不能正常運作時，綠色電池量及充電顯
示燈閃爍，需要再次充電。
更換電池
安裝方法：將金屬管的末端插入主機，聽到“嚓”一聲後，金屬管便是安裝到
位。
拆卸方法：一隻手按著金屬管釋放按鈕，另一只手握著金屬管並將其移開，然
後把金屬管卸下。
安裝和拆卸金屬管
釋放按鈕

15
安裝方法：將金屬管的首端插入地扒，聽到“咔嚓”一聲後，電動地扒便是安
裝到位。
拆卸方法：一隻手按著金屬管釋放按鈕，另一只手握著電動地扒，然後把電動
地扒卸下。
安裝和拆卸電動地扒
安裝方法：將電動地扒/床刷插入主機，聽到“咔嚓”一聲後，電動地扒/床刷便
是安裝到位。
拆卸方法：一隻手按著主機釋放按鈕，另一只手握著電動地扒/床刷，然後把電
動地扒/床刷卸下。
電動地扒/床刷和主機連接
可調校電動床刷角度
釋放按鈕 釋放按鈕

16
2合1伸縮縫隙吸咀和主機連接
A：扁吸咀頭 - 用於清潔的地方，如窗框和縫隙等。
B：除塵毛刷 - 按下2合1伸縮縫隙吸咀釋放按鈕，再推出除塵毛刷，用於清潔凹
凸及柔軟的表面，如傢俱、百葉窗簾等。
安裝方法：將寵物刷插入主機，聽到“咔嚓”一聲後，寵物刷便是安裝到位。
拆卸方法：一隻手按著主機釋放按鈕，另一只手握著寵物刷，然後把寵物刷卸
下。
2合1伸縮縫隙吸咀
釋放按鈕
配件
寵物刷和主機連接
A
B
釋放按鈕

17
清潔和保養
- 在清洗任何部件之前，確保吸塵機已關上。
- 按下塵箱前方的釋放按鈕，把塵箱及主機分離。
- 把塵箱內的垃圾清理。
- 如需要，可用乾淨水輕輕地沖走灰塵，待塵箱過濾器及過濾網完全清潔及完全
風乾才裝回本機。
- 取出H12過濾網。
- 用乾淨水輕輕地在旋風器，H12過濾網上沖走灰塵，待完全清潔及完全風乾才
裝回本機。
清理塵箱
清潔旋風器, H12過濾網
注意：過濾網可能在一段時間後被堵塞，而減弱吸力。因此，過濾網更換是很
重要的。
注意：如果旋風器及所有過濾網不完全風乾，剩餘的水分可能進入吸塵機內
部，對吸塵機電路裝置造成損壞, 影響吸力效果及使機器內部部件傳出異味。
塵箱釋放按鈕
旋風器 H12過濾網

18
電動地扒可能會被大的物體阻擋，或者被頭髮或長線環繞。需要及時清理滾
刷。
- 將滑動開/關鎖推至開鎖位置，把在地刷內的滾刷取出。
- 把所有毛髮及污塵清走，用乾淨水輕輕地沖走滾刷上的灰塵，待完全清潔及完
全風乾才裝回電動地扒。
- 清理完畢後，需風乾再將滾刷安裝在電動地扒內。確保滾刷是裝回位置。將
滑動開/關鎖推回鎖定位置。
- 將開/關鎖轉至開鎖位置，然後推出滾刷。
- 把所有毛髮及污塵清走，用乾淨水輕輕地沖走滾刷上的灰塵，待完全清潔及完
全風乾才裝電動床刷。
- 清理完畢後，需風乾再將滾刷安裝在電動床刷內。確保滾刷是裝回位置。將
開/關鎖推回鎖定位置。
清潔電動地扒
清潔電動床刷
注意：所有配件必須風乾完成後，才裝回機身。
滑動開/關鎖
滾刷
開/關鎖

19
產品規格
型號： GVC222R
電壓 : DC 22.2V
功率： 160瓦 主機
15瓦 電動連 LED探測燈地扒
15瓦 電動床刷
首要充電時間： 約 5.5小時
電池使用時間： 約 18分鐘 (高速) / 30分鐘 (低速)
產品尺寸(豪米)：
直立式吸塵機連地扒： 1270(高) x 250(闊) x 210(深) 豪米
清潔後，可將本產品存放在牆掛支架上。將掛牆支架靠在牆壁上並標記要插入
緊固螺絲釘的位置。使用鑽頭鑽出螺釘孔，插入提供的膠塞，然後將掛牆支架
釘在螺釘上，並將螺釘擰緊。
掛牆式或直立式站立以便儲藏
注意：如果過濾網不完全風乾，剩餘的水分可能進入吸塵機內部，對吸塵機電
路裝置造成損壞, 影響吸力效果及使機器內部部件傳出異味。
* 相關產品的規格，可能會因配件批次或實際使用地區的電壓差異而有所不同。

20
