Gira Plus 5981 00 Manual

Gira nurse call system Plus
Short instructions
Power rectifier Plus 5981 00 for installation on DIN top-hat rail
Power rectifier Plus 5998 00 for wall installation
Safety instructions
Installation and mounting of electrical devices may only be
carried out by qualified electricians.
Failure to observe the instructions can result in damage to the
device, fire or other dangers.
Isolate before working on the device or load. Take account of all
circuit breakers supplying dangerous voltage to the device or
load.
Function
Power supply unit with input voltage of 230 V AC +/-15 %.
Output voltage 24 V DC.
The device is designed for 24-hour operation at rated output.
Scope of delivery
• Order No.: 5981 00, power rectifier Plus with carrier for installa-
tion on DIN top-hat rail.
or
• Order No.: 5998 00, power rectifier Plus for wall installation.
Installation
The power rectifier Plus must be installed in a dry, dust-free and well
ventilated location.
Order No.: 5981 00 intended for installation on top-hat rail.
Order No.: 5998 00 intended for wall installation.
Device overview
The power rectifier 5998 00 has an LED status display in the device
cover:
The LED lights up green when mains voltage is applied.

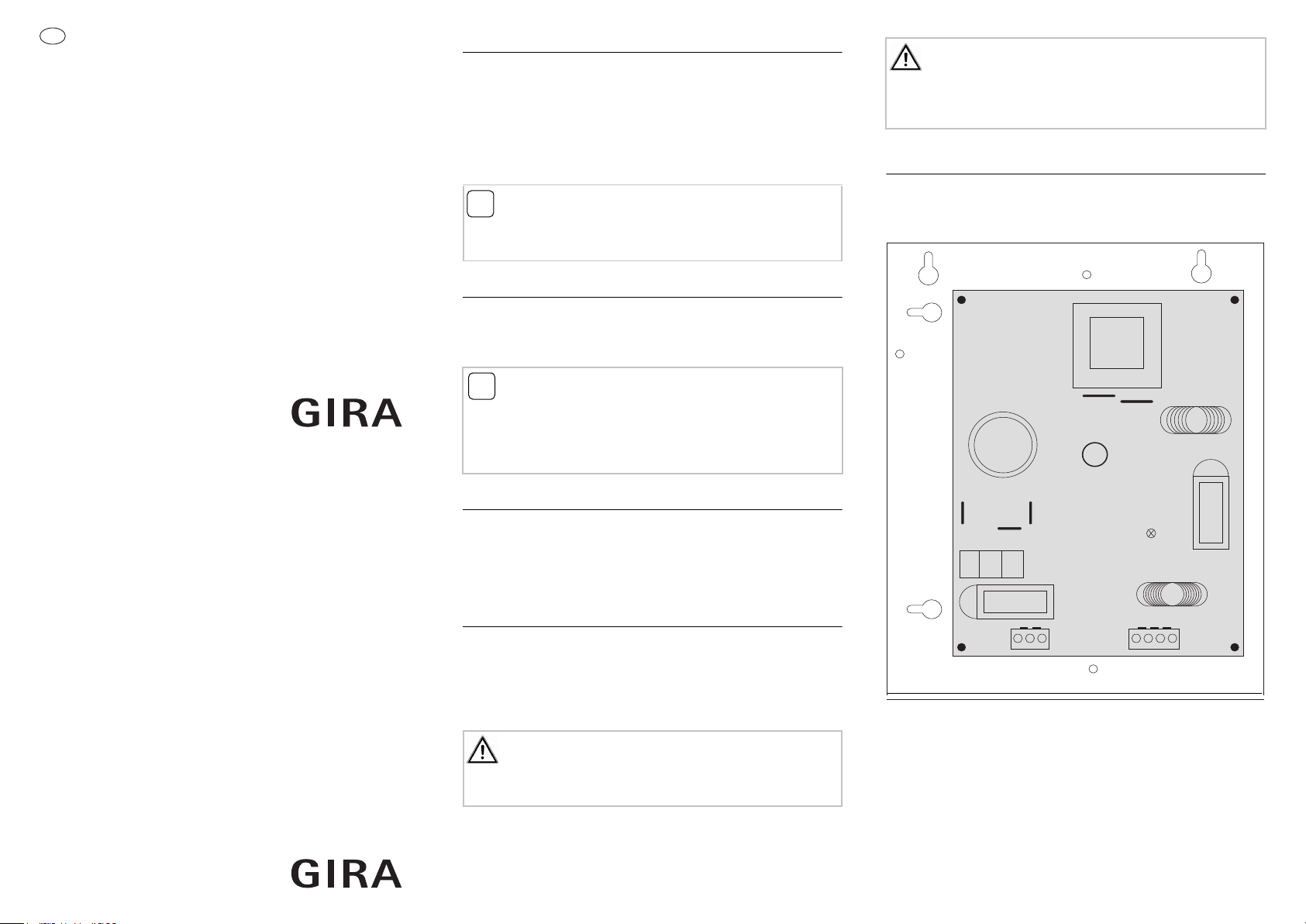

Fig. 1: The PCB of the power rectifier
GB
iProvide circuit breaker!
Connect a circuit breaker type D, max. 16 A upstream from the
power supply unit.
iNote: read the system operating instructions.
Become familiar with all the possibilities of the device and the
complete call system. Please read the system operating instruc-
tions available in various languages on the CD-ROM enclosed
with the ward control centre.
Important! Do not install in patient's rooms!
The device must be securely installed. Access to the device for
skilled electrical personnel must be possible at all times.
Important! Danger of overheating!
With an unfavourable installation location, heat accumulation may
cause device overheating. This may cause damage. Ensure sufficient
air circulation to prevent heat accumulation.




Legend:
Terminals for input voltage 230 V AC
Terminals for output voltage 24 V DC
Micro-fuses: input T 2 A, output T 6.3 A
Status LED: green when mains voltage applied.
Gira
Giersiepen GmbH & Co. KG
Electrical installation
systems
P.O. Box 1220
42461 Radevormwald
Phone [phone] / 602 - 0
Fax [phone] / 602 - 191
www.gira.com
[email protected]
499266 34/11
499266_EN.fm Seite 1 Sonntag, 28. August 2011 9:40 21

Fig. 2: PCB connections
Start-up
Carry out the following steps:
1. Connect 230 V AC input voltage (see fig. 2, 230 V AC).
2. Connect system devices to the 24 V connection terminal (see
fig. 2). Note the energy points section of the system operating
instructions.
Warranty
The warranty is provided in accordance with statutory requirements
via the specialist trade. Please submit or send faulty devices postage
paid together with an error description to your responsible salesper-
son (specialist trade/installation company/electrical specialist trade).
They will forward the devices to the Gira Service Center.
Technical data
Output voltage in battery operation
Important! Danger!
Electric shock if live parts are touched.
Electric shock may lead to death.
Isolate all appropriate circuit breakers and fuses before working on
the device or load. Cover up live parts in the vicinity!
230 V~ AC
LN
d
F1
+24V GND
24 V DC
Input (primary voltage)
Rated voltage: 230 V (+/- 15 %)
Mains frequency: 45 to 65 Hz
Output (secondary voltage)
Output voltage in mains operation: 27.2 V (+/- 0.5 %)
Rated output current: 6 A
Output power: 150 W
Protection class: I
Protection level: IP 30
Fuse on the primary side: T 2.0 A
Fuse on the secondary side: T 6.3 A
Ambient temperature at 100% load: -5 ºC to +40 ºC
Dimensions (L x W x H)
Wall installation 5998 00:
DIN rail 5981 00:
245 x 194 x 85 mm
170 x 125 x 65 mm
Weight:
Wall installation 5998 00:
DIN rail 5981 00:
1.85 kg
1.25 kg
