Stryker Quantum 2000 User manual

Quantum 2000 Light Source
Model Number: Q2000
Operating Manual
VERSION PAGE
English 1
Nederlander 13
Fraqais 27
Deutsch 41
Italian0 55
Espagiiol 69
Light Source Menu
Service Manual

CONTENTS
Thank you for purchasing the Stryker Quantum 2000 Light Source, designed
by a leading worldwide manufacturer of illuminated diagnostic instruments. By
following the use and care guidelines given in this manual, you will be reward-
ed with years of dependable, trouble-free service from your new Light Source.
Read these instructions thoroughly before use.

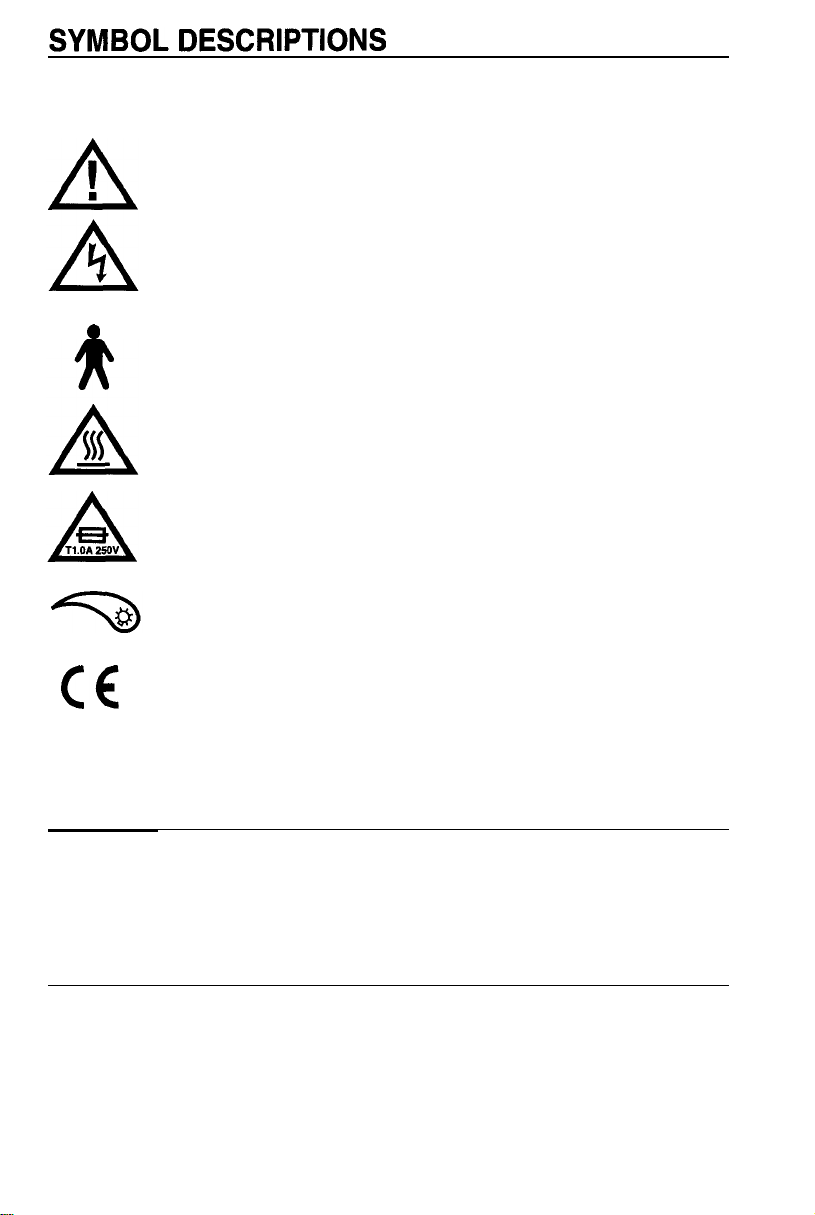

System Symbol Descriptions..
....................... 1
Warnings and
Precautions.. ............................ 2
System Description..
........................................
4
System Set-up/Operation ................................ 5
Lamp Replacement .......................................... 6
Fuse Replacement .......................................... 8
Cleaning ............................................................ 9
Specifications .................................................. 10
Troubleshooting Guide.. .................................. 1 1
Maintenance and Repair.. ................................ 12
Warranty and Service ...................................... 12
Ordering Information ...................................... 12

REF
CAUTION
0
SN
Catalog Number
Attention: Read operating manual for warnings, precautions,
and instructions for use.
Dangerous Voltage: Refer servicing to qualified personnel.
Type B Equipment
Caution
- Hot
Warning: Risk of fire. replace fuses as marked.
Light; Lighting; Illumination Intensity
Conformance to: 93/42/EEC Medical Device Directive
Serial Number
INDICATIONS
Use of the Quantum 2000 Light Source is indicated for medical lighting
applications requiring a remotely located, high-quality white light.
This product must only be used by qualified medical personnel.
CONTRAINDICATIONS
The use of the Quantum 2000 Light Source is contraindicated for applica-
tions where high intensity light might burn or damage tissue; such as
for neonate transillumination and ophthalmic procedures. For further
contraindications, the user must also consult the operating manual of
the instrument being used with the Light Source in the medical procedure.
1

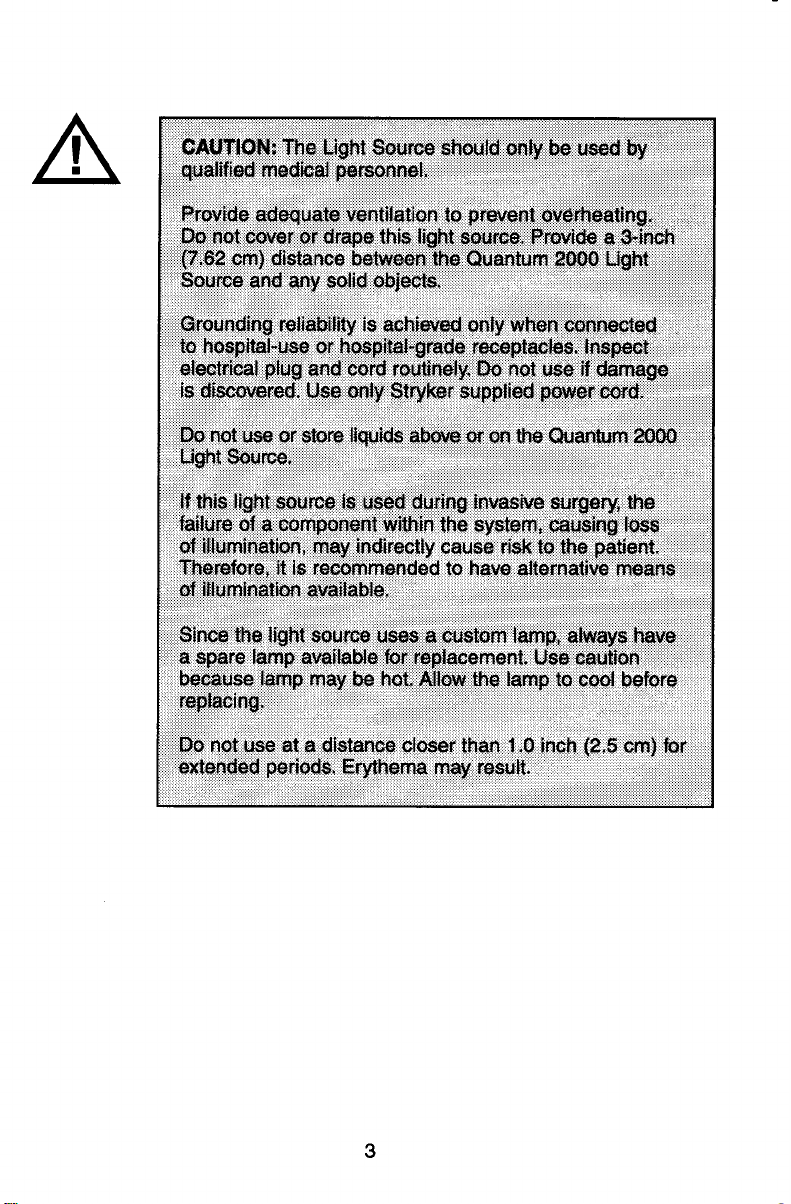

WARNINGS AND PRECAUTIONS
2

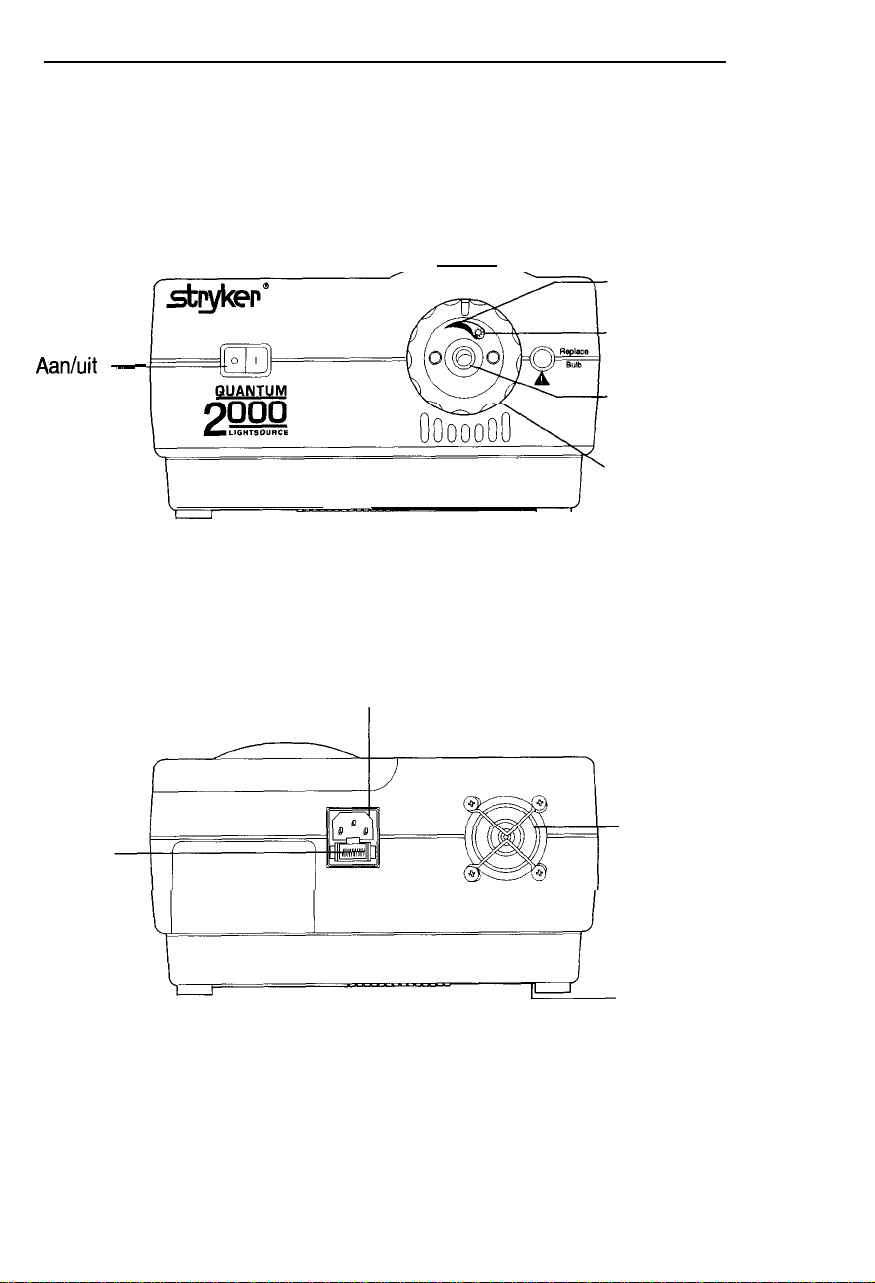

SYSTEM DESCRIPTION
The Quantum 2000 Light Source is used to supply high-quality, white light
for video and optical illumination systems. It accepts standard
ACMI
connectors.
PowerSwitch
Minimum
Light Output
Maximum
Light Output
Fiber Optic
Bundle Port
Control Knob
FRONT
AC Power Outlet
Fuse
Draw
Fan Grill
BACK
Lamp Access
Door
4

SET-UP AND OPERATION
After a 15-second warm-up period, the light output will stabilize at its
normal intensity.
1. Plug the Quantum 2000 Light Source into a hospital-grade receptacle.
2. Turn the light-intensity control knob to its minimum position. Plug the fiber
optic bundle into the illuminator port and connect the opposite end to the
instrument.
3. Turn the power switch to the on position. The lamp will take 15 seconds to
complete its warm-up cycle.
4. Set light intensity to desired level.
5. Turn unit off when not in use.
NOTE: Do not restart lamp immediately after turning off.The lamp
may fail to start. If this occurs, turn the power switch off and wait
15 seconds before restarting the Quantum 2000 Light Source.
5

1. Turn unit off and unplug the power cord from both the wall outlet and the
Quantum 2000 Light Source.
2. Remove the lamp access door from the bottom of the Quantum 2000
Light Source by loosening the thumbscrew and gently lifting the door
open. Leaving the wires attached, gently lay door aside to gain access
to the lamp.
3. Disconnect the lamp connector
assembly by pulling back on the
black connector.
-1 m Black Connector
4. Remove the lamp from the holding
spring assembly by firmly grasping
the ceramic lamp base and pulling
the lamp gently toward the rear.
While pulling back, slide the lamp
up and over the tension spring and
out of the light source.
Ceramic Lamp Base
Tension
Springs
6

NOTE: Replace with Stryker lamp #502 220 176 only. Do not touch the
lamp itself, or the interior reflective surface of the lamp. Skin oils on the
lamp will cause premature lamp failure. Always hold lamp by the ceramic
connector base. Remove any grease or fingerprints with a clean cotton
swab moistened with alcohol. Do not leave any lint on the lamp.

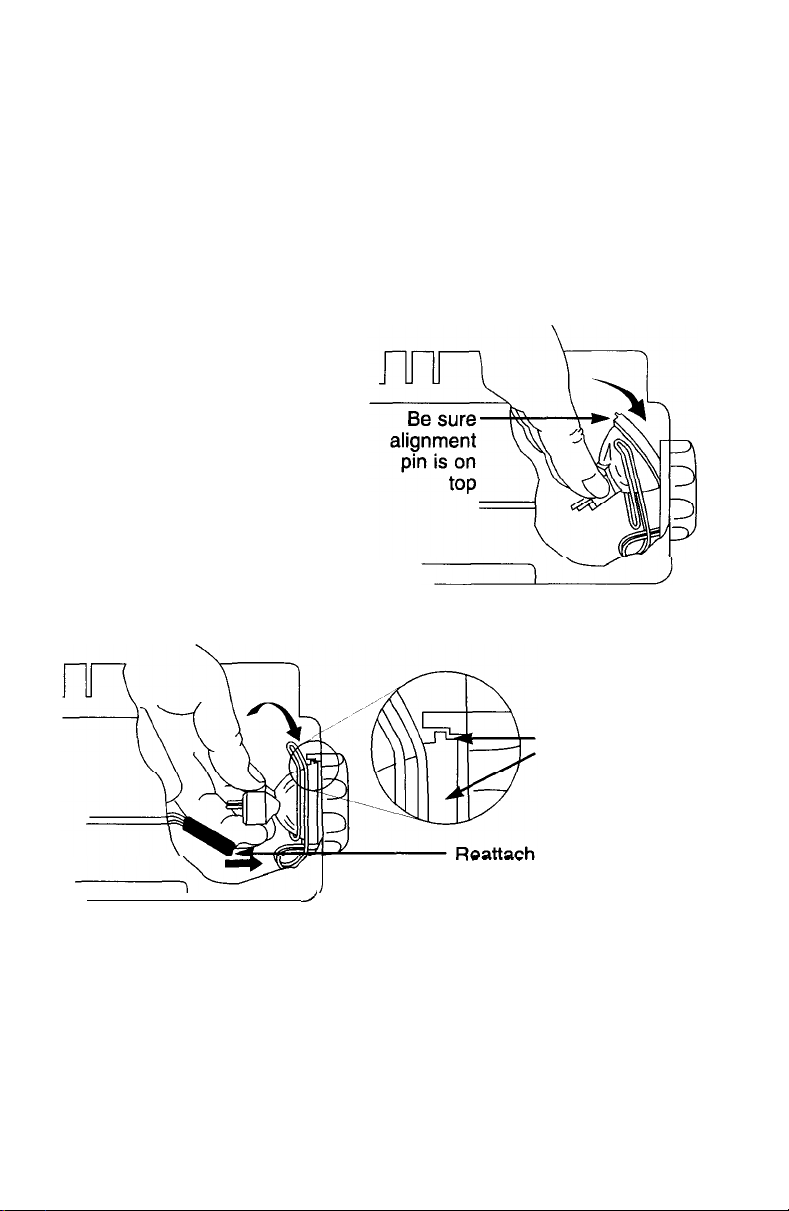

5. To install a new lamp, grasp the lamp by the ceramic base and be
sure that the alignment pin on the lamp is pointing up. Gently slide the
lamp down into place between the holding spring assembly and the front
of the box, allowing the holding spring to help seat the lamp in the fixture.
Check to be sure that the
alignment pin on the lamp is
securely placed in the slot on
the fixture. When the lamp is
properly seated, you will be
able to rotate the lamp slight-
ly in either direction. If lamp
does not rotate at all, or
rotates freely, pull back gen-
tly and reposition lamp as
described above. Plug the
black connector assembly
wire back into the lamp.
---A-)-1
assembly
I
/
Be sure
alignment pin
and lamp are
properly seated
black connector
‘wire
6. Reattach the lamp door securely. The unit will not power up unless the
lamp door is seated properly.
7

FUSE REPLACEMENT
1. Turn the unit off and remove the power cord from both the wall outlet and
the Quantum 2000 Light Source.
Fuse Holder
2. Use a small screwdriver to remove the fuse holder below the power cord
connector by releasing the spring-loaded snap connections.
3. Pull out the fuse holder.
4. Remove and replace with new fuses of the same type. There is no
required orientation of the fuses. Be sure to replace both fuses.
5. Reinsert the fuse holder by pressing it into the power connector until it
snaps into place.
6. If the new fuse blows, immediately contact Stryker Technical Service.
Fuses
Snap
Connections 7
8

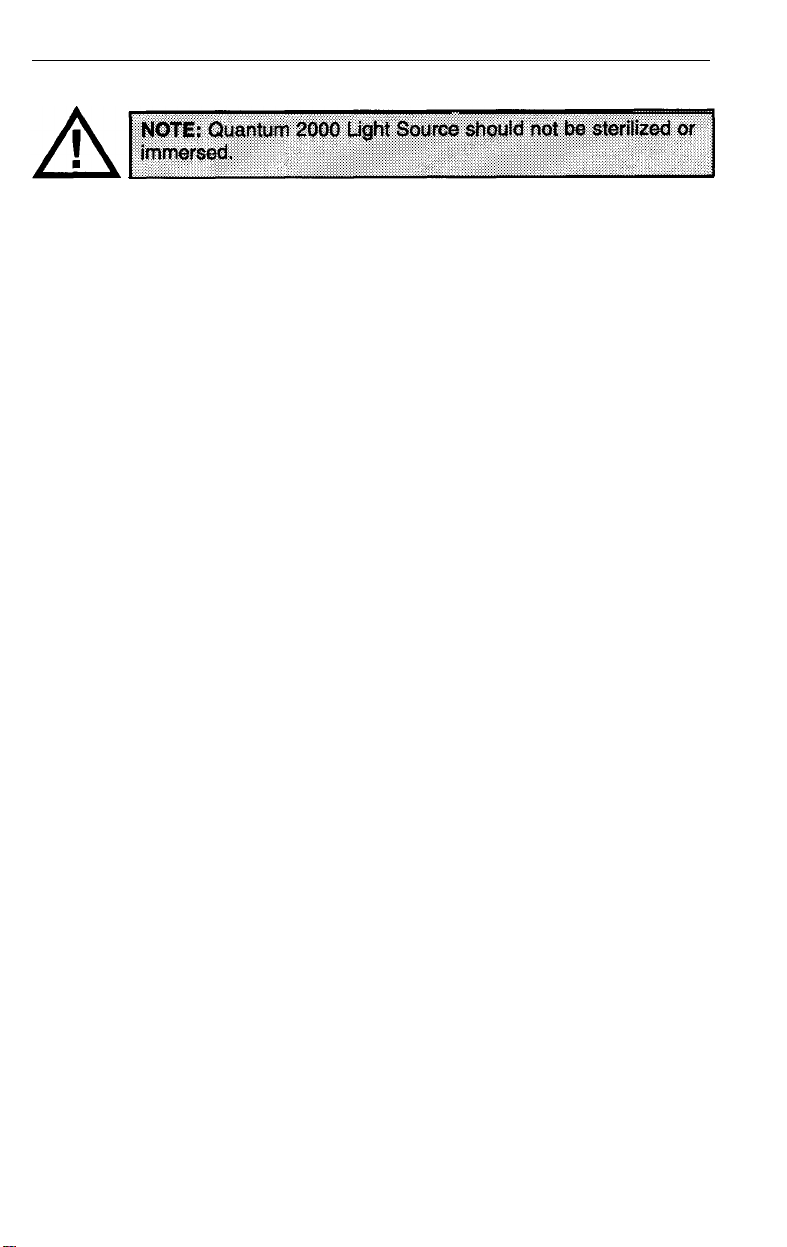

CLEANING
1. Prior to cleaning, turn power off and disconnect the power cord from both
the wall outlet and the Quantum 2000 Light Source.
2. The external surfaces may be cleaned by wiping with a cloth dampened
with mild soap and water or by using the following cleaning/disinfecting
solutions. DO NOT IMMERSE.
l Cidex, CidexPlus
l 70% isopropyl alcohol
l 10% mild bleach solution
l Metracide
l 10% Wescodyne
l Banicide
l Wavecide-01
3. The power cord may be wiped clean using the same cleaning/disinfecting
solutions listed above. Wipe dry with a clean cloth. Care must be taken
not to get the plug prongs wet. DO NOT IMMERSE.
4. Do not plug the unit into a wall outlet until it is thoroughly dry.
9

SPECIFICATIONS
ELECTRICAL
Input Voltage: 100 - 240 VAC, 50 - 60 Hz
Input Current: 1A (@ 100 VAC)
Output: 60 VDC
@ 0.4A
Leakage Current: less than 100 microamps
DIMENSIONS
11.43 cm (W) x 16.5 cm (L) x 6.35 cm (H)
Weight Under 5 Lbs.
ILLUMINATION SYSTEM S6LARC’”
Welch
Allyn Lamp 09500 Lamp: 60 Volts, 24 watts
Color Temperature: 5500°K Lamp Life: 350 hours average
DIMMING SYSTEM
Manual Shutter: 20% to 100%
FIBER OPTIC BUNDLE INTERFACE
Standard
ACMI Connector
APPROVALS
CE
CAN/CSA C22.2 No. 601.1
IEC 601-1 EN 60601-1-2
UL 2601-1 EN 60601-1
The CE mark on this product indicates it has been tested to and conforms
with the provisions noted within the
93/42/EEC Medical Device Directive.
ENVIRONMENT
Storage: Humidity: 10% to 100%
Temperature: -25” C to +60” C
Pressure: 500hPA to
1060hPA
Operating: Humidity: 10% to 95% non-condensing
Temperature: +15” C to +30” C
EQUIPMENT CLASSIFICATION
Class I, Type B, Continuous Operation, Ordinary Equipment, not
suitable for use in the presence of flammable anesthetic mixtures
FUSES T1.0A
L250V: 1.0A, 250V, 25OV, time lag (slow-blow),
low breaking capacity
PATENTS
This product is covered by the following patents:
5083059; 5117154; 5138228; 5144201; 5291100; 5594826
10

TROUBLESHOOTING
If lamp is not
illuminating and . . .
fan is not operating.
Light Source is not plugged Plug the power cord into the
into either the wall outlet or wall outlet and power cord
the power cord socket. socket at back of unit.
Power switch is not
turned on.
Depress the"I" side of the
power switch.
The lamp door is not
properly installed. Remove the lamp door and reinstall carefully, making
sure that the lip on the
bottom fits into the front of
the housing and that the
thumbscrew is fully tightened.
One or both fuses have
blown.
Replace both fuses. Follow
the instructions in the fuse
replacement section. If fuses
continue to blow, return Light
Source to an authorized
repair center.
Power cord is damaged. Replace the power cord with
This may cause intermittent
operation. a new power cord.
No power is supplied to
the wall outlet. Verify that the wall outlet has power by checking the
circuit breaker status and by
operating other equipment
at that wall outlet.
fan is operating.
The lamp was not able to Wait at least 15 seconds
“cool down” before restarting. after turning the Light Source
off before turnina it back on.
The Light Source has
overheated. Verify that all ventilation slots and the fan area are not
obstructed. The Light Source
should always have
at least 3-inches clearance.
The lamp has burned out.
Replace with a new SdlarcTM
lamp. Refer to the lamp
replacement section.
11

MAINTENANCE AND REPAIR
For minor trouble, refer to the troubleshooting section in this manual for
possible causes and corrective action.
Only qualified personnel should make electrical inspections of the
Quantum 2000 Light Source.
Repair: To locate qualified personnel, contact your local authorized
Stryker distributor.
WARRANTY AND SERVICE
Stryker warrants the Quantum 2000 Light Source when new, to be free
of defects in material and workmanship and to perform in accordance with
manufacturer’s specifications when subject to normal use and service for
a period of one year from the date of purchase from Stryker or an auth-
orized agent. Stryker will either repair or replace any components found to
be defective or at variance from manufacturer’s specifications within this
time at no cost to the customer. It shall be the purchaser’s responsibility
to return the instrument directly to the authorized distributor, agent, or
service representative.
This warranty does not cover the
SdlarcTM Lamp for breakage or failure due
to tampering, misuse, neglect, accidents, improper installation, modification,
shipping, or to improper maintenance, service, and cleaning procedures.
This warranty is also void if the instrument is not used in accordance with
manufacturer’s recommendations or if required or serviced by other than
Stryker or an authorized agent. Purchase date determines warranty
requirements. No other express or implied warranty is given.
ORDERING INFORMATION
Part No. Description
Light Source
502 220 175 Quantum 2000 Light Source with European Power Cord
502 220 177 Quantum 2000 Light Source with United Kingdom Power Cord
Replacement Power Cords
502 220 179 European Power Cord
502 220 180 United Kingdom Power Cord
Lamp
502 220 176 Replacement Lamp
Fuses
502 220 178 Replacement Fuse
12

Quantum 2000 Lichtbron
Model nummer: Q2000
Gebruiksaanwijzing

INHOUD
Wij danken U voor de aankoop van de Stryker Quantum 2000 Lichtbron, die
door één der leidende, wereldwijd opererende ondernemingen op het gebied
van diagnoseinstrumenten met lichtbron werd ontworpen. Indien U zich aan
de hierna volgende richtlijnen voor het gebruik en onderhoud houdt, zult U
met jarenlange betrouwbare en zorgenvrije dienst van Uw nieuwe Lichtbron
worden beloond. Leest U deze instructies nauwkeurig door voordat U het
apparaat in gebruik neemt.
Beschrijving van de systeem-symbolen.. ...... 15

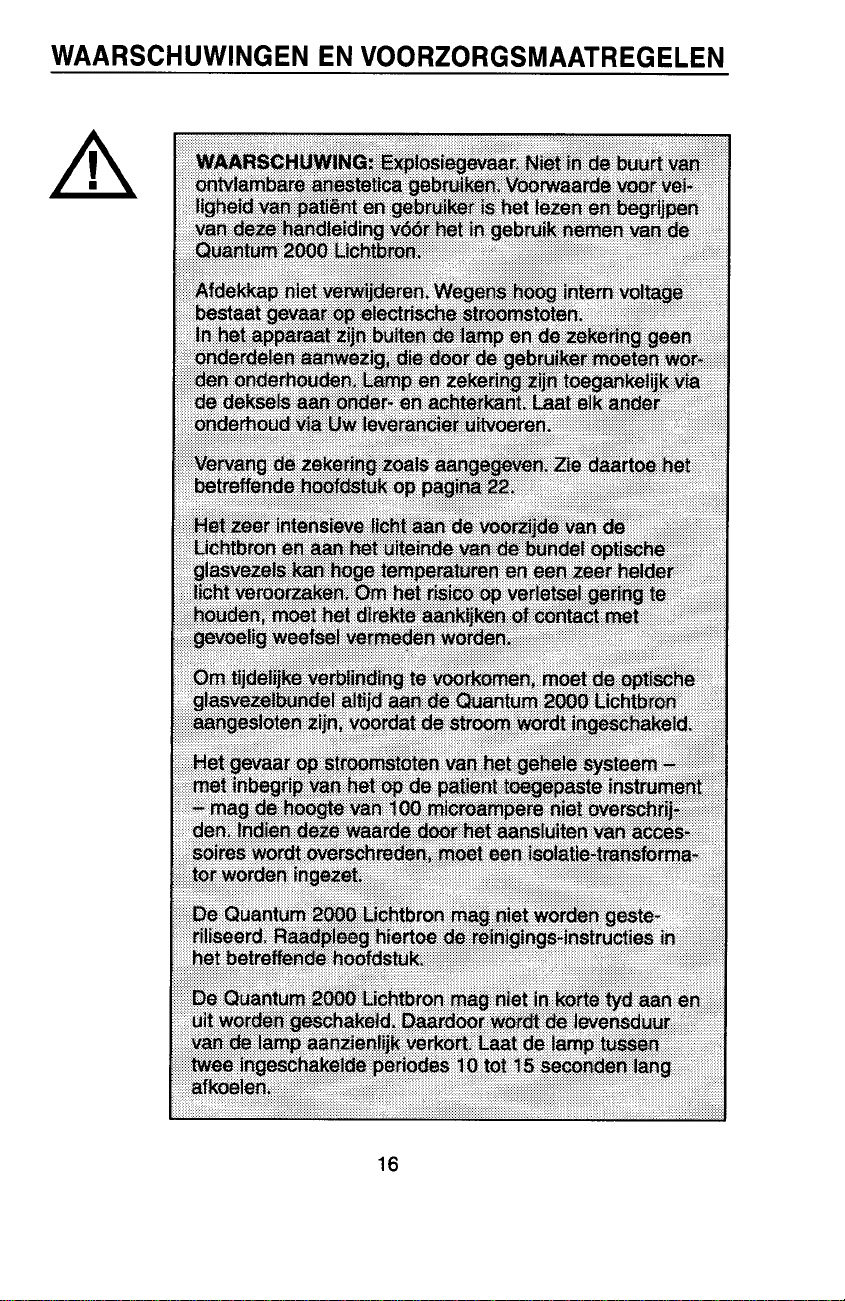

Waarschuwingen en voorzorgsmaatregelen . 16
Systeembeschrijving
........................................ 18
Systeem-opbouw /funktie ............................... 19
Vervangen van de lamp ................................... 20
Vervangenvan de zekering .............................. 22
Reiniging ........................................................... 23
Specificaties ......................................................
24
Hulp bij problemen...........................................
25
Onderhoud en reparatie.. ................................. 26
Garantie en service
.......................................... 26
Bestelinformatie ...............................................
26
14

SYMBOOL BESCHRIJVING
REF
CAUTION
0
CC
SN
Catalogus nummer
Opgelet: Raadpleeg de gebruiksaanwijzing voor
waarschuwingen, voorzorg-maatregelen en gebruiksinstructies.
Gevaarlijke spanning: Laat onderhoud door gekwalificeerd
personeel uitvoeren.
Uitrusting type B
Voorzichtig - HEET
Waarschuwing: Brandgevaar, Vervang de aangegeven
zekeringen
Intensieve lichtbron; flits
Overeenstemmend met: 93/42/EEG Voorschrift voor medische
apparatuur
Serienummer
INDICATIES
Het gebruik van de Quantum 2000 Lichtbron wordt aanbevolen bij toepass-
ing van medische projecties, waarbij een zich op een zekere afstand bevin-
dend wit licht van hoge kwaliteit is vereist.
CONTRAINDICATIES
Het gebruik van de Quantum 2000 Lichtbron wordt niet aanbevolen bij
toepassingen, waarbij een lichtstraal van hoge intensiteit weefsel kan ver-
branden of beschadigen; dit is bijvoorbeeld bij neonatale transilluminatie en
ophthalmische procedures het geval. Voor verdere contraindicaties verwijzen
wij naar de gebruikshandleiding van de betreffende apparaatuur, die in
samenhang met de Lichtbron wordt gebruikt.
15

SYSTEEMBESCHRIJVING
De Quantum 2000 Lichtbron wordt gebruikt voor de levering van wit licht van
hoge kwaliteit voor video en optische belichting. Normale ACMI stekkers
kunnen er aan worden aangesloten.
Aanluit -
schakelaar
Minimale
Lichtstraal
Maximale
Lichtstraal
Aansluiting
voor Optische
Glasvezelbundel
Regelknop
-
VOORZIJDE
Aansluiting lichtnet
Vak voor
zekering
Traliewerk
Ventilator
1 Lampendeksel
ACHTERZIJDE
18
