Gis LPM Quick start guide

TRANSLATION OF THE
ORIGINAL INSTRUCTION MANUAL

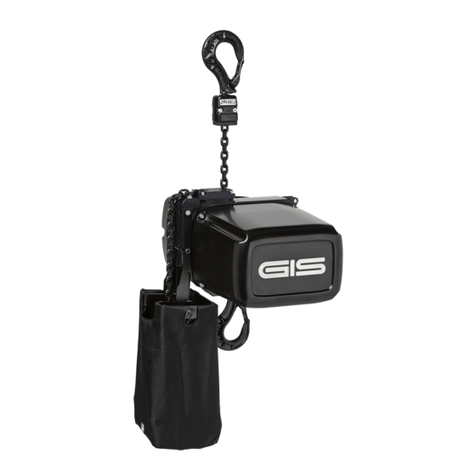

ELECTRIC CHAIN HOIST TYPE LPM
The LPM (D8 / D8 Plus) operating instructions are based on the operating instructions for the GPM models (9500.9000.1).
This supplement is a constituent of the operating instructions. Only chapters that have been added to or corrected are
included.
03.19 Translation 9500.9001.1

Swiss Lifting Solutions 3
Table of contents
0General instructions ............................................................................................................ 4
0.4 Instructions for hazard protection............................................................................................................................................................. 4
0.4.3 Sound pressure level............................................................................................................................................................................... 4
0.5 Technical status....................................................................................................................................................................................... 4
0.6 Intended use............................................................................................................................................................................................ 4
1Description .......................................................................................................................... 5
1.2 General description.................................................................................................................................................................................. 5
2Start-up................................................................................................................................ 5
2.1 Transport and assembling........................................................................................................................................................................5
2.2 Connecting...............................................................................................................................................................................................5
2.2.1 Electrical connection................................................................................................................................................................................ 5
3Care and maintenance........................................................................................................ 5
3.3 Ordering spare parts................................................................................................................................................................................ 5
5Appendix ............................................................................................................................. 6
5.1 Technical data .........................................................................................................................................................................................6
5.2 Electrical parameters ...............................................................................................................................................................................7
5.3 EC Declaration of conformity.................................................................................................................................................................... 8
5.4 EC Declaration of incorporation................................................................................................................................................................ 9
5.5 Notes..................................................................................................................................................................................................... 10

4 Swiss Lifting Solutions
0 General instructions
0.4 Instructions for hazard protection
0.4.3 Sound pressure level
Tests on the chain hoist sound level are performed at a range of 1, 2, 4, 8 and 16 metres from the centre of the chain hoist motor to the measur-
ing device. Measurement of SPL according to DIN 45 635.
The SPL was measured:
a) During operation of electric chain hoists on factory site.
b) During open-air operation of electric chain hoists.
Table 0-1 Sound level
Measuring distance
1 m
2 m
4 m
8 m
16 m
Types
Measurement type
dBA
LPM 250
a
b
65
65
62
59
59
53
56
47
53
41
NOTE
When working in a noisy environment an appropriate ear protection is recommended.
0.5 Technical status
The LPM models are designed with a shock factor of 1.4 in operation, in accordance with DIN EN 818-7. Incidents investigated by the Employ-
ers Liability Insurance Association generate lower shock factors than those occurring in normal operation.
0.6 Intended use
The LPM series of electric chain hoists are intended for use in setting up events. Events include such items as concerts, shows, conferences,
meetings, exhibitions, presentations, demonstrations, film or television shoots and similar. The location of such events include, amongst other
places, theatres, multipurpose halls, studios, film sets, television and radio broadcasting, concert halls, conference centres, schools, exhibitions,
fairs, museums, discotheques, vaudeville, recreational parks, sports facilities, open air theatres and meetings.
This standard differentiates between three types of electric chain hoists:
D8 Hoist
Electric chain hoist according to BGV D8/GUV-V D8 "Winches, lifting and pulling devices" for use as a chain hoist for lifting loads in construc-
tion.
D8 Plus Hoist
Electric chain hoist based on BGV D8/GUV-V D8 "Winches, lifting and pulling devices" for use as a chain hoist for lifting loads in construction
with the special characteristic of being able to hold loads statically above personnel, without the use of secondary safety devices.
C1 Hoist (scenery hoist)
Electric chain hoist according to BGV C1/GUV-V C1 "Staging and production facilities for the entertainment industry" for holding and moving
loads above personnel.
The types of electric chain hoists specified above can be operated both individually and in groups.
Electric chain hoists are offered in a multiplicity of designs and feature options, as well as with different safety devices. This means that the
choice of chain hoist is extremely important. Here consideration must be given to risks arising from the nature of the operational use and the
specific operating conditions.
The choice of the type of electric chain hoist depends on the operating conditions:
Table 0-2 Operating conditions
In the presence of persons under the load
Use
D8
D8 with secondary
safety device
D8 Plus
C1
Assembly and dismantling, set up mode
inadmissible
inadmissible
inadmissible
permissible
Holding loads
inadmissible
permissible
permissible
permissible
Scenic movement
inadmissible
inadmissible
inadmissible
permissible

Swiss Lifting Solutions 5
Where equipment is permanently installed in locations where events take place, electric chain hoists according to BGV C1/GUV-V C1 should be
provided, on account of the mode of operation and the anticipated risks.
Excessive inching operations, ground mooring and driving against the limit stops should be avoided. The manufacturer accepts no responsibility
for damage to equipment and third parties ensuing from such action.
1 Description
The LPM series comprises the following models: D8, D8 Plus.
1.2 General description
When the equipment is commissioned, and periodically thereafter, the functionality of both brakes must be examined. The periodic examination
should be carried out by competent personnel annually and by an expert every four years.
The verifiability of the individual brakes is to be provided by a control engineer. A sample control scheme for a D8 Plus electric chain hoist can
be obtained from GIS.
2 Start-up
2.1 Transport and assembling
Check the identification plate as to whether the electric chain hoist corresponds to the type ordered (D8 / D8 Plus).
The electric chain hoist must display the following markings:
Electric chain hoist D8..............: Triangle
Electric chain hoist D8 Plus......: Square
2.2 Connecting
2.2.1 Electrical connection
The appropriate electrical diagram can be found in the cover of the electric chain hoist. In the case of the D8 Plus electric chain hoists, once the
device is in position the power must be disconnected using a lockable switch.
The principles according to BGG 912/GUV-G 912 are to be applied. A test log is to be created, consisting of the installation documentation from
the manufacturer and the test records. Plans and descriptions for electrical installation are specific projects complemented by the appropriate
control engineer.
3 Care and maintenance
3.3 Ordering spare parts
The appropriate assembly diagram is considered to be a supplement to the parts catalogue.

5 Appendix
5.1 Technical data
Table 5-1 Technical data LPM D8
ISO (FEM)
classification
M5 (2m)
240 s/h, 40% duty
M6 (3m)
300 s/h, 50% duty
M6 (3m)
300 s/h, 50% duty
Lifting speed
50 Hz
Lifting speed
60 Hz
Motor
type
No. of
chain falls
Mains fuse
(delayed)
Types
Dead weight
Capacity
normal
hoist
Capacity
climbing
hoist
Total capa-
city clim-
bing hoist
Chain secu-
rity normal/
climbing
hoist
Capacity
normal
hoist
Capacity
climbing
hoist
Total capa-
city clim-
bing hoist
Chain secu-
rity normal/
climbing
hoist
Capacity
normal
hoist
Capacity
climbing
hoist
Total capa-
city clim-
bing hoist
Chain secu-
rity normal/
climbing
hoist
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[m/min]
[m/min]
[A]
LPM 250/1NL.D8
LPM 250/1SL.D8
12
12
250
125
238
113
250
125
8.0
8.0
200
100
188
88
200
100
10.0
10.0
160
80
148
68
160
80
12.5
12.5
4
8
4.8
9.6
71 A 4
71 A 4
1
1
6
6
Table 5-2 Technical data LPM D8
ISO (FEM)
classification
M5 (2m)
240 s/h, 40% duty
M6 (3m)
300 s/h, 50% duty
M6 (3m)
300 s/h, 50% duty
Lifting speed
50 Hz
Lifting speed
60 Hz
Motor
type
No. of
chain falls
Mains fuse
(delayed)
Types
Dead weight
Capacity
normal
hoist
Capacity
climbing
hoist
Total capa-
city clim-
bing hoist
Chain secu-
rity normal/
climbing
hoist
Capacity
normal
hoist
Capacity
climbing
hoist
Total capa-
city clim-
bing hoist
Chain secu-
rity normal/
climbing
hoist
Capacity
normal
hoist
Capacity
climbing
hoist
Total capa-
city clim-
bing hoist
Chain secu-
rity normal/
climbing
hoist
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[m/min]
[m/min]
[A]
LPM 250/1NL.D8
12
125
113
125
16.0
100
88
100
20.0
-
-
-
-
4
4.8
71 A 4
1
6
Table 5-3 Technical data LPM D8 Plus
ISO (FEM)
classification
M5 (2m)
240 s/h, 40% duty
M6 (3m)
300 s/h, 50% duty
M6 (3m)
300 s/h, 50% duty
Lifting speed
50 Hz
Lifting speed
60 Hz
Motor
type
No. of
chain falls
Mains fuse
(delayed)
Types
Dead weight
Capacity
normal
hoist
Capacity
climbing
hoist
Total capa-
city clim-
bing hoist
Chain secu-
rity normal/
climbing
hoist
Capacity
normal
hoist
Capacity
climbing
hoist
Total capa-
city clim-
bing hoist
Chain secu-
rity normal/
climbing
hoist
Capacity
normal
hoist
Capacity
climbing
hoist
Total capa-
city clim-
bing hoist
Chain secu-
rity normal/
climbing
hoist
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[m/min]
[m/min]
[A]
LPM 250/1NL.D8 Plus
LPM 250/1SL.D8 Plus
13
13
250
125
237
112
250
125
8.0
8.0
200
100
187
87
200
100
10.0
10.0
160
80
147
67
160
80
12.5
12.5
4
8
4.8
9.6
71 A 4
71 A 4
1
1
6
6
Table 5-4 Technical data LPM D8 Plus
ISO (FEM)
classification
M5 (2m)
240 s/h, 40% duty
M6 (3m)
300 s/h, 50% duty
M6 (3m)
300 s/h, 50% duty
Lifting speed
50 Hz
Lifting speed
60 Hz
Motor
type
No. of
chain falls
Mains fuse
(delayed)
Types
Dead weight
Capacity
normal
hoist
Capacity
climbing
hoist
Total capa-
city clim-
bing hoist
Chain secu-
rity normal/
climbing
hoist
Capacity
normal
hoist
Capacity
climbing
hoist
Total capa-
city clim-
bing hoist
Chain secu-
rity normal/
climbing
hoist
Capacity
normal
hoist
Capacity
climbing
hoist
Total capa-
city clim-
bing hoist
Chain secu-
rity normal/
climbing
hoist
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[kg]
[m/min]
[m/min]
[A]
LPM 250/1NL.D8 Plus
13
125
112
125
16.0
100
87
100
20.0
-
-
-
-
4
4.8
71 A 4
1
6

5.2 Electrical parameters
Table 5-5 Electrical parameters LPM
Types
Motor type
No. of poles
PN
nN
min. / max. currents and start-up current
3 x 400 V, 50 Hz
3 x 230 V, 50 Hz
IN 380
IN 415
Imax.
IA/IN 415
cos phiN
IN 220
IN 240
Imax.
IA/IN 240
cos phiN
[kW]
[1/min]
[A]
[A]
[A]
[A]
[A]
[A]
LPM 250
71 A 4
4
0.25
1385
1.6
2.0
2.6
1.65
0.55
2.8
3.4
4.4
1.65
0.55
Table 5-6 Electrical parameters LPM
Types
Motor type
No. of poles
PN
nN
min. / max. currents and start-up current
3 x 460 V, 60 Hz
3 x 380 V, 60 Hz
3 x 208-230/460 V, 60Hz
IN 460
IN 480
Imax.
IA/IN 480
cos phiN
IN 380
Imax.
IA/IN 380
cos phiN
IN 208
IN 460
Imax.
IA/IN 460
cos phiN
[kW]
[1/min]
[A]
[A]
[A]
[A]
[A]
[A]
[A]
[A]
LPM 250
71 A 4
4
0.30
1685
1.6
1.8
2.2
1.65
0.54
1.8
2.4
1.65
0.54
2.1
1.2
2.6
1.65
0.54

8 Swiss Lifting Solutions
5.3 EC Declaration of conformity
Declaration for a machinery according to the EU directives 2006/42/EC, Annex II A, 2014/30/EU, Annex I and 2014/35/EU, Annex III
Hereby we,
GIS AG, Swiss Lifting Solutions, Luzernerstrasse 50, CH-6247 Schötz
declare that the machinery
GIS electric chain hoist, series LPM
with a load capacity of 100 kg to 250 kg
serial number range 1000001 to 2000000
developed for lifting and lowering loads, is, in standard production and from the 2014 model year, inclusive of load con-
trol, meets the essential requirements of the following EC directives, as applicable to the scope of the delivery:
EC Machinery Directive 2006/42/EC
EC Directive on Electromagnetic Compatibility 2014/30/EU
EC Low Voltage Directive 2014/35/EU
Harmonized standards applied:
ISO 2374 Lifting appliances; Range of maximum capacities for basic models
DIN EN 818-7 Short link chain for lifting purposes; Part 7: Grade T
DIN EN ISO 13849-1 Safety-related parts of control systems; Part 1: General principles for design
DIN EN 14492-2 Cranes, power driven winches and hoists; Part 2: Power driven hoists
DIN EN 60204-32 Electrical equipment of machines; Part 32: Requirements for hoisting machines
Standards and technical specifications applied:
FEM 9.751 Power driven lifting device series; safety
FEM 9.755 Measure for achieving safe working periods
DIN 56950 Event technology
IGVW SQ P2 Standards for event technology
Authorized to compile relevant technical documentation:
GIS AG, Luzernerstrasse 50, CH-6247 Schötz
Schötz, 01.01.2017 GIS AG
I. Muri E. Widmer
Director Sales Manager
The completion, installation and start-up as per instruction manual is documented in the inspection pass.

Swiss Lifting Solutions 9
5.4 EC Declaration of incorporation
Declaration for the incorporation of a partly completed machinery according to the EU directives 2006/42/EC, Annex II B, 2014/30/EU, Annex I
and 2014/35/EU, Annex III
Hereby we,
GIS AG, Swiss Lifting Solutions, Luzernerstrasse 50, CH-6247 Schötz
declare that the partly completed machinery
GIS electric chain hoist, series LPM
with a load capacity of 100 kg to 250 kg
serial number range 1000001 to 2000000
developed for lifting and lowering loads, is, in standard production and from the 2014 model year, inclusive of load con-
trol, intended for installation in machinery and meets the essential requirements of the following EC directives, as appli-
cable to the scope of the delivery:
EC Machinery Directive 2006/42/EC
EC Directive on Electromagnetic Compatibility 2014/30/EU
EC Low Voltage Directive 2014/35/EU
We also declare that the technical documentation has been compiled in accordance with Annex VII, Part B of Directive
2006/42/EC. We undertake to submit the specific documents relating to the lifting device to national authorities on re-
ceipt of a reasonable request. The information will be supplied by electronic means.
Harmonized standards applied:
ISO 2374 Lifting appliances; Range of maximum capacities for basic models
DIN EN 818-7 Short link chain for lifting purposes; Part 7: Grade T
DIN EN ISO 13849-1 Safety-related parts of control systems; Part 1: General principles for design
DIN EN 14492-2 Cranes, power driven winches and hoists; Part 2: Power driven hoists
DIN EN 60204-32 Electrical equipment of machines; Part 32: Requirements for hoisting machines
Standards and technical specifications applied:
FEM 9.751 Power driven lifting device series; safety
FEM 9.755 Measure for achieving safe working periods
DIN 56950 Event technology
IGVW SQ P2 Standards for event technology
This declaration only refers to the lifting device. A start-up is prohibited until it has been proven that the entire
system where the lifting device is built in corresponds with the above EC Directives.
Authorized to compile relevant technical documentation:
GIS AG, Luzernerstrasse 50, CH-6247 Schötz
Schötz, 01.01.2017 GIS AG
I. Muri E. Widmer
Director Sales Manager
The completion, installation and start-up as per instruction manual is documented in the inspection pass.

10 Swiss Lifting Solutions
5.5 Notes
