Glacier bay 4211N-0001 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Model#
4211N-0001
TWO-HANDLE LAUNDRY FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this laundry faucet.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line
of products available for your home improvement needs. Thank you for choosing Glacier Bay!
9/2015 REV.01THD
SKU#
238178

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................6
Troubleshooting........................................6
Service Parts ........................................... 7
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service
for replacement parts.

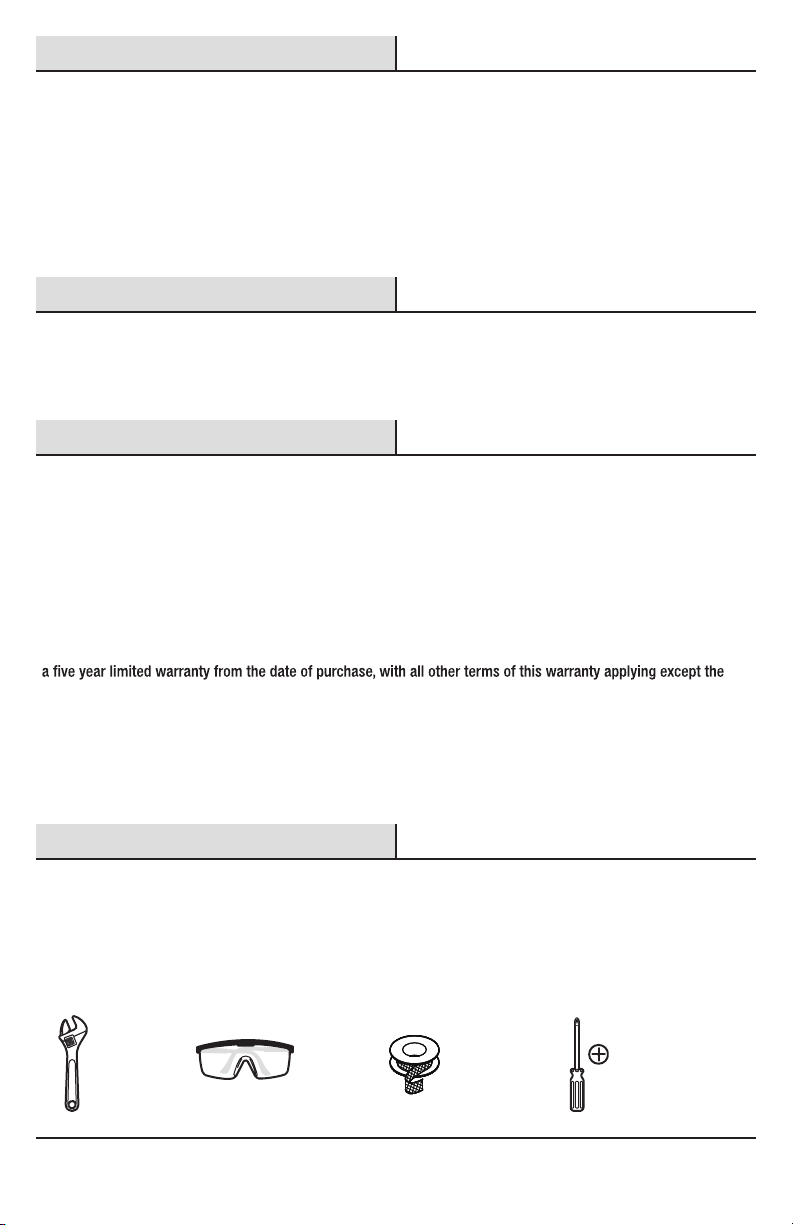

TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
Tools and Hardware Required ...............2
Operation...................................................6
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that prove defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Thread
sealant tape
Phillips
screwdriver

3
Pre-Installation (continued)

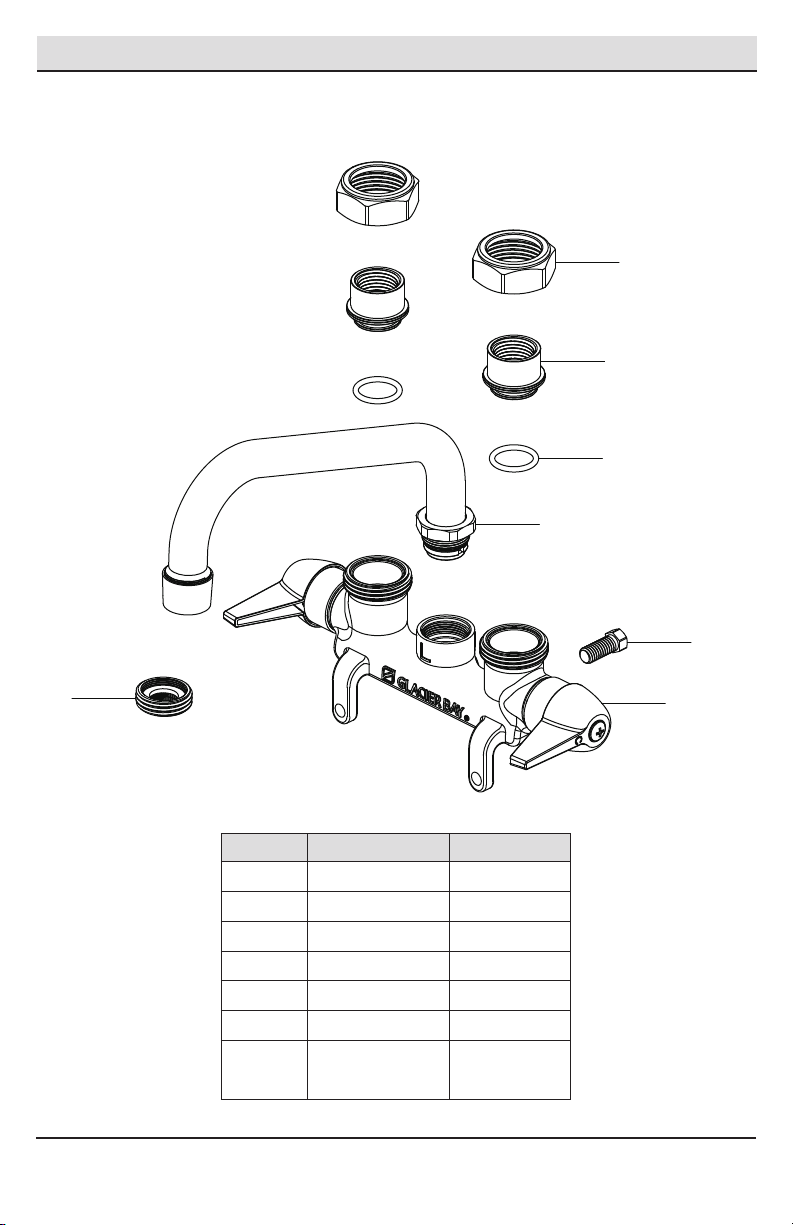

PACKAGE CONTENTS
Part Description Quantity
A 1Faucet body
B 1Screw
C 1Spout assembly
D 2O-ring
E 2Connector
F 2Union nut
G 1Hose adapter
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
A
B
C
D
E
F
G

Installation
4
1 Installing the spout assembly
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply. Remove the old
faucet.

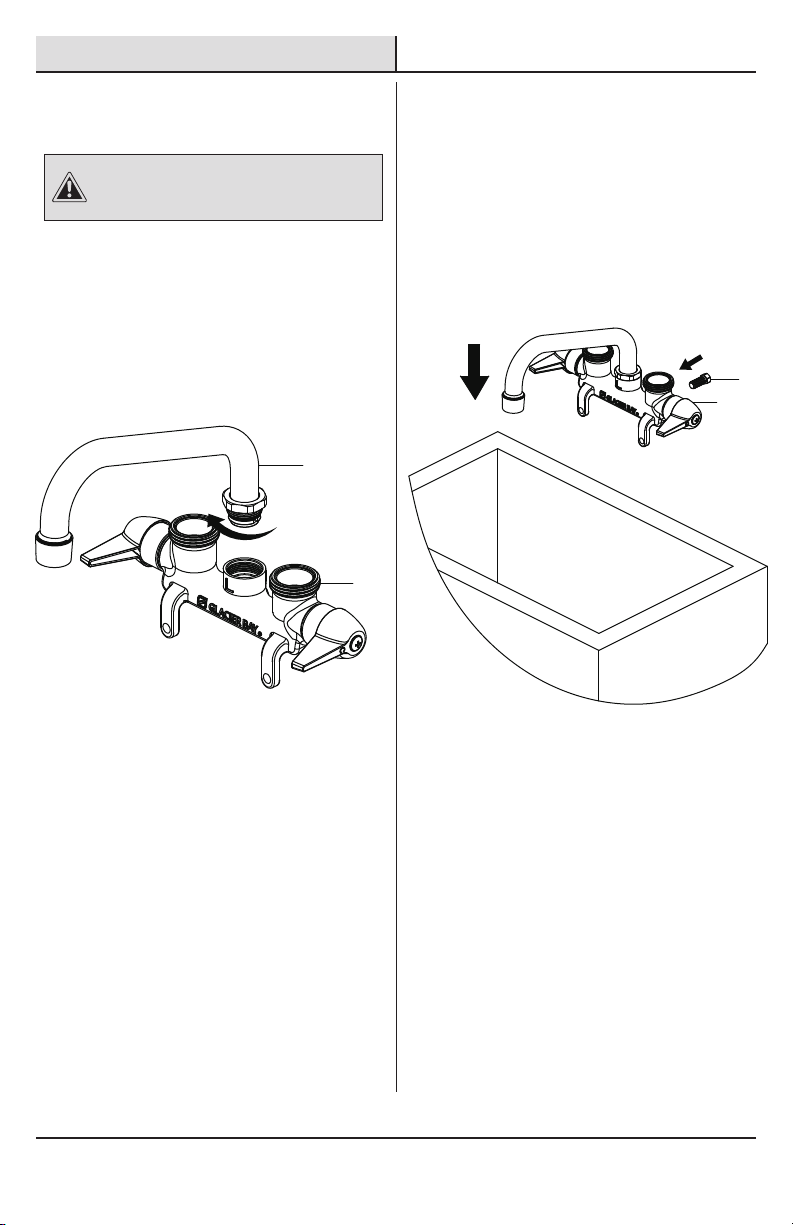

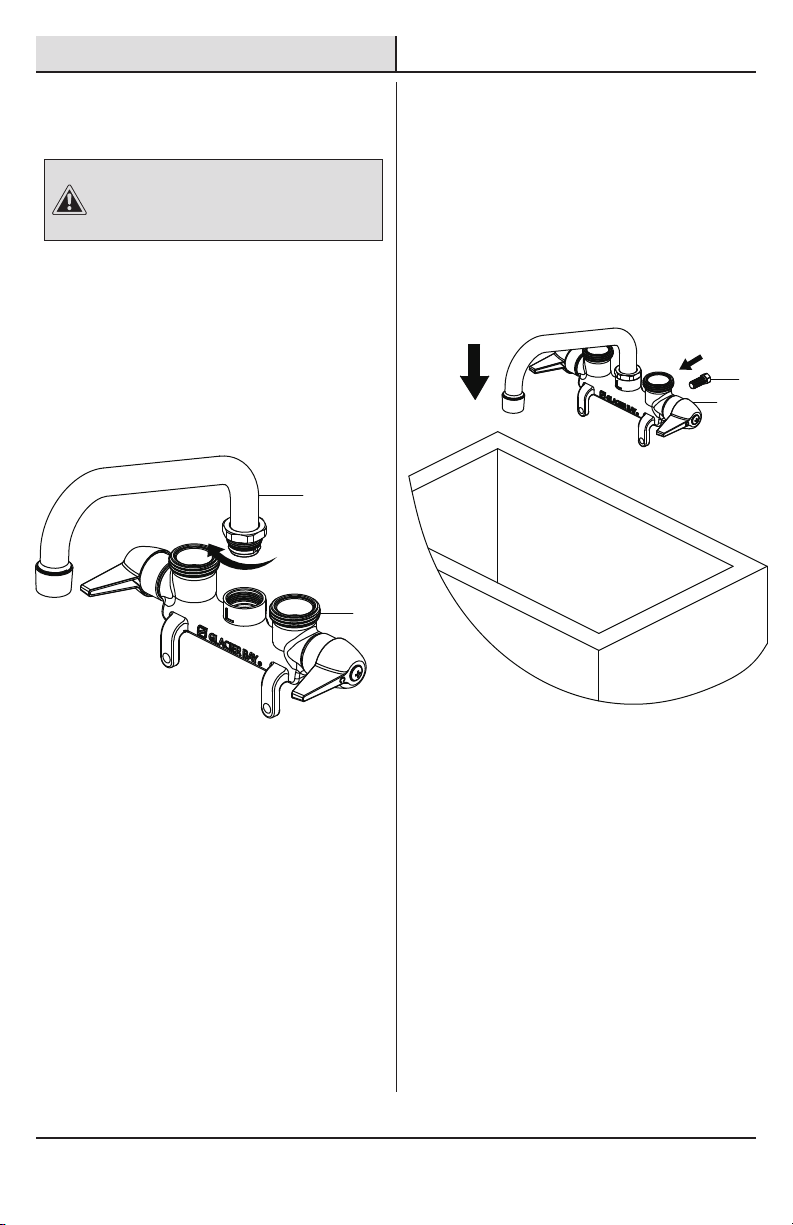

2 Installing the faucet assembly
□Mount the faucet (A) to the laundry sink. The two
mounting tabs should face the front of the laundry
tub, the single tab should face the rear of the basin.
□Clean the mounting surface.
□Tighten the mounting screw (B) from the single
tab to secure the faucet (A) into place.
□Thread the spout assembly (C) onto the faucet
body (A) and wrench-tighten the spout
assembly (C) to ensure a tight seal.
B
A
C
A

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
5
Installation (continued)

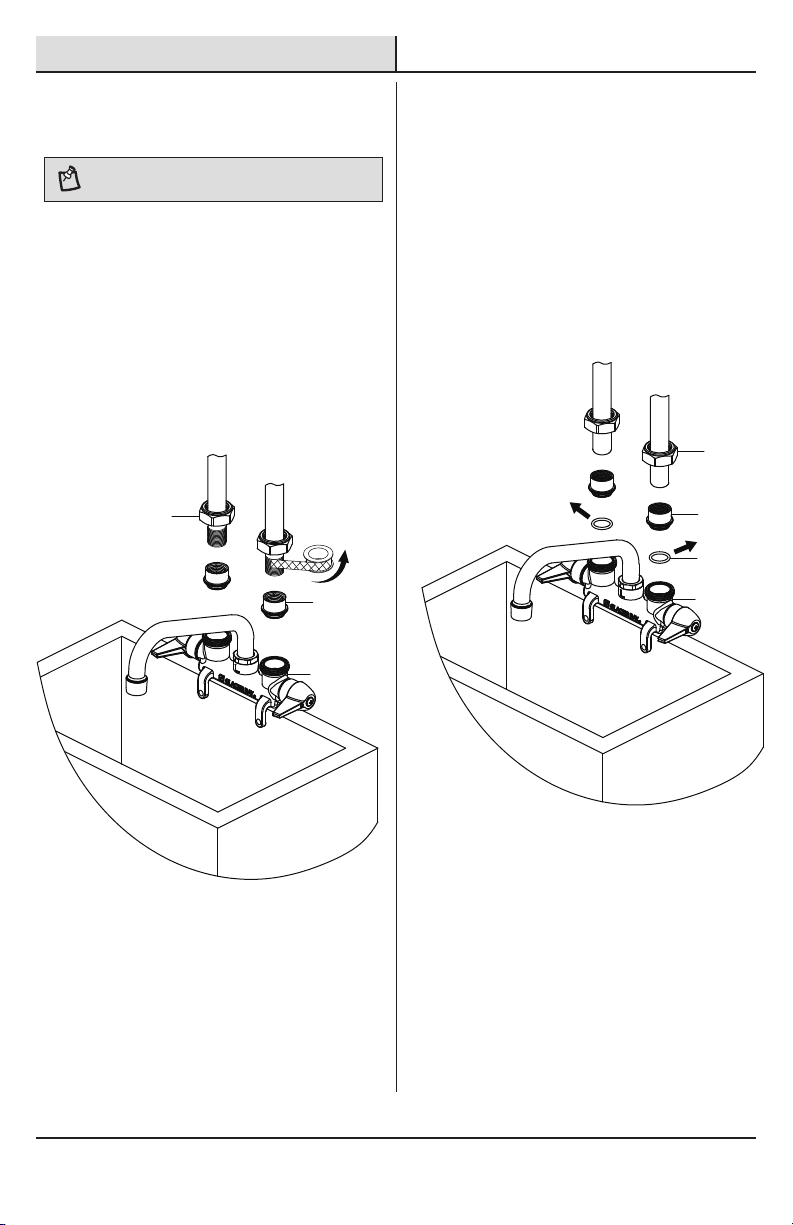

3 Threading the supply lines
□Attach the supply lines (not included) to the
faucet (A): cold to the right side, hot to the left.
Slide the union nuts (F) over the supply lines.
4 Soldering the supply lines
□Attach the supply lines (not included) to the
faucet (A): cold to the right side, hot to the left.
Slide the union nuts (F) over the supply lines.
□Remove the O-ring (D) from the connectors (E),
solder, and replace when cool.
A
D
E
F
NOTE: If you want to solder the supply lines, proceed
to step 4.
□Wrap thread sealant tape (not included) around
all the male threads in a counter-clockwise
direction, as shown.
□Thread the connectors (E) to each supply line.
□Attach the union nuts (F) to the faucet (A).
Do not overtighten.
A
E
F
□Attach the union nuts (F) to the faucet (A). Do
not overtighten.

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
6
1 Flushing and checking for leaks
IMPORTANT: After installation is complete, remove the
aerator from the faucet (A) to ush the water lines. Do not
lose the gasket (1) in the aerator.
□Turn on the water supply and check for leaks.
If you discover any leaks, check your
connections to ensure they are installed
properly.
□Remove the aerator and housing (if applicable).
Turn on the hot and cold handles to allow the
water to run for at least one minute. This
ushes away any debris that could cause
damage to internal parts.
□Turn off the water and reinstall the aerator and
housing (if applicable).
Operation
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
Troubleshooting
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
A
1
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose. □Tighten the bonnet nut.
The aerator has an
irregular or reduced
water ow.
□Remove the aerator and
check for debris.
□Ensure that the rubber washer
is properly installed.
The water will not shut off
completely.
The rubber seat and spring is dirty or
broken.
□Remove the cartridge to check
the rubber seat and spring.
□Clean or replace.
The aerator is dirty or mis-tted.

7

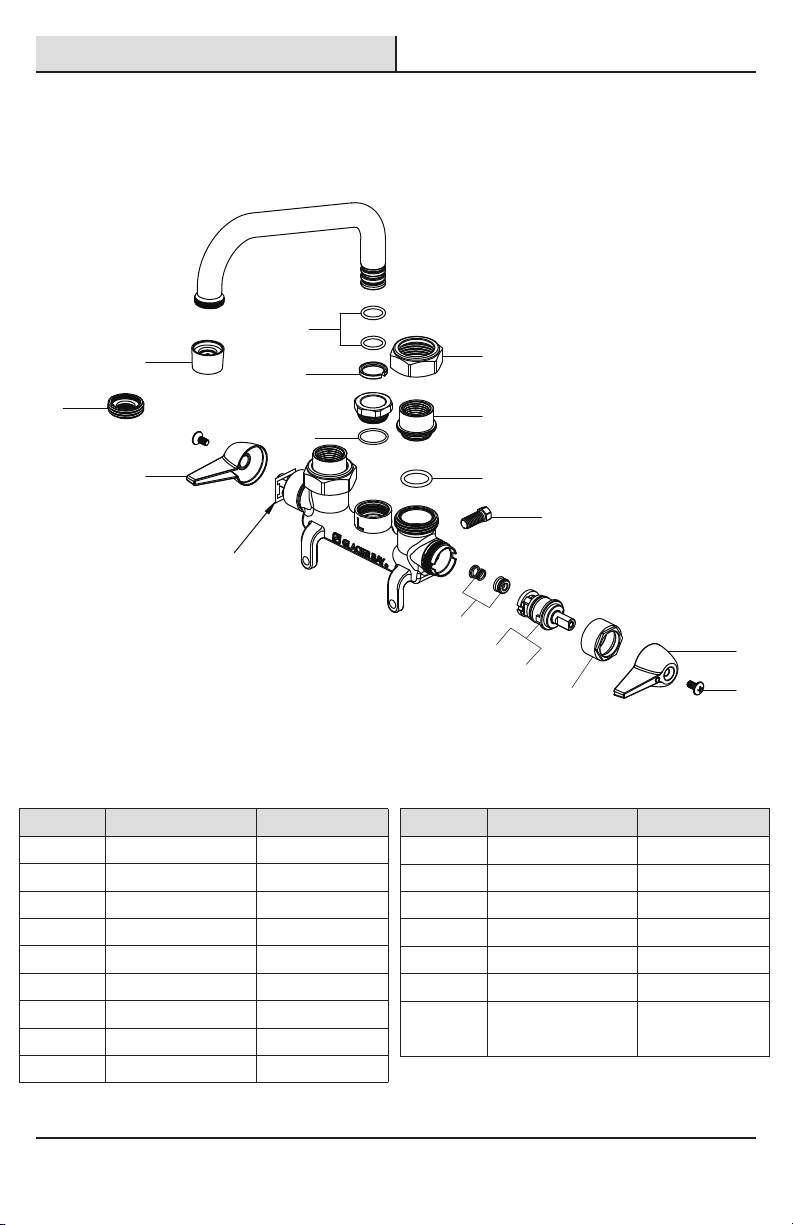

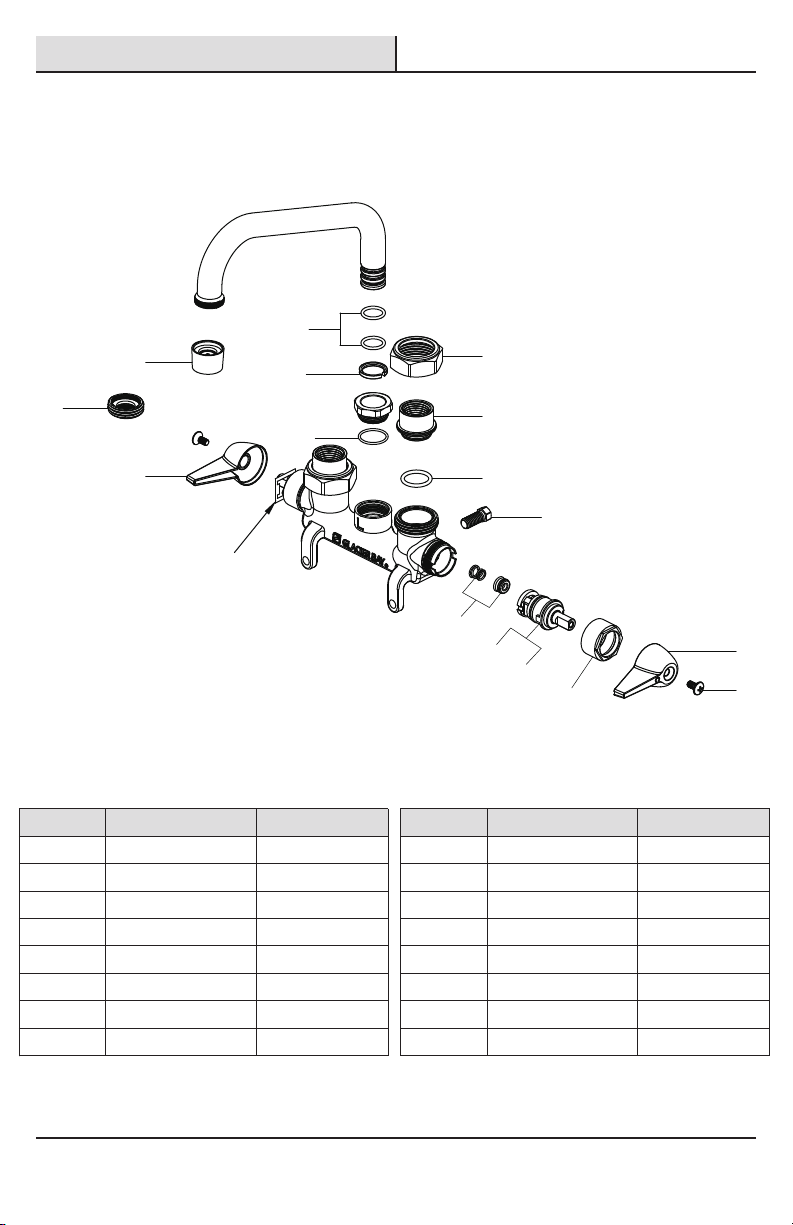

Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Part Description Part Number
1 RP50001
2 Handle H RP13438*
3 Handle C RP13439*
4 Bonnet nut RP70532
5 Cartridge H RP22005
6 Cartridge C RP22004
7 Seat & Spring RP22008
Screw
8 Screw RP50182
9 O-ring RP60112
10 Connector RP70530
13 Clip RP70531
15 Aerator RP30021*
12 O-ring RP60077
Part Description Part Number
Faucet ID tags can be
found by removing
the hot water handle
14 O-ring RP60113
16 Hose adapter RP30024*
11 Union nut RP56107
1
3
4
5
6
7
8
9
10
11
12
14
13
15
16
2

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.

GRACIAS
GUÍA DE USO Y MANTENIMIENTO
¿Problemas, preguntas o piezas faltantes?
Antes de regresar a la tienda, llama al servicio al cliente de
Glacier Bay de lunes a viernes entre 8 a.m. y 7 p.m. y los
sábados entre 9 a.m. y 6 p.m.(hora estándar del Este)
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Modelo núm.
4211N-0001
GRIFO DE LAVADERO, DE DOS LLAVES
Agradecemos la con anza que has depositado en Glacier Bay al comprar este grifo de lavadero. Nos esforzamos
por crear continuamente productos de calidad diseñados para mejorar tu hogar. Visítanos en Internet para ver
nuestra línea completa de productos disponibles para las necesidades de mejoras de tu hogar.
¡Gracias por elegir a Glacier Bay!
SKU núm.
238178

10
Información importante
□ Cumple con todos los códigos locales de construcción y de plomería.
□ Cubre el drenaje del lavabo para evitar que se pierda alguna pieza.
□ Consulta la sección de mantenimiento y limpieza incluida en esta guía.
HERRAMIENTAS Y HERRAJES NECESARIOS
Llave
ajustable
Gafas de
seguridad
Tabla de contenido
Información importante .........................10
Garantía...................................................10
Pre-instalación .......................................10
.............10
Herramientas y herrajes necesarios....10
Contenido del paquete.........................11
Instalación ..............................................12
Funcionamiento......................................14
Cuidado y limpieza ................................14
Piezas de repuesto ................................15
Planicación de la instalación Solución de problemas...........................14
Pre-instalación
PLANIFICACIÓN DE LA INSTALACIÓN
Antes de comenzar la instalación de este producto, asegúrate de que no falta ninguna pieza. Compara las piezas
con la lista de Contenido del paquete. Si falta alguna pieza o está dañada, no intentes instalar el producto.
Comunícate con el servicio al cliente para piezas de repuesto.
Garantía
GARANTÍA LIMITADA DE POR VIDA
Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respaldados
por nuestra garantía de por vida limitada. Glacier Bay garantiza al comprador consumidor original que sus productos
no presentan defectos materiales o de fabricación. Reemplazaremos GRATIS cualquier producto o pieza defectuosos.
Simplemente, devuelva el producto o pieza a cualquiera de las tiendas minoristas de The Home Depot o llame al
1-855-HD-GLACIER (1-855-434-5224) para recibir el artículo de reemplazo. El comprobante de compra (recibo de venta
original) del comprador consumidor original debe estar disponible para todos los reclamos de garantía de Glacier Bay.
Esta garantía excluye daños y fallos incidentales/consecuenciales debido al mal uso, abuso o desgaste normal por
el uso. Esta garantía excluye todos los usos industriales, comerciales y de negocios, a cuyos compradores se les
extiende en la presente una garantía limitada de cinco años a partir de la fecha de compra, con todos los otros
artículos de esta garantía que aplican excepto la duración de la garantía.
Algunos estados y provincias no permiten la exclusión o la limitación de los daños incidentales o consecuentes,
por lo tanto, las limitaciones y exclusiones anteriores podrían no aplicarse a su caso. Esta garantía le otorga derechos
tienda o llame al 1-855-HD-GLACIER para obtener más detalles.
Cinta selladora
para roscas
Destornillador
Phillips
