Glacier bay HD67552-1A01 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
SINGLE-HANDLE KITCHEN FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
2/2019 REV.01THD
Model#
HD67552-1A01
HD67552-1A08D2
HD67552-1B01
SKU#
817572
1000024879
825226

2
Table of Contents
Important Information .............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................6
Service Parts ........................................... 7
Troubleshooting........................................6
Tools and Hardware Required ...............2
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.

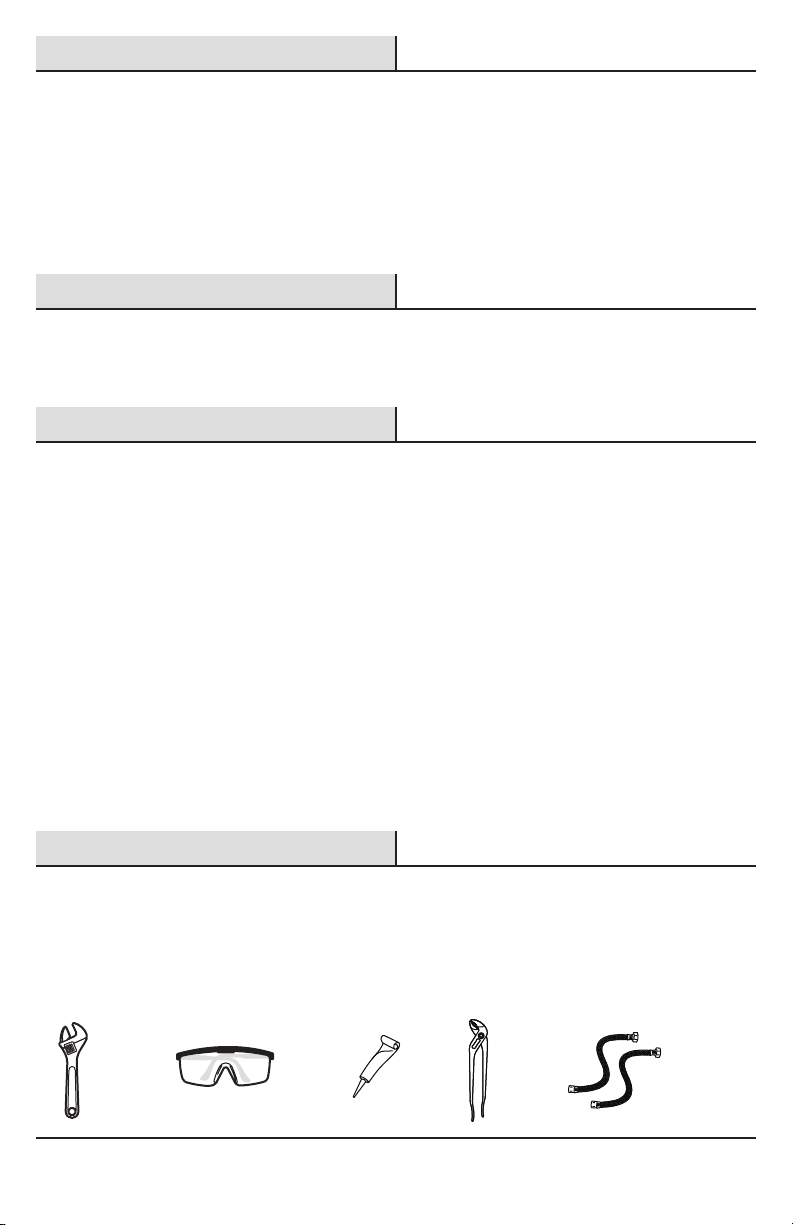

TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
Channel
lock pliers
(2) Supply
lines
SILICONE
Silicone
sealant
Operation...................................................5
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)

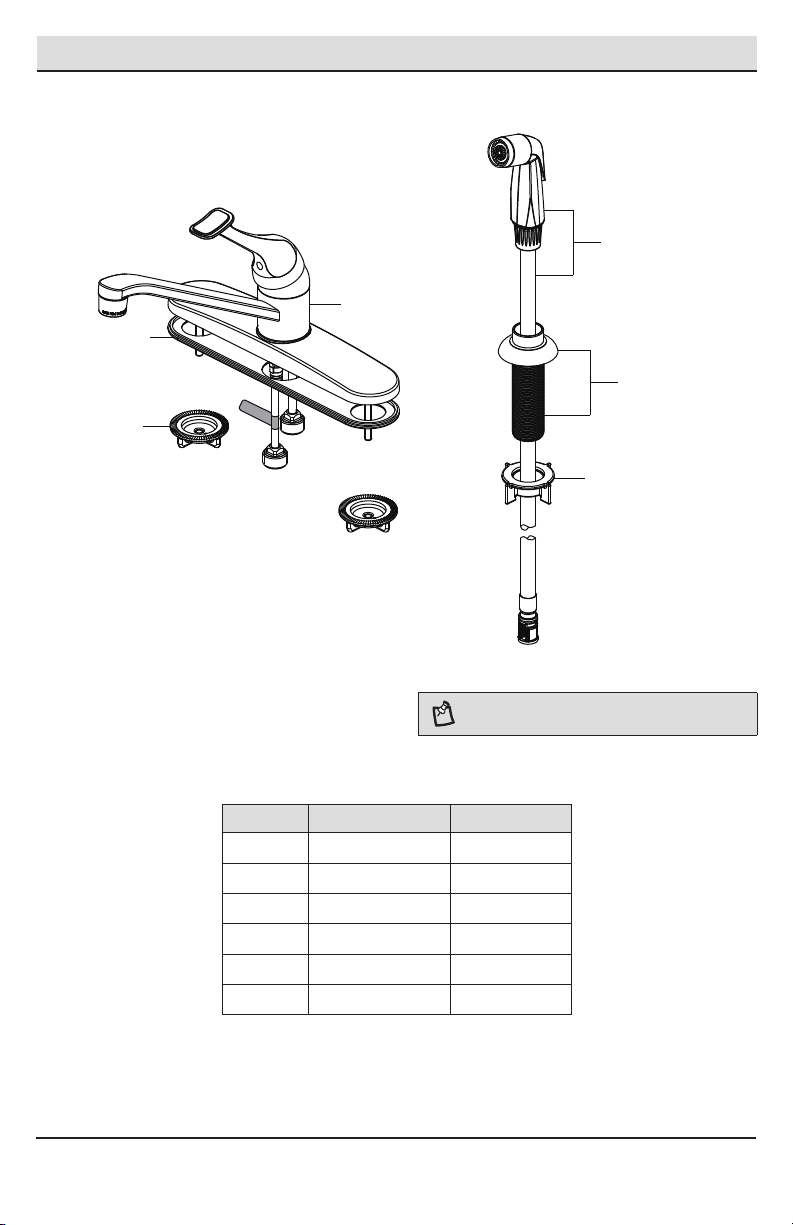

PACKAGE CONTENTS
Part Description Quantity
A1 Faucet
B 1
Gasket
D 1
Side sprayer
E 1
Sprayer ange
F 1
Sprayer mounting nut
C 2
Faucet mounting nut
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
NOTE: *Parts D-F are only included with model 67552-1101
SKU 662-097.
A
B
C
D*
E*
F*

Installation
4
1 Preparing for installation
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply. Remove the old
faucet.
2 Installing the sprayer support
□If your model has a side sprayer, proceed to
step 2. If your model does not have a side
sprayer, skip to step 4.
□Insert the sprayer ange (E) through the far
right hole on the sink.
□Screw the sprayer mounting nut (F) onto the
sprayer ange (E) shank from underneath the
sink, and hand tighten. Do not overtighten.
NOTE: The faucet with spray requires a 4 hole sink for
installation.
□Clean the mounting surface.
□Ensure the gasket (B) is on the bottom of the
new faucet (A).
3 Connecting the spray hose to
the faucet
□Insert the side sprayer (D) hose down through
the sprayer ange (E) and sink. Align the
tabs (1 & 2) on the quick connects (3). Push the
quick connector housing rmly upward and
snap it onto the receiving tube tab. Pull down
the hose moderately to ensure the connection
has been made.
B
A
E
F
3
2
1
E
D

5

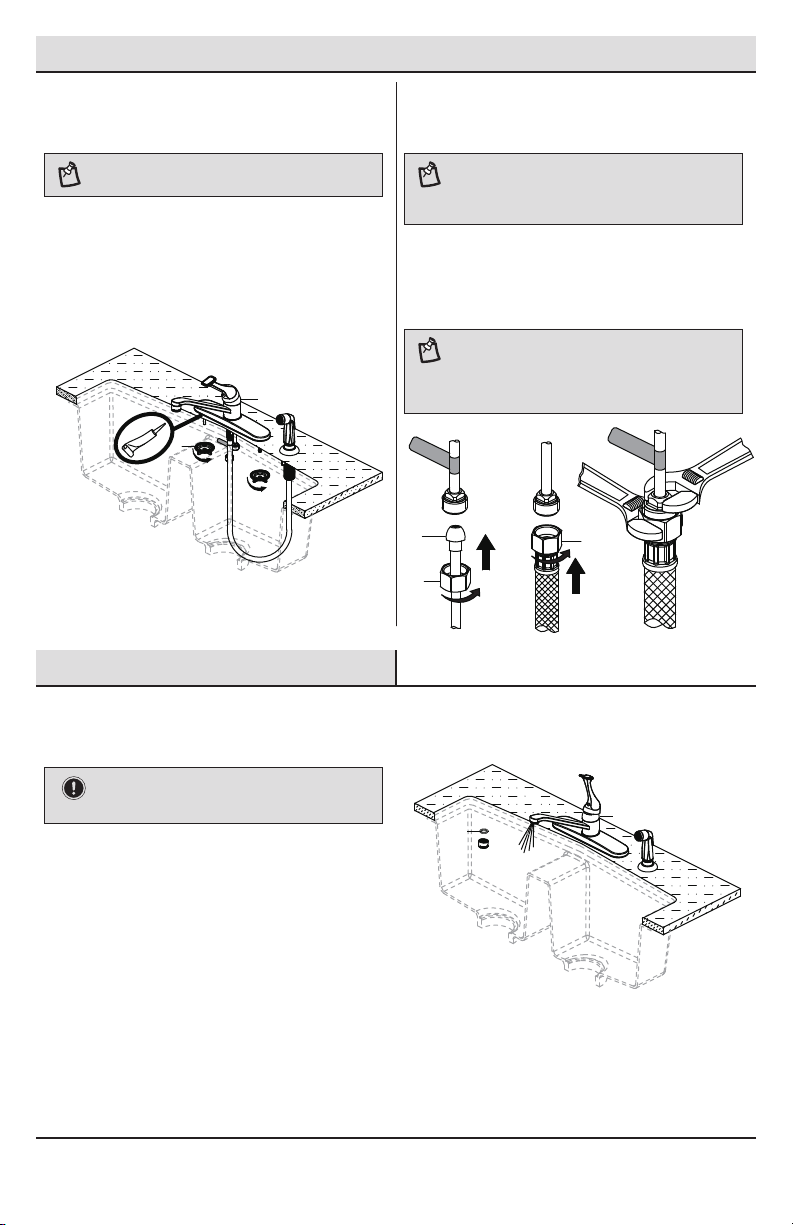

Installation (continued)

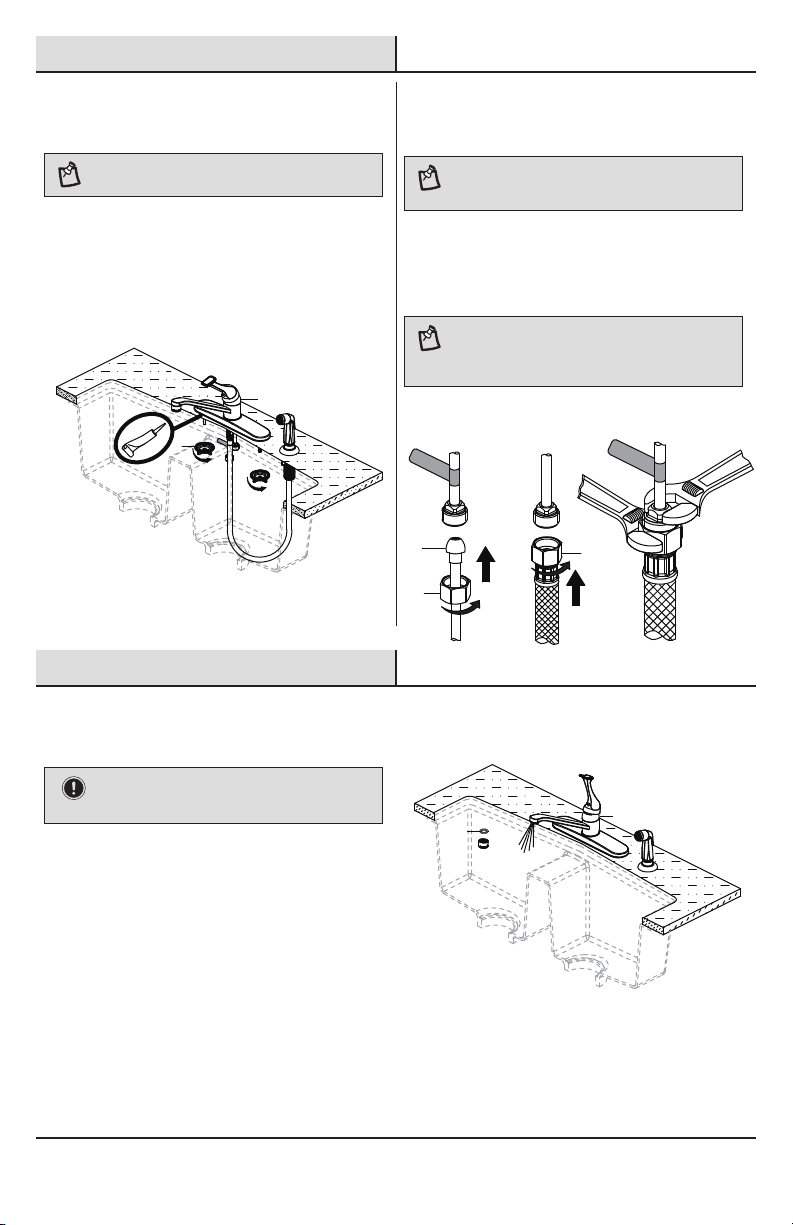

4 Installing the faucet assembly
□Place the faucet (A) through the mounting holes
in the sink.
□Secure the faucet (A) to the sink using the
mounting nuts (C) provided. Hand tighten only.
NOTE: A silicone is required under the gasket (B).
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
5
Making the water supply
connections
NOTE: The hot side inlet tube is indicated by a label.
If the label is not present, the hot supply tube is the longer
of the two inlet tubes.
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
NOTE: Before tightening the faucet connector to the water
supply, apply a second wrench to the supply tube tting.
This will prevent the supply tube from moving or twisting
when tightening the faucet connector. Do not overtighten.
3
12
1
A
1 Flushing and checking for leaks
IMPORTANT: After installation is complete, remove the
aerator from the faucet (A) to ush the water lines. Do not
lose the gasket (1) in the aerator.
□Ensure the faucet (A) handle are in the off
position and turn on the water supply to check
for leaks. If you discover any leaks, check your
connections to ensure they are installed properly.
□Remove the aerator and housing (if applicable).
Turn on the hot and cold handles to allow the
water to run for at least one minute. This
ushes away any debris that could cause
damage to internal parts.
□Turn off the water and reinstall the aerator and
housing (if applicable).
Operation
C
A
SILICONE

6
Operation (continued)
Troubleshooting
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the washer.
The aerator has an
irregular or reduced
water ow.
□Remove the aerator and
check for debris.
□Ensure that the rubber washer
is properly installed.
The water will not shut off
completely.
The rubber seat and spring is dirty or
broken.
□Remove the cartridge to check
the rubber seat and spring.
□Clean or replace.
The aerator is dirty or mis-tted.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.

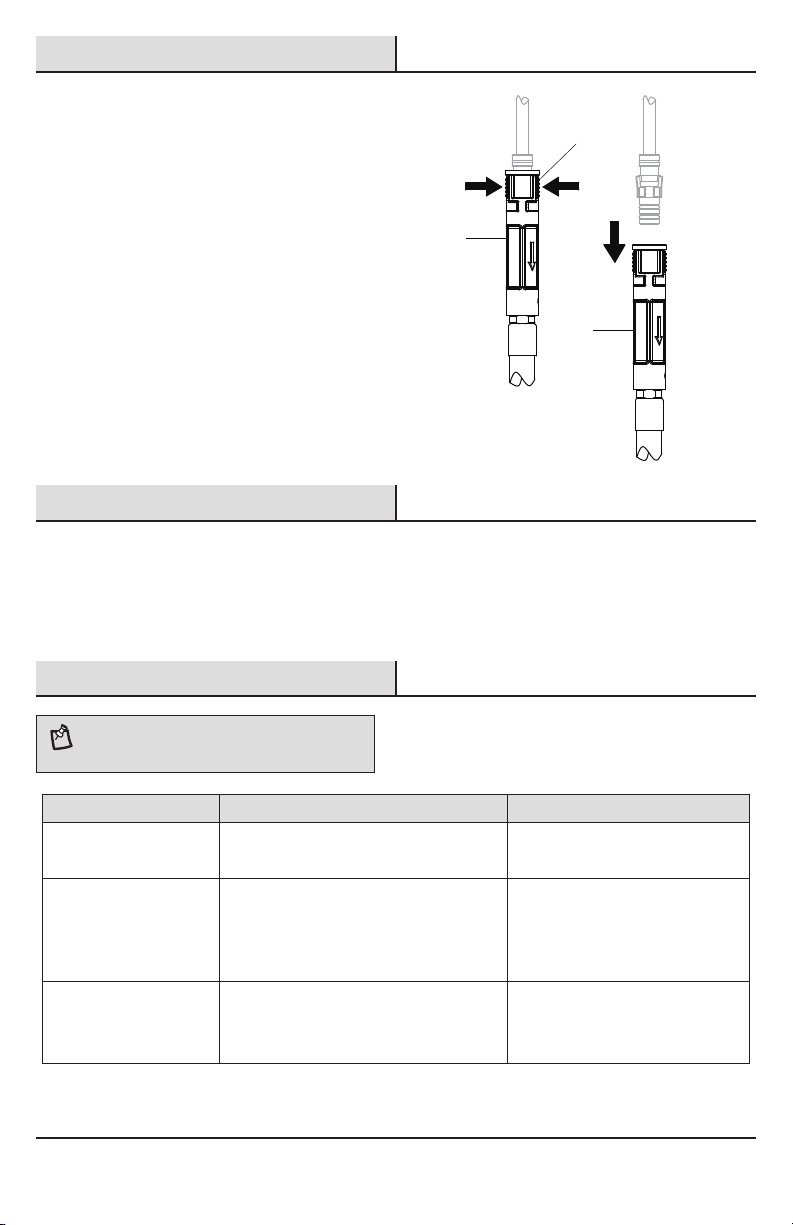

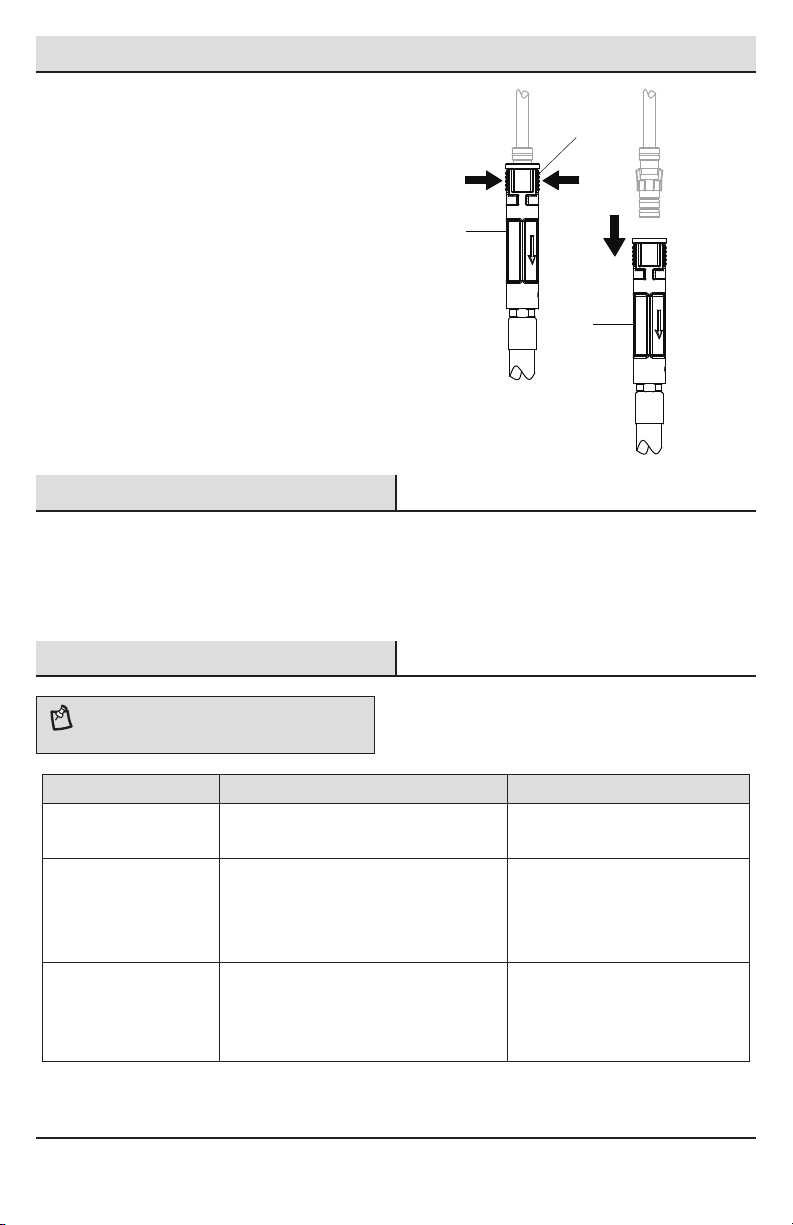

2Removing the quick connector
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect. Squeeze
2
Pull
down
1
1
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.

7

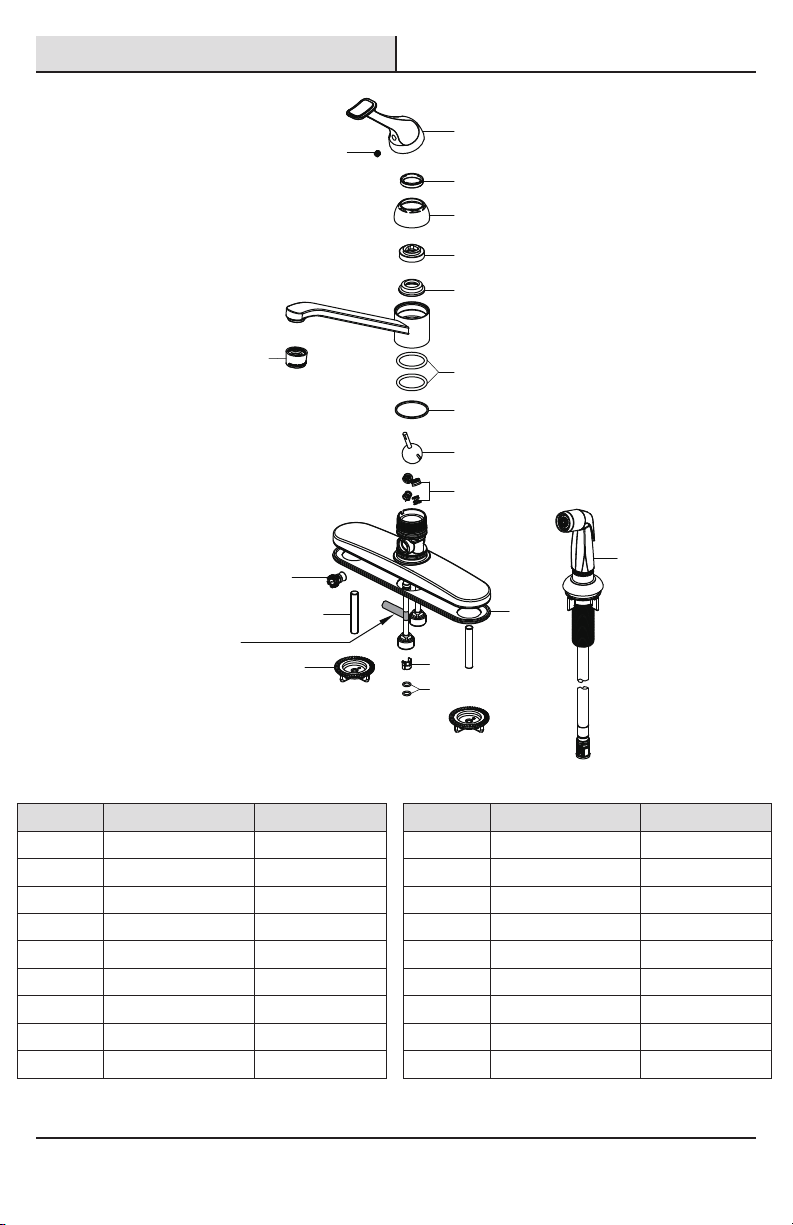

Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Part Description Part Number
1 RP13094*
2 Set screw RP50054
3 Bonnet nut RP70138
4 Cap RP80179*
5 Cam RP70107
6 Cam washer RP70108
7 O-ring RP60032
8 Ring RP64070
9 Mixer ball RP22007
Handle 10 Seat & Spring RP22008
11 Aerator RP30133*
12 Diverter RP70037
13 Bolt RP50040
16 Block RP70421
17 O-ring RP60002
18 Side spray RP36076*
Part Description Part Number
14 Mounting nut RP56036
15 Gasket RP70419
Faucet ID tags can
be found on the
hot water inlet
3
4
6
5
9
13
7
8
12
14
11
2
10
16
1
18
17
15

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.

GRACIAS
GUÍA DE USO Y MANTENIMIENTO
¿Problemas, preguntas o piezas faltantes?
Antes de regresar a la tienda, llama al servicio al cliente de
Glacier Bay de lunes a viernes entre 8 a.m. y 7 p.m. y los
sábados entre 9 a.m. y 6 p.m.(hora estándar del Este)
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
MEZCLADORA PARA COCINA, DE UN SOLO MANERAL
Agradecemos la conanza que has depositado en Glacier Bay al comprar este grifo para cocina. Nos esforzamos
por crear continuamente productos de calidad diseñados para mejorar tu hogar. Visítanos en Internet para ver
nuestra línea completa de productos disponibles para las necesidades de mejoras de tu hogar. ¡Gracias por
elegir a Glacier Bay!
Modelo núm.
HD67552-1A01
HD67552-1A08D2
HD67552-1B01
SKU núm.
817572
1000024879
825226

10
Información importante
□ Cumple con todos los códigos locales de construcción y de plomería.
□ Cubre el drenaje del lavabo para evitar que se pierda alguna pieza.
□ Consulta la sección de mantenimiento y limpieza incluida en esta guía.
HERRAMIENTAS Y HERRAJES NECESARIOS
Llave
ajustable
Gafas de
seguridad
Pinzas
ajustables
Líneas de
suministro
SILICONE
Sellador
de silicona
Tabla de contenido
Información importante .........................10
Garantía...................................................10
Pre-instalación .......................................10
.............10
Herramientas y herrajes necesarios....10
Contenido del paquete.........................11
Instalación ..............................................12
Funcionamiento......................................13
Cuidado y limpieza ................................14
Piezas de repuesto ................................15
Planicación de la instalación Solución de problemas...........................14
Pre-instalación
PLANIFICACIÓN DE LA INSTALACIÓN
Antes de comenzar la instalación de este producto, asegúrate de que no falta ninguna pieza. Compara las piezas
con la lista de Contenido del paquete. Si falta alguna pieza o está dañada, no intentes instalar el producto.
Comunícate con el servicio al cliente para piezas de repuesto.
Garantía
GARANTÍA DE POR VIDA LIMITADA
Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respaldados
por nuestra garantía de por vida limitada. Los productos de Glacier Bay están garantizados al comprador consumidor
original de estar libres de defectos en materiales o mano de obra. Reemplazaremos LIBRE DE CARGOS cualquier
producto o pieza que se demuestre está defectuosa. Símplemente, devuelva el producto a cualquiera de las
ubicaciones de venta al detalle de The Home Depot o llame al 1-855-HD-GLACIER (1-855-434-5224) para recibir el
artículo de reemplazo. La prueba de compra (recibo de venta original) del comprador consumidor original debe estar
disponible para todos los reclamos de garantía de Glacier Bay.
Esta garantía excluye daños y fallos incidentales/consecuenciales debido al mal uso, abuso o desgaste normal por
el uso. Esta garantía excluye todos los usos industriales, comerciales y de negocios, a cuyos compradores por la
presente, se les ha ampliado una garantía limitada de cinco años a partir de la fecha de compra, con todos los otros
artículos de esta garantía que aplican excepto la duración de la garantía.
Algunos estados y provincias no permiten la exclusión o la limitación de los daños incidentales o consecuenciales,
por lo tanto, las limitaciones y exclusiones anteriores podrían no aplicar a usted. Esta garantía le otorga derechos
legales especícos y también puede tener otros derechos que varían de un estado a otro. Por favor, vaya a una
tienda o llame al 1-855-HD-GLACIER para más detalles.
Póngase en contacto con el Equipo de Servicio al Cliente llamando al 1-855-434-5224 o visite www.HomeDepot.com.
