Glacier bay HD873X-0810H Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
BUILDERS SINGLE-HANDLE 1-SPRAY TUB
AND SHOWER FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this tub and
shower faucet. We strive to continually create quality products designed to enhance your home. Visit us online
to see our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
THD 2/2023 REV.01
Model#
873X-0804
873X-0827D
HD873X-0801
HD873X-0802
HD873X-0810H
Internet#
207004145
207004154
301879838
301879834
324555919
SKU#
1001818631
1001819058
1002500183
1002500186
1009367546
Suggest having professional plumber for effective installation.

2
Table of Contents
Important Information ..............................2
Warranty ...................................................2
Pre-Installation.........................................3
Planning Installation ..............................3
Package Contents ..................................6
Installation................................................7
Care and Cleaning ....................................15
Troubleshooting........................................15
Service Parts ........................................... 17
Important Information
□ Do not install this product until you read and understand the instructions in this manual. If you are installing this
product for someone else, leave this manual for the owner’s/ user’s reference.
□ Inlet ports are designed to allow for 1/2 in. COPPER tubing solder connection or 1/2 in. IPS threading coupling
connection. For threaded connections, wrap sealant tape around threaded ends before connecting. If soldering
connections, certain inammable parts should be removed prior to the soldering in order to avoid heat damage.
If you are unsure how to properly remove these parts, please call us at 1-855-HD-Glacier.
□ Protect your eyes with safety glasses when cutting or soldering water supply lines.
□ NOISE AND WATER HAMMER IN PEX SYSTEMS: Due to the inherent exibility of PEX compared with metallic
plumbing materials, water hammer and noise can sometimes occur from the pressure surges. It is important to
ensure the tubing is not in contact with wallboard, forced air ducts or other high-resonance materials. Clamping
or strapping can help prevent these noises. DO NOT USE PEX tubing from the valve to the tub spout.
Tools and Hardware Required ...............3
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape Thermometer
Phillips
screwdriver
Flathead
screwdriver
SILICONE
Silicone
sealant
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.

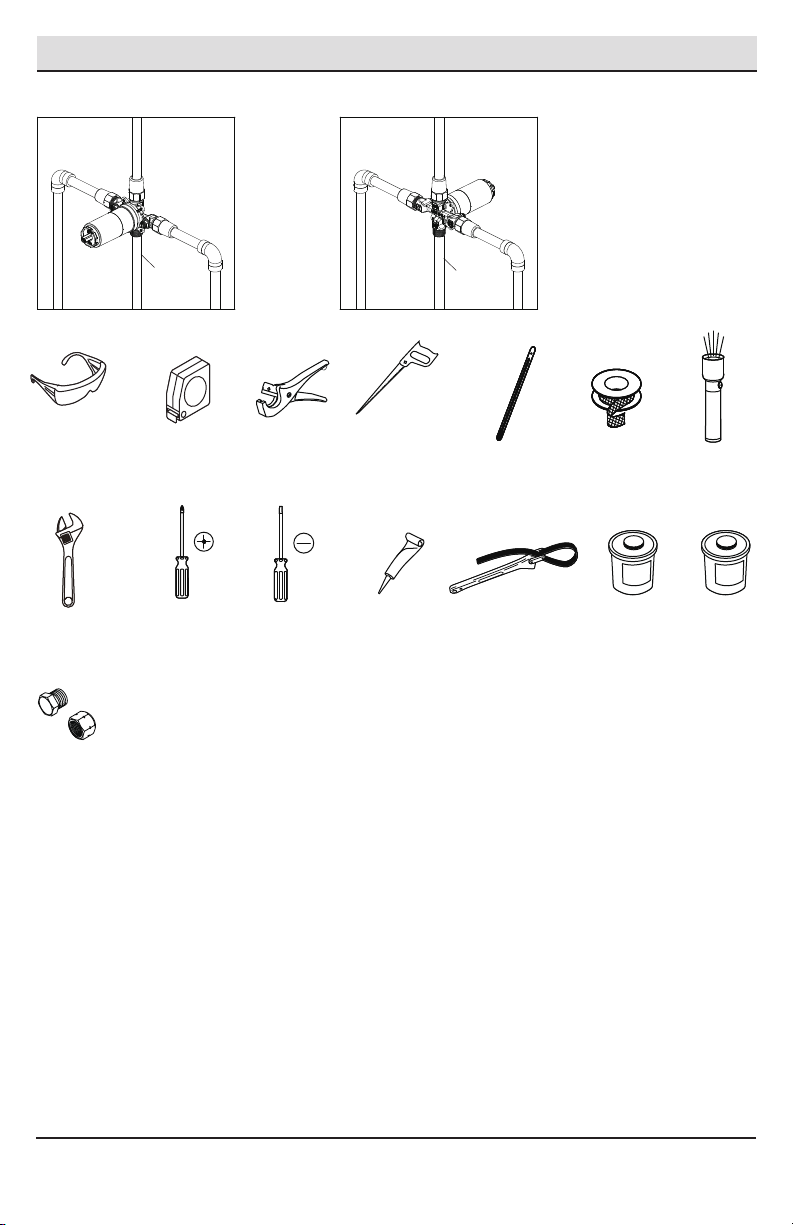

TOOLS AND HARDWARE REQUIRED
ADVANCED INSTALLATION: Consult a plumber or
professional before installing this product.
If you are replacing your plumbing valve, please review the four common plumbing methods illustrated below:
COPPER, IPS, PEX and CPVC. Remove the existing handle and valve trim before replacing your valve. Please follow
all local building and plumbing codes.
A. COPPER (Before soldering, remove the cartridge & stop valves from the valve)
Torch Lead-free solder Kit
Key
hole saw
Wire
brush
All installations can vary depending on how your previous faucet was installed. Not all supplies for faucet
installation are included; however, they are available wherever plumbing supplies are sold. When choosing your
installation supplies, make sure they are UPC and/or CSA approved products.
Flashlight
Plug

Pre-Installation (continued)
4
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape Thermometer
Phillips
screwdriver
Flathead
screwdriver
SILICONE
Silicone
sealant
B. IPS
Key
hole saw
Flashlight
C. PEX+COPPER
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape Thermometer
Phillips
screwdriver
Flathead
screwdriver
SILICONE
Silicone
sealant
Key
hole saw
Flashlight
Full circle
crimping tool
Pipe
wrench
COPPER COPPER
Plug
Plug

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Pre-Installation (continued)
5
D. CPVC+COPPER
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape Thermometer
Phillips
screwdriver
Flathead
screwdriver
SILICONE
Silicone
sealant
Key
hole saw Flashlight
CPVC
cleaner
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
CPVC
cement
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
COPPER COPPER
Plug

6
Pre-Installation (continued)

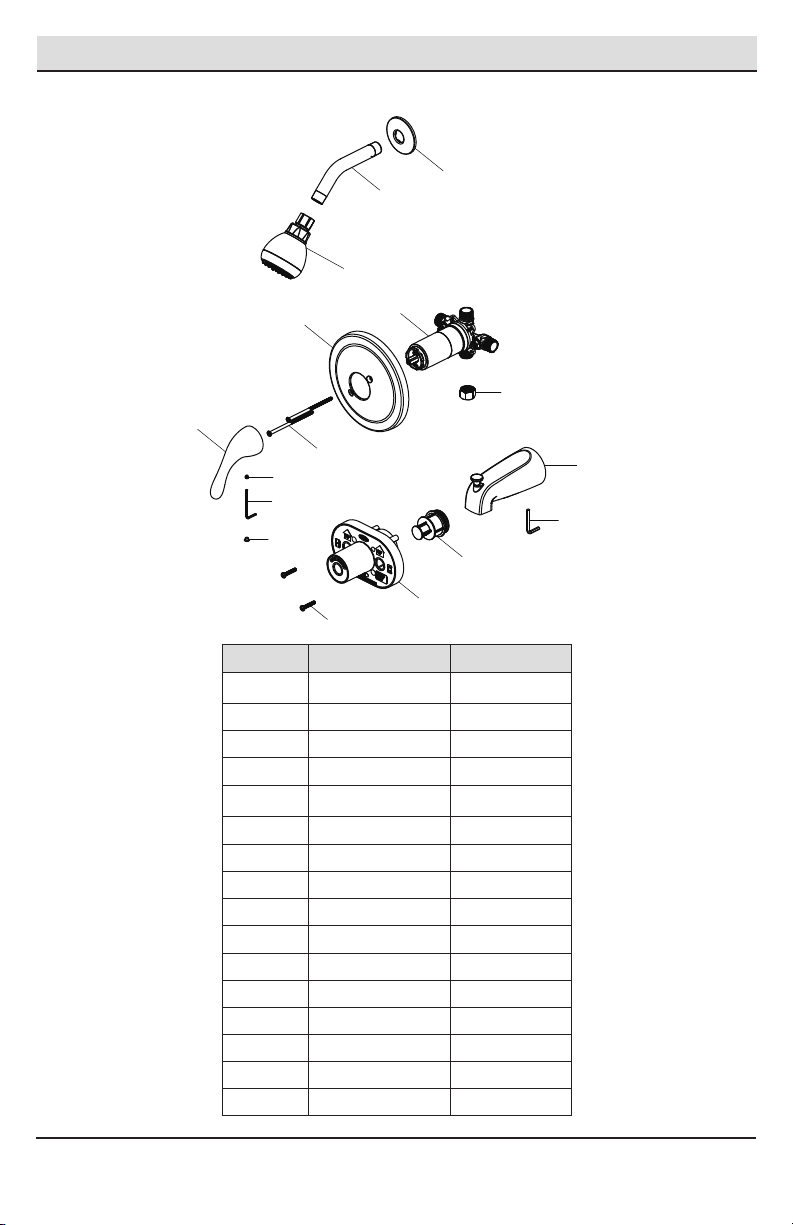

PACKAGE CONTENTS
Part Description Quantity
A1
B Shower arm 1
C Shower head 1
D Valve body 1
E Escutcheon 1
F Handle 1
G Set screw 1
H 2.5mm hex wrench 1
Shower ange
I Plug 1
J Tub spout 1
K Screw 2
L Plaster guard 1
M Escutcheon screw 2
N Index 1
O 3.97mm hex wrench 1
A
B
M
C
D
E
F
G
H
I
J
L
K
N
O
P
P Test cap 1

7
Installation
1 Preparing for installation
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
30 in.
Tub & Shower
8 in. Min.
48 in.
Shower Only
1 1/4 in. Diamter
1 1/4 in. Diameter
48 in.
Tub & Shower
Refer to
the step 2
30 in.
Shower Only
D
2Installing the valve body
□Shut off the water supply to the tub and
shower.
□Verify that the hole sizes and positions of the
holes in the wall are correct:
□The shower and tub spout outlet holes
should be 1-1/4 in. diameter.
□Refer to Step 2 for valve access hole
dimensions.
□The recommended valve depth to the
nished wall is 2 in. min. to 3 in. max.
□Ensure that the valve body (D) cover is ush
with the nished exterior surface of the wall.
Position the valve body (D) correctly in the
wall with the side marked "UP" pointing up. The
8 in. minimum from the valve body (D) to the tub
spout (J) is required for proper operation.
The plaster guard (L) is positioned so that it is
ush with the nished wall. This ensures that
the valve will be at the correct position to accept
the trim. The depth for the valve body (D) in wall
is measured from the center of the shower
outlet to the nished wall surface. The accepted
depth distance is 2 in. to 3 in..
□
NOTE: Be sure to position the valve body (D) correctly in
the wall, with the side marked "UP" facing upward.
2 in. to 3 in.
Finished wall
5-3/4 in. dia.
D
L

8
Installation (continued)
□
□Tighten the pipes to the valve body (D) with a
pipe wrench (not included).
Wrap thread sealant tape (not included) around
the pipe threads in a clockwise direction, as shown.
□
Connect the hot and cold water supply lines (1,
not included), the shower outlet pipe (2, not
included), and tub outlet pipe (3, not included)
by threading them into the valve body (D) in a
clockwise direction.
Connect the pipe elbows (4, not included) to
the end of the shower outlet and tub outlet pipes.
□
NOTE: The hot water supply lines go into the "H" inlet, and the cold water supply lines go into the "C" inlet. Do not use PEX or CPVC
between the valve body (D) and tub spout (J).
NOTE: If you do not wish to install the tub outlet, insert
the plug (I) into the bottom of the valve body (D).
3b Copper pipe connections
(for soldering)
□
Before soldering, remove the stop valves (1) with
adjustable wrench.
□
Solder the hot and cold water supply lines (2,
not included), the shower outlet pipe (3, not
included), and tub outlet pipe (4, not included)
into the valve body (D) with the torch.
Solder the pipe elbows (5, not included) to the
end of the shower outlet and tub outlet pipes
with the torch.
□
NOTE: If you do not wish to install the tub outlet, insert
the plug (I) into the bottom of the valve body (D).
D
3
5
4
2
2
1
I
3a Iron pipe connections
3
D
1
1
2
4
I
D
1
1
2
4
Reinstall the stop valves (1) with adjustable wrench.□
D
3
5
2
2
1

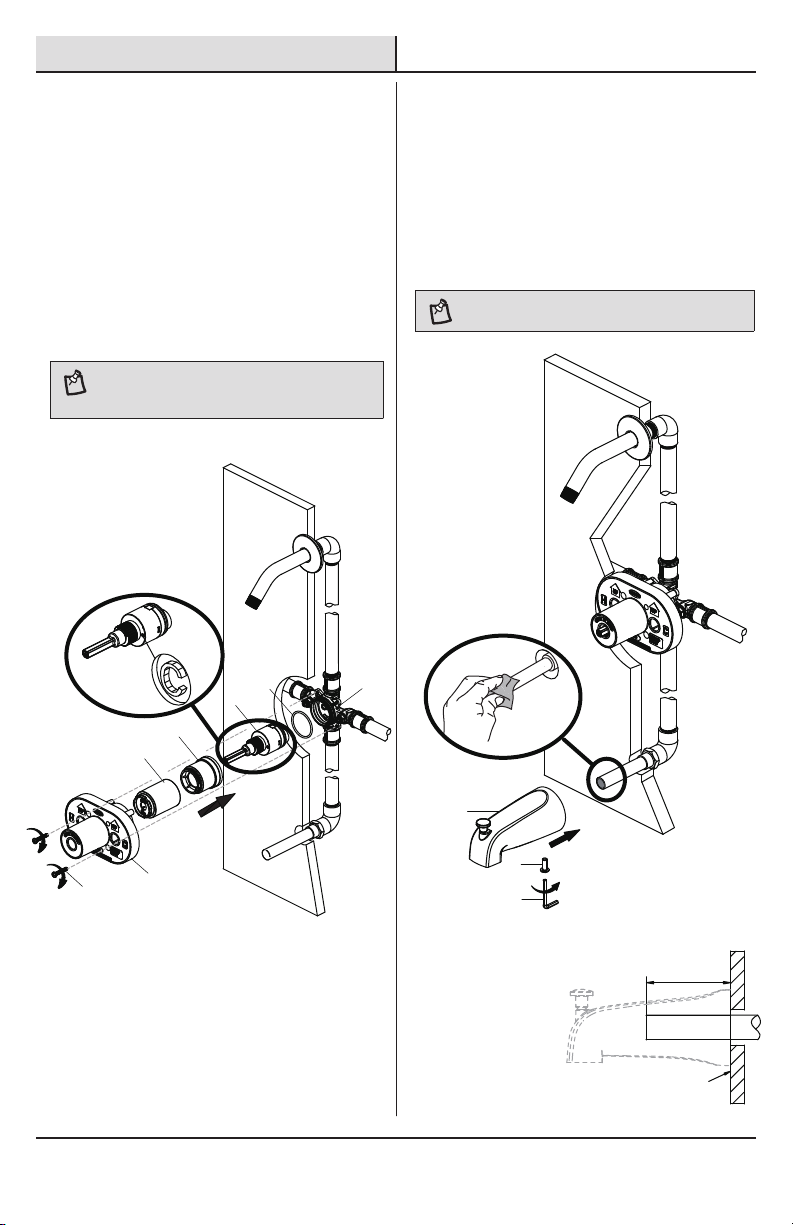

3Installing the supply connections
Before Installing the supply connections, unscrew
the screws (K), and remove the plaster guard (L),
the sleeve (1), bonnet nut (2), cartridge (3) and
o-ring (4) from the valve body (D).
□
K
L1
2
3
4
D

9
5 Installing the shower arm
□Insert the long end of the shower arm (B) through
the shower ange (A), and wrap thread sealant
tape (not included) around the long end of the
shower arm (B) in a clockwise direction, as shown.
Install the long end of the shower arm (B)
into the pipe elbow inside the wall. Carefully
tighten the shower arm (B) with a clean strap
wrench. Do not overtighten.
□
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
4Back to back installation
NOTE: Never install the valve body (D) upside down!
The appropriate locking torque of the bonnet (4) is
10~12 N·M. Do not overtighten.
□If the hot and cold inlets are reversed (hot on
right and cold on left), remove the screw (1),
inverter (2), sleeve (3), and bonnet (4) from the
valve body (D) with reversed supply connections.
Rotate the cartridge (5) 180°, so H appears on
the right. Install the cartridge, making sure that
the key is fully engaged with the slot in the
valve body (D). Slide the bonnet (4) over the
cartridge (5) and thread them onto the valve
body (D). Tighten bonnet (4) securely with
adjustable wrench until the o-ring on the valve
body (D) is covered completely. Reassemble the
sleeve (3), inverter (2, with the arrow side facing
down) and screw (1).
Installation (continued)
Normal
installation
(changes
not required)
Reverse
installation
D
Cold
Hot
123
4
5
Normal installation
Reverse installation
H
Hot
Hot
Cold
Cold
H
NOTE: If you are not making a reverse or back to back
installation, skip this step and continue with the step 5.
B
A
1
Wrap thread sealant tape around the pipe
threads of the tub spout outlet (1, not included)
in a clockwise direction, as shown.
□
NOTE: Do not cut the outlet pipe (1, not included) before
the pressure test procedure.
Connect the tub spout outlet pipe to the lower
pipe elbow (2, not included). Tighten the elbow
and tub spout outlet pipe connections with a
strap wrench.
□
2

10
Installation (continued)
6Pressure testing and flushing
the installation
Insert the test cap (P) into valve body (D). Slide the bonnet (2) over the test cap (P) and thread them onto the
valve body (D). Use plug (not included) to block the outlet of shower head, then turn on the hot and cold
water supply lines and check if there are any leaks on the outlet pipe/tube connections or elbows.
Make sure both stop valves (1) are fully open. If the stop valves (1) are closed, you must use athead
screwdriver to unscrew the valve rod in the stop valve (1) in a counterclockwise direction until the valve
rod can’t be rotated.
□
□
Remove the plug (3, not included), then turn on the hot and cold water supply lines and allow the water
to ow from the outlet for one minute or until all foreign matter has been ushed out.
ON
Counter-Clockwise
Clockwise
OFF 1
1
□
Shut off the water supply lines. Remove the bonnet (2) and the test cap (P).□
D
P
2
3
D3

11
Installation (continued)
The tub spout outlet pipe should project 1-1/2 in.
to 2-1/2 in. from the nished wall.
□
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
8Installing the tub spout
Place the spout (J) onto quick connection until
the spout (J) becomes ush with the nished
wall and tighten the screw (1) with with the
Hex wrench (Hex: 3.97mm, O) provided.
□
NOTE: Use emery paper to remove burrs. Clean debris.
1-1/2 in. to 2-1/2 in.
Wall
7 Installing the plaster guard
and cartridge
□Install the o-rings (1) and cartridge (2) onto the
valve body (D). Make sure the cartridge (2) is
installed correctly. Slide the bonnet (3) over the
cartridge (2) and thread them onto the valve
body (D). Tighten bonnet (3) securely with
adjustable wrench until the o-ring (1) on the
valve body (D) is covered completely.
Install the sleeve (4), and hand-tighten it only.
Place the plaster guard (L) onto the valve
body (D) and secure with the screws (K).
□
NOTE: Be sure to position the plaster guard (L) correctly
onto the valve body (D), with the side marked "SHOWER"
facing upward.
K
L
1
2
3
4
D
J
O
1

12
Installation (continued)
□Unscrew the sleeve (1) from the valve body (D).
□Unscrew the screw (2) from the inverter (3),
and then remove the inverter (3) from the
valve body (D).

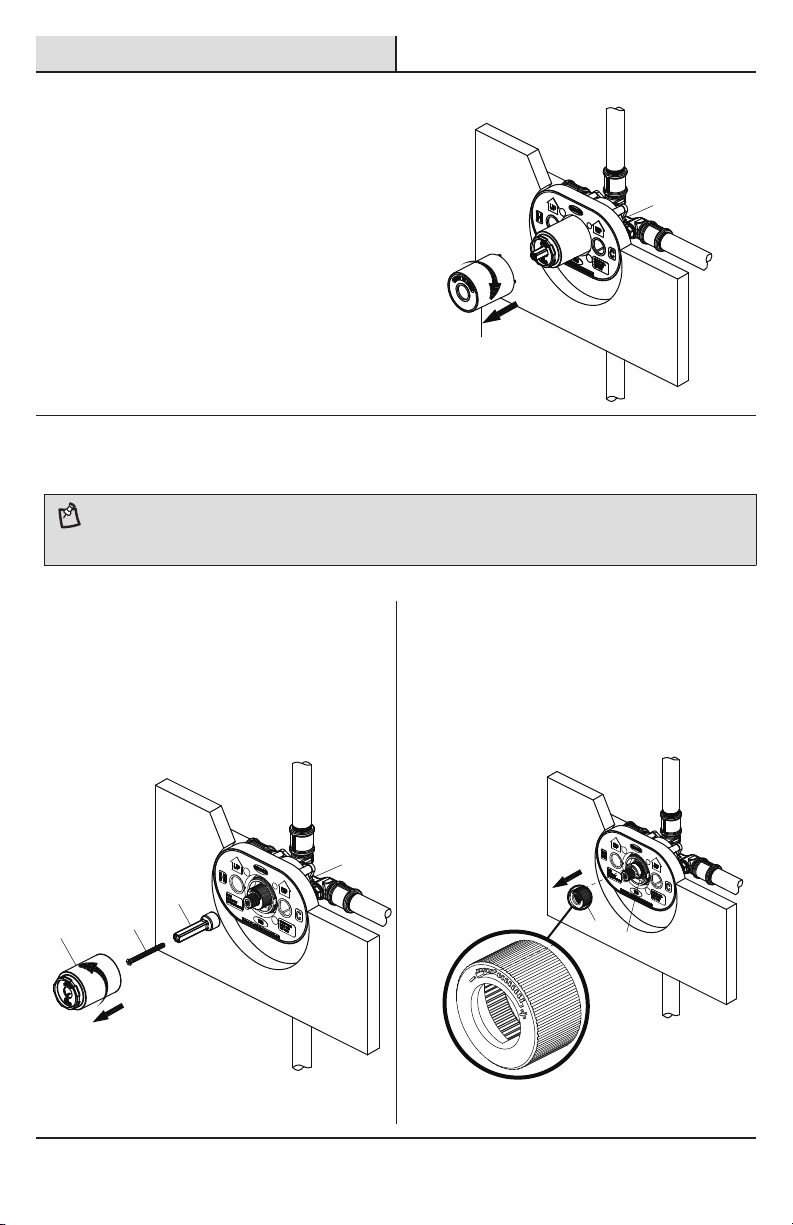

10 Adjusting the temperature
9 Removing the plastic cap
□Before installing the escutcheon (E), remove the
plastic cap (1) from the valve body (D) by twisting
the cap in a clockwise direction.
B Removing the red limit stop ring
□Make sure the cartridge assembly (2) is in the off
position. Remember the position of the red limit
stop ring (1) on the cartridge assembly (2).
Remove the red limit stop ring (1) from the
cartridge assembly (2).
ARemoving the sleeve and
inverter
1
2
1
D
D
3
1
2
NOTE: The limiter on the valve can be set to allow partial or full access to hot water by limiting how far the handle can be turned to the
hot side of the valve. The limiter is typically set at the factory to allow only warm water to pass through the valve. Follow the directions
in this section if you wish to adjust the amount of hot water that is allowed through the valve. If you do not wish to adjust the amount
of hot water that is allowed through the valve, proceed to the step 11, and skip over the step 10 (A, B, C, D).

Installation (continued)
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
10 Adjusting the temperature
13
D Reinstalling the inverter and
sleeve
□Place the inverter (2) onto the valve body (D)
and rotate the inverter (2) with the arrow side
facing down. Then secure with the screw (3).
□Screw the sleeve (4) onto the valve body (D).
NOTE: Rotate the cartridge stem (1) clockwise to turn off
the water before you install the handle.
C Adjusting the desired maximum
water temperature
□For colder water, adjust the red limit stop ring (1) in a clockwise direction and reinstall the red limit stop
ring (1) onto the cartridge assembly (2).
□For hotter water, adjust the red limit stop ring (1) in a counterclockwise direction and reinstall the red
limit stop ring (1) onto the cartridge assembly (2).
NOTE: A thermometer (not included) can be held in the
running water to aid in reaching the desired water
temperature.
For hotter waterFor colder water
1
2
1
2
2
43
D
1
J

Installation (continued)
12
Checking for leaks
□
□
Turn the handle (F) to the full on mixed position.
When the valve body (D) is turned on, water
normally ows through the tub spout (J). To
activate the shower, turn the valve on and pull
the knob (1) up. Hold the knob (1) until the water
ows continuously from the shower arm (B).
Check for leaks.
Shut off the water at the faucet and supply lines.□
14

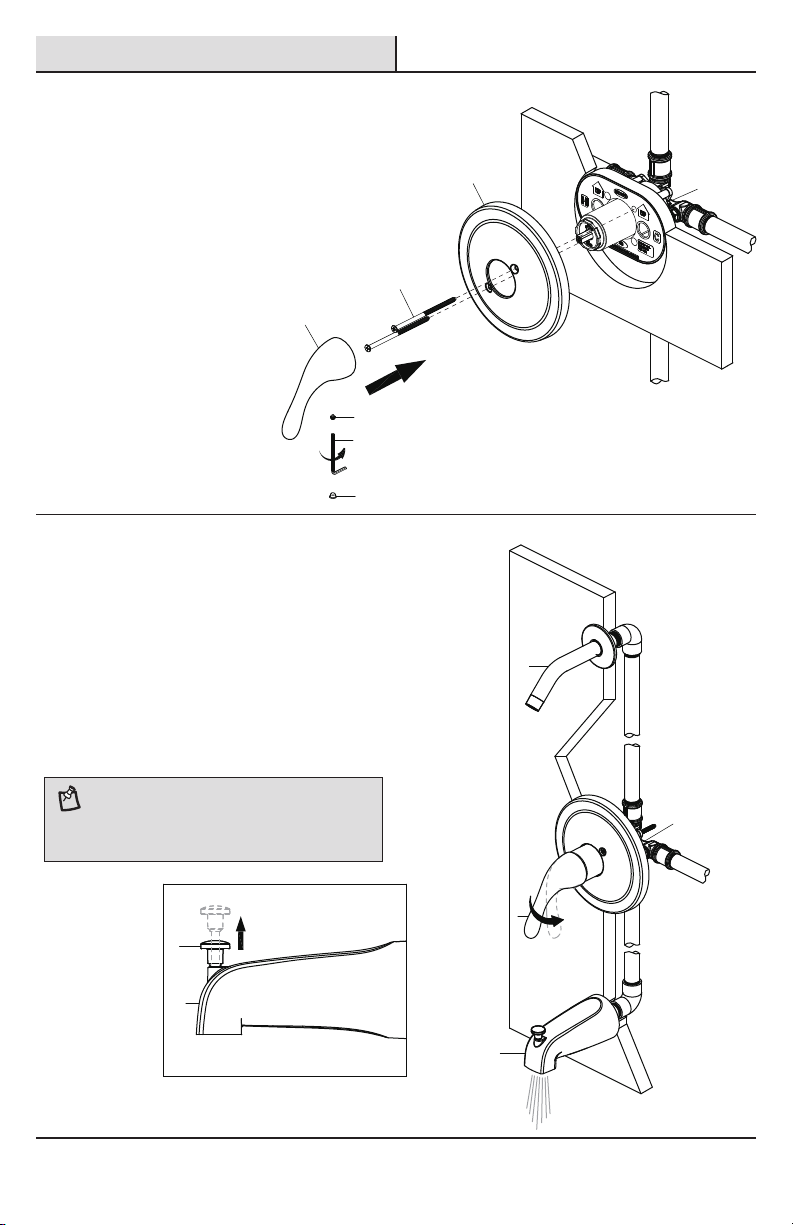

11 Installing the escutcheon
and handle
□Install the escutcheon (E) onto the valve body
(D) using the escutcheon screws (M).
Place the handle (F) onto the valve body (D) and
tighten the set screw (G) with the Hex wrench
(Hex: 2.5 mm, H) provided.
□
Insert the index (N) into the handle (F).
□
UP
FOR
SHOWER
1
J
D
F
J
B
E
M
F
G
D
H
N
NOTE: When the pattern of the water ow switches to
the shower from the tub spout, some small leakage from the
tub spout is a normal occurrence. If water comes out of the
tub spout and showerhead at the same time, be sure to pull
the knob (1) up fully.

Installation (continued)
15 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
13 Installing the shower head
□Attach the shower head (C) to the shower arm
(B). Hand-tighten only.
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
B
C
NOTE: Refer to the Service Parts section in this manual
for a detailed drawing showing the location of the parts
listed below.
Troubleshooting
Problem Possible Cause Solution
There is no hot water. □Rotate the cartridge 180°.
□Clean the bottom of the cartridge.
There is no ow or a low
water ow.
□Turn both water supply valves
to the on position.
□
□Turn off the water supply at
angle valve and unscrew the
spray head from spray hose.
Clean the screen lter in the
spray head under running water.
Refer to the step 13.
NOTE: Do not use the thread sealant tape and do not use
wrench to tighten shower head. If the screen lter (1) in
the spray head (C) is blocked, turn off the water supply at
angle valve and unscrew the spray head (C) from spray
arm (B). Clean the screen lter (1) in the spray head (C)
under running water with brush (2, not included).
□The lines are reversed or the cartridge
is installed upside down.
□One or both water supplies are not
turned on.
□The stop valves are turned off or not
fully turned on.
□The screen lter in the spray head
is blocked.
□The balance valve in cartridge is
clogged with debris.
2
C
1
Care and Cleaning
Products are in compliance with EPA's
WaterSense Specication for Showerheads,
so the maximum ow rate value should be
below 1.8 gpm. Or consider the causes
below:
Make sure both stop valves are
fully open. Use athead
screwdriver to unscrew the valve
rod in the stop valve in a
counterclockwise direction until
the valve rod can’t be rotated.

16
Troubleshooting
Problem Possible Cause Solution
Water comes out of the
tub spout and showerhead
at the same time.
If the pattern of the water ow switches to
the shower from the tub spout, and the leak
from the tub spout is less than 0.01 GPM,
this is a normal occurrence. If there is
residual water in the shower head when
the water from the shower head is turned
off, this is a normal occurrence. Or consider
the causes below:
! The pipe used between the valve and the
tub spout is not 1/2 in. IPS, or the COPPER
pipe is incorrect.
! The valve is installed upside down.
! The knob on the spout is not pulled up
fully.
! There is a restriction between the valve
and the tub spout.
! The distance between the valve and the
showerhead is less than 48 in..
□Change the pipe to IPS or
COPPER.
□The distance from the
showerhead and valve moved
to at least 48 in..
□Remove the tub spout and ush
out debris and/or replace the
undersized line or ttings.
□Remove the valve and reinstall it
using the correct orientation.
The temperature range is
restricted.
The position of the temperature limit stop
is out of ideal range.
□Refer to the section Adjusting
the Temperature in step 10.
The handle cannot be
installed or the handle rubs
against the escutcheon.
The valve is installed too far back from the
nished wall.
□Reinstall the valve (refer to Step
2 of the Installation section).
The handle is hard to turn. The bonnet nut is too tight. □Loosen the bonnet nut and
reinstall it. Do not overtighten.
The appropriate locking torque
is 10~12 N·M.
NOTE: Refer to the Service Parts section in this manual
for a detailed drawing showing the location of the parts
listed below.
□Make sure to pull the knob on
the spout up fully.
The shower head is
damaged when installing.
The shower head is twisted too tightly. □Call Glacier Bay customer
service to request a replacement
shower head. Reinstall the
shower head. Do not use tools to
tighten shower head.
Hand-tighten only.
There is leaking or
dripping from the spout
when the handle is closed.
□Reinstall the cartridge.
□Check to ensure the sealed
washer on the cartridge is in
place or replace the cartridge.
□Use wrench to retighten the
bonnet nut sufciently until the
o-ring on the valve body is
covered completely.
□The cartridge is not properly installed.
□The sealed washer on the cartridge is
not in place.
□The bonnet nut is not tightened
sufciently.

17
Part Description Part Number
1 RP38046*
2 Shower arm RP38047*
3 Shower head RP38306*
4 O-ring RP60101
5 Cartridge RP20075
6 Bonnet nut RP7043701
7 O-ring RP60091
8 Sleeve RP80553*
9 Inverter RP70559
Shower ange
Part Description Part Number
10 Screw RP70560
11 Escutcheon RP80554*
12 Escutcheon screw RP50190*
13 Handle RP13469*
14 Set screw RP50002
15 Index RP10055
16 Plug RP70365
17 Spout RP33073*
Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can be
found by removing the
handle
14
13
12
16
3
2
1
7
6
54
10
9
8
11
15
17

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.

GUÍA DE USO Y MANTENIMIENTO
BUILDERS - GRIFO PARA TINA Y DUCHA CON UNA
SOLA FUNCIÓN Y UNA LLAVE
Apreciamos la conanza que has depositado en Glacier Bay al comprar este grifo para bañera y ducha. Nos esforzamos por
crear continuamente productos de calidad diseñados para mejorar tu hogar. Visítanos en Internet para ver nuestra línea
completa de productos disponibles para las necesidades de mejoras de tu hogar. ¡Gracias por elegir a Glacier Bay!
GRACIAS
¿Problemas, preguntas o piezas faltantes?
Antes de regresar a la tienda, llama al servicio al cliente de
Glacier Bay de lunes a viernes entre 8 a.m. y 7 p.m. y los
sábados entre 9 a.m. y 6 p.m.(hora estándar del Este)
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Sugiere que un plomero profesional realice una instalación efectiva.
Modelo núm.
873X-0804
873X-0827D
HD873X-0801
HD873X-0802
HD873X-0810H
Internet núm.
207004145
207004154
301879838
301879834
324555919
SKU núm.
1001818631
1001819058
1002500183
1002500186
1009367546

20
Tabla de contenido
Información importante .........................20
Garantía...................................................20
Pre-instalación .......................................21
.............21
Herramientas y herrajes necesarios....21
Contenido del paquete.........................24
Instalación ..............................................25
Planicación de la instalación
Cuidado y limpieza ................................33
Piezas de repuesto ................................35
Solución de problemas...........................33
Información importante
□ No instales este producto hasta que hayas leído y entendido las instrucciones de este manual. Si estás instalando
este producto para alguien, déjale este manual para que le sirva como referencia al dueño/usuario.
□ Los puertos de entrada están diseñados para 1/2 plg. Conexión de soldadura de tubería de COBRE o 1/2 plg.
Conexión de acoplamiento de rosca IPS. Para conexiones roscadas, envuelve los extremos roscados con cinta
selladora antes de conectar. Si vas a soldar las conexiones, algunas partes inamables deben quitarse antes
de la soldadura para evitar daños por calor. Si no estás seguro sobre cómo quitar estas partes, llámanos a
1-855-HD-Glacier.
□ Al soldar o cortar las líneas de suministro de agua, protege tus ojos con gafas de seguridad.
□ RUIDO Y GOLPE DE ARIETE EN SISTEMAS PEX: Debido a la exibilidad inherente del PEX, en comparación con
materiales de plomería metálicos, el ruido y golpe de ariete puede ocurrir de vez en cuando por sobrecargas
de presión. Es importante garantizar que la tubería no esté en contacto con paneles de pared, ductos de aire
propulsado u otros materiales de alta resonancia. La sujeción o anclaje son métodos para evitar estos ruidos.
NO USES tuberías PEX desde la válvula al caño de la bañera.
Garantía
GARANTÍA DE POR VIDA LIMITADA
Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respaldados
por nuestra garantía de por vida limitada. Los productos de Glacier Bay están garantizados al comprador consumidor
original de estar libres de defectos en materiales o mano de obra. Reemplazaremos LIBRE DE CARGOS cualquier
producto o pieza que se demuestre está defectuosa. Símplemente, devuelva el producto a cualquiera de las
ubicaciones de venta al detalle de The Home Depot o llame al 1-855-HD-GLACIER (1-855-434-5224) para recibir el
artículo de reemplazo. La prueba de compra (recibo de venta original) del comprador consumidor original debe estar
disponible para todos los reclamos de garantía de Glacier Bay.
Esta garantía excluye daños y fallos incidentales/consecuenciales debido al mal uso, abuso o desgaste normal por
el uso. Esta garantía excluye todos los usos industriales, comerciales y de negocios, a cuyos compradores por la
presente, se les ha ampliado una garantía limitada de cinco años a partir de la fecha de compra, con todos los otros
artículos de esta garantía que aplican excepto la duración de la garantía.
Algunos estados y provincias no permiten la exclusión o la limitación de los daños incidentales o consecuenciales,
por lo tanto, las limitaciones y exclusiones anteriores podrían no aplicar a usted. Esta garantía le otorga derechos
legales especícos y también puede tener otros derechos que varían de un estado a otro. Por favor, vaya a una
tienda o llame al 1-855-HD-GLACIER para más detalles.
Póngase en contacto con el Equipo de Servicio al Cliente llamando al 1-855-434-5224 o visite www.HomeDepot.com.
