Glacier bay HD67673-0001 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
PULL-DOWN LAUNDRY FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this laundry faucet.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line
of products available for your home improvement needs. Thank you for choosing Glacier Bay!
HOMEDEPOT.COM 7/2018 REV.01
Model#
HD67673-0001
HD67673-0008D2
Internet#
305764883
305764859
SKU#
1003321271
1003321267

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................9
Troubleshooting........................................9
Service Parts ........................................... 10
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts..
TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
(2) Supply
lines
SILICONE
Silicone
sealant
Tools and Hardware Required ...............2
Operation...................................................8
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)
PACKAGE CONTENTS
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
Part Description Quantity
A 1
B Escutcheon 1
C Gasket 1
Faucet
D 2
F Weight 1
Screw
E 2Mounting nut
Part Description Quantity
G 1
H Connector 1
I Bolt 1
Quick connector
J 1Washer
K 1Nut
L 1Gasket
A
B
C
D
E
F
G
H
I
J
K
L

4
Installation
2 Installing the faucet assembly
□Before installation, ensure that the gasket (L)
is placed on the bottom of the new faucet (A).
1 Preparing for installation
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply. Remove the old
faucet.
□Unscrew the nut (K).
□Clean the mounting surface.
NOTE: This step is for no escutcheon installation (optional).
If the escutcheon will be used, install the faucet assembly
as described in step 4.
NOTE: This step is for no escutcheon installation (optional).
If the escutcheon will be used, install the faucet assembly
as described in step 4.
A
L
□Place the faucet (A) through the mounting
holes in the sink.
K
A

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
5
Installation (continued)

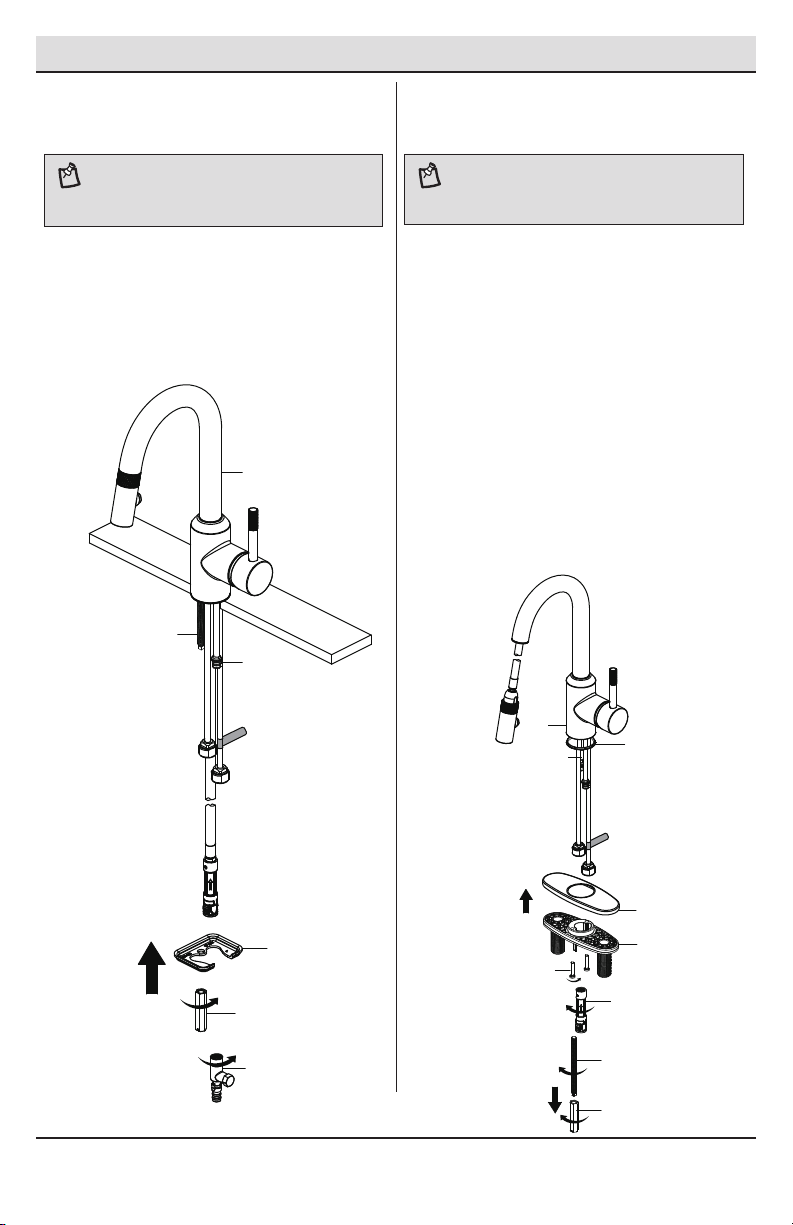

3Securing the faucet assembly 4 Preparing for installation
□Shut off the water supply. Remove the old
faucet.
□Secure the escutcheon (B) and gasket (C) to the
faucet (A) with the screws (D).
□Clean the mounting surface.
□Unscrew the nut (K), bolt (I) and quick connector (G).
NOTE: This step is for escutcheon installation (optional).
If the escutcheon will not be used, install the faucet
assembly as described in step 1.
A
I
J
K
H
1
□Slide the washer (J) over threaded rod (I). Use
the lock nut (K) to secure the washer (J).
□Attach the connector (H) by screwing it onto
the threaded end of the tube (1).
NOTE: This step is for no escutcheon installation (optional).
If the escutcheon will be used, install the faucet assembly
as described in step 4.
□Ensure that the gasket (L) is placed on the
bottom of the new faucet (A).
□Retract the hose (1) up through the faucet body
until the hose tting is ush with the bottom of
shank (2). Do not pull the hose tting past the
shank.
□Reattach the quick connector (G) by screwing it onto
the threaded end of the hose (1) in a clockwise
motion. Hand tighten only.
B
C
L
1
2
D
I
K
G

6
Installation (continued)
6 Securing the faucet assembly
□Secure the faucet (A) to the sink using the
mounting nuts (E) provided. Hand-tighten only.

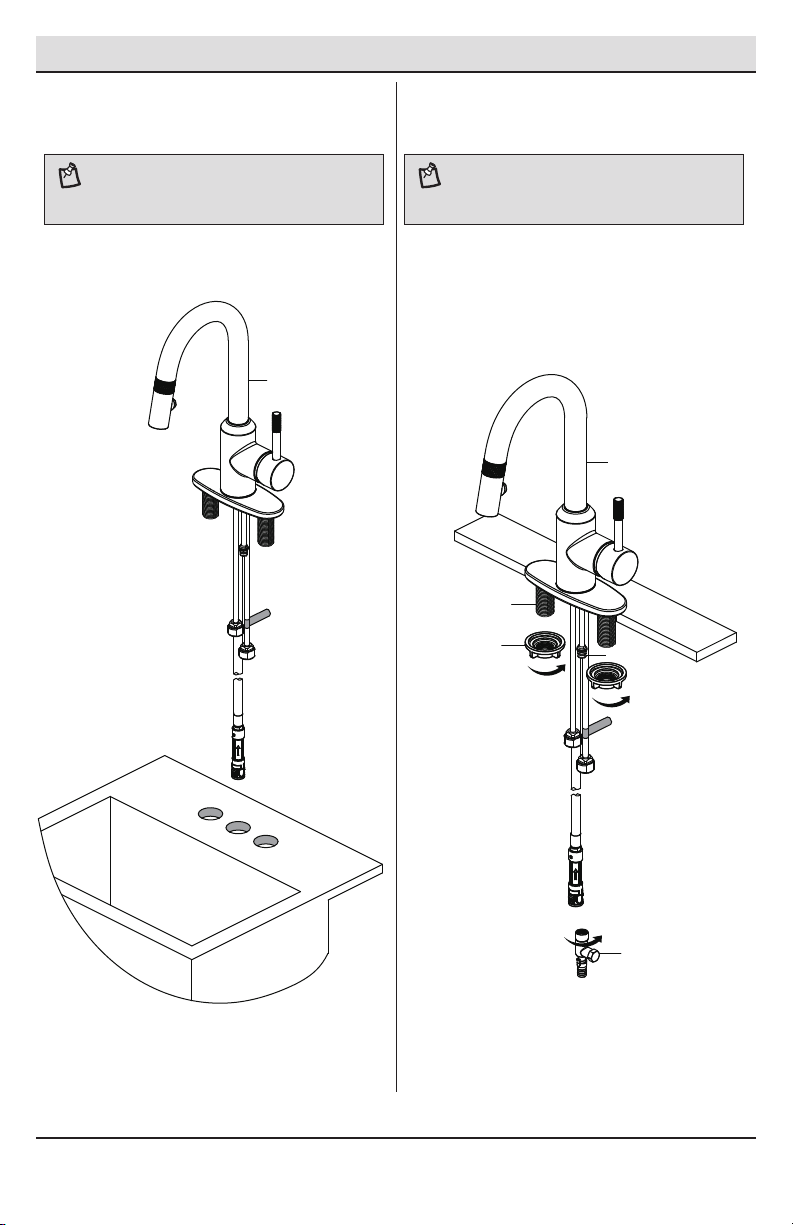

5 Installing the faucet assembly
□Place the faucet (A) through the mounting
holes in the sink.
NOTE: This step is for escutcheon installation (optional).
If the escutcheon will not be used, install the faucet
assembly as described in step 1.
NOTE: This step is for escutcheon installation (optional).
If the escutcheon will not be used, install the faucet
assembly as described in step 1.
A
H
E
C
1
A
□Attach the connector (H) by screwing it onto
the threaded end of the tube (1).

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
7
Installation (continued)
8Installing the weight
□After connecting the hose, install the weight (F)
at the point of the hose marking “weight here”.
7 Attaching the quick connector
to the receiving block
□Push the quick connector (G) rmly upward and
attach it to the receiving block (1). Pull down
moderately to ensure the connection has been
made.
1
G
Weight
here
Weight
here
F
9 Making the water supply
connections
NOTE: The hot side inlet tube is indicated by a label. If the
label is not present, the hot supply tube is the longer of the
two inlet tubes.
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
NOTE: Before tightening the faucet connector to the water
supply, apply a second wrench to the supply tube tting.
This will prevent the supply tube from moving or twisting
when tightening the faucet connector. Do not overtighten.
3
12

8
Operation
1Flushing and checking for leaks
□Pull the hose assembly out of the spout and
remove the spray head by unscrewing it from
the hose in a counterclockwise direction. Be
sure to hold the end of the hose down into the
sink and turn the faucet to the warm position
where it mixes hot and cold water.
□Flush the water lines for one minute. This ushes
away any debris that could cause damage to
internal parts. Check for leaks.
□Re-tighten any connections if necessary, but do
not overtighten. Reinstall the spray head by hand
tightening it back onto the spray hose in a
clockwise direction.
IMPORTANT: After installation is completed, turn on the
hot and cold water supplies. Check for leaks.
2Removing the quick connector
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect.
2
Squeeze
1
Pull
down
1

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
9
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
Troubleshooting
Problem Possible Cause Solution
The aerator leaks or has
an inconsistent water
ow pattern.
The aerator is dirty or mistted.
The cartridge may be clogged.
□Remove the aerator and check
for debris in the aerator screens.
□Remove the cartridge and check
for debris.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
□Ensure the aerator is properly
installed.
There are leaks from the
hose underneath the deck.
The hose and discharge tube connection
may be loose.
□Tighten the connection between
the discharge tube and hose.
The hose does not retract. The weight is not installed in the
appropriate position.
□Reinstall or readjust the weight.
The water pressure is low. The connector underneath the deck is
clogged with debris.
The aerator is clogged.
□Turn off the water supply and
disconnect the connector
/ aerator.
□Unscrew the connector / aerator
and clean under running water.
□Screw the connector / aerator
back.
□Test water ow. If water
pressure is still low then replace
the connnector / aerator.
There is no hot or cold
water.
The water inlet hose was acccidentally
kinked during installation and is limiting
the water ow through.
□Reinstall the water inlet hose.
There are leaks
underneath the handle.
The bonnet nut has come loose and the
o-ring on the cartridge is dirty or damaged.
□Tighten the bonnet nut. Clean
or replace the o-ring.

10

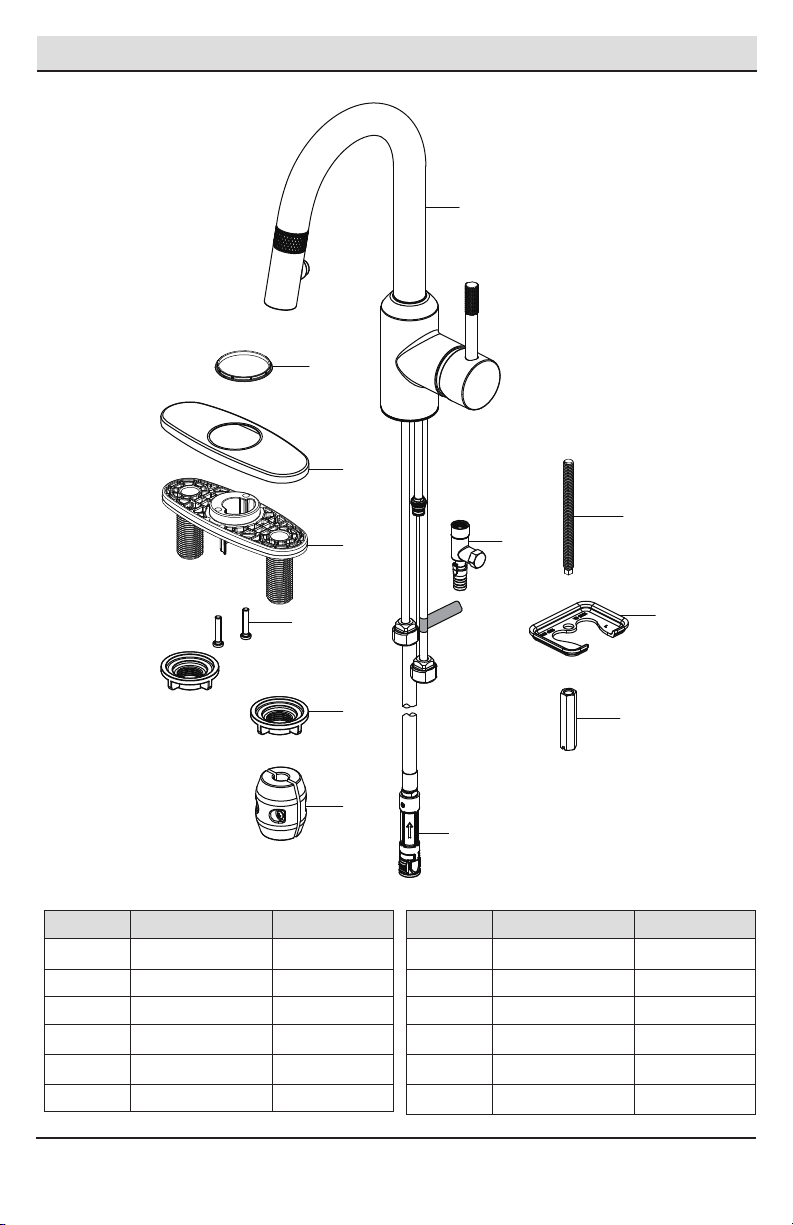

Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Part Description Part Number
1RP38285*
2 O-ring RP60071
4 Cartridge RP20044
5 Bonnet nut RP70548
6 Cap RP80132*
7 Screw RP50015
8 Handle & O-ring RP13450*
9 Set screw RP50002
10 Handle seat RP17126*
Spray head and Hose
3 Wearable ring RP70380
11 Escutcheon RP80530*
17 Quick connect
assembly RP70429
13 Screw RP50094
16 O-ring RP60002
Part Description Part Number
12 Gasket RP80531
14 Mounting nut RP56001
18 O-ring RP60089
20 Bolt RP50014
19 Weight RP70223
21 Washer RP70228
22 Nut RP56012
23 Gasket RP70554
15 Block RP70421
Faucet ID tags can
be found on the
hot water inlet
1
4
7
5
68
9
10
11
12
13
14
2
3
15
16
17
18
19
20
21
22
23
