Glacier bay FP4AF263CP Assembly instructions

INSTALLATION AND CARE GUIDE
THANK YOU
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY

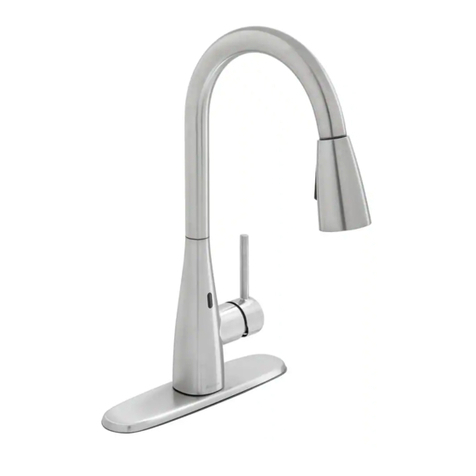

PULL-DOWN KITCHEN FAUCET
SKU#
1001-616-363
1001-616-364
1001-616-365
Model#
FP4AF263CP
FP4AF263SS
FP4AF263BL

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation...........................2
Tools and Hardware Required.............2
Package Contents...............................3
Installation................................................4
Operation...................................................7
Care and Cleaning ....................................8
Troubleshooting ........................................8
Service Parts.............................................9
Important Information
□Observe all local plumbing and building codes.
□Cover the drain in your sink to avoid losing parts.
□Review the care and cleaning section included in this guide.
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that prove defective.
Simply return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-
434-5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental / inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
a five year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of the warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specific legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Pre-Installation
PLANNING INSTALLATION
Before you begin to install this product, ensure that all parts are present. Compare parts with the package
contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service for
replacement parts.
TOOLS AND HARDWARE REQUIRED
SILICONE
(2)
Adjustable
wrenches
Safety
goggles Silicone

3 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Pre-Installation (continued)

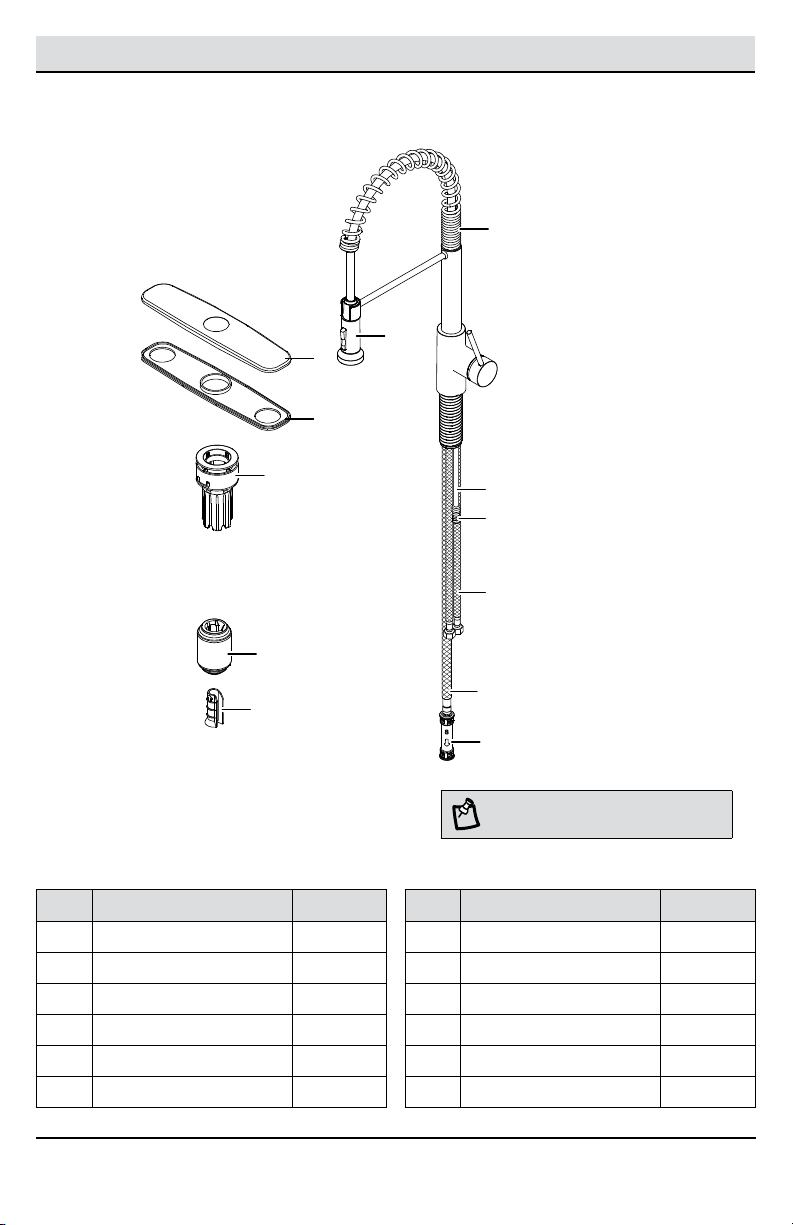

PACKAGE CONTENTS
F
A
B*
E
G
H*
L*
I*
J*
K*
C
D
NOTE: *Items come pre-assembled.
Part Description Quantity
A Faucet assembly 1
B* Pull-down spray 1
C Deck plate 1
D Putty plate 1
E FastMount™ 1
F Quick connector 1
Part Description Quantity
G Weight 1
H* Weight clip 1
I* Outlet hose 1
J* Water supply line 2
K* Pull-down spray hose 1
L* Cap 1

4
Installation
A
I
J
K
1
2
A
C
D
I
J
K
□Shut off the water supply. Remove the old faucet.
□Clean off the mounting surface.
□WITHOUT DECK PLATE: Insert the outlet hose (I),
water supply lines (J) and pull-down spray hose
(K) through the mounting hole in the sink until the
faucet assembly (A) sets on top of the sink (not
included).
□WITH DECK PLATE: Place a bead of clear silicone
sealant (not included) around the base of the
putty plate (D). Align the hole in the putty plate
(D) and deck plate (C) with the mounting hole in
the sink (not included). Insert the outlet hose (I),
water supply lines (J) and pull-down spray hose
(K) through the deck plate (C) and mounting hole
in the sink until the faucet assembly (A) sets on
top of the deck plate (C).
1 Installing the faucet assembly
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.

5 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)
4
1
2
3
G
K
G
K
H
H
2
1
A
E
□From underneath the sink, secure the faucet
assembly (A) to the sink with the FastMount™
(E).
□Push the FastMount™ (E) up over the threads
until it stops against the bottom of the sink,
then turn clockwise to tighten.
□Install the weight (G) through the pull-down spray
hose (K).
□Insert the weight clip (H) at the weight sticker on
the pull-down spray hose (K) and slide the weight
(G) down onto the clip (H).
2 Securing the faucet assembly 3 Installing the weight
Weight
sticker
Hexagon
face up

6
Installation (continued)
1
2
L
I
K
F
I
5 Connecting supply lines 4 Attaching the quick connector

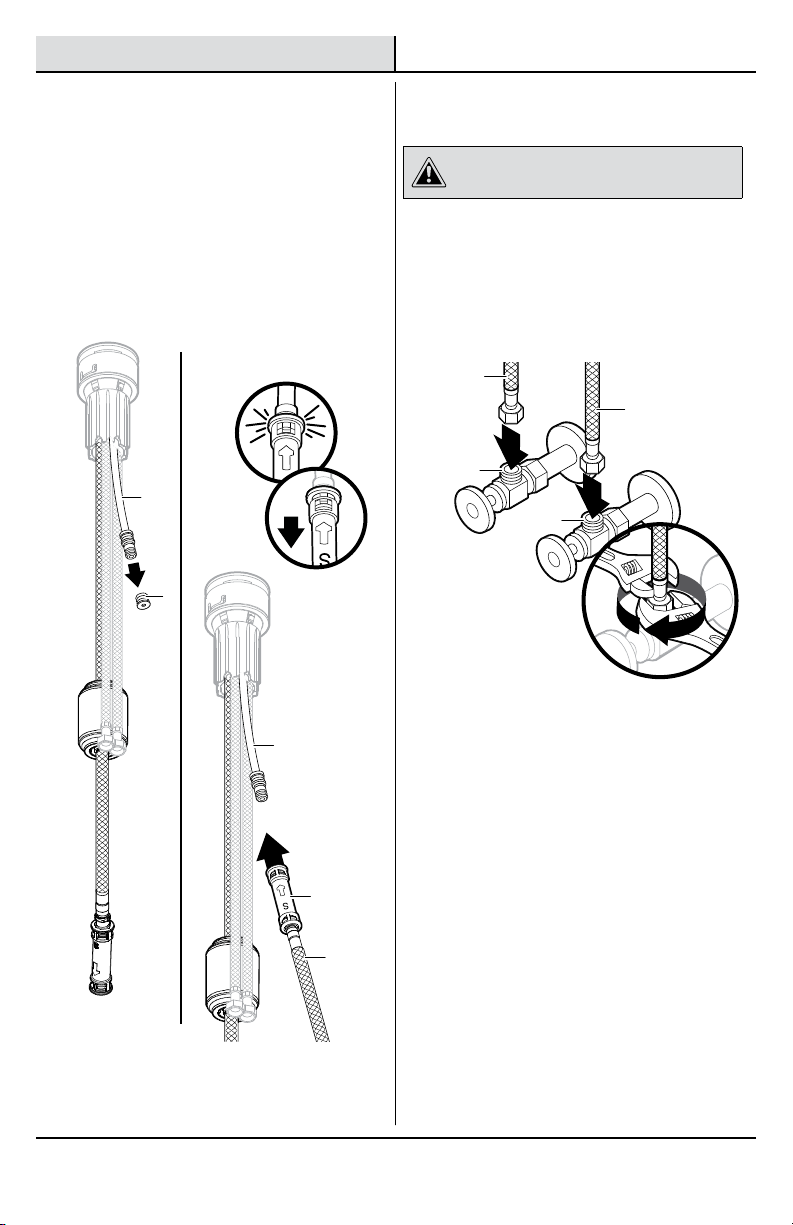

□Remove the cap (L) from the outlet hose (I).
□Attach the quick connector (F) to the outlet hose
(I). Pull down the quick connector (F) to ensure it
is secure.
1
1
2
□Use two adjustable wrenches to connect and
tighten the supply lines (J) to the supply valves.
□Connect the red supply line to the hot water
supply valve.
□Connect the blue supply line to the cold water
supply valve.
CAUTION: Ensure the supply lines do not kink, twist or
bend into a “V” or “L” shape during installation. Do not use
if there are visible signs of damage.
BLUE LINE
RED LINE
HOT
COLD

7 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Operation
B
A
K
3
2
1
□Ensure the handle is in the off position. Turn the
hot and cold water supplies on and check all
connections for leaks. If leaks are discovered,
check the connections to ensure they are tight
and properly secured.
□Detach the pull-down spray (B) from the pull-
down spray hose (K). Hold the pull-down spray
hose (K) firm to prevent it from retracting into the
faucet body (A).
□Lift the handle to allow the water to run for
approximately one minute. This flushes away any
debris that could damage the internal parts.
□Turn the water off and reattach the pull-down
spray (B).
□If it is necessary to remove the quick
connector (F), push the quick connector
housing up, hold the housing together
and pull down.
2 Removing the quick connector
CAUTION: Use caution when removing the quick
connector hose to prevent cutting your hands.
1 Checking for leaks

8
Care and Cleaning
Troubleshooting
□To clean, wipe down with a damp cloth and towel dry.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
NOTE: Refer to the service parts section in this manual
for a detailed drawing showing the location of the parts
listed below.
Problem Possible Cause Solution
There are leaks from the
handle.
□The bonnet nut is loose.
□The O-ring on the cartridge is
dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the O-ring.
The aerator leaks or has a
reduced water flow.
□The aerator is dirty or mis-
fitted.
□The cartridge may be clogged.
□Remove the aerator and check for debris.
□Remove the cartridge and check for
debris.
□Ensure the aerator is properly installed.
There are leaks from
the hose underneath the
deck.
□The connection between the
pull-down spray and pull-down
spray hose may be loose.
□Tighten the connection between the pull-
down spray and pull-down spray hose.
The hose does not retract. □The weight is not installed in
the correct position.
□The pull-down spray hose is
obstructed.
□Reinstall or readjust the weight.
□Check under the sink to ensure the pull-
down spray hose is not obstructed.
The water pressure is low. □The quick connector may be
clogged with debris.
□Turn off the water supply and disconnect
the quick connector from the outlet hose.
□Disconnect the quick connector from the
pull-down spray hose and flush under
running water.
□Reattach the quick connector to the
outlet hose.
□Test water flow. If water pressure is still
low then replace the quick connector.
There is no hot or cold
water.
□The hot or cold water supply
lines may be kinked or twisted.
□Ensure hot and cold water supply lines
are not kinked or twisted. Reinstall the
supply line if necessary.

9 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.

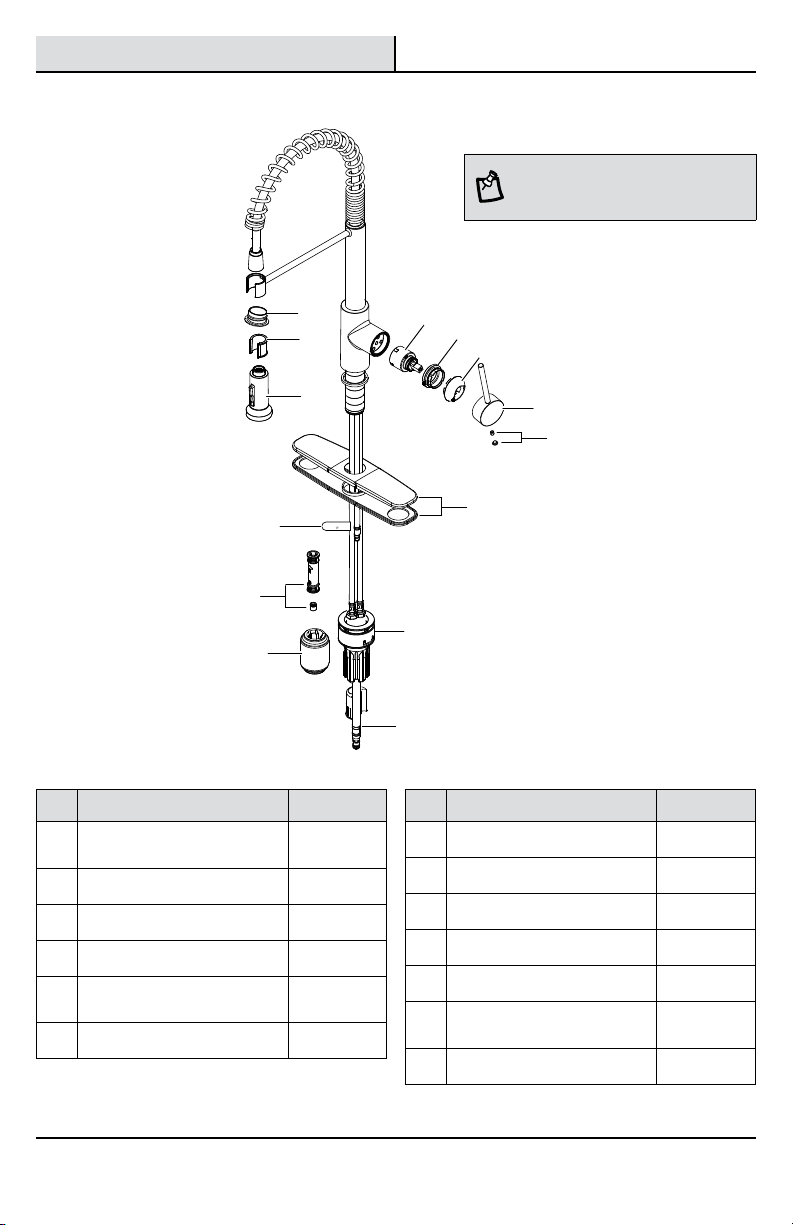

Service Parts
* Specify finish
1
2
3
4
5
6
7
8
9
10
11
12
13
DATECODE:
DONOT REMOVE
1-888-328-2383
HOT
Part Description Part No.
1Handle Cap Assembly A66D558
2 Metal Handle A662359-Z*
3 Trim Ring A103062*
4 Adjusting Ring A104072
5 Ceramic Disc Cartridge A507348N
6 Sleeve A032172GD
7 Clip A012318GD
Part Description Part No.
8 Pull-Down Spray Head A568017N*
9 Cover Plate & Putty Plate A667003*
10 FastMount™ A527115
11 Spray Hose A515210N*
12 Hose Adaptor Assembly A663123N
13 Weight A527114
Product ID tag can be found
on the hot supply line.
NOTE: Many replacement cartridges, aerators,
and drain assemblies can be purchased at
your local The Home Depot store or online at
HOMEDEPOT.COM.

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
