Glacier bay HD67857-0001 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
PULL-DOWN KITCHEN FAUCET
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
7/2018 REV.01HOMEDEPOT.COM
Model#
HD67857-0001
HD67857-0008D2
Internet#
305764886
305764851
SKU#
1003341097
1003341108

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents..................................3
Installation................................................4
Operation ..................................................13
Troubleshooting ......................................15
Care and Cleaning ................................... 14
Service Parts
........................................... 17
Adjustable
wrench
Safety
goggles
Phillips
screwdriver
SILICONE
Silicone
sealant
6mm
diameter
Electric
drill
Tools and Hardware Required ...............2
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.

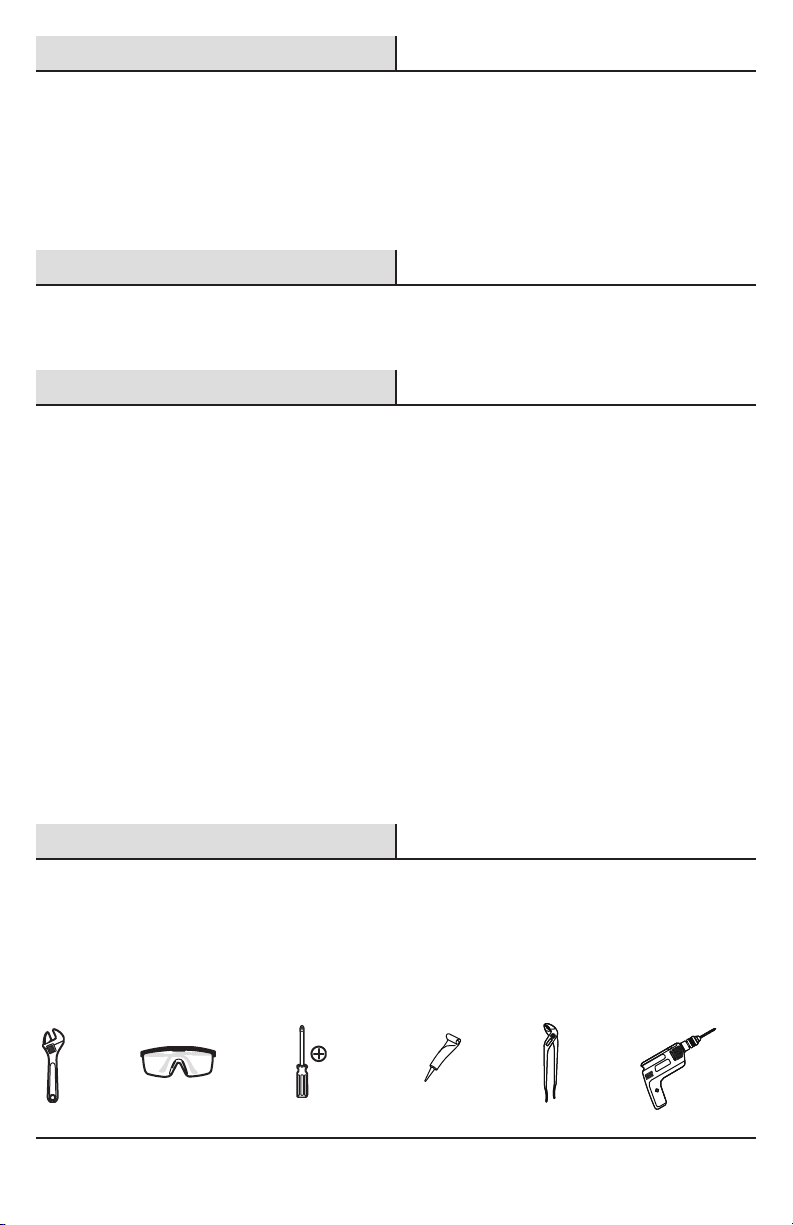

TOOLS AND HARDWARE REQUIRED
Channel
lock pliers
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Sensor mechanism and LED light excluded from Limited Lifetime Warranty and are covered by a 3-year warranty
from date of purchase. Simply, return the product / part to any of The Home Depot retail locations or call
1-855-HD-GLACIER (1-855-434-5224) to receive the replacement item. Proof of purchase (original sales receipt)
from the original consumer purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)

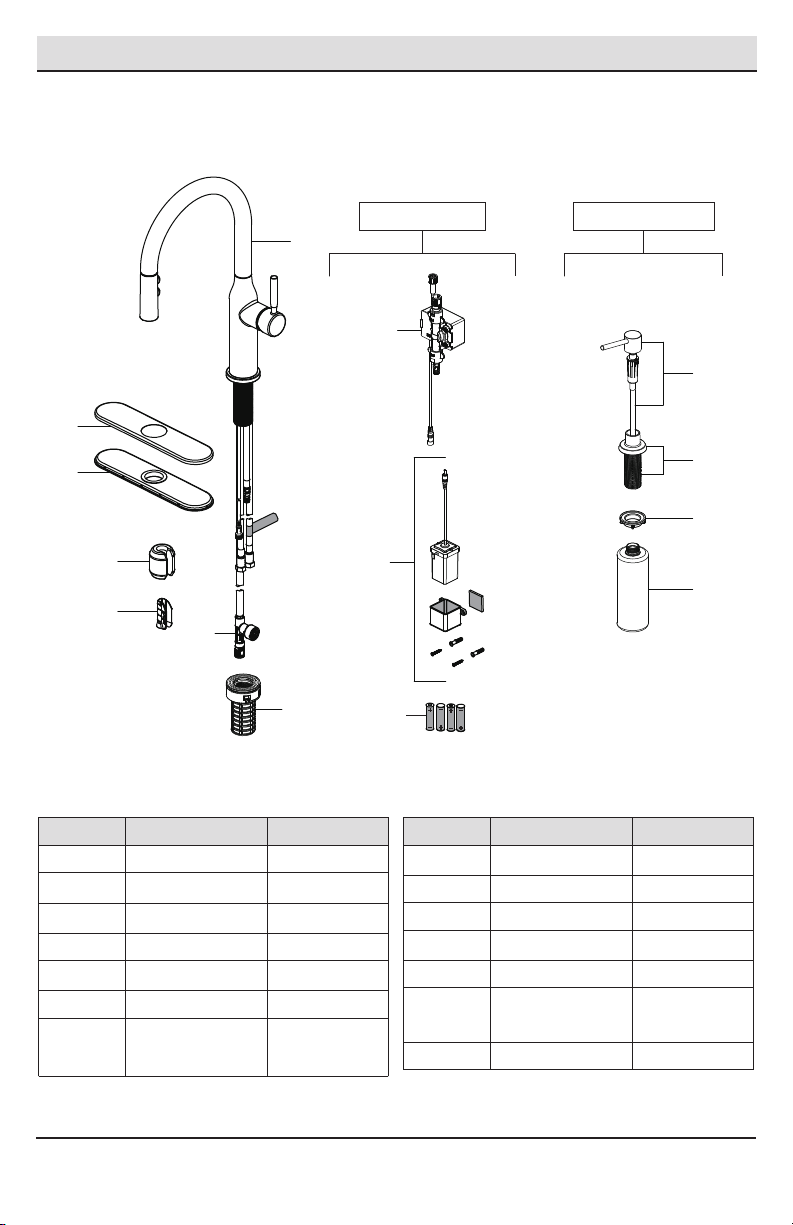

PACKAGE CONTENTS
Part Description Quantity
A 1Faucet body
B 1FastMount™
DGasket 1
C Escutcheon 1
FWeight clip 1
Part Description Quantity
EWeight 1
GQuick connect
assembly 1
H 1
I Battery pack 1
Sensor control box
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
K 1
LSoap assembly 1
Soap pump
M 1
NSoap bottle 1
Soap dispenser
mounting nut
J"AA" Battery 4
Sensor Control Box Soap Pump Assembly
N
M
L
K
I
J
H
A
B
C
D
E
F
G

4
Installation
1
2a 2b
Preparing for installation

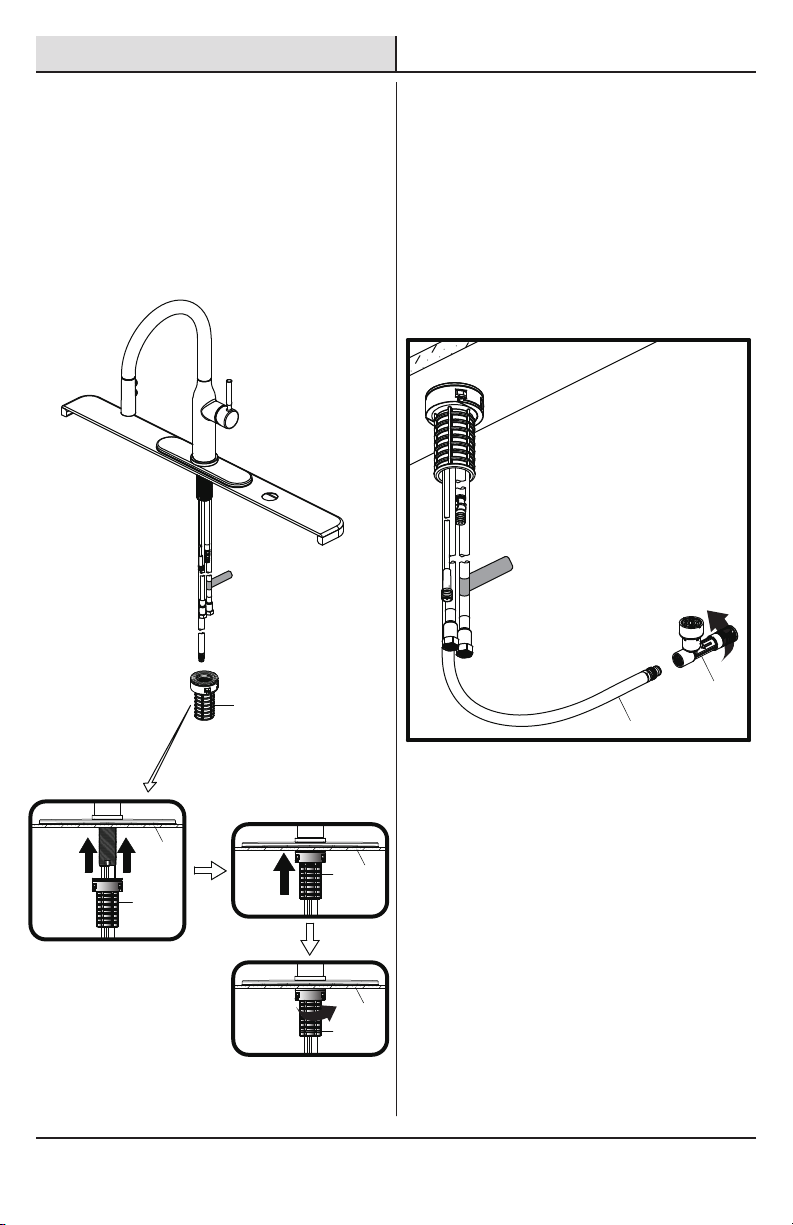

2 Installing the faucet assembly
□
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
NOTE: This step is for no escutcheon installation (optional).
□Place the escutcheon (C) and gasket (D) on the
holes in the sink.
NOTE: This step is for escutcheon installation (optional).
A silicone is required under the gasket (D).
□Install the faucet body (A)-including supply
hoses and sensor cable (1)-through the hole
in the escutcheon (C).
□Shut off the water supply. Remove the old
faucet. Clean the mounting surface.
□Before installation, remove the quick connector (G)
from the free end of the hose by unscrewing it in
a counterclockwise direction.
1
G
Install the faucet body (A)-including supply
hoses and sensor cable (1)-through the hole
in the sink.
A
1
A
C
D
SILICONE
1

4 Attaching the quick connector
to the hose
□Pull out the hose (1) from the threaded
mounting shank.
□Attach the quick connector (G) by screwing it
onto the threaded end of the hose (1) in a
clockwise motion. Hand tighten only.
5
Installation (continued)
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
3 Securing the faucet assembly
□From underneath the sink, secure the faucet
assembly to the sink with the FastMount™
system (B). Push the FastMount™ system (B)
up over the threads until it stops against the
bottom of the sink, then hand turn (clockwise)
to tighten (Fig 1).
Sink
Push
up
Fig 1
B
11 Push
up B
B
2Sink
Screw Sink
3
B
1
G

6
Installation (continued)
NOTE: The side of the control box (H) with "in" and "out"
showing must face the front of the cabinet (away from the
back of the cabinet).

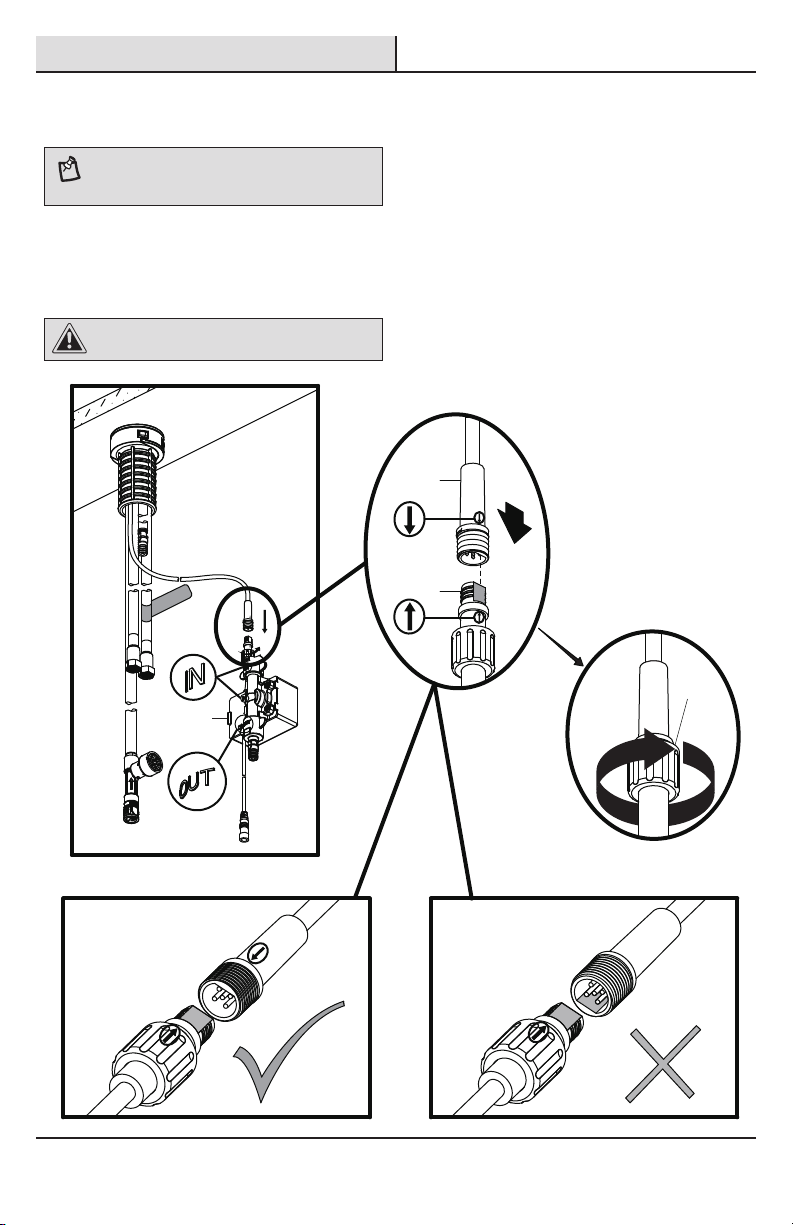

5Installing the sensor cable
□Install the data cable (1) to the control box connection (2). Ensure the arrows on the data cable and control
box connection are aligned to one another to ensure proper installation. Ensure they are tightly connected
by rmly pushing together.
□Secure the connection by hand tightening the nut (3) in a clockwise direction onto the threaded sensor cable.
CAUTION: If the connections are not made properly, the
sensor feature will not work.
3
1
1
2
2
H

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
7
Installation (continued)

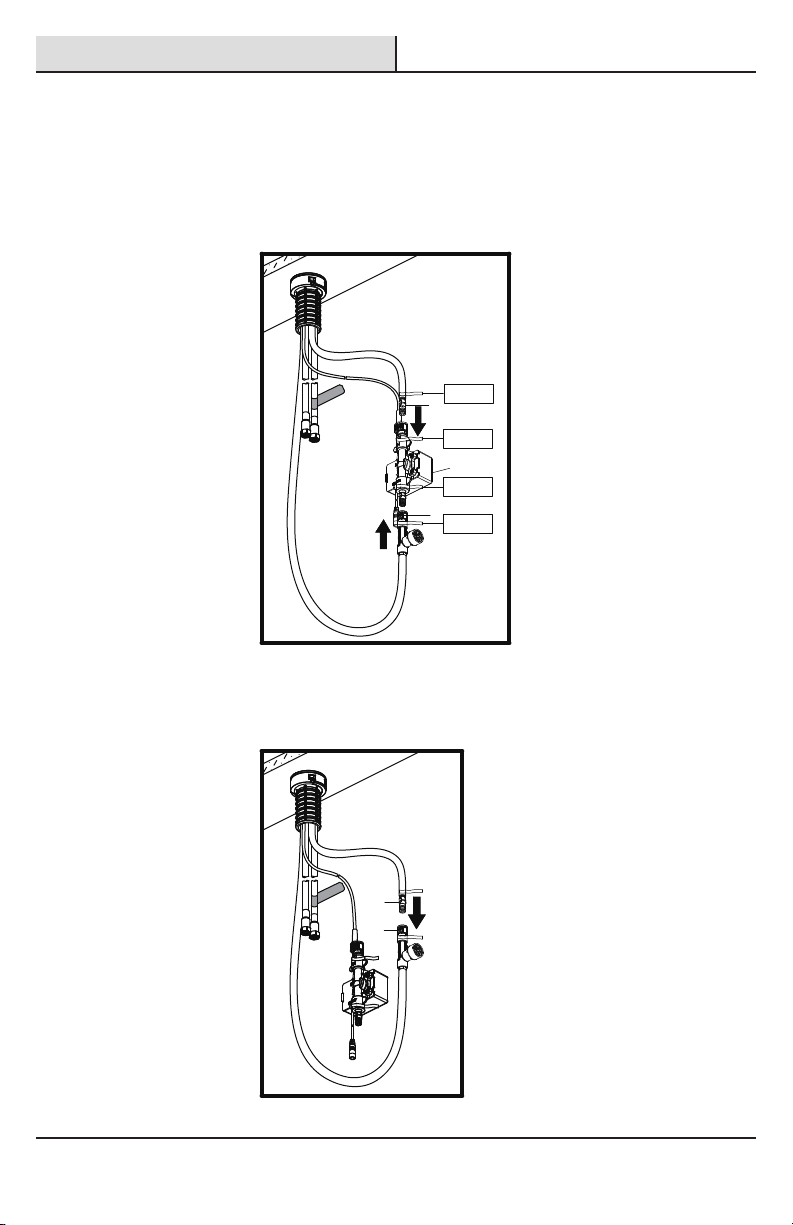

□Connect the hose with the yellow tag to the hose on the control box (H) with a matching yellow tag. Push
rmly together until they snap into place. As shown in the Fig 1.
□Connect the hose with the green tag to the hose on the control box (H) with a matching green tag. Push
rmly together until they snap into place. As shown in the Fig 1.
6Attaching the quick connector
to the receiving block
Fig 1
Fig 2
□OPTIONAL: If you want to use the faucet without the sensor feature or without power, you can attach the
quick connector (1) to the receiving block (2). This bypasses the sensor feature and enables the faucet
to work by operating the handle. As shown in the Fig 2.
Yellow
Green
Green
Yellow
H
1
2
2
1

8
Installation (continued)
7Installing the batteries
□To open the battery housing, squeeze the sides while pulling the cover (1). DO NOT pull on the wire.
See gure 1.
□Install the four AA batteries (J) included by matching the positive (+) and Negative (-) ends on the battery (J)
to the (+) and (-) markings in the battery pack (I). The negative ends of the battery (J) should always
connect to the spring end of the battery slots in the battery pack (I). See gure 2.
□Reinstall the battery pack cover (1) by pushing up and snapping into place. See gure 3.
NOTE: When the sensor ashes 10 times continuously
and slowly, the batteries have lost their charge. Replace
the batteries (J).
NOTE: This step is for batteries installation (optional). If the
batteries will not be used, install as described in step 10.
Figure 1 Figure 2 Figure 3
I
(+)
(-)
I
1
(-)
1
(+)
(-)
J
I
J
I
I

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
9
Installation (continued)
8Installation using the battery
pack
NOTE: This step is for battery installation (optional). If the
battery will not be used, install as described in step 10.
NOTE: After installing the battery pack, the light on the
sensor will ash and the faucet will sound when you move
your hand in the sensor area. If not, check to ensure the
batteries are installed correctly.
□Insert the battery pack cable (1) into the control box connection (2).
The light
will ash
The faucet
will sound
2
1

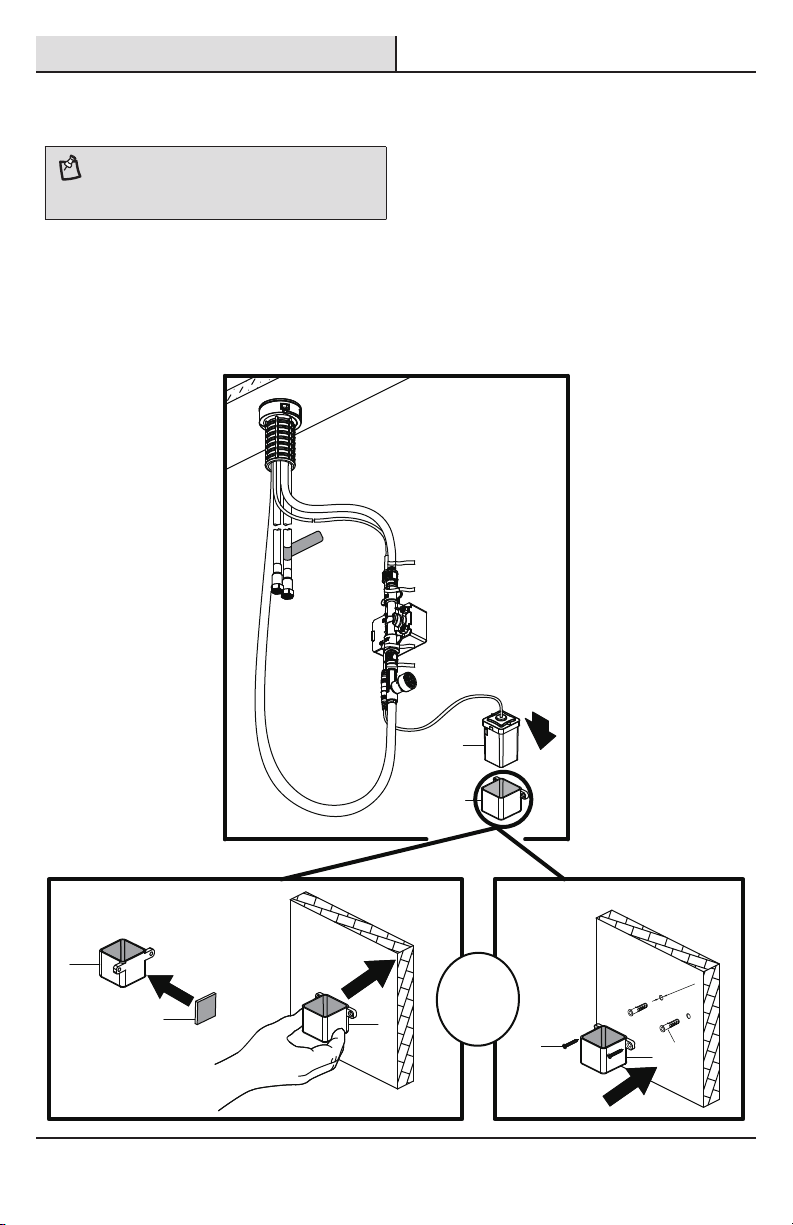

9Placing the battery pack into
the battery pack seat
□There are 2 options to secure the battery pack (I) under the counter: Tape Installation or Screw Installation.
□Screw Installation: Drill holes in the wall using a 6mm (15/64”) diamater drill bit. Install the battery pack
seat (1) using the molly anchors (3) and screws (4) provided. Place the battery pack (I) into the battery
pack seat (1).
□Tape Installation: Attach one side of the double sided tape (2) to the battery pack seat (1). Firmly attach the
battery pack seat (1) to the cabinet wall. Place the battery pack (I) into the battery pack seat (1).
NOTE: This step is for battery installation (optional). If the
batteries will not be used, skip to step 10. Before installation,
select the location for the battery pack seat (1) and verify
that the battery pack (I) will reach battery pack seat (1).
Installation (continued)
10
Screw Installation
(15/64") dia.
1
43
6mm
1
OR
Tape Installation
2
1
1
1
2
I3
1

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)
11
10Installation using the AC
adapter (not included)
NOTE: This step is for installation without batteries using
an AC adapter (not included). If using the batteries, install
as instructed in step 7 and skip to step 11. The AC adapter
is not included with the product, but can be purchased from
Homedepot.com.
□Install the AC adapter (3) into the power outlet.
□Insert the AC adapter cable (1) into the control box port (2).
NOTE: After installing the AC adapter, the light on the
sensor will ash and the faucet will sound when you move
your hand in the sensor area. If not, check if the
connections are made properly.
The light
will ash
The faucet
will sound
3
2
1

12
Installation (continued)

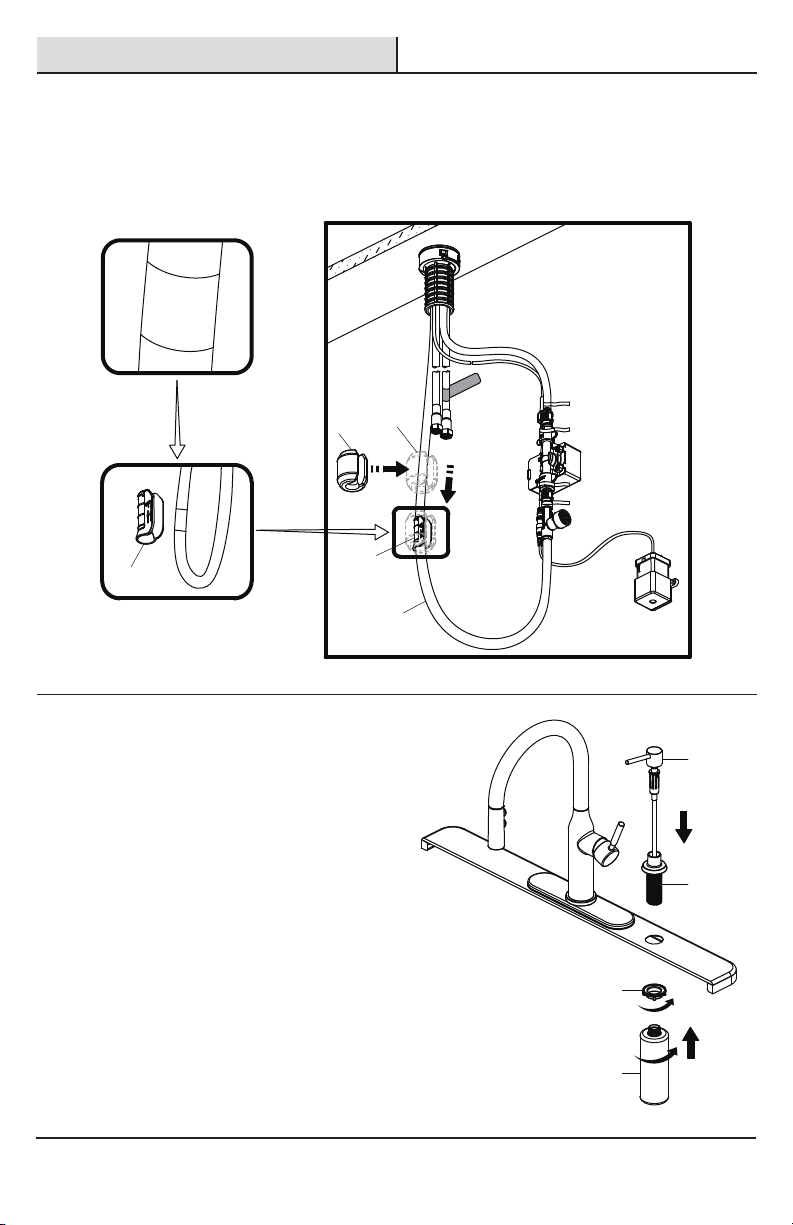

11Installing the weight
□Install the weight clip (F) at the point of the hose (1) marking “weight here”.
□Insert the weight (E) onto the clip (F) by sliding it down onto the clip (F).
E
Weight
here
Weight
here
F
E
F
1
12 Installing the soap dispenser
□Insert the soap assembly (L) through the
selected hole in the sink. Secure the soap
assembly to the sink with the soap
dispenser mounting nut (M) provided.
□From under the sink, screw the soap bottle (N)
onto the soap assembly (L) shank. Insert the
soap pump (K) down into the soap assembly (L).
N
M
L
K

Installation (continued)
13 HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.

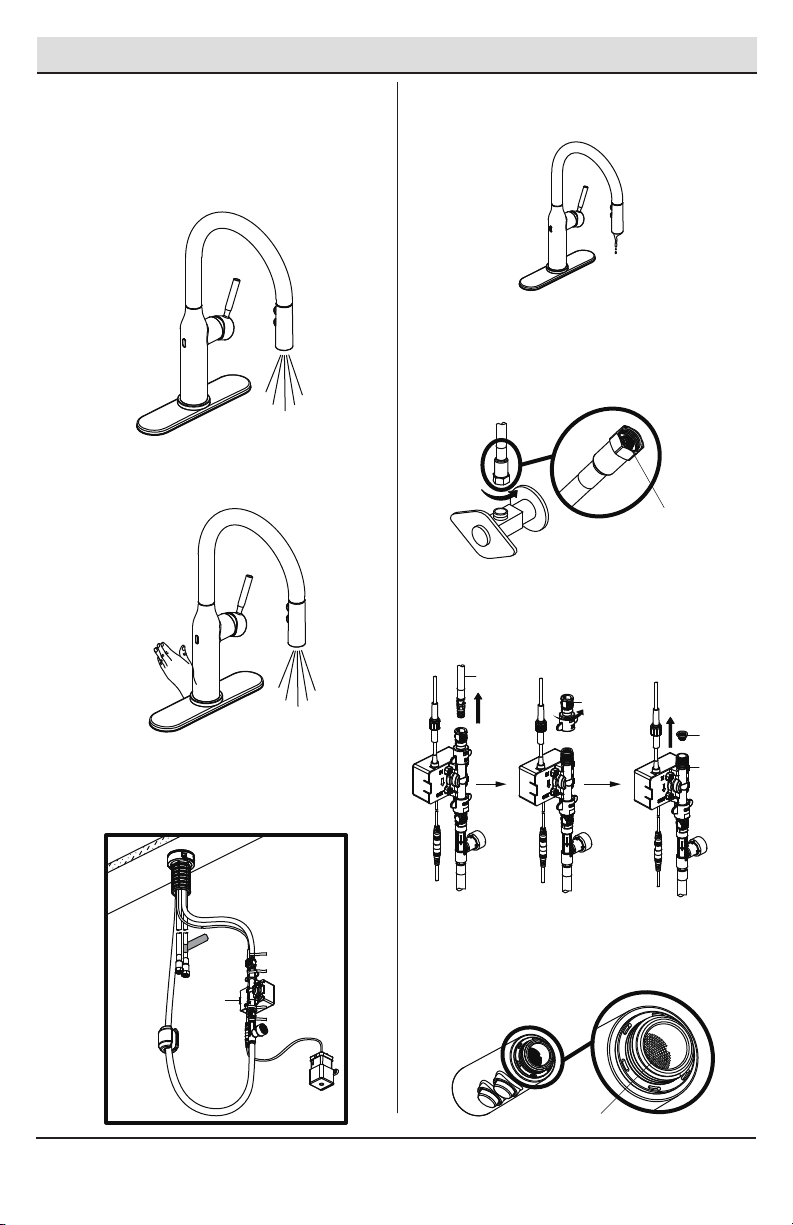

1Flushing and checking for leaks
□Pull the hose assembly out of the spout and
remove the spray head by unscrewing it from
the hose in a counterclockwise direction. Be
sure to hold the end of the hose down into the
sink and turn the faucet to the warm position
where it mixes hot and cold water.
□Flush the water lines for one minute. This ushes
away any debris that could cause damage to
internal parts. Check for leaks.
□Re-tighten any connections if necessary, but do
not overtighten. Reinstall the spray head by hand
tightening it back onto the spray hose in a
clockwise direction.

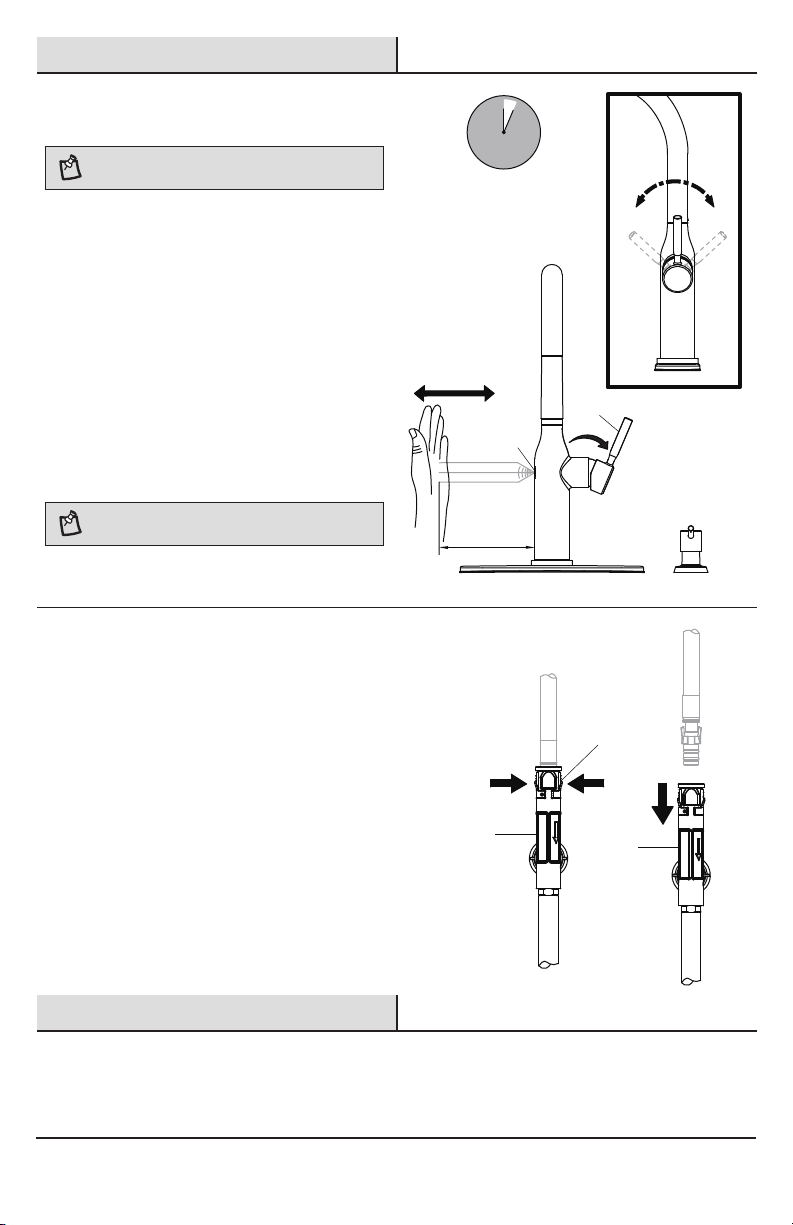

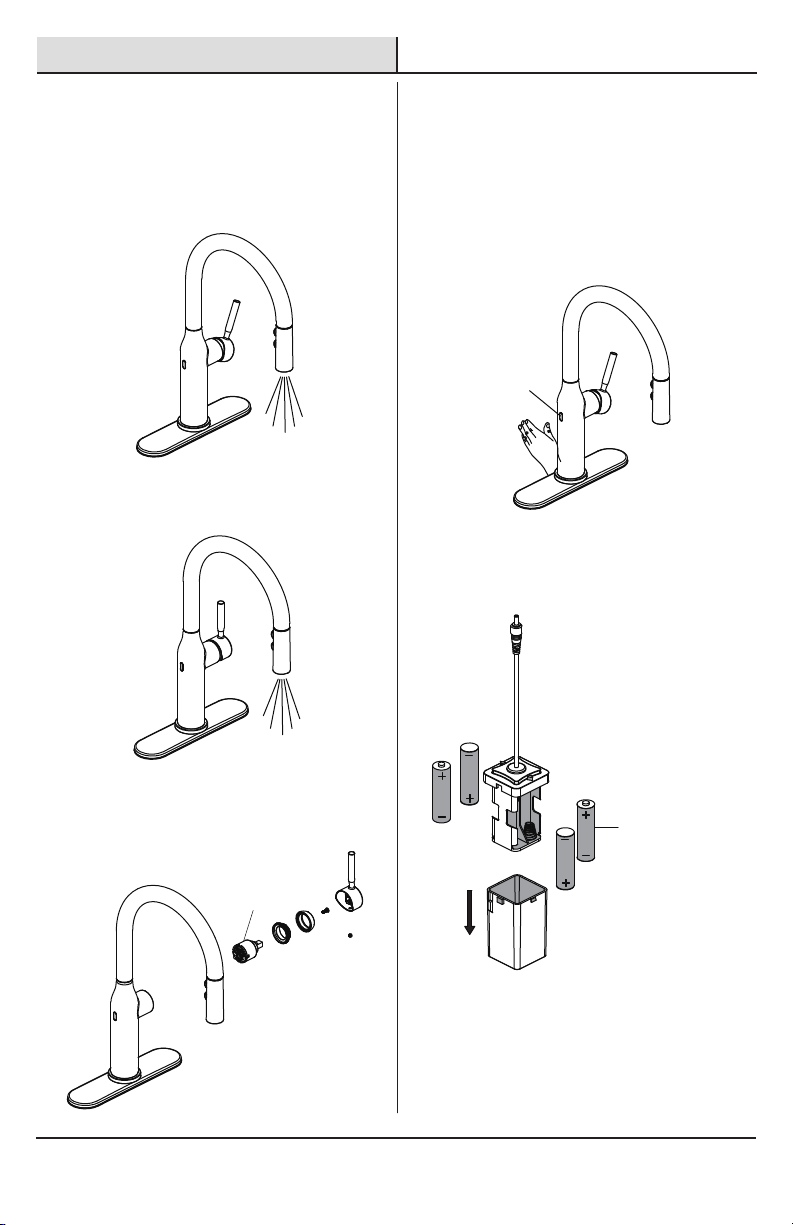

Operation
IMPORTANT: After installation is completed, turn on the
hot and cold water supplies. Check for leaks. Do not lose
the gasket (1) in the hose.
15
0
30
45
1
min.
13 Making the water supply
connections
□Thread the nut (1) on the supply line onto the
outlet of the water supply valve (2) and tighten
with a wrench. Do not overtighten.
NOTE: The hot side inlet tube is indicated by a label. Avoid
twisting wires together or placing the wires close to each
other and damaging.
2
1
1

14
Operation (continued)
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
3Removing the quick connector
(not required)
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect.
Squeeze Pull
down
2Operating the sensor
□Turn the handle (1) away from the faucet to the
full on position. Turn the water on by activating
the sensor (2) by waving your hand within
8 inches of the sensor.
□Move handle towards you and away from you,
the water ow pattern can be switched from
the cold water to hot water.
□If the sensor does not work, then you can refer
to the troubleshooting. If you want to use the
faucet without the sensor feature, then you
can refer to step 6. Then, turning on the water
can be done by moving the handle away from
the faucet to the full on position.
NOTE: The sensor is active only when the handle is in the
ON position.
NOTE: As a water saving feature, the water will turn off
automatically after 3 minutes of continuous ow.
min.
45
30
0
15
3
8 in. Max
Cold Hot
2
1
2
11

15
Troubleshooting
1Water will not shut off when
turning the handle to the OFF
position
□When you turn the handle to the full on position,
the water will turn on.
□But when you turn the handle to the full off
position, the water does not turn off.
□This indicates that the cartridge is damaged.
Turn off the water supply, remove the handle
and replace the cartridge (1).
2The light on the sensor is
flashing continuously
□If the handle is closed, turn the handle to the
on position and move your hand in the sensor
area. If the sensor ashes 10 times continuously
and slowly, then replace the 4 "AA" batteries.
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
Replace the batteries
Flash 10 times
continuously
and slowly
1

16
Troubleshooting (continued)
4There is a low flow of water
□This could indicate that the screen lter in the
hose connectors is dirty. Turn off the water
supply at angle stop and unscrew the hose
connectors from water supply lines. Clean the
screen lter in the hose connectors under
running water.
□Or the washer in the "in" end of the control box
is dirty or damaged. Remove the hose and
unscrew the connector. Take out the washer
from the control box. Clear the washer or replace
the washer. Reassemble the connector and hose.
□Or the screen lter in the spray head is dirty. Turn
off the water supply at angle stop and unscrew
the spray head from spray hose. Clean the screen
lter in the spray head under running water.
3The sensor is not activating
the water flow
□When you turn the handle to the full on position,
the water will turn on.
□However, when you move your hand in front
of the sensor, the water does not turn off as
it should.
□This indicates that the control box is damaged.
Call Glacier Bay customer service to request
a replacement control box. Replace the old
control box with the new control box.
Hose
Connector
Control
box
Washer
Screen lter
Screen lter
H

17
Service Parts
Part Description Part Number
1 RP38404*
2 O-ring RP60006
3 Wearable ring RP64092
5Bonnet nut RP70533
6 Cap RP80028*
7 Handle assembly RP13632*
8 Escutcheon RP80667*
Spray head and Hose
11 O-ring RP60002
Part Description Part Number
12 Quick connect
assembly RP70663
13 O-ring RP60089
14 Weight clip RP70609
15 Weight RP70525
16 FastMount™ RP56096
4 Cartridge & Screw RP20094
9 Gasket RP80675
10 Block RP70421
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can
be found on the
hot water inlet
21 Sensor control box RP70655
22 Battery pack RP70514
17 Pump kit RP46022
18 Flange kit RP46041*
19 Soap bottle RP46024
20 Soap dispenser kit RP46082*
1
2
3
4
56
7
10
11
12
13
14
15
16
8
9
21
17
18 20
22
19

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
Retain this manual for future use.

GRACIAS
GUÍA DE USO Y MANTENIMIENTO
¿Problemas, preguntas o piezas faltantes?
Antes de regresar a la tienda, llama al servicio al cliente de
Glacier Bay de lunes a viernes entre 8 a.m. y 7 p.m. y los
sábados entre 9 a.m. y 6 p.m.(hora estándar del Este)
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
GRIFO RETRÁCTIL PARA COCINA
Agradecemos la con anza que has depositado en Glacier Bay al comprar este grifo para cocina. Nos esforzamos
por crear continuamente productos de calidad diseñados para mejorar tu hogar. Visítanos en Internet para ver
nuestra línea completa de productos disponibles para las necesidades de mejoras de tu hogar. ¡Gracias por
elegir a Glacier Bay!
Internet núm.
305764886
305764851
Modelo núm.
HD67857-0001
HD67857-0008D2
SKU núm.
1003341097
1003341108

Llave
ajustable
Gafas de
seguridad
Destornillador
Phillips
SILICONE
Sellador de
silicona
Taladro
eléctrico de
6 mm de
diámetro
Pinzas
ajustables
20
Información importante
□ Cumple con todos los códigos locales de construcción y de plomería.
□ Cubre el drenaje del lavabo para evitar que se pierda alguna pieza.
□ Consulta la sección de mantenimiento y limpieza incluida en esta guía.
HERRAMIENTAS Y HERRAJES NECESARIOS
Tabla de contenido
Información importante .........................20
Garantía...................................................20
Pre-instalación .......................................20
.............20
Herramientas y herrajes necesarios....20
Contenido del paquete.........................21
Instalación ..............................................22
Funcionamiento......................................31
Cuidado y limpieza ................................32
Piezas de repuesto ................................35
Planicación de la instalación Solución de problemas...........................33
Pre-instalación
PLANIFICACIÓN DE LA INSTALACIÓN
Antes de comenzar la instalación de este producto, asegúrate de que no falta ninguna pieza. Compara las piezas
con la lista de Contenido del paquete. Si falta alguna pieza o está dañada, no intentes instalar el producto.
Comunícate con el servicio al cliente para piezas de repuesto.
Garantía
GARANTÍA DE POR VIDA LIMITADA
Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respaldados
por nuestra garantía de por vida limitada. Los productos de Glacier Bay están garantizados al comprador consumidor
original de estar libres de defectos en materiales o mano de obra. Reemplazaremos LIBRE DE CARGOS cualquier
producto o pieza que se demuestre está defectuosa. El mecanismo del sensor y las luces LED están excluidos de la
garantía limitada de por vida y están cubiertos por una garantía de 3 años desde el momento de la compra.
Símplemente, devuelva el producto a cualquiera de las ubicaciones de venta al detalle de The Home Depot o llame
al 1-855-HD-GLACIER (1-855-434-5224) para recibir el artículo de reemplazo. La prueba de compra (recibo de venta
original) del comprador consumidor original debe estar disponible para todos los reclamos de garantía de Glacier Bay.
Esta garantía excluye daños y fallos incidentales/consecuenciales debido al mal uso, abuso o desgaste normal por
el uso. Esta garantía excluye todos los usos industriales, comerciales y de negocios, a cuyos compradores por la
presente, se les ha ampliado una garantía limitada de cinco años a partir de la fecha de compra, con todos los otros
artículos de esta garantía que aplican excepto la duración de la garantía.
Algunos estados y provincias no permiten la exclusión o la limitación de los daños incidentales o consecuenciales,
por lo tanto, las limitaciones y exclusiones anteriores podrían no aplicar a usted. Esta garantía le otorga derechos
legales especícos y también puede tener otros derechos que varían de un estado a otro. Por favor, vaya a una
tienda o llame al 1-855-HD-GLACIER para más detalles.
Póngase en contacto con el Equipo de Servicio al Cliente llamando al 1-855-434-5224 o visite www.HomeDepot.com.
