Welcome to Ridgeline T600
Rugged and ready to Go
Congratulations on your purchase of the RIDGELINE T600 Rugged
Tablet PC. This product combines rugged design with reliable perfor-
mance and powerful functionality to best suit all your needs, in a wide
range of working conditions.
This user manual outlines everything you need to know to set up and use your
RIDGELINE T600. If you have any further questions or queries, contact our technical
support team at 603.882.1560; Email us at [email protected]m or via live
chat from our website: www.glaciercomputer.com
Symbols Used in this Manual
Denotes information that must be observed; failure to do so may result in
personal harm or damage to the product.
Denotes useful information to help you get the most out of the product.
Product Features
Rugged design, up to military standard (MIL-STD-810F)
Low power CPU
Durable, shock-resistant magnesium alloy housing
Built-in WLAN/Bluetooth/GPS functions (Factory Option)
IP65 compliant & built to withstand a 3 foot drop
VIA Eden 1GHz processor
10.4” SVGA / XGA TFT LCD
I/O ports for expansion

©2007-2008 Glacier Computer, LLC 0-20-00003 4-22-2009
10
Welcome to RIDGELINE T600
Package Contents
Ensure all the following items are present when you receive your RIDGELINE T600.
If any of these items are missing, contact your vendor immediately.
RIDGELINE T600 Tablet PC
AC power adaptor
Power cord
Battery
Stylus
A note about the Graphics used in this
Manual
The screen shots used in this manual are for illustrative purposes only.
These may vary based on your product or software version.

©2007-2008 Glacier Computer, LLC 0-20-00003 4-22-2009
11
Welcome to RIDGELINE T600
Exploring the Ridgeline T600
Get a fresh perspective
Front View
10

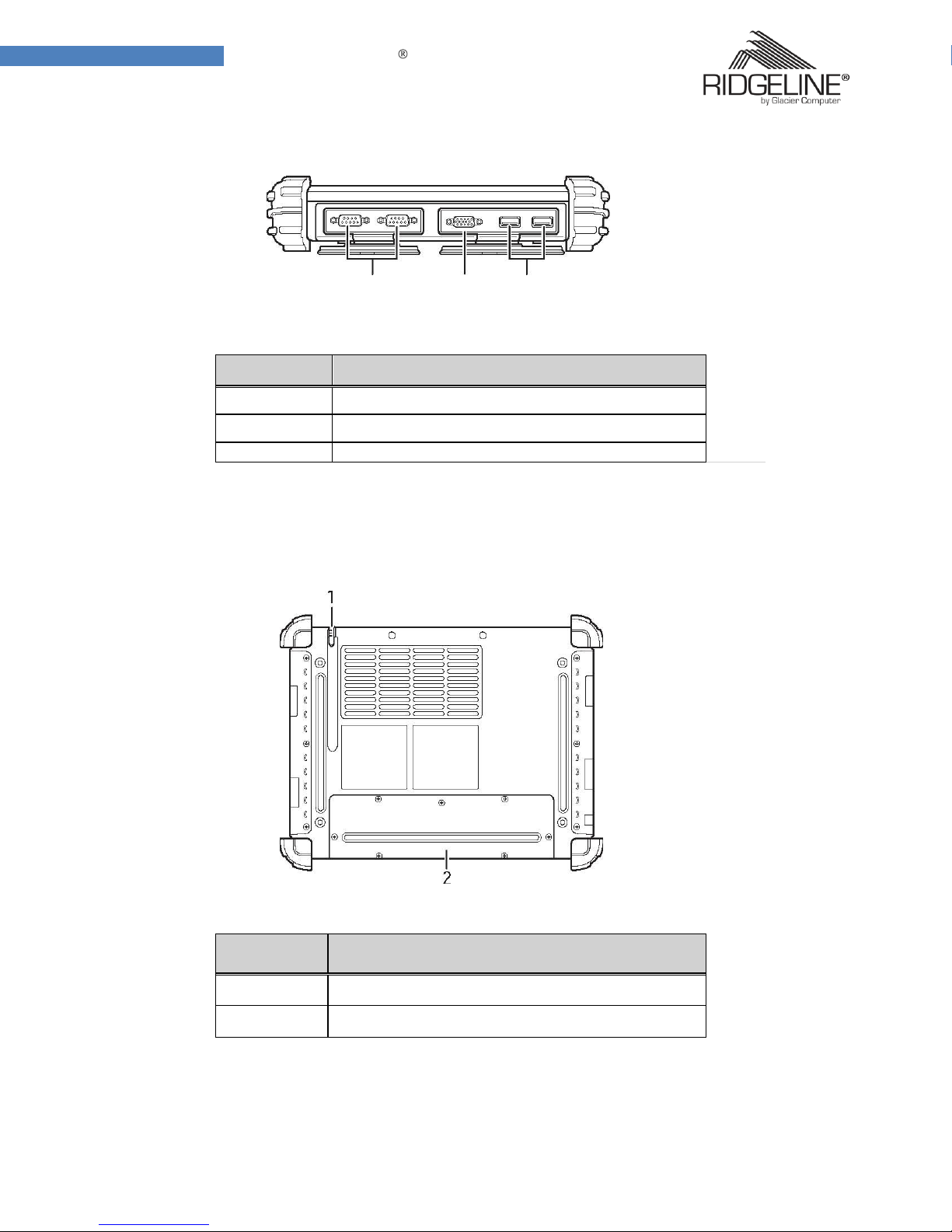

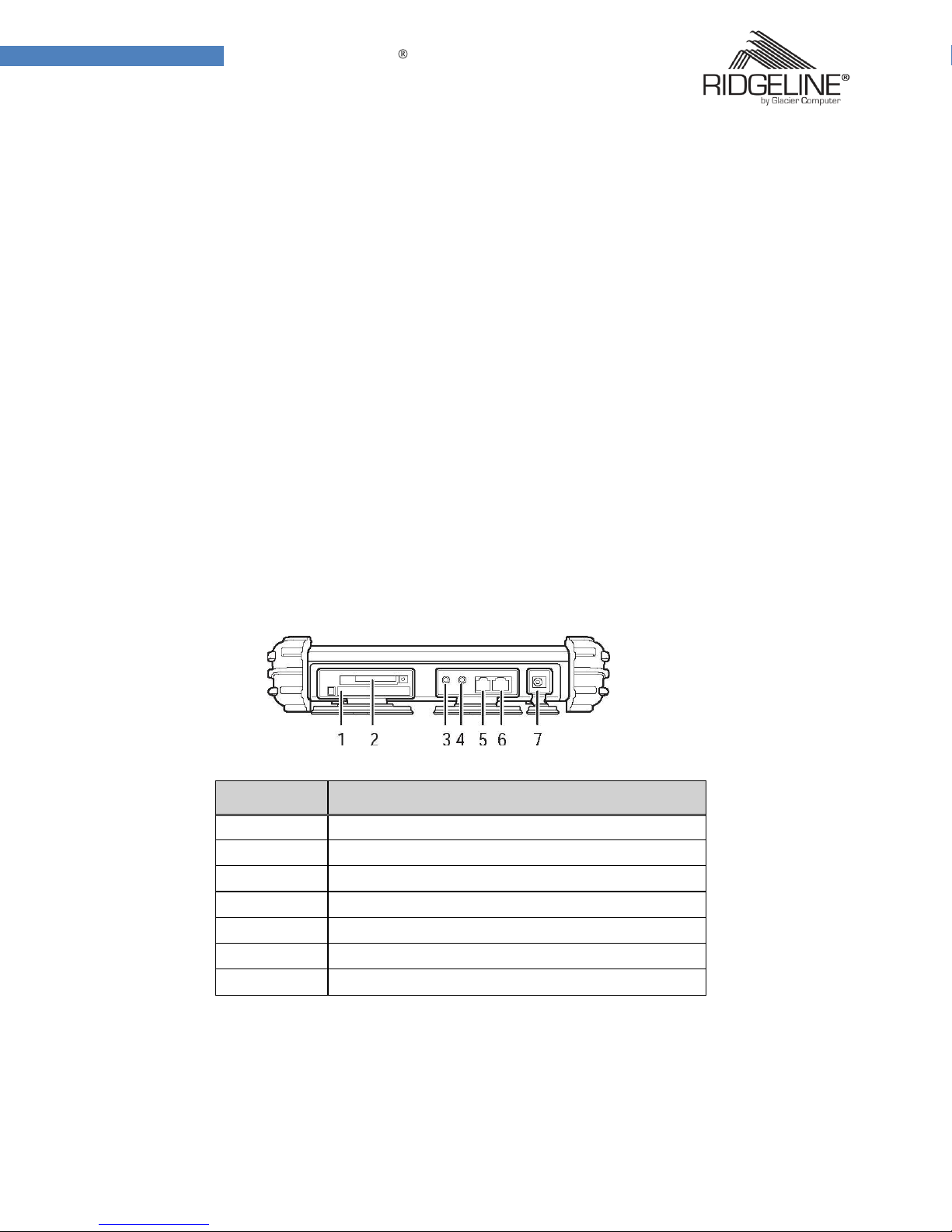

No.
Component
1
Microphone
2
Touch-sensitive display (responds to stylus or finger)
3
Power button
4
Number / Tab / Esc buttons
5
4-Way navigation button with integrated enter button
6
Function buttons
7
Brightness / volume button
8
Keyboard button
9
Status LEDs: (see below for details)
10
Speakers

©2007-2008 Glacier Computer, LLC 0-20-00003 4-22-2009
12
Welcome to RIDGELINE T600
Status LEDs:
Battery charge LED:
Off: power off
Solid Green: green light is on when charging in power-off mode, light is off when done
charging.
Blinking Green: AC power on; battery is charging in power-on mode.
Solid Yellow: power on, battery low
Blinking Yellow: power on, battery critical low
HDD activity LED:
Green when HDD is accessed
WLAN connection status LED:
Off: No RF signal / No LAN connection
Solid Green: WLAN Activated
Blinking green: TX/RX Transmission
Left View
No.
Component
1
PC card slot (PCMCIA)
2
Compact Flash card slot
3
Headphone jack
4
Microphone jack
5
Telephone line jack
6
RJ45 jack (for network cables)
7
DC-in jack

©2007-2008 Glacier Computer, LLC 0-20-00003 4-22-2009
13
Welcome to RIDGELINE T600
Right View
Rear View
No.
Component
1
Stylus
2
Battery compartment cover
No.
Component
1
Serial ports
2
VGA port
3
USB ports
1 2 3

©2007-2008 Glacier Computer, LLC 0-20-00003 4-22-2009
14
Welcome to RIDGELINE T600
1

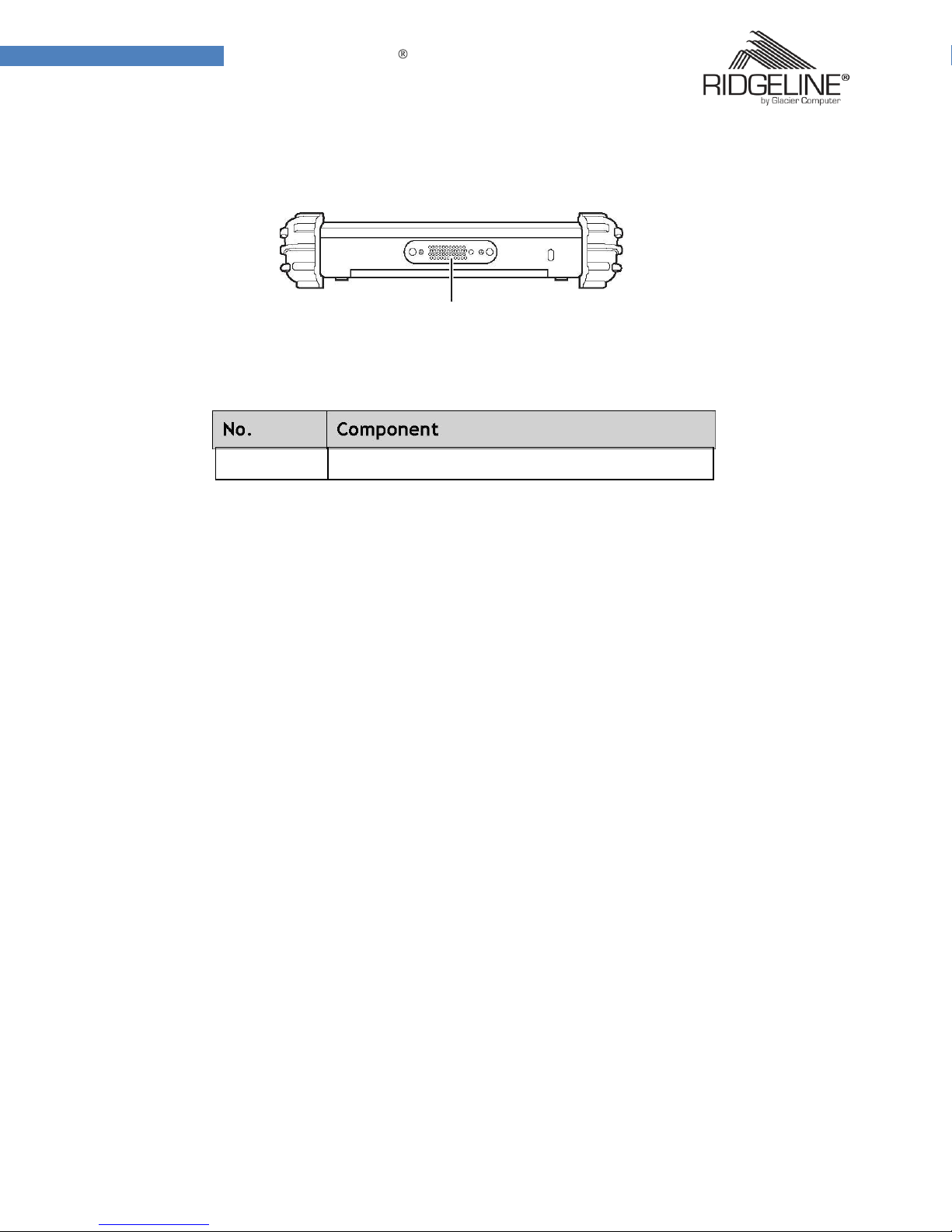

Bottom View
1
Docking Connecter

©2007-2008 Glacier Computer, LLC 0-20-00003 4-22-2009
15
Welcome to RIDGELINE T600
Getting Started
The Basics
Inserting and Removing the Battery
Insert the battery as shown, and secure the battery
compartment door with the seven screws provided.
Note: The arrow markings on the battery indicate the direction in which it
should be inserted.
Repeat the above steps in reverse to remove the battery.
Connecting the Power
Before you can use your RIDGELINE T600, you must fully charge the battery. Connect
the power adapter as shown and allow it to charge for a minimum of 4 hours before
use.

©2007-2008 Glacier Computer, LLC 0-20-00003 4-22-2009
16
Welcome to RIDGELINE T600
Turning on your RIDGELINE T600
Completing the initial set up
Press and hold the Power button to turn on your RIDGELINE T600 tablet. When you
first turn the unit on the following setup screens will appear. Follow these instructions
to validate your version of Windows XP and set up your system correctly.
The Welcome screen appears.
Tap ‘Next’to continue.
Tap ‘Yes, I accept’to agree to the terms and
conditions.
Tap ‘Next’to continue.
Enter the 25-digit product-key to validate your copy
of Windows.
Tap ‘Next’to continue.
Enter a name to identify your RIDGELINE T600.
This is the name it will be recognized by on all
connected networks. You can also enter a
description if required.
Tap ‘Next’to continue.

©2007-2008 Glacier Computer, LLC 0-20-00003 4-22-2009
17
Welcome to RIDGELINE T600
Enter an administrator password and re-
confirm.
Tap ‘Next’to continue.
Choose whether or not to make the RIDGELINE
T600 part of a domain. If so, enter the domain
name (ask your system administrator for
details).
Tap ‘Next’to continue.
Choose whether or not to activate your copy of
Windows immediately or at a later date (we
recommend you activate the software
immediately).
Tap ‘Next’to continue.
You can now configure your internet
connection. Tap ‘Yes, help me connect to the
Internet’to run the Internet Configuration
Wizard.
Tap ‘Next’to continue.

©2007-2008 Glacier Computer, LLC 0-20-00003 4-22-2009
18
Welcome to RIDGELINE T600

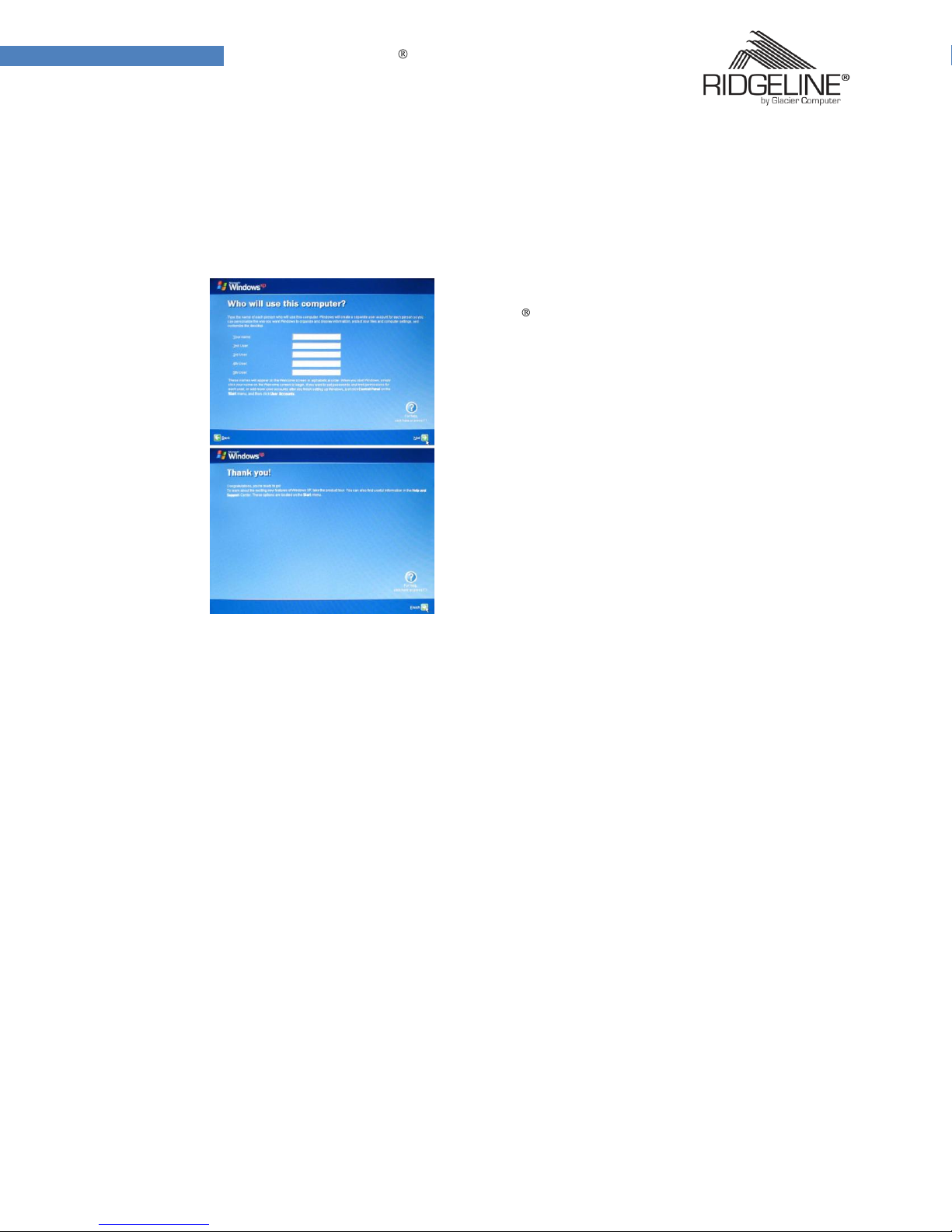

Enter the names of other users of your
RIDGELINE T600. You can add up to five users.
Tap ‘Next’ to continue.
Tap ‘Finish’to complete the setup.

©2007-2008 Glacier Computer, LLC 0-20-00003 4-22-2009
19
Welcome to RIDGELINE T600
Recovery Procedures
In the unlikely event…
Recovering from a System Crash
If your RIDGELINE T600 should crash, please follow these basic steps.
Press the power button to turn on the RIDGELINE T600.
During boot-up, “PRESS UP KEY TO RUN RESTORE...”is displayed. Press the up arrow
button.
The recovery software screen appears with the message ‘Are you sure you want to
recover the partition now?’ Press Enter to confirm. The recovery operation starts.
Should you have any further problems, contact technical support for assistance.
CF Recovery Procedure
If you are using the Compact Flash memory card for data storage, your
RIDGELINE T600 will follow the CF recovery procedures to reboot your
system.
Use these steps to perform a recovery using a
USB flash drive.
Download the ‘FORMATUPD.EXE’ file to your local drive (C:\).
Connect a USB flash drive to your
computer.
Click Start > Run and type ‘cmd’in
the command box.

©2007-2008 Glacier Computer, LLC 0-20-00003 4-22-2009
20
Welcome to RIDGELINE T600
Type ‘cd\’and press ‘Enter’.
Type FORMATUFD F: /y
Copy the files from the CD
Recover folder on your local
drive to the USB flash drive.
Connect the USB flash drive to your RIDGELINE T600 and turn on the computer.
Press the ‘Del’ key repeatedly while booting up the RIDGELINE T600 to enter the BIOS
screen.
Highlight ‘Advanced BIOS Features’and press ‘Enter.’
Highlight ‘Hard Disk Boot Priority’and press ‘Enter.’
Highlight your USB flash drive from the list and press +to move it up until it is at the top
of the list.
Press ‘Esc’to exit the screen.
Highlight ‘Save & Exit Setup’and press ‘Enter.’
Press Yto save and exit when the confirmation message
appears.
The system will now enter
recovery mode. Click ’OK’
twice to continue.
Once the process is complete, click ‘Quit,’remove the USB
flash drive and the system will restart automatically.
