GlammFire Crea7ion Plus User manual

INSTRUCTION MANUAL
Crea7ionEvo Plus Fire Round

GlammFire. PAG./2
Thank you for purchasing a GlammFire product.
In order to activate your 2-year GlammFire warranty, please register your GlammFire product at
www.glammfire.com/pt/sobre/garantia or complete your warranty card and send it to us along with a
purchase copy, to our address, within 30 days after the purchase.
For more information please check the Warranty chapter.

GlammFire. PAG./3
ÍNDICE
1—Material Supplied 4
2—Components 4
3—Safety Instructions 5
3.1—Ventilation 5
3.2—Cautions 5
4—Fuel 7
4.1—Bioetanol –The adequate fuel 7
5—Installation 8
5.1—Flammable material 8
5.2—Materials: stone/metal/ceramics 8
5.3—Other non-flammable materials 8
5.4—Dimensions 9
5.5—Installation Procedures 11
5.6—Filling system 18
5.6.1—Local filling system 18
5.6.2—Displaced filling system (Option) 21
5.7—Home Automation 24
6—Operation Instructions 28
6.1—Functions—Buttons 28
6.2—Language Selection 30
6.3—Remote Control synchronization 30
6.4—Turn on 31
6.5—Out of fuel 32
6.6—Turn off 33
6.7—Fuel reserve 33
7—Security Systems 34
7.1—Leak detection system 34
7.2—Vibration Sensor 34
7.3—Tank door locking system 35
7.4—Smothering the combustion fire zone 35
7.5—Failed components 35
8—Display Messages 36
9—Maintenance 41
10—Overall Dimensions 41
11—Specifications 42
12—After-Sales Service 42
13—Warranty 42

2
2—Componentes
1. Control panel;
2. Combustion area;
3. Protective glass;
4. Fuel Fill control
1—Material Fornecido
1. Burner;
2. Remote control;
3. Tubular glass
4. Metalic handle
5. Battery charger
6. Local filling system kit
7. Displaced filling system kit (Optional)
8. Ring
9. Cleaning brush
4.
2.
1.
5. 6.
7. 8. 9.
3.
1
3
4
Please read this Instruction Manual carefully before using your decorative fireplace. It contains important operating
and maintenance instructions, that should be followed correctly, in order to ensure a durable use of your decorative
fireplace.
All presented cautions and warnings must be respected.
Keep this manual for future reference.
This Instruction Manual is subject to change without notice.

GlammFire. PAG./5
3—Safety Instructions
3.1—Ventilation
It is recommended that you keep a good ventilation of the area, in order to ensure a healthy level of oxygen.
Biothanol combustion releases carbon dioxide (CO2) and water (H2O). The combustion requires oxygen, therefore the
area where the fireplace is should have adequate ventilation with ventilation grids or other means, to allow air quality
and circulation.
3.2—Cautions:
GlammFire is concerned about your safety, therefore we have taken all necessary consideration for conception, fabri-
cation, assembly and transport, to ensure perfect functioning.
We therefore ask you to thoroughly follow our instructions for assembly, use and maintenance.
 Do not cover your decorative fireplace;
 Keep it away from flames, ignition sources, and flammable materials;
 Never use a manual lighter to ignite the fireplace.
 Do not place the fireplace near windows or doors that can create drafts. These drafts may cause irregular function-
ing;
 Do not blow to the combustion fire area when igniting or during normal functioning of the fireplace;
 Keep a regular watch, during use of the fireplace;
 Keep children and animals away from the fireplace. Children do not recognize danger. Therefore make sure children
are kept at a safe distance;
 Keep children watched when fireplace is working;
 The fireplace should not be exposed to direct sunlight or any heat source, as it may damage its materials;
 If you spill bioethanol onto the floor absorb it with a cloth, and then clean with a wet cloth, to avoid ignition out-
sider the combustion fire zone and stains on the floor;
 In case you spill bioethanol in the fireplace clean it immediately with a wet cloth, to avoid ignition outside the com-
bustion fire zone and damages to the finishing of the fireplace (paint, lacquers, leathers, amongst others);
 Attention: While working the fireplace may achieve very high temperatures. Therefore avoid touching it. Areas of
potential contact with skin may cause burns;
 Do not fill the combustion fire area while hot, wait for it to cool down;
 Never pour bioethanol over the flame;
 After extinction of the flame wait approximately 5/10 minutes before handling the fireplace;
 In case of fire use a fire blanket;

 Do not use water to extinguish the fire;
 Do not use chemical products to clean the fireplace, as they may damage the materials. When in doubt contact an
authorized dealer;
 After flame cutting may remain small residual flames at the point of fuel inlet for approximately 2 to 10 minutes. At
the end of this time the flame will extinguish naturally;
 If bioethanol pours out during the process of filling up the tank, clean the tank and surrounding area, before using
again;
 Decorative stones, wood or other accessories should not be placed directly on top of the burning area. Should you
use decorative accessories make sure:
 The accessories do not interfere with the flame;
 Are only for decorating the fireplaces and combustion fires;
 There is no risk of falling inside the combustion fire.

GlammFire. PAG./7
4—Fuel
4.1—Bioethanol –The adequate fuel
 GlammFire fireplaces are designed to work with quality bioethanol liquid with a minimum of 96% suitable for
fireplaces, fully tested. Only this fuel ensures a clean and efficient combustion. Fuel with less or inappropriate
quality may lead to:
 Higher probability of malfunction;
 Reduction in durability of the system;
 Incomplete and inefficient combustion;
 Smoke and odours;
 Residues inside the combustion fire zone.
 Bioethanol is internationally recognized as being the major source of renewable energy, 100% ecological and
environmentally friendly. It is made from fermentation and distillation of sugars from plants, such as sugar cane,
potato, beetroot and cereals;
 The use of bioethanol guarantees a reduction of 85% in CO2 emissions, therefore contributing for the reduction of
global warming;
 Use only liquid bioethanol as fuel. Only bioethanol will make a clean and perfect combustion;
 Keep bioethanol away from children and animals, as well as from a working fireplace;
 Avoid contact with eyes and skin;
 Do not drink bioethanol. In case you do go to the nearest hospital;
 Bioethanol should be kept at a minimum distance of 1 m from the fireplace;
 Do not place bioethanol in front of the fireplace;
 For security reasons bioethanol should be stored at a room temperature of approximately 20 ºC.
 Use only liquid bioethanol, recommended by GlammFire.

A B
C
5—Installation
5.1—Flammable materials
 Do not place flammable materials near the fireplace, within 1m;
 Racks or shelves should be distant 1m from the combustion fire area;
5.2—Materials: stone/metal/ceramics
 A - 100 mm;
 B - 100 mm;
 C - 500 mm;
5.3—Other non-flammable materials
 A - 200 mm;
 B - 250 mm;
 C - 600 mm;

GlammFire. PAG./9
50mm 50mm
Ventilation

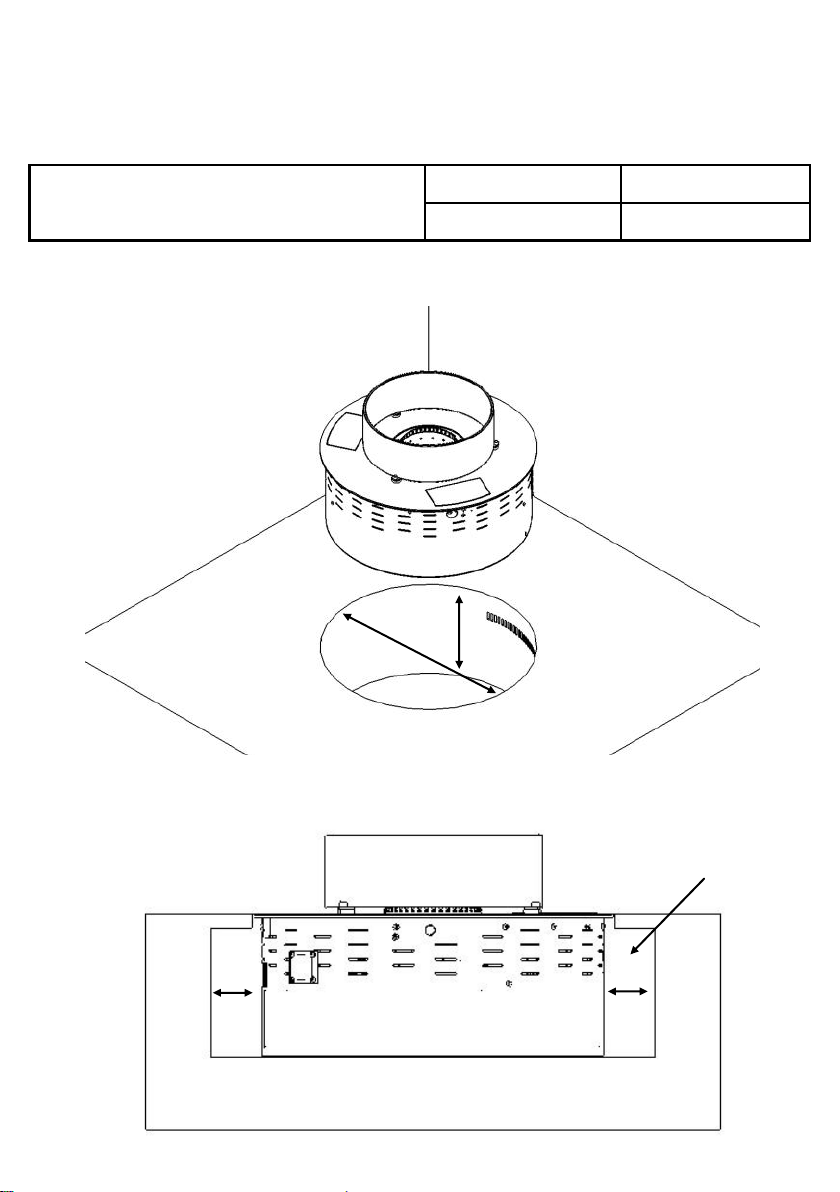

5.4—Dimensions:
 The surface which you want to install the combustion fire must be as level as possible;
Necessary dimensions for the built-in hole:
D
E
Crea7ionEvo Plus Fire Round Diameter (D) Height (E)
480 mm 200mm
* Ensure that there is a good ventilation (about 50mm) around Crea7ionEVO Plus Fire Round, when inlaid:

GlammFire. PAG./10

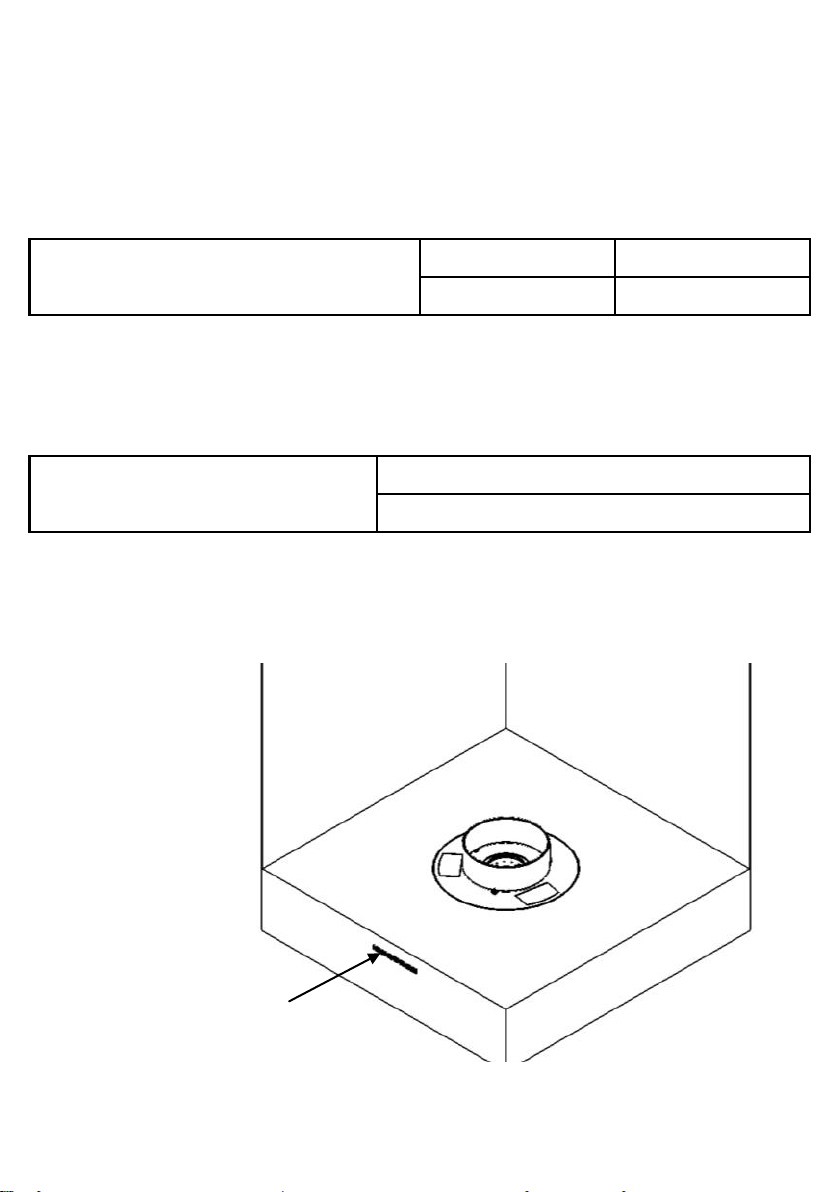

Ventilation area (cm2)
Crea7ionEvo Plus Fire Round 75cm2
Ventilation necessária:
Ventilation
Diameter (D) Height (E)
Crea7ionEvo Plus Fire Round 505mm 200mm
In case you want to place Crea7ionEvo Plus Fire Round on the top of a surface, in which it will be recessed, use the
following measurements:
Note: In this case, Crea7ionEvo Plus Fire Round has to seat by its base.

5.5—Insallation Procedures
Highly Important:
It is recommended when unpacking the piece.
To unpack, at least 2 people are needed.

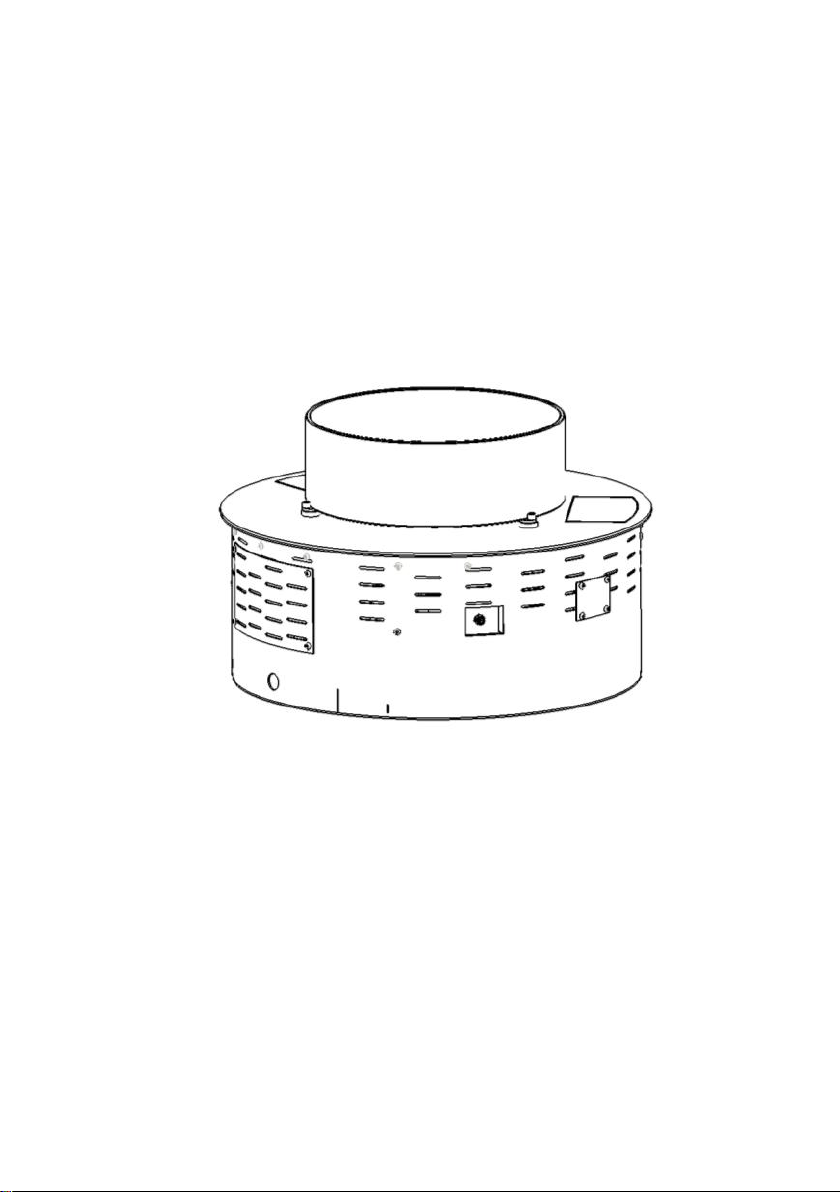

The Crea7ionEvo Plus Fire Round comes with a metallic handle (Fig. 1), that makes easy its handling when installing.
To put in the provided handle, make sure that the burner is completely turned off, the combustion as well the power
supplies.
Then, insert the handle’s F details (Figure 1) in the holes G, from combustion area (Figure 2).
Figure 1—Metallic handle properly
positioned
Figure 2—Insertion of the handle into the holes in the combustion zone
G
F

GlammFire. PAG./12

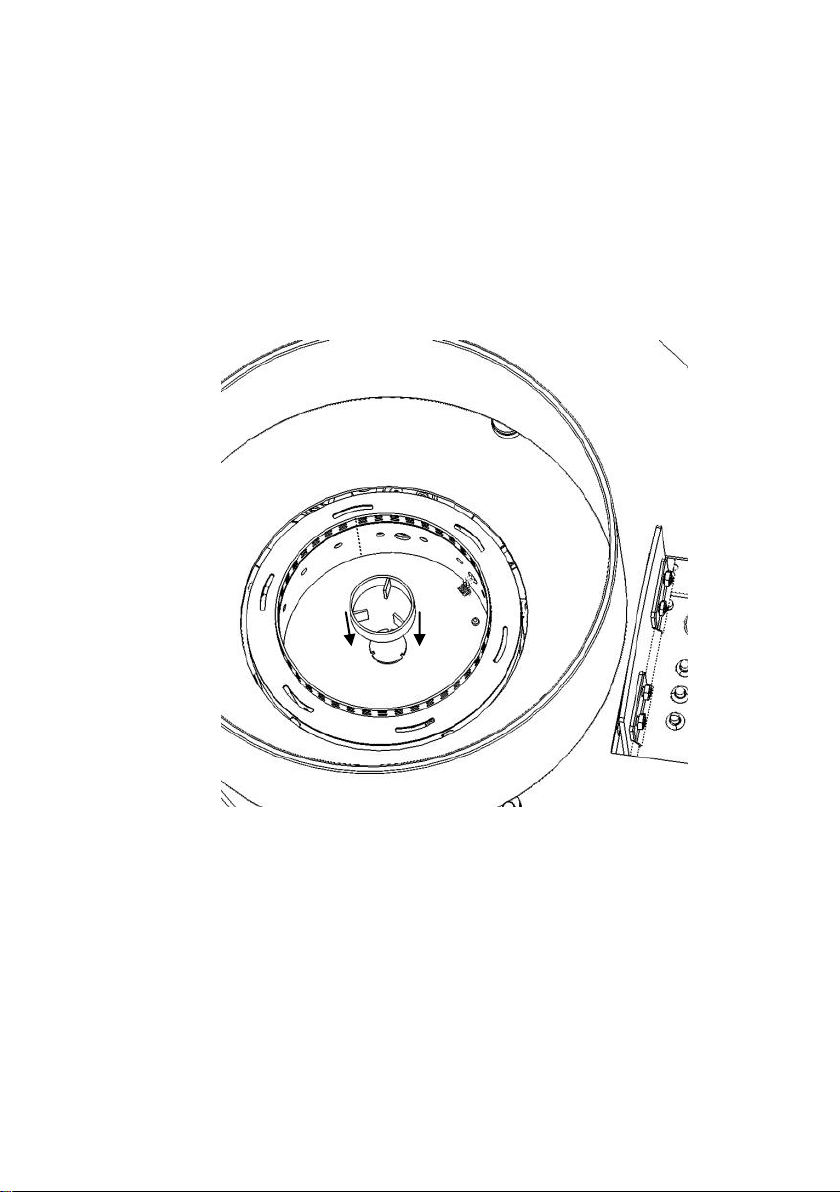

Turn the handle as illustrated in Figure 3.
This way the handle stays tight in the burner, allowing it to be moved and perform its correct installation.
Figure 3- Attaching the handle to the burner

GlammFire. PAG./13
Figure 4—Placement of the supplied ring
Then proceed with the placement of the given ring, in the central area of the burning area (Figure 4).
This ring should have a regular cleaning maintenance by using the given pencil. Clean the ring and the burning area.
Execute this process, when possible, on a week basis.

GlammFire. PAG./14
Figure 5—Placed Ring
Ensure that the ring is properly seated. (Figure 5)

GlammFire. PAG./15
After installing Crea7ionEvo Plus Fire Round at the desired location, proceed with the installation of the protection
glass.
The Crea7ionEvo Plus Fire Round has 3 brackets for the glass dedicated (H) to the placement of the provided glass.
Figure 6- Identification holders for glass placement
H

GlammFire. PAG./16
Placement of the glass (Figure 7).
Figure 7—Installation of the supplied glass

GlammFire. PAG./17
Figure 8—Glass installed
When installing the provided glass assure that this same seats correctly on the 3 dedicated supports.

GlammFire. PAG./18
5.6—Filling System
5.6.1—Local filling system

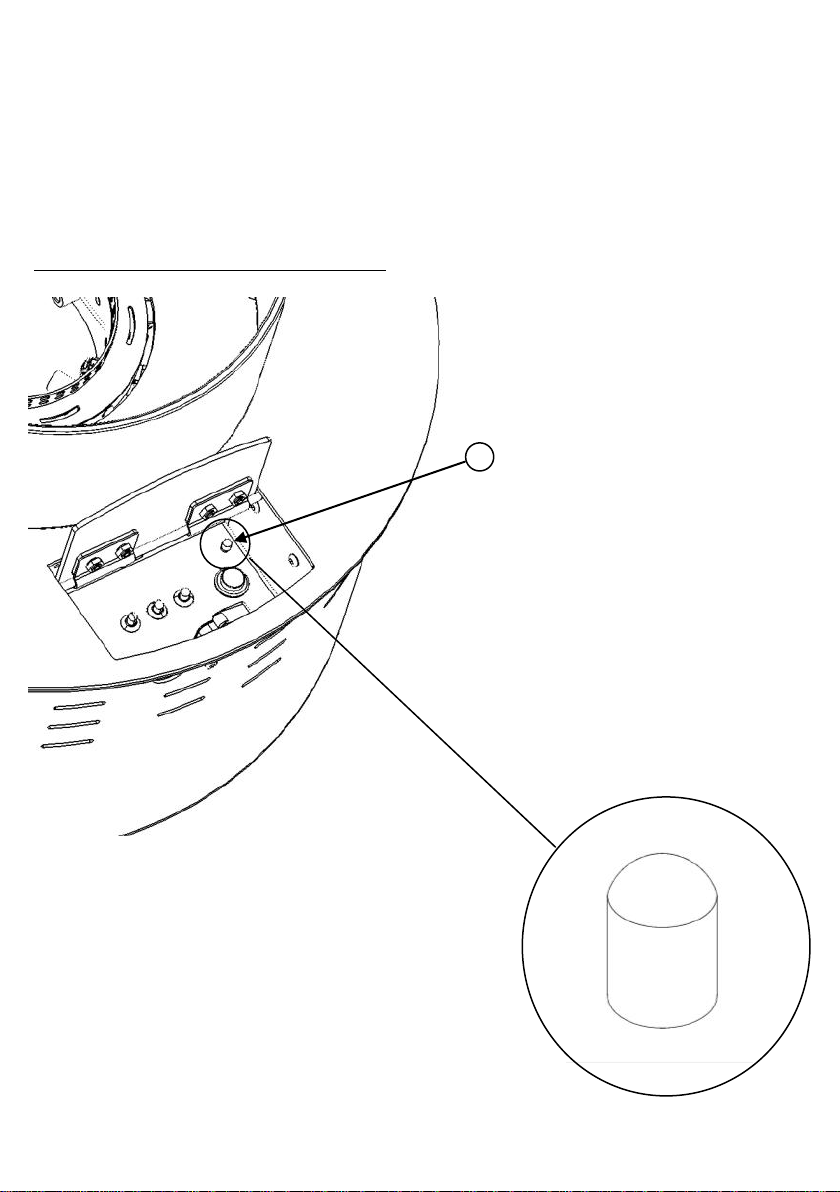

Attention: Preivously o the first use and when installing the burner, remove the red cover (I) (Figures 9 and 10).
This same is duly identifyed with a label that should be removed to.
Never use the burner without removing the cover (I).
Figure 9—Identification red cap to remove
Figure 10—Red cap to be removed
I

GlammFire. PAG./19
If your Crea7ionEVO PLUS has a local filling system, please follow the following steps to install it correctly:
Attach the hose provided (Figure 11) in the quick coupler, located next to the tank (figure 12).
Place the other end of the hose, with its own filter, in the bioethanol jerry can.
At this time, proceed to fill the burner by pressing the filling button (figure 13), the filling will start.
Attention: When the green light appears, you should stop pressing the button, otherwise there is a risk of having a
fuel overflow.
Note: The filling time of the local filling system is approximately 60 sec/liter.
After filling the fireplace, remove the hose, close the fuel cap and you can use the Crea7ionEVO PLUS Fire Round
normally.
Filling hose
Quick coupling
Figure 12—Filling system
Filter
Quick coupling
Figure 11—Local filling hose

GlammFire. PAG./20

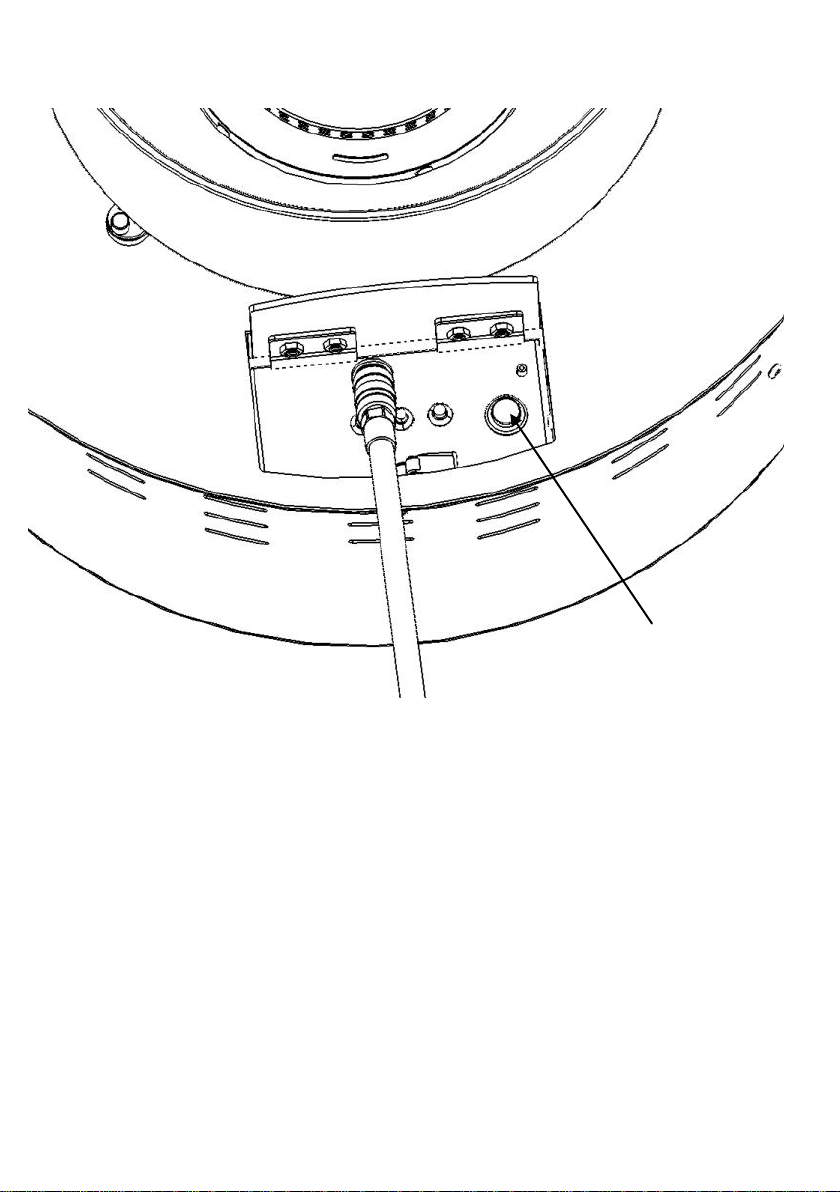

Filling button
Figure 13—Identification filling button
