Glass Warehouse Juno SC1-R-24 User manual

Mirror Cabinet
Installation Guide
(Recessed and Wall Mounted Installation)
For Models:
Juno SC1-R-24
Juno SC1-R-28
Juno SC1-R-32
Aria SC1-AR-30X34
Aria SC1-AR-48X32

Stud
Finder 2x4 Lumber
Plus:
• Wire Cutter/Stripper
• Assorted Drill Bits
• Framing and Drywall Tools
• Framing and Drywall Fasteners
Tools and Materials
Before You Begin
NOTICE: Risk of property or product damage. The location of the cabinet is critical. Make sure that
the door will clear all obstacles (such asafaucet or light fixture). Ensure that any obstacles behind
the finished wall will not be damaged during the cutting and/or drilling process.
IMPORTANT! Reroute any electrical wires or water supply piping from the wall cavity. If you encounter
drain or vent piping or if your wall is load-bearing, consultaprofessional before proceeding.
NOTE: Recessed-Mount Installation: The wall cavity must be framed. The cabinet must be secured to
the framing studs.
Observe all local building codes.
The appearance of your recessed cabinet may differ from the recessed cabinet illustrated. The
installation steps still apply.
This installation is easiest when performed by two people.
When determining the height of the product, verify that the doors will clear all obstacles (such as
a faucet or light fixture). A minimum distance of 3” (76 mm) is required.
Caution: Risk of personal injury. Cabinets are very heavy.
Get assistance for lifting and moving the cabinets

If for any reason you are having trouble with installation, or if the size
of the product does not fit your designated space, please contact
service. We want to ensure your happiness with your purchase for years
If you have any questions, please do not hesitate to reach out to us.
Best Regards,
[phone]
[e-mail]
Thank you
for your purchase.
Glass Warehouse directly and do not return this product to place of
purchase.
Glass Warehouse takes pride in providing quality products and customer
measurements are, Glass Warehouse can supply the product to fit!
Thank you again for choosing Glass Warehouse!
The Team at Glass Warehouse

Installation Guide
Included in your purchase
ACabinet Body
FGlass shelf
GShelf clip
HCover plate for hinge

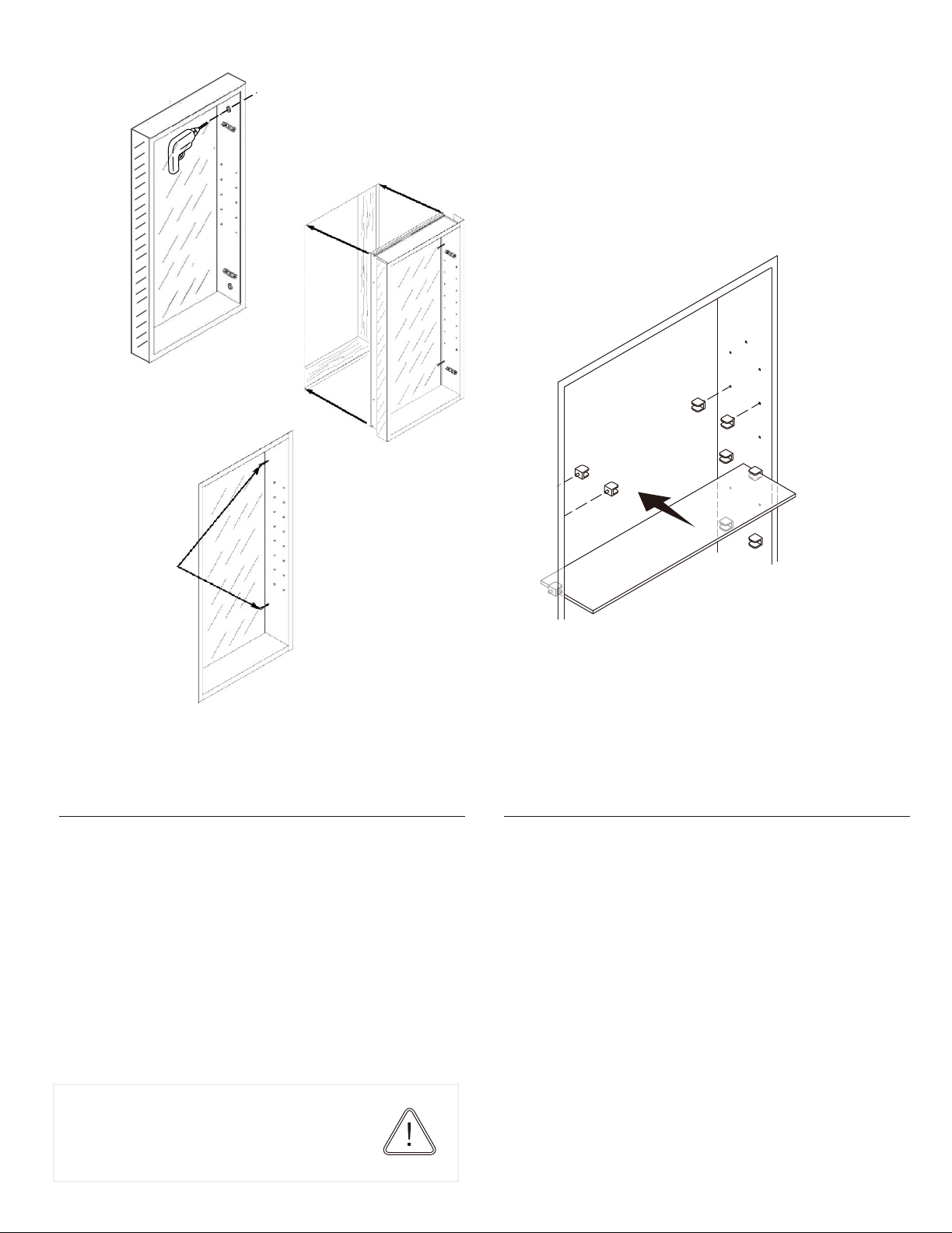

Preparation
IMPORTANT:
The dimensions of the cabinet body
may be vary from actual item. Please
measure the exact item before making
cutout.
Measuring the cabinet body of the actual product.
A
A
D
X 1
X 4
E
X 2
Model SC1-R-24
Installation Guide
(W: 24” / H: 24” / 1 Door):
A
F
GH
D
E
Drywall Wall Plug (For Wall Mounting)
Anchor for masonry (For Wall Mounting)
I J
I
J
Top Bracket (For Wall Mounting)
Bottom Bracket (For Wall Mounting)
X 2 X 1
D
X 1
X 4
E
X 2
F
GH
IJX 2 X 1
D
X 2
X 8
E
X 3
F
GH
IJ X 2 X 1
X 7 X 7
X 7 X 7
X 8 X 8
BC
X 4 X 7
B40mm(L) Flat Head Screw (For Wooden Frame)
C35mm(L) Flat Head Screw (For Wall Mounting)
BC
X 4 X 7
BC
X 4 X 8

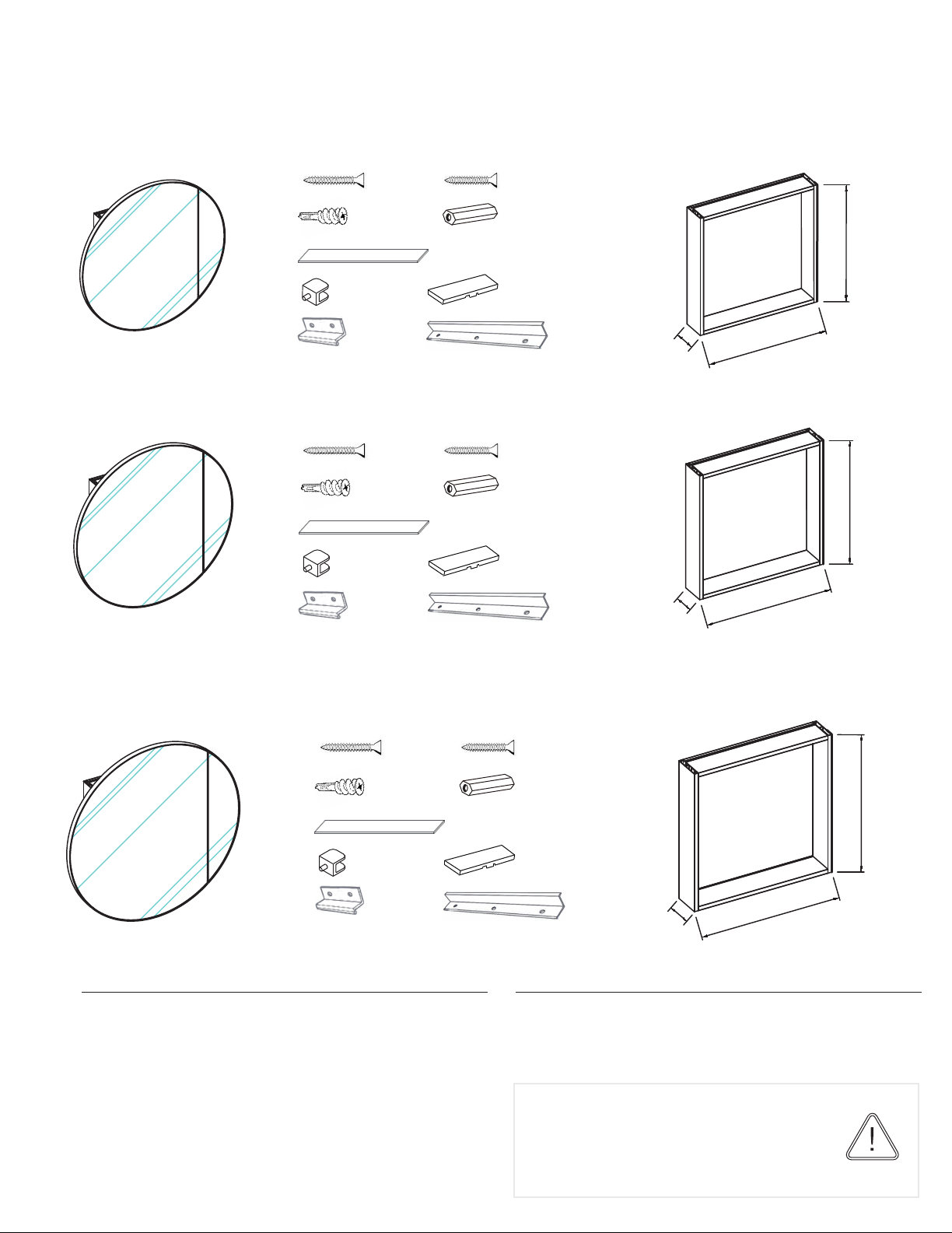

Model SC1-R-28 (W: 28” / H: 28” / 1 Door)
Model SC1-R-32 (W: 32” / H: 32” / 1 Door)
14-3/4"(405 mm)
15-1/4"(388 mm)
4" (103 mm)
18-1/8"(465 mm)
17-5/8"(448 mm)
4" (103 mm)
20-5/8"(530 mm)
20-5/8"(525 mm)
4" (103 mm)

Installation Guide
Included in your purchase
ACabinet Body
FGlass shelf
GShelf clip
HCover plate for hinge
Preparation
IMPORTANT:
The dimensions of the cabinet body
may be vary from actual item. Please
measure the exact item before making
cutout.
Measuring the cabinet body of the actual product.
Model SC1-AR-30X34
Installation Guide
(W: 30” / H: 34” / 2 Doors)
D
E
Drywall Wall Plug (For Wall Mounting)
Anchor for masonry (For Wall Mounting)
I
J
Top Bracket (For Wall Mounting)
Bottom Bracket (For Wall Mounting)
B40mm(L) Flat Head Screw (For Wooden Frame)
C35mm(L) Flat Head Screw (For Wall Mounting)
Model SC1-AR-48X32 (W: 48” / H: 32” / 3 Doors)
A
BC
D
X 4
X 1
X 4
E
X 4
F
GH
I JX 2 X 1
D
X 6
X 24
E
X 6
F
GH
IJX 2 X 1
X 8
X 8 X 8
X 9 X 9
A
30” (760 mm)
4” (103 mm)
18-3/4” (476 mm)
34” (864 mm)
22” (559 mm)
4” (103 mm)
BC
X 4 X 9

Disassemble the cabinet door(s)
After taking out the cabinet, disassembling the
door(s).
The door(s) can be quickly removed by pushing the
button on hinge.
Unclipping the door from the mounting plate.
02
IMPORTANT:
.
01
WalI Mount Installation
Installing the mounting brackets and mounting the
Cabinet Body on wall
(Please read the remarks carefully before starting)
bottom slot
I
I
Measure and mark the bottom mounting holes on the wall
corresponding to the pre-drilled hole locations in the bottom
mounting bracket (Draw horizontal line connecting the two
bottom marked locations. The line should to be level and
make sure the bracket is located in the middle of the bottom
slot.) Install the screws (C) to fix the bottom bracket
to the remarks.
Put the cabinet body on the bottom bracket and ensure the
bracket has been inserted into the slot.
Insert the top brackets into the top slot and move them to
correct locations (3”-4” from the sides of cabinet body. For
some items with 3 top brackets, locate the last one in the
middle of top slot). Mark the holes on the wall corresponding
the pre-drilled hole locations for top mounting brackets.
Install the screws (C) to fix the top brackets according to the
remarks.
Remarks for fixing brackets:
- Drywall: remove the screws from the Drywall wall plugs
(D). Using a Phillips head screwdriver in the end of the
Drywall plug, gently apply pressure and rotate clockwise.
The plug will bore its own hole into the Drywall.
Continue until the end of the plug is close to flush with
the wall. WARNING: DO NOT OVER-TIGHTEN.
- Masonry: Drill holes using a 1/4” masonry drill bit. With a
hammer, gently tap each Green anchor (E) into the holes
until flush with the wall surface.
- Timber: Drill holes using a 1/8” wood drill bit. Anchors are
not necessary.
When determining the height of product,
verify that the doors will clear all obstacles
(such as a faucet or light fixture). A minimum distance
of 3” (76mm) is required.
top slot opening
J
3-4”
J

Disassemble the cabinet door(s)
After taking out the cabinet, disassembling the
door(s).
The door(s) can be quickly removed by pushing the
button on hinge.
Unclipping the door from the mounting plate.
02
Construct the framing
IMPORTANT:
The dimensions of the cabinet body
may be vary from actual item. Please
measure the exact item before making
cutout.
When determining the height of the product, verify
that the doors will clear all obstacles (such as a
faucet or light fixture). A minimum distance of 3”
(76 mm) is required.
Measuring the cabinet body of exact item.

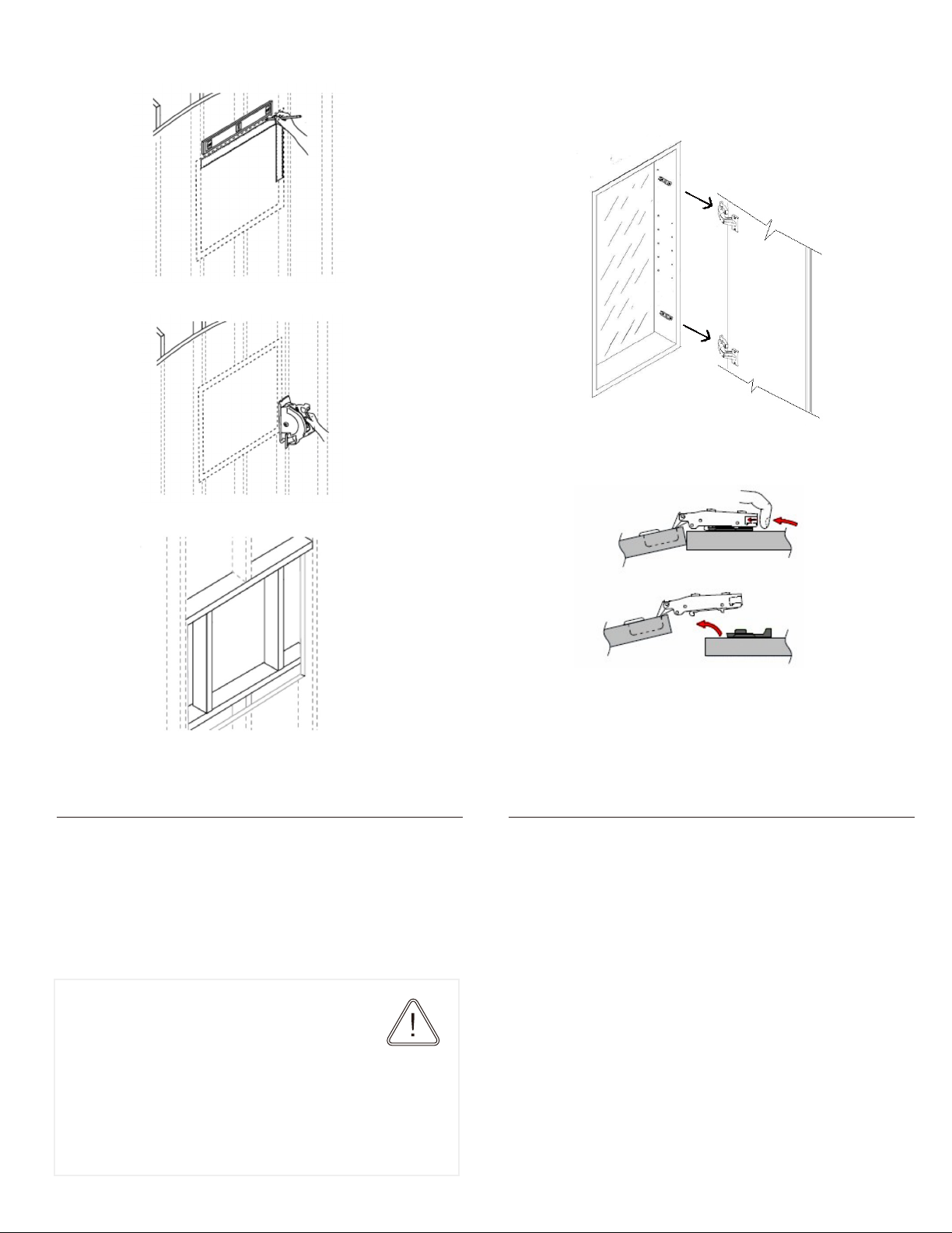

Using a jigsaw or keyhole saw, carefully remove
the finished wall material from the marked cutout.
Frame out the wall cavity. If needed, install a header.
01
Recessed Installation

Install the glass shelf(shelves)Install the cabinet body into the framing
Make sure hinges are on correct side of opening for
left hand or right hand operation.
Place cabinet body into framing.
Insert 4 wood screws (B) into four locations provided
for recessed installation. Be careful not to overtighten.
Make sure cabinet is centered in framing.
Determine the shelf(shelves) locations and insert the
slotted pins into the holes in the sides of the cabinet.
Install the shelf(shelves) between the slots of the pins
and then, tighten the plastic screw at bottom of each
clip. Be careful not to overtighten.
Important: Enclosed screws are for
wooden frame only. Appropriate anchors
and screws need to be purchased for
installation into non wooden frames.
0403
Wood screws (4)
Drill through the 4 Half-Drilled holes (With rivet nuts)
for recessed installation by using 1/4” drill bit.

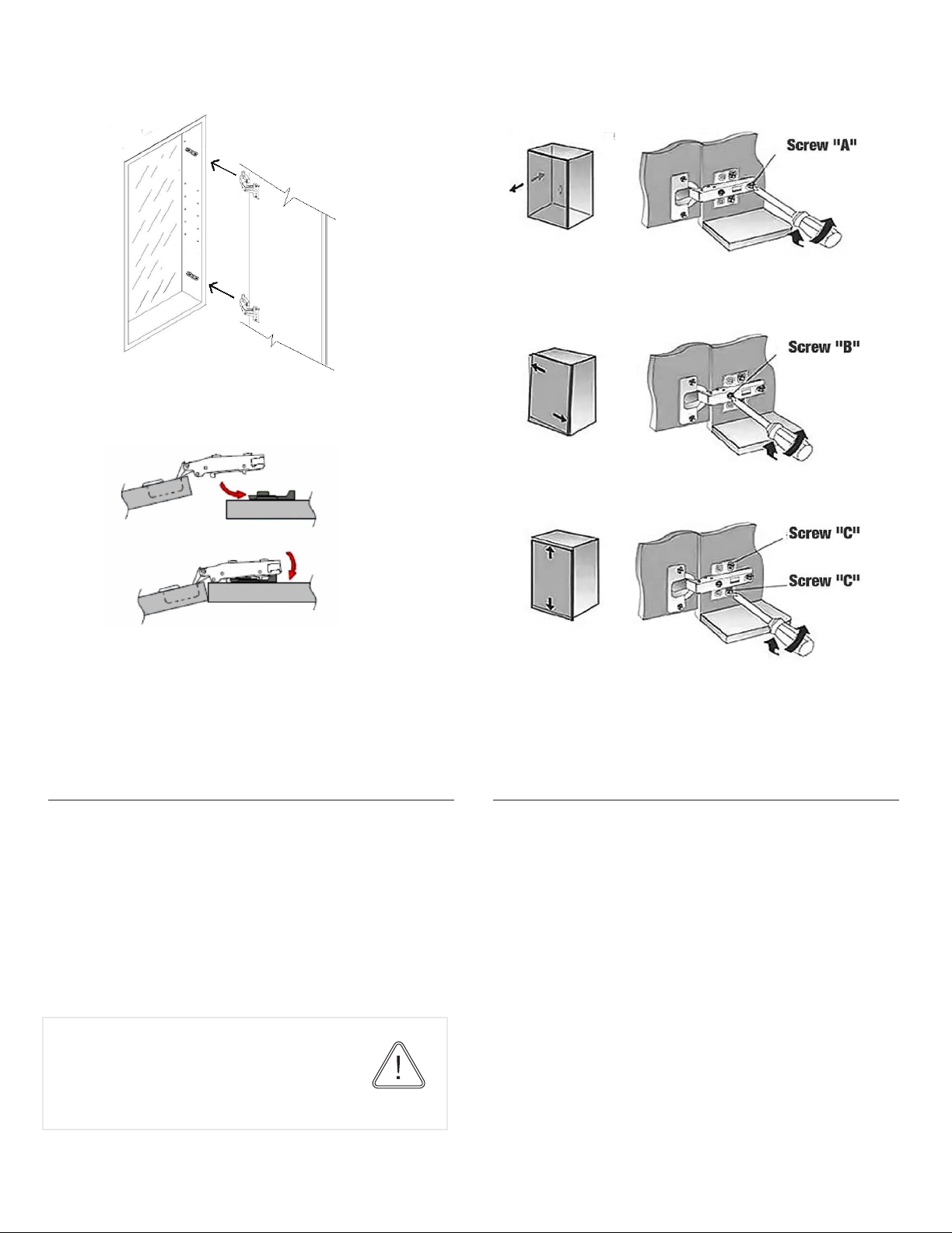

Adjusting hinges - To make the door(s) in correct
position
Reassembling the door(s)
After install the glass shelf (shelves) in right position,
reassembling the door(s).
Clamp hinge on the mounting plate as shown
by direction arrow.
Press down the hinge arm to lock the plate as shown.
Front to back adjustment - Turn the screw “A” clockwise or
anti-clockwise for moving the door Inward or Outward.
Lateral adjustment - Turn the screw “B” clockwise or
anti-clockwise for moving the door Left or Right.
Vertical adjustment - Turn the screw “A” clockwise or
anti-clockwise for moving the door Up or Down.
Important: For products with more than
one door, please make sure you assmble
the doors in correct sides by matching the
same letters sticked on the mounting plate
on cabinet body and hinge arm on door.
0605

Care and Cleaning
The cabinet door and interior are constructed of mirrored glass, steel and stainless steel.
Use only a damp cloth to clean.
Ammonia or vinegar based cleaners can damage mirrors. A solution of 50% of water and
50% of isopropyl alcohol is recommended fop mirror cleaning.
A very mild detergent may be used to clean the surface. When cleaning, spray the cloth,
not the cabinet, mirror, or surround surfaces. Do not use abrasive cleansers on any part
of the cabinet.

PRODUCT. BY USING THE PRODUCT, YOU ARE CONSENTING
TO BE BOUND BY THE FOLLOWING WARRANTY TERMS AND
CONDITIONS
components thereof. This warranty extends only to the original
owner/end-user for household use only and is not transferable
modify this warranty at any time, it being understood that such
modifications will not alter the warranty conditions applicable at
the time of sale of the products in question. This warranty extends
for a designated period of time, so long as the product remains in
use in its original place of installation and that the product must
be maintained as described in the owner’s manual supplied with
purchased from an authorized dealer in the United States or
Canada.
Proof of purchase (original sales receipt) from the original
consumer purchase must be provided with all warranty claims.
incidental or consequential damages. IN NO EVENT SHALL THE
THE UNIT.
installation instructions and guidelines. Installation of Future
Glass product by anyone other than a fully insured licensed
professional shall VOID THE WARRANTY. Future Glass
recommends that such licensed professionals have experience
in the installation of bathroom products -specifically glass shower
and glass tub doors. Installation of certain products, including,
without limitation, glass products (i.e., shower and tub doors)
by an unlicensed or inexperienced installer may result in glass
breakage and, consequently, may cause personal injury or even
PARTS ONLY WARRANTY – Limited Warranty 3 years
This warranty is extensive in that it covers replacement of all
to be covered by the above Warranty, replacement parts will
be shipped via ground shipping. Increased costs for expedited
delivery, if requested by the Customer, will be the responsibility
of Customer. Parts replaced under the terms of this Warranty will
be warranted for the remainder of the original warranty period.
LABOR CHARGES AND/OR DAMAGE INCURRED DURING
INSTALLATION, REPAIR, OR REPLACEMENT, AS WELL AS ANY
OTHER KIND OF ANCILLARY COST, LOSS OR DAMAGE ARE
EXCLUDED. Please allow up to 1-3 business days forprocessing
of warranty issued parts. Once warranty replacement parts are
shipped, warranty is activated and product cannot be returned
SHOWER & TUB DOORS, SHOWER ENCLOSURES GLASS,
MEDICINE CABINETS
medicine cabinets are backed by a Limited Lifetime Warranty.
shower enclosures and medicine cabinets to be free from defects
in workmanship and materials under normal residential use for
a period commencing from the initial date of purchase by the
owner/ end-user, contractor or builder from an authorized Future
Glass dealer for the life of the product as long as the original
consumer purchaser owns the home in which the product is
installed. Warranty for plastic seal strips, sweeps or any other
does not warrant glass for scratches, chips, water spots, breaking
SHOWER & TUB DOORS, SHOWER ENCLOSURE HARDWARE,
MEDICINE CABINETS
and medicine cabinets are backed by a Limited Lifetime
shower enclosure hardware (i.e. handles, bath knobs, hinges,
clips, brackets, shower rods, 90° corner brackets) in chrome,
brushed nickel, satin brass and polished brass finishes only to be
free from defects in workmanship and materials under normal
residential use for a period commencing from the initial date of
purchase by the owner/ end-user, contractor or builder from an
as the original consumer purchaser owns the home in which the
product is installed. Warranty for any part in oil rubbed bronze or
warranties for products used outside of the United States or
Canada whether expressed or implied, including but not limited
to the implied warranties of merchantability and fitness for a
particular purpose.
WARRANTY TERMS
within the warranty period under normal residential use and
maintenance. The replacement of a product is limited to supplying
a replacement product or part (same as existing or if not available,
Exclusive Limited Warranty
Terms & Conditions.
PLEASE READ Glass Warehouse WARRANTY TERMS AND
CONDITIONS BEFORE INSTALLING YOUR Glass Warehouse
Glass Warehouse oers the following warranty for its products and
to a subsequent owner. Glass Warehouse reserves the right to
the product. This warranty applies only to Glass Warehouse® products
No responsibility is assumed by Glass Warehouse for any special,
LIABILITY OF Glass Warehouse EXCEED THE PURCHASE PRICE OF
Glass Warehouse products must be installed by a fully insured,
licensed professional and according to the Glass Warehouse
death and Glass Warehouse will not be liable.
defects. Glass Warehouse may, at its option, examine and inspect the
alleged defective product and Glass Warehouse may request that
parts be returned to Glass Warehouse at Owner’s expense for factory
assessment and inspection. If Glass Warehouse determines product
Glass Warehouse shower doors, tub doors, shower enclosures and
Glass Warehouse warrants the glass of shower doors, tub doors,
vinyl components shall be limited to one (1) year. Glass Warehouse
Glass Warehouse shower door, tub door, shower enclosure hardware
Warranty. Glass Warehouse warrants shower door, tub door and
authorized Glass Warehouse dealer for the life of the product as long
Glass Warehouse hereby disclaims all warranties for products sold
as dealer or store displays. Glass Warehouse hereby disclaims all
Glass Warehouse will, at its election, repair or replace the product
found by Glass Warehouse in its sole judgment, to be defective
comparable product). Glass Warehouse warranty
This warranty is eective as of JANUARY 1, 2019 on all Glass
Warehouse product purchases

obligation shall be discharged upon tender of parts, replacement
or repair of the product. Purchaser’s refusal to accept the tender
terminates all warranty obligations and VOIDS THE WARRANTY.
or replacement under this limited warranty are the responsibility
of the customer. Cost of freight associated with shipping of
replacement product(s) or parts covered by this warranty is
the responsibility of the original user. Any product replaced or
repaired during the warranty period will be covered only for the
remaining period of the original warranty. In no event will Future
Glass be liable for costs of repair or replacement of any installation
material, including but not limited to tile, marble, etc. Future
Glass IS NOT RESPONSIBLE FOR INSTALLATION, REMOVAL
OR REINSTALLATION COSTS OF ANY PRODUCT REQUIRING
WARRANTY SERVICES.
representation, or warranty other than those contained in this
those contained in this warranty shall not be enforceable against
experienced professional contractor - installations performed
by any other party shall void the warranty. This warranty shall
not apply to breakage or damages caused by normal wear and
tear, fault, carelessness, abuse, misuse, misapplication, improper
maintenance, alteration or modification of the unit, as well as
chemical or natural corrosion, accident, fire, flood or any other
casualty. Improper care and cleaning will void the warranty. Use of
cleaners containing abrasive cleansers, ammonia, bleach, acids,
waxes, alcohol, solvents or other products not recommended
for hardware finishes, glass or acrylic as they may damage the
metal or glass finish of your shower door or shower enclosure
and will void the warranty. For additional product maintenance
instructions please refer to the product installation manual. Future
Glass is not responsible for any issues arising in connection with
dealers’ websites. This warranty does not extend to any non-
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING
BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
SELLER DISCLAIMS ALL LIABILITY FOR SPECIAL, INCIDENTAL
FOR PERSONAL INJURIES OR DEATH TO ANY PERSON OR
FOR ANY DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGE, LOSS OF USE, LOSS OF TIME, LOSS OF PROFITS,
INCONVENIENCE, INCIDENTAL EXPENSES, LABOR OR
MATERIAL CHARGES, OR ANY OTHER COSTS RESULTING
FROM THE USE OF ITS PRODUCTS OR PERTAINING TO THE
APPLICATION OF THE PRESENT WARRANTY, OR RESULTING
FROM THE REMOVAL OR REPLACEMENT OF ANY PRODUCT
OR ELEMENT OR PART COVERED BY THIS WARRANTY.
COMMERCIAL USE AND OTHER EXCLUSIONS
This warranty excludes all industrial, commercial and business
usage. The warranty period for products installed for commercial
applications or used in commercial ventures, including but not
limited to motels, hotels, casinos, student housing, condos,
apartments, and fitness centers, is a one (1) year limited warranty
from the date of purchase for shower doors, bathtub doors,
shower enclosures and a three (3) month limited warranty from
the date of purchase for mirrors, with all other terms of this
warranty applying except the duration of the warranty.
WARRANTY SERVICE
To file a warranty claim the following information is required:
•Name, address and telephone number
•Product model number
•Brief description of problem (please note that additional
information such as photos may be required to
fully process your warranty claim)
•Proof of purchase (sales receipt, invoice, etc.)
PO, Invoice or original purchaser name
Submit required information by e-mail:
[e-mail]
Or, contact Technical Support:
Monday – Friday 8am – 5pm – PST
Technical Support: 760-536-3640
Cost of freight for returning products to Glass Warehouse for repairs
Any modification or alteration of any Glass Warehouse products will
void the warranty. Neither the authorized Glass Warehouse dealer,
Glass Warehouse or any other person.
Glass Warehouse product installations must be performed by either
a Glass Warehouse authorized agent or a licensed, insured and
errors or omissions in information provided on Glass Warehouse or
Glass Warehouse plumbing or components installed by installers, end
users or by any party other than Glass Warehouse.
PURPOSE. BATH AUTHORITY LLC (“Glass Warehouse”) AND/OR
OR CONSEQUENTIAL DAMAGES. Glass Warehouse IS NOT LIABLE

Register Your Warranty Today!
To activate your limited lifetime warranty, please visit:
We will require this information within 30 days of
purchase to complete the activation of your warranty.
