Glastender GT-18 User manual

GT-18, GT-18+1, GT-18+1L,
GLasswashers (Manufactured after October 1, 1994 with motor driven drain stopper)
GT-18+1r, GT-18+2, GT-18+2-IC
ParTs DIreCTory
Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780
800.748.0423 · 989.752.4275 · Fax [phone] · www.glastender.com
© 2008 Glastender, Inc.
Rev. 04-18-08

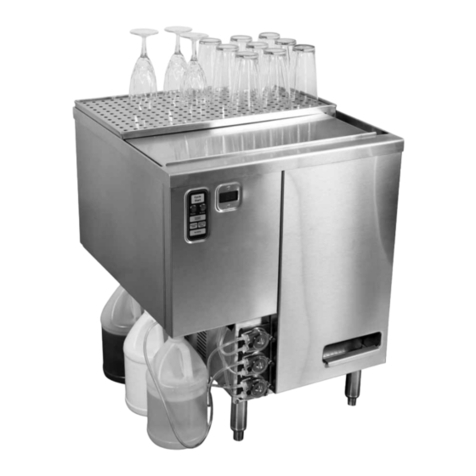

GT-18+2
GT-18

InDex
Topic Page No.
Ordering Procedures and Warranty ......................1
Interior and Exterior Components .....................2-3
Tops and Curtains .................................4-5
Electrical Components..............................6-7
Recirculating Pump and Related Parts ................8-11
Peristaltic Pump, Chemical Tubing, and
Related Parts..................................12-13
Drive Assembly Components ......................14-15
Plumbing Components............................16-17
Recommended Spare Parts Inventory ...................18
Parts Order Form ...................................19
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 1
PrICes:
All prices are LIST. Applicable taxes will be added.
QuoTaTIons:
Unless otherwise stated, quotations are effective for 30 days only.
aCCePTanCe:
All orders are subject to acceptance by Glastender, Inc.’s headquarters
in Saginaw, Michigan. Possession of the Parts Directory and Price List
is not an offer to sell.
shIPmenTs:
F.O.B. factory in Saginaw, Michigan. Partial shipments will be made
unless otherwise specified by the customer. Orders are shipped via UPS
or DHL unless otherwise specified.
PaymenT Terms:
Cash should be included with all orders unless credit terms have been
arranged. To establish credit, banking and trade references are required.
A convenient credit application is available upon request. Visa and
Mastercard are also accepted.
DeLIvery:
Varies according to prior production commitments, but parts orders
generally ship within two working days.
reTurns:
A Return Authorization (RA) number must be issued by the factory in
advance for any items that are returnable. The RA number MUST be
noted on the outside of the returned package. Returns must be received
within 90 days of the RA issue date. Shipping charges must be prepaid.
A 20% handling charge will be applied to all authorized returns if
received in new, unused condition in the original packaging.
Loss or DamaGe:
Glastender, Inc. is not responsible for any loss, damage, or delay of
merchandise during shipment. Such transit claims must be filed with
the carrier. Merchandise must be examined on arrival. If shortages
occur, Glastender, Inc. must be notified in writing within five (5) days
of delivery to honor any shortage claim.
NOTE: Glastender, Inc.’s policy of constant quality improvement means
that prices, specifications, and policies are subject to change without
notice.
IMPORTANT!!
Attention Refrigeration Service Companies
Please review the important warranty information on this page. If you believe a
service call should be covered by the factory, please call the factory for authorization
between 8AM and 5PM EST, Monday through Friday.
Terms anD ConDITIons
warranTy sTaTemenT
LABOR: Glastender, Inc. warrants all products to be free of defects in
material and workmanship. In established areas, a start-up and a 90-
day labor warranty are included with glasswasher models GT-24 and
GT-30. The GT-18 series glasswashers include a 90-day labor warranty.
Self-contained refrigeration models, except beer line chillers, include a
1-year labor warranty, for the duration of one year from date of instal-
lation or up to 18 months from date of factory shipment, whichever
occurs sooner. For warranty labor claims beyond 15 months from the
date of factory shipment, proof of date of installation or occupancy must
be provided. Authorization for labor must be obtained from Glastender
within the warranty period and prior to the service being performed.
Labor warranty applies to the United States and Canada only.
PARTS: Within one year from date of installation, or 15 months from
date of factory shipment, whichever occurs sooner, Glastender, Inc.
will replace any part or assembly found defective under normal use and
service. Field replacement parts include a warranty of 90 days from date
of installation. All self-contained refrigeration models include a 5-year
compressor warranty.
A warranty claim form MUST accompany all returned defective parts or
assemblies. This form MUST be completed in full. Failure to do so may
result in delay or denial of credit. Any defective part or assembly must
be returned to Glastender, Inc., Saginaw, Michigan, with all transporta-
tion and delivery charges prepaid. Warranty repairs or replacements will
be shipped FOB factory in Saginaw, Michigan.
The warranty does not cover equipment subjected to accidents, freight
damage, alterations, improper power and/or plumbing hookups, improp-
er chemical use, general misuse, or lack of routine required maintenance
as determined by Glastender, Inc.
No representative, distributor, dealer, or any other person is authorized
to modify this warranty. This warranty replaces all other written or
verbal warranties.
NOTE: Glastender, Inc.’s policy of constant quality improvement
means that prices, specifications, and policies are subject to change
without notice. Questions regarding this warranty should be directed to
Glastender’s Customer Service Representative.
03/01/07

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
2
InTerIor anD exTerIor ComPonenTs
16
5
10
12
7
9
13
14
8
3
15
Front View Front View
2
17
23
20
18
19
22
4
16
11
21

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 3
ParT no. oLD ParT no. DesCrIPTIon PrICe
1. 01000567 GT-034404 Drive wheel $66.00
2. 01000532 GT-032900 Rack, glass 52.00
3. 01000533 GT-032901 Rack, dish 96.00
4. 01000536 GT-032911 Glass rack insert for stemware 135.00
5. 01000667 GT-036509 Spray box 156.00
6. 01000472 GT-031306 Gasket, spray box 6.00
7. 01000530 GT-032305 Guard, splash, GT-18, GT-18+1, GT-18+2 48.00
01000319 Guard, splash, GT-18+1L, GT-18+1R 48.00
8. 01000683 GT-037109 Drain tank 270.00
9. 01000479 GT-031510 Bracket, front tank mounting 4.00
10. 00000041 GT-038746 Bolt, drain tank mounting, 1/4”-20 x 5/8”, hex head .50
(4 required)
06001545 GT-037008 Washer, flat, drain tank mounting, 1/4”-20 (8 required) .50
01000643 GT-036003 Lockwasher, split, drain tank mounting, 1/4” (8 required) .50
11. 01000620 GT-035711 Nut, drain tank mounting, overflow channel cover mounting, .50
1/4”-20, zinc
12. 01000646 GT-036145 Cover, overflow channel 15.00
13. 01000647 GT-036146 Cover, drain tank mist 12.00
14. 00000030 GT-038728 Screw, drain tank mist cover, drill kwik, 10 x 1/2” 1.00
15. 01000682 GT-037108 Tank, complete* 694.00
16. 01000705 GT-037706 Floor 240.00
17. 01000625 GT-035800 Panel, back 90.00
18. 01000626 GT-035801 Panel, right side 90.00
19. 01000627 GT-035802 Panel, left side 90.00
20. 01000640 GT-035819 Panel, front 72.00
21. 01000639 GT-035818 Panel, switch (decal not included) 36.00
22. 01001233 Decal, switch panel (after 09/14) 15.00
01000499 GT-031636 Decal, switch panel (prior to 09/14) 15.00
23. 00000031 GT-038729 Screw, exterior, back and side panels, 10-24 x 1/2”, 1.00
PPH, SMS, 410 SS (9 required)
00000039 GT-038744 Screw, exterior, switch and front panel, 10-32 x 3/8”, .50
phillips, TH, MS (4 required)
01000641 GT-036000 Washer, star, #6 .50
00000026 GT-035701 Nut, switch panel mounting, 8-32 .50
* Includes all welded components and insulation
InTerIor anD exTerIor ComPonenTs

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
4

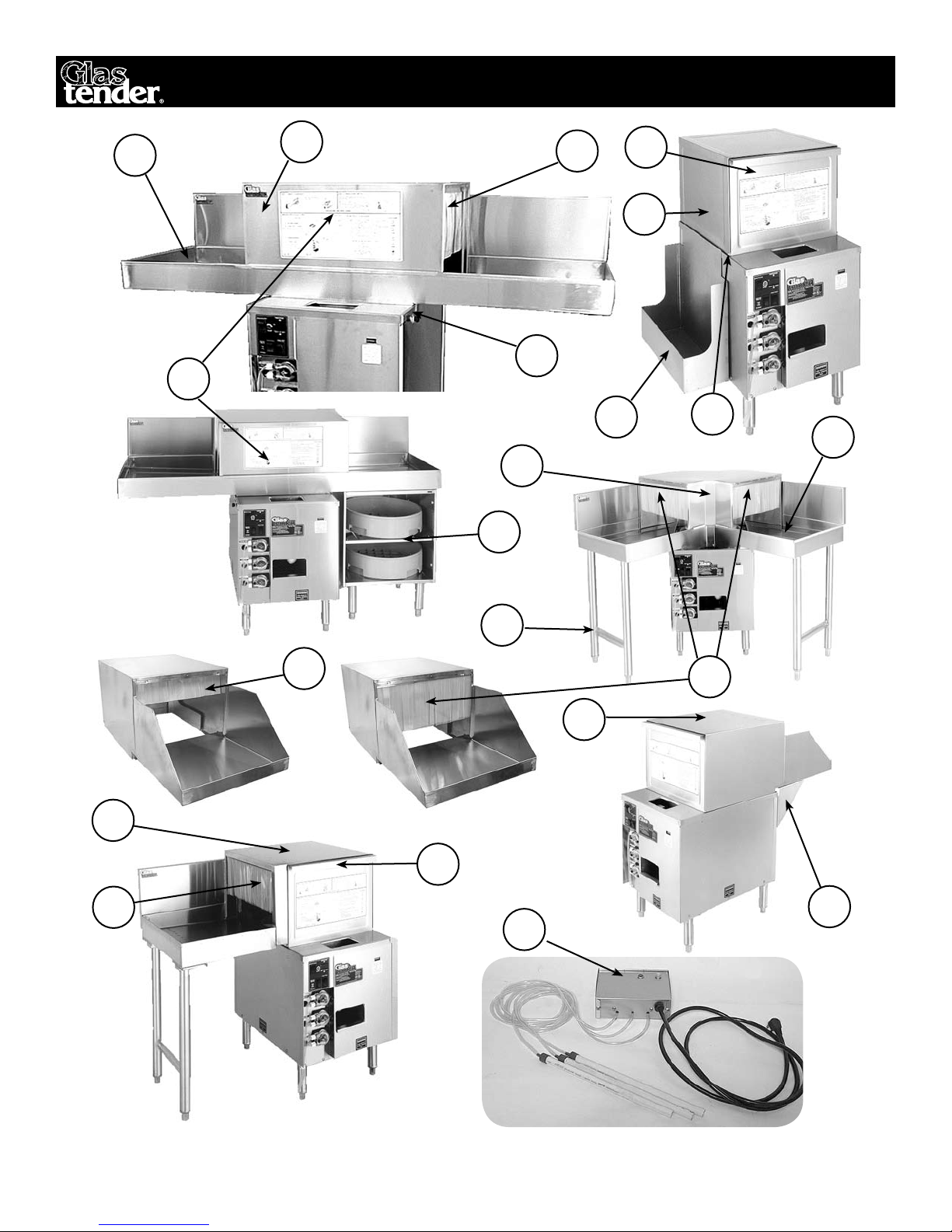

ToPs anD CurTaIns
14
12
9
10
5
18
6
8
15
7
16
10
2
1
4
17
13
10
3
11
GT-18+1 Top Shown Above
19

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 5
ParT no. oLD ParT no. DesCrIPTIon PrICe
1. 01000721 GT-038110 Top, GT-18, LESS door $648.00
2. 01000722 GT-038111 Top, GT-18+1, LESS door and curtains 1,080.00
3. 01000724 GT-038118 Top, GT-18+1L, with drain table, LESS door, curtain and legs 1,308.00
01000725 GT-038119 Top, GT-18+1R, with drain table, LESS door, curtain and legs 1,308.00
4. 01000723 GT-038112 Top, GT-18+2, LESS curtains and drain table 780.00
5. 01000726 GT-038120 Top, GT-18+2-IC, LESS curtains and drain table 900.00
6. 01000649 GT-036200 Door, GT-18 168.00
7. 01000651 GT-036247 Door, GT-18+1L 180.00
01000652 GT-036248 Door, GT-18+1R 180.00
8. 00000027 GT-038723 Screw, door, 10-32 x 1/2” (2 required) .50
06001485 GT-036012 Washer, flat, door screw, white nylon (2 required) 1.00
01000873 GT-035709 Locknut, door screw 10-32, (2 required) 1.00
9. 01000495 GT-031627 Decal, operation 10.00
10. 01000657 GT-036310 Curtain, end, GT-18+1, GT-18+1L, GT-18–1R, 30.00
(1 required), GT-18+2, and GT-18+2-IC (2 required)
11. 01000658 GT-036311 Curtain, inside, GT-18+1 25.00
12. 01000707 GT-037802 Drain table, GT-18+2 (no leg sets required) 1,164.00
13. 01000712 GT-037810 Drain table, LESS leg set, GT-18+2-IC 1,338.00
14. 06001545 GT-037008 Washer, flat, hand screw, 1/4” (4 required) .50
00000028 GT-038724 Screw, hand, drain table mounting, 1/4”-20 x 3/4”, GT-18+2, 5.00
and GT-18+2-IC (2 required)
15. 01000258 GT-031511 Bracket, GT-18+1, left, top support (viewing from back) 24.00
01000309 Bracket, GT-18+1, right, top support (viewing from back) 24.00
00000041 GT-038746 Bolt, top support bracket mounting, 1/4”-20 x 5/8” HWH .50
16. 01000686 GT-037316 Leg set, drain table support, GT-18+1L, GT-18+1R, 123.00
and GT-18+2-IC
17. 01000710 GT-037805 Clip-on chemical rail (holds 3 one-gallon containers) 215.00
01000706 GT-037801 Glass rack holder for GT-18+1 271.00
18. 01000709 GT-037804 Glass rack holder with shelf for GT-18+1L, GT-18+1R, 708.00
and GT-18+2
01000708 GT-037803 Glass rack holder LESS shelf for GT-18+1L, GT-18+1R, 549.00
and GT-18+2
19. GT-CA3 GT-CA3 Three product chemical alarm (for remote installation) 375.00
ToPs anD CurTaIns
aCCessorIes

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
6

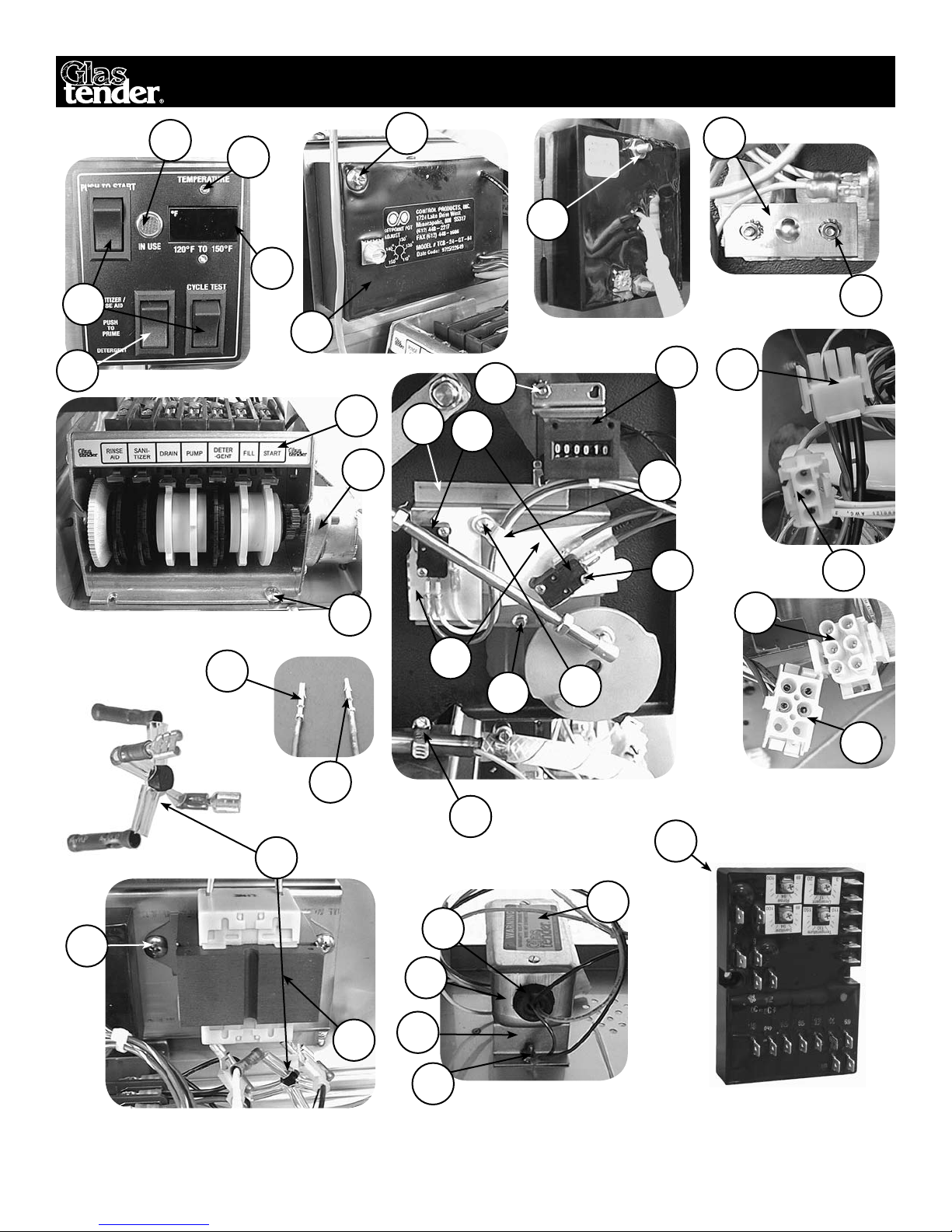

eLeCTrICaL ComPonenTs
15
16
31
33
32
28
25
27
29
26
21
19
20
23
22
24
4
7
8
2
1
17
30
18
34
35
36
37
6
5
3
9
11
10
14
12
13
38

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 7
eLeCTrICaL ComPonenTs
ParT no. oLD ParT no. DesCrIPTIon PrICe
01001232 Wire harness $125.00
1. 07000257 GT-033401 Switch, start and cycle test (double pole, single 20.00
throw, momentary)
2. 01000552 GT-033410 Switch, prime (double pole, double throw, momentary) 27.00
3. 01000592 GT-034902 Light, in use, green, 125VAC 10.00
4. 01000546 GT-033201 Start thermostat control with probe 310.00
5. 00000061 GT-038799 Screw, thermostat control, 10/32 x 1-1/4”, PRH, MS, zinc .50
(2 required)
6. 01000469 GT-031119 Clamp, sensor probe, thermostat control, mounting 1.00
7. 01000606 GT-035300 Gauge, digital temperature, with probe 145.00
8. 00000023 GT-038703 Screw, flat head, temperature gauge mounting, 4-40 x 1” .50
(2 required)
9. 01000618 GT-035700 Nut, 4-40, temperature gauge mounting (2 required) .50
10. 01000741 GT-038444 Retaining plate, temperature gauge sensor probe 2.00
11. 00000026 GT-035701 Nut , retaining plate, 8-32 .50
01000641 GT-036000 Washer, retaining plate, star, #6 .50
12. 01000537 GT-033003 Timer, Cam cycle control 325.00
13. 01000597 GT-035120 Motor, cycle control timer 140.00
14. 00000030 GT-038728 Screw, timer mounting, #10 x 1/2”, drill kwik 1.00
15. 01000538 GT-033004 Counter, cycle, 120VAC (prior to 08/06) 35.00
16. 00000026 GT-035701 Nut, cycle counter mounting bracket, 8-32 (2 required) .50
01000641 GT-036000 Washer, cycle counter mounting bracket, star, #6 (2 required) .50
17. 01000556 GT-034201 Transformer, primary-120 VAC, secondary-24 VDC, 40VA 40.00
18. 00000039 GT-038744 Screw, transformer mounting, 10-32 x 3/8” phillips .50
TH, MS, SS (2 required)
19. 01000669 GT-036700 Plug, three wire 1.00
20. 06001537 GT-036701 Plug, six wire 1.50
21. 01000670 GT-036702 Plug, solderless terminal .50
22. 01000547 GT-033301 Receptacle, three wire 1.00
23. 06001634 GT-033302 Receptacle, six wire 1.50
24. 01000548 GT-033303 Receptacle, solderless terminal .50
25. 00000168 GT-040729 Electrical box 4.00
26. 06001584 GT-040730 Cover, electrical box 1.50
27. 01000474 GT-031500 Bracket, electrical box 17.00
28. 06001552 GT-038401 Grommet, electrical box 3.50
29. 00000076 GT-038716 Bolt, electrical box, 8-32 x 1/2” hex head (2 required) .50
01000642 GT-036001 Lockwasher, star, large, #10, electrical box .50
07000180 GT-035717 Nut, electrical box, mounting, 8/32 zinc (2 required) .50
01000473 GT-031402 Power cord, 8’ with grounded plug 15.00
30. 01000764 GT-040723 Bridge rectifier 5.00
31. 01000553 GT-033419 Switch, drain motor cam (2 required) 10.00
32. 00000040 GT-038745 Screw, drain motor cam switch mounting (4 required) .50
4-40 x 1”, PPH, MS, SS
33. 07000259 GT-033417 Switch insulator (2 required) 1.50
34. 01000481 GT-031528 Bracket, drain motor cam switch mounting 15.00
35. 00000035 GT-038736 Screw, drain motor cam switch mounting bracket .50
8-32 x 1/4”, HWH (2 required)
36. 00000003 GT-031109 Clamp, cable, white nylon, 1/4” .50
37. 00000030 GT-038728 Screw, cable clamp, drill kwik, 10 x 1/2” 1.00
38. 01001231 Micro Control Timer (SN#18005157 and after) 460.00
01000190 Micro Control Timer & Retrofit Kit (prior to SN#18005157) 477.00

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
8

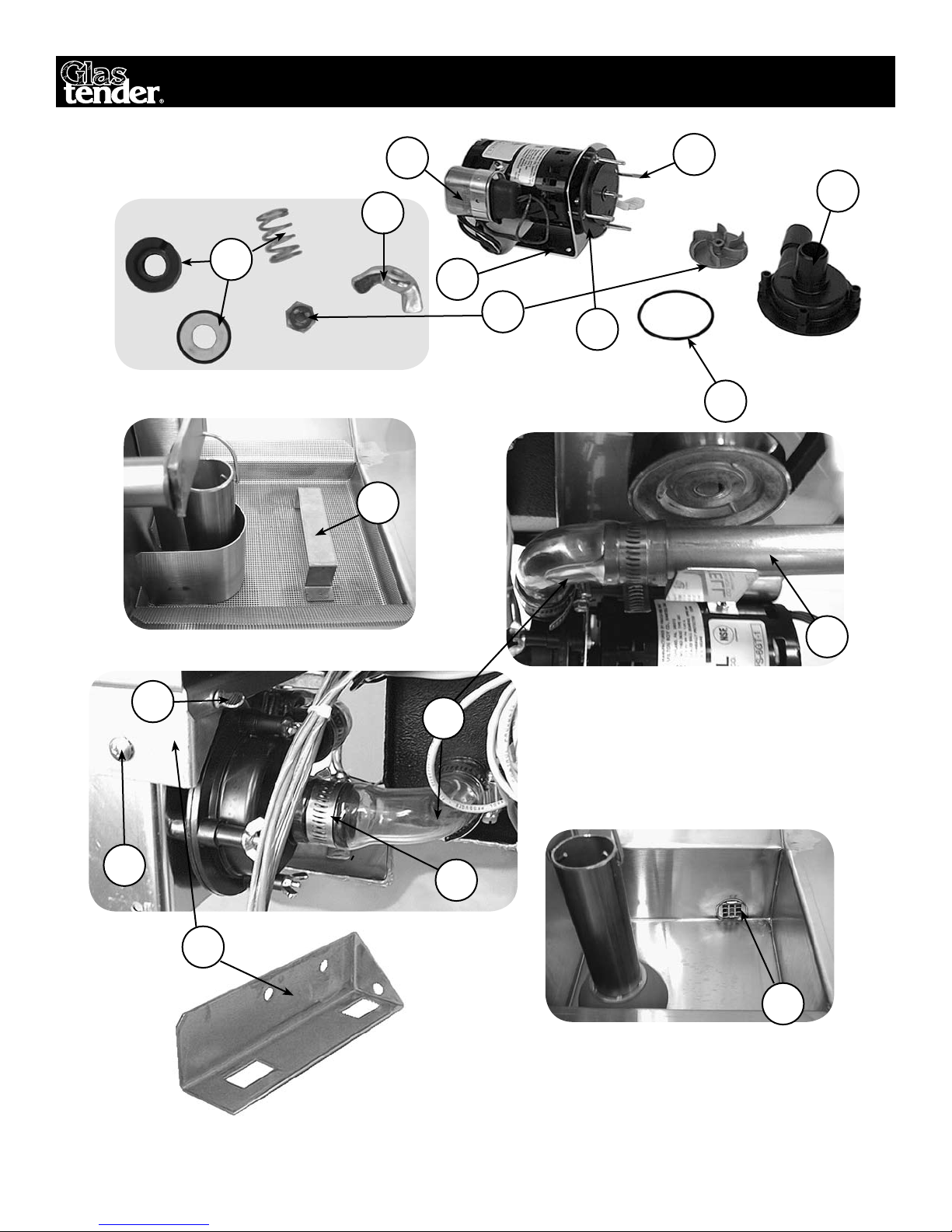

reCIrCuLaTInG PumP anD reLaTeD ParTs
manufaCTureD PrIor To november 2004
Complete Recirculating Pump Disassembled
9
3
6
7
8
5
4
2
10
1
12
17
13
14
15
16
11

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 9
ParT no. oLD ParT no. DesCrIPTIon PrICe
1. 00000039 GT-038744 Screw, pump mounting, 10-32 x 3/8” phillips .50
TH, MS, SS (2 required)
01000642 GT-036001 Lockwasher, pump mounting screw, #10 (2 required) .50
2. 01000819 GT-037400 Seal assembly, water recirculating pump 60.00
3. 01000818 GT-034506 Housing, water recirculating pump 20.00
4. 01000622 GT-035727 Nut, wing, water recirculating pump (4 required) .50
5. 01000823 GT-034509 Plate, base, water recirculating pump 11.00
6. 01000574 GT-034510 Impeller with nut, stainless steel, water recirculating pump 50.00
7. 01000573 GT-034508 O’ ring, water recirculating pump 5.00
8. 01000779 GT-041021 Stud, water recirculating pump (4 required) .50
01000650 GT-036203 Washer, flat, water recirculating pump stud, #8 (4 required) .50
9. 01000529 GT-032202 Capacitor, water recirculating pump 40.00
10. 01000483 GT-031536 Bracket, water recirculating pump mounting 35.00
11. 01000842 GT-031527 Pump mount angle, mounts pump to tank 15.00
12. 06001573 GT-038725 Screw, thumb, mounts recirculating pump to tank, 1.00
10-32 x 1/2”
13. 00000000 GT-031100 Clamp, hose (6 required) 1.00
14. 06001460 GT-035228 Hose, formed elbow (2 required) 20.00
15. 01000805 W0038 Pipe, 1” OD x 6”, stainless steel, water recirculating 6.00
16. 01000676 GT-037007 Screen, inlet pump 24.00
17. 01000677 GT-037010 Screen, tank 72.00
reCIrCuLaTInG PumP anD reLaTeD ParTs
manufaCTureD PrIor To november 2004

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
10

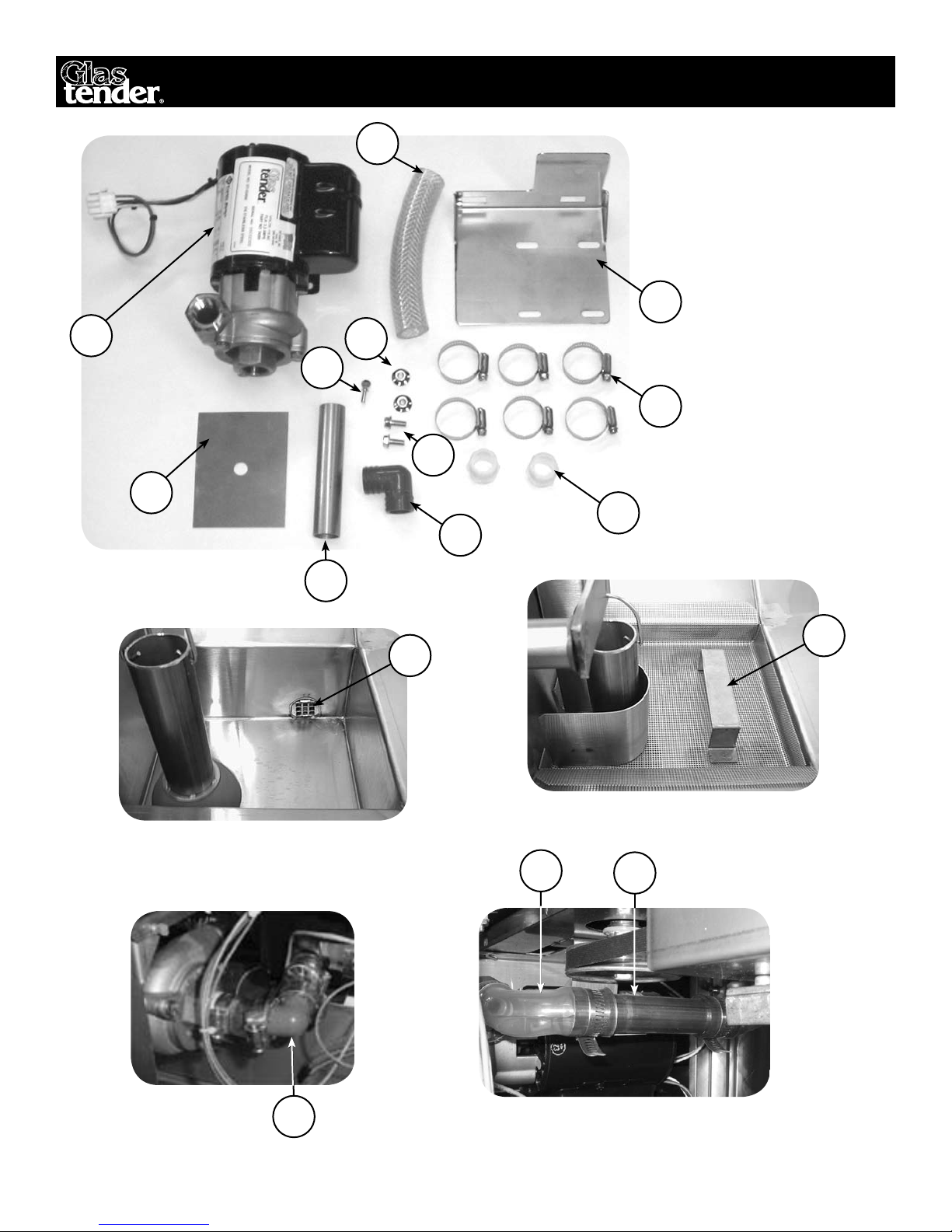

reCIrCuLaTInG PumP anD reLaTeD ParTs
manufaCTureD november 2004 anD LaTer
8
1
5
10
14
Complete Recirculating Pump Kit
2
8
5
11
9
12
13
4
3
7
6

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 11
ParT no. oLD ParT no. DesCrIPTIon PrICe
01000580 GT-034553 Pump kit, water recirculating (including items 1-11) $660.00
01000825 GT-034556 Mounting kit (including items 2-11) 60.00
1. 01000415 GT-034550 Pump, water recirculating, 50/60 cycle (2 - 01000864 620.00
barb hose connectors required)
2. 06001574 GT-038833 Screw, thumb, mounts recirculating pump to tank, 1.50
10-32 x 1/2”
3. 00000000 GT-031100 Clamp, hose (6 required) 1.00
4. 00000015 GT-031811 Hose, 1” ID x 1-1/4” OD x 1/8” 5.50
5. 01000906 GT-038532 Elbow, Grey Plastic 4.00
6. 00000041 GT-038746 Bolt, 1/4-20 x 5/8 Hex Washer Head .50
7. 01000623 GT-035740 Nut, 1/4-20, Large Flange Serrated Nut .50
8. 02000630 W0019 Water recirculating tube, 1” x 5” 5.00
9. 01000154 O0815 Bracket, mounts pump to tank 18.00
10. 01000864 Connector, barb hose, white, 3/4” x 1/2” (2 required) 4.00
11. 01000860 Restrictor Plate, wash box 5.00
12. 06001460 GT-035228 Hose, formed elbow (2 required) 20.00
13. 01000676 GT-037007 Screen, inlet pump 24.00
14. 01000677 GT-037010 Screen, tank 72.00
01000851 Shaft Seal 50.00
01000854 O-ring 5.00
01000852 Impeller 23.00
01000853 Acorn Nut 11.50
reCIrCuLaTInG PumP anD reLaTeD ParTs
manufaCTureD november 2004 anD LaTer

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
12

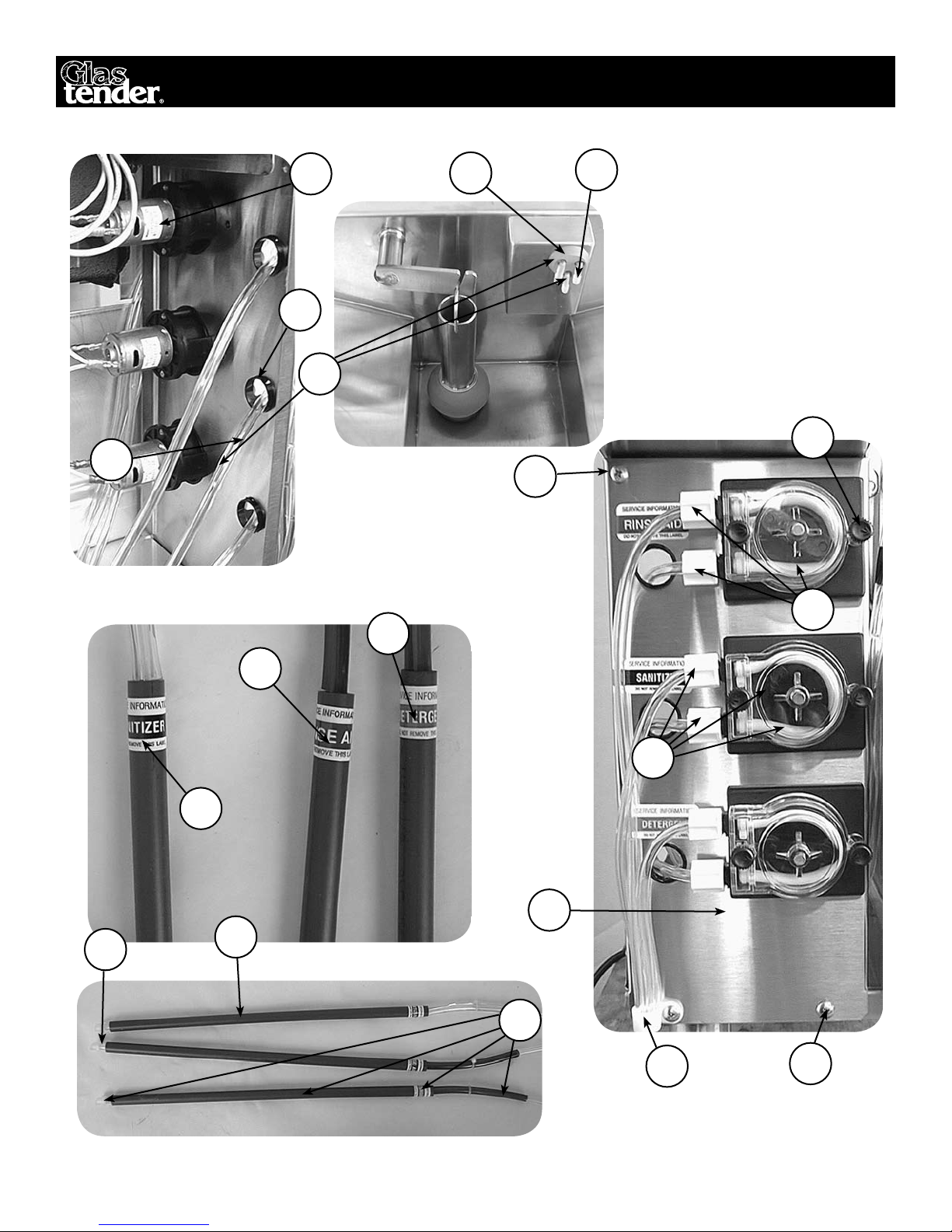

PerIsTaLTIC PumP, ChemICaL TubInG, anD reLaTeD ParTs
14
13
6
10
2
15
17
18
11
16
12
5
3
4
9
8
7
1
19

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 13
ParT no. oLD ParT no. DesCrIPTIon PrICe
01000576 GT-034512 Pump complete, triple, beta with tubing assemblies $ 591.00
01000570 GT-034503 Pump complete, triple, beta LESS tubing assemblies 521.00
01000843 GT-035522 Wire harness, pump 15.00
1. 01000480 GT-031526 Bracket, pump, triple 60.00
2. 06001556 GT-038430 Grommet, pump bracket (3 required) .50
3. 00000001 GT-031106 Clamp, cable, white nylon, 5/8” ID .50
4. 00000030 GT-038728 Screw, pump bracket mounting, 10 x 1/2”, drill kwik 1.00
5. 00000039 GT-038744 Screw, pump bracket mounting, 10-32 x 3/8” phillips .50
TH, MS, SS(2 required)
6. 01000596 GT-035104 Motor, drive, peristaltic pump 90.00
7. 01000571 GT-034505 Pump cartridge kit, detergent, sanitizer, or rinse aid, 120.00
pump tube with fittings, 1/8” ID, 1/4” OD
01000572 GT-034507 Pump cartridge and motor assembly, detergent, sanitizer, 210.00
or rinse aid (consists of: 01000571 and 01000596)
8. 01000692 GT-037425 Pump tube, detergent, sanitizer, or rinse aid, 35.00
with fittings 1/8” ID
9. 01000578 GT-034514 Pin, snap clip (2 required per pump) DISCONTINUED 7.00
01001241 Pump cartridge kit, peristaltic pump (no tubing) 85.00
10. 01000517 GT-031705 Tubing, clear, 1/8” ID x 1/4” OD (per foot) 2.50
11. 01000601 GT-035222 Fitting, chemical pickup, 1/8” 2.00
12. 01000526 GT-031750 Tubing support 6.00
13. 01000739 GT-038416 Grommet, three hole, rubber (chemical inlet) 9.00
14. 01000602 GT-035230 Inlet, elbow, detergent, sanitizer, or rinse aid, 1/8” x 1/8” 3.50
15. 01000485 GT-031600 Decal, detergent 1.00
16. 01000486 GT-031601 Decal, sanitizer 1.00
17. 01000489 GT-031606 Decal, rinse aid 1.00
18. 01000696 GT-037430 Tubing, assembly, lower, detergent (consists of: 01000485, 20.00
01000517 [6’ length], 01000526, and 01000601)
01000690 GT-037410 Tubing, assembly, lower, sanitizer (consists of: 01000486, 20.00
01000517 [6’ length], 01000526, and 01000601)
01000699 GT-037434 Tubing, assembly, lower, rinse aid (consists of: 01000489, 20.00
01000517 [6’ length], 01000526, and 01000601)
19. 01000698 GT-037433 Tubing, assembly, upper (consists of: (3) 01000517 25.00
[3’ length], (3) 01000602 and 01000739)
01000844 GT-036900 Test kit, detergent 110.00
01000845 GT-036901 Test kit, sanitizer (chlorine and iodine) 120.00
PerIsTaLTIC PumP, ChemICaL TubInG, anD reLaTeD ParTs

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
14

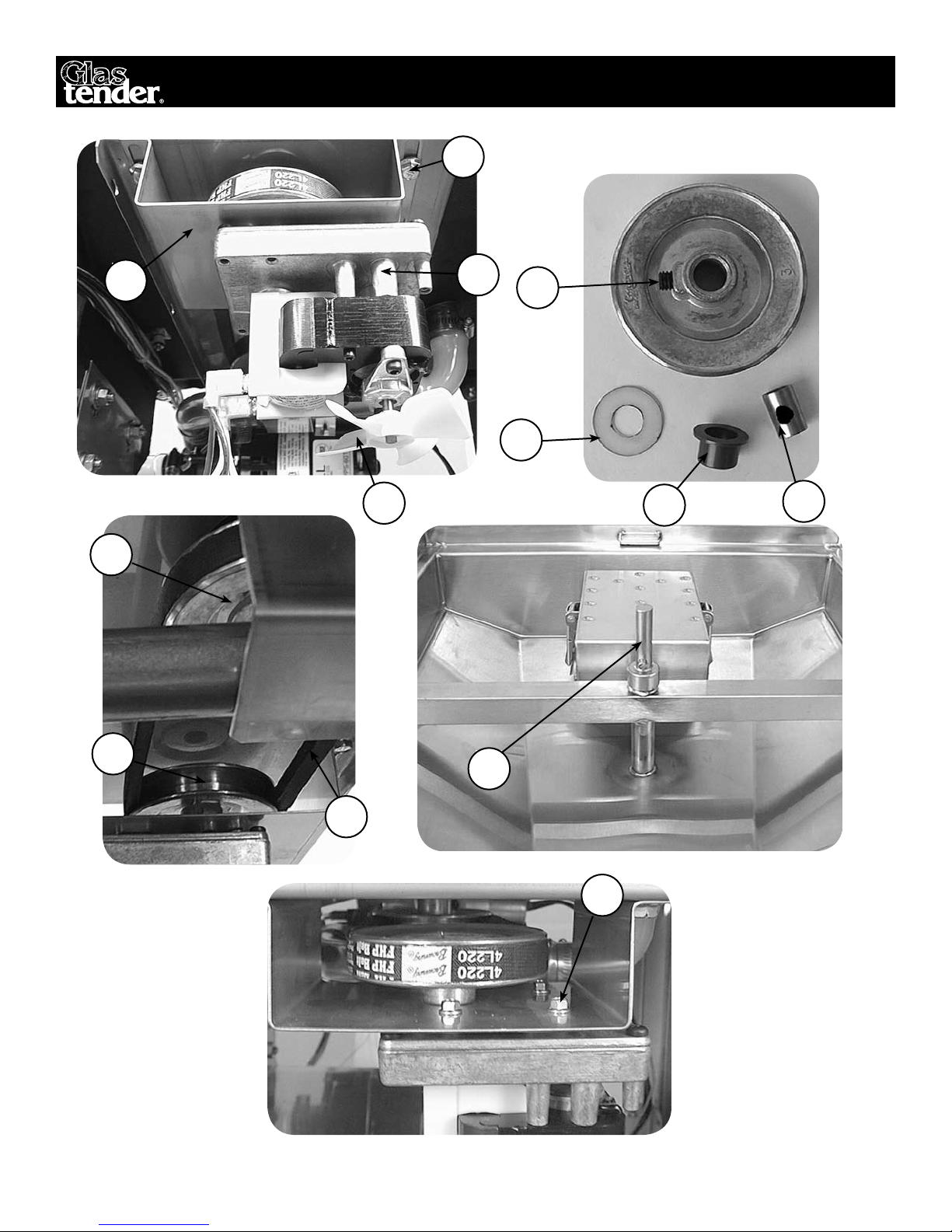

DrIve assembLy ComPonenTs
12
13
8
6
5
11
10
9
4
3
7
2
1

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 15
DrIve assembLy ComPonenTs
ParT no. oLD ParT no. DesCrIPTIon PrICe
1. 01000700 GT-037603 Drive shaft $ 120.00
2. 01000847 GT-036025 Washer, 1-1/8” OD .50
3. 01000671 GT-036800 Bearing, flange (2 required) 3.00
4. 01000735 GT-038404 Sleeve, drive motor pulley only, 3/8” to 1/2” 4.00
5. 01000465 GT-031000 Pulley, 3” with set screw and sleeve, drive motor 15.00
6. 01000467 GT-031002 Pulley, 3” with set screw and machined center, drive shaft 20.00
7. 00000024 GT-038706 Screw, set, 5/16”-18 x 1/2” .50
8. 01000590 GT-034803 Belt, 22” 16.00
9. 01000595 GT-035102 Drive motor, drive wheel, 10 RPM (same as drain stopper) 180.00
10. 01000531 GT-032800 Fan blade, drive motor 3.00
11. 00000035 GT-038736 Screw, drive motor mounting, 8-32 x 1/4” hex washer head .50
(4 required) [attaches motor to motor mount]
12. 01000477 GT-031507 Bracket, motor mounting 30.00
13. 00000041 GT-038746 Bolt, 1/4”-20 x 5/8”, hex washer head (4 required) .50
(attaches motor mount to tank)

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
16
PLumbInG ComPonenTs
13
14
16
15
31
3
2
1
27
26
28
29
8
9
10
11
7
23
18
12
17
20
22
5
4
6
24
19
25
21
30

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 17
PLumbInG ComPonenTs
ParT no. oLD ParT no. DesCrIPTIon PrICe
1. 01000561 GT-034301 Valve, water inlet $ 55.00
2. 00000041 GT-038746 Bolt, water inlet valve mounting, 1/4”-20 x 5/8”, HWH .50
3. 01000672 GT-036902 Water inlet valve screen kit 9.00
4. 01000848 GT-037001 Screen, water inlet valve (K-017716) 2.00
5. 01000812 GT-036002 Washer, water inlet valve flow (K-27632) 8.00
6. 01000813 GT-038451 Retainer, water inlet valve flow washer (K-26554) 2.00
7. 01000617 GT-035605 Hose, nylon braided, water inlet (per foot) 1.50
8. 01000468 GT-031110 Clamp, hose, water inlet (2 required) 1.00
9. 01000872 Tube, water inlet, stainless steel 17.00
10. 00000005 GT-031114 Clamp, cable, white nylon, 1/2” .50
11. 01000620 GT-035711 Nut, cable clamp, 1/4”, zinc .50
12. 01000648 GT-036147 Box, water inlet 48.00
13. 01000711 GT-037806 Scrap tray 48.00
14. 01000771 GT-040915 PVC, drain elbow, white, 1-1/2” IPS 4.00
15. 01000478 GT-031509 Bracket, drain elbow 3.00
16. 00000026 GT-035701 Nut, 8-32, drain elbow bracket .50
01000642 GT-036001 Lockwasher, star, large, drain elbow bracket, #10 .50
17. 01000768 GT-040912 Drain stopper stem with hanger, stainless steel 34.00
18. 01000767 GT-040909 Drain stopper ball, grey rubber, reversible 32.00
19. 01000691 GT-037411 Drain stopper assembly (consists of: 01000768 66.00
and 01000767)
20. 01000595 GT-035102 Drive motor, drain stopper, 10 RPM (same as drive 180.00
wheel)
21. 00000035 GT-038736 Screw, drive motor mounting, 8-32 x 1/4” (4 required) .50
22. 01000793 GT-040929 Drain linkage arm 36.00
23. 01000904 GT-040923 Motor linkage 24.00
24. 01000619 GT-035707 Locknut, motor linkage mounting, 7/16”-14, .50
nylon insert, zinc
25. 01000671 GT-036800 Bearing, flange (2 required) 3.00
26. 01000804 GT-040924 Linkage rod 24.00
27. 00000017 GT-035718 Nut, linkage rod, 1/4”-28, zinc .50
28. 01000774 GT-040925 Cam, drain motor 20.00
00000024 GT-038706 Screw, set, cam mounting, 5/16”-18 x 1/2” .50
29. 01000775 GT-040926 Ball joint assembly 5.00
30. 01000621 GT-035719 Locknut, ball joint assembly mounting, 1/4”-28, hex head, .50
nylon insert
31. 01000600 GT-035217 Adapter, water inlet valve, 1/4” MPT to 3/8” FMPT 5.00
aCCessorIes

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
18
reCommenDeD sPare ParTs InvenTory
ParT no. oLD ParT no. DesCrIPTIon PrICe
01000472 GT-031306 Gasket, spray box $6.00
01000657 GT-036310 Curtain, end, GT-18+1, GT-18+1L, GT-18+1R, 30.00
(1 required) GT-18+2 and GT-18+2-IC (2 required)
01000658 GT-036311 Curtain, inside, GT-18+1 25.00
07000257 GT-033401 Switch, start and cycle (double pole, single throw, 20.00
momentary)
01000552 GT-033410 Switch, prime (double pole, double throw, momentary) 27.00
01000546 GT-033201 Start thermostat control with probe 310.00
01000606 GT-035300 Gauge, digital temperature, with probe 145.00
01000555 GT-034200 Transformer, primary-120 VAC, secondary-24 VDC 50.00
01000764 GT-040723 Bridge rectifier 5.00
01000553 GT-033419 Switch, drain motor cam (2 required) 10.00
01000415 GT-034550 Pump, water recirculating, 50/60 cycle (2 - 01000864 600.00
barb hose connectors required)
01000571 GT-034505 Pump cartridge kit, detergent, sanitizer, or rinse aid, 120.00
pump tube with fittings, 1/8”ID, 1/4” OD
01000692 GT-037425 Pump tube, detergent, sanitizer, or rinse aid, with 35.00
fittings 1/8” ID
01000696 GT-037430 Tubing, assembly, lower, detergent (consists of: 20.00
01000485, 01000517 [6’ length], 01000526,
and 01000601)
01000690 GT-037410 Tubing, assembly, lower, sanitizer (consists of: 20.00
01000486, 01000517 [6’ length], 01000526,
and 01000601)
01000694 GT-037427 Tubing, assembly, lower, rinse aid (consists of: 20.00
01000489, 01000517 [6’ length], 01000526,
and 01000601)
01000698 GT-037433 Tubing, assembly, upper (consists of: (3) 01000517 25.00
[3’ length], (3) 01000602, and 01000739)
01000595 GT-035102 Drive motor, drive wheel or drainstopper, 10 RPM 180.00
01000561 GT-034301 Valve, water inlet 55.00
