GW24 - Redefining the Rotary Glasswasher
59%
Exclusive design with side notch:
Provides space for three one-gallon chemical containers
within the 24" by 24" foot print.
Allows the outlet to be located behind the glasswasher
without holding the unit off the wall (unit has 14 3/4"
of clearance below notch – verify local code for outlet
height requirements).
(GW24 shown with underbar cabinet to left)
Automatic peristaltic metering chemical pumps:
Front-mounted for easy visual inspection.
Accurately dispense detergent, sanitizer, and rinse aid.
Third chemical pump included for use with rinse aid to ensure no spotting.
Fill and dump style cycle results in up
to 59% less water consumption than
common industry rotary glasswashers.
Unique drainboard top provides integrated
glassware landing area. (Perforated insert
shown cut-away for illustration purposes)
Covers and drainboard top are easily
removable for cleaning access.
The sliding cover prevents water and steam
from escaping during operation and reduces
operating noise. Additionally, the cold water
rinse eliminates steam billowing out at the
end of the cycle.
Easy to clean membrane switch panel includes:
Conveyor advance switch that rotates conveyor one half
turn for easy loading and unloading of glassware.
Priming switches for easy priming of chemical pumps.
De-liming cycle for easy removal of mineral deposits
during maintenance (de-liming agent must be added).
LESS
WATER
The 24" by 24" GW24 rotary glasswasher has a unique design that combines the miserly
water and chemical consumption of a ll and dump with the convenient operating
features of a rotary. A computer controlled ll cycle washes at 120°F (49°C) and rinses
at 75°F (24°C), providing clean glasses that are cool to the touch.

Glastender, Inc. • 5400 North Michigan • Saginaw, MI • 48604-9780 • 989.752.4275 • 800.748.0423 • Fax [phone] • www.glastender.com Glastender, Inc. • 5400 North Michigan • Saginaw, MI • 48604-9780 • 989.752.4275 • 800.748.0423 • Fax [phone] • www.glastender.com
GW24 - Redefining the Rotary Glasswasher
Fill and dump operation means no
maintenance heater and low utility bills.
Uses up to 87% less energy than
common industry rotary glasswashers.
Virtually no idle energy use.
Drain stopper is controlled by a quiet
and reliable gear motor with linkage cam
instead of a noisy solenoid valve.
Chemical ll is easily visible by
sliding the cover open during the ll
portion of the wash and rinse cycles.
Conveyor easily lifts out for cleaning access. Stationary spray box simply unlatches
for easy visual inspection and cleaning.
No curtain and soft-start conveyor help to
ensure no glasses tip over during operation.
Full 10" of clearance height for washing
glassware and pitchers.
Can wash up to 18 glasses per minute, easily
handling the output of multiple bartenders
using typical glassware. (A complete cycle is
2 minutes, 15 seconds)
GW24 Accessory
Available with slide-out chemical bottle
rack for easy access to chemical bottles.
Specify part number 01001500.
Front rail and 30" work
height aligns with adjacent underbar
for an attractive installation.
Top view shown with covers
and drainboard removed.
87%LESS
ENERGY
Pumped wash and rinse ensures
water line pressure variances do
not affect wash results.
The GW24 has a ll and dump style cycle but the comparisons to traditional ll & dump style
machines end there. In addition to the cold water rinse, the GW24 is specically designed
to align with underbar equipment. It also has a sliding cover for access to glassware, which
improves bartender work ow by eliminating the door extending into the aisle.

Glastender, Inc. • 5400 North Michigan • Saginaw, MI • 48604-9780 • 989.752.4275 • 800.748.0423 • Fax [phone] • www.glastender.com Glastender, Inc. • 5400 North Michigan • Saginaw, MI • 48604-9780 • 989.752.4275 • 800.748.0423 • Fax [phone] • www.glastender.com
GW24 - Redefining the Rotary Glasswasher
Switch turns off the machine if the cover is slid open during the
spray portion of the cycle to prevent over spray. The cycle resumes
if the cover is closed within 30 seconds.
Control board
Delays cycle start until incoming water is at least
120°F (49°C) to ensure excellent wash results.
Allows lengthened ll time without increasing
overall cycle time for installations with less than
normal water volume.
Allows 75°F (24°C) cold water rinse temperature for clean
glasses that are cool to the touch.
Permits easy chemical pump adjustments.

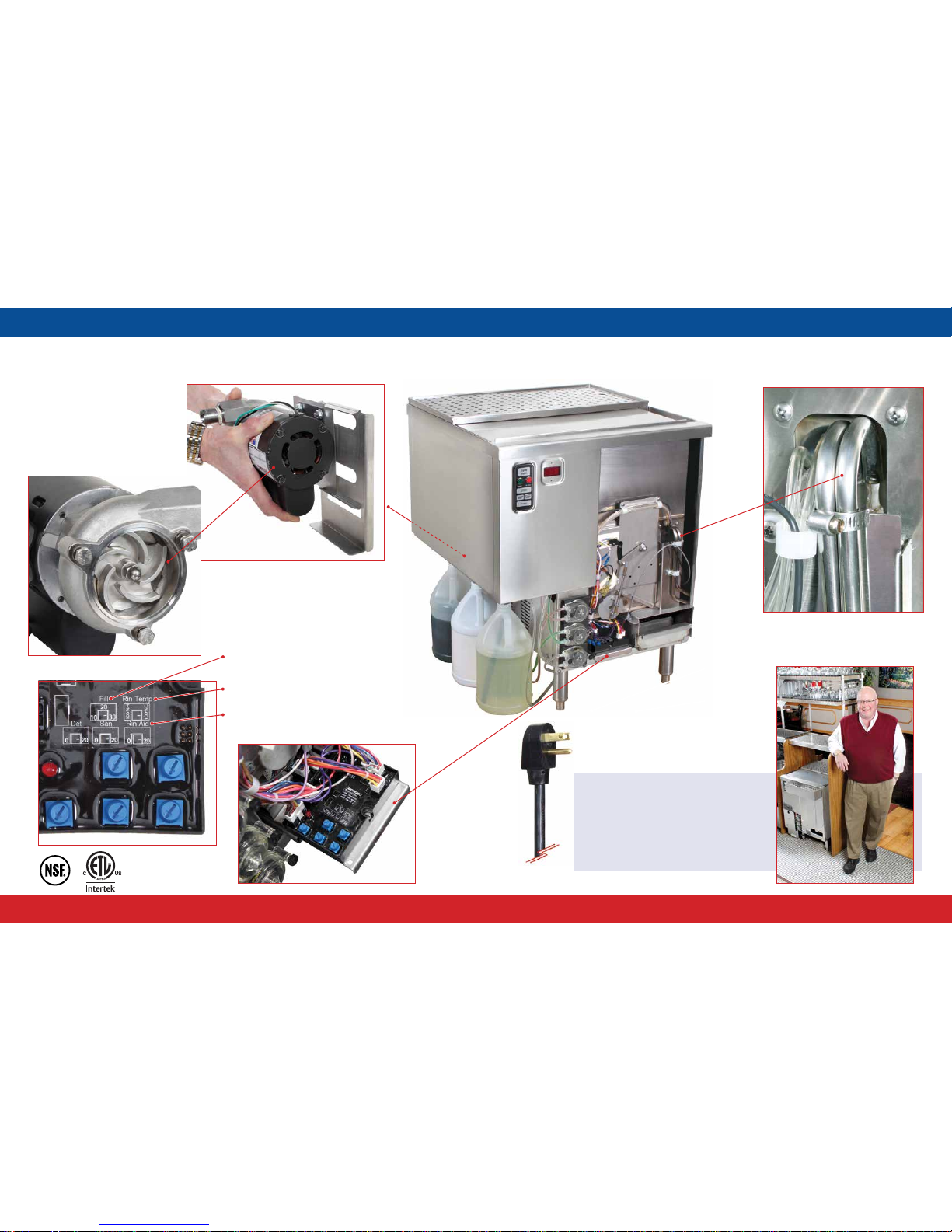

Slide-out circuit board tray allows for easy service access.
Incoming water line has built-in air gap so no
separate vacuum breaker accessory is required.
Removable front and side
panels for easy service access.
Durable water recirculating pump has
stainless steel housing and impeller
(shown with cover removed).
Special mounting bracket allows
for easy service access to water
recirculating pump.
Unit plugs into standard 120V electrical
outlet for an easy installation.
The GW24 continues the Glastender tradition of designing products with innovative features
that enhance efciency, ease maintenance, and prolong equipment life.
“Since replacing my previous rotary glasswasher
with Glastender’s GW24, I am saving over $200*
a month in chemicals alone!”
- Spencer Dambro, Owner
Spencer’s Route 46, Saginaw, Michigan
*For details, visit:
www.glastender.com/GW24savings
4004503
Conforms to UL STD 921
Certied to CAN/CSA STD
C22.2 No. 168-2005

Glastender, Inc. • 5400 North Michigan • Saginaw, MI • 48604-9780 • 989.752.4275 • 800.748.0423 • Fax [phone] • www.glastender.com
Easy maintenance is the key to superior results
1. Remove the four parts from the top of the glasswasher.
2. Remove the conveyor wheel. Any large debris found inside
the machine, like broken glass, lemon seeds, stir sticks, and so
on, should also be removed.
3. Check the spray box, making
sure none of the spray holes
are clogged. If a clog is found,
the spray box is easily removed
by lifting up on the spray box
clamps. Use a nylon brush to
scrub the spray box holes clean.
4. Remove the tank screen
and dump any debris into
the trash. Rinse and clean
the tank screen thoroughly.
5. Remove the drain stopper and any
debris from the lower wash tank. Make
sure nothing is clogging the pump inlet
screen, inside the lower wash tank.
6. Remove the scrap tray
and empty out any debris
that may have passed
through the tank screen.
7. Use a damp cloth to wipe
down the entire wash tank. For
more stubborn stains, use a
nylon brush or a Scotch-Brite
Stainless Steel Cleaner® pad.
Never use steel wool to clean
stainless steel. Steel wool will
cause the stainless steel to rust.
8. Re-assemble the glasswasher and you are ready to start the
next day. Over time, mineral deposits from water will build up
inside the tank. A chemical de-liming agent added while running
the de-liming cycle will remove mineral deposits.
Drainboard insert
Drainboard pan
Sliding cover
Inner cover
Inlet
screen
Every NSF listed glasswasher performs well when new. The real challenge is to perform well after long-term use.
This is where simple maintenance becomes critical. The GW24 glasswasher disassembles quickly for cleaning.
No tools are required. Cleaning is so straightforward, we can illustrate the entire process in the steps below.
