Glastender BB24 User manual

Operation Manual, Parts Directory and Price List
Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780
800.748.0423 · 989.752.4275 · Fax [phone] · www.glastender.com
© 2008 Glastender, Inc.
Vertical Door coolers
self-containeD MoDels - BB24, BB36, BB60*, BB84*, BB108*, ND52*, ND72*, ND92*,
FV24*, FV48*, LP60*, LP84*, LP108*, PT60, PT84, PT108, KC24, KC48, KC52, KC72,
KC84*
reMote MoDels - BB24, BB48, BB72, BB96, LP48, LP72, LP96, PT48, PT72, PT96
Dry storage MoDels -DS24, DS48, DS72, LPDS24
Rev. 06-29-15
BB60-L1-XSH(LR)
PT60-L1-LLH(LR/RL)
BB72-R1-BLN(LLR)
FV24-BS(L)
shown with optional wood panel doors
A Family Company Manufacturing
In The USA Since 1969
*see Page 2 for iMPortant cooler serial nuMber inforMation

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
1
serVice anD Parts
Cooler Serial Number Information ................................................................. 2
Terms and Conditions...................................................................................... 3
Warranty .......................................................................................................... 4
installation
Introduction ..................................................................................................... 5
Utility Requirements and Connections ........................................................... 5
Uncrating and Start-Up Instructions ............................................................... 5
Operation......................................................................................................... 5
Cleaning Instructions..................................................................................5 - 6
Floor Sealing Instructions ............................................................................... 6
BB24 Minimum Air Flow Clearance Diagram............................................... 6
Cooler Installation Checklist........................................................................... 7
Cooler Design Change .................................................................................... 8
sPecifications
Electrical and Refrigeration Specifications..................................................... 9

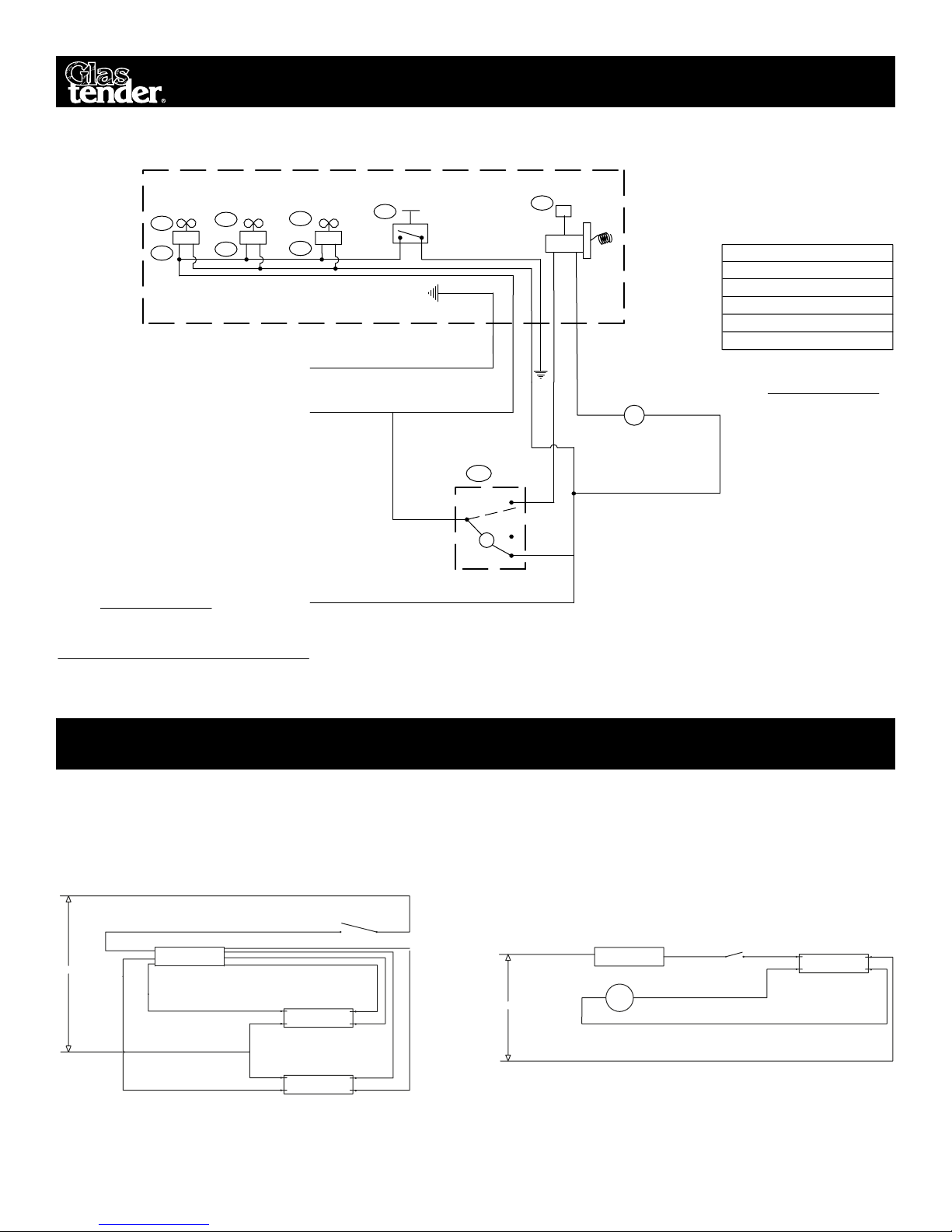

Wiring Diagrams ...................................................................................... 10-14
Endwall Models ...................................................................................... 10
Self-Contained Models ............................................................................11
Remote Models....................................................................................... 12
Remote Models with Solenoid Control .................................................. 13
Built-in Fluorescent Light Fixtures ........................................................ 13
BB24 Self-contained and KC24 Models ................................................ 14
rePlaceMent Parts

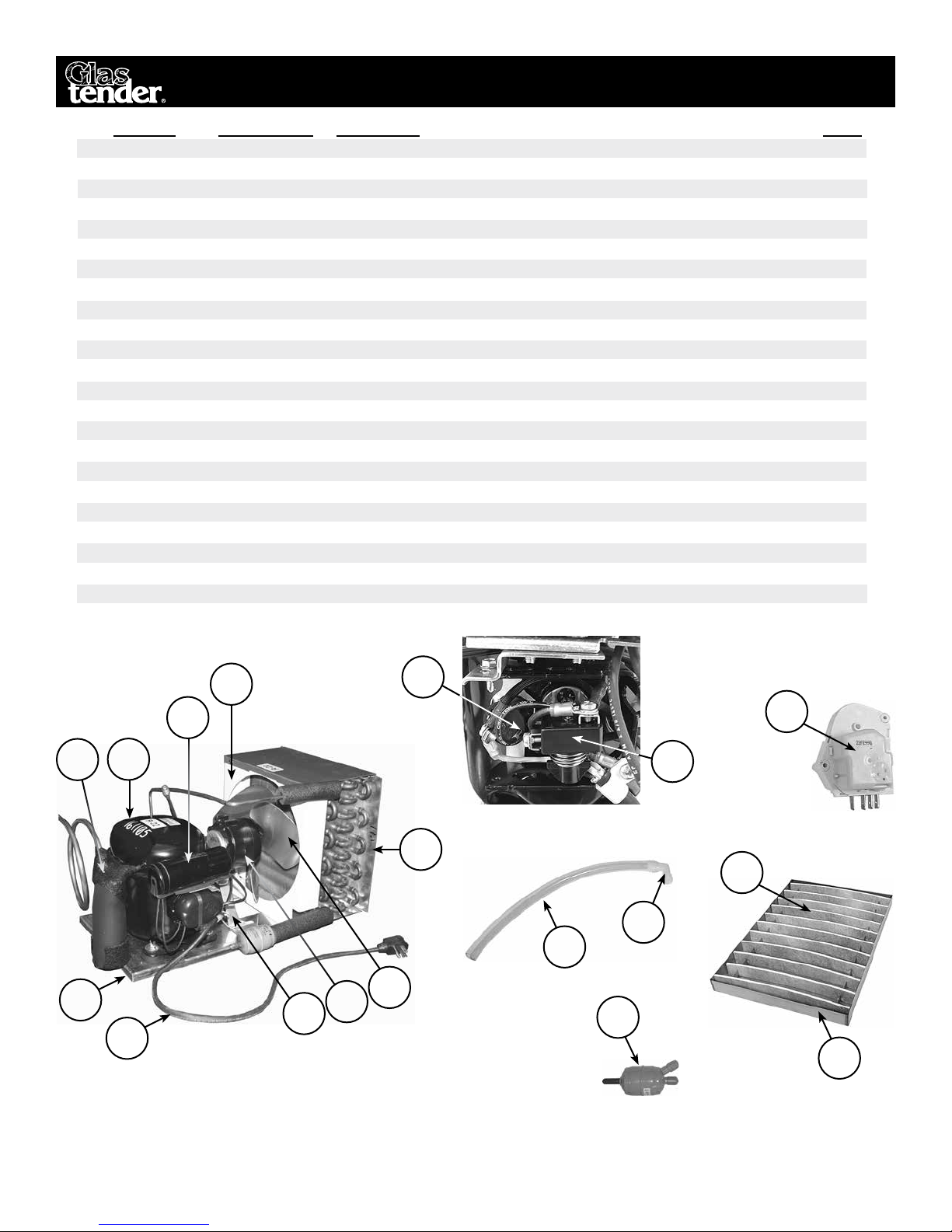

Compressor and Condenser Related Parts ............................................... 15-22
BB24 Self-Contained & KC24............................................................... 15
BB36 ....................................................................................................... 16
LP60, LP84, LP108, and Non Endwall BB60, BB84, BB108,
ND52, ND72, ND92, KC72, and KC84................................................. 17
BB36, BB60, ND52, and KC52 Endwall............................................... 18
BB84, BB108, ND72, ND92, KC72, and KC84 Endwall ..................... 19
KC48....................................................................................................... 20
PT60, PT84, PT108 ................................................................................ 21
FV24 and FV48 ..................................................................................... 22
Evaporator and Related Parts................................................................... 23-25
Doors and Related Parts........................................................................... 26-29
Shelving, Racks and Related Parts................................................................ 30
Refrigeration Compartment Covers .............................................................. 31
220 Volt Electrical Parts........................................................................... 32-33

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 2
bb & nD cooler serial nuMber inforMation
lP cooler serial nuMber inforMation
Kc cooler serial nuMber inforMation
fV cooler serial nuMber inforMation
This manual is specic to self-contained BB60, BB84, BB108, ND52, ND72, and ND92 coolers
prior to the serial numbers and dates listed below.
BB60R 134121363F 02/26/09
BB60L 134121425F 03/03/09
BB84R 134121457F 03/04/09
BB84L 134121456F 03/04/09
BB108R 134121452F 03/04/09
BB108L 134121226F 02/17/09
ND52R 134121519F 03/09/09
ND52L 134121559F 03/11/09
ND72R 134121906F 04/08/09
ND72L 134121475F 03/11/09
ND92R 134121126F 02/09/09
ND92L 134122745F 06/10/09
cooler serial nuMber inforMation
This manual is specic to self-contained LP coolers prior to the serial numbers and dates listed below.
This manual is specic to self-contained KC84 coolers with serial numbers beginning with 404.
This manual is specic to self-contained FV coolers prior to the serial numbers and dates listed below.
LP60R SN 134128786F 09-28-10
LP60L SN 134128783F 09-28-10
LP84R SN 134129050N 09-28-10
LP84L SN 134128771N 09-28-10
LP108R SN 134131070N 09-28-10
LP108L SN 134129406N 09-28-10
FV24 SN 134143788F and excluding SN 134142753F & SN 134143411F 05-13-13
FV48 SN 134143788F and excluding SN 134142796F 05-13-13

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
3
terMs anD conDitions
Prices:
All prices are LIST. Applicable taxes will be added.
Quotations:
Unless otherwise stated, quotations are effective for 30 days only.
accePtance:
All orders are subject to acceptance by Glastender, Inc.’s headquarters in
Saginaw, Michigan. Possession of the Product Directory and Price List
is not an offer to sell.
shiPMents:
F.O.B. factory in Saginaw, Michigan. Freight terms are Third Party or
Collect if shipped directly to you. Prepay and Add to Invoice freight
terms are available upon request. The approximate shipping weights of
all products are listed with the prices. Partial shipments will be made
unless otherwise specified by the customer. Surface freight classifica-
tions are:
Glasswashers, Line Chillers - Class 92.5
Cocktail Stations, Underbar Equipment - Class 85
Bar Die/Underbar Equipment – Class 125
Refrigeration Equipment, 48” long or smaller - Class 100
Refrigeration Equipment, greater than 48” long - Class 110
All small items are evaluated to see the most cost effective means for
shipment. Many small items ship via UPS or FedEx; however, when
dimensional weight is excessive DB Schenker, UPS Supply Chain, or
even common LTL carriers are the most cost effective choice. Spare
parts orders received before 1:00 PM EST can usually be shipped the
same day.
The order department is happy to assist with routing or shipping ques-
tions.
PayMent terMs:
Cash should be included with all orders unless credit terms have been
arranged. To establish credit, banking and trade references are required.
A convenient credit application is available upon request. Payment via
credit card is not our normal means of receiving payment. Visa and
MasterCard will be accepted, but must be charged at the time of ship-
ment. In addition, a payment via credit card for orders totaling more than
$500 will incur a 3% convenience fee on the total transaction amount.
DeliVery:
The majority of equipment is manufactured to order and typically ships
within three to six weeks after complete order information is received by
the factory. In-stock equipment typically ships within two to three days
of the factory receiving complete order information.
returns:
Items specified as “Manufactured to Order” are NOT returnable.
A Return Material Authorization (RMA) number must be issued by the
factory in advance for any items that are returnable. The RMA number
MUST be noted on the outside of the returned package. Returns must be
received within 90 days of the RMA issue date. Shipping charges must
be prepaid. A minimum 20% restocking charge will be applied to all
authorized returns if received in new, unused condition in the original
packaging.
The above conditions apply to spare part returns, except spare part
returns must be received within 30 days of original shipment for elec-
tronic or electrical parts or within 90 days for all other parts.
loss or DaMage:
For customer routed shipments, Glastender, Inc. is not responsible for
any loss, damage, or delay of merchandise during shipment. Such transit
claims must be filed with the carrier. Merchandise must be examined on
arrival. If shortages occur, Glastender, Inc. must be notified in writing
within five (5) days of delivery to honor any shortage claim. Glastender
will assume responsibility for freight claims on Prepay and Add ship-
ments but the customer must inspect freight and note any damage upon
receipt. Failure to do so may result in losses at the customer’s expense.
custoM orDers:
Custom orders must be paid in advance and are not subject to cancel-
lation.
laMinates:
Some products include common, readily available plastic laminates of
the customer’s selection. There may be an additional charge if uncom-
mon varieties are ordered.
05/18/10

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 4
Warranty stateMent
APPLICABLE TO ALL PRODUCTS SOLD WITHIN THE UNITED STATES AND CANADA
Glastender, Inc. warrants all products to be free of defects in mate-
rial and workmanship. One-year labor and parts warranty applies to
all glasswashers, self-contained refrigeration models, and BDS model
bottle disintegration units. In established areas, a start up is included
with GT-24 and GT-30 model glasswashers. Warranty is effective for
one year from the date of installation or up to 18 months from date of
factory shipment, whichever occurs sooner. Glastender, Inc. will replace
any part or assembly found defective under normal use and service.
For warranty labor claims beyond 15 months from the date of factory
shipment, proof of date of installation or occupancy must be provided.
Authorization for labor must be obtained from Glastender within the
warranty period and prior to the service being performed.
Labor warranty applies to the United States and Canada only.
Remote refrigeration models and beer line chillers include a one-year
parts warranty only. There is no labor warranty on these products.
Field replacement parts not covered under the original warranty include
a 90-day part warranty from the date of installation.
FOUR YEAR ADDITIONAL COMPRESSOR WARRANTY:
Glastender will warrant to the original user the compressor for all self-
contained refrigeration models for an additional four years following the
regular one-year warranty period. This plan applies to the compressor
only.
A completed warranty claim form MUST accompany all returned defec-
tive parts or assemblies. Upon request, a defective part or assembly must
be returned to Glastender, Inc., Saginaw, Michigan, with all transporta-
tion and delivery charges prepaid. Warranty repairs or replacements
will be shipped FOB factory in Saginaw, Michigan. Reimbursement for
applicable freight charges covers ground service only.
Glastender provides in-warranty repairs during a service company’s
regular working days and hours. There is no provision for payment
of a premium rate during “overtime” hours. When warranty service is
requested during other than normal working hours, the end user will be
charged the premium portion of the overtime rate.
The warranty covers substantiated travel expenses for up to 2 hours /
100 miles round trip and a maximum of $150. Any additional costs due
to installations that require extra work, time, or travel to gain access
for service are the sole responsibility of the equipment purchaser. Any
exceptions to these travel and access limitations must be pre-approved
by a factory representative.
The warranty does not cover equipment subjected to accidents, freight
damage, alterations from the original design, improper power and/or
plumbing hookups, improper chemical use, general misuse, or lack
of routine required maintenance as determined by Glastender, Inc.
Installation, normal control adjustments, general maintenance, correct-
ing an installation error, or service calls that reveal the unit is function-
ing normally will not be reimbursed under warranty.
Condenser coils on self-contained refrigeration products must be
cleaned regularly. Failure to provide adequate air flow to a refrigeration
unit will void the warranty.
Glastender shall not be liable for loss of use, revenue, or profit, or for
any other indirect, incidental, special, or consequential damage includ-
ing, but not limited to, product spoilage or loss.
This warranty is conditioned upon Glastender receiving notice of any
defect subject to this warranty within sixty (60) days of its discovery
by the end user or dealer. All products are warranted only for the initial
place of installation. Removal of a product automatically terminates
this warranty.
SECOND YEAR EXTENDED PARTS & LABOR WARRANTY:
Glastender’s one-year parts and labor warranty on self-contained refrig-
eration units, excluding beer line chillers, can be extended to two years
with the purchase of a two year parts and labor warranty. Specify part
number EWR2 ($150 net price) when ordering.
EXPORT WARRANTY - One year parts only.
EXCLUSION OF WARRANTIES
EXCEPT AS PROVIDED ABOVE, GLASTENDER MAKES
NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
OR NON-INFRINGEMENT.
LIMITATION OF REMEDIES AND DAMAGES
If Buyer makes a valid and timely claim as outlined above, Glastender’s
liability and Buyer’s remedies under this agreement will be limited solely
to labor charges authorized and/or replacement or credit, at Glastender’s
option, with respect to Products returned at Buyer’s expense within thir-
ty (30) days after warranty repair. GLASTENDER’S LIABILITY WILL
IN NO EVENT BE GREATER IN AMOUNT THAN THE PURCHASE
PRICE OF THE RETURNED PRODUCTS. GLASTENDER
WILL NOT BE LIABLE UNDER ANY CIRCUMSTANCE FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING,
BUT NOT LIMITED TO, LABOR COSTS EXCEPT AS COVERED
UNDER OUR WARRANTY, LOST PROFITS OR THE LOSS OF
PERISHABLE PRODUCTS RESULTING FROM THE USE OF OR
INABILITY TO USE OUR PRODUCTS OR FROM OUR PRODUCTS’
INCORPORATION INTO OR BECOMING A COMPONENT OF
ANY OTHER PRODUCT. NEITHER PARTY WILL HAVE ANY
NEGLIGENCE OR OTHER TORT LIABILITY TO THE OTHER, OR
TO ANY THIRD PARTY, ARISING FROM ANY BREACH OF THIS
AGREEMENT.
GOVERNING LAW - JURISDICTION
The terms and conditions of an order are to be governed and construed
according to the laws of the State of Michigan, without regard to conflict
of laws principles. Buyer hereby consents to the jurisdiction and venue
of the courts located in Saginaw County, Michigan.
No representative, distributor, dealer, or any other person is authorized
to modify this warranty. This warranty replaces all other written or
verbal warranties.
NOTE: Glastender, Inc.’s policy of constant quality improvement
means that prices, specifications, and policies are subject to change
without notice. Questions regarding this warranty should be directed to
Glastender’s Warranty Administrator.
06-11-15
IMPORTANT!!
Attention Service Companies
Please review the important warranty information on this page. If you
believe a service call should be covered by the factory, please call
the factory for authorization between 8AM and 5PM EST, Monday
through Friday.

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
5
introDuction
This manual describes the operational features of Vertical Door Coolers. Please review this information before attempting
installation and operation.
Long term, trouble-free service will follow if good housekeeping and maintenance procedures are followed. Thank you for
selecting Glastender, Inc. products.
utility reQuireMents anD connections
• Electrical: 115 Volt AC, 1 Phase, 60 Hz. A separate 15 Amp circuit is recommended. A 6-foot grounded
cord and plug is included with self-contained models.
• Plumbing:
Self-contained Models: Automatic condensate evaporator is included. No drain connection
required.
Remote Models: An external drain connection is required. Use the ten foot length of 1/2"ID by
5/8 " OD plastic tubing provided to run the drain line for condensate. The tubing should exit
through one of the 3/4
" side knock-out holes.
Self-contained Keg Coolers: The drain pain drain is pre-plumbed at the factory to stub out below
the compressor compartment. A field connection to an external drain must be made from that point.
uncrating anD start-uPinstructions
All models are shipped in one carton. These steps should be followed:
1. If legs or casters are included, bolt them to the base with the bolts provided.
2. Unwrap power cord from base if included.
3. Position unit and level and/or seal as required (see page 2 and 3).
4. The evaporator drain pan on remote models must be plumbed to an external drain. All units with draft beer must
be plumbed to an external drain (except model KC24 which includes an internal plastic drain bottle). On self-
contained models with draft beer and a factory installed finished top, the beer tower drain pan is plumbed through
the cabinet and stubs out in the 3"space below the compressor compartment. Connection to an external drain must
be made from that point.
5. Place shelves in desired location.
6. Plug into 115 volt AC outlet if a power cord is included. Remote models require electrical connections to be made
by an electrician or remote refrigeration contractor.
7. Load with bottles or cans and allow time for products to cool.
8. Your Glastender equipment is now ready for use.
oPeration
The operating temperature range is 36°F (2°C) to 40°F (5°C).
Self-contained models include an automatic defrost system. The refrigerator will defrost every six hours for approximately
20 minutes. Endwall coolers will defrost every four hours for approximately 15 minutes. During the defrost, the fan inside
the cooler will remain on and the refrigeration system will turn off
cleaning instructions
Cleaning is essential to sustaining the integrity of your equipment and preventing corrosion.
ESTIMATED CLEANING TIME: 5 to 10 minutes per unit daily, 45 minutes quarterly
FREQUENCY: Daily cleaning of exterior & door gaskets. Quarterly cleaning of interior, including shelves.
Cleaning Instructions continued on page 4
installation

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 6
Cleaning Instructions continued from page 3
PROCEDURE:
1. A non-chlorine based cleaner or mild detergent and warm water applied with a soft cloth or sponge to all contact sur-
faces.
2. Immediately rinse off cleaning agent(s), using clean warm water, clean soft cloth or sponge.
3. Dry with a soft clean cloth, removing standing water as soon as possible.
NOTES:
1. Never use hydrochloric acid, wire brushes, steel wool, scrapers, or chlorine based cleaners on stainless steel surfaces,
since they will break down the passivity layer and allow corrosion to occur.
2. On stainless steel surfaces, you may use a soft bristle brush or Scotch-Brite®pad for more stubborn stains. Always
scrub with the direction of the grain. Follow with a thorough cleaning as described above.
3. Deposits from food preparation must be properly removed. Even hard water deposits will rust stainless steel, if not
removed.
4. Repeated cleaning may dry up black-vinyl-clad steel (exterior) surfaces of the cooler. Armor All®or similar product
can bring back the shine. Apply the product to a cloth and then rub into the surface, rather than spraying it directly onto
the black-vinyl-clad surface.
5. The cooler door gaskets are most often overlooked when cleaning. Failure to clean them regularly will lead to prema-
ture failure, since alcohol and moisture build-up breaks down the gasket material.
sealing Vertical Door cooler to floor
21"
24"
SWING WILL
CONTINUE IF
NO CABINET
TO IMPEDE
8 1/2"
10"
AIR FLOW
COMPRESSOR
COMPARTMENT
7"
EVAPORATOR
HOUSING
8" 8"
1 1/2"
MINIMUM CLEARANCE
FOR AIR FLOW
WARNING:
COMPRESSOR FAILURE DUE
TO RESTRICTION OR
BLOCKAGE OF AIR FLOW WILL
VOID WARRANTY.
180° SWING
installation
Side View of Cabinet
Plan View
COOLER
DOOR
COOLER CABINET
1" BASE
BEAD SEALANT
FLOOR
MAGNETIC GASKET
To comply with NSF & health codes, the cooler base must be
sealed to the floor using NSF listed sealant. Place a bead of
sealant along outer edges of the base and remove excess with
disposable towel. The floor sealing procedure does not apply
to models that include legs or casters.
bb24 MiniMuM air floW clearance DiagraM

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
7

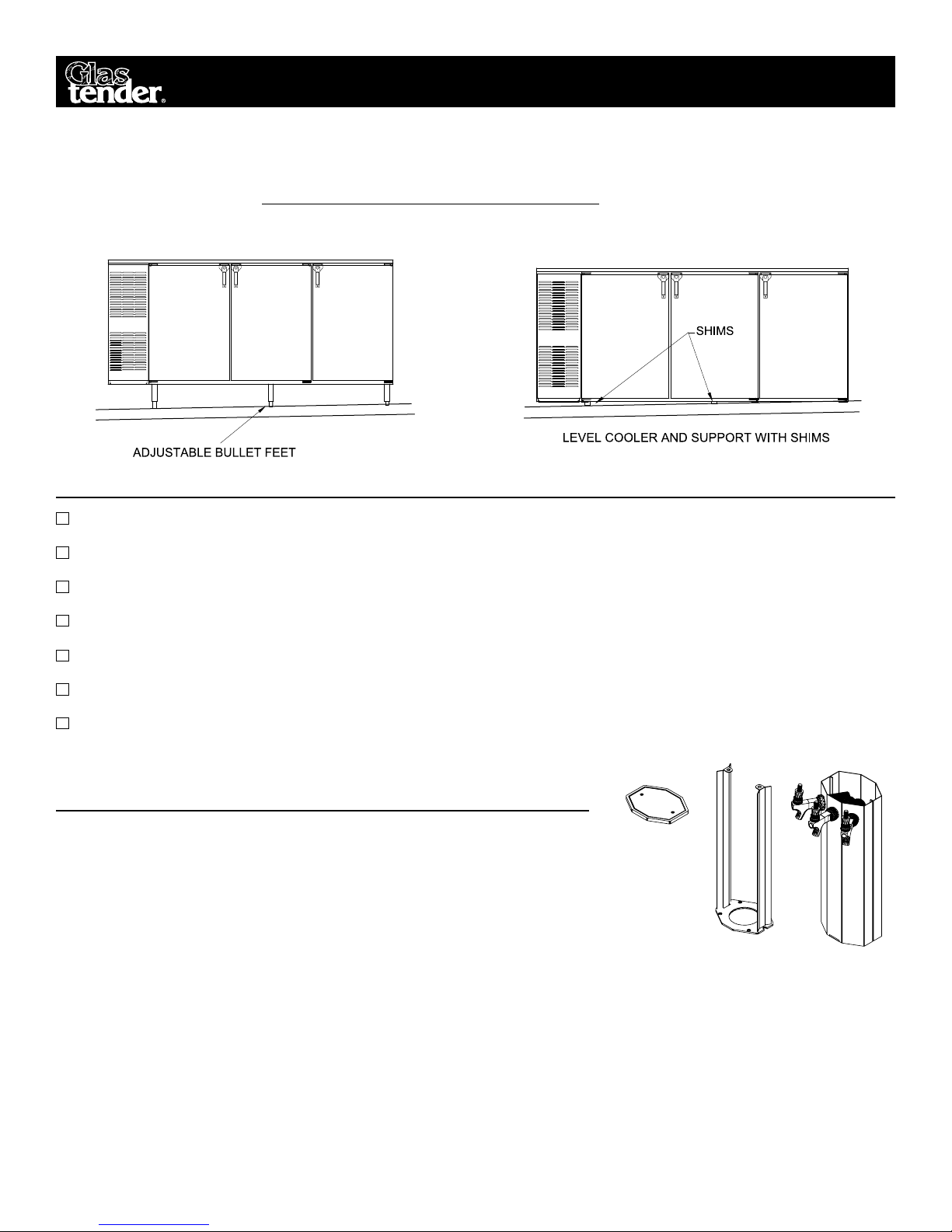

attention installer:WARNING!!
Failure to level this cooler WILL VOID THE FACTORY WARRANTY. Doors will not close properly causing
damage to hinges, handles, and/or gaskets which will adversely affect the refrigeration systems.
cooler installation checKlist
Is the unit evenly and solidly supported, either upon legs, or flat on the base; check for high spots?
If the unit was designed for legs, are they attached?
Is the unit level at the base, from end to end?
Do the doors open and close freely, without touching any other part of the unit in travel?
Are there open holes to the outside of the cabinet which are not plugged or insulated?
Are there obstructions of any kind to air flow into or out of the condensing unit?
Is product tubing or are other lines installed in such a manner to not allow shelf access?
installation
COOLER WITH 6"LEGS
sPecial instructions for Keg coolers
Before you begin:
1. Disassemble the tower into three parts, stiffener, skin, and top plate,
by unscrewing the top two screws.
2. Mount the column stiffener with provided four 1/4"-20x1-1/2" bolts.
3. Install insulation provided into the bottom of the column stiffener.
4. Place the column skin over the stiffener. Run the beer lines through
the hole at the same time.
5. Install insulation provided into the top of the tower assembly.
6. Mount the column top plate to the column stiffener with the two #10-32x1/2" phillips at head s/s machine
screws provided.
7. Apply a bead of silicone sealant around the perimeter of the column. Use your nger to smooth out the bead.
8. Wash tapping device and faucet with detergent and water. Flush beer tapping device and faucet lines.
COOLER WITHOUT LEGS
stiffener
skin
top plate

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 8
stiffener skin
top plate
cooler Design change
iMPortant Design change inforMation
In February 2004, Glastender released new BB and ND self contained cooler designs with the evaporator hous-
ing moved into an area above the compressor compartment. The serial numbers for these units will be 90000 and
above. As of September 2006, KC52, KC72, and KC84 model keg coolers are being manufactured as endwall
models. Due to special customer request some BB and ND self contained models may not have the endwall
design. Please be sure to verify which cooler design type you are ordering parts for. The term endwall will be
used throughout this document to denote parts used for coolers featuring this design.
Standard cooler conguration with evaporator inside cooler area. Compressor compartment
may be located left or right.
Endwall cooler conguration (most BB and ND models manufactured after Feb. 2004, most
KC models manufactured after Sept. 2006) with evaporator located in housing above the
compressor compartment. Compressor compartment may be located left or right.

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
9
electrical anD refrigeration sPecifications
bb24 self-containeD & Kc24 ManufactureD after 4/14/06
electrical refrigerant Pressure P.s.i.g.
115V, 1 phase, 60 Hz tyPe charge high loW
4.0 full load amps, 1/6 HP R134a 5.0 oz. 200 85
Kc24 ManufactureD before 4/14/06
electrical refrigerant Pressure P.s.i.g.
115V, 1 phase, 60 Hz tyPe charge high loW
2.8 full load amps, 1/6 HP R134a 5.0 oz. 200 85
fV24, fV48, anD bb36 self-containeD MoDels ManufactureD before 2/04
electrical refrigerant Pressure P.s.i.g.
115V, 1 phase, 60 Hz tyPe charge high loW
5.1 full load amps, 1/5 HP R22 13.5 oz. 285 144
bb24 reMote, bb48, bb72, bb96, lP48, lP72, lP96, Pt48, Pt72, Pt96
electrical refrigerant Pressure P.s.i.g.
115V, 1 phase, 60 Hz tyPe charge high loW
R22 n/a n/a n/a
lP60, lP84, lP108 & non-enDWall bb60, bb84, bb108, Kc48, Kc72, & Kc84
electrical refrigerant Pressure P.s.i.g.
115V, 1 phase, 60 Hz tyPe charge high loW
8.8 full load amps, 1/3 HP R22 13.5 oz. 285 144
PT60, PT84
electrical refrigerant Pressure P.s.i.g.
115V, 1 phase, 60 Hz tyPe charge high loW
8.8 full load amps, 1/3 HP R404a 9.0 oz. 285 144
PT108
electrical refrigerant Pressure P.s.i.g.
115V, 1 phase, 60 Hz tyPe charge high loW
8.8 full load amps, 1/3 HP R404a 10.0 oz. 285 144
bb36, bb60, nD52, Kc52 enDWall MoDels
electrical refrigerant Pressure P.s.i.g.
115V, 1 phase, 60 Hz tyPe charge high loW
7.2 full load amps, 1/3 HP R134a *12.0 oz. 186 88
* 12.0 oz. charge Serial #134-106565-F and after. 20.0 oz. charge prior to Serial #134-106565-F.
bb84, bb108, nD72, nD92, Kc72, Kc84 enDWall MoDels
electrical refrigerant Pressure P.s.i.g.
115V, 1 phase, 60 Hz tyPe charge high loW
10.1 full load amps, 1/3 HP R404a 16.0 oz. 331 174

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 10
Wiring DiagraM for bb36, bb60, nD52, & Kc52 enDWall MoDels
Wiring DiagraM for MoDels bb84, bb108,
nD72, nD92, Kc72, & Kc84 enDWall MoDels
LIGHT RECEPTICAL AUX. RECEPTICAL
115v AC
15amp
POWER
CORD
SUPPLY
MAIN
ORANGE
STARTER
COMPRESSOR
COMMON
RUN
RELAY
START
BLACK WHITE
OVERLOAD
BLACK ORANGE
THERMOSTAT
EVAPORATOR FAN
CONDENSER FAN
BLACK
BLACK
WHITE
GREEN
BLUE
LIGHT SWITCH
BLACK
BLUE
BLUE
WHITE
DEFROST TIMER
WHITE
BLACK
WHITE
WHITE
BLUE
2143
LIGHT RECEPTICAL AUX. RECEPTICAL
115v AC
15amp
POWER
CORD
SUPPLY
MAIN
ORANGE
STARTER
COMPRESSOR
COMMON
RUN
RELAY
START
BLACK WHITE
OVERLOAD
BLACK ORANGE
THERMOSTAT
EVAPORATOR FAN
CONDENSER FAN
BLACK
BLACK
WHITE
GREEN
BLUE
LIGHT SWITCH
BLACK
BLUE
BLUE
WHITE
DEFROST TIMER
WHITE
BLACK
WHITE
WHITE
BLUE
2143

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
11
Wiring DiagraM for self-containeD lP60, lP84, lP108, Pt60, Pt84, Pt108,
& non enDWall bb36, bb60, bb84, bb108, nD52, nD72, nD92, Kc48, Kc72, Kc84*
*NOTE: See page 7 for endwall BB, ND, and KC self-contained model wiring diagrams
G
Evaporator Assembly
Note: Some Units May Have Two Fans (Three Fans Shown)
Condenser Fan Motor
Compressor
Evaporator Fan Motor
W = White
G = Green
O = Orange
BL = Blue
B = Black
115V
115V
115V
All wires are 16 Gauge
.80 AMP
7.05 AMP
.28 AMP(Each)
ELECTRICAL RATINGS
G
W
6
15 AMP SERVICE RECOMMENDED
G
W
B
LEGEND
115 VOLT
BL
BL
4
1
M
1
2
2
BL
1
2
1
10
12
11
G
W
9
7
O
B
C
S
M
W
M
CONDENSING UNIT
2
1
B
8
CONDENSER FAN BLADE
CONDENSER FAN MOTOR
CABINET LIGHT RECEPTACLE
EVAPORATOR FAN MOTOR
EVAPORATOR FAN BLADE
O
3
BBL
5
O
O
W
12
DEFROST TIMER
OVERLOAD
CAPACITOR
COMPRESSOR
START RELAY
9
10
11
5
6
8
7
THERMOSTAT
LIGHT SWITCH3
4
2
ITEM
1
DESCRIPTION
S
S
13
13
14
14
15
15
14
14
STARTER
TOMBSTONE
BALLAST13
15
14
B
BB
BB
B
W
W
W

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 12
Wiring DiagraM for reMote coolers incluDing MoDels
bb24, bb48, bb72, bb96, lP48, lP72, lP96, Pt48, Pt72, Pt96
5
22
1
11
2
4
3
NEUTRAL
REMOTE
CONDENSING
UNIT
115V
Note: Some Units May Have Two Fans (Three Fans Shown)
Evaporator Assembly
DESCRIPTION
EVAPORATOR FAN BLADE
EVAPORATOR FAN MOTOR
ITEM
1
2
4
3 LIGHT SWITCH
THERMOSTAT
5 DEFROST TIMER
TO LIGHTS
All wires are 16 Gauge
Evaporator Fan Motor
ELECTRICAL RATINGS
R = Red
Y = Yellow
LEGEND
BK = Black
BL = Blue
O = Orange
G = Green
W = White
115V .28 AMP(Each)
O
C
4O
W
M
1
O
BL
G
O O
BL
BLBL
Y/BL = Yellow
w/blue stripe
Y/R = Yellow
w/red stripe

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
13
Wiring DiagraM for MoDels after 2/15/00
With fluorescent light systeM
Wiring DiagraM for reMote coolers With solenoiD for
installing More than one unit on one conDensing unit
5
22
1
11
2
4
3
NEUTRAL
115V
Note: Some Units May Have Two Fans (Three Fans Shown)
Evaporator Assembly
DESCRIPTION
EVAPORATOR FAN BLADE
EVAPORATOR FAN MOTOR
ITEM
1
2
4
3 LIGHT SWITCH
THERMOSTAT
5 DEFROST TIMER
TO LIGHTS
All wires are 16 Gauge
Evaporator Fan Motor
ELECTRICAL RATINGS
R = Red
Y = Yellow
LEGEND
BK = Black
BL = Blue
O = Orange
G = Green
W = White
115V .28 AMP(Each)
4O
O
W
M
1
BL
G
O O
BL
BLBL
Y/BL = Yellow
w/blue stripe
Y/R = Yellow
w/red stripe
W
S
FLOURESCENT LIGHT SYSTEM
TWO LIGHT
W
115V
R
W
Y/R
Y/BL
BALLAST
BL
BK
FLOURESCENT LIGHT SYSTEM
ONE LIGHT
115V
LIGHT
LIGHT
BL
BL
R
R
BL
BALLAST
STARTER
W
BB
LIGHT
R
B
R

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 14
Wiring DiagraM for bb24 self-containeD & Kc24 after 4/14/06
BL
BL
BL
W
W
W
G
ALL WIRE 16GA.
THERMOSTAT START
RELAY
S
M
OVERLOAD
R
COMPRESSOR
S
COL
120 VOLTS
POWER CORD
4
M
1
CONDENSER
FAN
MOTOR
EVAPORATOR
FAN
MOTOR
TOTAL .1 AMPS
OL
C
S
S
THERMOSTAT START
RELAY COMPRESSOR
OVERLOAD
ELECTRICAL RATINGS
COMPRESSOR, 2.7 AMPS
ALL WIRE 16GA.
120 VOLTS
POWER CORD
FAN
TOWER
COOLING
MOTOR
BL
BL W
W
O
G
MR
Kc24 before 4/14/06 Wiring DiagraM

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
15
bb24 self-containeD & Kc24 coMPressor, conDenser anD relateD Parts
5
7
1
10
4
13
46
8
3
2
9
12
11
14
Part no. olD Part no. DescriPtion Price
1. 06008990 1/10 HP Embraco compressor, R134a $390.00
06009280 Start capacitor for 1/10 HP Embraco compressor 21.00
2. 06001647 GT-034101 Relay for 1/6 HP Aspera R134a compressor 15.00
06009279 Relay for 1/10 HP Embraco compressor 15.00
3. 06001341 GT-031200 Overload protector for 1/6 HP Aspera R134a compressor 15.00
06009287 Overload protector for 1/10 HP Embroac compressor 15.00
4. 06001397 GT-033000 Automatic defrost timer 32.00
5. 06001694 GT-035131 Condenser fan motor 35.00
6. 09000298 GT-032804 Condenser fan motor blade 5.00
06001125 GT-032315 Beer tower cooling fan shroud (KC24 models 05/01 - 04/14/06) 17.00
06001452 GT-035128 Beer Tower Cooling Fan Motor (KC24 models 05/01 - 04/14/06) 65.00
06001396 GT-032809 Exterior blade assembly (KC24 models 05/01 - 04/14/06) 10.00
06001395 GT-032802 Interior blade assembly (KC24 models 05/01 - 04/14/06) 5.00
7. 07000133 GT-031513 Condenser fan motor mounting bracket 20.00
8. 04000100 GT-032608 Condenser coil (7"L, 6-7/8"H, 2-1/2"W) 130.00
06001389 GT-032611 Static condenser coil (KC24 before 04/14/06) 125.00
9. 06004028 Filter dryer with service port 25.00
10. 06000176 GT-038000 Condensate pan 42.00
11. 07000234 Wicking material 24.00
05000644 Wicking Material (KC24 before 04/14/06) 10.00
12. 04000124 GT-032509 Cap tube 96"X .036 20.00
13. 06001405 GT-033202 Thermostat with knob and plate [Selco] 50.00
14. 06001632 GT-038419 Knob only 3.00

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 16
4
3
14
13
16
12
11
10
stanDarD bb36 coMPressor anD conDenser relateD Parts
Part no. olD Part no. DescriPtion Price
1. 11000082 GT-035005 1/5 HP Aspera compressor, R22 $535.00
2. 06001379 GT-032201 Start capacitor for 1/5 HP Aspera R22 compressor 20.00
3. 08000083 GT-034107 Relay for 1/5 HP Aspera R22 compressor 15.00
4. 08000069 GT-031204 Overload protector for 1/5 HP Aspera R22 compressor 15.00
06001444 GT-035027 1/5 HP Tecumseh compressor, R22 (after 4/00) 490.00
06001382 GT-032211 Start capacitor for 1/5 HP Tecumseh R22 compressor 25.00
06001415 GT-034117 Relay for 1/5 HP Tecumseh R22 compressor 19.00
06001303 GT-031212 Overload protector for 1/5 HP Tecumseh R22 compressor 10.00
5. 08000085 GT-035106 Condenser fan motor, 16W 135.00
6. 08000081 GT-032801 Condenser fan motor blade assembly 15.00
7. 06001321 GT-031515 Condenser fan motor mounting bracket 5.00
8. 08000076 GT-032601 Condenser coil (10"L x 7-15/16"W x 4”D) 220.00
9. 08000075 GT-032307 Fan shroud, condenser 11.00
10. 06004028 Filter dryer with service port 25.00
11. 06001648 GT-038001 Condensate pan (13-3/4"L x 9-1/2"W x 1"D) 58.00
12. 07000234 GT-038201 Wicking material (2 required) 24.00
13. 06001461 Elbow, white nylon, 1/2"x 1/2"2.00
14. 06001345 GT-031716 Tubing, drain, clear plastic, 1/2"ID x 5/8"OD, per foot 1.45
15. 08000074 GT-031532 Base, condensing unit 30.00
16. 06001397 GT-033000 Automatic defrost timer, 6hr. 32.00
17. 06001313 GT-031400 Condensing unit power cord 20.00
11000120 GT-031717 Cap tube 60"X .036 20.00
18. 06001384 GT-032501 Accumulator, suction line 40.00
7
2
115
8
9
6
5
10
17
18

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
17
coMPressor anD conDenser relateD Parts for lP60, lP84, lP108,
& non enDWall bb60, bb84, bb108, nD52, nD72, nD92, Kc72, anD Kc84
1/3 HP, R22
(BB60, BB84, BB108, ND52, ND72, LP60,
LP84, LP108, KC72, KC84)
9
1
2
8
17
5
15
10
12
11
16
14
13
4
3
Part no. olD Part no. DescriPtion Price
1. 07000172 GT-035002 1/3 HP Aspera compressor, R22 $500.00
2. 06001379 GT-032201 Start capacitor for 1/3 Aspera HP R22 compressor 20.00
3. 06001414 GT-034103 Relay for 1/3 HP Aspera R22 compressor 14.00
4. 08000068 GT-031202 Overload protector for 1/3 HP Aspera R22 compressor 12.00
06001443 GT-035025 1/3 HP Tecumseh compressor, R22 (after 2/00) 400.00
06001380 GT-032206 Start capacitor for 1/3 HP Tecumseh R22 compressor 20.00
07000168 GT-034112 Relay for 1/3 HP Tecumseh R22 compressor 18.00
07000128 GT-031207 Overload protector for 1/3 HP Tecumseh R22 compressor 12.00
5. 08000085 GT-035106 Condenser fan motor 135.00
6. 08000081 GT-032801 Condenser fan motor blade assembly 15.00
7. 06001321 GT-031515 Condenser fan motor mounting bracket 5.00
8. 08000076 GT-032601 Condenser coil (10"L x 7-15/16"W x 4"D) 220.00
9. 08000075 GT-032307 Fan shroud, condenser 11.00
10. 06004028 Filter dryer with service port 25.00
11. 06001648 GT-038001 Condensate pan (13-3/4"L x 9-1/2"W x 1"D) 58.00
12. 07000234 GT-038201 Wicking material (2 required) 24.00
13. 06001461 Elbow, white nylon, 1/2"x 1/2"2.00
14. 06001345 GT-031716 Tubing, drain, clear plastic, 1/2"ID x 5/8"OD, per foot 1.45
15. 08000074 GT-031532 Base, condensing unit 30.00
16. 06001397 GT-033000 Automatic defrost timer, 6hr. 32.00
17. 06001313 GT-031400 Condensing unit power cord 20.00
06001614 GT-032510 Cap tube 110"X .054 20.00
18. 06001384 GT-032501 Accumulator, suction line 40.00
6
7
18

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 18
7
2
14
8
9
6
5
10
12
11
15
bb36, bb60, nD52, & Kc52* coMPressor anD conDenser
relateD Parts for enDWall MoDels
4
313
Part no. olD Part no. DescriPtion Price
1. 06001439 GT-035014 1/3 HP Tecumseh compressor, R134a $435.00
2. 09000481 GT-032210 Start capacitor for 1/3 HP Tecumseh R134a compressor 10.00
3. 09000479 GT-034114 Relay for 1/3 HP Tecumseh R134a compressor 20.00
4. 09000480 GT-031211 Overload protector for 1/3 HP Tecumseh R134a compressor 11.50
5. 06001449 GT-035114 Condenser fan motor 100.00
6. 08000081 GT-032801 Condenser fan blade assembly 15.00
7. 06001319 GT-031512 Condenser fan motor mounting bracket 5.00
8. 08000076 GT-032601 Condenser coil 220.00
9. 08000075 GT-032307 Fan shroud, condenser 11.00
10. 06004028 Filter dryer with service port 25.00
11. 06000155 Condensate pan 48.00
12. 07000234 Wicking material 24.00
13. 06001350 GT-031732 Tubing, drain, clear plastic, per foot, 3/4"ID 3.50
14. 06000845 GT-031539 Base, condensing unit 22.00
15. 06001615 GT-033013 Automatic defrost timer 4hr. 32.00
16. 06001313 GT-031400 Condensing unit power cord 20.00
06001673 GT-031809 Capillary tubing 48"X 0.036"(prior to Serial #134-106565-F) 10.00
09000527 Capillary tubing 65"X 0.049"(Serial #134-106565-F and after) 20.00
17. 06001384 GT-032501 Accumulator, suction line 40.00
* KC52 production began with serial number 134099618N.
16
1
17

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
19
bb84, bb108, nD72, nD92, Kc72*, & Kc84* coMPressor
anD conDenser relateD Parts for enDWall MoDels
7
2
17
14
8
9
6
5
10
16
12
11
15
4
3
13
Part no. olD Part no. DescriPtion Price
1. 07000173 GT-035008 1/3 HP Embraco compressor, R404a $450.00
2. 07000151 GT-032203 Start capacitor for 1/3 HP Embraco R404a compressor 25.00
3. 06001675 GT-034103 Relay for 1/3 HP Embraco R404a compressor 15.00
4. 07000127 GT-031205 Overload protector for 1/3 HP Embraco R404a compressor 15.00
5. 08000085 GT-035106 Condenser fan motor 135.00
6. 08000081 GT-032801 Condenser fan blade assembly 15.00
7. 06001319 GT-031512 Condenser fan motor mounting bracket 5.00
8. 06001393 GT-032619 Condenser coil 230.00
9. 08000075 GT-032307 Fan shroud, condenser 11.00
10. 06004028 Filter dryer with service port 25.00
11. 06000155 Condensate pan 48.00
12. 07000234 Wicking material 24.00
13. 06001350 GT-031732 Tubing, drain, clear plastic, 3/4"dia, per foot 3.50
14. 06000845 GT-031539 Base, condensing unit 22.00
15. 06001615 GT-033013 Automatic defrost timer 4hr. 32.00
16. 06001313 GT-031400 Condensing unit power cord 20.00
06001676 GT-031810 Cap tube 84"x .049 20.00
17. 06001384 GT-032501 Accumulator, suction line 40.00
*KC72 Endwall conguration production began with serial number 404103097N.
*KC84 Endwall configuration production began with serial number 404103109N.
