GLD Products RENO 7 User manual

GLD Products RENO 7’ Pool Table
Item 64-0126
Item 64-0126
March 2013 UPC Code 7-19265-53514-0
RENO POOL TABLE
7 Foot Table
Replacement Parts
Order direct at www.gldproducts.com
or call our Customer Service department at
[phone]
8 am to 4:30 pm Central Standard Time

GLD Products RENO 7’ Pool Table
Item 64-0126
Staple your receipt here.
Important: A copy of your receipt will be needed to activate your warranty (see
page 17)

GLD Products RENO 7’ Pool Table
Item 64-0126
3 1-800-225-7593
www.gldproducts.com
Congratulations and THANK YOU for purchasing the
RENO Pool Table. You have chosen a product that
should provide years of entertainment. To assist you
with customer service and warranty claims,
staple your receipt to the inside cover, then keep this
manual in a safe place for future reference.
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: [phone]
Email: [email protected]
Web: www.gldproducts.com
This manual may have been updated. For the latest manual visit the GLD Products website.
Place your package near the location where it will be used. Carefully unpack
all components and verify you have all the correct pieces.
If you notice missing or defective parts, please call us at:
1-800-225-7593 ext 113
Please read and understand all instructions before beginning assembly.
This assembly will require 2 adults.
This product is not for use by children without adult supervision.

GLD Products RENO 7’ Pool Table
Parts Identifier Item 64-0126
4 1-800-225-7593
www.gldproducts.com
Part
No./
Qty
Illustration/
Order Number
Part
No./
Qty
Illustration/
Order Number
Part
No./
Qty
Illustration/
Order Number
1
Qty.
1Table Top Assembly
Order No. 1-18
2
Qty.
16 Table Leg Side
Order No. 1-19
3
Qty.
2End Cabinet Apron
Order No. 1-20
4
Qty.
2Side Cabinet Apron
Order No. 1-21
5
Qty.
4Leg Top
Order No. 1-22
6
Qty.
4Leg Bottom
Order No. 1-23
7
Qty.
32
1/4 x 1-1/8 Socket Head Allen
Screw
Order No. 1-24
8
Qty.
32 2" Phillips Head Screw
Order No. 2-149
9
Qty.
32 1/4 x 15 mm Flat Washer
Order No. 2-61
10
Qty.
2Support Beam
Order No. 1-5
11
Qty.
4Angle Bracket
Order No. 1-6
12
Qty.
4Leg Mounting Bracket
Order No. 1-7
13
Qty.
45/16-18 Barrel Nut
Order No. 1-8
14
Qty.
32
5/16-18 x 3/4" Hex Head
Bolta
Order No. 1-9
15
Qty.
16
5/16-18 x 1-1/8 Hex Head
Bolta
Order No. 1-10
16
Qty.
12
5/16-18 x 2" Hex Head Bolta
Order No. 1-11
17
Qty.
4
5/16-18 x 5 1/2"
Hex Head Bolta
Order No. 1-12
18
Qty.
45/16 x 15 mm Flat Washer
Order No. 1-13
19
Qty.
48 5/16 x 23 mm Flat Washer
Order No. 1-14
20
Qty.
16
5/16 x 32 mm Flat Washer
Order No. 1-15
21
Qty.
4Leveler
Order No. 2-26
22
Qty.
81-1/2" Phillips Head Screw
Order No. 2-118
23
Qty.
1Wrench
Order No. 1-17
24
Qty.
1Allen Wrench
5/32" Hexagonal
Order No. 2-32

GLD Products RENO 7’ Pool Table
Parts Identifier Item 64-0126
5 1-800-225-7593
www.gldproducts.com
25
Qty.
257" Billiard Cue
Order No. 2-23
26
Qty.
2Chalk
Order No. 2-24
27
Qty.
1Triangle
Order No. 2-27
28
Qty.
1Billiard Balls
Order No. 2-21
29
Qty.
1Brush
Order No. 2-22
30
Qty.
2Preassembled Rail/Apron -
Foot Right or Head Left
Order No. 1-207
31
Qty.
2Preassembled Rail/Apron -
Foot Left or Head Right
Order No. 1-208
32
Qty.
2Preassembled Rail/Apron -
End Rail
Order No. 1-206
a. If replacement bolts are needed a 7/16" Hex Head Bolt can be used.
Common fasteners are available at your local hardware store.

GLD Products RENO 7’ Pool Table
Item 64-0126
6 1-800-225-7593
www.gldproducts.com
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST:
Please refer to page 17.
GLD Products
Available 8 am to 4:30 pm Central Standard Time
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: [phone]
Email: [email protected]
Web: www.gldproducts.com
For all claims, please have your receipt and item number when you call. The
product item number can be found on the front cover.
If you are instructed to return the product for service, you are
responsible for shipping the unit at your expense.
PRODUCT REGISTRATION
Important: The product registration form on page 19 and a copy of your
receipt must be completed and returned within 10 days of purchase to
validate your warranty.
Preparing for Assembly
• Be sure to unpack all of the parts included in this package. Some
parts may be in obscure locations of the packaging. Check inside
any tubes or sleeves. Save all packing material until the product is
fully assembled and functional.
• Compare the parts in your package with the Parts Identifier
description on page 5.
• After unpacking large products, some disassembly may be required
prior to beginning the assembly.
Tools Required
• Wrench (#23) - included with table
• 5/32" Allen wrench (#24) - included with table
• Phillips screwdriver (not included)
• Flat head screwdriver (not included)
• Level (not included)
• Electric screwdriver may be helpful. CAUTION: You must set at
LOW TORQUE and use extreme caution because you could
overtighten the hardware, strip the screws, or damage the table.
• 12 mm Hex socket or wrench (not included)

GLD Products RENO 7’ Pool Table
Item 64-0126
7 1-800-225-7593
www.gldproducts.com
Assembly Tips
Make sure you understand the following before you begin to assemble your game table.
1. READ THIS MANUAL all the way through before beginning assembly.
2. When installing parts that have more than one bolt, start ALL bolts in that part by hand
before tightening anything.
3. Some drawings or images in this manual may not look exactly like your product.
4. You will need a second adult to assist with this assembly.
Note: Save all packing materials until the parts have been inspected and the table is
assembled.
Unpack the Pieces
• Lay the box on a flat surface (floor). You may want this near your
area of assembly.
• Several boxes should be visible and strapped to the underside of
the table top.
• The table top should be at the bottom.
• The straps should be removed and the boxes opened. Some table
designs require that the legs be shipped separately.
• Unpack the boxes and part bags. Inspect and count the parts. The
Parts Identifier page can be used to record your results.
• If any parts are damaged or missing contact GLD customer service.
• Missing fasteners may be purchased at a hardware store using the
descriptions on the Parts Identifier page(s).

GLD Products RENO 7’ Pool Table
Item 64-0126
8 1-800-225-7593
www.gldproducts.com
STEP 1 - ASSEMBLE THE APRONS
1. Place the four apron side pieces (#3 and #4) in position. They should be upside down.
2. Use an angle bracket (#11) in each corner. Finger start four bolts (#14) with washers
(#19) through the angle bracket and into two of the apron pieces.
3. Repeat in all four corners.
4. Tighten all the bolts (wrench #23). When tightening the bolts, be certain the two pieces
are properly lined up at the corners.
STEP 2 - ASSEMBLE LEG BRACKET
1. Install one leg mounting bracket (#12) in each corner. Use four bolts (#14) with washers
(#19). Finger start all the bolts. Note that the flat part of the bracket will be up and even
with the side aprons.
2. Hold the bracket in position and tighten all the bolts (wrench #23).
#14
#19
#11
#3
#4
#3
#4
#14
#19
#12

GLD Products RENO 7’ Pool Table
Item 64-0126
9 1-800-225-7593
www.gldproducts.com

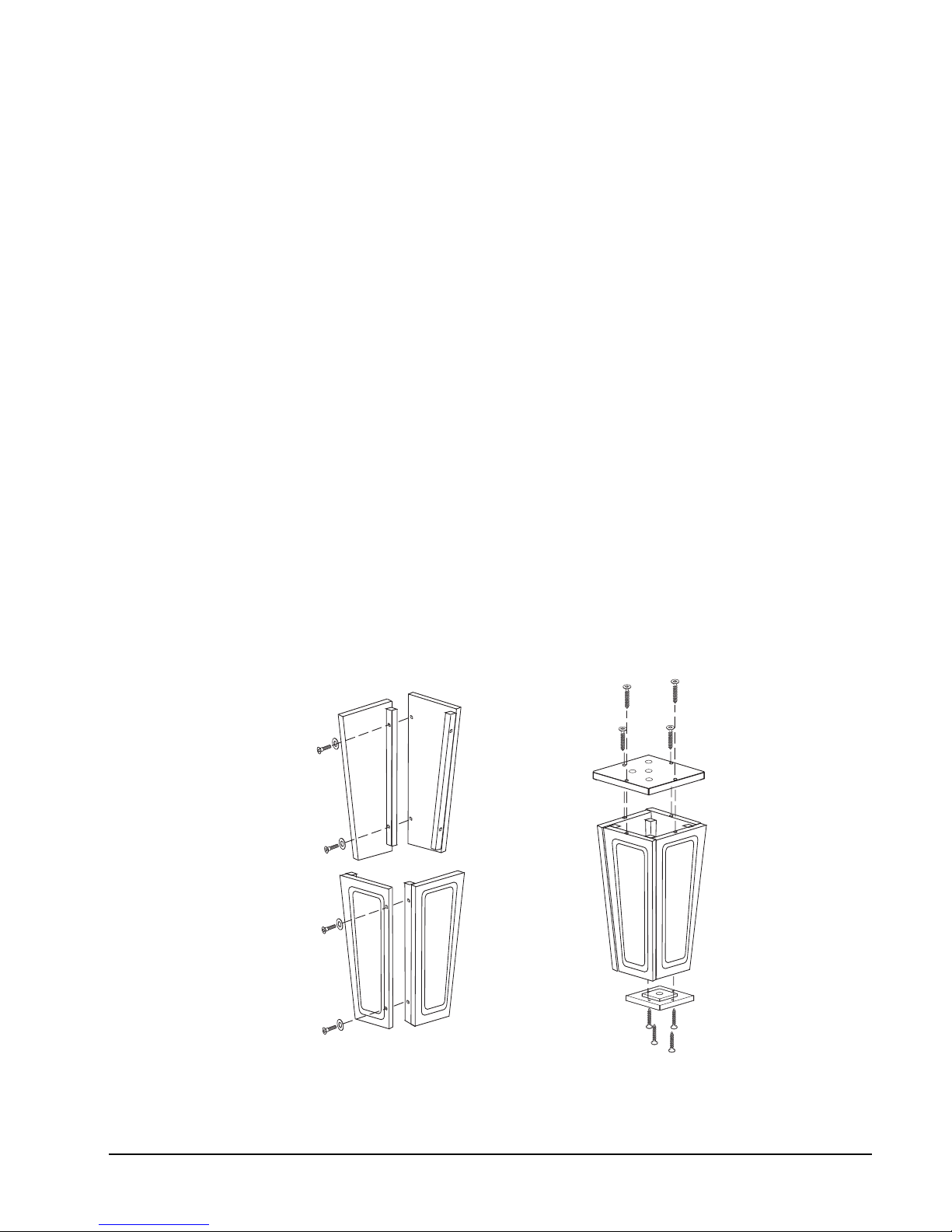

STEP 3 - ASSEMBLE THE LEGS
All of the leg sides are the same and can be assembled interchangably.
1. Select two leg sides (#2) and position them as shown.
2. Start two screws (#7) with washers (#9) then tighten with Allen wrench (#24). Repeat
with remaining sides to form 4 legs.
3. Prepare the leg tops (#5) by starting the 4 screws (#8) from the finished side of the top
piece. To make assembly easier, a small length of the screw tips should be protruding
out on the rough side of the leg top.
4. Position the top piece with the screw points in the predrilled holes in the top of the leg
assemblies.
5. Start each screw into the leg. Tighten all 4 screws in each leg using a Phillips screwdriver
and turn the legs over.
6. Prepare the 4 leg bottoms (#6) by starting the 4 screws (#8) from the finished side of the
leg bottom. To make assembly easier, a small length of the screw tips should be
protruding out on the rough side of the leg bottom.
7. Position the bottom piece with the screw points in the predrilled holes in the leg sides.
8. Start each screw into the leg. Tighten all 4 screws using a Phillips screwdriver.
9. Repeat for the remaining legs.
#8
#6
#5
#7
#9
#2
#2
#2
#2
#8

GLD Products RENO 7’ Pool Table
Item 64-0126
10 1-800-225-7593
www.gldproducts.com
STEP 4 - ATTACH THE LEGS
1. Each leg is held in place by four bolts (#15) with washers (#19).
2. Position the leg on top of the bracket. Insert a bolt with washer through the bracket and
into the leg.
3. Finger start all four bolts, then hold the leg in its final position.
4. Tighten the bolts using the wrench (#23). Repeat for the other 3 legs.
5. Screw the leveler (#21) half-way into the bottom of each leg.
STEP 5 - TURN BASE OVER
The base assembly is ready to be turned over.
USE AT LEAST TWO PEOPLE TO LIFT THE BASE ASSEMBLY AND TURN IT OVER TO
REST ON THE LEGS.
DO NOT ROLL THE TABLE OVER. This will place a sideways force on the legs. The legs
should be off the floor until the base assembly is rotated completely. Set the base assembly
down.
If visually the leg positions need adjusting, loosen the bolts, adjust, and retighten.
#19
#15
#21
DO THIS NOT THIS

GLD Products RENO 7’ Pool Table
Item 64-0126
11 1-800-225-7593
www.gldproducts.com
STEP 6 - INSTALL SUPPORT BEAMS
1. The table base is now right-side up. To install the two support beams (#10), position the
support beams on the base assembly in the appropriate slots.
2. Insert a bolt (#17) with a washer (#18) through the side support.
3. Insert a barrel nut (#13) into the hole at the end of the beam, making sure the slot is
visible and the slot lines up with the bolt. Thread the bolt into the barrel nut. If the barrel
nut drops too far into the hole in the support beam, the threads will not engage. If this
happens, use a magnet or turn the support beam over to remove the barrel nut. Thread
the bolt into the barrel nut.
4. When the bolt is in place the nut can be pushed down to line up with the bolt. Thread the
bolt into the barrel nut.
5. Hold the support beam in place by screwing in the side support bolt until snug, not tight.
6. Insert two screws (#22) in the ends of the support beams and tighten with a Phillips
screwdriver.
7. Tighten the bolts using a 12 mm socket wrench.
NOTE: The support beams should not rise up above the surrounding frame. If this happens
loosen the bolt until the support drops. The bolt can be tightened after the top is on
and secure.
8. The base can now be leveled.
.
#18
#17
#13
#10
#18#17
#22

GLD Products RENO 7’ Pool Table
Item 64-0126
12 1-800-225-7593
www.gldproducts.com
STEP 7 - LEVEL THE TABLE BASE
Do not drag the table to a new position. Lift and carry it. Do not lift using the pockets.
1. Put the base where you will be using the table.
2. Use a carpenters level to find the low side.
3. Lift the table leg off the floor and unscrew the leveler in the bottom of the leg a small
amount.
4. Repeat until the base is level. Be sure to check level at both ends side to side as well as
the longer length.

GLD Products RENO 7’ Pool Table
Item 64-0126
13 1-800-225-7593
www.gldproducts.com
STEP 8 - ATTACH THE TABLE TOP
1. Inspect the underside surface of the table top (#1). When the table is shipped there are
several wooden shipping blocks screwed to the bottom. These must be removed. The
area of the table top that rests on the side supports must be free of raised material
around screw holes.
NOTE: Be certain the two support beams (#10) are screwed down, not over-tightened and
will not push up on the table top.
2. Using at least two people, lower the table top (#1) onto the base.
3. Line up one or two of the holes in the top with the holes in one end of the base assembly.
4. Finger start a bolt (#16) with a washer (#20) into the hole(s).
5. Line up the remaining holes and finger start a bolt with a washer in each.
6. Check the position of the table top.
#20
#16
#1
#10

GLD Products RENO 7’ Pool Table
Item 64-0126
14 1-800-225-7593
www.gldproducts.com
STEP 9 - SECURING AND LEVELING THE TABLE TOP
When the table top is in position, and not screwed down, it is flat.
1. Be certain the table base is in it’s final position and level.
2. The table top must be in it’s final position.
3. Finger tighten all the bolts.
CAUTION: If using a power tool to tighten the bolts, be certain it is on a low torque setting.
4. Using the proper wrench, lightly tighten each bolt without crushing the underside
supports.
5. When the bolts are secure, test for level. Roll one of the pool balls slowly over the playing
surface. If the ball rolls on a straight path, the table is level. If the path curves, the table
needs to be leveled (see Step 7).
6. If the two support beams need to be tightened do it now. Tighten the four bolts until snug.
Over-tightening may lift the table top upward.

GLD Products RENO 7’ Pool Table
Item 64-0126
15 1-800-225-7593
www.gldproducts.com
THE TABLE IS ASSEMBLED. IF IT IS NOT ALREADY IN POSITION FOR
PLAY, IT CAN BE MOVED.
DO NOT SLIDE OR DRAG. Use at least two adults to lift into position, then re-level.
Care and Use of your Table
• This product is intended for INDOOR use only.
• DO NOT sit, climb, or lean on the table.
• DO NOT drag the table when moving it. This will damage the legs.
• Keep your table covered. The playing surface can be brushed or
lightly vacuumed with low suction.
• DO NOT lift the table by placing your hands under the pockets, and
do not sit, lean or put pressure on the pockets.
• The cloth playing surface can rip or tear. Keep sharp objects off the
playing surface.
• Some “trick shots” may tear or dimple the cloth surface.
• To clean the hard surfaces spray a cloth with a mild cleaner and
wipe.
TROUBLESHOOTING
Problem: Pool balls change direction and roll toward one of the pockets.
Cause: The corner of the table top is low.
Solution: Loosen the bolts that hold the table top to the supports. Place shims
(.010 inch thick) on each side of the corner pocket. Tighten the bolts and
roll pool balls to test.

GLD Products RENO 7’ Pool Table
Item 64-0126
16 1-800-225-7593
www.gldproducts.com
Problem: Pool balls roll to edges.
Cause: The playing surface is high in the center.
Solution: Loosen the bolts that hold the table top to the supports. Add shims
(.010 inch thick) along the two side supports. Tighten the bolts on the two
short ends first. Then lightly tighten the bolts along the edges. Roll pool
balls to test.

GLD Products RENO 7’ Pool Table
Item 64-0126
17 1-800-225-7593
www.gldproducts.com
90-DAY LIMITED WARRANTY
The Manufacturer warrants to the original retail purchaser that this product is free from defects
in material and workmanship under normal use and conditions for a period of ninety (90) days
from the date of original purchase. Further, the Manufacturer warrants to the original retail
purchaser that the Accu Slate playing surface of your game table will remain flat, within a toler-
ance of +/- 30/1000 of an inch, measuring from any flat plane within the Accu Slate playing
surface for a period of seven (7) years from the date of original purchase. The Manufacturer’s
liability is limited to the repair or replacement, at its option, of any defective product and shall
not include any liability for indirect, incidental or consequential damages of any kind.
Should this product become defective due to material or workmanship within the warranty
period, contact our Customer Service Department. This warranty is not transferable and
does not cover normal wear and tear or damage caused by improper usage, negligence,
misuse, abuse, transportation damage, acts of nature, or accident (including failure to follow
the instructions in this manual). It does not cover expendable items such as batteries, light
bulbs, fuses, accessories, cosmetic parts and other items that wear out due to normal
usage, including felt covered areas of the playing surface. This warranty is also void if the
product is disassembled and reassembled, damaged, modified from its original state, or
used for other than indoor personal residential use (no commercial or rental applications).
This warranty gives you specific legal rights, and you may have other rights which vary from
state to state.
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST (8 - 4:30 CST):
Please have your receipt and item number (found on the front cover) when you call.
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: [phone]
Email: [email protected]
Web: www.gldproducts.com
If you are instructed to return the product for service, you are responsible for ship-
ping the unit at your expense to the above address in packaging that will protect
against further damage. All warranty or repair requests require a Return Authoriza-
tion Number prior to returning the item.
PRODUCT REGISTRATION
Important: The product registration form on page 19 must be completed and returned
along with a copy of your receipt within 10 days of purchase to validate your warranty.
On-line registration is also available. Go to www/gldproducts.com/registration or click on this
link. Follow the on-line instructions.

GLD Products RENO 7’ Pool Table
Item 64-0126
18 1-800-225-7593
www.gldproducts.com
This page intentionally left blank.

REGISTER YOUR PRODUCT Place postage here
Complete this form, include a copy of your receipt, fold, tape (do
not staple) and return within 10 days of purchase. This protects
your warranty and will help us develop new products!
GLD Products
Warranty Department
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
Remember to attach a copy of your receipt.
Name Date of Purchase
Address Phone-Day
City Phone-Evening
State Zip Email
Purchase Price: Item: 64-0126 RENO 7’ Pool Table
Store Name:
www.gldproducts.com
GAME TABLES HOME CASINO
GAMES AND ACCESSORIES BILLIARD CUES
BILLIARD ACCESSORIES DARTBOARDS
SOFT-TIP DARTS STEEL-TIP DARTS
FLIGHTS AND SHAFTS DART CASES AND ACCESSORIES
Fold here second.
Fold here first.
Cut here.

This page intentionally left blank.
