Global American Inc. 3302440 User manual

3302440
User’s Manual
Version 1.0
Copyright
Copyright©2002, 2003. All rights reserved. This document is copyrighted and
all rights are reserved. The information in this document is subject to change
without prior notice to make improvements to the products.
This document contains proprietary information and protected by copyright.
No part of this document may be reproduced, copied, or translated in any
form or any means without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are
property of their respective owners.
Disclaimer
The Company shall not be liable for any incidental or consequential damages
resulting from the performance or use of this product.
The Company does not issue a warranty of any kind, express or implied,
including without limitation implied warranties of merchantability or fitness for
a particular purpose.
The company has the right to revise the manual or include changes in the
specifications of the product described within it at any time without notice and
without obligation to notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
3302440 User’s Manual 1

Packing List
Hardware
3302440 Single Board Computer................................ X 1
Cable Kit
IDE Flat Cable (UltraDMA/33)..................................... X 1
FDD Cable .................................................................. X 1
2 x COM / 1 x LPT Port DB9 / DB25 Cable................. X 2
Dual-USB Port Cable with Bracket.............................. X 2
PS/2 Keyboard and Mouse Cable............................... X 1
UltraATA/100 IDE Cable............................................. X 1
VGA DB15 Female Cable........................................... X 1
Audio Cable ................................................................ X 1
LAN RJ45 Cable (VL, VXL Only) ................................X 1
Printed Matter and Software
User’s Manual............................................................. X 1
Driver CD....................................................................X 1
3302440 User’s Manual
2

Table of Contents
Chapter 1. Introduction ......................................................................5
1.1 Product Overview........................................................................5
1.2 Specifications ..............................................................................7
1.3 Component Placement..............................................................10
1.4 Block Diagram...........................................................................11
Chapter 2. Hardware Setup..............................................................12
2.1 Jumpers and Connectors Location............................................12
2.2 CPU and DRAM Setting............................................................15
2.3 CMOS Setting ...........................................................................15
2.4 Watchdog Timer Setting............................................................16
2.5 Embedded Flash Disk ...............................................................17
2.6 Power and Fan Connectors.......................................................18
2.7 VGA Interface............................................................................19
2.8 Ethernet Interface......................................................................23
2.9 Audio Interface..........................................................................25
2.10 Serial Port Configuration ...........................................................26
2.11 Expansive Bus Interfaces..........................................................27
2.12 Switches and Indicators ............................................................28
Chapter 3. BIOS Setup......................................................................30
Chapter 4. Driver Installation...........................................................32
4.1 Install Board’s Software.............................................................32
4.2 Install Ultra ATA IDE Driver........................................................32
4.3 Install VGA Driver......................................................................32
4.4 Install LAN Driver ......................................................................32
4.5 Install Audio Driver ....................................................................32
4.6 Link to < Website > Homepage.................................................32
4.7 Browse this CD..........................................................................32
3302440 User’s Manual 3

Appendix A. System Resources......................................................34
A.1 I/O Port Address Map................................................................ 34
A.2 Memory Address Map............................................................... 36
A.3 System IRQ and DMA Resource............................................... 37
Appendix B. Flash the BIOS ...........................................................38
B.1 BIOS Auto Flash Tool................................................................ 38
B.2 Flash Method............................................................................ 38
Appendix C. I/O Port Pin Assignment.............................................40
C.1 IDE Port .................................................................................... 40
C.2 FDD Port................................................................................... 42
C.3 Serial and Parallel Port ............................................................. 43
C.4 USB Port................................................................................... 44
C.5 IrDA Port ................................................................................... 44
C.6 PS/2 Keyboard and Mouse Port................................................ 44
Contact Information.............................................................................46
3302440 User’s Manual
4

Chapter 1. Introduction
1.1 Product Overview
The 3302440 Single Board Computer is an all-in-one industrial 5.25”
drive-size EBX-compliant littleboard computer based on Intel socket 370
architecture, supports Intel PPGA/FC-PGA Pentium-III/Celeron and VIA C3
CPU at 66, 100, 133 MHz FSB with PC-66/100/133 SDRAM. Based on VIA
Pro133 chipset with VIA 693A and 686B, 3302440 supports CPU up to 1.1
GHz at 133 MHz FSB, 512 MB PC133 SDRAM with ECC supported, and
integrated C&T 69000 / 69030 flat panel / CRT SVGA with 2 / 4 MB on-die
video memory, onboard 24-bit LVDS interface, AC97 3D audio, UltraATA/100
PCI enhanced IDE interfaces, and multiple I/O ports including 4 RS232, 2 LPT
and 4 USB ports. The high computing capacity and integrated multi-media
functions make 3302440 be the ideal solution of industrial workstation, node
terminal, transaction station, POS, Kiosk, panel PC, ATM and embedded
application.
Based on Intel socket 370 architecture, 3302440 features the high computing
capacity and high integration with onboard LVDS flat panel SVGA, audio, Intel
PRO/100+ LAN, DiskOnChip interfaces, and 4 COM, 2 LPT, 4 USB ports.
With these features, 3302440 provides the powerful performance and
integrated solutions including, but not limited to the following.
Advanced Computing Platform
Intel Pentium-III / Celeron or VIA C3 CPU supported up to 1.1 GHz with 133
MHz FSB, 512 MB PC133 SDRAM of system memory with ECC supported for
high-end industrial computing platform with high CPU and memory loading.
Powerful VGA Interface
Integrated C&T69000/69030 flat panel SVGA controller with on-die 2/4 MB
video memory to offer the flexibility for a wide range of flat panel supported.
The onboard 24-bit LVDS interface provides the economical solution for the
system with LVDS-based flat panel.
.
10/100 Mbps Fast Ethernet Interface
Integrated with Intel PRO/100+ 10/100 Mbps Fast Ethernet interface with full
duplex, IEEE 802.3U compliant.
Multiple I/O Port Interface
3302440 User’s Manual 5

Integrated 4 COM, 2 parallel, 4 USB for industrial applications like POS, Kiosk,
Panel PC, ATM and transaction workstation.
3302440 User’s Manual
6

1.2 Specifications
General Specification
Form Factor 5.25” drive-size EBX compliant littleboard computer
CPU Socket 370 supports Intel Pentium-III / Celeron and VIA C3
CPUs up to 1.1 GHz at 66/100/133 MHz of FSB.
Intel PPGA/FC-PGA CPU supported (up to Coppermine)
Tualatin Processor is not supported
Chipset VIA Pro133 with 693A and 686B
DRAM One 168-pin DIMM slot supports 512 MB PC133 SDRAM
with ECC supported
BIOS Phoenix-Award 2Mb PnP flash BIOS
Enhanced IDE PCI enhanced IDE interface supports dual ports up to 4
ATAPI devices with UltraATA/100 supported
One 40-pin box header connector
One 44-pin box header connector
Green Function Power saving mode supported in BIOS with DOZE,
STANDBY and SUSPEND modes. ACPI version 1.0 and
APM version 1.2 compliant
Watchdog Timer 6-level generates NMI or system reset programmable
watchdog timer
Real Time Clock VIA 686B built-in RTC with lithium battery
Multi-I/O Ports
Chipset VIA 686B built-in super I/O controller
Winbond W83977EF-AW for COM3/4 and LPT2 Ports
Serial Port Three RS-232 serial port COM1/3/4 and one jumper
selectable RS-232/422/485 serial port COM2.
Both with 16C550 compatible UART and 16 bytes FIFO
USB Port Four USB ports with USB version 1.1 compliant
Onboard dual 2x5 (10) pin header connectors
Parallel Port Two bi-direction parallel port with SPP/ECP/EPP mode
Onboard dual 2 x 13 (26) pin box header connectors
FDD 1 x FDD port supports up to two FDD
IrDA Port 1 x IrDA compliant Infrared interface supports SIR
K/B & Mouse PS/2 keyboard and mouse ports with onboard 2 x 5 (10)
pin header connector
3302440 User’s Manual 7

Solid State Disk Interface
Flash Type M-systems DiskOnChip-2000 and DiskOnChip
Millennium embedded solid state flash disk
Package Single chip flash disk in 32-pin DIP JEDEC
Capacity Up to 576 MB flash memory
Data Reliability ECC / EDC data protection
Memory Window 8 Kbytes of memory window
Display Interface
Chipset AGP Flat Panel / CRT SVGA with C&T69000
Video Memory 2 MB C&T69000 on-die video memory
4 MB C&T69030 on-die video memory for OEM
Display Type CRT, LCD monitor, TFT, DSTN, SSTN, EL, Plasma display
at VGA, SVGA, XGA, SXGA
Panel Interface Onboard TTL LCD interface
Optional onboard 24-bit LVDS interface
Connector External DB15 female connector on bracket for CRT
Onboard 16-pin header for CRT or analog VGA devices
Onboard 50-pin box header for flat panel
Optional onboard 20-pin box header for LVDS panel
Ethernet Interface
Chipset Intel 82559 PCI Fast Ethernet controller
Type 10Base-T / 100Base-TX, auto-switching Fast Ethernet,
full duplex, IEEE802.3U compliant
Connector Onboard 10-pin header with external RJ45 cable
Audio Interface
Chipset VIA 686B integrated AC97 3D audio controller with
onboard codec
Interface Line-in, line-out, CD-in, Mic-out
Connector Onboard 10-pin header for line-in, line-out and Mic-out
Onboard 4-pin header for CD-in
3302440 User’s Manual
8

Expansive Interface
PCI Bus One 32-bit/33 MHz PCI slot with 3 x bus master PCI via
an additional riser card
PC/104 One PC/104 104-pin 16-bit ISA-based interface
Power and Environment
Power Req. AT 4-pin power connector, +5V, +12V, -12VDC input
+5V @ 4.2A typically with Intel Pentium-III 866 MHz
CPU and 128 MB PC133 SDRAM
ATX Function One 3-pin ATX interface with 5V standby
Dimension 146 x 203 mm or 5.75” x 8” (L x W), standard EBX size
Weight 0.27 Kg
Temperature Operating within 0 ~ 60oC (32 ~ 140oF)
Storage within -20 ~ 85oC (-4 ~ 185oF)
Ordering Code
3302440VXL Same as 3302440V but with onboard 24-bit LVDS
and Intel PRO/100+ Fast Ethernet Interface
3302440 User’s Manual 9

1.3 Component Placement

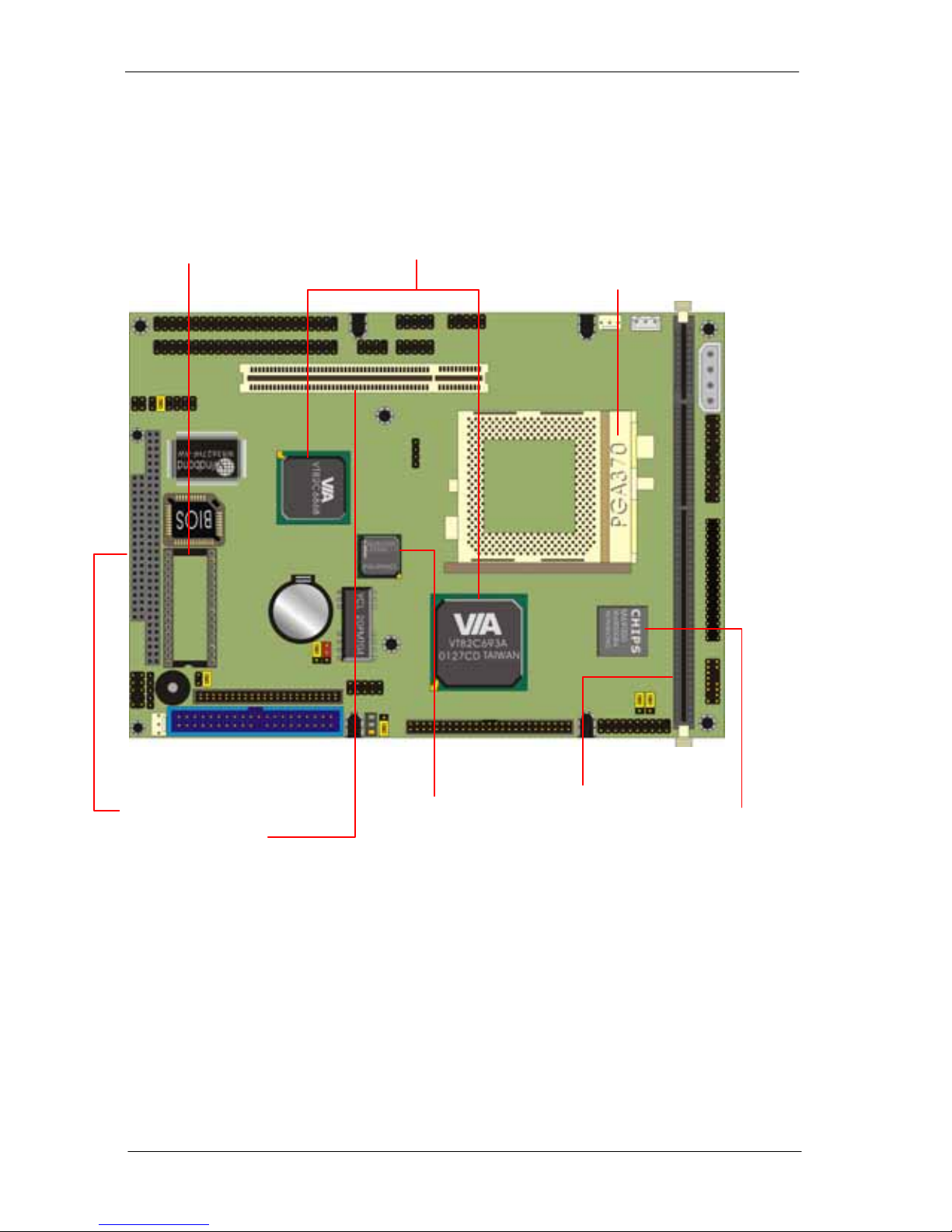

PC/104 Interface
PCI Bus Interface
C&T69000
Flat Panel VGA
VIA Pro133 Chipset
VIA 693A & 686B
DiskOnChip
Interface
Socket 370
Intel PPGA/FC-PGA
Pentium-III/Celeron
VIA C3 CPU
With 100/133 FSB
1 x DIMM
up to 512 MB
PC133 SDRAM
with ECC
Intel 82559
10/100 Mbps
Fast Ethernet
3302440 User’s Manual
10

1.4 Block Diagram
VIA
693A
N/B
1 x 168-pin DIMM
512 MB PC133 SDRAM
with ECC Supported
VIA
686B
S/B
A
TA100 IDE
FSB 66/100/133 MHz
PC133
ATAPI Device
Intel
82559
PCI Add-on Cards
PCI Bus Interface
ISA Bus Interface
LAN
PS/2 Keyboard
PS/2 Mouse
FDD
Serial Device
Parallel Device
USB Devices
Codec
Audio Devices
DiskOnChip
PC/104 Add-on Modules
10/100 Mb
p
s
Winbond
SI/O
COM 3/4
LPT2
LVDS
Flat Panel
(LVDS)
Flat Panel
(TTL)
C&T
69000
CRT/LCD
Monitor
Intel Socket 370 FC-PGAPentium-III CPU
Intel Socket 370 PPGA/FC-PGA Celeron CPU
VIA Socket 370 C3 CPU
3302440 User’s Manual 11

Chapter 2. Hardware Setup
This chapter contains the information for installation of hardware. The install
procedure includes jumper settings, CPU and memory installation, fan, I/O
and panel connections.

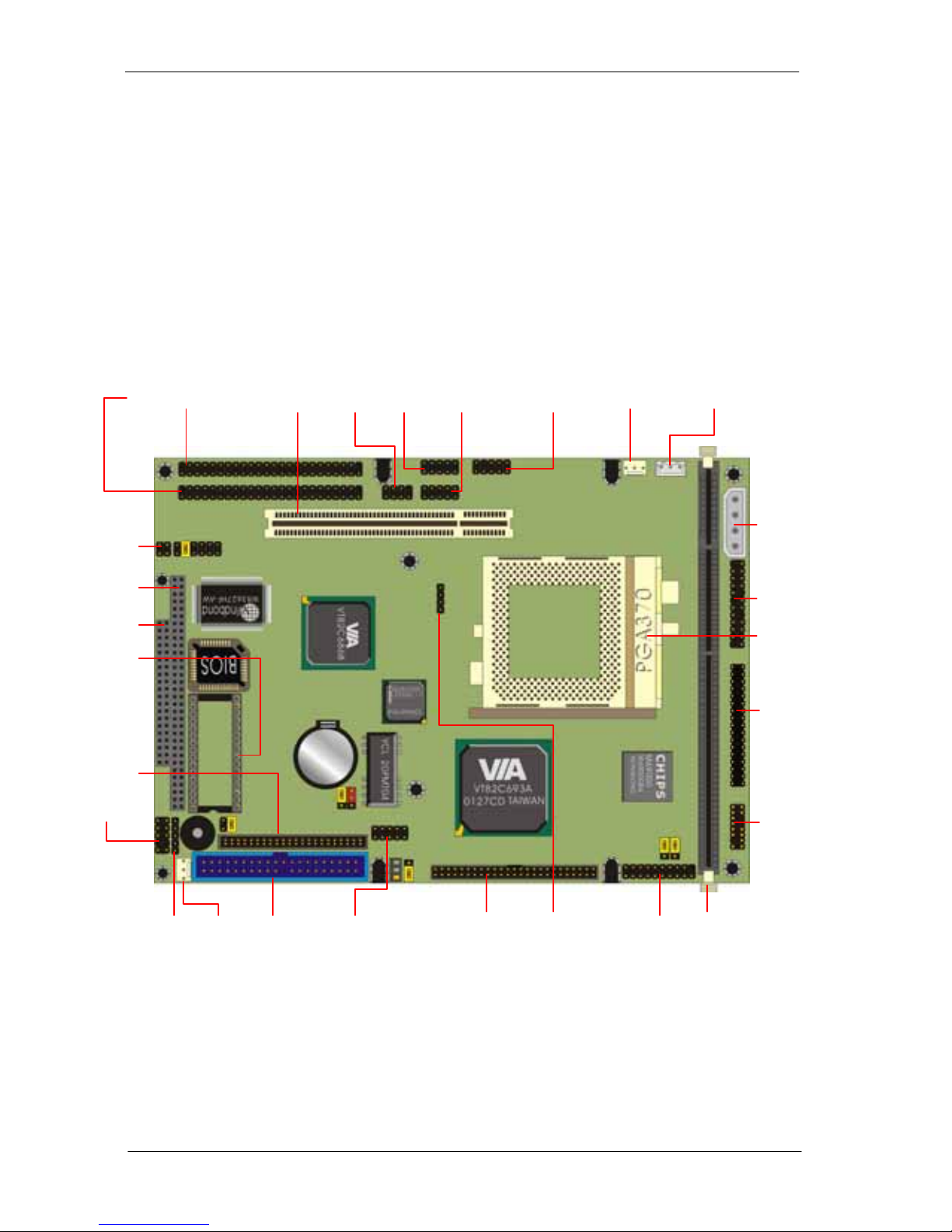

2.1 Jumpers and Connectors Location
JIO1JIO2 PCI1 J6 JUSB1JUSB2 JAUDIO CPUFAN ATXCON
PWRCON
JFRNT
U2
FDD
VGA
JRS
JP1
JP2
U9
IDE2
JKB_MS
JIR SYSFAN IDE1 LANCON LCD SONY JLVDS M1
3302440 User’s Manual
12

2.1.1 Jumpers Reference
Jumper Function Section
JRTC COMS Setting 2.3
JWDT Watchdog Timer Setting 2.4
SWDT Time Out Value of Watchdog Timer Setting 2.4
JDOC DiskOnChip Address Setting 2.5.1
J1 Flat Panel’s Voltage Setting 2.7.2
J2 Flat Panel’s Power Setting 2.7.2
JLAN LAN Enable / Disable Setting 2.8
JCOMSEL COM2 RS-232/422/485 Mode Setting 2.10.1
O
ON N E EC CE E
1
12 23 3
4
4
Back Side
SWDT
JCOMSEL
JDOC JWDT JRTC JLAN J2 J1
3302440 User’s Manual 13

2.1.2 Connectors Reference
Connector Function Remark
U2 CPU Socket PGA370 Standard
M1 168-pin DIMM Slot Standard
IDE1 40-pin Primary IDE Port Standard
IDE2 44-pin Secondary IDE Port Standard
FDD 34-pin FDD Port Standard
JIO1 50-pin COM1/2 and LPT1 Port Standard
JIO2 50-pin COM3/4 and LPT2 Port Standard
JUSB1 10-pin 1st / 2nd USB Port Standard
JUSB2 10-pin 3rd / 4th USB Port Standard
JRS 10-pin COM2 RS422/485 Serial Port Standard
U9 32-pin DiskOnChip Socket Standard
JKB_MS 10-pin PS/2 Keyboard / Mouse Connector Standard
SIR 5-pin SIR IrDA Port Standard
PWRCON 4-pin AT Power Connector Standard
ATXCON 3-pin ATX Signal Connector Standard
JFRNT 24-pin Front Panel Connector Standard
CPUFAN 3-pin CPU Fan Connector Standard
SYSFAN 3-pin System Fan Connector Standard
VGA 16-pin Analog VGA Port Standard
JAUDIO 10-pin Audio Port Standard
SONY 4-pin CD-in Interface Standard
LCD 50-pin Flat Panel Digital VGA Port Standard
JLVDS 20-pin LVDS Digital VGA Port VXL only
LAN_CON 10-pin LAN Port Connector L only
PCI1 32-bit PCI Slot Standard
J6 Additional 2 x 32-bit PCI Signal Standard
JP1/2 104-pin PC/104 Connector Standard
3302440 User’s Manual
14

2.2 CPU and DRAM Setting
The board is based on Intel socket 370 Pentium-III / Celeron architecture
supports Intel PPGA/FC-PGA and VIA C3 CPUs at 66/100/133 MHz of
FSB. The FSB, ratio and voltage of CPU is default set by CPU without any
additional jumper selection. The CPU should be installed into the CPU ZIF
socket U2.
Notice!! This board doesn’t support Pentium III Tualatin Processor.
The board supports PC-66/100/133 SDRAM up to 512 MB with ECC
supported on one 168-pin DIMM slot M1.
2.3 CMOS Setting
The board’s data of CMOS can be setting in BIOS. If the board refuses to
boot due to inappropriate CMOS settings, here is how to proceed to clear
(reset) the CMOS to its default values.
Jumper: JRTC
Type: onboard 3-pin (1 x 3) header
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting
JRTC
1
3302440 User’s Manual 15

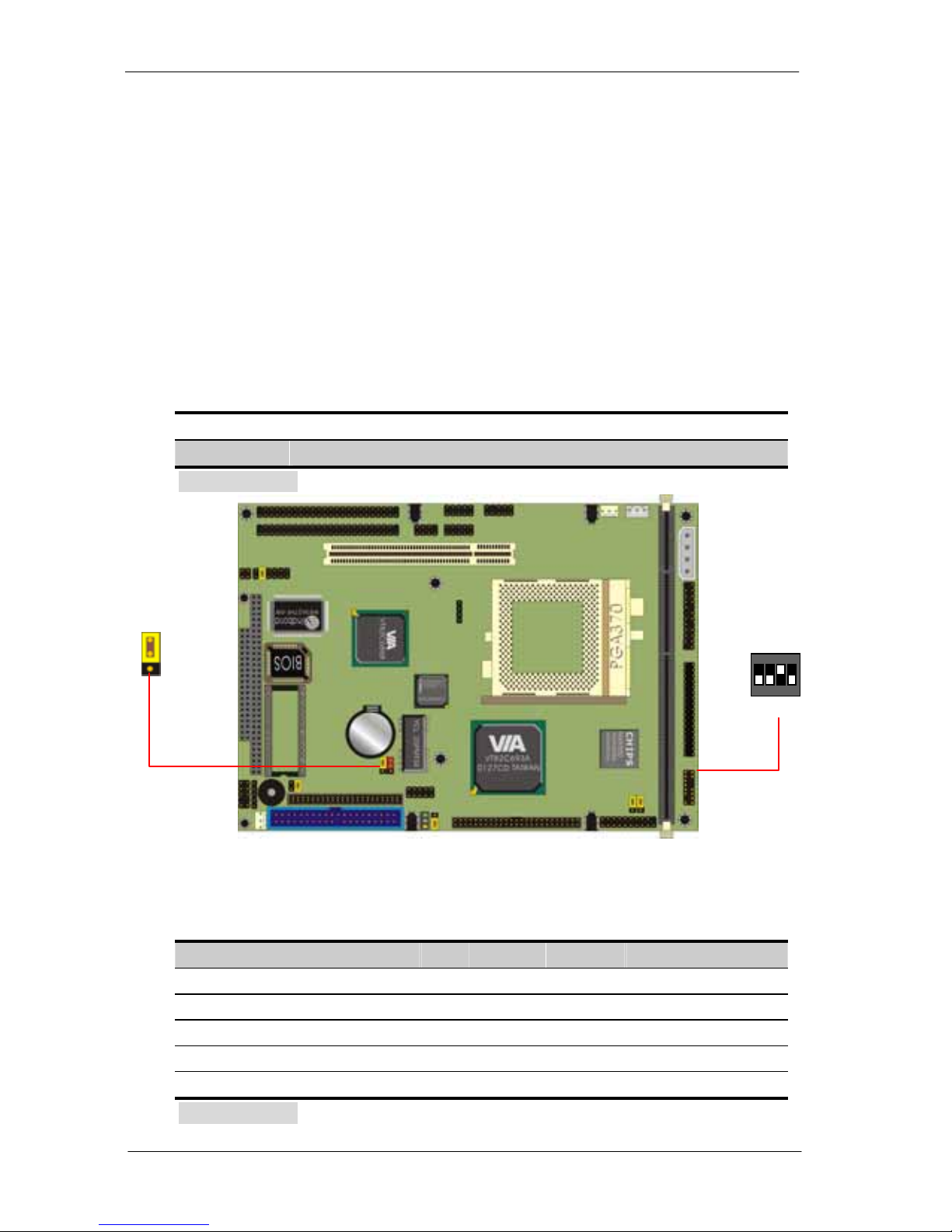

2.4 Watchdog Timer Setting
The watchdog timer makes the systems auto-reset while it stop to work for
a period. The onboard watchdog timer can be set as system reset or active
NMI mode by jumper JWDT; the timeout value can be set as 1, 2, 10, 20,
110, or 220 seconds by jumper SWDT.
Jumper: JWDT
Type: onboard 3-pin (1 x 3) header
JWDT Watchdog Timer
1-2 Active NMI
2-3 Reset
Default setting
JWDT
SWDT
O
ON N E EC CE E
1
12 23 3
4
4
1234
1
Back Side
Jumper: SWDT
Type: onboard 4-button / 2-level DIP switch
Timeout Value SWDT 1 2 3 4
1 Second OFF OFF ON OFF
2 Seconds OFF OFF ON ON
10 Seconds OFF ON OFF OFF
20 Seconds OFF ON OFF ON
110 Seconds ON OFF OFF OFF
220 Seconds ON OFF OFF ON
Default setting
3302440 User’s Manual
16

2.5 Embedded Flash Disk
The board supports both 32-pin DiskOnChip 2000 and DiskOnChip IDE Pro
embedded flash disk. The onboard 32-pin socket, U9, supports DiskOnChip
2000 single chip flash disk in 32-pin DIP JEDEC with jumper selectable
address on jumper JDOC; onboard 40-pin IDE1 box header and 44-pin IDE2
header support DOM (DiskOnModule) or M-systems DiskOnChip IDE Pro
flash disk.

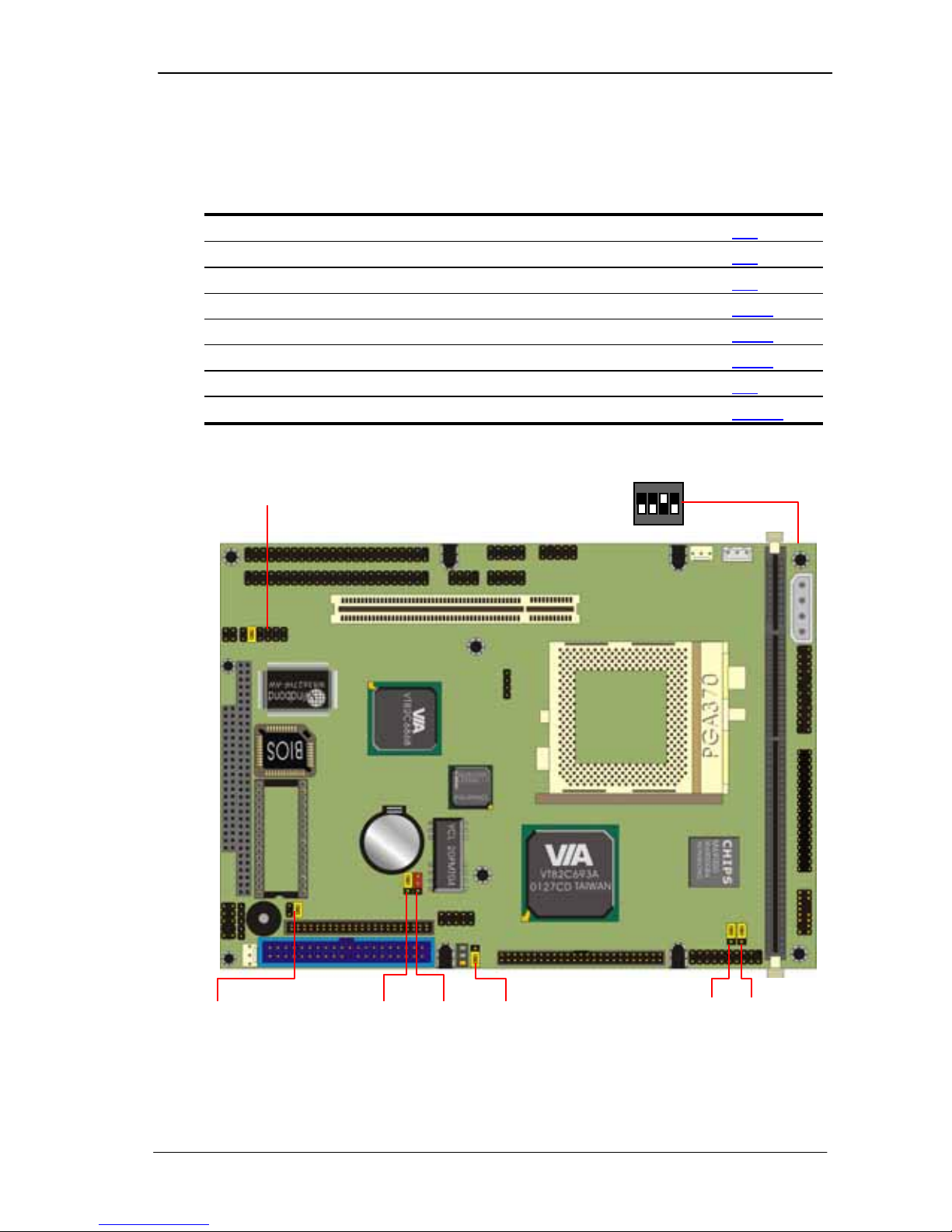

2.5.1 DiskOnChip 2000 Address Setting
Jumper: JDOC
Type: onboard 4-pin (2 x 2) header
JDOC DiskOnChip Address
1-2 D000h
3-4 D800h
Default setting
JDOC
2
4 1 3
2.5.2 DiskOnModule or DiskOnChip 2000 IDE Pro
The DiskOnModule or IDE Pro flash disk module can be used on normal
IDE ports, 40-pin IDE1 with power cable and 44-pin IDE2 without cable.
3302440 User’s Manual 17

2.6 Power and Fan Connectors
1
4
JPS
CPUFAN
3 1
1
SYSFAN
3
13
Connector: PWRCON
Type: 4-pin AT Power Connector
Pin Description Cable Color Reference
1 +12V Yellow
2 Ground Black
3 Ground Black
4 +5V Red
Connector: ATXCON
Type: 3-pin ATX Function Connector
Pin Description Pin Description Pin Description
1 5V Standby 2 Ground 3 Power On
Connector: CPUFAN, SYSFAN
Type: 3-pin Fan Power Wafer Connector
Pin Description Pin Description Pin Description
1 Ground 2 +12V 3 Fan Control
3302440 User’s Manual
18

2.7 VGA Interface
2.7.1 Standard Analog VGA Interface
The board is integrated AGP C&T69000 VGA chipset with built-in 2D
engine and 2 MB on-die video memory. It offers both analog and digital
video output for CRT or flat panel display. The analog video interface
connects via the connector VGA and digital connects via the connector
LCD or JLVDS.
VGA
15
2 1
16
Connector: VGA
Type: 16-pin (2 x 8) header
Pin Description Pin Description
1 Red 2 Green
3 Blue 4 N/C
5 Ground 6 Ground
7 Ground 8 Ground
9 N/C 10 Ground
11 N/C 12 Data
13 HSYNC 14 VSYNC
15 Clock 16 N/C
3302440 User’s Manual 19

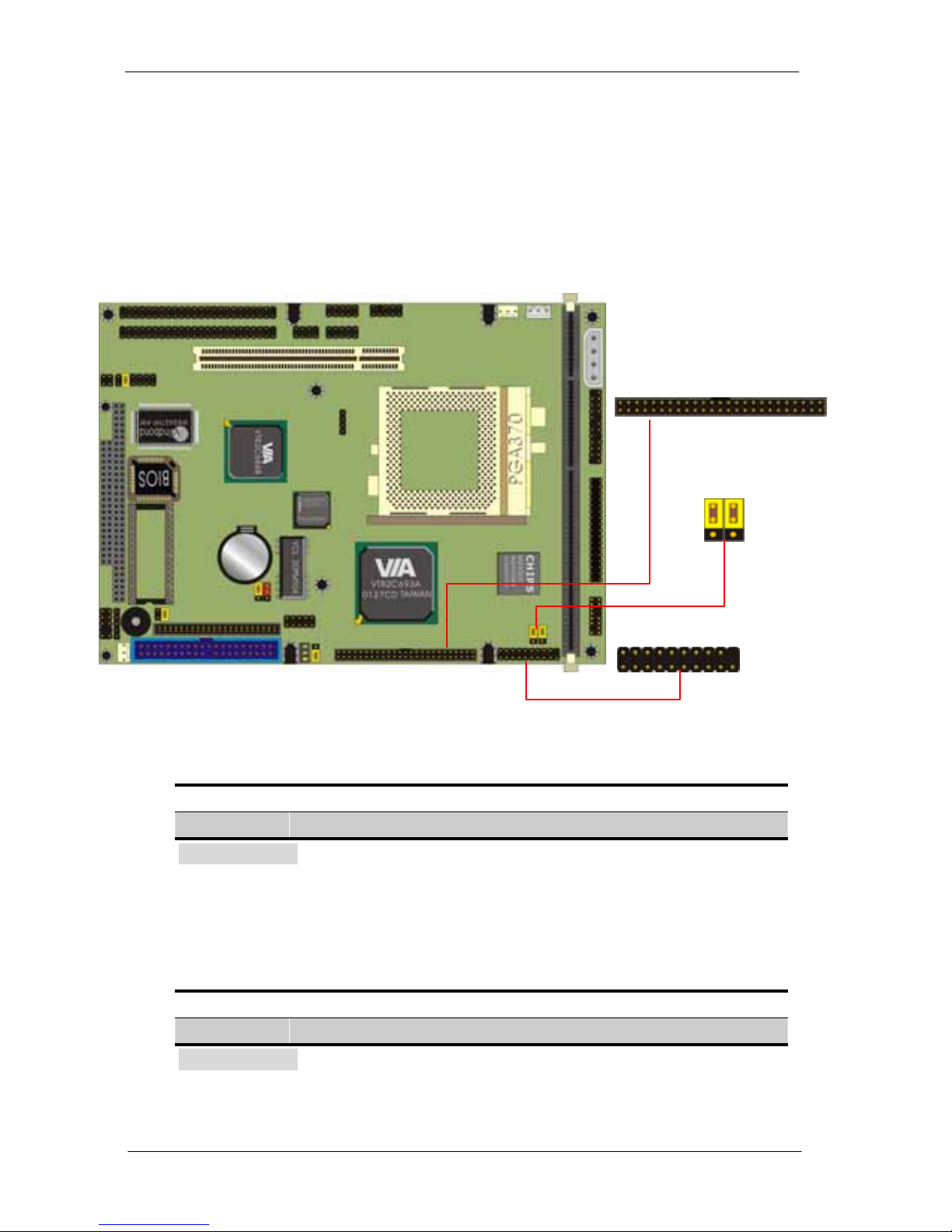

2.7.2 Digital VGA Interface
The board’s digital video interface provides both of TTL and LVDS for
different types of flat panel. The optional 24-bit LVDS interface offers the
economical solution for LVDS-based LCD display. An additional option of
digital VGA interface for OEM project with C&T69030 with 4 MB of on-die
video memory.
49 LCD 1
JLVDS 119
50 2
J2 J1
3
1
20 2
Jumper: J1
Type: onboard 3-pin (1 x 3) header
J1 LCD Voltage Setting
1-2 +5V
2-3 +3.3V
Default setting
Jumper: J2
Type: onboard 3-pin (1 x 3) header
J2 LCD Power Sequence Control
1-2 Power Input Directly
2-3 Power Sequence Control by Chipset (C&T69K)
Default setting
3302440 User’s Manual
20
