3301500 User’s Manual
Version 1.0
5.25" Embedded Controller with Socket 479

Copyrights
This document is copyrighted and all rights are reserved. It does not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic or
machine readable form in whole or in part without prior written consent from the
manufacturer.
In general, the manufacturer will not be liable for any direct, indirect, special, incidental
or consequential damages arising from the use of inability to use the product or
documentation, even if advised of the possibility of such damages. The manufacturer
keeps the rights in the subject to change the contents of this document without prior
notices in order to improve the function design, performance, quality and reliability. The
author assumes no responsibility for any errors or omissions, which may appear in this
document, nor does it make a commitment to update the information contained herein.
Trademarks
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
All other trademarks, products and or product's name mentioned herein are mentioned
for identification purposes only, and may be trademarks and/or registered trademarks of
their respective companies or owners.

Table of Contents
Chapter 1 Gerneral Description…………………….1
1.1 Major Features ..............................................................2
1.2 Specifications ...............................................................2
1.3 Board Dimensions........................................................4
Chapter 2 Unpacking………………………………..5
2.1 Opening the Delivery Package....................................5
2.2 Inspection......................................................................5
Chapter 3 Hardware Installation…………………...7
3.1 Before Installation ........................................................7
3.2 Board Layout ................................................................8
3.3 Jumper List ...................................................................9
3.4 Connector List ..............................................................9
3.5 Configuring the CPU ..................................................10
3.6 System Memory ..........................................................10
3.7 VGA Controller............................................................10
3.8 PCI E-IDE Drive Connector........................................11
3.9 Floppy Disk Drive Connector ....................................14
3.10 Serial Port Connectors...............................................15
3.11 Parallel Connector......................................................15
3.12 Ethernet Connector ....................................................16
3.13 USB Connector ...........................................................16
3.14 CMOS Data Clear ........................................................17
3.15 Power and Fan Connectors.......................................17
3.16 Keyboard/Mouse Connectors ...................................18
3.17 System Front Panel Connectors...............................18
3.18 Audio Connectors ......................................................19
3.19 IrDA Connector ...........................................................19
3.20 Watchdog Timer..........................................................19

Safety Instructions
Integrated circuits on computer boards are sensitive to static electricity.
To avoid damaging chips from electrostatic discharge, observe the
following precautions:
 Do not remove boards or integrated circuits from their anti-static
packaging until you are ready to install them.
 Before handling a board or integrated circuit, touch an unpainted portion
of the system unit chassis for a few seconds. This helps to discharge any
static electricity on your body.
 Wear a wrist-grounding strap, available from most electronic component
stores, when handling boards and components. Fasten the ALLIGATOR
clip of the strap to the end of the shielded wire lead from a grounded
object. Please wear and connect the strap before handling the 3301500
to protect yourself from the discharge of any static electricity through the
strap.
 Please use an anti-static pad when putting down any components or
parts or tools outside the computer. You may also use an anti-static bag
instead of the pad. Please inquire from your local supplier for additional
assistance in finding the necessary anti-static gadgets.
NOTE: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENT WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTION.

1
Chapter 1
General Description
The 3301500 is an Intel®82855GME/ICH4 chipset-based board
designed for PCI Bus PGA 479 Intel®Pentium®M 1.2~1.7GHz CPU
compatibility. These features combine and make the 3301500 an ideal
all-in-one industrial single board computer. Additional features include
and enhanced I/O with CRT/LVDS Panel, Giga LAN, audio and
USB2.0 ports interface.
Its onboard ATA/33/66/100 to IDE drive interface architecture allows
the 3301500 to support data transfers of 33, 66 or 100MB/sec. to each
IDE drive connection. Designed with the Intel®82855GME/ICH4 core
logic chipset, the board supports all PGA 479 Pentium®M CPU series
operating 1.2~1.7GHz. The display controller is Intel®82855GME
supporting CRT display up to 1600 x 1200, and also provides 24-bit
single channel LVDS panel interface.
System memory is also sufficient with one DDR socket that can support
up to 1GB.
Additional onboard connectors include an advanced USB2.0 port
providing faster data transmission, and one RJ-45 connector for
10/100 Base-TX Ethernet use.

2
1.1 Major Features
The 3301500 comes with the following features:
 PGA 479 for Intel®Pentium®M 1.2~1.7GHz
 Supports 400MHz FSB
 One DDR socket with a max. capacity of 1GB
 Intel®82855GME/ICH4 system chipset
 Winbond W83627HF super I/O chipset
 Intel 82855GME CRT display controller
 Intel 82540 100/1000 Based LAN
 AC97 3D audio controller
 Fast PCI ATA/33/66/100 IDE controller
 Two COM, six USB2.0 connectors
 Supports LVDS Panel interface
 Supports Hardware Monitor function
1.2 Specifications
 CPU: PGA 479 for Intel®Pentium®M 1.2~1.7GHz
 Bus Interface: PCI Bus
 Front Side Bus: Supports 400MHz FSB
 Memory: One DDR socket supporting up to 1GB (DDR-200/DDR-266)
 Chipset: Intel®82855GME/ICH4
 I/O Chipset: Winbond W83627HF
 PCI Slot: One standard PCI slot
 VGA: Intel 82855GME supporting CRT display up to 1600 x 1200
 Panel Display: Supports 24-bit single channel LVDS Panel interface
 LAN: Intel®82540 100/1000 Based LAN
 Audio: AC97 3D audio controller
 IDE: Four IDE disk drives supporting ATA/33/66/100 and with transfer
rates of up to 33/66/100MB/sec.
 FDD: Supports one slim floppy disk drive

3
 Parallel: One enhanced bi-directional parallel port supporting
SPP/ECP/EPP
 Serial Port: 16C550 UART-compatible RS-232 x 2 serial ports with
16-byte FIFO
 IrDA: One TX/RX IrDA header
 USB: Supports six USB2.0 connectors
 Keyboard/Mouse: PS/2 6-pin Mini DIN
 BIOS: Award PnP Flash BIOS
 Watchdog Timer: Software program time-out intervals from 1~256
sec.
 CMOS: Battery backup
 Power Connector: One 8-pin +5V/+12V ATX power connector
 Temperature: 0~60°C (operating); -20~+80°C (storage)
 Humidity: 10~90%; non-condensing (operating)
 Hardware Monitor: Winbond W83627HF
 Board Size: 20.3 x 14.6 cm

4

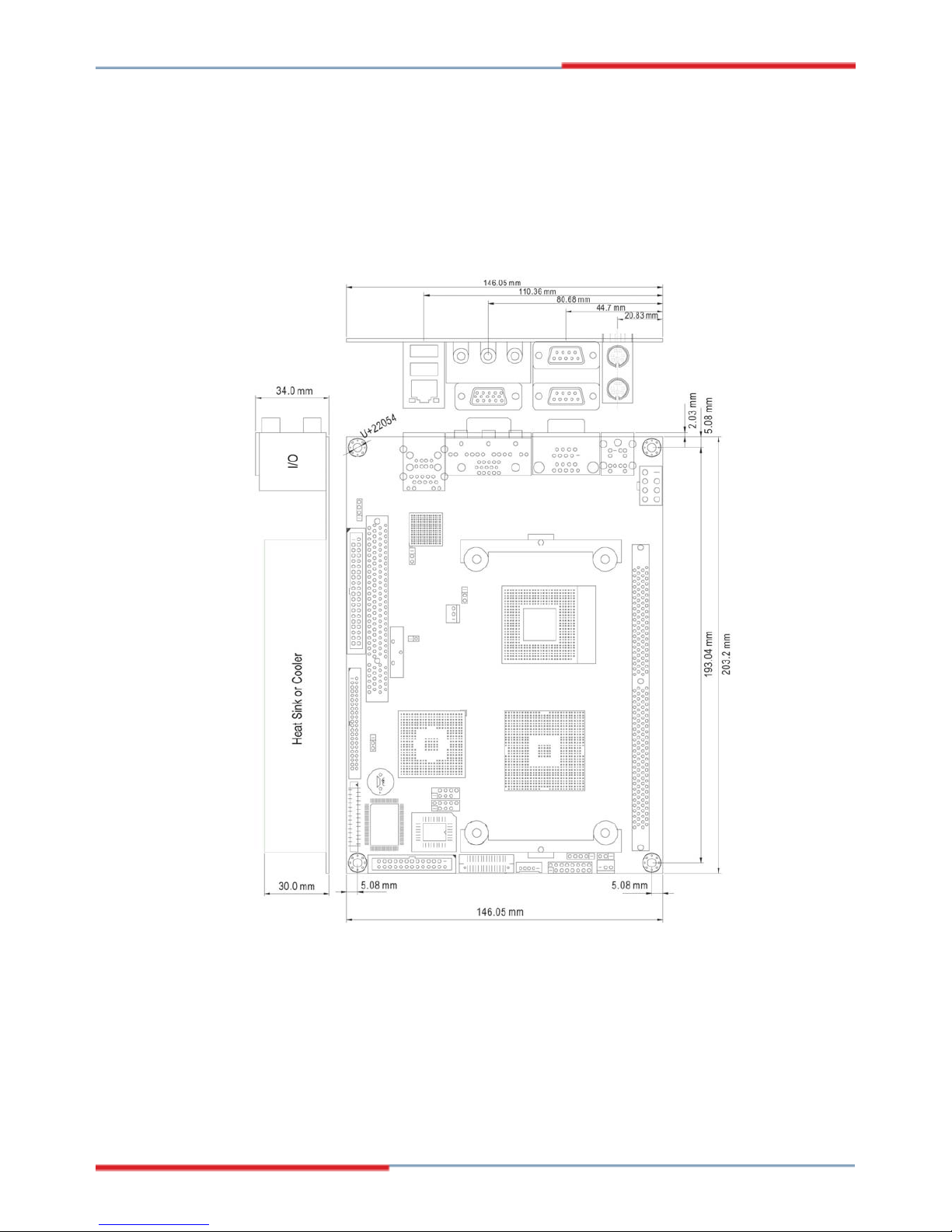

1.3 Board Dimensions

5
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The 3301500 is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.
2.2 Inspection
After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, and keyboard controller chip to ensure
that they are firmly seated. The 3301500 delivery package contains the
following items:
 Board x 1
 Utility CD Disk x 1

ATA/66/100 IDE flat cable
 Parallel flat cable x 1

USB2.0 cable
 ATX power cable

Low Profile Heatsink with Fan
 User’s Manual

6
It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the returned shipment of the product. In case you discover
anything missing and/or damaged items from the list of items, please
contact your dealer immediately.

7
Chapter 3
Hardware Installation
This chapter provides the information on how to install the hardware
using the 3301500. This chapter also contains information related to
jumper settings of switch, watchdog timer selection, etc.
3.1 Before Installation
After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.
1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper.
2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections in this chapter for
the detailed information on the connectors.
3. Keep the manual and diskette in good condition for future
reference and use.

8
3.2 Board Layout

9
3.3 Jumper List
Jumper
Default Setting Setting Page
JP1 Clear CMOS Select: Normal Operation Short 1-2 17
JP2 Watchdog Timer Select: Reset Short 2-3 19
JP3 Bus Clock Rate Select: 400MHz FSB Short 1-2 10
JP4 Fan1 Voltage Select: +12V Short 1-2 17
JP5 Fan1 Voltage Select: +12V Short 1-2 17
3.4 Connector List
Connector Definition Page
CN1 Slim FDD Connector 14
CN2 Secondary IDE Connector 11
CN3 Primary IDE Connector 11
CN4 CD-In Connector 19
CN6 RJ-45 & USB 0/USB 1 Connectors 16/16
CN7 Parallel Connector 15
CN8 USB 4/USB 5 Connector 16
CN9 USB 2/USB 3 Connector 16
CN10 Fan1 Power Connector 17
CN11 CRT & Audio Connectors 10/19
CN12 24-bit LVDS Panel Connector 10
CN13 LVDS Power Connector 10
CN14 COM 1 & COM 2 Connectors 15
CN15 System Front Panel Connector 18
CN16 IrDA Connector 19
CN17 Fan2 Power Connector 17
CN18 PS/2 6-pin Mini DIN KB/MS Connector 18
CN19 8-pin ATX Power Connector 17
DIMM1 184-pin DDR Socket 10

10
3.5 Configuring the CPU
The 3301500 offers the convenience in CPU installation with its
auto-detect feature. After installing a new microprocessor onboard, the
3301500 automatically identifies the frequency and clock speed of the
installed microprocessor chip, thereby eliminating the need for user to
do additional CPU configuration or hardware settings related to it.
 JP3: Bus Clock Rate Select
Options Settings
400MHz FSB (default) Short 1-2
533MHz FSB Open 1-2
1
2
3.6 System Memory
The 3301500 provides one DDR socket at location DIMM1. The
maximum capacity of the onboard memory is 1GB.
3.7 VGA Controller
NOTE 1: 3301500 does not support DSTN/STN Panel.
NOTE 2: 3301500 does not support 640 x 480 TFT Panel.
NOTE 3: There are specific panel cable and inverter for each different LCD.
If customers need other LCDs (different from TOSHIBA
LTM10C348F), please contact your sale representatives.
The onboard Intel 82845GME supports CRT display up to 1600 x 1200.
The 3301500 provides two connection methods of CRT and LVDS
Panel device. CN11 offers a CRT connector, and CN12 offers 24-bit
single channel LVDS Panel connectors.
 CN11: CRT Connector
PIN Description PIN Description
1 Red 2 Green
3 Blue 4 N/C
5 GND 6 GND
7 GND 8 GND
9 VCC 10 GND
11 N/C 12 DDDATA
13 HSYNC 14 VSYNC
15 DDCLK
1
6
10
11
5
15

11

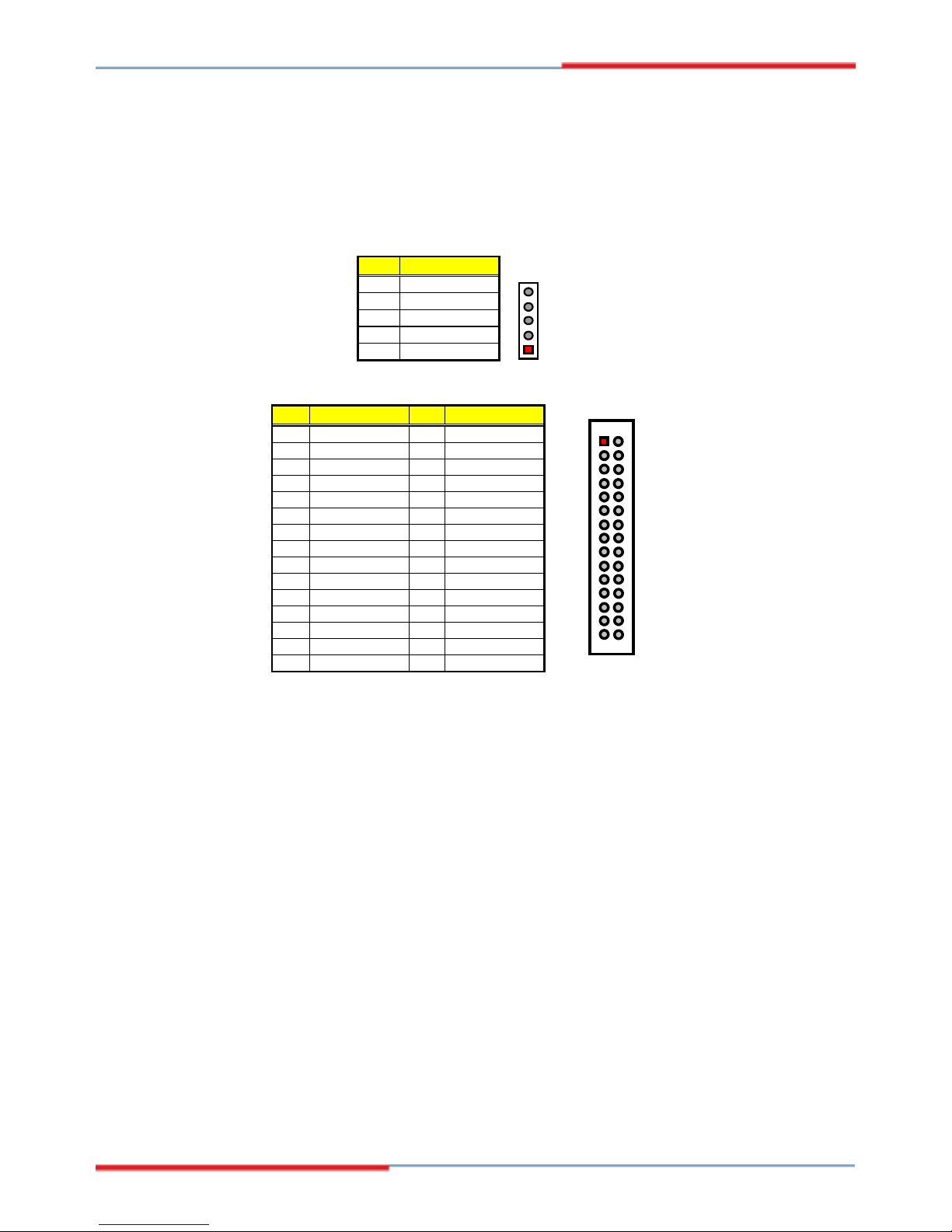

 CN13: LVDS Power Connector
PIN. Description
1 GND
2 N/C
3 LCD_BKL
4 GND
5 +12V
+12V
GND
LCD_BKL
N/C
GND
1
5
 CN12: 24-bit LVDS Connector
PIN Description PIN Description
1 LVDS_YAM0 2 LVDS_YAM1
3 LVDS_YAP0 4 LVDS_YAP1
5 GND 6 GND
7 GND 8 GND
9 LVDS_YAM2 10 LVDS_CLKAM
11 LVDS_YAP2 12 LVDS_CLKAP
13 GND 14 GND
15 GND 16 GND
17 LVDS_YAM3 18 GND
19 LVDS_YAP3 20 GND
21 GND 22 GND
23 GND 24 GND
25 VCC 26 VCC
27 VCC 28 VCC
29 VCC 30 VCC
12
3029
3.8 PCI E-IDE Drive Connector
CN3 and CN2 are standard 40-pin and 44-pin daisy-chain driver
connectors that serve the PCI E-IDE drive provisions onboard the
3301500. A maximum of four ATA/33/66/100 IDE drives can be
connected to the 3301500 via CN3 and CN2.

12
 CN3: Primary IDE Connector
PIN Description PIN Description
1 Reset IDE 2 GND
3 Host Data 7 4 Host Data 8
5 Host Data 6 6 Host Data 9
7 Host Data 5 8 Host Data 10
9 Host Data 4 10 Host Data 11
11 Host Data 3 12 Host Data 12
13 Host Data 2 14 Host Data 13
15 Host Data 1 16 Host Data 14
17 Host Data 0 18 Host Data 15
19 GND 20 N/C
21 DRQ 0 22 GND
23 Host IOW 24 GND
25 Host IOR 26 GND
27 IOCHRDY 28 Host ALE
29 DACK 0 30 GND
31 IRQ14 32 N/C
33 Address 1 34 N/C
35 Address 0 36 Address 2
37 Chip Select 0 38 Chip Select 1
39 Activity 40 GND
Reset IDE Host Data 7 Host Data 6 Host Data 5 Host Data 4 Host Data 0 GND DRQ 0 Host IOW Host IOR IOCHRDY DACK 0 IRQ 14 Address 1 Host Data 3 Host Data 2 Host Data 1 Address 0 Chip Select 0 Activity
GND
Host Data 8 Host Data 9
Host Data 10 Host Data 11 Host Data 15
N/C
GND GND GND
Host ALE
GND
N/C N/C
Host Data 12 Host Data 13 Host Data 14
Address 2
Chip Select 1
GND
1
2
40
39

13
 CN2: Secondary IDE Connector
PIN Description PIN Description
1 Reset IDE 2 GND
3 Host Data 7 4 Host Data 8
5 Host Data 6 6 Host Data 9
7 Host Data 5 8 Host Data 10
9 Host Data 4 10 Host Data 11
11 Host Data 3 12 Host Data 12
13 Host Data 2 14 Host Data 13
15 Host Data 1 16 Host Data 14
17 Host Data 0 18 Host Data 15
19 GND 20 N/C
21 DRQ 1 22 GND
23 Host IOW 24 GND
25 Host IOR 26 GND
27 IOCHRDY 28 Host ALE
29 DACK 1 30 GND
31 IRQ15 32 N/C
33 Address 1 34 N/C
35 Address 0 36 Address 2
37 Chip Select 0 38 Chip Select 1
39 Activity 40 GND
41 VCC_5V 42 VCC_5V
43 GND 44 N/C
Reset IDE Host Data 7 Host Data 6 Host Data 5 Host Data 4 Host Data 0 GND DRQ 1 Host IOW Host IOR IOCHRDY DACK 1 IRQ 15 Address 1 Host Data 3 Host Data 2 Host Data 1 Address 0 Chip Select 0 Activity
GND
Host Data 8 Host Data 9
Host Data 10 Host Data 11 Host Data 15
N/C
GND GND GND
Host ALE
GND
N/C N/C
Host Data 12 Host Data 13 Host Data 14
Address 2
Chip Select 1
GND
1
2
44
43
VCC_5V GND
VCC_5V
N/C

14
3.9 Floppy Disk Drive Connector
The 3301500 uses a slim 26-pin header connector, CN1, for floppy
disk drive connection. A total of one FDD drive may be connected to
CN1 at any given time.
 CN1: Slim FDD Connector
PIN Description PIN Description
1 +5V 14 Step
2 Index 15 GND
3 +5V 16 Write_Data
4 Drive_Select 17 GND
5 +5V 18 Write_Gate
6 Disk_Change 19 GND
7 N/C 20 Track
8 Ready 21 GND
9 HD_Out 22 Write_Protect
10 Motor_On 23 GND
11 Reserve 24 Read_Date
12 Direction 25 GND
13 N/C 26 Side_One
1
26
