GLOBAL DIAGNOSTICS MICRO SHAKE 1200 User manual

F12, User Manual, V2 12.2020 MICRO SHAKE 1200
Page 1of 25
ELISA Plate Shaker/Incubator
MICRO SHAKE 1200
USER MANUAL

F12, User Manual, V2 12.2020 MICRO SHAKE 1200
Page 2of 25
TABLE OF CONTENTS
1. GENERAL INFORMATION...................................................................................................... 4
1.1. WARRANTY INFORMATION..............................................................................................................4
1.2. TECHNICAL SERVICE .......................................................................................................................4
1.3. DISPOSAL INSTRUCTION ..................................................................................................................4
1.4. CONTACTS .......................................................................................................................................4
2. GENERAL SAFETY WARNINGS............................................................................................ 5
2.1. DANGER –WARNING SYMBOLS ...................................................................................................... 5
2.2. USE OF THE INSTRUMENT ................................................................................................................6
3. INTRODUCTION...................................................................................................................... 6
3.1. SPECIAL FEATURES:.........................................................................................................................7
3.2. SPECIFICATIONS...............................................................................................................................7
4. PACKING , TRANSPORT AND STORAGE............................................................................ 7
4.1. GENERAL WARNINGS .....................................................................................................................8
4.2. PACKING .........................................................................................................................................8
4.3. INSTRUMENT TRANSPORTATION ....................................................................................................8
4.4. STORAGE OF THE INSTRUMENT ......................................................................................................8
5. INSTRUMENT DESCRIPTION................................................................................................ 9
5.1. PERSPECTIVE VIEW:......................................................................................................................9
(A) FRONT VIEW..................................................................................................................................9
(B) REAR VIEW....................................................................................................................................9
6. INSTALLATION PROCEDURE & VERIFICATION CRITERIA............................................ 10
6.1. UNPACKING INSTRUCTIONS...................................................................................................... 10
6.2. PLACING THE INSTRUMENT ...................................................................................................... 10
6.3. POWER SUPPLY REQUIREMENTS............................................................................................... 10
6.4. PROTECTIVE GROUNDING......................................................................................................... 10
6.5. START UP INSTRUCTIONS.......................................................................................................... 10
7. PRECAUTIONS...................................................................................................................... 11
8. GENERAL KEY AND OPERATION....................................................................................... 11

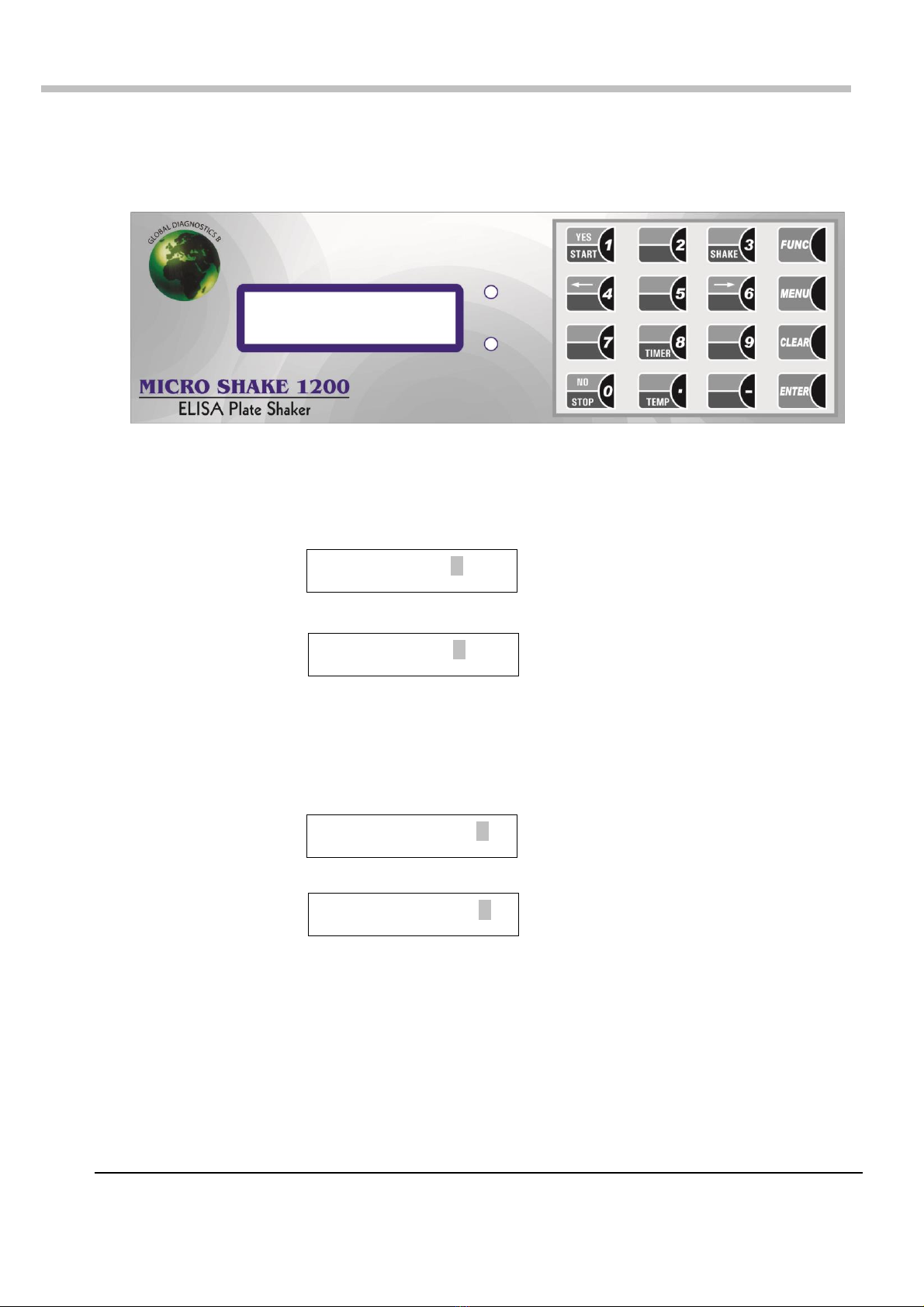

8.1. KEYPAD ...................................................................................................................................12
8.1.1. START /YES KEY ..................................................................................................................12
8.1.2. STOP /NO KEY ......................................................................................................................12
8.1.3. SHAKE KEY ...........................................................................................................................13
8.1.4. FUNC KEY..............................................................................................................................14
8.1.5. MENU KEY ............................................................................................................................15
8.1.6. TIMER KEY............................................................................................................................16
8.1.7. CLEAR KEY ...........................................................................................................................17
8.1.8. TEMP KEY .............................................................................................................................18

F12, User Manual, V2 12.2020 MICRO SHAKE 1200
Page 3of 25
8.1.9. ENTER KEY............................................................................................................................18
8.2. DEFAULT SETTING.......................................................................................................18
9. SAVING THE TEST................................................................................................................. 19
10. DELETING THE TEST........................................................................................................... 20
11. RECALLING THE TEST........................................................................................................ 21
12. ERROR MESSAGES......................................................................................................... 22
13. DECONTAMINATION............................................................................................................ 23
13.1. DECONTAMINATION PROCEDURE..........................................................................................23
13.2. PURPOSE OF DECONTAMINATION..........................................................................................23
13.3. GENERAL CONSIDERATIONS..................................................................................................23
13.4. PROCEDURE ...........................................................................................................................23
14. SAFETY CLEARANCE CERTIFICATE................................................................................. 24
15. SPARE PARTS...................................................................................................................... 25
15.1. ORDERING SPARE PARTS.......................................................................................................25

F12, User Manual, V2 12.2020 MICRO SHAKE 1200
Page 4of 25
1. GENERAL INFORMATION
1.1. WARRANTY INFORMATION
Each Instrument is completely tested and guaranteed for twelve months from delivery. The
warranty applies to all the mechanical and electrical parts. It is valid only for proper
installation, use, and maintenance in compliance with the instructions given in this manual.
GLOBAL DIAGNOSTICS B will at its discretion repair or replace parts, which may be
found defective in the warranty period. The warranty does not include any responsibility for
direct or indirect personal and/or material damages, caused by improper use or maintenance
of the instrument.
Parts that are inherently subject to deterioration are excluded from the warranty. In case of
defects due to misuse of the instrument, any incidental expenses like travel and man-hour
service charges will be charged extra.
1.2. TECHNICAL SERVICE
GLOBAL DIAGNOSTICS B is always accessible to the customers for any kind of
information about installation, use, maintenance, etc. While asking for service, please refer to
this manual, and report the printed serial no. on the identification label.
Only qualified technicians are entitled to fix the instrument; the user, as described in this
manual, should carry out ordinary maintenance.
GLOBAL DIAGNOSTICS B’s technical service or an authorized service center with
specialized technicians, with suitable instrumentation and original spare parts are always
available for extraordinary maintenance (repair), under a yearly maintenance contract or on
specific demand.
1.3. DISPOSAL INSTRUCTION
In case of removal or disposal of instrument, following instructions need to be followed
•Do not dispose in municipal waste; follow local regulations for instrument disposal.
•Plastic parts, Electronic PCBs and components can be recycled, so return back the
instrument to manufacturer.
1.4. MANUFACTURED BY:
Manufacturer:-
GLOBAL DIAGNOSTICS B.
Sijsjesstraat 4
2440 Geel/BELGIUM
BELGIUM
Tel:[phone]
e-mail:
[e-mail]

F12, User Manual, V2 12.2020 MICRO SHAKE 1200
Page 5 of 25
2. GENERAL SAFETY WARNINGS
2.1. DANGER –WARNING SYMBOLS
The following symbols are used to inform the user of the safety rules.
This symbol indicates generic danger. It means that, serious damage can occur to
the operator if described precautions are not observed.
This symbol indicates HIGH ELECTRIC VOLTAGE. It is dangerous to touch
any part having this label. Only qualified operators can access these components,
after unplugging the instrument from the Supply.
This symbol indicates that the instrument involves the handling of samples,
which can be infected (urine or human serum). In this condition, infection or
contamination might occur. Pay attention to the general safety warnings when in
presence of such biological substances. Use Protective clothes, gloves and
glasses.
This symbol in the user manual indicates that damages to the instrument or
erroneous results could occur if the given warnings are not followed.
This symbol indicates a portion, which is particularly important, and should be
studied carefully.
This symbol indicates a Protective Earth or Ground terminal.
General Symbols
Symbol for “Manufacturer”

F12, User Manual, V2 12.2020 MICRO SHAKE 1200
Page 6 of 25
2.2. USE OF THE INSTRUMENT
The instrument has to be used for the designed purposes under specified conditions, following
proper procedures and safety rules, by qualified personnel.
THIS MANUAL CONTAINS INSTRUCTIONS FOR OPERATION BY QUALIFIED
PERSONNEL ONLY.
A qualified user has to make sure that the environmental condition is suitable, the installation is
correct, the use and maintenance are proper, according to the general safety rules as well as to the
particular precautions described in the manual (However, the user is not entitled to repair the
instrument).
A qualified technician is entitled to maintain and fix the instrument, according to the instructions
given, using the original spare parts.
Maintain room temperature and humidity as specified in the manual.
The instrument must be used as described in this manual only. Usage in any other way will be
regarded as improper.
Alterations to the instrument are strictly prohibited. The user is liable and solely responsible for any
improper modification to the instrument, and for the consequences derived as a result.
Should the instrument need extraordinary maintenance, contact GLOBAL DIAGNOSTICS B
service or an authorized service center. Specialized technicians, who will be able to repair the
instrument using original spare parts, will carry out the maintenance.

F12, User Manual, V2 12.2020 MICRO SHAKE 1200
Page 7 of 25
3. INTRODUCTION
3.1. SPECIAL FEATURES:
•Simultaneous shaking & incubation operation.
•Buzzer indication on completion of incubation
•Indication of Remaining time
•Current temperature of incubation on display, on pressing TEMP Key.
•Separate Timer ON indication on Keypad.
3.2. SPECIFICATIONS
Operating Modes
Shaker
Incubator
Shaking & Incubator
Temperature Control
Temperature Range
Resolution
370 C to 420 C
10 C
Incubation Time
1 to 999 min
Shaker
Frequency
Amplitude
400 to 700 RPM
2 mm
Operating Position
On horizontal flat, rigid and vibration
free surface
Operating Conditions
Temperature
Relative Humidity
From + 180 C to 320 C
Up to 80%
Storage Conditions
Temperature
Relative Humidity
From -100 C to 350 C
Up to 80%
Enclosure
ABS Fire retardant
Size (cm)
28 X 25 X 16 (l X b X h)
Weight
3Kg (Approx)

F12, User Manual, V2 12.2020 MICRO SHAKE 1200
Page 8 of 25
4. PACKING, TRANSPORT AND STORAGE
4.1. GENERAL WARNINGS
Instrument has to be decontaminated before packing for transportation.
4.2. PACKING
Packaging is needed whenever it is to be transported or shipped by courier or other means.
To pack the instrument follow the instructions as below described:
•Decontaminate the instrument as explained in chapter No. 13 (Decontamination) of
this manual.
•Place the instrument into the original packaging box; Instrument has to be properly
protected by plastic protective material. Put copy of safety clearance certificate
(copy of Safety Clearance certificate is attached at the end of this manual)
•Mark the package with address, instrument identification and warning Labels.
4.3. INSTRUMENT TRANSPORTATION
The transportation of the instrument in unpacked condition must be limited within the room where it
is used, to avoid damage.
4.4. STORAGE OF THE INSTRUMENT
Before storing the instrument for a long period, pack it carefully as described above and store indoors.
Relative humidity has to be less than 85%, and temperature between 0ºc and 50ºc.

F12, User Manual, V2 12.2020 MICRO SHAKE 1200
Page 9 of 25
5. INSTRUMENT DESCRIPTION
Components of different views of the below pictured instrument:
5.1. PERSPECTIVE VIEW:
(A) Front View
(B) Rear View
NUMERIC KEYPAD
DISPLAY
ON / OFF SWITCH
COOLING FAN
PLATES
INPUT POWER SOCKET
INCUBATOR / SHAKER PLATE
HOLDER

F12, User Manual, V2 12.2020 MICRO SHAKE 1200
Page 10 of 25
6. INSTALLATION PROCEDURE & VERIFICATION CRITERIA
6.1. UNPACKING INSTRUCTIONS
Check accessories as per packing list.
Kindly store all packing materials so as to use it to repack and ship for maintenance or
servicing.
6.2. PLACING THE INSTRUMENT
•The instrument has to be placed on a level bench.
•Room temperature has to be between 10 and 35ºC with a relative humidity below 85%.
•Protect it from direct sunshine
6.3. POWER SUPPLY REQUIREMENTS
Once the instrument has been placed, plug it into a power source by the locally
available approved plug-in cable. Power cord should be CE, CSA, and UL marked.
115 - 230 Volts ± 10V, 60-50 Hz
6.4. PROTECTIVE GROUNDING
Warning: Please make sure that electrical power source is properly grounded.
6.5. START UP INSTRUCTIONS
Switch on the instrument. The instrument will display the company name
•The instrument initializes all the parameters internally, and carries out a power on self-test.
It then displays “company name”. The temperature control of the plate starts. The temperature
of the plate will maintain at 37ºc ± 0.5
•The instrument is now in IDLE mode, and ready for use.
